Cables and Connectors(Non-accredited measurements)
Modular Cables
Description
Cable Count
Connector Count (Total)
Gauge
Cable Type
ATX connector 20+4 pin (300mm)
1
1
18-22AWG
Tinned Copper
4+4 pin EPS12V (410mm)
2
2
18AWG
Tinned Copper
6+2 pin PCIe (410mm+100mm)
1
2
18AWG
Tinned Copper
6+2 pin PCIe (410mm+100mm)
1
2
18AWG
Copper
12+4 pin PCIe (410mm) (600W)
1
1
16-24AWG
Tinned Copper
SATA (110mm+100mm+100mm+100mm)
2
8
18AWG
Tinned Copper
4-pin Molex (110mm+100mm+100mm)
1
3
18AWG
Tinned Copper
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
ATX v3.1 PSU Power Excursion
✓
Performance Summary
Efficiency Rating
PLATINUM
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
90.153%
Average Noise Output (>1450 Load Combinations)
32.12dBA
Average PF (>1450 Load Combinations)
0.983
Efficiency With 10W (≤500W) or 2% (>500W) Load
67.520%
Standby Power Consumption
0.0371W
12V Ripple (Full Load)
44.08mV
5V Ripple (Full Load)
16.02mV
3.3V Ripple (Full Load)
13.91mV
5VSB Ripple (Full Load)
17.08mV
12V Load Regulation
0.22%
5V Load Regulation
0.22%
3.3V Load Regulation
0.69%
5VSB Load Regulation
1.55%
Inrush Current
Too low to detect
Efficiency Rating
PLATINUM
Noise Rating
Standard++
Average Efficiency (>1450 load combinations)
92.045%
Average Noise Output (>1450 Load Combinations)
32.04dBA
Average PF (>1450 Load Combinations)
0.944
Efficiency With 10W (≤500W) or 2% (>500W) Load
57.050%
Standby Power Consumption
0.0815W
12V Ripple (Full Load)
44.93mV
5V Ripple (Full Load)
16.80mV
3.3V Ripple (Full Load)
13.27mV
5VSB Ripple (Full Load)
16.11mV
12V Load Regulation
0.34%
5V Load Regulation
0.32%
3.3V Load Regulation
0.90%
5VSB Load Regulation
1.55%
Inrush Current
Too low to detect
12V Transient Response (200%)
11.60V
5V Transient Response (200%)
4.965V
3.3V Transient Response (200%)
3.258V
5VSB Transient Response (200%)
4.963V
Hold-Up Time & Power Ok Signal
18.40ms
AC Loss to PWR_OK Hold Up Time
15.70ms
PWR_OK Inactive to DC Loss Delay
2.70ms
PSU Timings: T1 (20% / 100%)
42.0ms
42.0ms
PSU Timings: T3 (20% / 100%)
128.0ms
128.0ms
12V OCP (28.7°C / 43.8°C)
92.60A (148.16%), 12.061V
90.00A (144.00%), 12.063V
5V OCP (28.7°C / 43.8°C)
25.3A (126.50%), 5.041V
25.4A (127.00%), 5.045V
3.3V OCP (28.7°C / 43.8°C)
26.1A (130.50%), 3.345V
25.1A (125.50%), 3.343V
5VSB OCP (28.7°C / 43.8°C)
3.7A (148.00%), 4.99V
3.5A (140.00%), 4.986V
OPP (30.34°C / 42.84°C)
147.02%
142.33%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
18.4
AC Loss to PWR_OK Hold Up Time (ms)
15.7
PWR_OK Inactive to DC Loss Delay (ms)
2.7
Vampire Power
Tables
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
115.05 V
115.02 V
113.85 V
115.13 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
59.99 Hz
59.40 Hz
60.01 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.416
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.13 %
0.10 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.037 W
-0.006 W
N/A
0.071 W
N/A
N/A
Apparent Power:
7.282 W
7.258 W
N/A
7.307 W
N/A
N/A
Power Factor:
0.006
N/A
N/A
N/A
N/A
N/A
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
230.10 V
230.07 V
227.70 V
230.10 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
50.00 Hz
49.50 Hz
50.00 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.415
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.15 %
0.13 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.082 W
0.040 W
N/A
0.136 W
N/A
N/A
Apparent Power:
23.241 W
23.205 W
N/A
23.273 W
N/A
N/A
Power Factor:
0.004
N/A
N/A
N/A
N/A
N/A
Graphs

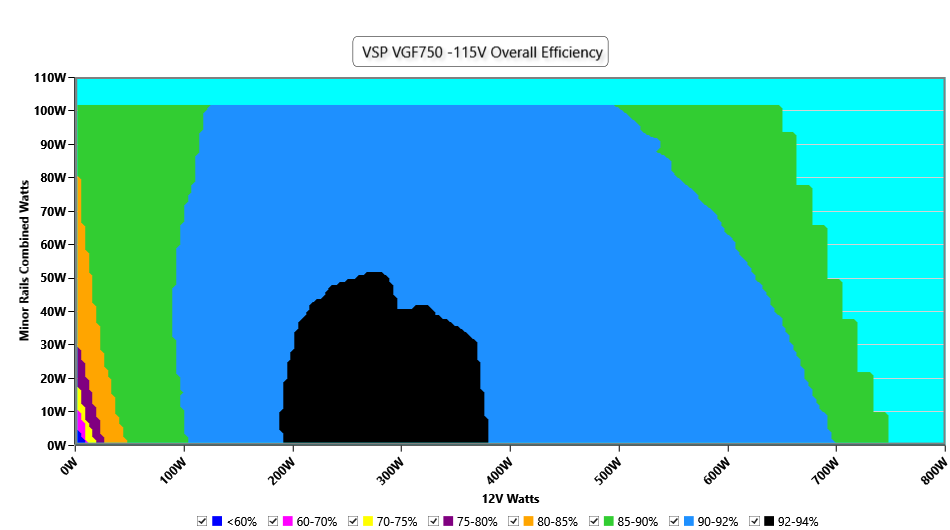

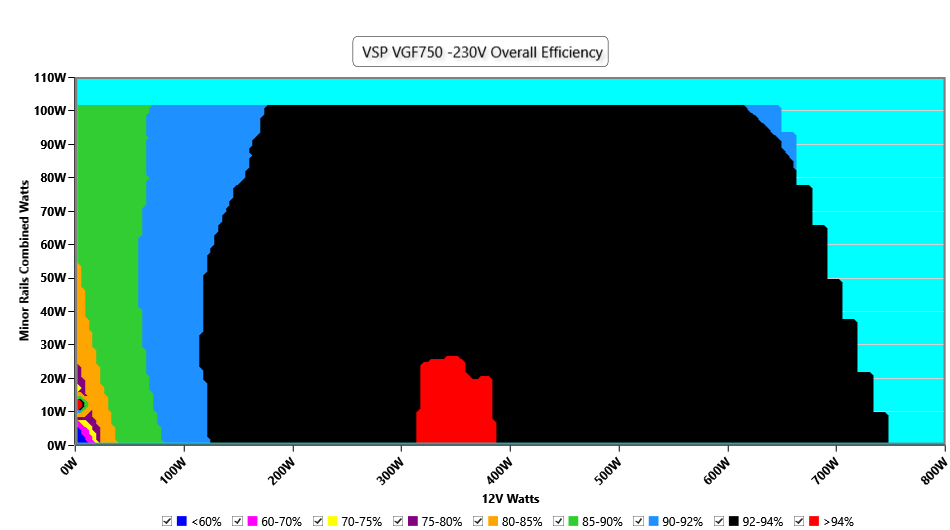

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

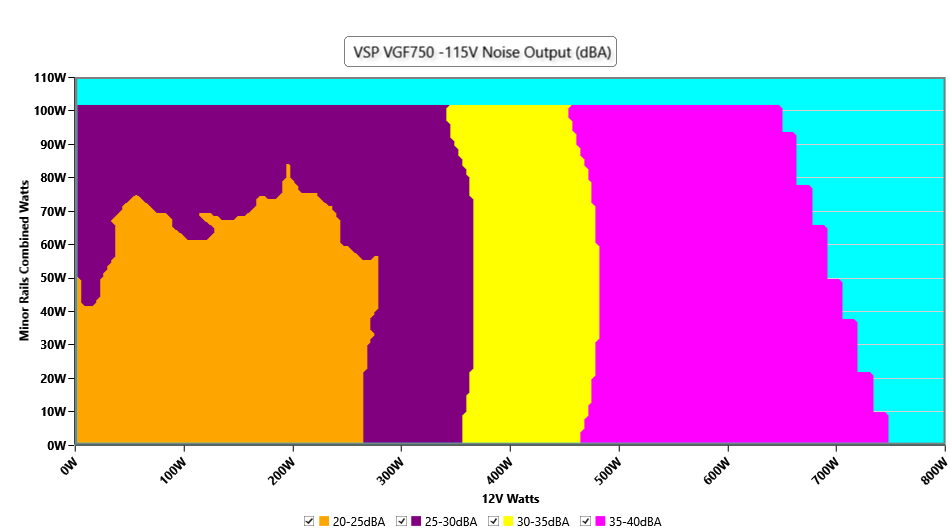

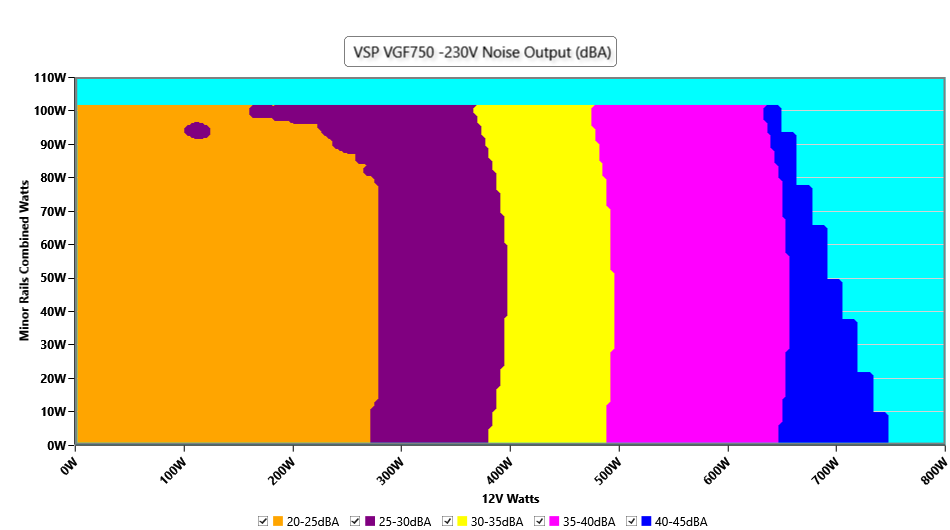

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

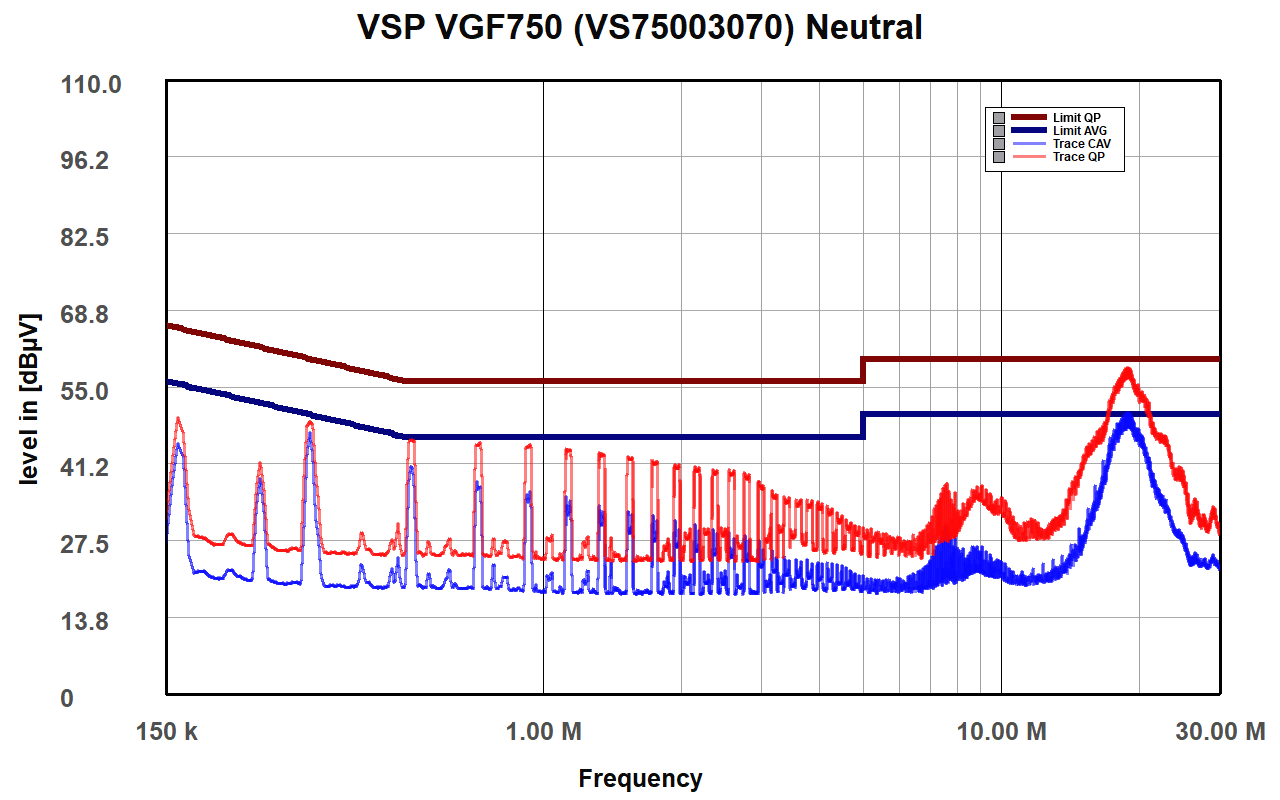

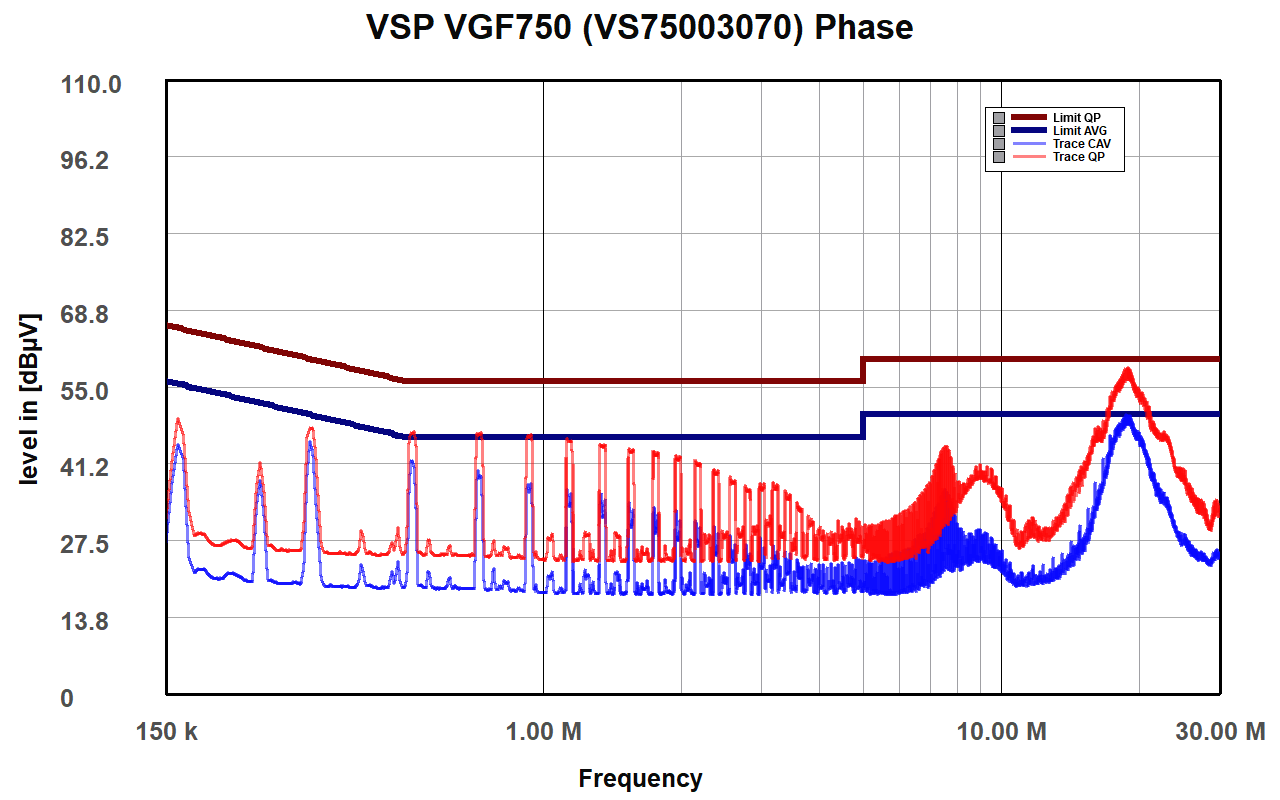

Conducted Emissions EN55032 & CISPR 32
NEUTRAL
PHASE
Indicative Performance

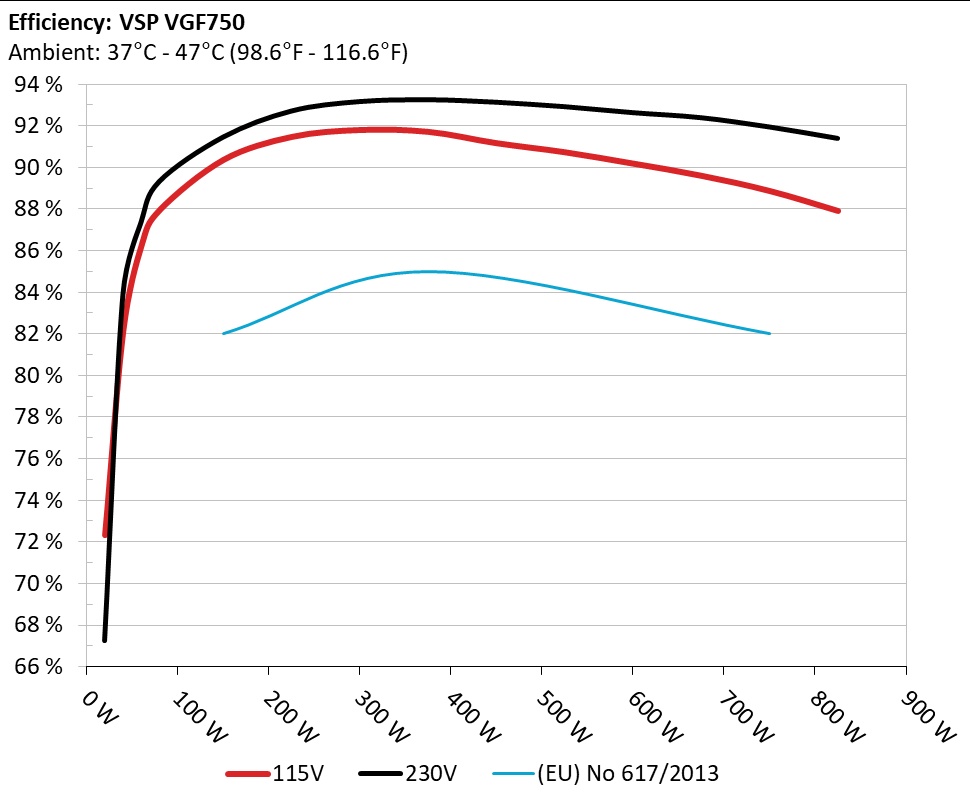

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

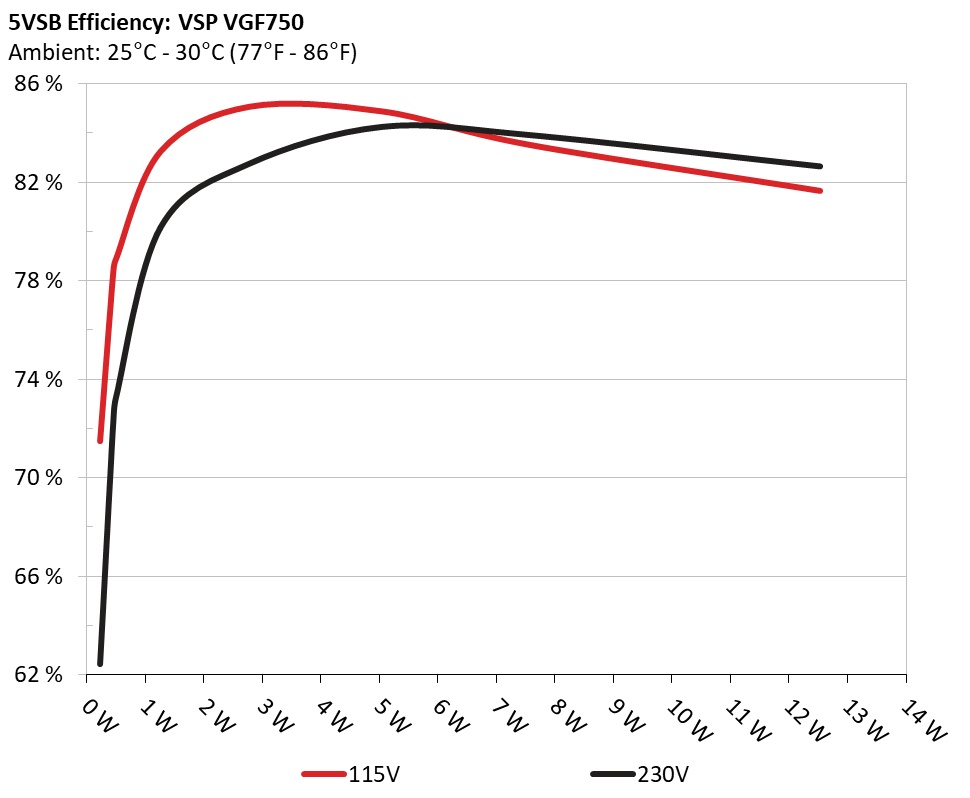

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
Proper Operation
UVP (Full Load @ 90V)
✓
UVP (No Damage @ 80V)
✓
Conducted Emissions EN55032 & CISPR 32
✓
NLO
✓
Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
4.416A
1.979A
1.97A
0.994A
75.005
86.877%
1499
26.4
40.26°C
0.95
12.093V
5.055V
3.35V
5.029V
86.336
42.52°C
114.95V
20%
9.847A
2.969A
2.957A
1.195A
149.963
90.364%
1603
27.3
40.69°C
0.969
12.091V
5.054V
3.348V
5.022V
165.956
42.53°C
114.92V
30%
15.628A
3.464A
3.452A
1.396A
224.971
91.471%
1692
28.9
41.18°C
0.977
12.088V
5.053V
3.346V
5.015V
245.949
41.76°C
114.91V
40%
21.418A
3.96A
3.948A
1.598A
300.061
91.803%
1845
31.5
41.92°C
0.984
12.086V
5.052V
3.344V
5.008V
326.855
44.55°C
114.88V
50%
26.829A
4.952A
4.939A
1.8A
374.661
91.715%
1916
34
42.16°C
0.988
12.082V
5.05V
3.341V
5.002V
408.504
42.49°C
114.86V
60%
32.265A
5.944A
5.931A
2.001A
449.562
91.171%
2097
35.9
42.82°C
0.99
12.080V
5.048V
3.339V
4.995V
493.093
43.34°C
114.84V
70%
37.706A
6.936A
6.925A
2.206A
524.48
90.736%
2290
38
43.07°C
0.992
12.076V
5.047V
3.336V
4.987V
578.03
44.41°C
114.83V
80%
43.217A
7.927A
7.919A
2.309A
599.694
90.191%
2430
39.6
43.95°C
0.993
12.074V
5.046V
3.333V
4.981V
664.909
45.89°C
114.81V
90%
49.062A
8.424A
8.404A
2.412A
674.734
89.603%
2592
42
44.54°C
0.994
12.071V
5.045V
3.331V
4.975V
753.023
46.56°C
114.79V
100%
54.910A
8.921A
8.92A
2.516A
749.864
88.872%
2733
42.9
45.96°C
0.995
12.068V
5.044V
3.329V
4.969V
843.758
47.08°C
114.77V
110%
60.436A
9.914A
10.009A
2.518A
824.901
87.914%
2861
44
47.1°C
0.995
12.064V
5.043V
3.327V
4.965V
938.313
48.65°C
114.75V
CL1
0.116A
11.905A
11.872A
0A
101.305
84%
2181
36.8
40.51°C
0.971
12.097V
5.057V
3.344V
5.04V
120.602
41.73°C
114.94V
CL2
0.116A
19.774A
0A
0A
101.398
83.739%
1975
34.8
40.27°C
0.973
12.096V
5.057V
3.352V
5.043V
121.088
41.89°C
114.95V
CL3
0.115A
0A
19.766A
0A
67.391
77.32%
1886
32.4
40.74°C
0.95
12.091V
5.057V
3.339V
5.041V
87.16
40.48°C
114.95V
CL4
62.142A
0A
0A
0.001A
749.821
89.912%
2308
38.2
45.85°C
0.995
12.066V
5.045V
3.336V
5.018V
834.05
47°C
114.79V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
4.414A
1.979A
1.971A
0.995A
75.012
87.938%
1610
27.3
40.39°C
0.81
12.101V
5.055V
3.35V
5.029V
85.3
42.16°C
230.05V
20%
9.845A
2.969A
2.958A
1.195A
149.979
91.458%
1693
28.9
40.87°C
0.911
12.094V
5.054V
3.347V
5.022V
163.985
42.85°C
230.03V
30%
15.628A
3.465A
3.454A
1.396A
224.989
92.715%
1780
31
41.47°C
0.941
12.090V
5.052V
3.344V
5.015V
242.666
43.5°C
230.03V
40%
21.420A
3.961A
3.951A
1.598A
300.086
93.172%
1891
32.7
41.91°C
0.957
12.086V
5.051V
3.341V
5.008V
322.079
43.84°C
230.02V
50%
26.841A
4.954A
4.944A
1.8A
374.78
93.258%
2003
35.1
42.18°C
0.963
12.081V
5.049V
3.338V
5V
401.872
44.76°C
230.01V
60%
32.283A
5.946A
5.938A
2.001A
449.697
93.14%
2153
36.6
42.88°C
0.969
12.077V
5.047V
3.335V
4.993V
482.819
45.58°C
230V
70%
37.729A
6.94A
6.935A
2.207A
524.634
92.927%
2289
38
43.43°C
0.974
12.073V
5.045V
3.332V
4.985V
564.567
46.18°C
229.99V
80%
43.245A
7.933A
7.932A
2.31A
599.853
92.639%
2440
39.6
43.95°C
0.976
12.069V
5.043V
3.329V
4.979V
647.514
46.9°C
229.97V
90%
49.096A
8.432A
8.419A
2.413A
674.865
92.397%
2525
40.7
44.47°C
0.978
12.065V
5.041V
3.326V
4.974V
730.394
46.73°C
229.97V
100%
54.945A
8.93A
8.937A
2.517A
749.998
91.951%
2732
42.9
45.79°C
0.98
12.062V
5.04V
3.323V
4.968V
815.653
50.66°C
229.95V
110%
60.471A
9.925A
10.03A
2.519A
825.045
91.402%
2882
43.9
46.67°C
0.982
12.059V
5.039V
3.32V
4.963V
902.66
51.25°C
229.94V
CL1
0.116A
11.905A
11.879A
0A
101.321
85.225%
2224
37.3
41.5°C
0.864
12.102V
5.057V
3.342V
5.039V
118.886
44.42°C
230.03V
CL2
0.116A
19.768A
0A
0A
101.408
84.842%
2037
34.7
40.76°C
0.867
12.101V
5.059V
3.351V
5.042V
119.525
42.83°C
230.03V
CL3
0.116A
0A
19.776A
0A
67.403
78.481%
1954
34.5
40.84°C
0.812
12.100V
5.056V
3.337V
5.041V
85.886
42.38°C
230.03V
CL4
62.167A
0A
0A
0.001A
749.895
92.722%
2584
42
45.18°C
0.979
12.062V
5.04V
3.331V
5.017V
808.76
49.62°C
229.95V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.228A
0.495A
0.492A
0.198A
20.007
72.328%
1486
25.7
37.86°C
0.84
12.095V
5.054V
3.352V
5.046V
27.664
38.61°C
114.95V
40W
2.703A
0.692A
0.689A
0.298A
40.004
82.153%
1489
25.9
37.46°C
0.91
12.094V
5.054V
3.352V
5.043V
48.695
38.06°C
114.95V
60W
4.178A
0.891A
0.886A
0.397A
60.003
86.235%
1487
25.8
38.11°C
0.942
12.093V
5.054V
3.351V
5.04V
69.579
38.91°C
114.95V
80W
5.651A
1.089A
1.083A
0.496A
79.963
87.95%
1489
25.9
39.2°C
0.954
12.091V
5.054V
3.351V
5.038V
90.918
40.26°C
114.94V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.228A
0.495A
0.492A
0.198A
20.008
67.24%
1485
25.6
36.82°C
0.507
12.104V
5.056V
3.353V
5.045V
26.929
38.13°C
230.06V
40W
2.702A
0.692A
0.689A
0.298A
40.007
83.853%
1489
25.9
37.07°C
0.666
12.103V
5.055V
3.352V
5.043V
47.711
38.08°C
230.06V
60W
4.176A
0.891A
0.886A
0.397A
60.006
87.363%
1492
26.3
38.5°C
0.76
12.101V
5.055V
3.351V
5.04V
68.683
40.68°C
230.05V
80W
5.648A
1.089A
1.084A
0.496A
79.973
89.324%
1510
26.9
39.44°C
0.821
12.101V
5.055V
3.35V
5.037V
89.531
40.8°C
230.05V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
15.92mV
9.54mV
6.71mV
9.48mV
Pass
20% Load
20.66mV
9.69mV
7.53mV
10.39mV
Pass
30% Load
26.76mV
11.02mV
8.55mV
11.06mV
Pass
40% Load
32.87mV
12.39mV
9.31mV
12.38mV
Pass
50% Load
40.60mV
13.46mV
10.53mV
13.40mV
Pass
60% Load
36.84mV
12.80mV
10.22mV
12.89mV
Pass
70% Load
36.18mV
13.37mV
10.43mV
13.50mV
Pass
80% Load
37.35mV
15.00mV
13.07mV
14.93mV
Pass
90% Load
41.87mV
15.51mV
13.93mV
15.95mV
Pass
100% Load
44.08mV
16.02mV
13.91mV
17.08mV
Pass
110% Load
47.34mV
17.36mV
14.18mV
17.59mV
Pass
Crossload1
20.03mV
11.63mV
12.23mV
25.54mV
Pass
Crossload2
24.12mV
15.81mV
6.36mV
27.56mV
Pass
Crossload3
21.52mV
11.02mV
16.63mV
26.54mV
Pass
Crossload4
42.70mV
14.38mV
9.40mV
31.87mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
32.47mV
8.67mV
6.56mV
8.91mV
Pass
20% Load
35.21mV
9.28mV
7.63mV
9.63mV
Pass
30% Load
33.89mV
13.62mV
11.24mV
10.29mV
Pass
40% Load
29.76mV
11.12mV
8.90mV
11.77mV
Pass
50% Load
33.69mV
12.65mV
9.67mV
12.84mV
Pass
60% Load
36.69mV
12.55mV
10.12mV
12.94mV
Pass
70% Load
35.36mV
13.16mV
10.32mV
17.42mV
Pass
80% Load
37.71mV
14.79mV
12.36mV
14.62mV
Pass
90% Load
41.06mV
15.56mV
13.28mV
15.99mV
Pass
100% Load
44.93mV
16.80mV
13.27mV
16.11mV
Pass
110% Load
46.73mV
17.47mV
15.81mV
17.26mV
Pass
Crossload1
38.42mV
11.14mV
11.98mV
25.03mV
Pass
Crossload2
42.34mV
15.61mV
6.15mV
25.78mV
Pass
Crossload3
39.79mV
10.61mV
16.12mV
25.06mV
Pass
Crossload4
41.87mV
14.21mV
9.28mV
33.35mV
Pass
The results above are not used in the certification process
VSP VGF750

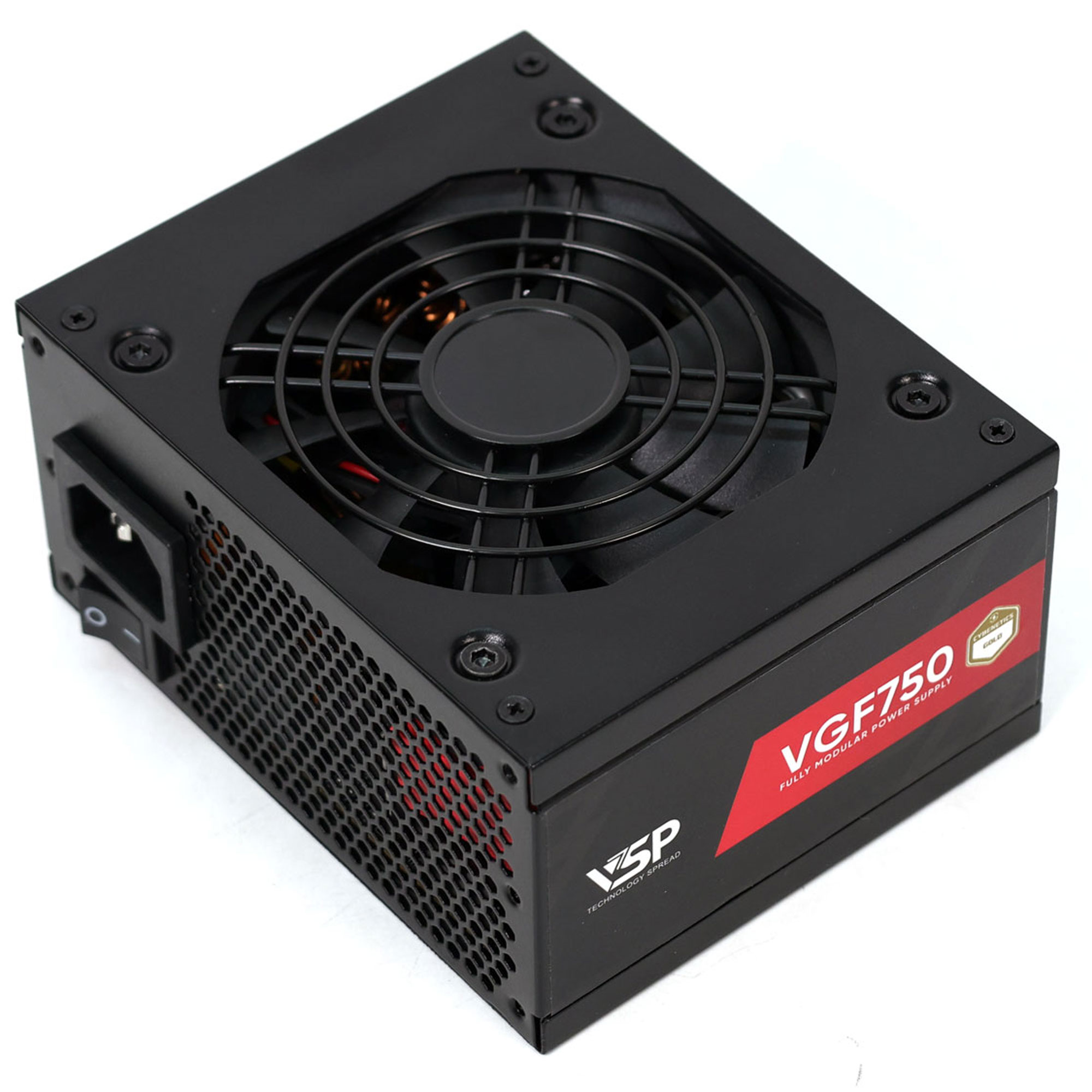

Top side

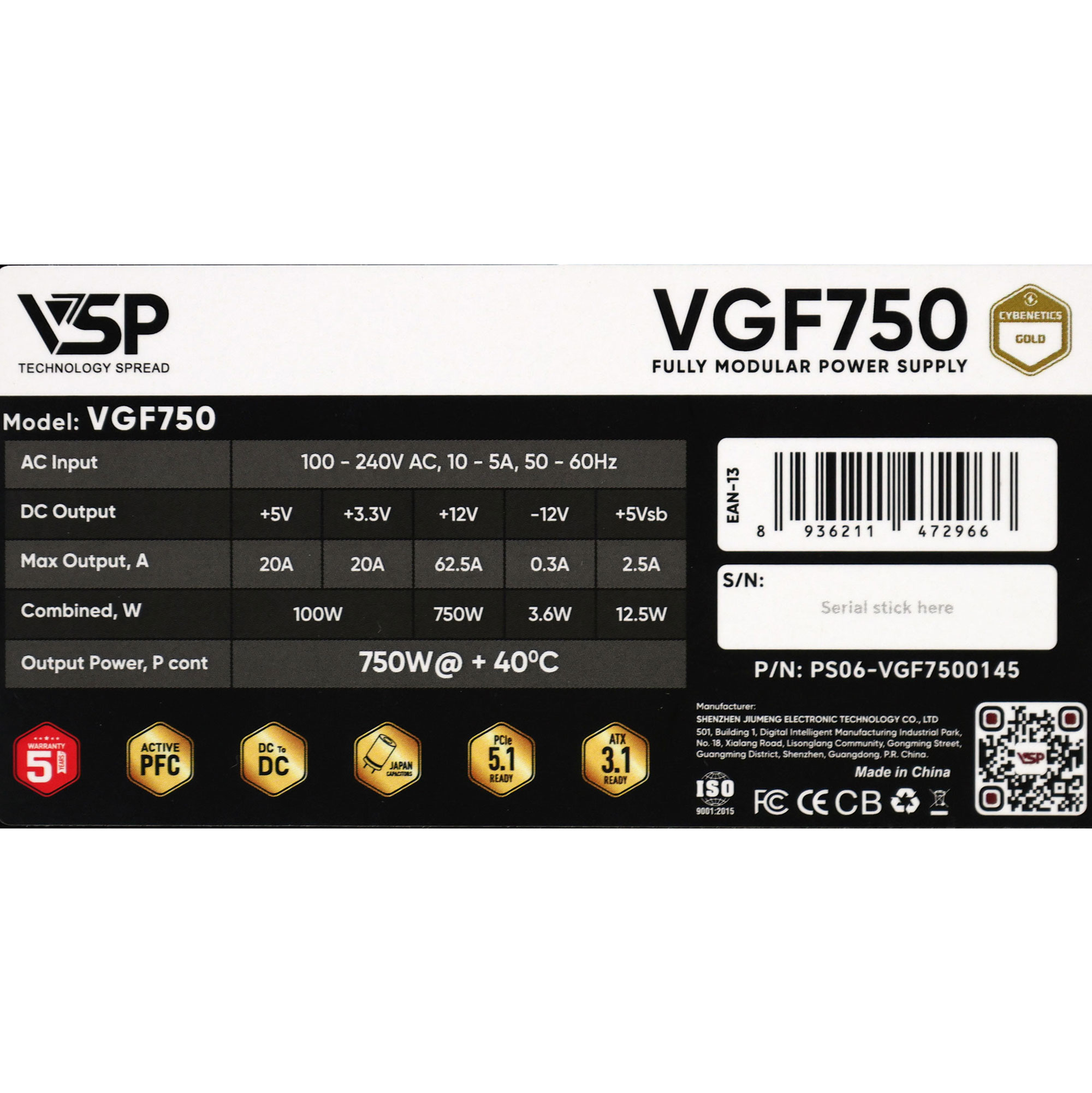

Power specifications label

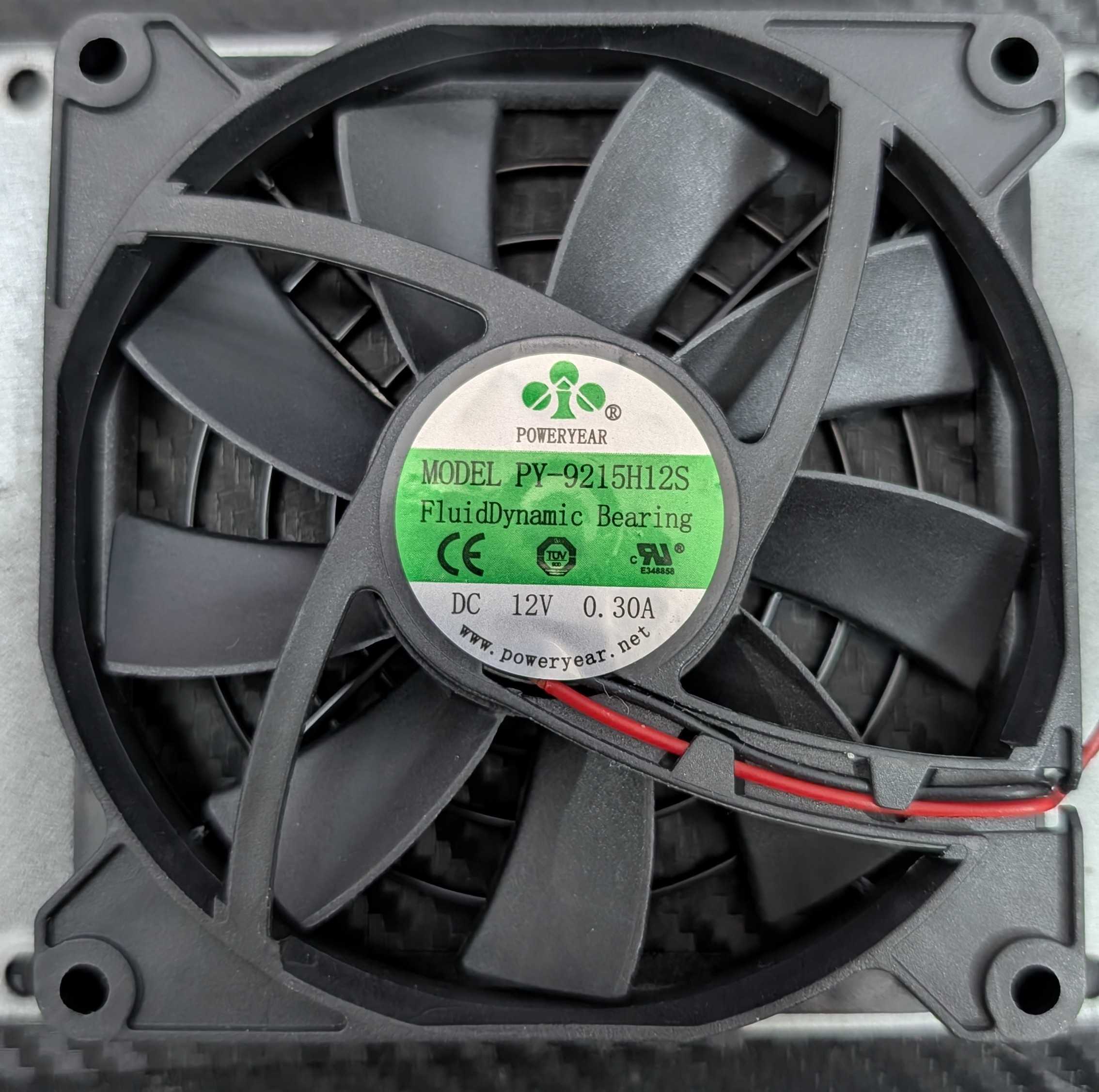

Fan

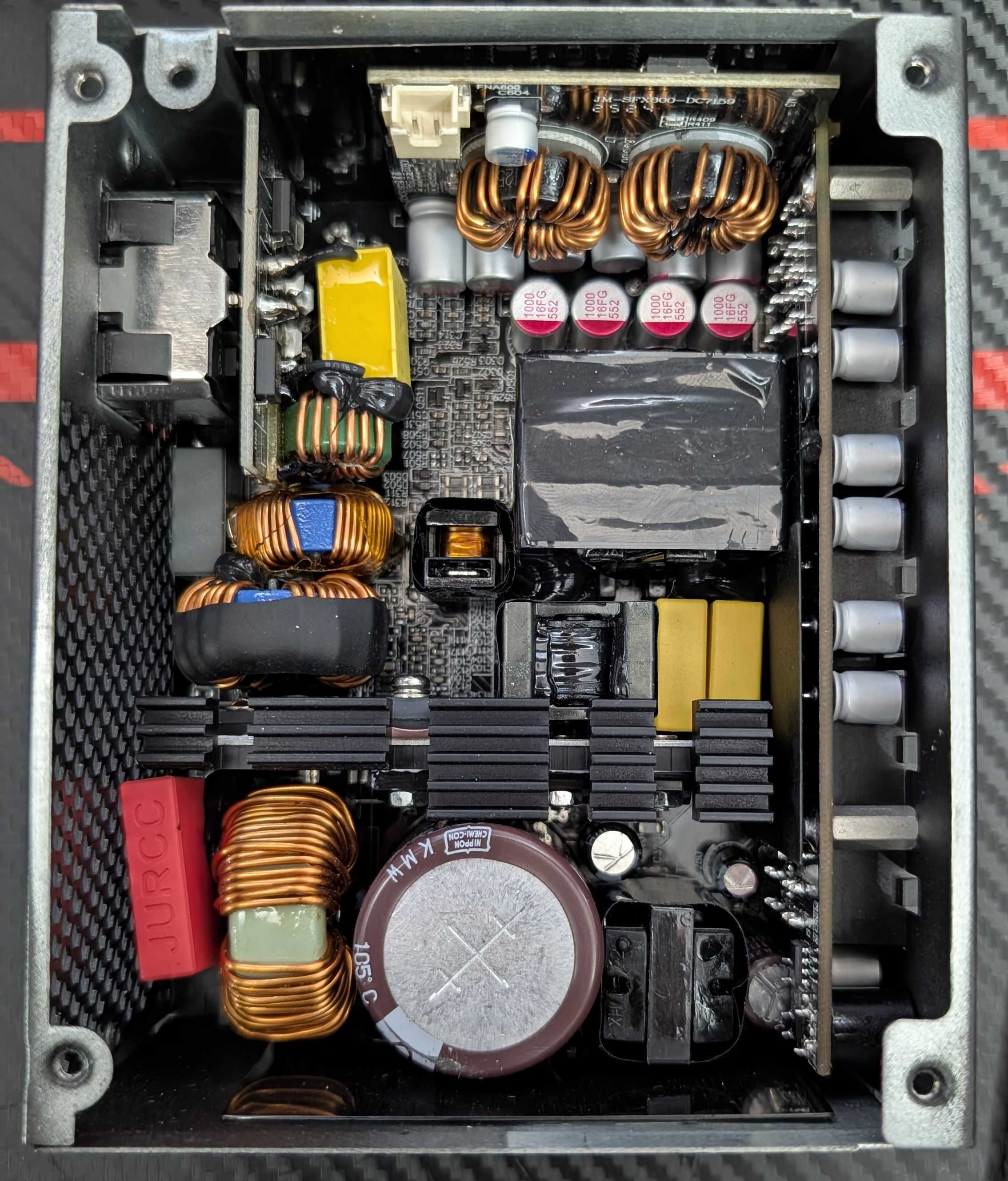

PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
Outside Validation Scope
