Cybenetics Test - Gigabyte GP-UD1000GM PG5 V2 / ICE

Gigabyte GP-UD1000GM PG5 V2 / ICE

Serial Number-

Lab IDGB10003071

Certification ID253071

Test Result Report ID: 25PS3071A
Certificate Issue Date: Jan 9, 2026

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	Gigabyte
Manufacturer (OEM)	Guangzhou Pansheng Electronic Technology Co., Ltd
Series	Ultra Durable
Model Number	GP-UD1000GM PG5 V2
Serial Number	-
DUT Notes	• The results apply to both the black and white (ICE) models. • The vampire power consumption is too high for the Gold ETA rating at 230V (0.2127W). • The 5VSB rail efficiency drops below 75% at full load with a 115V AC input, but it's within the 5% limit we allow.

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	6.5-12
Rated Frequency (Hz)	50-60
Rated Power (W)	1000
Type	ATX12V
Dimensions (W x H x D)	150 x 85 x 140mm
Cooling	120mm Rifle Bearing Fan (BK BDH12025S)
Semi-Passive Operation	✓
Cable Design	Fully Modular

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	25	25	83.3	3	0.3
Max. Power	Watts	125		1000	15	3.6
Total Max. Power (W)		1000

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	Cable Type
ATX connector 20+4 pin (600mm)	1	1	18AWG	Tinned Copper
4+4 pin EPS12V (650mm+200mm)	1	2	18AWG	Tinned Copper
6+2 pin PCIe (600mm+145mm)	2	4	18AWG	Tinned Copper
12+4 pin PCIe (700mm) (600W)	1	1	16-24AWG	Tinned Copper
SATA (600mm+150mm+150mm+150mm)	2	8	18AWG	Tinned Copper
4-pin Molex (500mm+150mm+150mm) / FDD (+150mm)	1	3 / 1	18AWG	Tinned Copper

Parts Description

`General Data`
Manufacturer (OEM)	Guangzhou Pansheng Electronic Technology Co., Ltd
PCB Type	Double-Sided
`Primary Side`
Transient Filter	4x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor MF72-10D15 (10 Ohm @ 25°C)
Bridge Rectifier	2x GBU2510 (1000V, 25A @ 100°C)
APFC MOSFETs	2x Wuhan Xinyuan Semiconductor CWH65R038AZ (650V, 30A @ 25°C, Rds(on): 38mOhm)
APFC Boost Diode	1x CR Micro CRXF10D065G2 (650V, 10A @ 125°C)
Bulk Cap(s)	2x Toshin Kogyo (420V, 390µF, 2000h @ 105°C, LW)
Main Switchers	2x Wuhan Xinyuan Semiconductor CWS60R099BZ (600V, 25A @ 100°C, Rds(on): 99mOhm)
APFC Controller	Champion CM6500UNX
Resonant Controller	Champion CU6901T6X
Topology	Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
`Secondary Side`
+12V MOSFETs	6x Nexperia PSMN1R0-40YLD (40V, 280A @ 25°C, Rds(on): 1.1mOhm)
5V & 3.3V	DC-DC Converters: 4x InPower Semiconductor FTG022N03S (30V, 120A @ 100°C, Rds(on): 2.2mOhm) PWM Controller(s): 2x ANPEC APW7164
Filtering Capacitors	Electrolytic: 6x Toshin Kogyo (@ 105°C, HZ series) 10x Toshin Kogyo (@ 105°C, AZ series) 6x Toshin Kogyo (@ 105°C, HZ series) Polymer: 7x Teapo (470µF, 16V) 9x Teapo (820µF, 6.3V)
Supervisor IC	Grenergy GR8329E (OVP, UVP, OCP, PGO, FPO)
MCU / Fan Controller	Anpec APW9010
Fan Model	BOK BDH12025S (120mm, 12V, 0.18A, Rifle Bearing)
`5VSB Circuit`
Rectifier	Dongke Semiconductor DK5V60R20S SBR (60V, 35A)
Standby PWM Controller	Excelliance MOS Corporation EM8564A

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary 115V

Efficiency Rating	PLATINUM
Noise Rating	Standard++
Average Efficiency (>1450 load combinations)	89.270%
Average Noise Output (>1450 Load Combinations)	31.48dBA
Average PF (>1450 Load Combinations)	0.982
Efficiency With 10W (≤500W) or 2% (>500W) Load	69.884%
Standby Power Consumption	0.0712W
12V Ripple (Full Load)	32.46mV
5V Ripple (Full Load)	27.75mV
3.3V Ripple (Full Load)	26.18mV
5VSB Ripple (Full Load)	28.43mV
12V Load Regulation	0.49%
5V Load Regulation	0.70%
3.3V Load Regulation	0.52%
5VSB Load Regulation	1.93%
Inrush Current	19.760A

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	25.8
AC Loss to PWR_OK Hold Up Time (ms)	21.4
PWR_OK Inactive to DC Loss Delay (ms)	4.4

Vampire Power

Tables 115V

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	230.07 V	230.06 V	227.70 V	230.10 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	50.00 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.415	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.15 %	0.13 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.213 W	0.170 W	N/A	0.280 W	N/A	N/A
Apparent Power:	67.211 W	67.180 W	N/A	67.241 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Graphs 115V

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

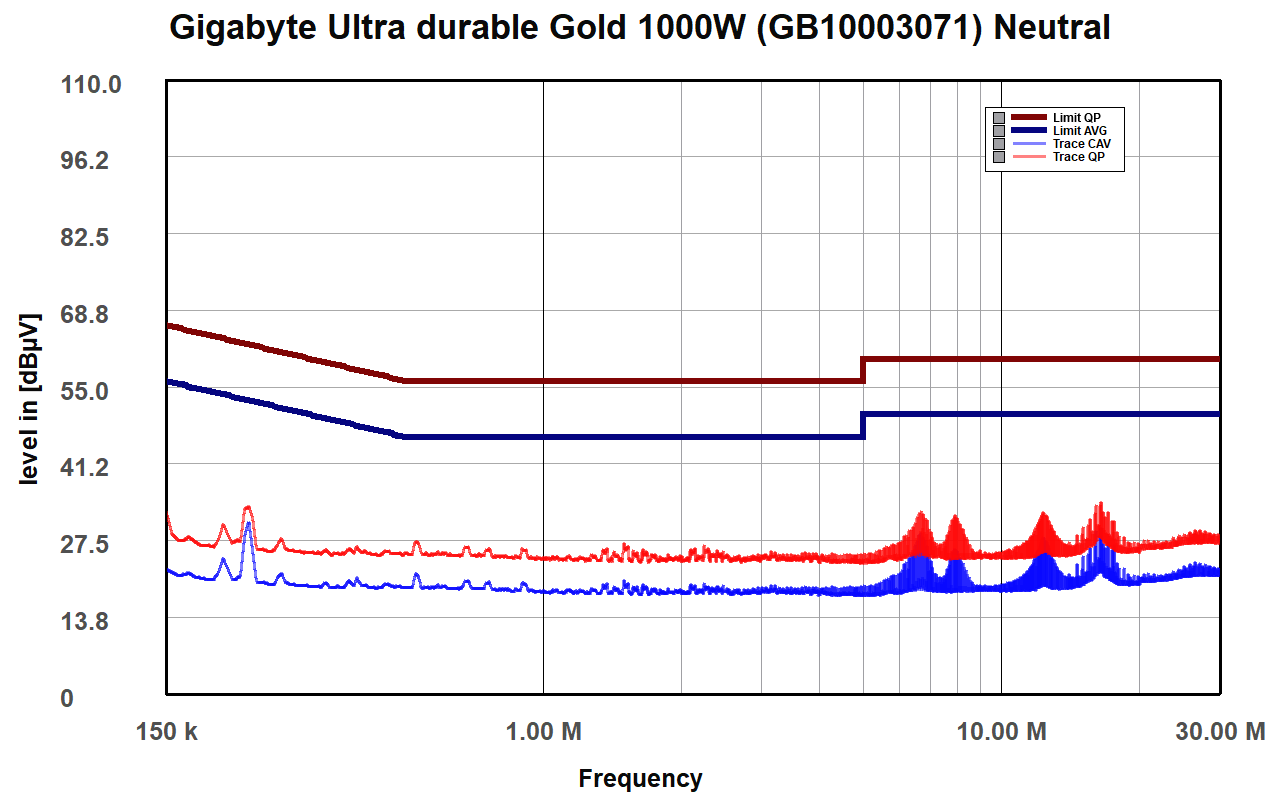

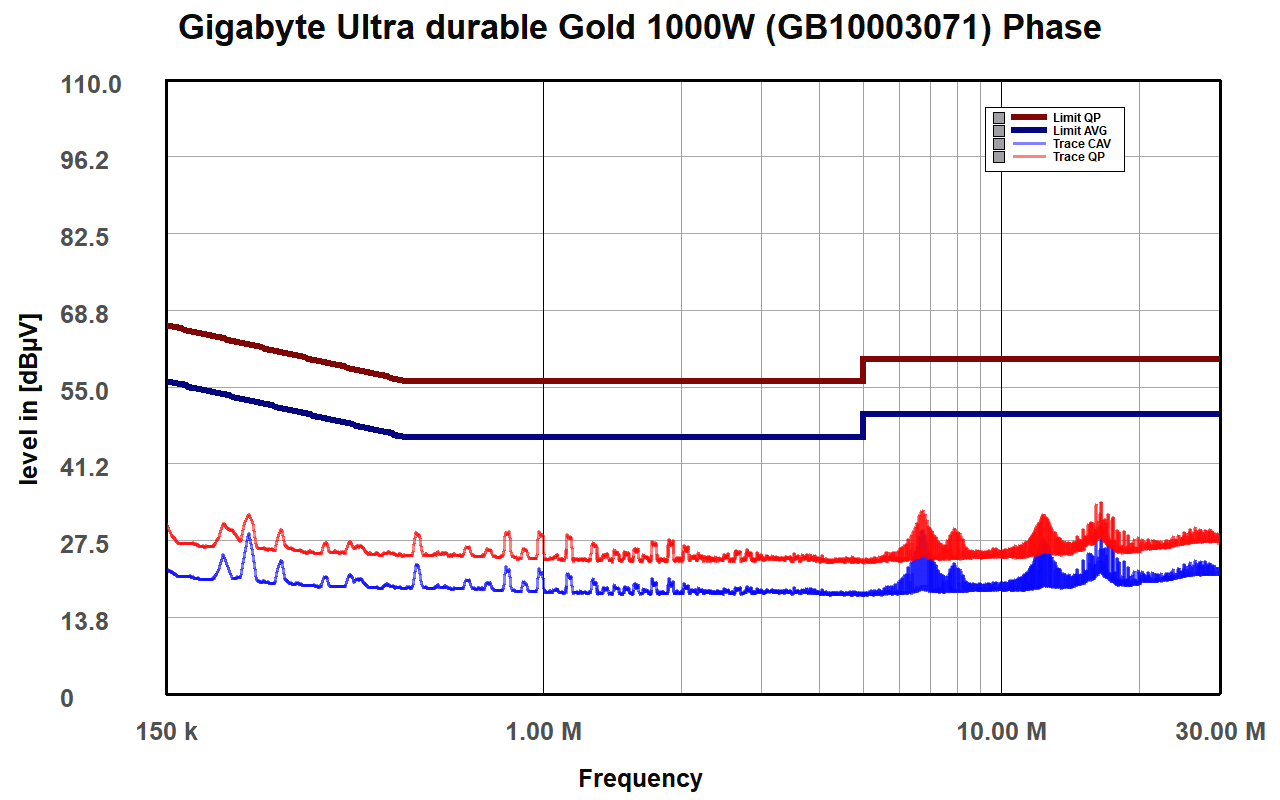

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

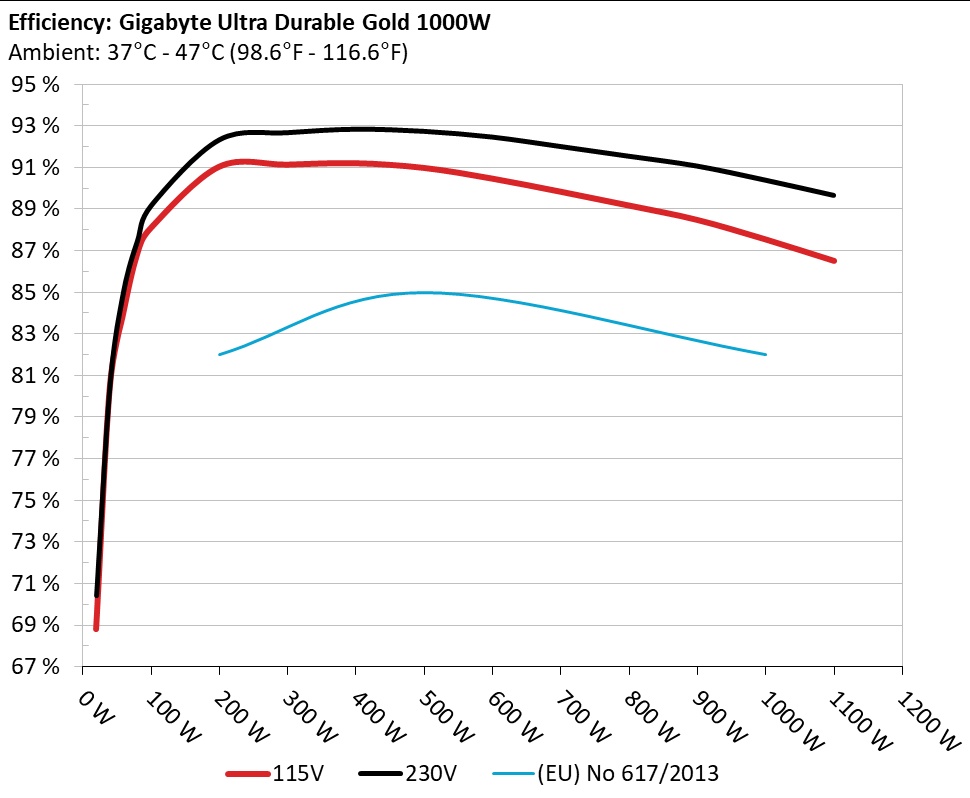

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

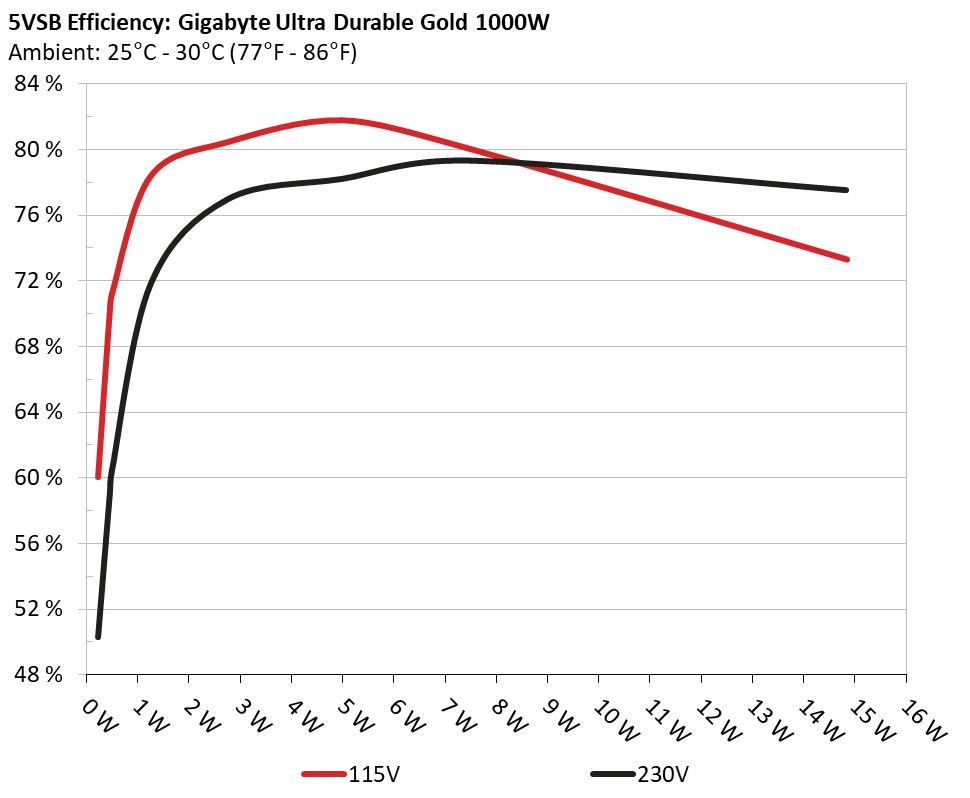

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.226W	60.044%	0.019
1	5.025V	0.376W	60.044%	115.04V
2	0.09A	0.452W	70.053%	0.032
2	5.024V	0.645W	70.053%	115.04V
3	0.55A	2.756W	80.436%	0.154
3	5.012V	3.426W	80.436%	115.04V
4	1A	4.999W	81.761%	0.237
4	5V	6.114W	81.761%	115.04V
5	1.5A	7.48W	80.02%	0.298
5	4.986V	9.348W	80.02%	115.04V
6	3A	14.838W	73.288%	0.377
6	4.947V	20.246W	73.288%	115.03V

Protection Features

OCP (Normal @ 28.7°C)	12V: 100.80A (121.01%), 11.845V 5V: 29.2A (116.80%), 5.115V 3.3V: 31.004A (124.02%), 3.249V 5VSB: 3.8A (126.67%), 4.922V
OCP (Hot @ 44.8°C)	12V: 96.80A (116.21%), 11.850V 5V: 28.7A (114.80%), 5.108V 3.3V: 31.1A (124.40%), 3.248V 5VSB: 3.7A (123.33%), 4.924V
OPP (Normal @ 31.4°C)	1273.083W (127.31%)
OPP (Hot @ 44.6°C)	1225.062W (122.51%)
OTP	✓ (128°C @ 12V Heatsink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	6.614A	1.977A	2.007A	1A	100.009	88.09%	739	21.1	40.43°C	0.965
10%	11.855V	5.059V	3.288V	4.999V	113.531	88.09%	739	21.1	42.3°C	115.01V
20%	14.268A	2.966A	3.012A	1.202A	199.962	91.039%	778	22.5	40.56°C	0.966
20%	11.849V	5.057V	3.287V	4.992V	219.644	91.039%	778	22.5	43.04°C	114.97V
30%	22.287A	3.465A	3.516A	1.404A	300.022	91.138%	875	26.3	41.15°C	0.979
30%	11.844V	5.051V	3.285V	4.985V	329.189	91.138%	875	26.3	45.88°C	114.94V
40%	30.273A	3.964A	4.02A	1.607A	399.598	91.207%	962	29.2	41.92°C	0.985
40%	11.839V	5.046V	3.284V	4.978V	438.12	91.207%	962	29.2	46.62°C	114.9V
50%	37.929A	4.957A	5.028A	1.811A	499.324	90.985%	1042	31.5	42.32°C	0.989
50%	11.833V	5.044V	3.282V	4.97V	548.796	90.985%	1042	31.5	49.75°C	114.86V
60%	45.662A	5.95A	6.038A	2A	599.789	90.467%	1434	39.4	42.8°C	0.991
60%	11.827V	5.043V	3.28V	4.963V	662.995	90.467%	1434	39.4	50.94°C	114.83V
70%	53.336A	6.944A	7.048A	2.22A	699.582	89.84%	1735	43	43.27°C	0.993
70%	11.821V	5.041V	3.278V	4.956V	778.702	89.84%	1735	43	51.08°C	114.79V
80%	61.086A	7.937A	8.059A	2.323A	799.582	89.176%	1896	44.5	43.88°C	0.994
80%	11.814V	5.039V	3.276V	4.951V	896.636	89.176%	1896	44.5	51.7°C	114.75V
90%	69.180A	8.444A	8.55A	2.426A	899.347	88.485%	1900	44.6	44.24°C	0.995
90%	11.808V	5.032V	3.275V	4.947V	1016.383	88.485%	1900	44.6	53.84°C	114.71V
100%	77.079A	8.954A	9.073A	3.045A	999.366	87.547%	1904	44.7	45.14°C	0.996
100%	11.802V	5.024V	3.274V	4.927V	1141.515	87.547%	1904	44.7	56.35°C	114.66V
110%	84.905A	9.956A	10.18A	3.046A	1099.947	86.515%	1908	44.7	47.09°C	0.997
110%	11.798V	5.021V	3.271V	4.925V	1271.396	86.515%	1908	44.7	59.83°C	114.62V
CL1	0.118A	14.574A	15.173A	0A	126.297	82.72%	1868	44.3	40.14°C	0.963
CL1	11.867V	5.166V	3.269V	5.027V	152.678	82.72%	1868	44.3	43.82°C	114.99V
CL2	0.118A	23.872A	0A	0A	126.26	82.978%	925	28	40.69°C	0.962
CL2	11.864V	5.231V	3.29V	5.027V	152.156	82.978%	925	28	43.46°C	114.99V
CL3	0.117A	0A	25.331A	0A	83.898	74.883%	943	28.5	40.19°C	0.965
CL3	11.864V	5.018V	3.257V	5.028V	112.038	74.883%	943	28.5	44.23°C	115V
CL4	84.754A	0A	0A	0.001A	999.931	88.296%	1908	44.7	45.85°C	0.995
CL4	11.798V	4.948V	3.287V	5.012V	1132.488	88.296%	1908	44.7	54.7°C	114.67V

The results above are not used in the certification process

Light Load Tests 115V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.253A	0.495A	0.501A	0.199A	20.01	68.813%	685	18.4	36.72°C	0.748
20W	11.860V	5.054V	3.291V	5.022V	29.079	68.813%	685	18.4	39.27°C	115.03V
40W	2.758A	0.693A	0.702A	0.299A	40.005	80.421%	688	18.5	37.4°C	0.871
40W	11.857V	5.054V	3.29V	5.019V	49.748	80.421%	688	18.5	39.62°C	115.02V
60W	4.262A	0.89A	0.903A	0.399A	60.003	84.043%	696	19.4	38.69°C	0.931
60W	11.857V	5.054V	3.29V	5.016V	71.399	84.043%	696	19.4	40.82°C	115.02V
80W	5.763A	1.088A	1.104A	0.499A	79.954	86.827%	710	19.9	39.42°C	0.954
80W	11.856V	5.053V	3.289V	5.013V	92.09	86.827%	710	19.9	41.4°C	115.01V

The results above are not used in the certification process

Ripple Measurements 115V

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	29.06mV	24.83mV	24.81mV	23.02mV	Pass
20% Load	28.45mV	23.86mV	23.94mV	22.61mV	Pass
30% Load	30.70mV	23.45mV	23.43mV	22.61mV	Pass
40% Load	30.44mV	24.01mV	26.34mV	22.56mV	Pass
50% Load	30.49mV	28.00mV	26.45mV	23.73mV	Pass
60% Load	30.29mV	26.67mV	29.57mV	25.57mV	Pass
70% Load	31.21mV	26.77mV	28.39mV	25.27mV	Pass
80% Load	31.87mV	27.38mV	31.15mV	27.01mV	Pass
90% Load	30.80mV	29.68mV	32.33mV	27.67mV	Pass
100% Load	32.46mV	27.75mV	26.18mV	28.43mV	Pass
110% Load	32.02mV	28.80mV	31.80mV	29.85mV	Pass
Crossload1	28.17mV	26.63mV	33.07mV	20.91mV	Pass
Crossload2	32.33mV	32.80mV	36.73mV	23.43mV	Pass
Crossload3	29.78mV	25.44mV	28.85mV	21.63mV	Pass
Crossload4	31.66mV	25.14mV	23.21mV	27.39mV	Pass

The results above are not used in the certification process

Gigabyte GP-UD1000GM PG5 V2 / ICE

Top side

Power specifications label

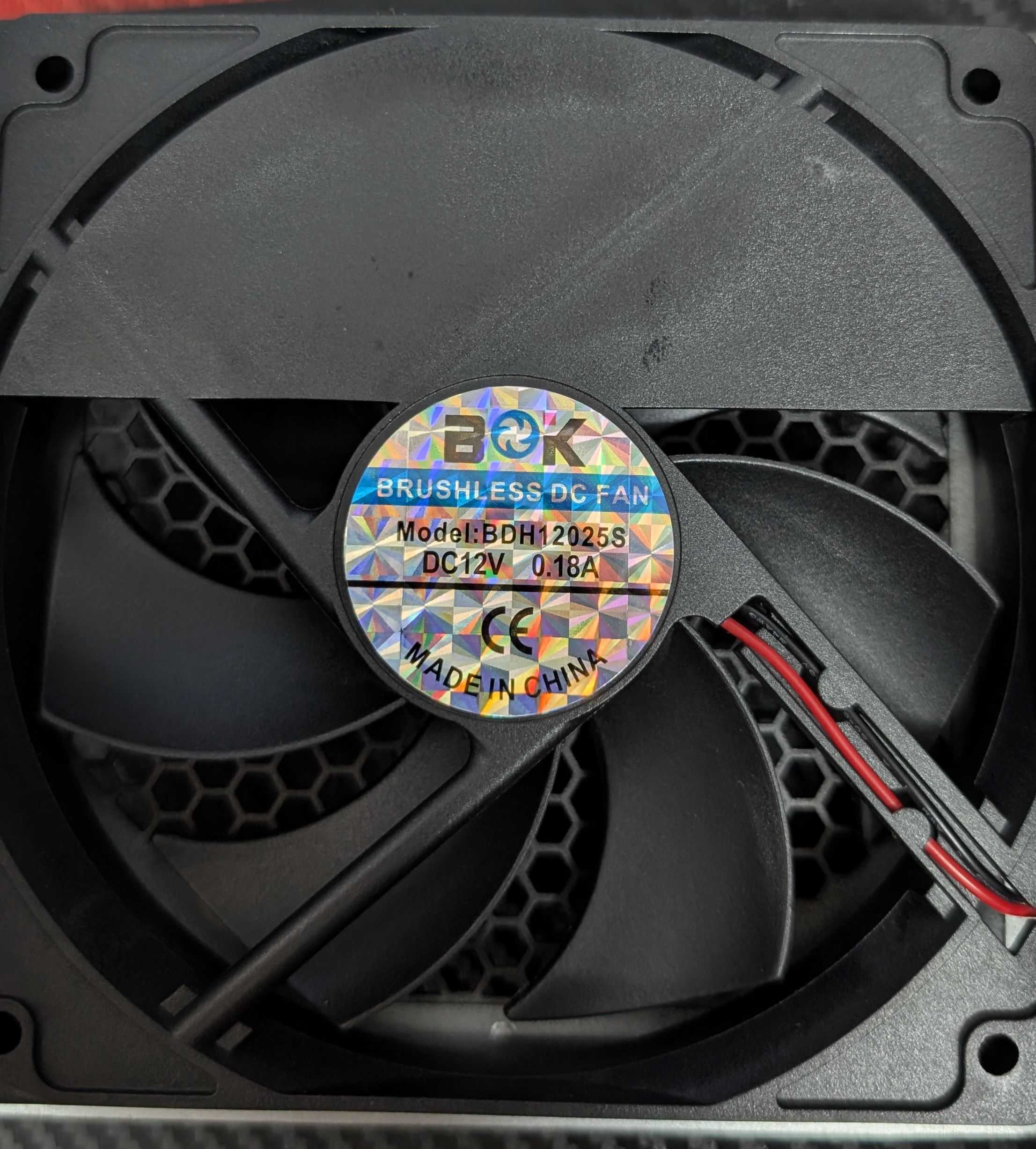

Fan

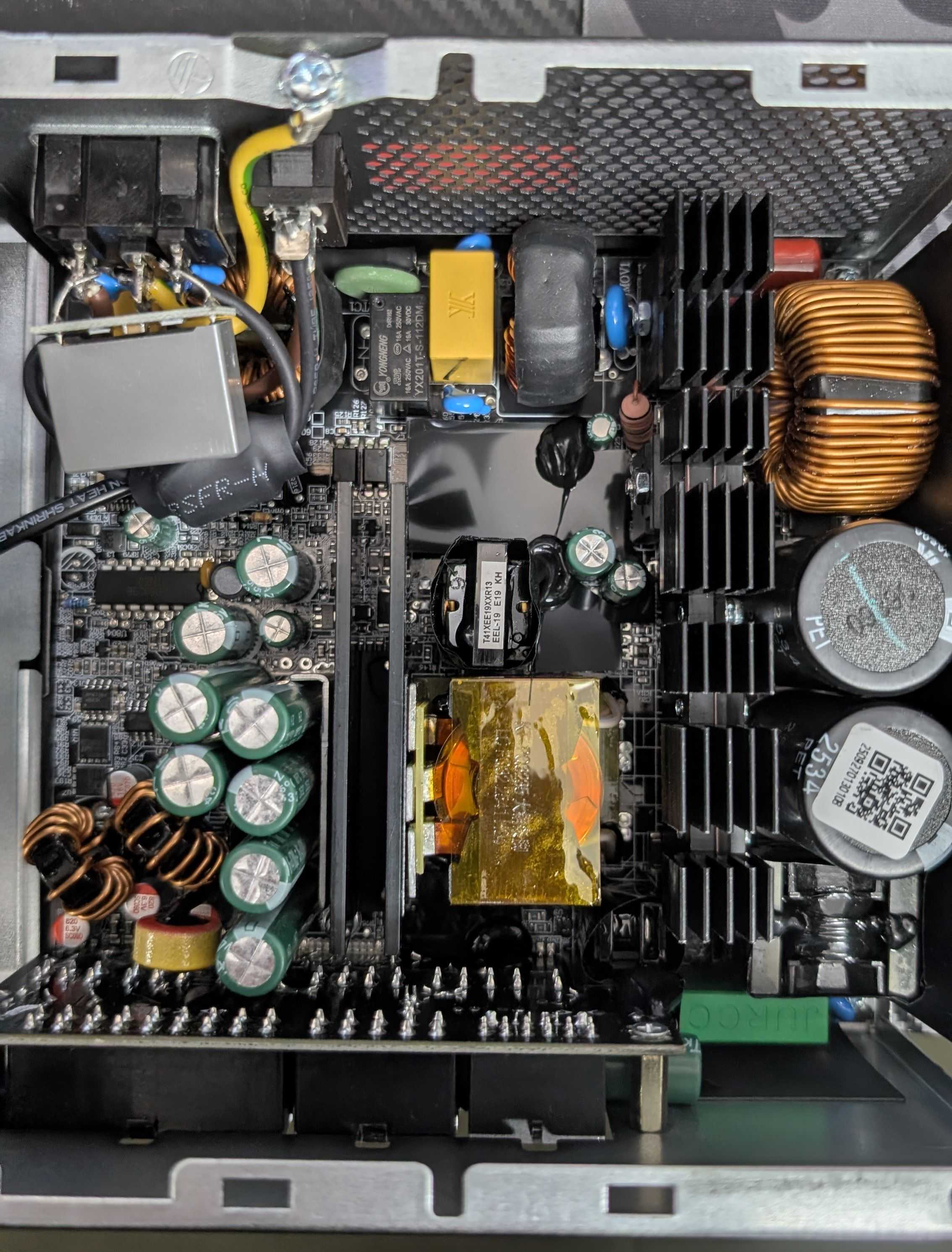

PSU Internals
