VSP MEGA MAX 750W

CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

VSP MEGA MAX 750W

Serial Number-

Lab IDVS75003076

Certification ID253076

Test Result Report ID: 25PS3076A
Certificate Issue Date: Jan 5, 2026

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
Brand	VSP
Model	MEGA MAX 750W
OEM/ODM	Jiumeng
Serial Number	-
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)	180-240
Rated Current (Arms)	7
Rated Frequency (Hz)	50-60
Rated Power (W)	750
Operating Temperature (Continuous Full Load) (°C)	0 - 50
Type	ATX12V
Cable Design	Fixed cables
Warranty	5 years
Cybenetics Measurements
Dimensions (W x H x D)	150 x 85 x 140mm
Weight	1.57 kg (3.46 lbs)
Cooling	120mm Hydraulic Bearing Fan (VSP)
Semi-Passive Operation	✗
Cybenetics Testing Information
Lab ID	VS75003076
Date of receipt	Dec 13, 2025
Testing Date	Dec 20, 2025
Report Issued Date	Jan 5, 2026
Engineer Name	Okeke Ugochukwu Onyedikachukwu
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Captive Cables
Description	Cable Count	Connector Count (Total)	Gauge	Cable Type
ATX connector 20+4 pin (555mm)	1	1	18-22AWG	Tinned Copper
4+4 pin EPS12V (610mm)	2	2	18AWG	Tinned Copper
6+2 pin PCIe (505mm+150mm)	2	4	18AWG	Tinned Copper
SATA (415mm+155mm) / 4-pin Molex (+155mm)	1	2 / 1	18AWG	Copper
4-pin Molex (415mm) / SATA (+155mm+155mm)	1	1 / 2	18AWG	Copper

Protection Features(Manufacturer)

Over Temperature Protection	✓
Short Circuit Protection	✓
Surge Protection	✗
Inrush Current Protection	✓
Fan Failure Protection	✗
No Load Operation	✓
Cooling	120mm Hydraulic Bearing Fan (VSP)

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	15	15	62.5	2.5	0.3
Max. Power	Watts	100		750	12.5	3.6
Total Max. Power (W)		750

Parts Description

`General Data`
Manufacturer (OEM)	Jiumeng
PCB Type	Double-Sided
`Primary Side`
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes
Inrush Protection	NTC Thermistor MF72 5D-20 (5 Ohm @ 25°C) & Relay
Bridge Rectifier	1x
APFC MOSFETs	Si-Trend SI180N50F (500V, 18A @ 25°C, Rds(on): 0.295Ohm)
APFC Boost Diode	Si-Trend SI8U600F (600V, 8A @ 100°C)
Bulk Cap(s)	CapXon (420V, 470uF, 2000h @ 105°C, HP)
Main Switchers	2x Si-Trend SI180N50F (500V, 18A @ 25°C, Rds(on): 0.295Ohm)
PFC/PWM Controller	Champion CM6800UBX
Topology	Primary side: APFC, Double Forward Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
`Secondary Side`
+12V MOSFETs	4x Oriental Semiconductor SFS130N06P (60V, 130A @ 25°C, Rds(on): 3.5mOhm)
5V & 3.3V	DC-DC Converters: 4x XSEMI XP4024GEMT-HF (30V, 60A @ 25°C, Rds(on): 4.5mOhm) PWM Controller(s): uPI Semi uP3861P
Filtering Capacitors	Electrolytic: 12x ChengX (2-3,000h @ 105°C, GR) Polymer: 5x X-CON (ULR)
Supervisor IC	GR8329E

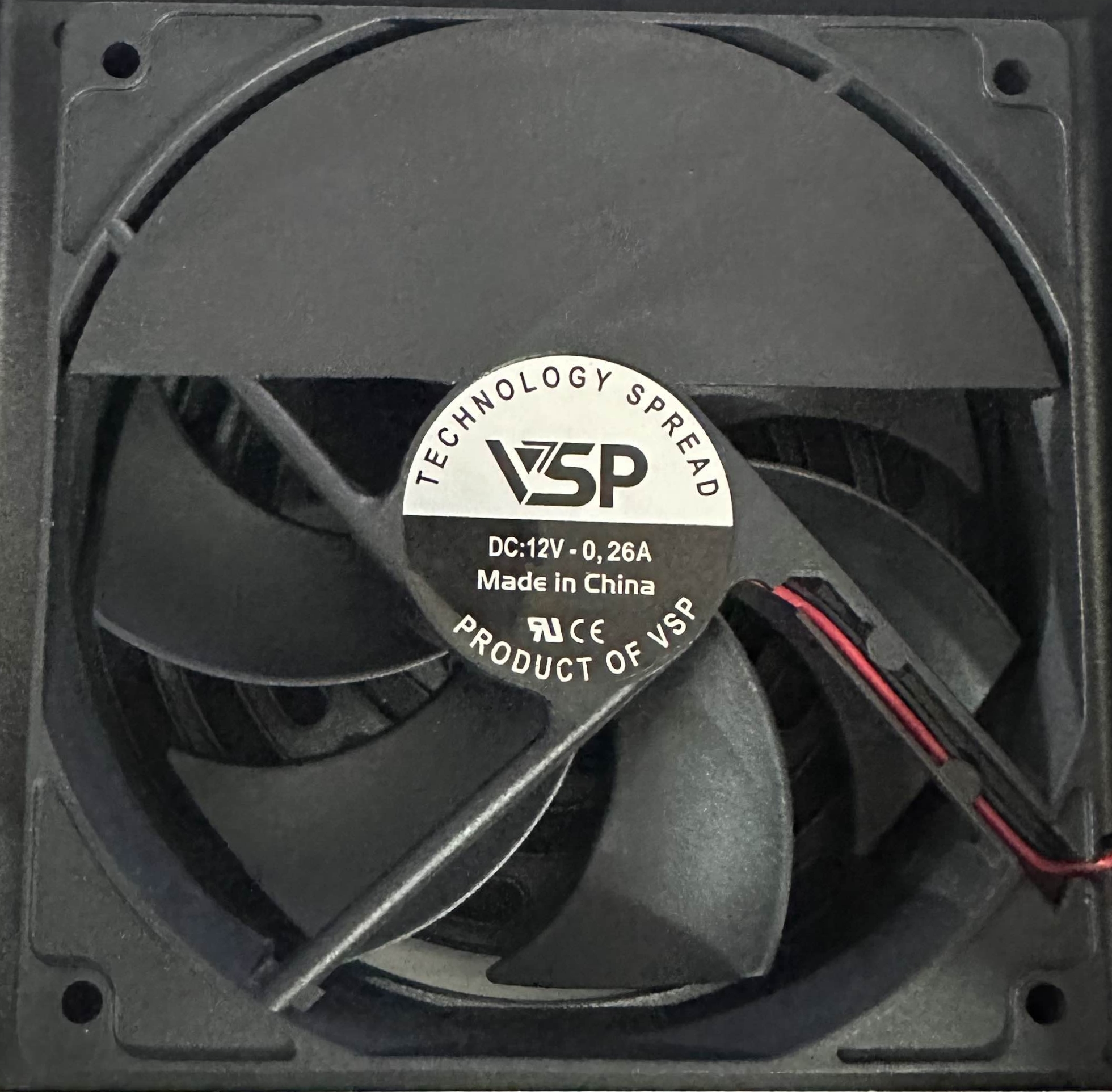

Fan Model	VSP (120mm, 12V, 0.26A, Hydraulic Bearing Fan)
`5VSB Circuit`
Rectifier	PingWei PS1060L (60V, 10A)
Standby PWM Controller	Chipown PN8141

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	28-32 / 82.4-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓

Performance Summary 230V

Accredited
Average Efficiency (>1450 load combinations)	87.861%
Average Noise Output (>1450 Load Combinations)	30.47dBA
Average PF (>1450 Load Combinations)	0.964
Efficiency With 10W (≤500W) or 2% (>500W) Load	67.610%
Standby Power Consumption	0.1158W
Non-Accredited
12V Ripple (Full Load)	44.68mV
5V Ripple (Full Load)	19.84mV
3.3V Ripple (Full Load)	22.43mV
5VSB Ripple (Full Load)	19.71mV
12V Load Regulation	0.12%
5V Load Regulation	0.52%
3.3V Load Regulation	0.88%
5VSB Load Regulation	1.62%
Inrush Current	57.140A
Hold-Up Time & PWR_OK Signal	16.90ms
AC Loss to PWR_OK Hold Up Time	15.10ms
PWR_OK Inactive to DC Loss Delay	1.80ms
PSU Timings: T1 (20% / 100%)	54.0ms	53.0ms
PSU Timings: T3 (20% / 100%)	126.0ms	126.0ms
12V OCP (29.4°C / 45.2°C)	81.40A (130.24%), 12.061V	79.00A (126.40%), 12.053V
5V OCP (29.4°C / 45.2°C)	19.2A (128.00%), 5.016V	18.8A (125.33%), 5.016V
3.3V OCP (29.4°C / 45.2°C)	20A (133.33%), 3.312V	19.5A (130.00%), 3.311V
5VSB OCP (29.4°C / 45.2°C)	4A (160.00%), 4.997V	4A (160.00%), 4.995V
OPP (31.34°C / 43.07°C)	132.14%	114.14%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)	16.9
AC Loss to PWR_OK Hold Up Time (ms)	15.1
PWR_OK Inactive to DC Loss Delay (ms)	1.8

Vampire Power

Tables 230V

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	230.06 V	230.07 V	227.70 V	230.11 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	50.00 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.415	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.14 %	0.13 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.116 W	0.070 W	N/A	0.166 W	N/A	N/A
Apparent Power:	28.789 W	28.734 W	N/A	28.838 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Graphs 230V

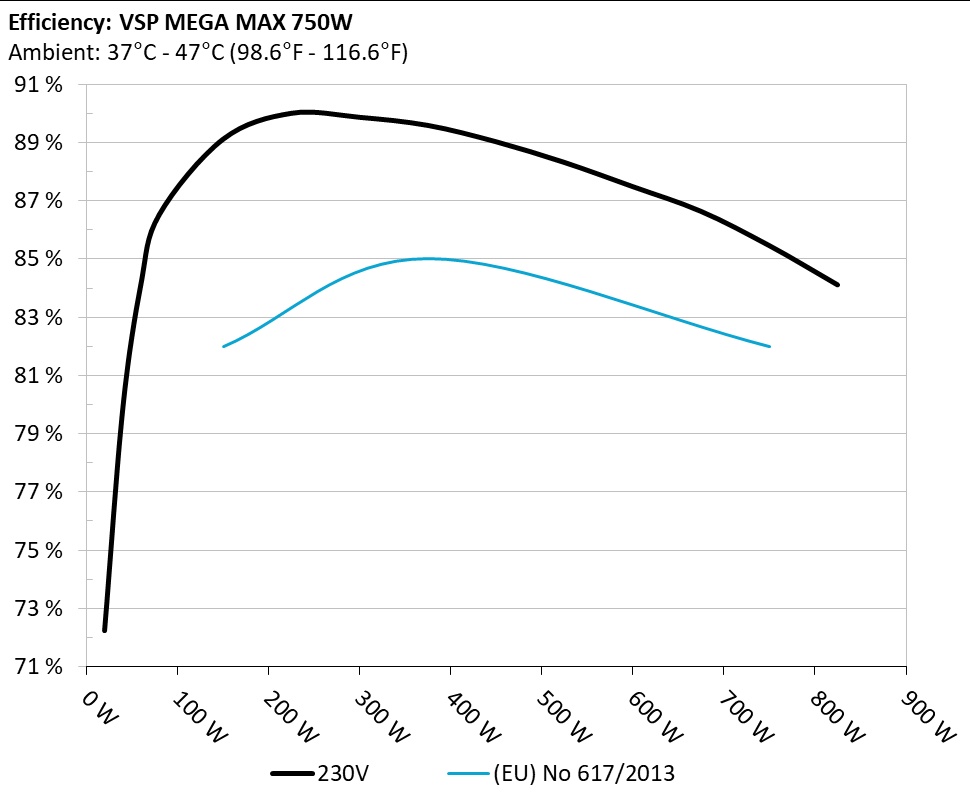

Efficiency Graph

230V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

230V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

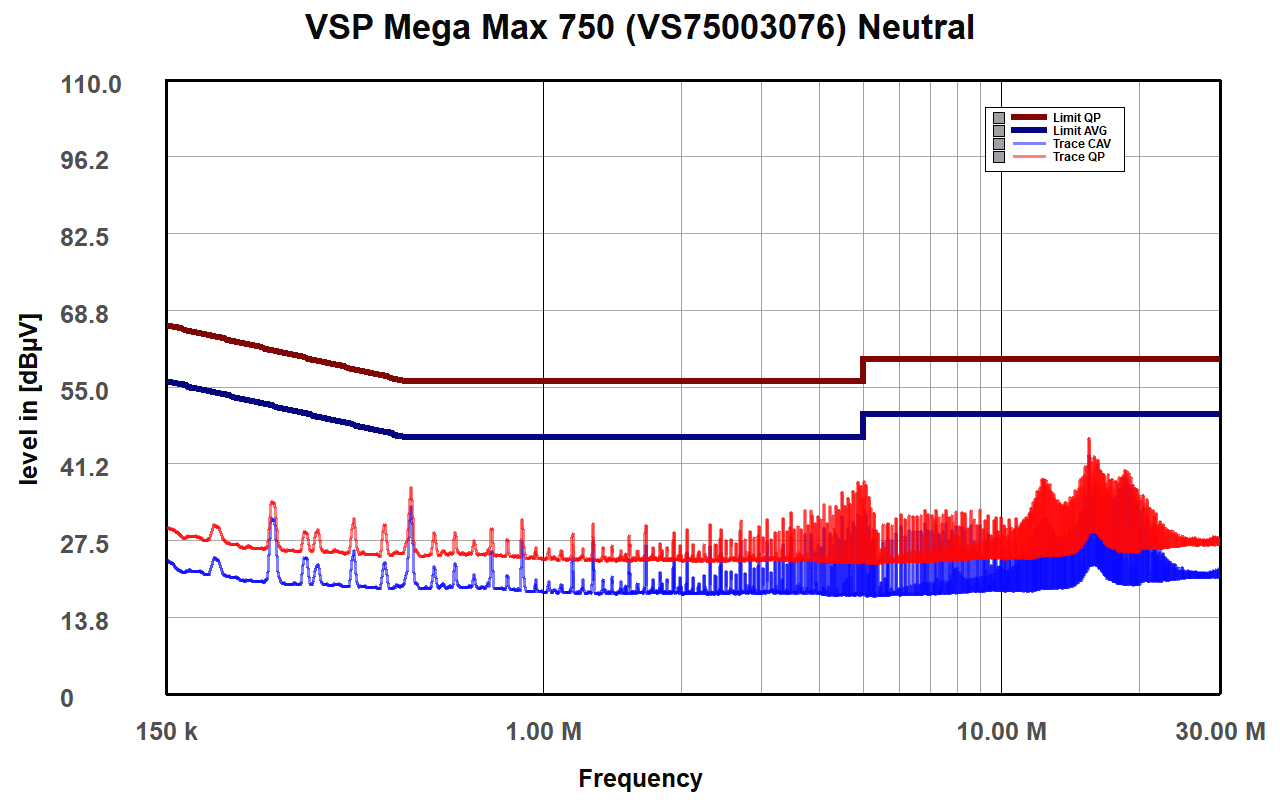

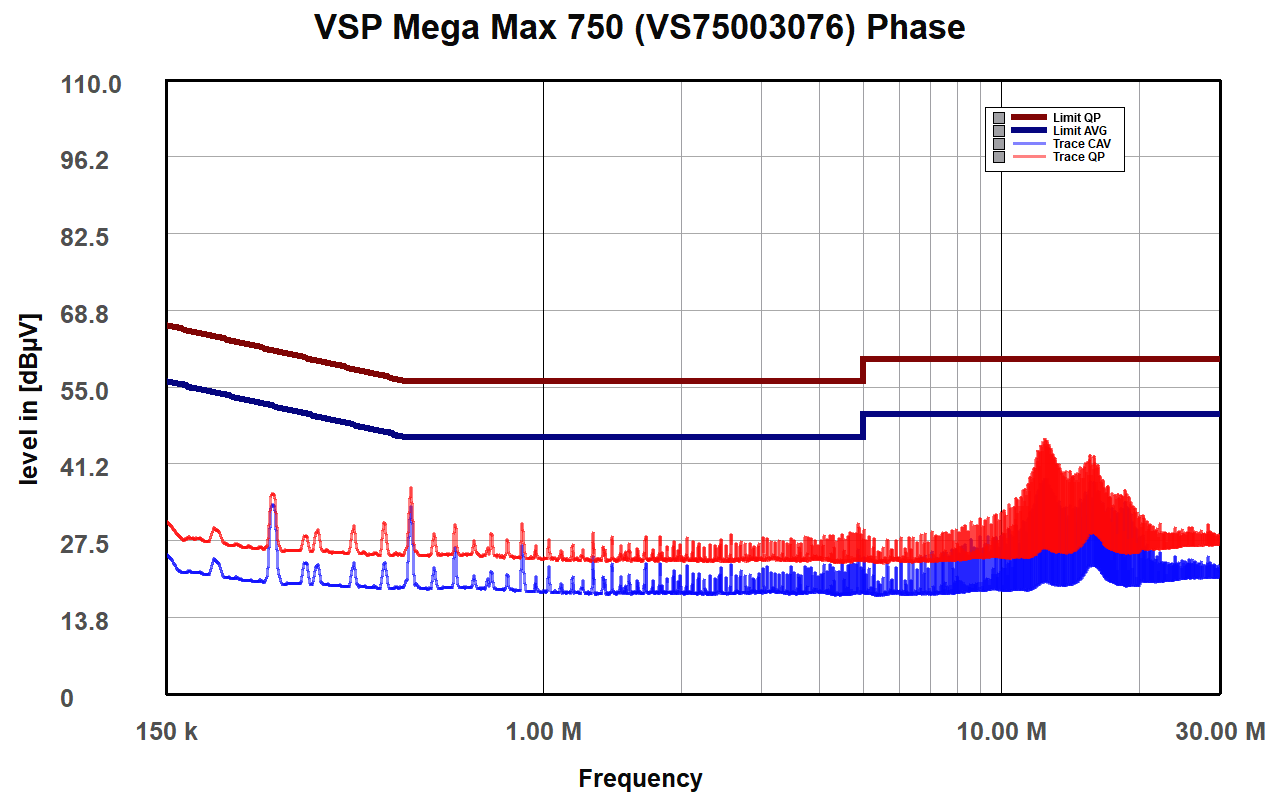

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

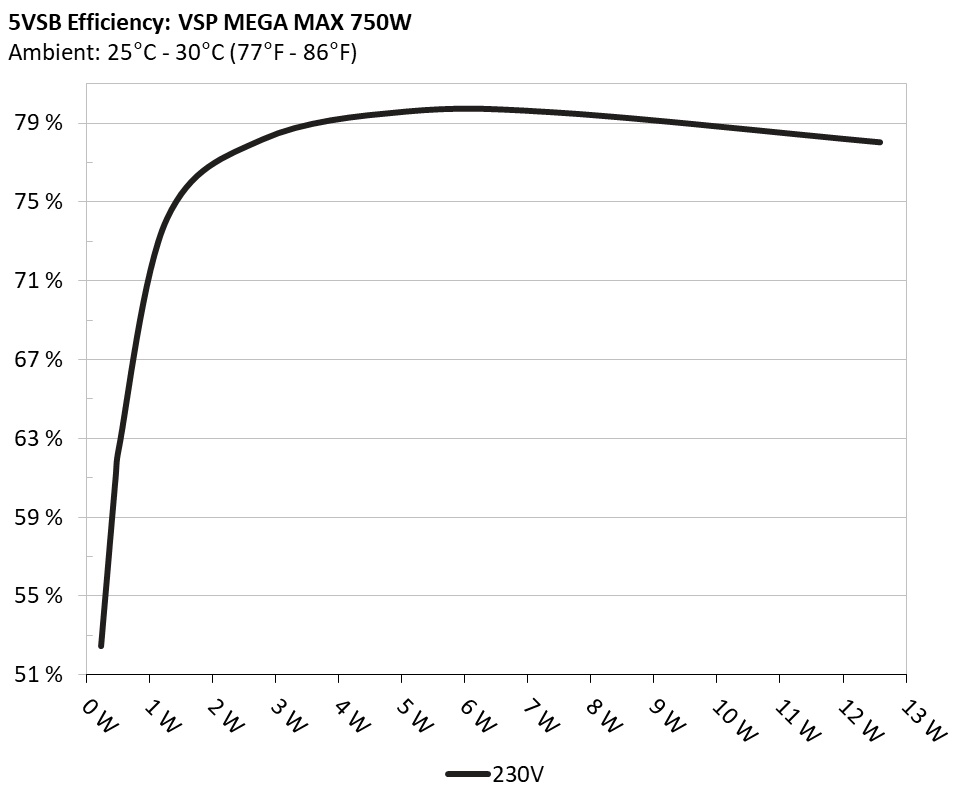

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.229W	52.451%	0.015
1	5.085V	0.437W	52.451%	230.05V
2	0.09A	0.458W	60.944%	0.026
2	5.085V	0.752W	60.944%	230.04V
3	0.55A	2.792W	78.181%	0.118
3	5.075V	3.573W	78.181%	230.04V
4	1A	5.067W	79.595%	0.192
4	5.065V	6.366W	79.595%	230.04V
5	1.501A	7.584W	79.516%	0.253
5	5.054V	9.534W	79.516%	230.04V
6	2.501A	12.585W	78.033%	0.329
6	5.032V	16.128W	78.033%	230.04V

Protection Features

OCP (Normal @ 29.4°C)	12V: 81.40A (130.24%), 12.061V 5V: 19.2A (128.00%), 5.016V 3.3V: 20A (133.33%), 3.312V 5VSB: 4A (160.00%), 4.997V
OCP (Hot @ 45.2°C)	12V: 79.00A (126.40%), 12.053V 5V: 18.8A (125.33%), 5.016V 3.3V: 19.5A (130.00%), 3.311V 5VSB: 4A (160.00%), 4.995V
OPP (Normal @ 31.3°C)	991.08W (132.14%)
OPP (Hot @ 43.1°C)	856.01W (114.14%)
OTP	✓ (103°C @ 12V Heatsink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 180V)	✓
UVP (No Damage @ 170V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: None Inrush: NTC

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	4.426A	1.987A	1.984A	0.989A	75.017	85.275%	765	21.1	40.13°C	0.87
10%	12.069V	5.036V	3.328V	5.06V	87.971	85.275%	765	21.1	45.29°C	230.02V
20%	9.868A	2.981A	2.978A	1.188A	149.992	89.101%	771	20.9	40.67°C	0.94
20%	12.068V	5.033V	3.325V	5.053V	168.341	89.101%	771	20.9	46.83°C	230.01V
30%	15.658A	3.48A	3.477A	1.388A	225.004	89.993%	869	23.8	41.38°C	0.962
30%	12.067V	5.031V	3.323V	5.046V	250.022	89.993%	869	23.8	49.18°C	230V
40%	21.455A	3.978A	3.977A	1.588A	300.1	89.856%	1173	29.6	41.86°C	0.973
40%	12.066V	5.029V	3.32V	5.039V	333.979	89.856%	1173	29.6	49.13°C	230V
50%	26.880A	4.975A	4.975A	1.789A	374.826	89.58%	1380	33.6	42.15°C	0.978
50%	12.065V	5.027V	3.317V	5.032V	418.423	89.58%	1380	33.6	49.36°C	229.99V
60%	32.321A	5.973A	5.975A	1.991A	449.752	89.019%	1572	37.1	42.51°C	0.982
60%	12.064V	5.024V	3.315V	5.024V	505.23	89.019%	1572	37.1	51.09°C	229.99V
70%	37.762A	6.973A	6.977A	2.194A	524.652	88.311%	1714	39.5	43.1°C	0.984
70%	12.063V	5.021V	3.312V	5.016V	594.092	88.311%	1714	39.5	52.72°C	229.98V
80%	43.276A	7.973A	7.981A	2.296A	599.876	87.479%	1853	40.9	43.85°C	0.986
80%	12.061V	5.018V	3.308V	5.009V	685.735	87.479%	1853	40.9	54.65°C	229.97V
90%	49.116A	8.474A	8.471A	2.399A	674.895	86.63%	1963	42.8	44.47°C	0.988
90%	12.061V	5.016V	3.306V	5.004V	779.057	86.63%	1963	42.8	57.08°C	229.96V
100%	54.970A	8.978A	8.995A	2.502A	750.021	85.452%	2031	43.5	45.81°C	0.989
100%	12.058V	5.013V	3.302V	4.998V	877.719	85.452%	2031	43.5	59.27°C	229.95V
110%	60.494A	9.981A	10.095A	2.503A	825.044	84.105%	2071	44	46.77°C	0.991
110%	12.055V	5.01V	3.299V	4.995V	980.971	84.105%	2071	44	60.01°C	229.94V
CL1	1.992A	11.992A	11.975A	0.494A	126.433	83.87%	928	24.5	41.08°C	0.933
CL1	12.057V	5.021V	3.316V	5.063V	150.751	83.87%	928	24.5	48.28°C	230.03V
CL2	1.991A	14.284A	0.993A	0.494A	101.527	84.256%	786	21.7	40.29°C	0.912
CL2	12.062V	5.02V	3.325V	5.068V	120.499	84.256%	786	21.7	47.3°C	230.03V
CL3	1.990A	0.994A	13.412A	0.494A	76.019	81.745%	769	20.9	40.32°C	0.877
CL3	12.063V	5.035V	3.318V	5.066V	92.994	81.745%	769	20.9	46.67°C	230.04V
CL4	61.288A	0.995A	0.997A	0.496A	750.341	85.88%	1996	43	45.16°C	0.989
CL4	12.067V	5.025V	3.311V	5.046V	873.712	85.88%	1996	43	57.58°C	229.96V

The results above are not used in the certification process

Light Load Tests 230V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.231A	0.496A	0.495A	0.197A	20.013	72.238%	752	20.6	36.85°C	0.579
20W	12.073V	5.039V	3.331V	5.079V	27.705	72.238%	752	20.6	40.5°C	230.05V
40W	2.708A	0.695A	0.694A	0.296A	40.011	79.872%	756	21.5	37.85°C	0.749
40W	12.072V	5.038V	3.331V	5.076V	50.092	79.872%	756	21.5	42.18°C	230.04V
60W	4.186A	0.894A	0.892A	0.394A	60.011	84.146%	759	21.2	38.16°C	0.834
60W	12.071V	5.038V	3.33V	5.073V	71.314	84.146%	759	21.2	42.81°C	230.03V
80W	5.662A	1.093A	1.091A	0.493A	79.986	86.511%	762	21.1	39.27°C	0.877
80W	12.070V	5.036V	3.329V	5.071V	92.459	86.511%	762	21.1	44.31°C	230.02V

The results above are not used in the certification process

Ripple Measurements 230V

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	9.97mV	11.07mV	8.90mV	9.58mV	Pass
20% Load	11.60mV	11.27mV	9.20mV	10.34mV	Pass
30% Load	14.91mV	16.53mV	12.71mV	11.21mV	Pass
40% Load	14.00mV	11.89mV	9.41mV	11.97mV	Pass
50% Load	16.33mV	12.39mV	10.07mV	13.04mV	Pass
60% Load	21.83mV	13.36mV	10.63mV	15.34mV	Pass
70% Load	27.27mV	15.35mV	12.05mV	17.07mV	Pass
80% Load	34.19mV	17.09mV	19.73mV	18.34mV	Pass
90% Load	40.60mV	18.36mV	21.46mV	19.87mV	Pass
100% Load	44.68mV	19.84mV	22.43mV	19.71mV	Pass
110% Load	51.75mV	22.21mV	24.63mV	21.36mV	Pass
Crossload1	11.21mV	17.71mV	21.37mV	11.18mV	Pass
Crossload2	11.19mV	18.77mV	10.53mV	11.21mV	Pass
Crossload3	10.69mV	11.73mV	21.67mV	11.26mV	Pass
Crossload4	45.73mV	16.26mV	13.49mV	13.82mV	Pass

The results above are not used in the certification process

VSP MEGA MAX 750W

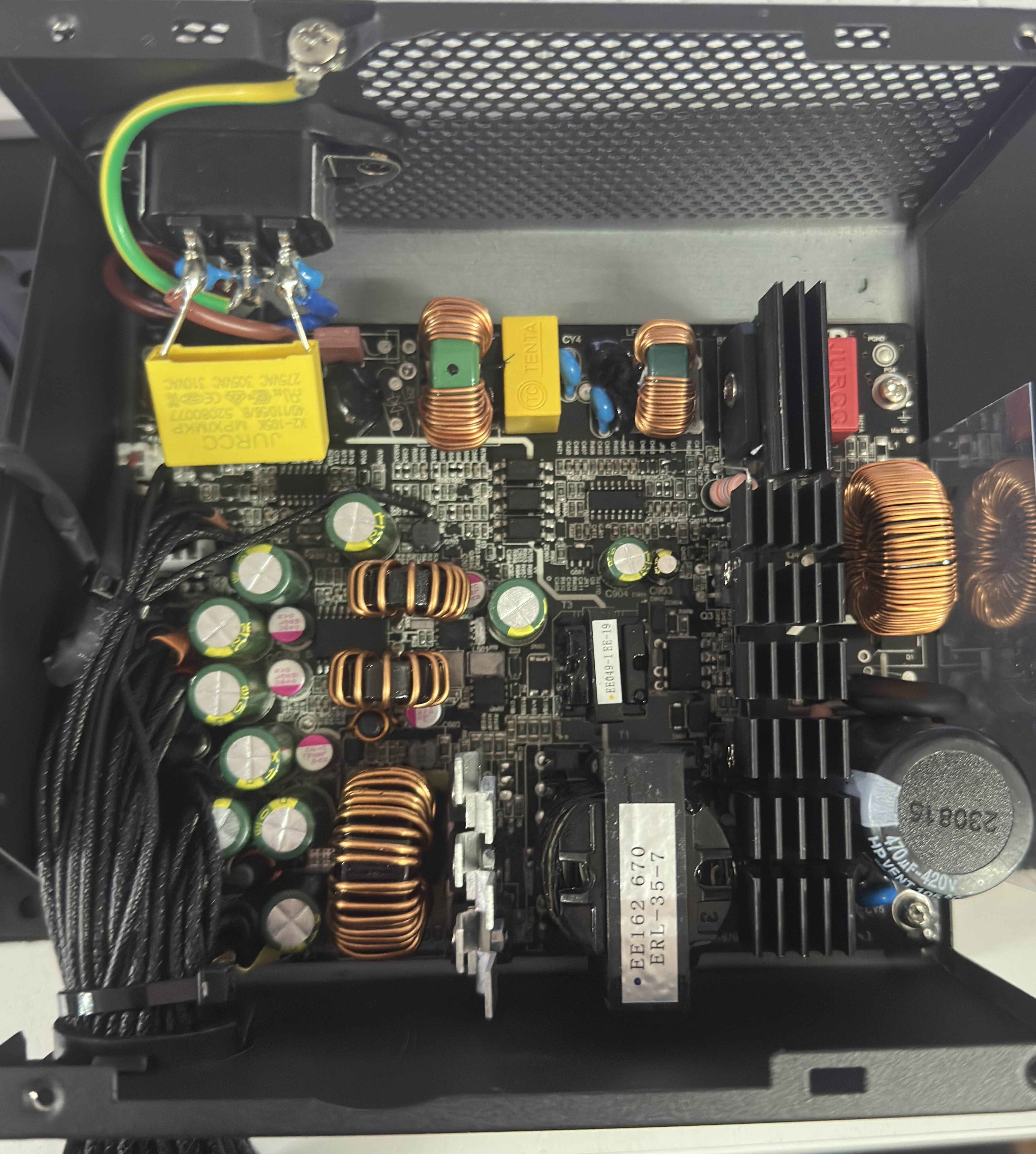

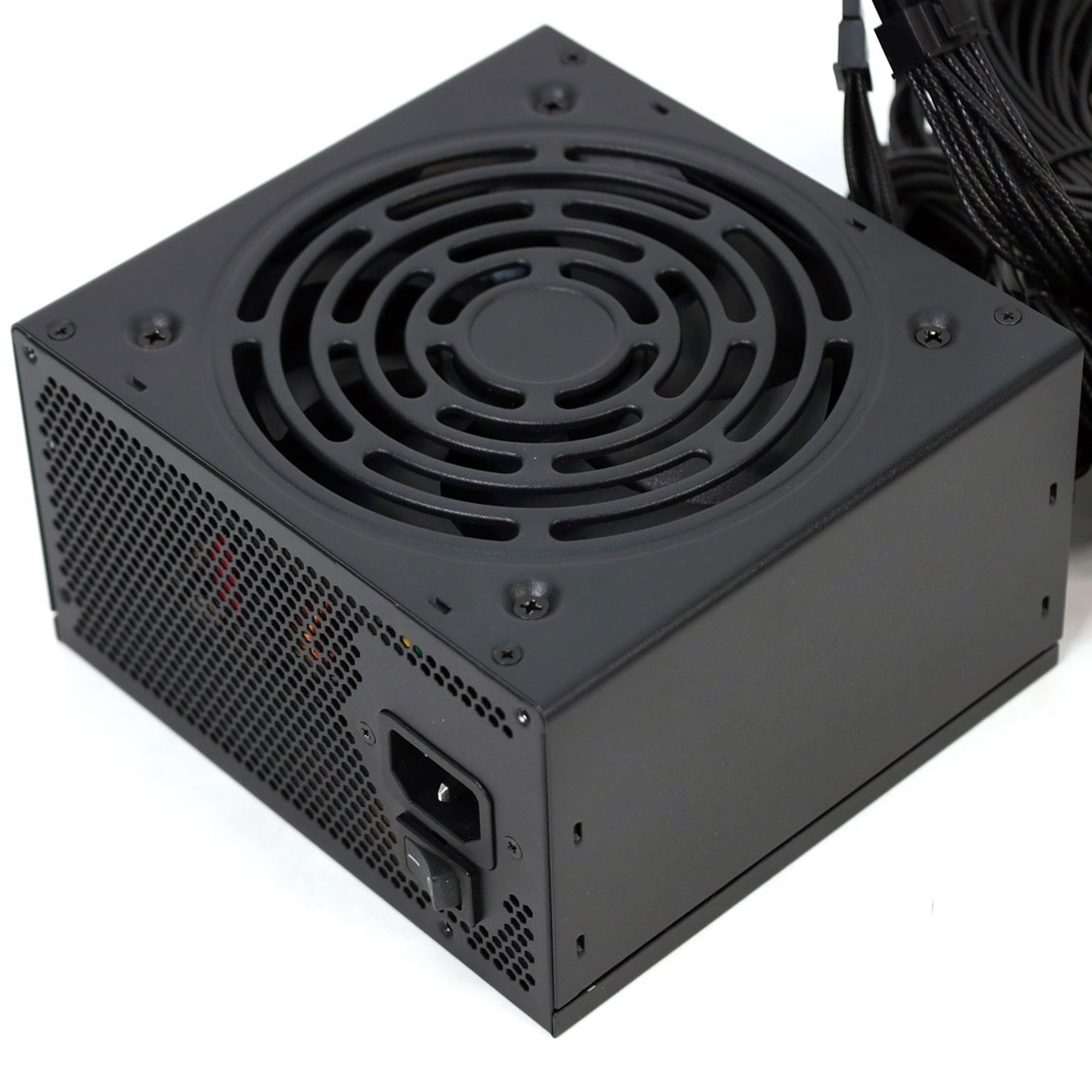

Top side

Power specifications label

Third Photo

Fourth Photo
