Forgeon Reactor 1000W
Serial Number-
Lab IDFR10003080
Certification ID253080
  • Test Result Report ID: 25PS3080A
  • Certificate Issue Date: Jan 8, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandForgeon
Manufacturer (OEM)Kinpower
SeriesReactor
Model Number-
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)16
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)150 x 85 x 160 mm

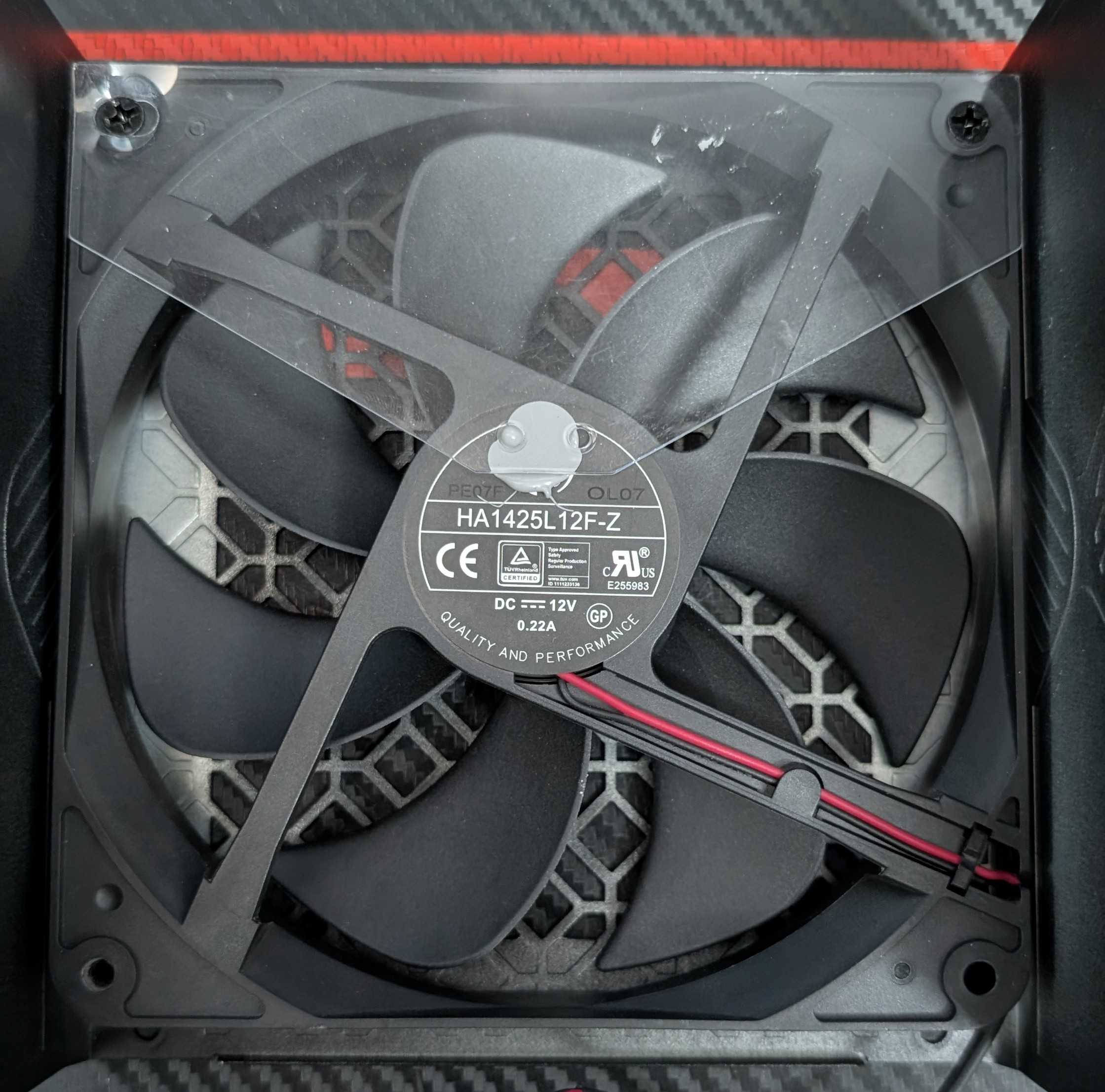

Cooling140mm Hydraulic Bearing Fan (HA1425L12F-Z)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.530.3
Watts1031000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 18AWG Tinned Copper
4+4 pin EPS12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 2 4 18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (450mm+150mm+150mm) 3 9 18AWG Copper
4-pin Molex (450mm+150mm+150mm) 1 3 18AWG Copper

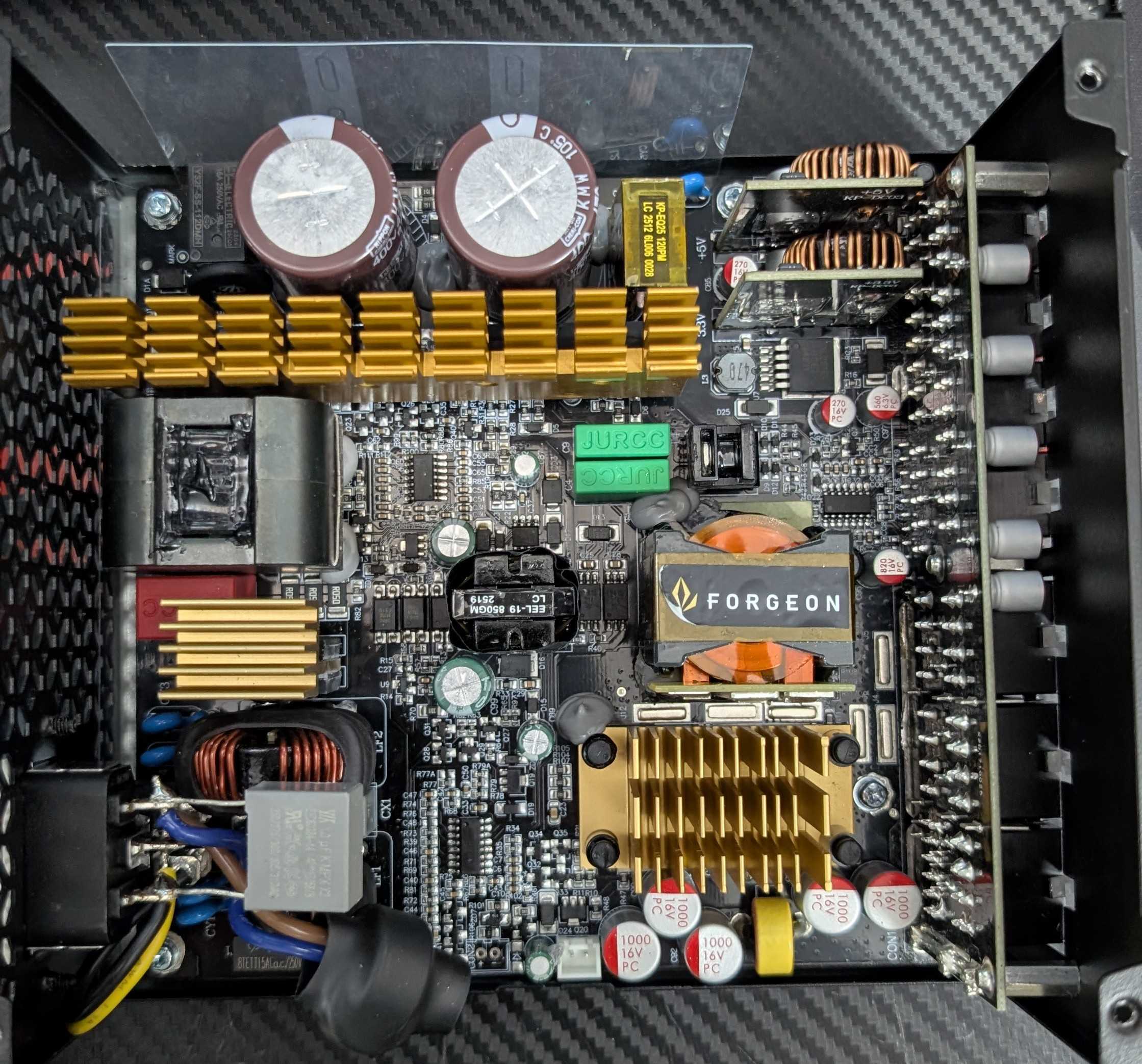

Parts Description

General Data
Manufacturer (OEM) Kinpower
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF72 20D-15 (20 Ohm @ 25°C) & Relay
Bridge Rectifier
2x
APFC MOSFETs
2x Sanrise Tech SRC60R095BS (600V, 16A @ 125°C, Rds(on): 95mOhm)
APFC Boost Diode
Global Power G3S06510A (650V, 10A @ 155°C)
Bulk Cap(s)
2x Nippon Chemi-con (400V, 470uF each or 940uF combined, 2,000h @ 105°C, KMW)
Main Switchers
2x Fuxin Semiconductor FXN30S65GT

APFC Controller

Champion CM6500UNX
Resonant Controller
Champion CM6901T6X
Topology Primary side: APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 8x Alkaidsemi AKG40N013G (40V, 110A @ 100°C, Rds(on): 1.3mOhm)
5V & 3.3V DC-DC Converters: 4x Excelliance EMB06N03R (20V, 45A @ 100°C, Rds(on): 6mOhm)
PWM Controller(s): 2x Aplustek AT8853ZSPC
Filtering Capacitors

Electrolytic:
5x TK (@105°C, SZ)
Polymer: 33x Chengx
Supervisor IC IN1S4291-SCG
Fan Model Hong Hua HA1425L12F-Z (140mm, 12V, 0.22A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier
Dongke DK5V45R10V (45V, 10mOhm)
Standby PWM Controller
FuXin Semiconductor FXI8252S

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)89.538%
Average Noise Output (>1450 Load Combinations)29.40dBA
Average PF (>1450 Load Combinations)0.989
Efficiency With 10W (≤500W) or 2% (>500W) Load69.424%
Standby Power Consumption0.0375W
12V Ripple (Full Load)20.11mV
5V Ripple (Full Load)15.13mV
3.3V Ripple (Full Load)22.97mV
5VSB Ripple (Full Load)14.78mV
12V Load Regulation1.12%
5V Load Regulation0.42%
3.3V Load Regulation0.91%
5VSB Load Regulation3.39%
Inrush CurrentToo low to detect
Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)91.570%
Average Noise Output (>1450 Load Combinations)29.55dBA
Average PF (>1450 Load Combinations)0.958
Efficiency With 10W (≤500W) or 2% (>500W) Load74.841%
Standby Power Consumption0.0897W
12V Ripple (Full Load)21.00mV
5V Ripple (Full Load)16.10mV
3.3V Ripple (Full Load)22.33mV
5VSB Ripple (Full Load)15.41mV
12V Load Regulation1.14%
5V Load Regulation0.40%
3.3V Load Regulation0.82%
5VSB Load Regulation3.28%
Inrush CurrentToo low to detect
12V Transient Response (200%)11.59V
5V Transient Response (200%)5.021V
3.3V Transient Response (200%)3.254V
5VSB Transient Response (200%)5.004V
Hold-Up Time & Power Ok Signal16.00ms
AC Loss to PWR_OK Hold Up Time13.50ms
PWR_OK Inactive to DC Loss Delay2.50ms
PSU Timings: T1 (20% / 100%)38.0ms37.0ms
PSU Timings: T3 (20% / 100%)115.0ms115.0ms
12V OCP (30.4°C / 45.1°C)109.20A (130.78%), 12.125V104.20A (124.79%), 12.134V
5V OCP (30.4°C / 45.1°C)25.6A (128.00%), 5.072V25.6A (128.00%), 5.057V
3.3V OCP (30.4°C / 45.1°C)26.3A (131.50%), 3.28V26.3A (131.50%), 3.271V
5VSB OCP (30.4°C / 45.1°C)4.6A (153.33%), 5.034V4.5A (150.00%), 5.033V
OPP (30.59°C / 42.43°C)128.77%123.32%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)16
AC Loss to PWR_OK Hold Up Time (ms)13.5
PWR_OK Inactive to DC Loss Delay (ms)2.5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.03 V 115.02 V 113.85 V 115.06 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.17 % 2.00 % PASS
Real Power: 0.038 W -0.006 W N/A 0.072 W N/A N/A
Apparent Power: 7.131 W 7.106 W N/A 7.153 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.07 V 230.07 V 227.70 V 230.13 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.090 W 0.053 W N/A 0.141 W N/A N/A
Apparent Power: 22.780 W 22.745 W N/A 22.819 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

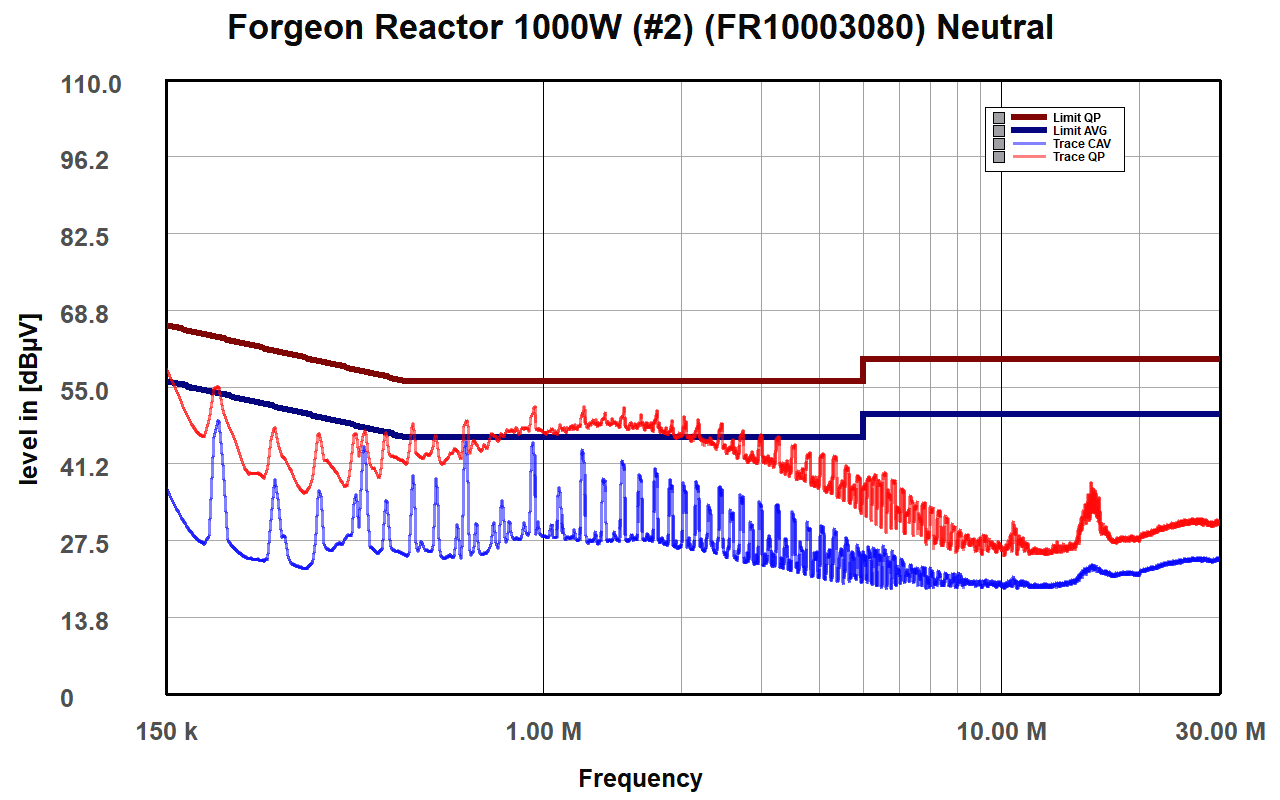

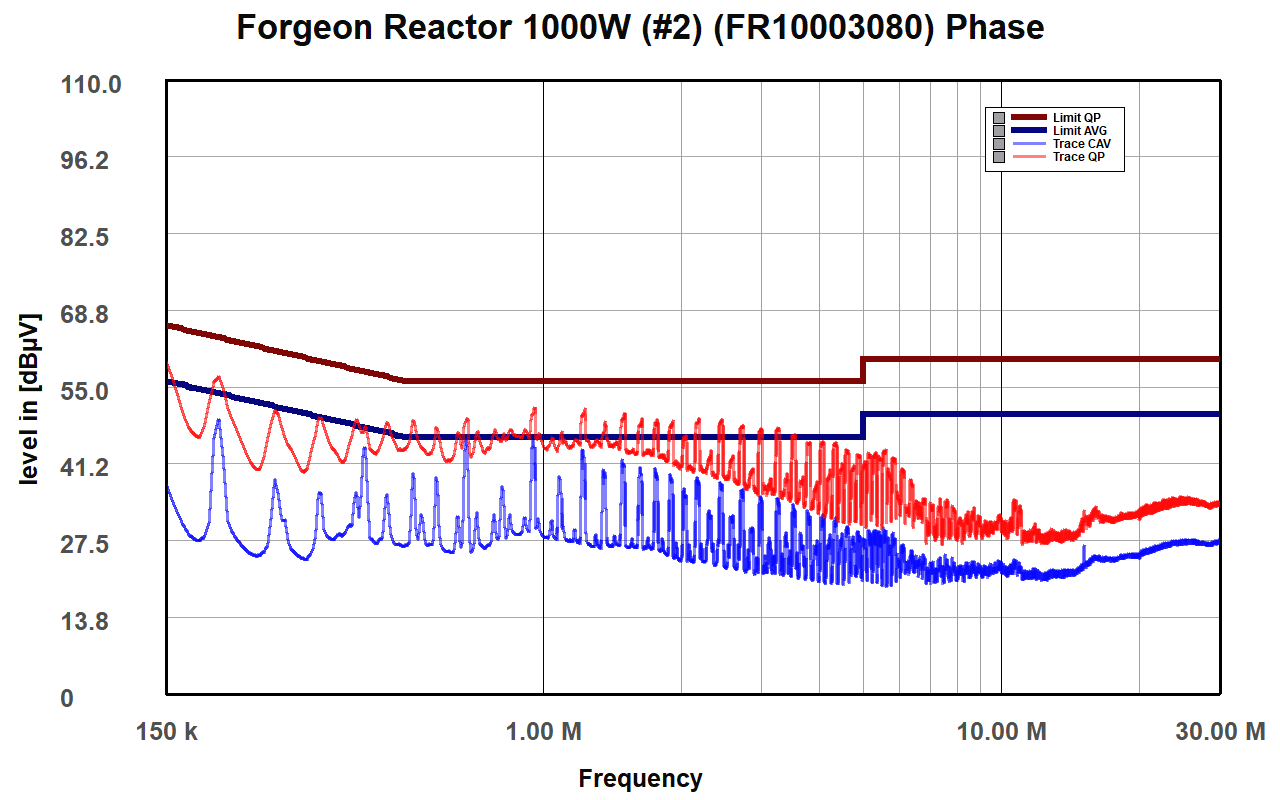

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

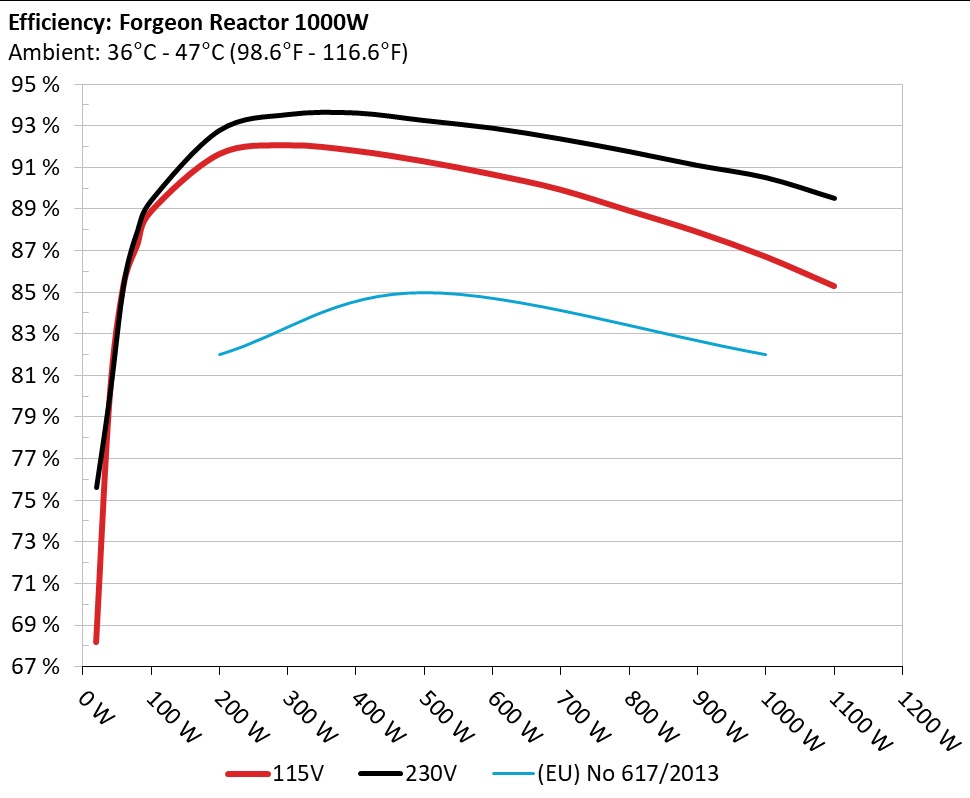

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

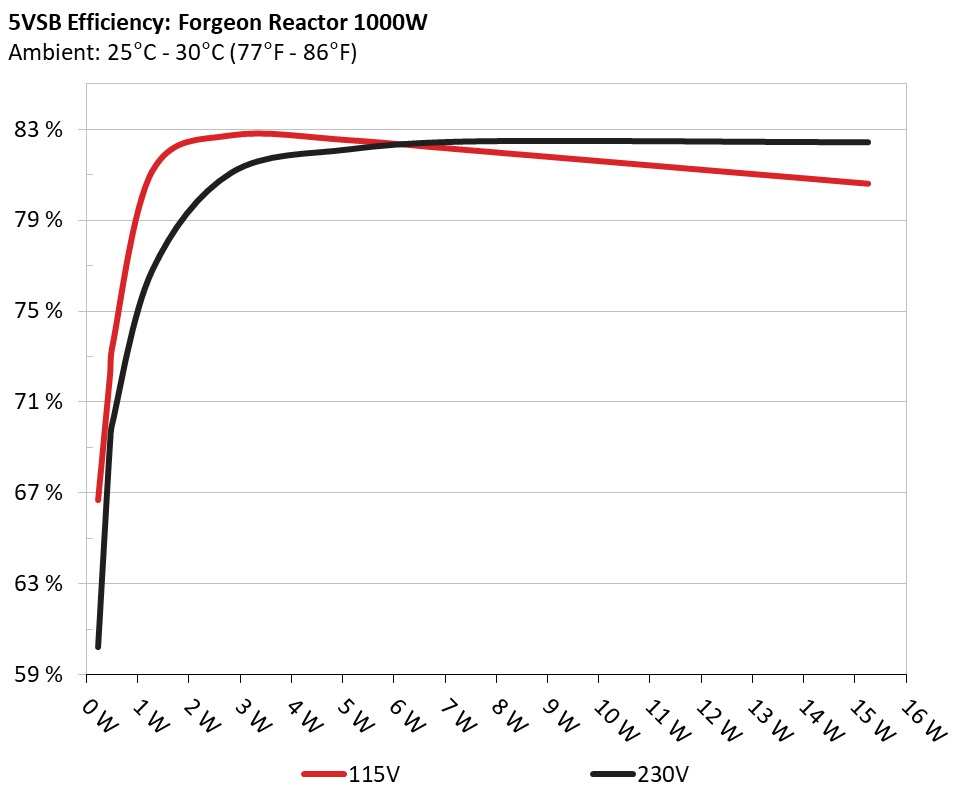

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 66.691% 0.052
5.161V 0.348W 114.97V
2 0.09A 0.465W 72.211% 0.094
5.16V 0.644W 114.97V
3 0.55A 2.833W 82.722% 0.359
5.148V 3.425W 114.97V
4 1A 5.138W 82.503% 0.465
5.136V 6.228W 114.95V
5 1.5A 7.687W 82.026% 0.516
5.123V 9.371W 114.94V
6 3.001A 15.252W 80.595% 0.561
5.083V 18.925W 114.93V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.233W 60.238% 0.017
5.163V 0.387W 230.05V
2 0.09A 0.465W 69.193% 0.03
5.161V 0.672W 230.05V
3 0.55A 2.833W 81.103% 0.147
5.149V 3.493W 230.05V
4 1A 5.138W 82.131% 0.236
5.137V 6.257W 230.05V
5 1.5A 7.687W 82.483% 0.308
5.123V 9.32W 230.05V
6 3.001A 15.252W 82.439% 0.417
5.083V 18.501W 230.05V

Protection Features

OCP (Normal @ 30.4°C)12V: 109.20A (130.78%), 12.125V
5V: 25.6A (128.00%), 5.072V
3.3V: 26.3A (131.50%), 3.28V
5VSB: 4.6A (153.33%), 5.034V
OCP (Hot @ 45.1°C)12V: 104.20A (124.79%), 12.134V
5V: 25.6A (128.00%), 5.057V
3.3V: 26.3A (131.50%), 3.271V
5VSB: 4.5A (150.00%), 5.033V
OPP (Normal @ 30.6°C)1287.72W (128.77%)
OPP (Hot @ 42.4°C)1233.16W (123.32%)
OTP✓ (130°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.408A 1.975A 1.985A 0.975A 100.004 88.881% 308 <6.0 40.45°C 0.978
12.234V 5.064V 3.325V 5.131V 112.512 50.46°C 114.98V
20% 13.833A 2.964A 2.98A 1.173A 199.954 91.643% 310 <6.0 40.77°C 0.99
12.221V 5.061V 3.322V 5.117V 218.185 52.98°C 114.96V
30% 21.621A 3.46A 3.479A 1.372A 300 92.071% 1091 35.1 41.38°C 0.989
12.208V 5.059V 3.32V 5.104V 325.836 56.09°C 114.93V
40% 29.400A 3.954A 3.977A 1.572A 399.675 91.806% 1016 33.3 41.99°C 0.989
12.193V 5.059V 3.319V 5.09V 435.346 55.95°C 114.91V
50% 36.862A 4.942A 4.974A 1.774A 499.391 91.302% 1229 38.2 42.05°C 0.991
12.177V 5.059V 3.317V 5.075V 546.97 55.72°C 114.89V
60% 44.414A 5.93A 5.972A 1.977A 599.951 90.673% 1409 41.6 42.99°C 0.993
12.162V 5.06V 3.316V 5.06V 661.658 55.11°C 114.86V
70% 51.919A 6.921A 6.973A 2.181A 699.738 89.937% 1453 42.1 43.41°C 0.994
12.146V 5.059V 3.313V 5.045V 778.031 59.84°C 114.82V
80% 59.496A 7.916A 7.981A 2.286A 799.795 88.928% 1456 42.2 43.87°C 0.995
12.134V 5.053V 3.308V 5.032V 899.369 64.92°C 114.79V
90% 67.428A 8.413A 8.471A 2.392A 899.613 87.906% 1457 42.3 44.72°C 0.996
12.119V 5.052V 3.305V 5.019V 1023.387 68.55°C 114.75V
100% 75.184A 8.914A 8.994A 3.007A 999.648 86.719% 1459 42.3 45.74°C 0.996
12.104V 5.049V 3.302V 4.99V 1152.759 73.63°C 114.71V
110% 82.903A 9.907A 10.093A 3.014A 1100.308 85.298% 1460 42.3 46.89°C 0.997
12.086V 5.048V 3.299V 4.978V 1289.97 80.91°C 114.67V
CL1 1.965A 12.265A 12.362A 0.488A 129.435 84.204% 742 24.7 41.99°C 0.985
12.225V 5.055V 3.309V 5.128V 153.718 67.3°C 114.93V
CL2 1.964A 19.176A 0.994A 0.487A 126.525 83.68% 384 8 41.8°C 0.985
12.227V 5.043V 3.319V 5.134V 151.206 63.67°C 114.92V
CL3 1.964A 0.993A 18.528A 0.487A 92.519 80.212% 307 <6.0 40.47°C 0.98
12.228V 5.038V 3.292V 5.133V 115.345 60.06°C 114.93V
CL4 81.682A 0.99A 0.997A 0.493A 999.833 87.76% 1457 42.3 44.18°C 0.996
12.108V 5.054V 3.311V 5.075V 1139.287 64.05°C 114.68V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.410A 1.975A 1.983A 0.975A 100.007 89.403% 304 <6.0 40.14°C 0.863
12.233V 5.066V 3.327V 5.131V 111.865 45.71°C 230.15V
20% 13.836A 2.963A 2.978A 1.173A 199.957 92.771% 306 <6.0 40.94°C 0.942
12.219V 5.063V 3.324V 5.117V 215.535 47.77°C 230.15V
30% 21.625A 3.458A 3.477A 1.372A 300.005 93.532% 309 <6.0 41.17°C 0.965
12.206V 5.061V 3.322V 5.104V 320.752 49.83°C 230.14V
40% 29.403A 3.953A 3.976A 1.572A 399.695 93.607% 748 25 41.64°C 0.973
12.192V 5.06V 3.32V 5.09V 426.998 51.2°C 230.12V
50% 36.865A 4.944A 4.974A 1.774A 499.41 93.246% 1398 41.4 42.27°C 0.978
12.177V 5.058V 3.317V 5.075V 535.579 53.82°C 230.11V
60% 44.412A 5.936A 5.975A 1.977A 599.957 92.878% 1451 42.1 42.83°C 0.98
12.162V 5.055V 3.314V 5.06V 645.96 54.65°C 230.1V
70% 51.912A 6.926A 6.975A 2.18A 699.708 92.36% 1449 42.1 43.27°C 0.982
12.147V 5.054V 3.312V 5.046V 757.589 55.3°C 230.09V
80% 59.495A 7.916A 7.976A 2.285A 799.728 91.754% 1451 42.1 43.98°C 0.984
12.133V 5.053V 3.31V 5.033V 871.598 55.84°C 230.08V
90% 67.430A 8.413A 8.465A 2.391A 899.57 91.092% 1452 42.1 44.13°C 0.985
12.118V 5.052V 3.308V 5.02V 987.535 57.07°C 230.05V
100% 75.180A 8.908A 8.983A 3.004A 999.534 90.505% 1457 42.3 45.68°C 0.986
12.103V 5.052V 3.306V 4.995V 1104.398 59.15°C 229.99V
110% 82.885A 9.913A 10.091A 3.012A 1100.227 89.512% 1459 42.3 46.39°C 0.987
12.088V 5.045V 3.3V 4.981V 1229.144 64.51°C 229.96V
CL1 1.965A 12.275A 12.362A 0.488A 129.431 84.892% 866 28 41.46°C 0.913
12.225V 5.051V 3.308V 5.128V 152.471 57.69°C 230.07V
CL2 1.964A 19.182A 0.994A 0.487A 126.523 84.436% 376 7 42.64°C 0.91
12.227V 5.041V 3.319V 5.134V 149.849 56.4°C 230.06V
CL3 1.964A 0.993A 18.533A 0.487A 92.519 80.864% 308 <6.0 42.67°C 0.871
12.228V 5.037V 3.291V 5.134V 114.417 54.91°C 230.06V
CL4 81.684A 0.99A 0.997A 0.493A 999.83 91.136% 1456 42.2 45°C 0.986
12.108V 5.053V 3.311V 5.075V 1097.084 56.57°C 229.93V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.214A 0.493A 0.495A 0.194A 20.004 68.173% 302 <6.0 36.79°C 0.823
12.233V 5.07V 3.332V 5.159V 29.344 43.82°C 114.99V
40W 2.671A 0.691A 0.694A 0.291A 40.002 80.01% 303 <6.0 37.66°C 0.923
12.240V 5.069V 3.331V 5.155V 49.995 44.79°C 114.99V
60W 4.129A 0.888A 0.892A 0.388A 60 85.327% 304 <6.0 38.91°C 0.953
12.238V 5.067V 3.329V 5.151V 70.322 46.36°C 114.99V
80W 5.584A 1.086A 1.091A 0.486A 79.952 87.261% 306 <6.0 39.35°C 0.969
12.236V 5.065V 3.328V 5.146V 91.621 48.39°C 114.99V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.214A 0.493A 0.495A 0.194A 20.011 75.632% 299 <6.0 36.42°C 0.506
12.234V 5.072V 3.333V 5.159V 28.974 41.66°C 230.15V
40W 2.671A 0.69A 0.693A 0.291A 40.004 80.175% 301 <6.0 37.79°C 0.646
12.240V 5.07V 3.331V 5.155V 49.895 42.31°C 230.15V
60W 4.129A 0.888A 0.892A 0.388A 60.002 85.425% 302 <6.0 38.1°C 0.758
12.237V 5.068V 3.33V 5.151V 70.238 43.14°C 230.15V
80W 5.584A 1.086A 1.09A 0.486A 79.957 87.951% 303 <6.0 39.33°C 0.822
12.236V 5.067V 3.329V 5.146V 90.909 44.06°C 230.15V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load14.35mV10.35mV9.20mV7.84mVPass
20% Load13.69mV11.68mV8.65mV7.84mVPass
30% Load13.84mV11.48mV9.61mV8.05mVPass
40% Load14.04mV11.99mV9.36mV9.22mVPass
50% Load15.01mV13.82mV13.99mV9.07mVPass
60% Load16.64mV13.57mV10.73mV9.27mVPass
70% Load18.47mV15.76mV11.90mV9.93mVPass
80% Load20.20mV16.43mV21.72mV10.45mVPass
90% Load19.49mV15.87mV22.28mV10.70mVPass
100% Load20.11mV15.13mV22.97mV14.78mVPass
110% Load25.59mV14.79mV24.15mV17.16mVPass
Crossload115.69mV16.46mV26.43mV9.48mVPass
Crossload214.40mV10.81mV22.48mV9.53mVPass
Crossload316.33mV31.01mV20.14mV7.90mVPass
Crossload418.68mV9.27mV7.33mV9.41mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load13.89mV10.51mV10.07mV7.74mVPass
20% Load13.94mV11.17mV9.41mV7.49mVPass
30% Load13.69mV11.58mV10.07mV8.05mVPass
40% Load13.89mV12.24mV9.87mV9.53mVPass
50% Load15.67mV13.72mV12.97mV9.38mVPass
60% Load15.88mV14.59mV11.19mV9.48mVPass
70% Load16.84mV15.51mV11.90mV10.50mVPass
80% Load19.18mV16.73mV21.31mV10.50mVPass
90% Load20.10mV16.63mV22.28mV10.29mVPass
100% Load21.00mV16.10mV22.33mV15.41mVPass
110% Load27.74mV16.06mV24.80mV17.45mVPass
Crossload115.06mV16.30mV26.12mV8.77mVPass
Crossload214.35mV10.46mV23.60mV9.58mVPass
Crossload316.03mV31.88mV19.89mV8.00mVPass
Crossload419.13mV9.87mV7.64mV9.13mVPass

The results above are not used in the certification process

Forgeon Reactor 1000W

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
