Cables and Connectors(Non-accredited measurements)
Modular Cables
Description
Cable Count
Connector Count (Total)
Gauge
Cable Type
ATX connector 20+4 pin (350mm)
1
1
16-22AWG
Tinned Copper
4+4 pin EPS12V (500mm)
2
2
16AWG
Tinned Copper
6+2 pin PCIe (350mm+160mm)
2
4
16-18AWG
Tinned Copper
12+4 pin PCIe (500mm) (600W)
1
1
16-24AWG
Tinned Copper
SATA (500mm+155mm+155mm+155mm)
1
4
18AWG
Tinned Copper
SATA (500mm+155mm) / 4-pin Molex (+155mm+155mm)
1
2 / 2
18AWG
Tinned Copper
Test Results
Temperature & Compliance Info
Temperature Range (°C /°F)
30-32 / 86-89.6
ErP Lot 3/6 Ready
✓
(EU) No 617/2013 Compliance
✓
ALPM (Alternative Low Power Mode) compatible
✓
ATX v3.1 PSU Power Excursion
✓
Performance Summary
Efficiency Rating
PLATINUM
Noise Rating
A+
Average Efficiency (>1450 load combinations)
90.115%
Average Noise Output (>1450 Load Combinations)
17.90dBA
Average PF (>1450 Load Combinations)
0.981
Efficiency With 10W (≤500W) or 2% (>500W) Load
70.788%
Standby Power Consumption
0.0888W
12V Ripple (Full Load)
40.56mV
5V Ripple (Full Load)
29.80mV
3.3V Ripple (Full Load)
22.35mV
5VSB Ripple (Full Load)
24.20mV
12V Load Regulation
1.57%
5V Load Regulation
0.32%
3.3V Load Regulation
0.30%
5VSB Load Regulation
3.29%
Inrush Current
27.410A
Efficiency Rating
PLATINUM
Noise Rating
A+
Average Efficiency (>1450 load combinations)
91.759%
Average Noise Output (>1450 Load Combinations)
17.36dBA
Average PF (>1450 Load Combinations)
0.943
Efficiency With 10W (≤500W) or 2% (>500W) Load
67.867%
Standby Power Consumption
0.1770W
12V Ripple (Full Load)
40.51mV
5V Ripple (Full Load)
30.02mV
3.3V Ripple (Full Load)
23.64mV
5VSB Ripple (Full Load)
22.77mV
12V Load Regulation
1.84%
5V Load Regulation
0.32%
3.3V Load Regulation
0.30%
5VSB Load Regulation
3.29%
Inrush Current
51.690A
12V Transient Response (200%)
11.65V
5V Transient Response (200%)
4.960V
3.3V Transient Response (200%)
3.222V
5VSB Transient Response (200%)
4.982V
Hold-Up Time & Power Ok Signal
21.60ms
AC Loss to PWR_OK Hold Up Time
18.10ms
PWR_OK Inactive to DC Loss Delay
3.50ms
PSU Timings: T1 (20% / 100%)
50.0ms
50.0ms
PSU Timings: T3 (20% / 100%)
109.0ms
108.0ms
12V OCP (27.9°C / 44.7°C)
103.20A (145.70%), 12.052V
93.80A (132.43%), 12.061V
5V OCP (27.9°C / 44.7°C)
22.9A (114.50%), 4.99V
22A (110.00%), 4.992V
3.3V OCP (27.9°C / 44.7°C)
23.7A (118.50%), 3.286V
23.3A (116.50%), 3.287V
5VSB OCP (27.9°C / 44.7°C)
3.6A (120.00%), 4.788V
3.6A (120.00%), 4.786V *High Ripple (84.96mV)
OPP (27.70°C / 43.22°C)
145.01%
130.89%
Hold-Up Time & Power Ok Signal
Hold-Up Time (ms)
21.6
AC Loss to PWR_OK Hold Up Time (ms)
18.1
PWR_OK Inactive to DC Loss Delay (ms)
3.5
Vampire Power
Tables
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
115.04 V
115.01 V
113.85 V
115.07 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
59.99 Hz
59.40 Hz
60.01 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.416
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.13 %
0.10 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.089 W
0.066 W
N/A
0.117 W
N/A
N/A
Apparent Power:
12.379 W
12.359 W
N/A
12.397 W
N/A
N/A
Power Factor:
0.007
N/A
N/A
N/A
N/A
N/A
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
230.05 V
230.04 V
227.70 V
230.09 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
50.00 Hz
49.50 Hz
50.00 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.415
1.415
1.340
1.416
1.490
PASS
Mains Voltage THD:
0.14 %
0.13 %
N/A
0.16 %
2.00 %
PASS
Real Power:
0.177 W
0.137 W
N/A
0.248 W
N/A
N/A
Apparent Power:
40.761 W
40.729 W
N/A
40.795 W
N/A
N/A
Power Factor:
0.004
N/A
N/A
N/A
N/A
N/A
Graphs

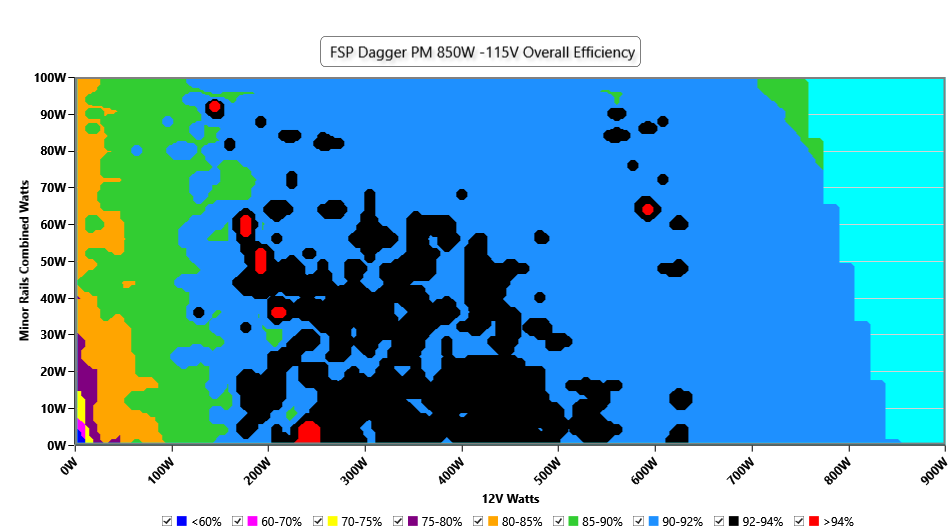

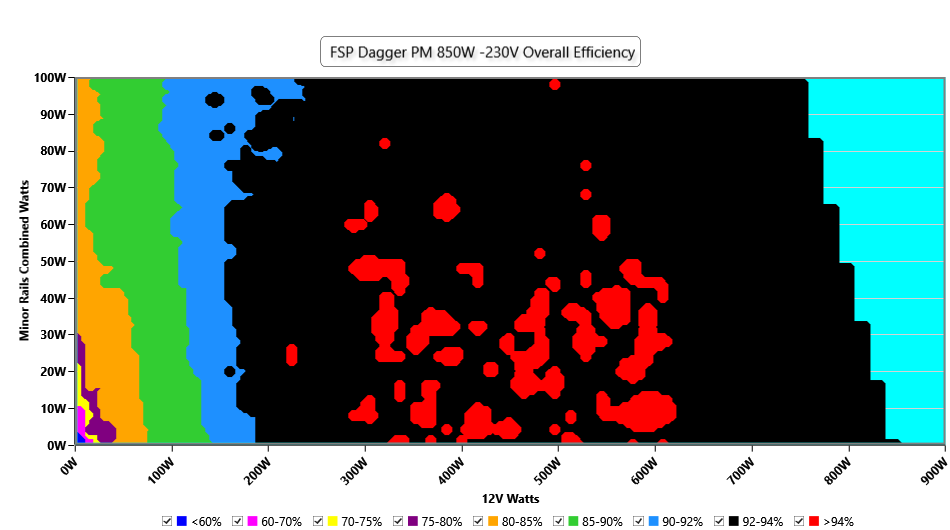

Efficiency Graph
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
INFO
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

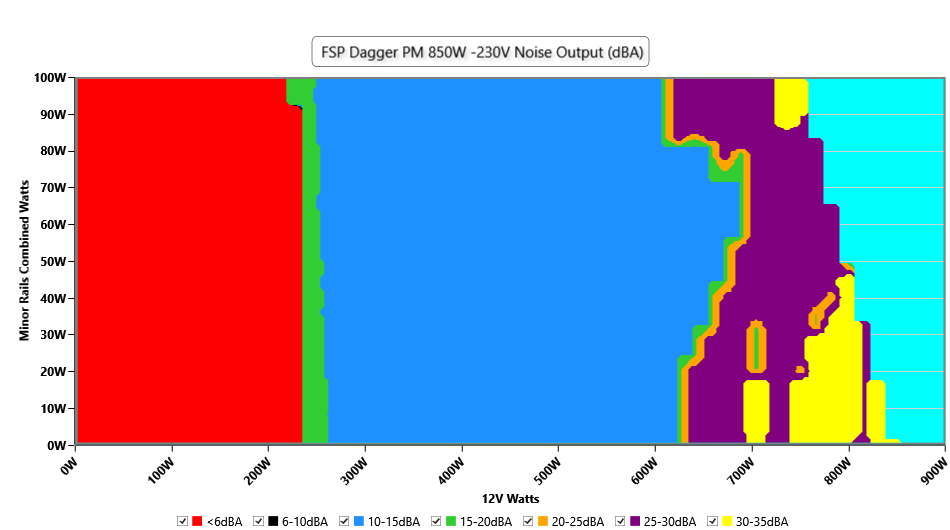

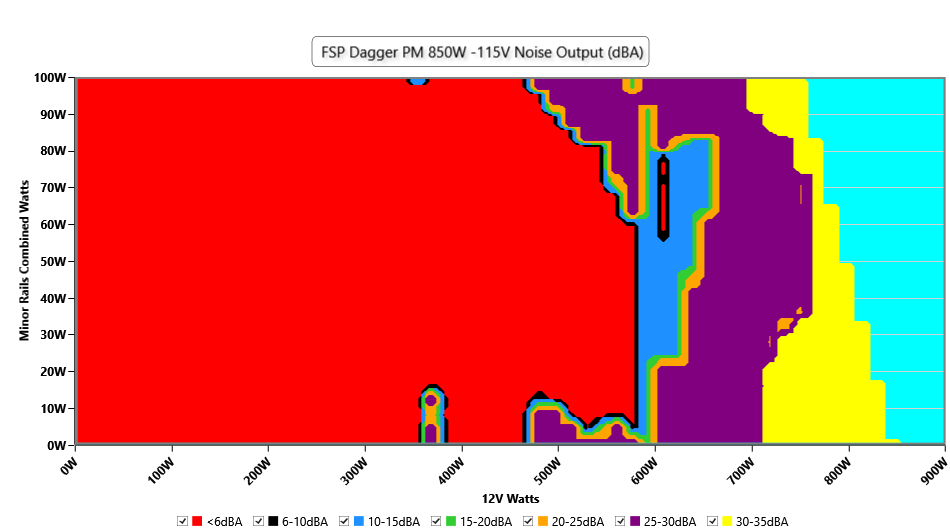

Noise Graph
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
INFO
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

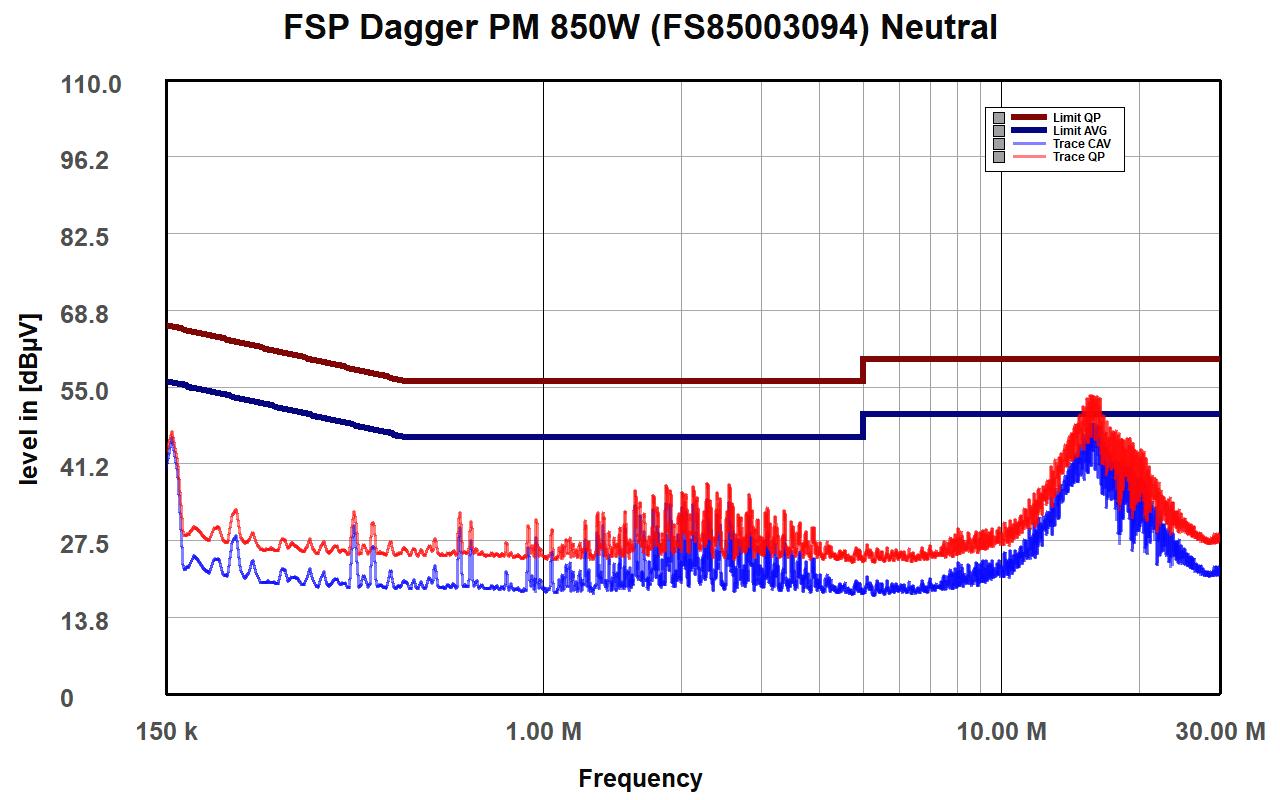

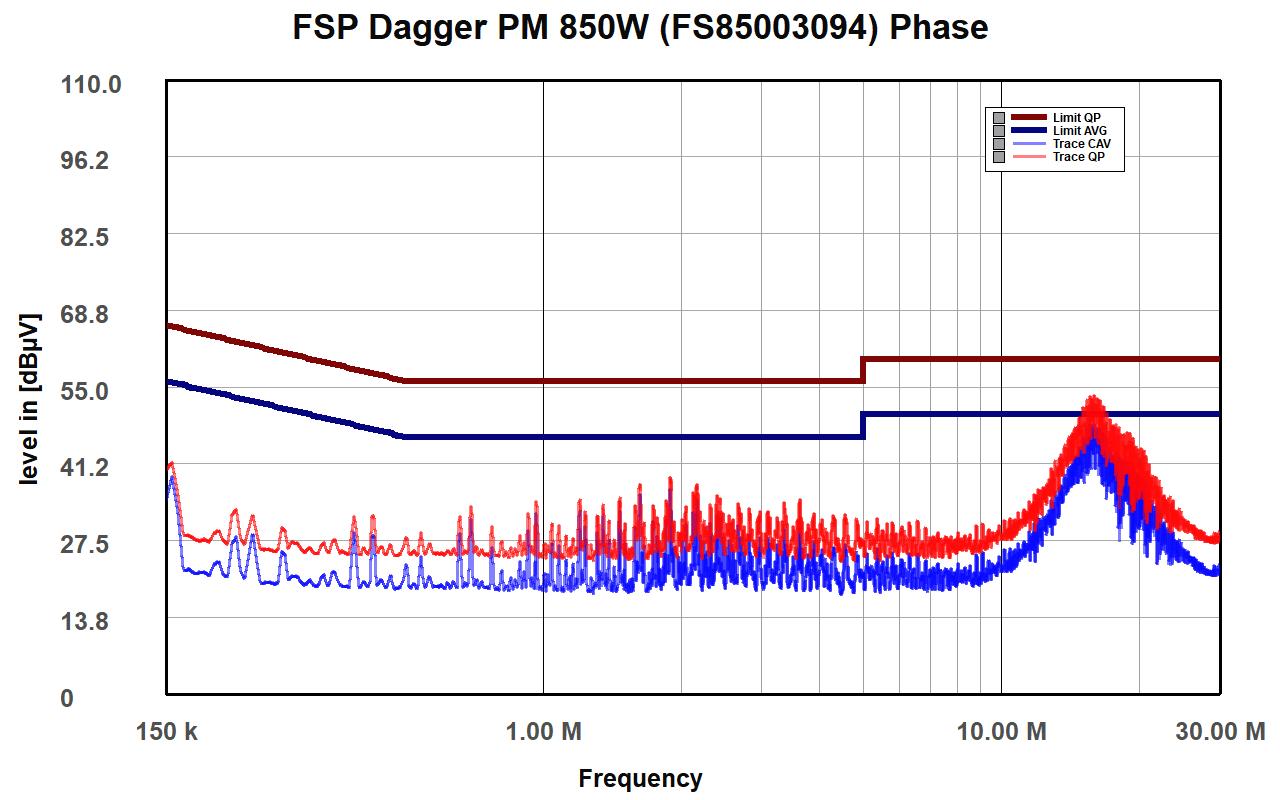

Conducted Emissions EN55032 & CISPR 32
NEUTRAL
PHASE
Indicative Performance

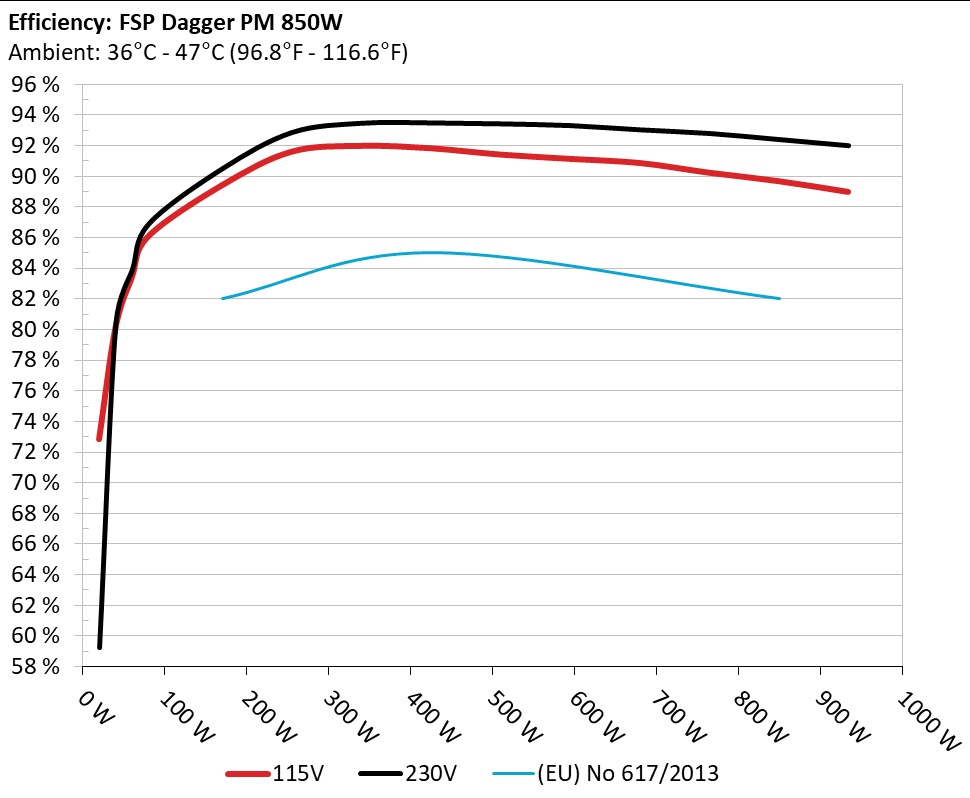

Efficiency under high ambient temperature
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

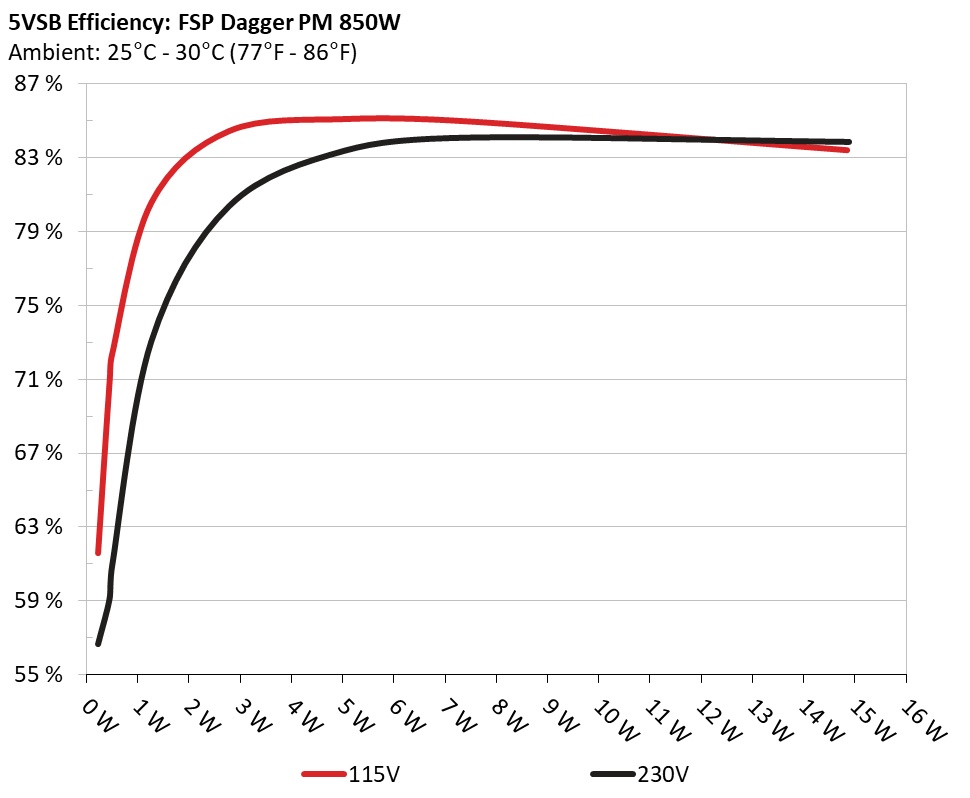

5VSB Efficiency
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK
Proper Operation
UVP (Full Load @ 90V)
✓
UVP (No Damage @ 80V)
✓
Conducted Emissions EN55032 & CISPR 32
✓
NLO
✓
Fan Failure Protection
✗
SIP
Surge: MOV Inrush: NTC & Bypass Relay
Supplementary Tests (For Reference)
Typical Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
5.300A
1.998A
1.992A
0.987A
85.01
86.133%
0
<6.0
46.01°C
0.972
11.963V
5.007V
3.313V
5.067V
98.697
40.38°C
115.04V
20%
11.512A
2.997A
2.989A
1.189A
169.958
89.428%
0
<6.0
50.67°C
0.985
12.079V
5.005V
3.312V
5.049V
190.034
40.51°C
115.01V
30%
18.116A
3.498A
3.489A
1.389A
254.971
91.623%
0
<6.0
55.19°C
0.978
12.084V
5.004V
3.311V
5.04V
278.305
41.11°C
114.98V
40%
24.740A
3.998A
3.989A
1.594A
340.066
92.004%
0
<6.0
57.82°C
0.982
12.080V
5.004V
3.309V
5.02V
369.63
41.93°C
114.95V
50%
31.000A
4.999A
4.988A
1.796A
424.921
91.848%
0
<6.0
65.3°C
0.987
12.078V
5.002V
3.308V
5.012V
462.646
42.35°C
114.92V
60%
37.219A
6.002A
5.989A
1.998A
509.479
91.438%
0
<6.0
61.89°C
0.993
12.082V
5V
3.307V
5.006V
557.248
42.66°C
114.91V
70%
43.535A
7.005A
6.988A
2.204A
594.743
91.155%
0
<6.0
43.09°C
0.993
12.074V
4.998V
3.306V
4.991V
652.284
43.1°C
114.88V
80%
50.060A
8.032A
8.067A
2.314A
679.322
90.887%
0
<6.0
50.12°C
0.993
12.064V
4.997V
3.305V
4.97V
747.436
43.63°C
114.69V
90%
56.596A
8.51A
8.475A
2.418A
764.912
90.249%
0
<6.0
59.35°C
0.994
12.058V
4.994V
3.304V
4.965V
847.452
44.69°C
114.8V
100%
63.098A
9.014A
8.992A
3.048A
849.775
89.695%
2550
42
45.57°C
0.99
12.046V
4.992V
3.303V
4.922V
947.412
50.94°C
114.74V
110%
69.433A
10.018A
10.084A
3.05A
934.239
88.995%
2992
46.6
46.91°C
0.991
12.040V
4.99V
3.302V
4.918V
1049.78
51.5°C
114.71V
CL1
0.116A
12.05A
11.954A
0A
101.301
82.051%
1101
15.1
40.26°C
0.977
12.089V
4.996V
3.321V
5.091V
123.678
46.53°C
115.03V
CL2
0.116A
20.04A
0A
0A
101.384
80.791%
1084
14.5
40.01°C
0.976
12.087V
4.989V
3.309V
5.094V
125.651
44.55°C
115.03V
CL3
0.117A
0.001A
19.824A
0A
67.39
76.38%
1073
14.3
40.03°C
0.967
11.968V
5.007V
3.329V
5.089V
88.289
42.64°C
115.04V
CL4
70.535A
0A
0A
0A
849.558
90.574%
2215
37.9
45.13°C
0.989
12.045V
5.003V
3.296V
5.068V
937.976
46.02°C
114.74V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
5.298A
1.997A
1.992A
0.988A
85.008
87.089%
0
<6.0
50.82°C
0.821
11.968V
5.007V
3.313V
5.063V
97.62
40.22°C
230.27V
20%
11.508A
2.997A
2.989A
1.189A
169.95
90.507%
0
<6.0
51.4°C
0.925
12.082V
5.006V
3.312V
5.045V
187.791
40.79°C
230.25V
30%
18.113A
3.497A
3.489A
1.39A
254.958
92.872%
0
<6.0
52.41°C
0.95
12.085V
5.005V
3.311V
5.037V
274.522
41.33°C
230.24V
40%
24.738A
3.998A
3.989A
1.595A
340.049
93.477%
0
<6.0
54.32°C
0.961
12.081V
5.004V
3.31V
5.017V
363.771
41.8°C
230.22V
50%
30.997A
4.999A
4.988A
1.798A
424.872
93.497%
1087
14.6
42.39°C
0.966
12.077V
5.002V
3.308V
5.007V
454.427
57.96°C
230.21V
60%
37.247A
6.002A
5.987A
2A
509.404
93.437%
1087
14.6
42.84°C
0.968
12.071V
5V
3.308V
4.993V
545.158
54.3°C
230.2V
70%
43.565A
7.005A
6.987A
2.208A
594.716
93.321%
1091
14.7
43.16°C
0.97
12.065V
4.998V
3.307V
4.983V
637.273
57.47°C
230.18V
80%
49.890A
8.006A
7.986A
2.314A
679.533
93.048%
1547
27.3
43.75°C
0.974
12.059V
4.996V
3.305V
4.97V
730.244
54.37°C
230.16V
90%
56.625A
8.509A
8.474A
2.421A
764.946
92.807%
1900
33.8
44.82°C
0.974
12.052V
4.994V
3.304V
4.956V
824.27
53.39°C
230.15V
100%
63.100A
9.013A
8.992A
3.05A
849.755
92.411%
2495
41.1
45.54°C
0.977
12.045V
4.992V
3.303V
4.919V
919.544
52.29°C
230.13V
110%
69.449A
10.018A
10.084A
3.053A
934.319
92.014%
2992
46.6
47.13°C
0.977
12.038V
4.991V
3.302V
4.914V
1015.419
54.36°C
230.11V
CL1
0.116A
12.049A
11.953A
0A
101.293
83.357%
1092
14.7
40.32°C
0.852
12.083V
4.996V
3.321V
5.086V
121.597
45.06°C
230.26V
CL2
0.115A
20.037A
0A
0A
101.371
81.865%
1074
14.3
41.38°C
0.852
12.084V
4.99V
3.309V
5.089V
123.872
47.01°C
230.26V
CL3
0.116A
0.001A
19.826A
0A
67.384
77.071%
1073
14.3
41.02°C
0.77
11.978V
5.008V
3.329V
5.086V
87.582
46.69°C
230.26V
CL4
70.529A
0A
0A
0A
849.508
93.149%
2214
37.8
45.42°C
0.976
12.045V
5.003V
3.296V
5.066V
911.992
52.34°C
230.13V
The results above are not used in the certification process
Light Load Tests
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.232A
0.499A
0.498A
0.197A
20.006
72.819%
0
<6.0
37.18°C
0.79
12.049V
5.006V
3.312V
5.083V
27.608
36.25°C
115.07V
40W
2.700A
0.699A
0.697A
0.295A
40.005
80.121%
0
<6.0
38.53°C
0.919
12.111V
5.007V
3.312V
5.084V
49.992
37.07°C
115.06V
60W
4.166A
0.899A
0.897A
0.394A
60.006
83.413%
0
<6.0
42.57°C
0.957
12.129V
5.008V
3.312V
5.083V
71.959
38.14°C
115.05V
80W
5.722A
1.099A
1.096A
0.492A
79.956
86.079%
0
<6.0
43.9°C
0.967
11.941V
5.007V
3.312V
5.079V
92.949
39.31°C
115.04V
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.232A
0.499A
0.498A
0.197A
20.006
59.242%
0
<6.0
38.35°C
0.395
12.052V
5.008V
3.313V
5.08V
27.196
36.93°C
230.26V
40W
2.698A
0.699A
0.697A
0.295A
40.005
80.442%
0
<6.0
43.37°C
0.598
12.114V
5.008V
3.313V
5.081V
49.743
37.52°C
230.27V
60W
4.166A
0.899A
0.897A
0.394A
60.004
83.893%
0
<6.0
44.78°C
0.733
12.130V
5.008V
3.313V
5.08V
71.528
38.41°C
230.26V
80W
5.718A
1.098A
1.096A
0.493A
79.952
86.889%
0
<6.0
47.48°C
0.809
11.947V
5.008V
3.312V
5.076V
92.08
39.49°C
230.26V
The results above are not used in the certification process
Ripple Measurements
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
43.41mV
21.84mV
16.96mV
22.19mV
Pass
20% Load
32.89mV
20.19mV
17.74mV
21.57mV
Pass
30% Load
38.10mV
21.79mV
19.29mV
23.90mV
Pass
40% Load
36.14mV
20.45mV
17.74mV
25.29mV
Pass
50% Load
34.39mV
21.33mV
18.05mV
22.82mV
Pass
60% Load
33.56mV
23.96mV
17.84mV
22.50mV
Pass
70% Load
32.48mV
22.97mV
18.05mV
24.41mV
Pass
80% Load
44.86mV
27.00mV
23.11mV
30.25mV
Pass
90% Load
35.88mV
26.22mV
21.98mV
24.57mV
Pass
100% Load
40.56mV
29.80mV
22.35mV
24.20mV
Pass
110% Load
40.76mV
29.77mV
20.19mV
23.08mV
Pass
Crossload1
26.64mV
21.58mV
18.38mV
8.89mV
Pass
Crossload2
24.08mV
20.40mV
18.25mV
9.14mV
Pass
Crossload3
42.96mV
23.65mV
21.00mV
10.53mV
Pass
Crossload4
38.36mV
45.58mV
32.85mV
11.21mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
47.07mV
19.53mV
18.46mV
23.48mV
Pass
20% Load
35.57mV
20.76mV
18.46mV
21.32mV
Pass
30% Load
38.72mV
23.65mV
20.48mV
23.95mV
Pass
40% Load
36.86mV
22.57mV
18.20mV
25.08mV
Pass
50% Load
36.14mV
22.15mV
19.34mV
23.12mV
Pass
60% Load
36.76mV
23.90mV
18.77mV
25.34mV
Pass
70% Load
38.31mV
27.05mV
22.91mV
30.45mV
Pass
80% Load
37.74mV
30.55mV
24.10mV
35.62mV
Pass
90% Load
37.79mV
31.06mV
23.06mV
29.94mV
Pass
100% Load
40.51mV
30.02mV
23.64mV
22.77mV
Pass
110% Load
41.68mV
31.50mV
21.01mV
22.51mV
Pass
Crossload1
27.94mV
22.43mV
19.61mV
9.46mV
Pass
Crossload2
29.54mV
22.26mV
18.88mV
9.60mV
Pass
Crossload3
37.84mV
24.37mV
22.60mV
10.89mV
Pass
Crossload4
39.83mV
42.55mV
29.56mV
11.37mV
Pass
The results above are not used in the certification process
FSP Technology DAGGER PM 850W

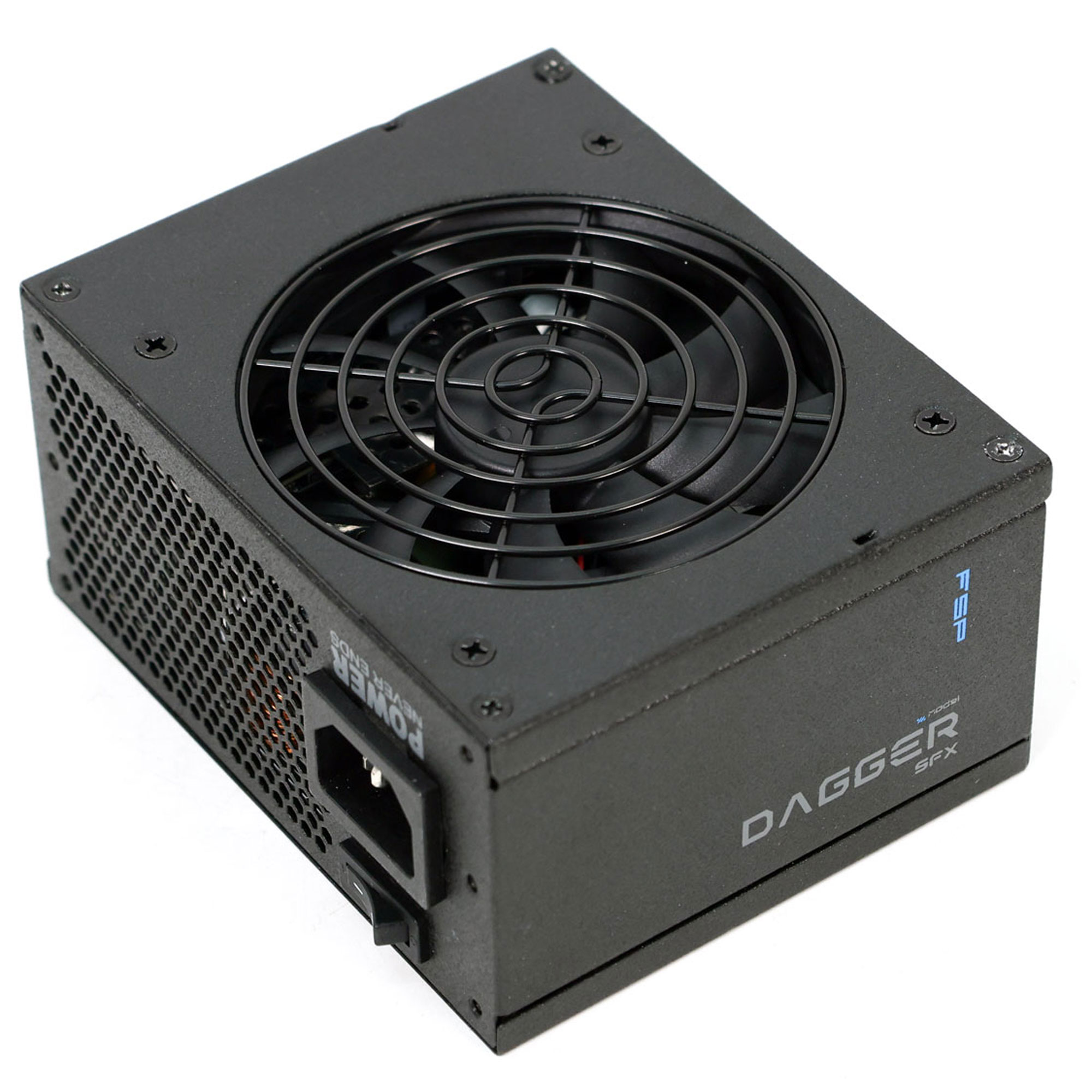

Top side

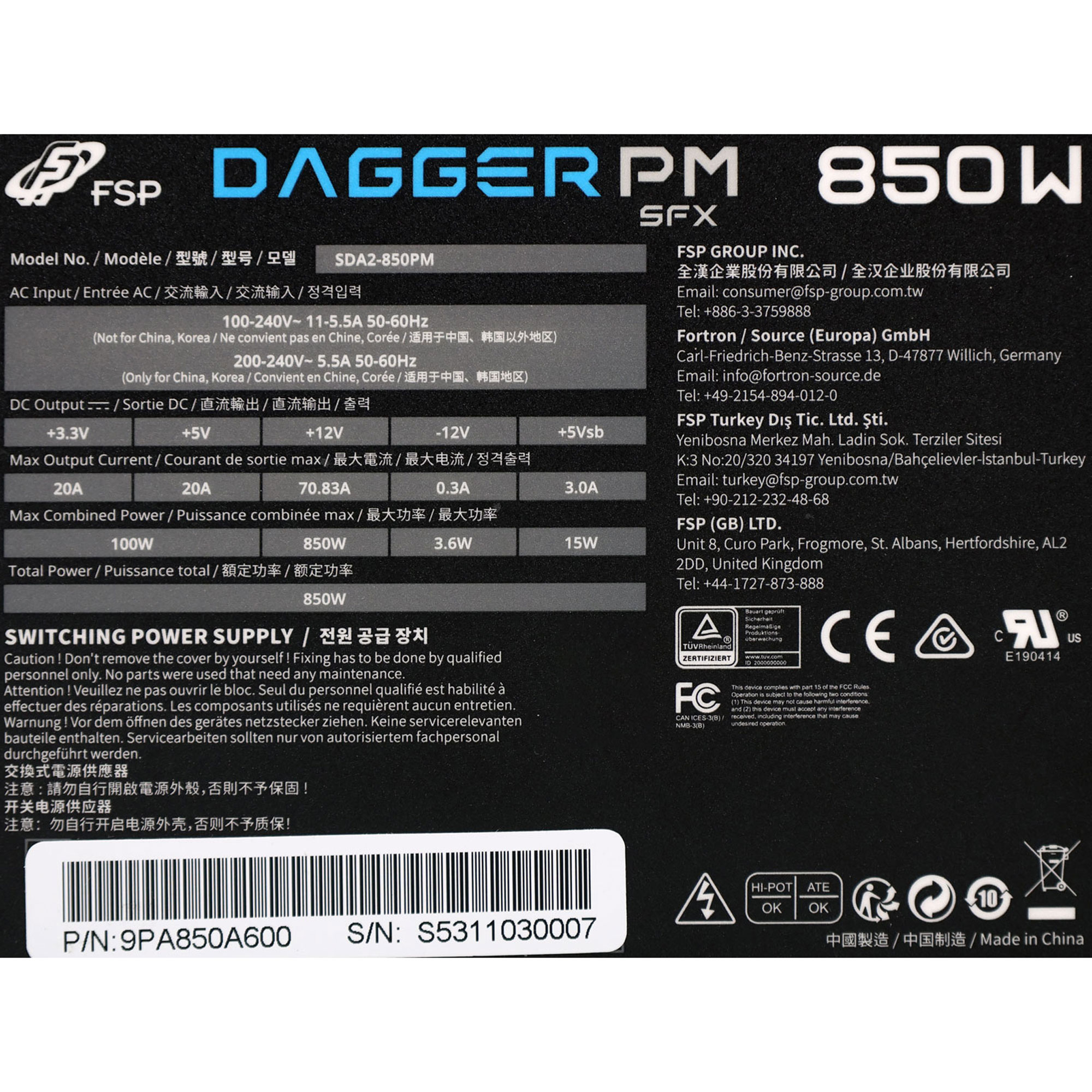

Power specifications label

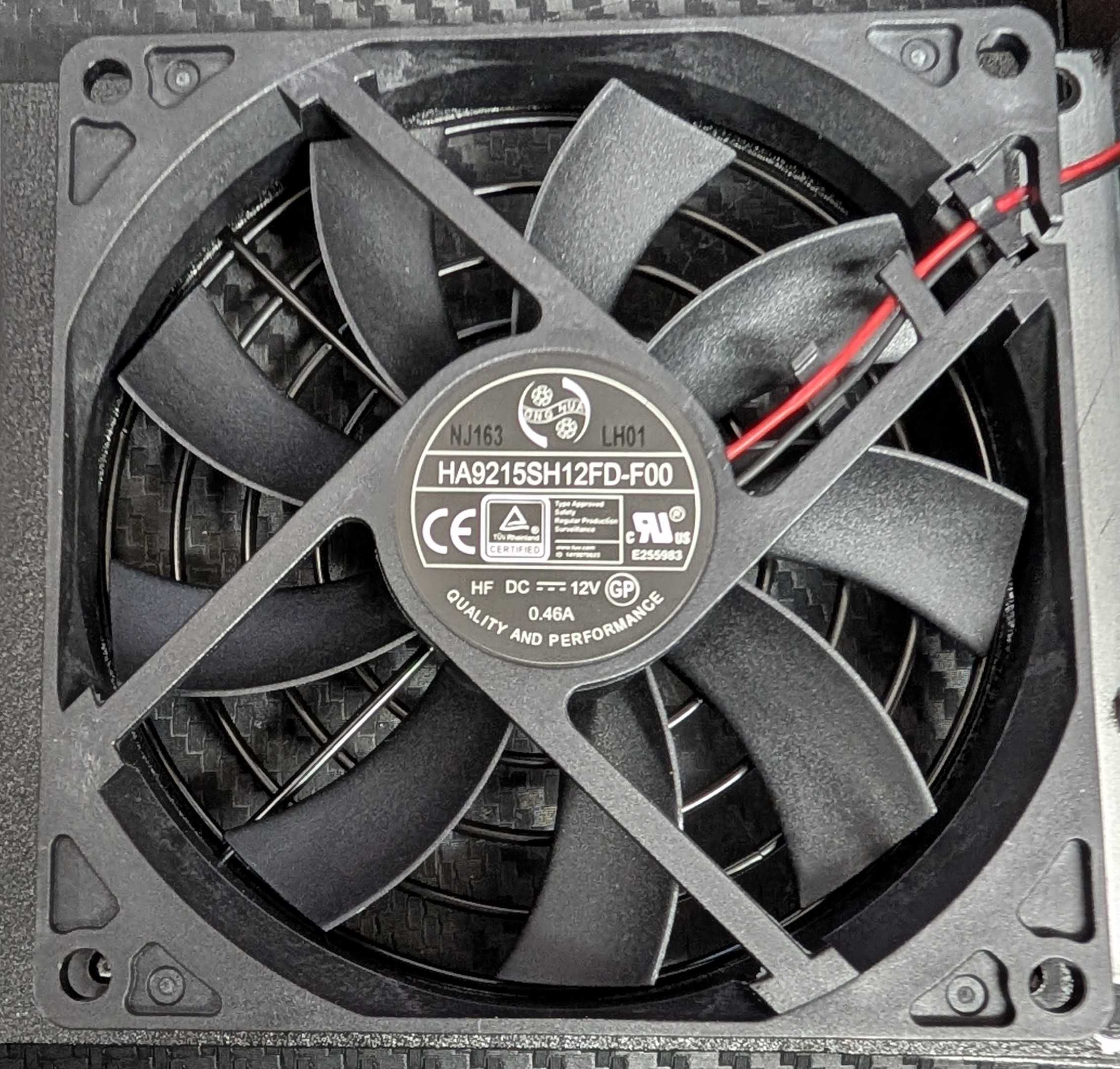

Fan

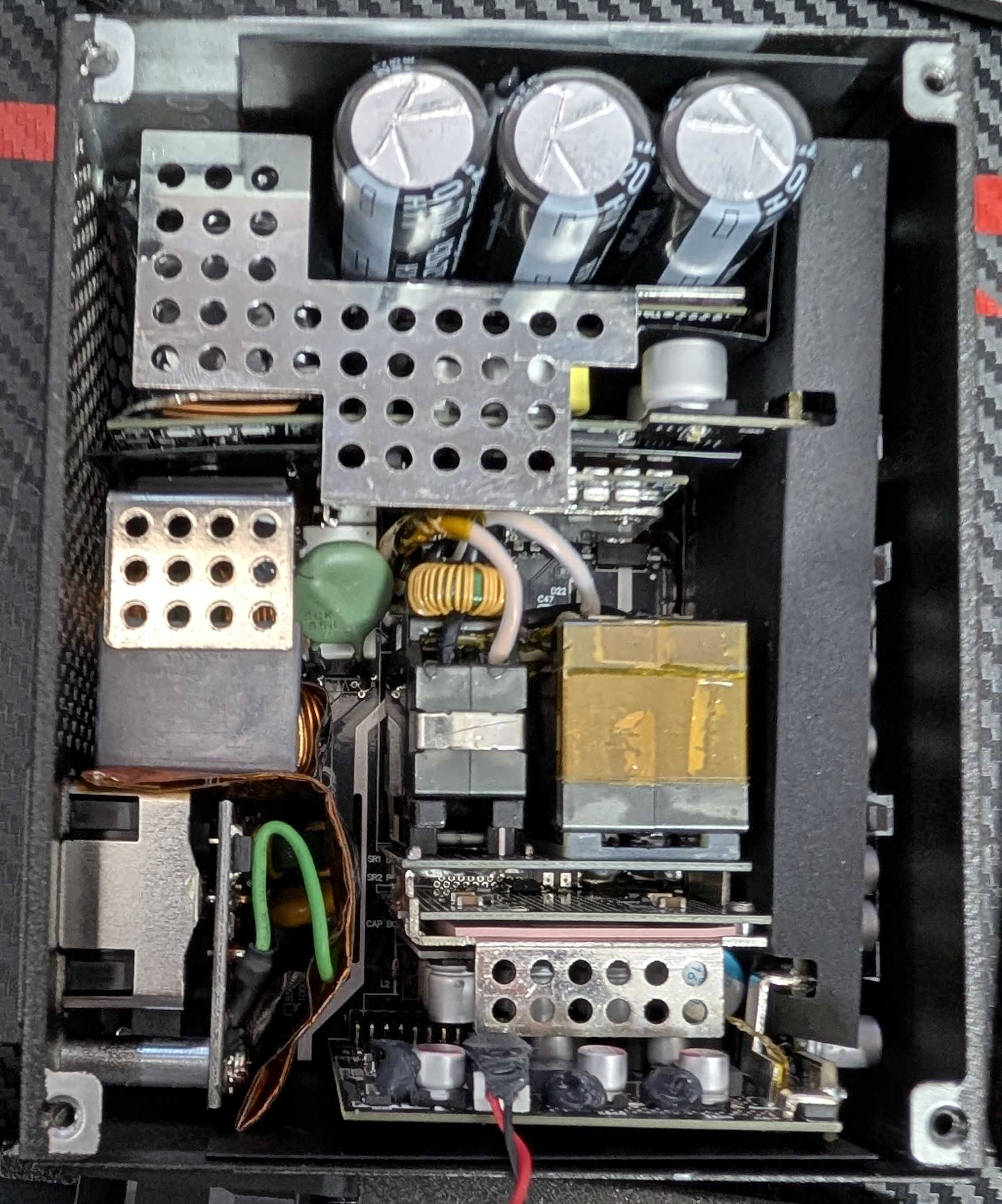

PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions: › It should be mentioned that the test results are provided by Cybenetics › The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
Outside Validation Scope
