Raijintek Ampere II 850W

Serial Number-

Lab IDRJ85003103

Certification ID263103

Test Result Report ID: 26PS3103A
Certificate Issue Date: Jan 15, 2026

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
Brand	Raijintek
Model	Ampere II 850W
OEM	SANR
Serial Number	-
Product Specifications
Manufacturer
Rated Voltage (Vrms)	100-240
Rated Current (Arms)	5.5-11
Rated Frequency (Hz)	47-63
Rated Power (W)	850
Operating Temperature (Continuous Full Load) (°C)	0 - 50
Type	ATX12V
Cable Design	Fully Modular
Warranty	No Info
Cybenetics
Dimensions (W x H x D)	150 x 85 x 140mm
Weight	1.35 kg (2.98 lb)
Cooling	120mm Sleeve Bearing Fan (D12SM-12)
Semi-Passive Operation	✗
Cybenetics Testing Information
Lab ID	RJ85003103
Date of receipt	Dec 8, 2025
Testing Date	Jan 14, 2026
Report Issued Date	Jan 15, 2026
Engineer Name	Ioannis Kalyviotis
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	Cable Type
ATX connector 20+4 pin (600mm)	1	1	18-20AWG	Tinned Copper / Copper
4+4 pin ATX12V (650mm)	2	2	18AWG	Tinned Copper
6+2 pin PCIe (650mm)	3	3	18AWG	Tinned Copper
12+4 pin PCIe (600mm) (600W)	1	1	16-26AWG	Tinned Copper
SATA (460mm+150mm+150mm+150mm)	2	8	18AWG	Copper
4-pin Molex (450mm+150mm) / SATA (+150mm+150mm)	1	2 / 2	18AWG	Copper
4-pin Molex (500mm+150mm+150mm)	1	3	18AWG	Copper

Protection Features(Manufacturer)

Over Power Protection	✓
Over Current (+12V) Protection	✓
Over Temperature Protection	✓
Short Circuit Protection	✓
Surge Protection	✓
Inrush Current Protection	✓
Fan Failure Protection	✗

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	70.5	3	0.3
Max. Power	Watts	130		846	15	3.6
Total Max. Power (W)		850

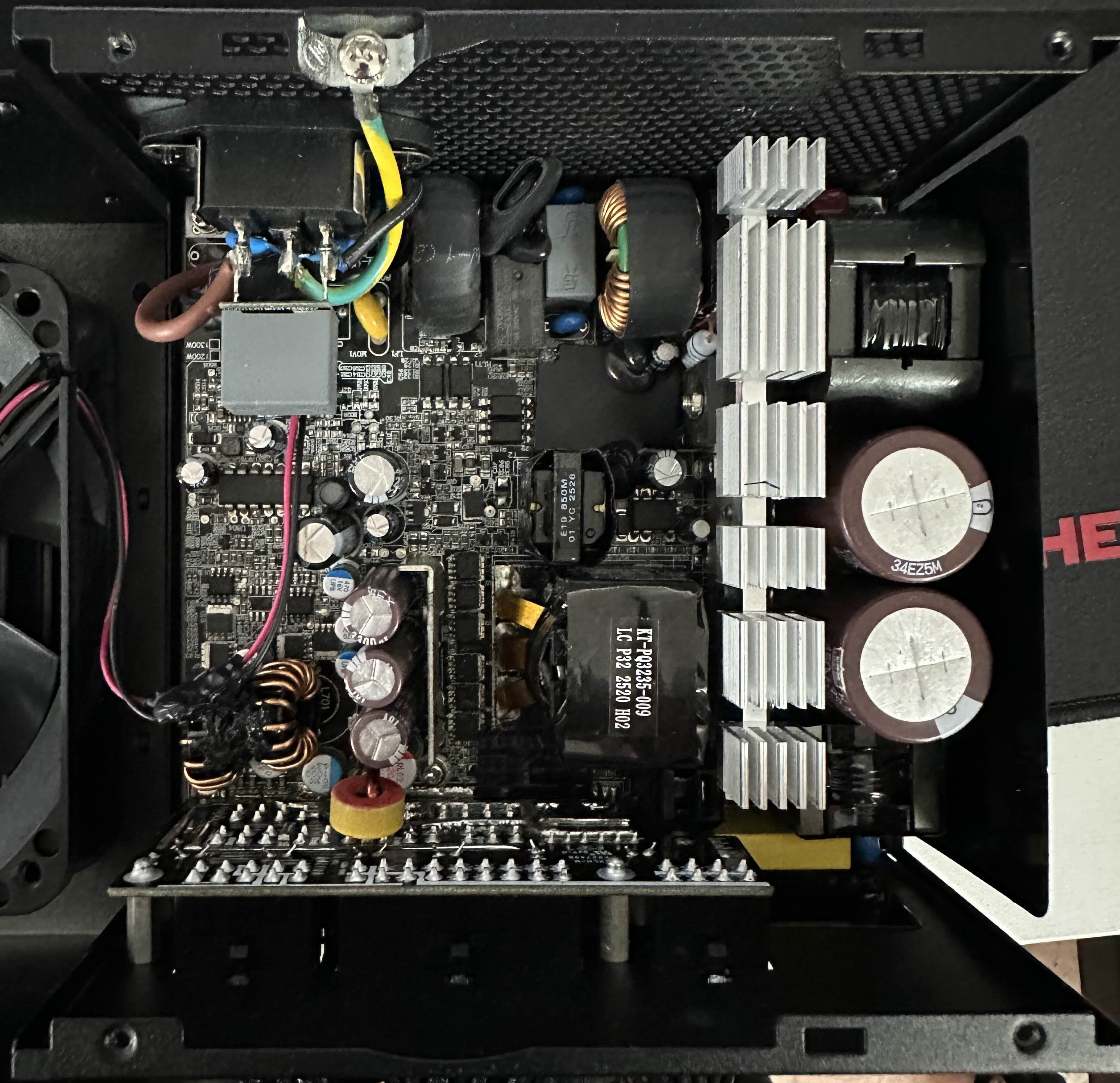

Parts Description

`General Data`
Manufacturer (OEM)	SANR
PCB Type	Double-Sided
`Primary Side`
Transient Filter	5x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor M72 8-D20 (8 Ohm @ 25°C) & Relay Y32F-SS-112LMH
Bridge Rectifier	2x GBUL2506
APFC MOSFETs	2x CRMicro 65R078W
APFC Boost Diode	PN Junction Semiconductor P3D06010E2 (650V, 15A @ 125°C)
Bulk Cap(s)	2x Chemi-Con (450V, 330uF, 2000h @ 105°C, KMR)
Main Switchers	2x CWS60R099BF
APFC Controller	Champion CM6500UNX
Resonant Controller	Champion CM6901T6X
Topology	Primary side: APFC, Half-Bridge & LLC Resonant Converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
`Secondary Side`
+12V MOSFETs	6x Nexperia PSMN1R0-40YLD (40V, 280A @ 25°C, Rds(on): 1.1mOhm)
5V & 3.3V	DC-DC Converters: 4x Nexperia PSMN4R0-30YLD (30V, 95A @ 25°C, Rds(on): 4mOhm) PWM Controller(s): 2x ANPEC APW7164
Filtering Capacitors	Electrolytic: 3x Nippon Chemi-Con ( @ 105°C, W) 1x Rubycon (6-10,000 @ 105°C, ZLH) 3x Rubycon (4-10,000 @ 105°C, YXF) 2x Rubycon (3-6,000 @ 105°C, YXS) 3x Rubycon (4-10,000 @ 105°C, YXJ) Polymer: 16x Polycap 3x Chemi-Con
Supervisor IC	IN1S429I - DCG
Fan Controller	ANPEC APW9010

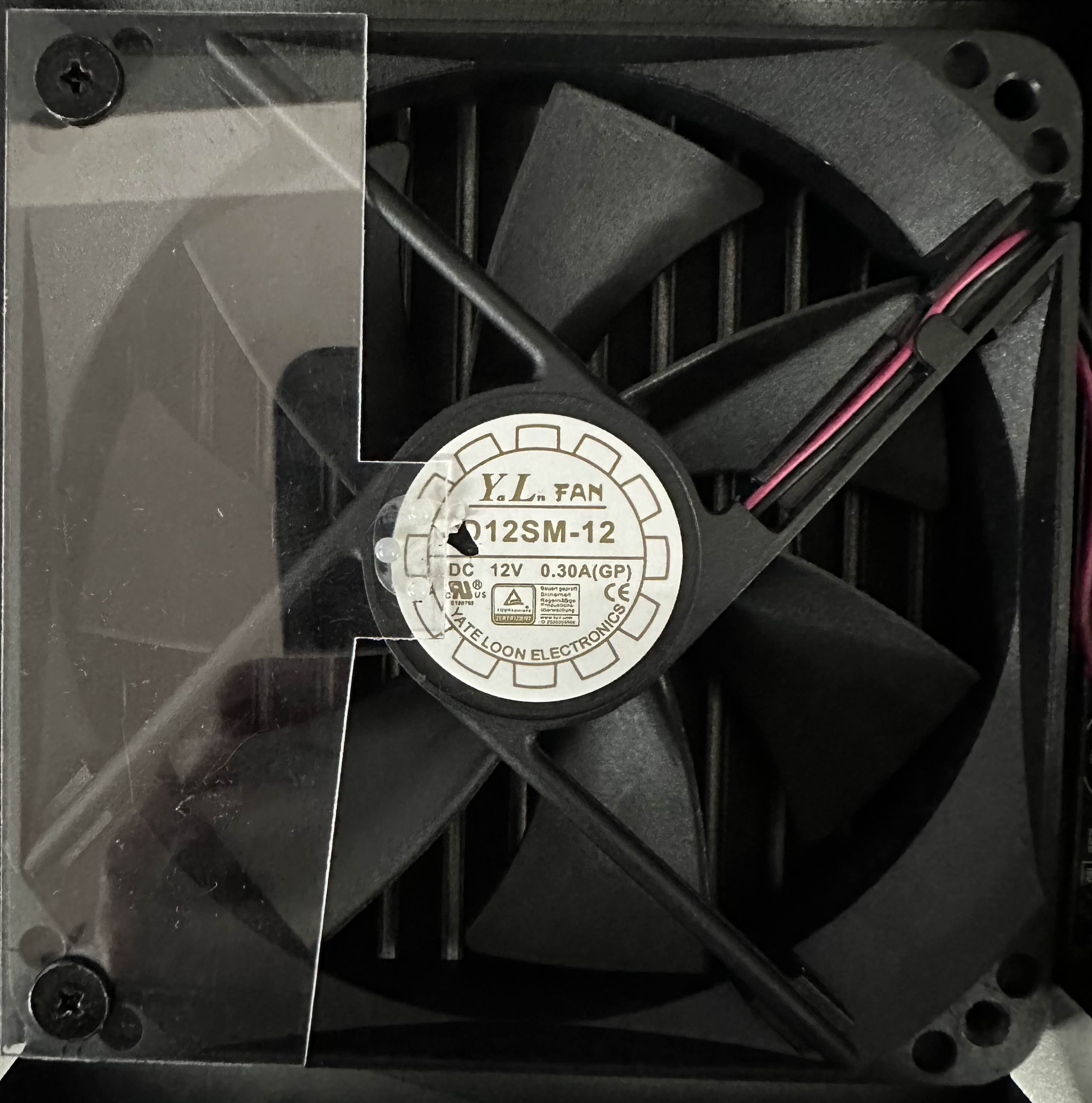

Fan Model	Yate Loon D12SM-12 12V 0.30A
`5VSB Circuit`
Rectifier	PS1060L (60V, 20mOhm)
Standby PWM Controller	Depu DP2358

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready
(EU) No 617/2013 Compliance
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)	90.400%
Average Noise Output (>1450 Load Combinations)	11.88dBA
Average PF (>1450 Load Combinations)	0.986
Efficiency With 10W (≤500W) or 2% (>500W) Load	66.898%
Standby Power Consumption	0.0563W
Non-Accredited
12V Ripple (Full Load)	33.07mV
5V Ripple (Full Load)	21.32mV
3.3V Ripple (Full Load)	23.81mV
5VSB Ripple (Full Load)	28.80mV
12V Load Regulation	0.32%
5V Load Regulation	1.13%
3.3V Load Regulation	1.16%
5VSB Load Regulation	1.27%
Inrush Current	16.500A

Accredited
Average Efficiency (>1450 load combinations)	92.108%
Average Noise Output (>1450 Load Combinations)	11.31dBA
Average PF (>1450 Load Combinations)	0.949
Efficiency With 10W (≤500W) or 2% (>500W) Load	67.074%
Standby Power Consumption	0.1315W
Non-Accredited
12V Ripple (Full Load)	34.55mV
5V Ripple (Full Load)	23.96mV
3.3V Ripple (Full Load)	23.04mV
5VSB Ripple (Full Load)	30.05mV
12V Load Regulation	0.34%
5V Load Regulation	1.17%
3.3V Load Regulation	1.19%
5VSB Load Regulation	1.27%
Inrush Current	25.430A
12V Transient Response (200%)	11.47V
5V Transient Response (200%)	4.928V
3.3V Transient Response (200%)	3.185V
5VSB Transient Response (200%)	4.931V
Hold-Up Time & Power Ok Signal	26.20ms
AC Loss to PWR_OK Hold Up Time	22.30ms
PWR_OK Inactive to DC Loss Delay	3.90ms
PSU Timings: T1 (20% / 100%)	65.0ms	64.0ms
PSU Timings: T3 (20% / 100%)	101.0ms	103.0ms
12V OCP (27.4°C / 43.3°C)	82.80A (117.45%), 12.008V	80.20A (113.76%), 12.018V
5V OCP (27.4°C / 43.3°C)	29.2A (146.00%), 5.076V	29.1A (145.50%), 5.082V
3.3V OCP (27.4°C / 43.3°C)	29.2A (146.00%), 3.398V	29.2A (146.00%), 3.406V
5VSB OCP (27.4°C / 43.3°C)	4A (133.33%), 4.957V	3.7A (123.33%), 4.961V *High Ripple (97.7mV)
OPP (27.37°C / 43.37°C)	129.14%	126.79%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	26.2
AC Loss to PWR_OK Hold Up Time (ms)	22.3
PWR_OK Inactive to DC Loss Delay (ms)	3.9

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.04 V	115.01 V	113.85 V	115.06 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	60.00 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.13 %	0.11 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.056 W	0.037 W	N/A	0.076 W	N/A	N/A
Apparent Power:	10.514 W	10.495 W	N/A	10.534 W	N/A	N/A
Power Factor:	0.004	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	230.09 V	230.06 V	227.70 V	230.10 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	50.00 Hz	49.50 Hz	50.00 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.415	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.14 %	0.13 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.132 W	0.092 W	N/A	0.183 W	N/A	N/A
Apparent Power:	34.491 W	34.457 W	N/A	34.526 W	N/A	N/A
Power Factor:	0.004	N/A	N/A	N/A	N/A	N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

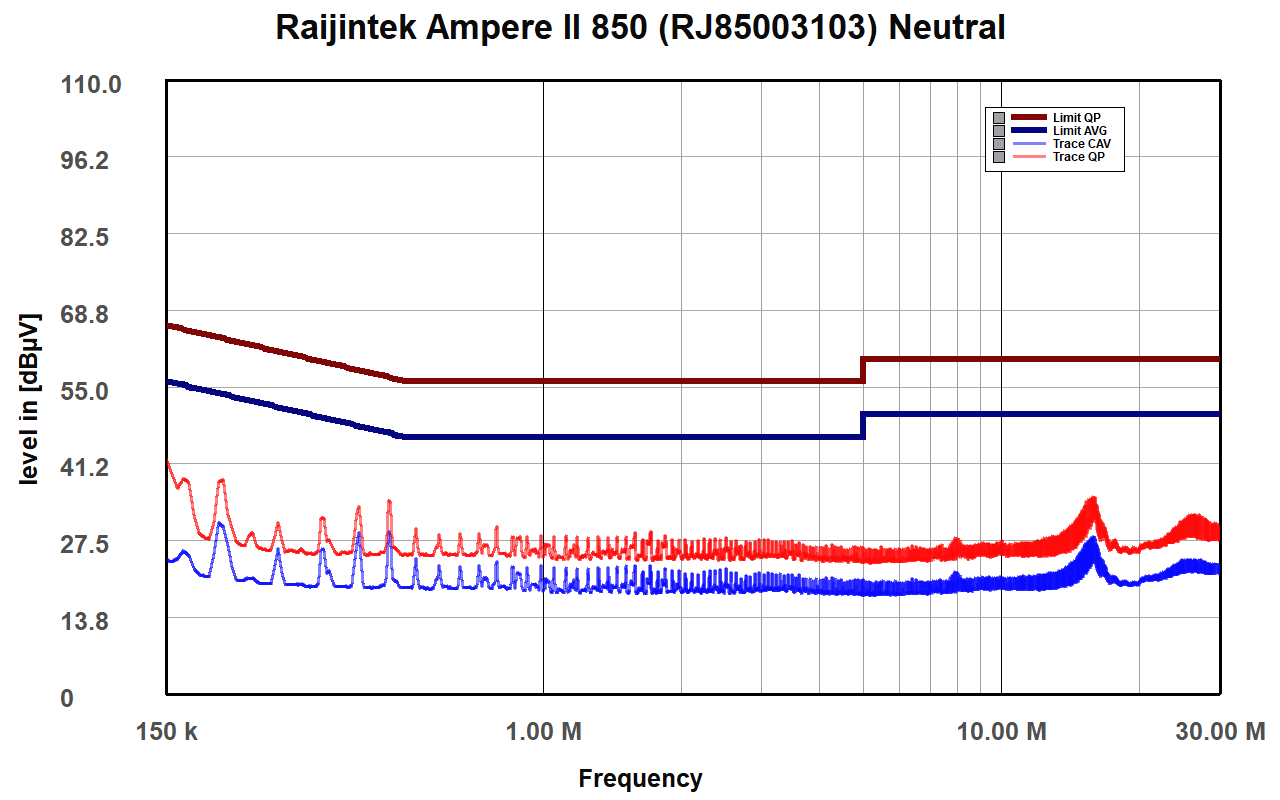

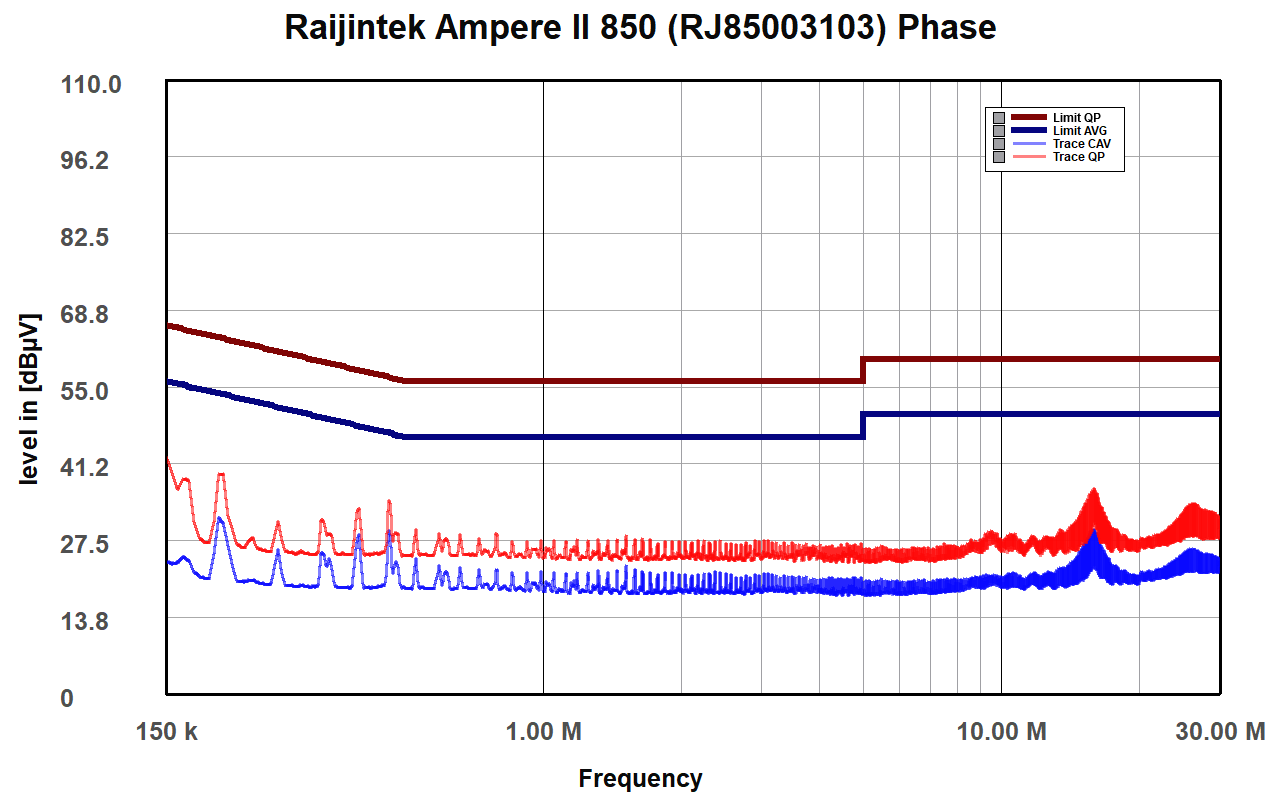

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

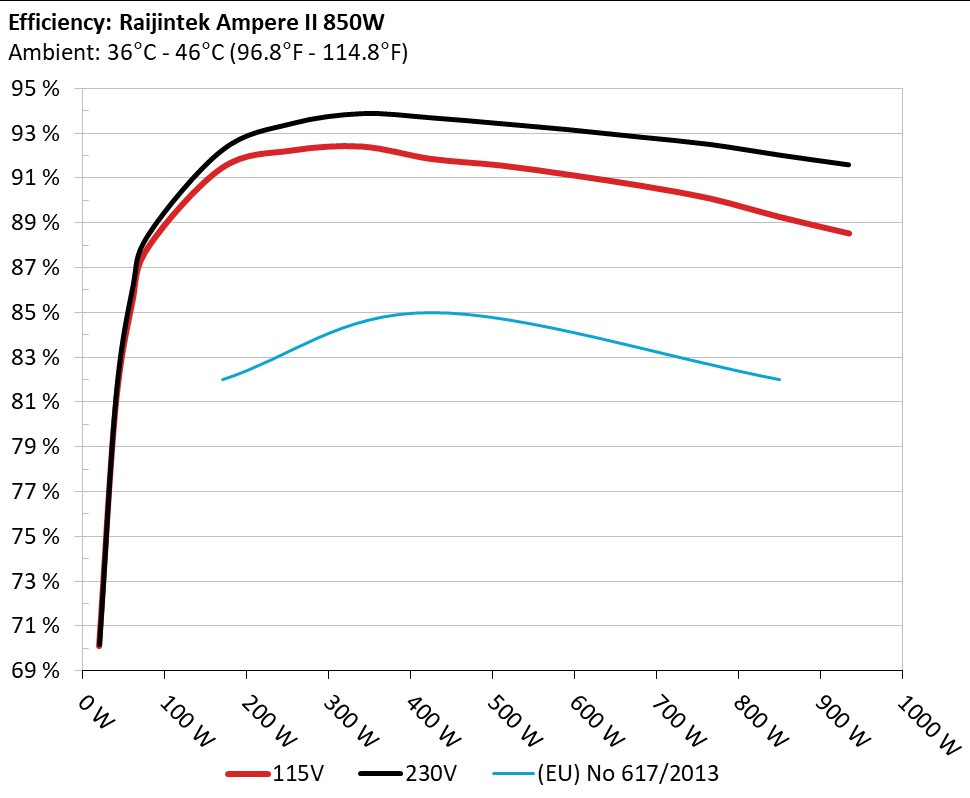

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

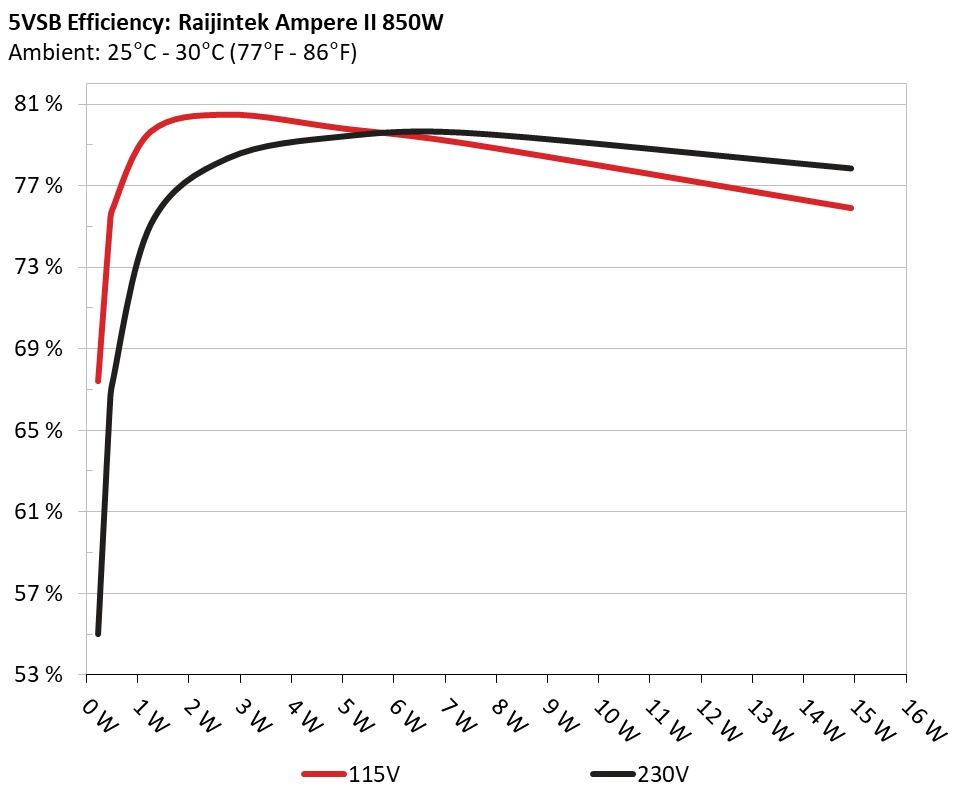

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.226W	67.43%	0.033
1	5.028V	0.335W	67.43%	115.04V
2	0.09A	0.453W	74.998%	0.058
2	5.027V	0.604W	74.998%	115.04V
3	0.55A	2.76W	80.502%	0.243
3	5.019V	3.428W	80.502%	115.04V
4	1A	5.011W	79.818%	0.322
4	5.01V	6.278W	79.818%	115.04V
5	1.5A	7.502W	79.045%	0.365
5	5.001V	9.491W	79.045%	115.04V
6	3A	14.917W	75.92%	0.444
6	4.972V	19.648W	75.92%	115.03V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.226W	55.011%	0.012
1	5.029V	0.411W	55.011%	230V
2	0.09A	0.453W	66.123%	0.02
2	5.028V	0.685W	66.123%	230V
3	0.55A	2.76W	78.361%	0.098
3	5.019V	3.522W	78.361%	230V
4	1A	5.011W	79.431%	0.16
4	5.01V	6.309W	79.431%	230V
5	1.5A	7.503W	79.592%	0.21
5	5.001V	9.426W	79.592%	230V
6	3A	14.918W	77.862%	0.305
6	4.973V	19.159W	77.862%	230V

Protection Features

OCP (Normal @ 27.4°C)	12V: 82.80A (117.45%), 12.008V 5V: 29.2A (146.00%), 5.076V 3.3V: 29.2A (146.00%), 3.398V 5VSB: 4A (133.33%), 4.957V
OCP (Hot @ 43.3°C)	12V: 80.20A (113.76%), 12.018V 5V: 29.1A (145.50%), 5.082V 3.3V: 29.2A (146.00%), 3.406V 5VSB: 3.7A (123.33%), 4.961V *High Ripple (97.7mV)
OPP (Normal @ 27.4°C)	1097.65W (129.14%)
OPP (Hot @ 43.4°C)	1077.69W (126.79%)
OTP	✓ (91°C @ 12V Heatsink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	5.266A	1.967A	1.985A	0.998A	85.003	88.086%	0	<6.0	44.62°C	0.959
10%	12.039V	5.084V	3.326V	5.011V	96.498	88.086%	0	<6.0	40.46°C	115.01V
20%	11.554A	2.954A	2.98A	1.198A	169.946	91.476%	554	<6.0	40.51°C	0.982
20%	12.034V	5.078V	3.322V	5.007V	185.782	91.476%	554	<6.0	47.04°C	114.98V
30%	18.194A	3.45A	3.481A	1.4A	254.952	92.251%	558	<6.0	41.06°C	0.981
30%	12.031V	5.072V	3.318V	5.002V	276.369	92.251%	558	<6.0	46.96°C	114.96V
40%	24.848A	3.948A	3.984A	1.601A	340.047	92.428%	600	<6.0	41.79°C	0.985
40%	12.027V	5.067V	3.314V	4.997V	367.902	92.428%	600	<6.0	47.87°C	114.93V
50%	31.135A	4.941A	4.985A	1.803A	424.862	91.875%	715	11.9	42.12°C	0.989
50%	12.024V	5.061V	3.31V	4.992V	462.436	91.875%	715	11.9	50.12°C	114.89V
60%	37.401A	5.935A	5.988A	2A	509.368	91.584%	805	16.8	42.62°C	0.991
60%	12.021V	5.055V	3.307V	4.987V	556.178	91.584%	805	16.8	50.18°C	114.86V
70%	43.745A	6.935A	6.995A	2.208A	594.721	91.156%	863	19	43.18°C	0.993
70%	12.015V	5.048V	3.303V	4.982V	652.428	91.156%	863	19	49.25°C	114.83V
80%	50.090A	7.933A	8.003A	2.31A	679.527	90.68%	949	22	43.59°C	0.994
80%	12.011V	5.041V	3.299V	4.979V	749.369	90.68%	949	22	49.86°C	114.8V
90%	56.842A	8.438A	8.5A	2.412A	764.962	90.102%	1302	32.8	44.06°C	0.995
90%	12.006V	5.035V	3.294V	4.976V	848.999	90.102%	1302	32.8	50.58°C	114.77V
100%	63.344A	8.947A	9.033A	3.023A	849.814	89.279%	1573	38.8	45.95°C	0.995
100%	12.000V	5.029V	3.288V	4.963V	951.858	89.279%	1573	38.8	52.08°C	114.73V
110%	69.707A	9.956A	10.138A	3.024A	934.358	88.542%	1728	40.6	46.17°C	0.995
110%	11.994V	5.021V	3.285V	4.962V	1055.28	88.542%	1728	40.6	52.48°C	114.7V
CL1	0.116A	15.447A	15.436A	0A	131.294	85.037%	781	15.6	41.04°C	0.979
CL1	12.046V	5.068V	3.343V	5.031V	154.399	85.037%	781	15.6	47.25°C	114.99V
CL2	0.115A	19.674A	0A	0A	101.362	83.131%	641	9.1	40.11°C	0.97
CL2	12.046V	5.081V	3.312V	5.031V	121.929	83.131%	641	9.1	44.83°C	115V
CL3	0.115A	0A	19.626A	0A	67.398	79.293%	631	8.7	40.32°C	0.952
CL3	12.043V	5.081V	3.363V	5.031V	85.002	79.293%	631	8.7	44.47°C	115.02V
CL4	70.777A	0A	0A	0.001A	849.56	90.215%	1353	33.8	45.61°C	0.995
CL4	12.004V	5.046V	3.278V	5.019V	941.713	90.215%	1353	33.8	52.5°C	114.74V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	5.266A	1.967A	1.985A	0.998A	85.009	88.258%	551	<6.0	40.37°C	0.804
10%	12.042V	5.085V	3.325V	5.011V	96.32	88.258%	551	<6.0	43.81°C	229.99V
20%	11.554A	2.954A	2.981A	1.199A	169.964	92.266%	553	<6.0	40.77°C	0.91
20%	12.035V	5.078V	3.321V	5.007V	184.207	92.266%	553	<6.0	43.82°C	229.97V
30%	18.198A	3.45A	3.483A	1.4A	254.973	93.448%	557	<6.0	41.29°C	0.944
30%	12.030V	5.073V	3.316V	5.002V	272.847	93.448%	557	<6.0	46.23°C	229.96V
40%	24.852A	3.947A	3.986A	1.601A	340.069	93.893%	598	<6.0	41.93°C	0.959
40%	12.026V	5.068V	3.312V	4.997V	362.189	93.893%	598	<6.0	46.73°C	229.95V
50%	31.141A	4.94A	4.988A	1.803A	424.907	93.707%	687	10.8	42.32°C	0.969
50%	12.023V	5.061V	3.308V	4.992V	453.442	93.707%	687	10.8	47.11°C	229.93V
60%	37.406A	5.935A	5.993A	2A	509.408	93.445%	802	16.7	42.83°C	0.975
60%	12.020V	5.056V	3.304V	4.987V	545.145	93.445%	802	16.7	49.6°C	229.91V
70%	43.743A	6.932A	7.001A	2.208A	594.755	93.166%	891	20.1	43.35°C	0.978
70%	12.017V	5.05V	3.3V	4.982V	638.381	93.166%	891	20.1	50.03°C	229.9V
80%	50.087A	7.93A	8.009A	2.31A	679.559	92.847%	1024	25	43.97°C	0.981
80%	12.013V	5.043V	3.296V	4.979V	731.911	92.847%	1024	25	50.27°C	229.88V
90%	56.843A	8.437A	8.506A	2.412A	764.981	92.518%	1297	32.7	44.15°C	0.983
90%	12.006V	5.036V	3.292V	4.975V	826.847	92.518%	1297	32.7	50.24°C	229.87V
100%	63.338A	8.946A	9.037A	3.023A	849.785	92.042%	1553	38.9	45.68°C	0.985
100%	12.001V	5.029V	3.287V	4.963V	923.263	92.042%	1553	38.9	49.99°C	229.86V
110%	69.709A	9.955A	10.145A	3.024A	934.361	91.608%	1729	40.6	46.27°C	0.986
110%	11.994V	5.021V	3.283V	4.962V	1019.95	91.608%	1729	40.6	51.69°C	229.84V
CL1	0.117A	15.449A	15.447A	0A	131.295	85.73%	759	14.2	40.17°C	0.89
CL1	12.046V	5.067V	3.341V	5.031V	153.153	85.73%	759	14.2	45.9°C	229.98V
CL2	0.116A	19.676A	0A	0A	101.365	83.867%	651	9.2	40.39°C	0.851
CL2	12.047V	5.081V	3.312V	5.031V	120.864	83.867%	651	9.2	45.26°C	229.98V
CL3	0.115A	0A	19.646A	0A	67.398	79.874%	634	8.7	40.99°C	0.774
CL3	12.044V	5.082V	3.36V	5.031V	84.382	79.874%	634	8.7	44.12°C	229.99V
CL4	70.794A	0A	0A	0.001A	849.507	92.961%	950	22.1	44.22°C	0.984
CL4	12.000V	5.047V	3.278V	5.019V	913.829	92.961%	950	22.1	48.86°C	229.85V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.234A	0.492A	0.496A	0.199A	19.998	70.09%	0	<6.0	38.65°C	0.818
20W	12.035V	5.085V	3.326V	5.026V	28.531	70.09%	0	<6.0	36.61°C	115.03V
40W	2.716A	0.688A	0.695A	0.298A	39.998	80.757%	0	<6.0	39.04°C	0.909
40W	12.038V	5.086V	3.326V	5.025V	49.529	80.757%	0	<6.0	37.58°C	115.02V
60W	4.198A	0.885A	0.893A	0.398A	59.998	85.383%	0	<6.0	41.95°C	0.942
60W	12.038V	5.086V	3.325V	5.023V	70.272	85.383%	0	<6.0	38.41°C	115.02V
80W	5.675A	1.081A	1.092A	0.498A	79.946	87.929%	0	<6.0	43.19°C	0.955
80W	12.038V	5.085V	3.325V	5.021V	90.92	87.929%	0	<6.0	39.24°C	115.01V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.234A	0.491A	0.496A	0.199A	20.006	70.182%	0	<6.0	39.69°C	0.469
20W	12.039V	5.087V	3.326V	5.026V	28.506	70.182%	0	<6.0	36.21°C	230V
40W	2.716A	0.688A	0.695A	0.298A	40.004	81.223%	0	<6.0	41.15°C	0.632
40W	12.040V	5.088V	3.325V	5.025V	49.254	81.223%	0	<6.0	37.15°C	230V
60W	4.197A	0.884A	0.893A	0.398A	60.004	86.044%	0	<6.0	44.62°C	0.727
60W	12.040V	5.088V	3.325V	5.023V	69.739	86.044%	0	<6.0	38.45°C	229.99V
80W	5.675A	1.081A	1.092A	0.498A	79.958	88.501%	0	<6.0	46.2°C	0.79
80W	12.040V	5.088V	3.324V	5.02V	90.349	88.501%	0	<6.0	39.38°C	229.99V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.234A	0.491A	0.496A	0.199A	20.006	70.182%	0	<6.0	39.69°C	0.469
20W	12.039V	5.087V	3.326V	5.026V	28.506	70.182%	0	<6.0	36.21°C	230V
40W	2.716A	0.688A	0.695A	0.298A	40.004	81.223%	0	<6.0	41.15°C	0.632
40W	12.040V	5.088V	3.325V	5.025V	49.254	81.223%	0	<6.0	37.15°C	230V
60W	4.197A	0.884A	0.893A	0.398A	60.004	86.044%	0	<6.0	44.62°C	0.727
60W	12.040V	5.088V	3.325V	5.023V	69.739	86.044%	0	<6.0	38.45°C	229.99V
80W	5.675A	1.081A	1.092A	0.498A	79.958	88.501%	0	<6.0	46.2°C	0.79
80W	12.040V	5.088V	3.324V	5.02V	90.349	88.501%	0	<6.0	39.38°C	229.99V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	27.83mV	18.65mV	18.72mV	17.04mV	Pass
20% Load	29.73mV	20.44mV	19.49mV	16.93mV	Pass
30% Load	29.73mV	19.46mV	19.75mV	18.16mV	Pass
40% Load	31.77mV	20.84mV	19.90mV	19.08mV	Pass
50% Load	34.07mV	21.71mV	21.54mV	20.26mV	Pass
60% Load	33.10mV	23.81mV	22.51mV	19.85mV	Pass
70% Load	33.92mV	21.41mV	23.48mV	22.25mV	Pass
80% Load	33.46mV	23.35mV	24.25mV	23.38mV	Pass
90% Load	36.02mV	24.73mV	23.48mV	26.29mV	Pass
100% Load	33.07mV	21.32mV	23.81mV	28.80mV	Pass
110% Load	34.05mV	23.77mV	25.62mV	33.57mV	Pass
Crossload1	26.30mV	21.24mV	22.16mV	16.37mV	Pass
Crossload2	29.62mV	22.12mV	26.65mV	19.18mV	Pass
Crossload3	26.91mV	25.49mV	20.82mV	20.67mV	Pass
Crossload4	32.32mV	22.19mV	22.58mV	30.17mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	27.88mV	19.57mV	19.70mV	17.39mV	Pass
20% Load	29.57mV	19.00mV	18.88mV	16.73mV	Pass
30% Load	29.52mV	19.41mV	19.64mV	17.75mV	Pass
40% Load	30.90mV	20.74mV	20.72mV	18.87mV	Pass
50% Load	31.77mV	19.98mV	21.02mV	19.74mV	Pass
60% Load	32.49mV	22.02mV	23.02mV	19.90mV	Pass
70% Load	32.33mV	23.50mV	22.97mV	21.18mV	Pass
80% Load	32.94mV	22.02mV	23.69mV	24.24mV	Pass
90% Load	34.17mV	23.09mV	25.06mV	27.88mV	Pass
100% Load	34.55mV	23.96mV	23.04mV	30.05mV	Pass
110% Load	34.33mV	22.71mV	25.35mV	30.98mV	Pass
Crossload1	28.08mV	22.89mV	25.28mV	18.34mV	Pass
Crossload2	29.57mV	21.81mV	26.55mV	19.64mV	Pass
Crossload3	28.70mV	24.42mV	21.74mV	20.00mV	Pass
Crossload4	32.61mV	23.34mV	23.20mV	24.98mV	Pass

The results above are not used in the certification process

Raijintek Ampere II 850W

Top side

Power specifications label

Fan

PSU Internals
