MSI MPG Ai1600TS PCIE5

Serial Number-

Lab IDMS16003107

Certification ID263107

Test Result Report ID: 26PS3107A
Certificate Issue Date: Feb 17, 2026

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
Brand	MSI
Model	MPG Ai1600TS PCIE5
OEM/ODM	CWT
Serial Number	-
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)	100-240
Rated Current (Arms)	10-15
Rated Frequency (Hz)	50-60
Rated Power (W)	1600
Operating Temperature (Continuous Full Load) (°C)	0 - 40
Type	ATX12V
Cable Design	Fully Modular
Warranty	12 years
Cybenetics Measurements
Dimensions (W x H x D)	150 x 85 x 190mm
Weight	2.32 kg (5.11 lb)

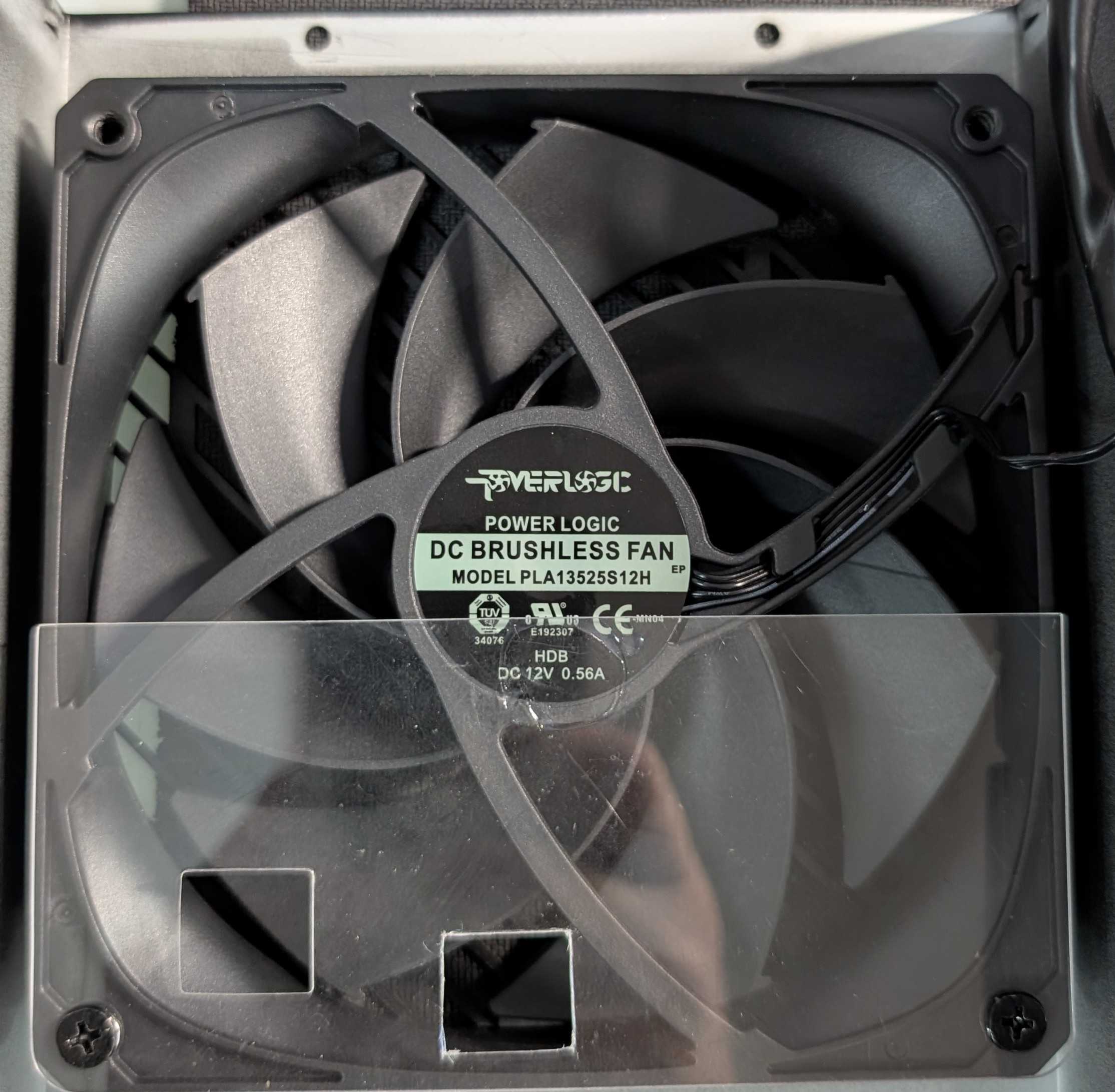

Cooling	135mm Hydro Dynamic Bearing Fan (PLA13525S12H)
Semi-Passive Operation	✓ (selectable)
Cybenetics Testing Information
Lab ID	MS16003107
Date of receipt	Jan 7, 2026
Testing Date	Feb 12, 2026
Report Issued Date	Feb 17, 2026
Engineer Name	Georgios Theodoros Sarimpalas
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

`Modular Cables`
Description	Cable Count	Connector Count (Total)	Gauge	Cable Type
ATX connector 20+4 pin (600mm)	1	1	18-22AWG	Tinned Copper
4+4 pin EPS12V (650mm)	1	1	18AWG	Tinned Copper
8 pin EPS12V (650mm)	1	1	18AWG	Tinned Copper
6+2 pin PCIe (600mm+150mm)	1	2	18AWG	Tinned Copper
6+2 pin PCIe (600mm)	5	5	18AWG	Tinned Copper
12+4 pin PCIe (600mm) (600W)	2	2	16-24AWG	Tinned Copper
SATA (500mm+150mm+150mm+150mm)	2	8	18AWG	Tinned Copper
4-pin Molex (500mm+150mm+150mm+150mm)	1	4	18AWG	Tinned Copper
USB 2.0 9-pin Header(610mm)	1	1	24-28AWG	-
AC Power Cord (1390mm) - C19 coupler	1	1	14AWG	-

Protection Features(Manufacturer)

Over Power Protection	✓
Over Current (+12V) Protection	✓
Over Temperature Protection	✓
Short Circuit Protection	✓
Surge Protection	✓
Inrush Current Protection	✓
Fan Failure Protection	✓

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	22	22	133.33	3	0
Max. Power	Watts	120		1599.96	15	0
Total Max. Power (W)		1600

Parts Description

`General Data`
Manufacturer (OEM)	CWT
PCB Type	Double-Sided
`Primary Side`
Transient Filter	5x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	NTC Thermistor SCK-25150 (15 Ohm @ 25°C) & Relay
Bridge Rectifier	2x WeEn WNB2560M (600V, 25A @ 127°C)
APFC MOSFETs	2x Toshiba TK040N60Z1 (650V, 52A @ 25°C, Rds(on): 0.040 Ohm) 2x Toshiba TW015N65C (650V, 100A @ 25°C, Rds(on): 0.016 Ohm) 1x Sync Power SPN5003 (reducing no load consumption)
APFC Boost Diode	2x Vishay VS-3C10ET07T-M3 (650V, 10A @ 147°C)
Bulk Cap(s)	2x Rubycon (420V, 680uF, 2000h @ 105°C, MXE ) 1x Rubycon (420V, 470uF, 2000h @ 105°C, MXE )
Main Switchers	4x Alpha & Omega AOTF29S50 (600V, 18A @ 100°C, Rds(on): 0.15 Ohm)
Digital Controller	2x Texas Instruments UCD3138A
IC Driver	2x Novosense NSi6602B-DSWR
Topology	Primary side: Semi-Digital, Interleaved PFC, Full-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
`Secondary Side`
+12V MOSFETs	16x Infineon ISC010N06NM5 (60V, 233A @ 100°C, Rds(on): 1.05mOhm)
5V & 3.3V	DC-DC Converters: 4x UBIQ Semi QN3107M6N (30V, 70A @ 100°C, Rds(on): 2.6mOhm) PWM Controller(s): UPI-Semi uP3861P
Filtering Capacitors	Electrolytic: 5x Nippon Chemi-Con (@ 105°C, W) 3x Rubycon (4-10,000h @ 105°C, YXJ ) 3x Rubycon (6-10,000h @ 105°C, ZLH ) Polymer: 36x Nippon Chemi-con, 13x Nichicon FPCAP
Supervisor IC	IN1S3151-SAG
Fan Controller / Micro Controller	Nuvoton M252SD2AE
Fan Model	Power Logic PLA13525S12H (135mm, 12V, 0.56A, Fluid Dynamic Bearing Fan)
`5VSB Circuit`
Rectifier	1x Leadtrend LD8926AA1 Synchronous Rectification IC
Standby PWM Controller	On-Bright OB2365T

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	28-32 / 82.4-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)	91.071%
Average Noise Output (>1450 Load Combinations)	19.50dBA
Average PF (>1450 Load Combinations)	0.992
Efficiency With 10W (≤500W) or 2% (>500W) Load	74.644%
Standby Power Consumption	0.0213W
Non-Accredited
12V Ripple (Full Load)	37.54mV
5V Ripple (Full Load)	21.20mV
3.3V Ripple (Full Load)	21.60mV
5VSB Ripple (Full Load)	24.02mV
12V Load Regulation	0.73%
5V Load Regulation	0.74%
3.3V Load Regulation	0.54%
5VSB Load Regulation	1.39%
Inrush Current	12.600A

Accredited
Average Efficiency (>1450 load combinations)	92.665%
Average Noise Output (>1450 Load Combinations)	19.63dBA
Average PF (>1450 Load Combinations)	0.942
Efficiency With 10W (≤500W) or 2% (>500W) Load	75.011%
Standby Power Consumption	0.0939W
Non-Accredited
12V Ripple (Full Load)	40.97mV
5V Ripple (Full Load)	20.43mV
3.3V Ripple (Full Load)	20.88mV
5VSB Ripple (Full Load)	24.06mV
12V Load Regulation	0.69%
5V Load Regulation	0.74%
3.3V Load Regulation	0.30%
5VSB Load Regulation	1.37%
Inrush Current	21.230A
12V Transient Response (200%)	11.45V
5V Transient Response (200%)	4.922V
3.3V Transient Response (200%)	3.217V
5VSB Transient Response (200%)	4.885V
Hold-Up Time & PWR_OK Signal	19.60ms
AC Loss to PWR_OK Hold Up Time	17.00ms
PWR_OK Inactive to DC Loss Delay	2.60ms
PSU Timings: T1 (20% / 100%)	68.0ms	81.0ms
PSU Timings: T3 (20% / 100%)	125.0ms	125.0ms
12V OCP (28.8°C / 44.7°C)	161.20A (120.90%), 11.964V	161.00A (120.75%), 11.962V
5V OCP (28.8°C / 44.7°C)	27.6A (125.45%), 4.952V	27.6A (125.45%), 4.942V
3.3V OCP (28.8°C / 44.7°C)	27.7A (125.91%), 3.317V	27.7A (125.91%), 3.323V
5VSB OCP (28.8°C / 44.7°C)	4.7A (156.67%), 5.052V	4.5A (150.00%), 5.041V
OPP (27.72°C / 45.33°C)	121.94%	121.94%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)	19.6
AC Loss to PWR_OK Hold Up Time (ms)	17
PWR_OK Inactive to DC Loss Delay (ms)	2.6

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.05 V	115.02 V	113.85 V	115.06 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.99 Hz	59.40 Hz	60.01 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.416	1.415	1.340	1.417	1.490	PASS
Mains Voltage THD:	0.13 %	0.11 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.021 W	0.006 W	N/A	0.037 W	N/A	N/A
Apparent Power:	14.927 W	14.908 W	N/A	14.947 W	N/A	N/A
Power Factor:	0.001	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	230.09 V	230.08 V	227.70 V	230.11 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.415	1.415	1.340	1.416	1.490	PASS
Mains Voltage THD:	0.14 %	0.13 %	N/A	0.16 %	2.00 %	PASS
Real Power:	0.094 W	0.056 W	N/A	0.146 W	N/A	N/A
Apparent Power:	49.404 W	49.371 W	N/A	49.439 W	N/A	N/A
Power Factor:	0.002	N/A	N/A	N/A	N/A	N/A

Graphs

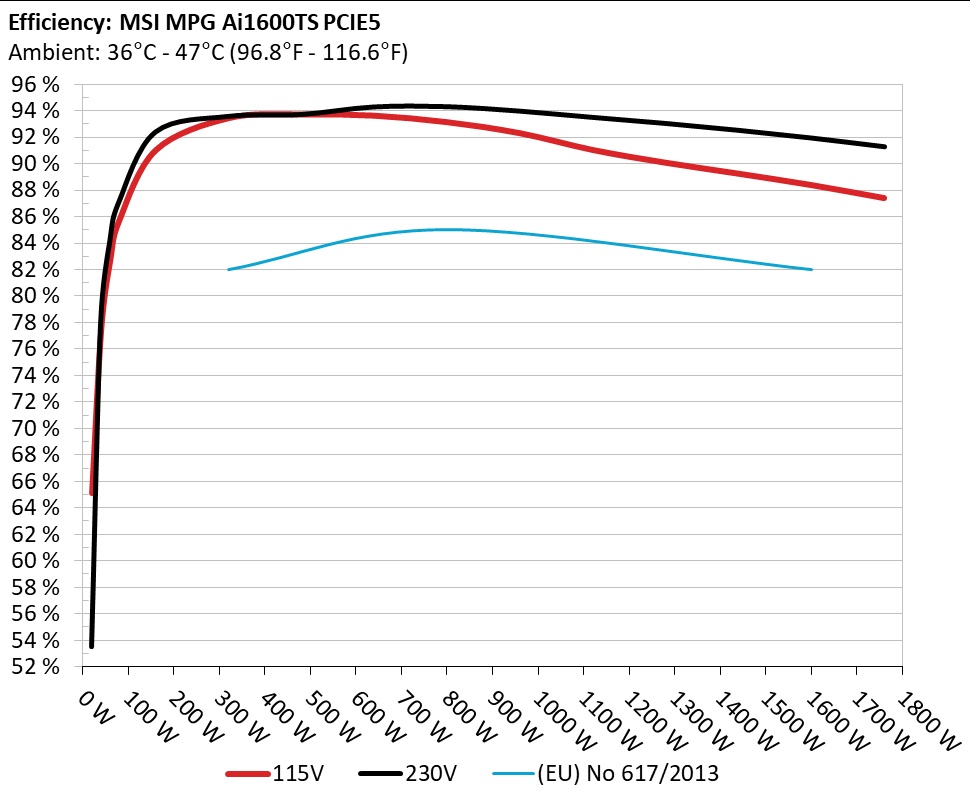

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

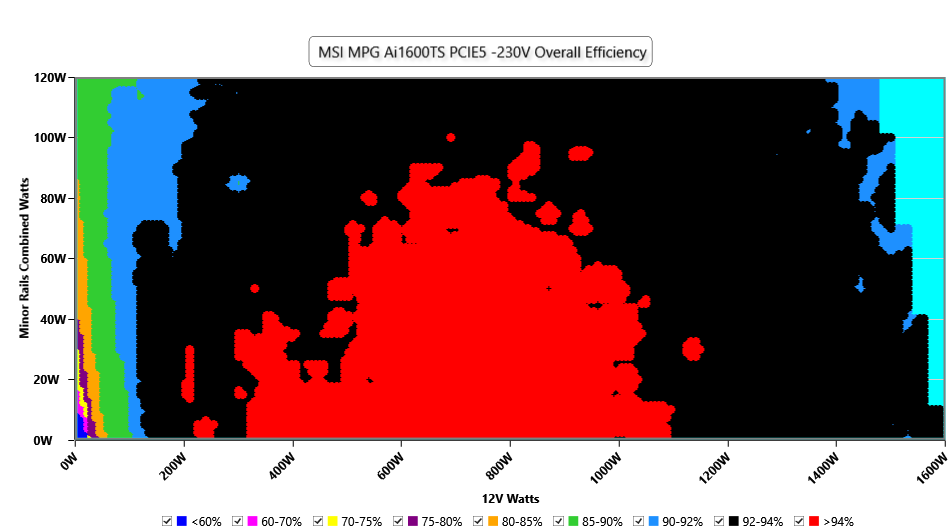

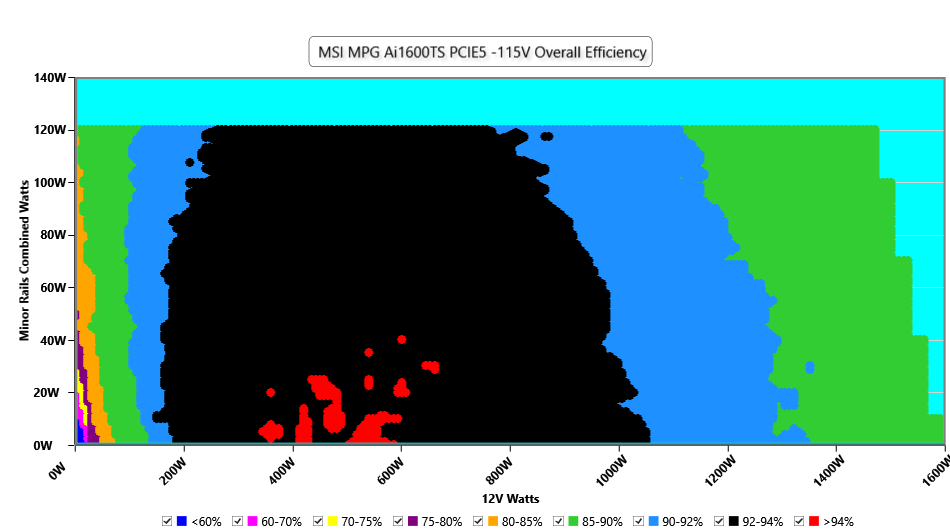

Efficiency and power factor by load range

Load range	Points	Efficiency 115V	Efficiency 230V	PF 115V	PF 230V
0-<20 %	263 / 263	88.52%	89.33%	0.974	0.838
20-<40 %	320 / 320	93.21%	93.40%	0.993	0.944
40-<60 %	320 / 320	92.92%	94.05%	0.996	0.965
60-<80 %	320 / 320	91.04%	93.46%	0.997	0.972
80-100 %	325 / 325	89.24%	92.49%	0.996	0.975
70-100 % (High-Load)	485 / 485	89.64%	92.72%	0.996	0.974
All (published average)	1548 / 1548	91.07%	92.66%	0.992	0.943

INFO

The average efficiency and power factor in five ranges of load. Calculated from the 1548 (115V) and 1548 (230V) load combinations of the certification sweep, the same data that ETA and LAMBDA use (test 0 excluded). Load is the total DC output as a share of the rated 1600 W. These are plain averages of the valid readings, as for the ETA rating, so the ranges combined give back the published averages. 1 at 230V load combination has no valid power factor reading (zero, or above the possible maximum) and is left out of that average.

Informational. Not part of the ETA or LAMBDA rating.

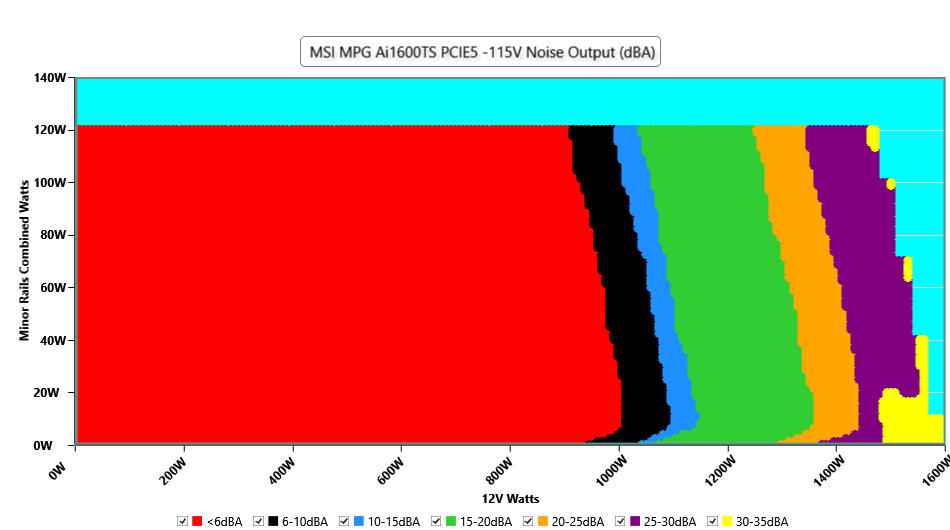

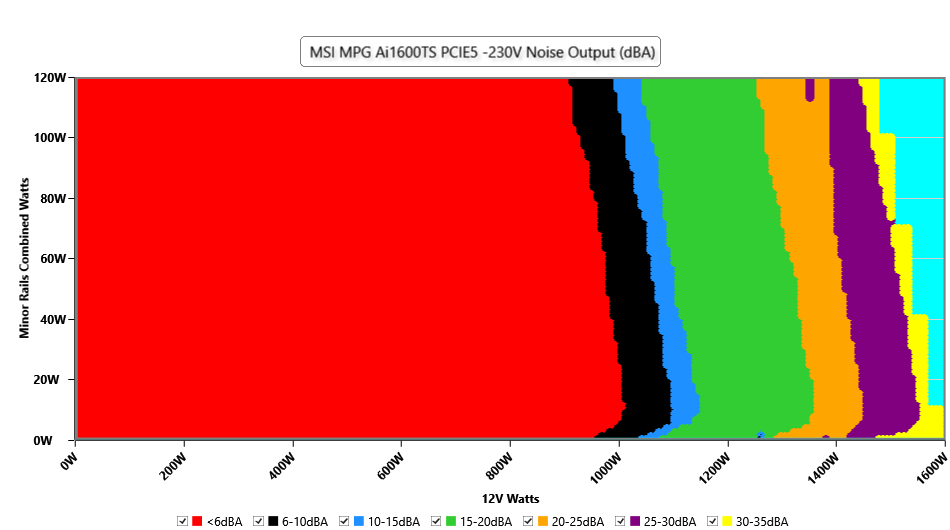

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Noise by load range

High-Load Index (70-100 % load)

Noise 24.5 dB(A) at 115V and 24.6 dB(A) at 230V · loudest point 32.4 dB(A)

Efficiency 89.64% / 92.72% · power factor 0.996 / 0.974 (115V / 230V)

Load range	Noise 115V avg (loudest)	Noise 230V avg (loudest)	Fan off 115V / 230V
0-<20 %	5.0 (5.0)	5.0 (5.0)	100% / 100%
20-<40 %	5.0 (5.0)	5.0 (5.0)	30% / 36%
40-<60 %	5.0 (5.0)	5.0 (5.0)	0% / 0%
60-<80 %	13.4 (19.7)	13.3 (19.7)	0% / 0%
80-100 %	26.0 (31.0)	26.2 (32.4)	0% / 0%
70-100 % (High-Load)	24.5 (31.0)	24.6 (32.4)	0% / 0%
All (published average)	19.6 (31.0)	19.7 (32.4)	23% / 24%

INFO

The average noise in five ranges of load, the share of points with the fan stopped (semi-passive operation), and the High-Load Index: the same figures for all points at 70 % of the rated output and above. Calculated from the 1548 (115V) and 1548 (230V) load combinations of the certification sweep, the same data that ETA and LAMBDA use (test 0 excluded). Load is the total DC output as a share of the rated 1600 W. Noise is averaged on the energy scale, as for LAMBDA, so the ranges combined give back the published average noise. Each load combination is held for about five seconds; the stabilized readings at fixed loads are under "Noise under high ambient temperature".

Informational. Not part of the ETA or LAMBDA rating.

Noise under high ambient temperature (indicative)

115V

Load	Normal ambient fan · noise · intake	High ambient fan · noise · intake	Noise change
10%	0 RPM · <6.0 dB(A) · 31.4 °C	0 RPM · <6.0 dB(A) · 45.4 °C	fan off in both
20%	0 RPM · <6.0 dB(A) · 32.4 °C	0 RPM · <6.0 dB(A) · 45.5 °C	fan off in both
50%	441 RPM · 8.7 dB(A) · 30.8 °C	458 RPM · <6.0 dB(A) · 42.1 °C	-
100%	1195 RPM · 30.9 dB(A) · 30.6 °C	1486 RPM · 37.3 dB(A) · 45.3 °C	+6.4 dB(A)

230V

Load	Normal ambient fan · noise · intake	High ambient fan · noise · intake	Noise change
10%	0 RPM · <6.0 dB(A) · 36.6 °C	0 RPM · <6.0 dB(A) · 42.2 °C	fan off in both
20%	0 RPM · <6.0 dB(A) · 36.2 °C	0 RPM · <6.0 dB(A) · 43.3 °C	fan off in both
50%	439 RPM · 9.1 dB(A) · 30.8 °C	462 RPM · <6.0 dB(A) · 42.4 °C	-
100%	1199 RPM · 30.9 dB(A) · 30.4 °C	1490 RPM · 37.4 dB(A) · 47.0 °C	+6.5 dB(A)

INFO

Fan speed, noise and the measured intake temperature at 10, 20, 50 and 100 % load, from the two load regulation tests: at normal ambient (about 30-32 °C) and at high ambient (about 40-47 °C). These are stabilized readings at fixed loads, not averages over the certification sweep, so they are indicative of how the fan behaves when it is hot. "<6.0" is the floor of our sound meter: the fan is stopped or too quiet to measure (the fan speed column says which); with the fan stopped, the intake sensor can read higher than the chamber air.

Informational. Not part of the ETA or LAMBDA rating.

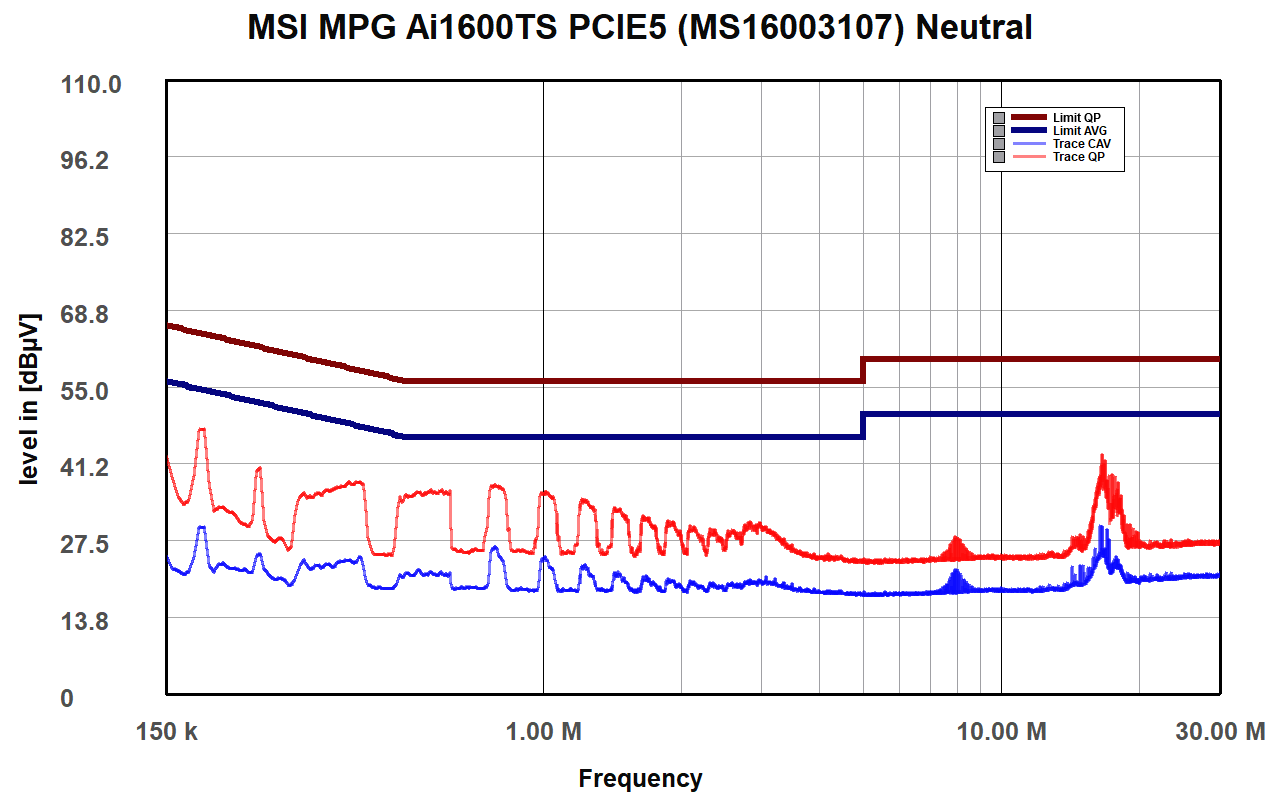

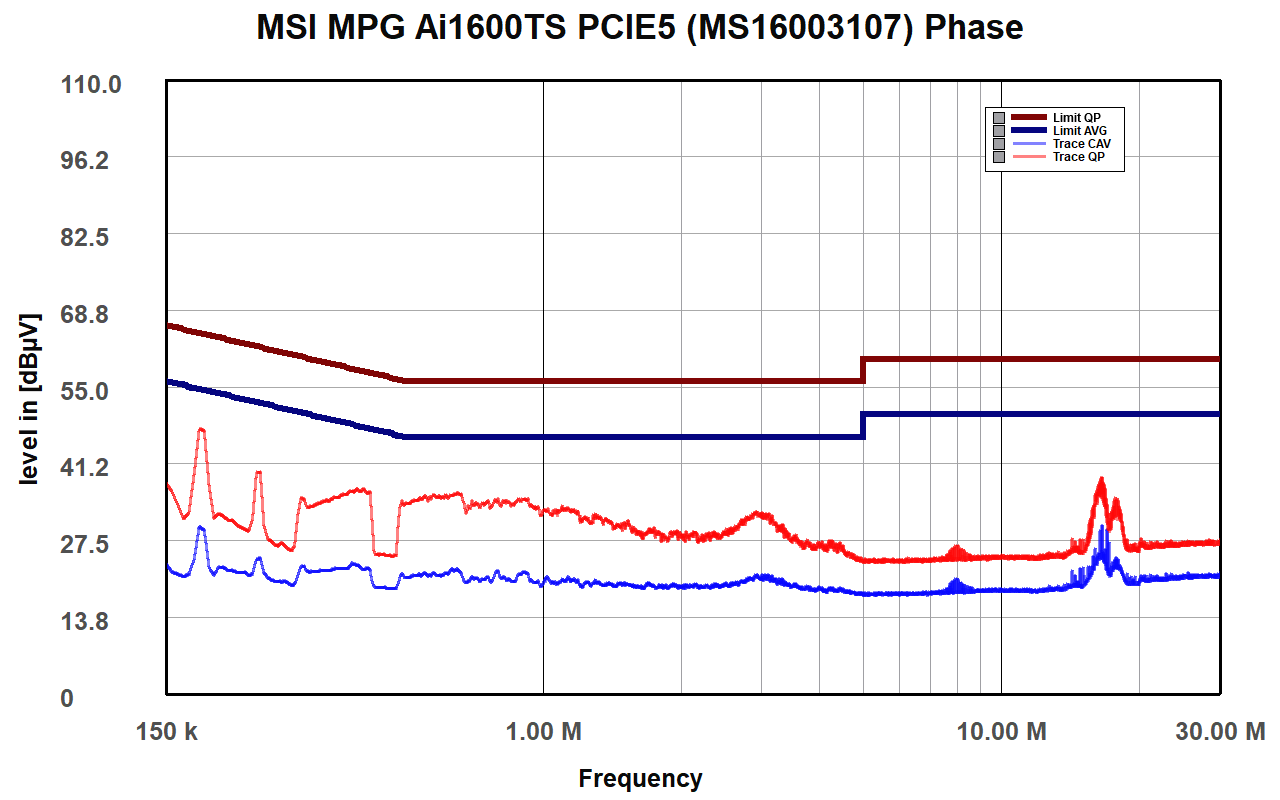

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

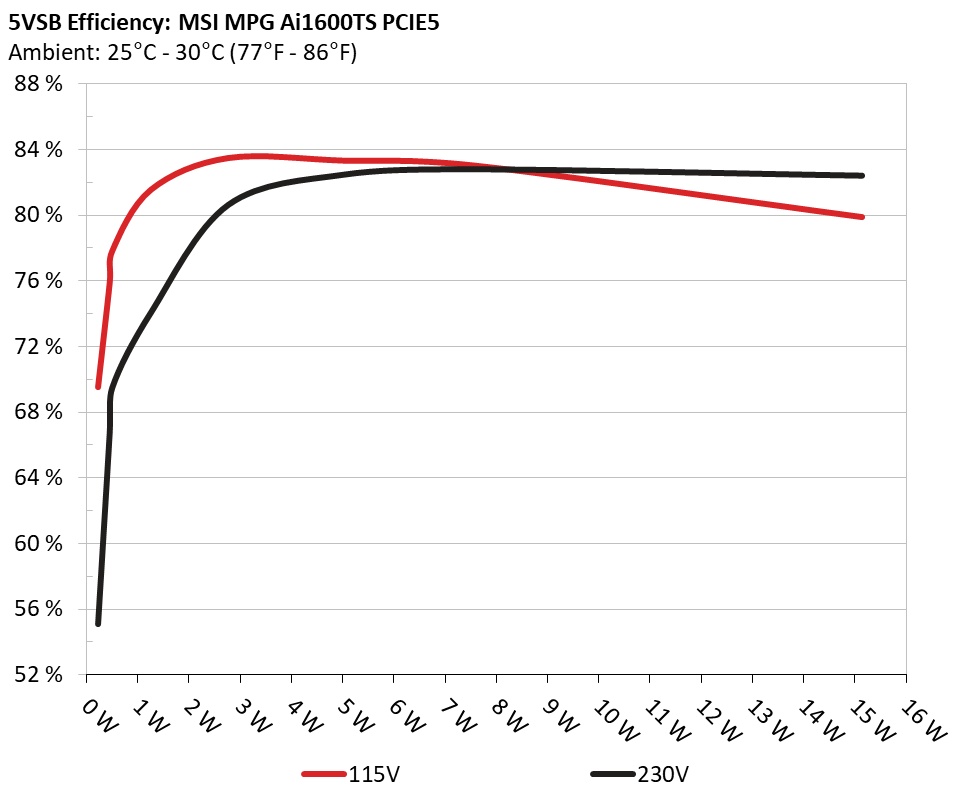

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.227W	69.543%	0.022
1	5.034V	0.326W	69.543%	114.88V
2	0.09A	0.453W	75.895%	0.04
2	5.034V	0.596W	75.895%	114.88V
3	0.55A	2.771W	83.508%	0.2
3	5.037V	3.318W	83.508%	114.88V
4	1A	5.04W	83.345%	0.315
4	5.039V	6.047W	83.345%	114.87V
5	1.5A	7.563W	83.052%	0.401
5	5.041V	9.107W	83.052%	114.87V
6	3.001A	15.147W	79.91%	0.525
6	5.048V	18.954W	79.91%	114.87V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.227W	55.064%	0.008
1	5.034V	0.413W	55.064%	229.92V
2	0.09A	0.453W	66.705%	0.013
2	5.034V	0.68W	66.705%	229.92V
3	0.55A	2.77W	80.612%	0.065
3	5.036V	3.436W	80.612%	229.91V
4	1A	5.039W	82.461%	0.112
4	5.038V	6.112W	82.461%	229.92V
5	1.5A	7.562W	82.781%	0.162
5	5.041V	9.135W	82.781%	229.92V
6	3.001A	15.144W	82.391%	0.283
6	5.047V	18.382W	82.391%	229.91V

Protection Features

OCP (Normal @ 28.8°C)	12V: 161.20A (120.90%), 11.964V 5V: 27.6A (125.45%), 4.952V 3.3V: 27.7A (125.91%), 3.317V 5VSB: 4.7A (156.67%), 5.052V
OCP (Hot @ 44.7°C)	12V: 161.00A (120.75%), 11.962V 5V: 27.6A (125.45%), 4.942V 3.3V: 27.7A (125.91%), 3.323V 5VSB: 4.5A (150.00%), 5.041V
OPP (Normal @ 27.7°C)	1951.12W (121.94%)
OPP (Hot @ 45.3°C)	1951.11W (121.94%)
OTP	✓ (141°C @ 12V Heatsink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✓
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	11.480A	1.982A	1.981A	0.994A	160.008	91.02%	0	<6.0	45.37°C	0.983
10%	12.057V	5.045V	3.332V	5.031V	175.826	91.02%	0	<6.0	40.21°C	114.82V
20%	23.993A	2.975A	2.973A	1.195A	319.981	93.44%	0	<6.0	45.53°C	0.99
20%	12.048V	5.041V	3.331V	5.024V	342.432	93.44%	0	<6.0	40.57°C	114.77V
30%	36.804A	3.473A	3.47A	1.395A	479.206	93.717%	457	<6.0	41.28°C	0.994
30%	12.041V	5.039V	3.329V	5.02V	511.292	93.717%	457	<6.0	51.86°C	114.72V
40%	49.735A	3.972A	3.967A	1.596A	639.612	93.621%	458	<6.0	41.72°C	0.996
40%	12.032V	5.036V	3.327V	5.014V	683.175	93.621%	458	<6.0	53.73°C	114.66V
50%	62.284A	4.969A	4.962A	1.798A	799.358	93.137%	458	<6.0	42.05°C	0.996
50%	12.023V	5.032V	3.326V	5.007V	858.305	93.137%	458	<6.0	57.14°C	114.61V
60%	74.918A	5.968A	5.958A	2A	959.841	92.302%	460	<6.0	42.55°C	0.996
60%	12.014V	5.028V	3.324V	4.999V	1039.846	92.302%	460	<6.0	60.59°C	114.54V
70%	87.472A	6.968A	6.954A	2.204A	1119.587	91.036%	639	9.8	43.25°C	0.997
70%	12.009V	5.024V	3.322V	4.991V	1229.813	91.036%	639	9.8	62.39°C	114.48V
80%	100.150A	7.969A	7.951A	2.308A	1279.613	90.073%	824	18.6	43.82°C	0.996
80%	11.999V	5.019V	3.32V	4.983V	1420.648	90.073%	824	18.6	65.59°C	114.41V
90%	113.175A	8.474A	8.439A	2.413A	1439.404	89.25%	1215	31.4	44.57°C	0.996
90%	11.989V	5.015V	3.318V	4.975V	1612.815	89.25%	1215	31.4	67.88°C	114.35V
100%	126.027A	8.977A	8.955A	3.019A	1599.415	88.389%	1486	37.3	45.33°C	0.996
100%	11.979V	5.012V	3.316V	4.969V	1809.555	88.389%	1486	37.3	68.12°C	114.28V
110%	138.848A	9.984A	10.043A	3.025A	1760.022	87.405%	1801	42.5	46.57°C	0.995
110%	11.968V	5.008V	3.315V	4.96V	2013.626	87.405%	1801	42.5	68.55°C	114.19V
CL1	0.117A	14.388A	14.292A	0A	121.312	84.03%	467	<6.0	42.61°C	0.982
CL1	12.048V	5.018V	3.337V	5.02V	144.371	84.03%	467	<6.0	60.89°C	114.82V
CL2	0.116A	21.887A	0A	0A	111.311	82.913%	464	<6.0	41.97°C	0.982
CL2	12.051V	5.022V	3.303V	5.025V	134.269	82.913%	464	<6.0	58.03°C	114.82V
CL3	0.116A	0A	21.621A	0A	73.985	76.305%	462	<6.0	41.31°C	0.945
CL3	12.053V	5.014V	3.357V	5.024V	96.97	76.305%	462	<6.0	55.39°C	114.84V
CL4	133.462A	0A	0A	0A	1599.941	88.968%	1255	32.6	47.03°C	0.996
CL4	11.988V	5.027V	3.309V	4.97V	1798.433	88.968%	1255	32.6	63.86°C	114.3V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	11.482A	1.984A	1.982A	0.994A	160.009	92.358%	0	<6.0	42.23°C	0.836
10%	12.054V	5.04V	3.329V	5.029V	173.044	92.358%	0	<6.0	40.22°C	229.87V
20%	23.995A	2.978A	2.974A	1.195A	319.98	93.54%	0	<6.0	43.3°C	0.933
20%	12.047V	5.037V	3.328V	5.021V	342.094	93.54%	0	<6.0	40.81°C	229.85V
30%	36.802A	3.477A	3.471A	1.395A	479.209	93.682%	465	<6.0	41.19°C	0.94
30%	12.042V	5.034V	3.328V	5.019V	511.615	93.682%	465	<6.0	54.84°C	229.81V
40%	49.724A	3.976A	3.968A	1.596A	639.61	94.252%	463	<6.0	41.72°C	0.959
40%	12.034V	5.031V	3.326V	5.012V	678.607	94.252%	463	<6.0	55.27°C	229.79V
50%	62.266A	4.972A	4.961A	1.798A	799.351	94.272%	462	<6.0	42.41°C	0.965
50%	12.026V	5.029V	3.326V	5.005V	847.913	94.272%	462	<6.0	56.18°C	229.76V
60%	74.924A	5.974A	5.957A	2A	959.955	93.936%	670	12.2	42.82°C	0.97
60%	12.015V	5.023V	3.324V	4.995V	1021.915	93.936%	670	12.2	59.89°C	229.73V
70%	87.473A	6.973A	6.95A	2.205A	1119.577	93.468%	638	9.8	43.46°C	0.975
70%	12.009V	5.02V	3.324V	4.99V	1197.739	93.468%	638	9.8	58.52°C	229.7V
80%	100.150A	7.974A	7.944A	2.308A	1279.602	93.009%	821	18.5	43.64°C	0.973
80%	11.999V	5.016V	3.323V	4.982V	1375.743	93.009%	821	18.5	59.38°C	229.68V
90%	113.172A	8.479A	8.429A	2.413A	1439.395	92.491%	1168	30.3	45.88°C	0.975
90%	11.989V	5.012V	3.322V	4.975V	1556.306	92.491%	1168	30.3	60.38°C	229.65V
100%	126.031A	8.984A	8.944A	3.02A	1599.408	91.91%	1490	37.4	46.97°C	0.976
100%	11.979V	5.009V	3.32V	4.968V	1740.109	91.91%	1490	37.4	61.95°C	229.61V
110%	138.851A	9.99A	10.028A	3.025A	1760.016	91.25%	1828	42.8	48.01°C	0.977
110%	11.967V	5.005V	3.32V	4.959V	1928.749	91.25%	1828	42.8	63.57°C	229.59V
CL1	0.117A	14.396A	14.256A	0A	121.303	85.828%	463	<6.0	40.31°C	0.812
CL1	12.049V	5.015V	3.346V	5.021V	141.339	85.828%	463	<6.0	56.4°C	229.87V
CL2	0.116A	21.897A	0A	0A	111.306	84.513%	461	<6.0	42.82°C	0.799
CL2	12.052V	5.019V	3.3V	5.025V	131.696	84.513%	461	<6.0	54.5°C	229.87V
CL3	0.115A	0A	21.581A	0A	73.983	77.231%	461	<6.0	43.04°C	0.736
CL3	12.053V	5.013V	3.364V	5.024V	95.809	77.231%	461	<6.0	53.66°C	229.88V
CL4	133.466A	0A	0A	0A	1599.934	92.464%	1258	32.7	44.3°C	0.976
CL4	11.988V	5.025V	3.306V	4.97V	1730.345	92.464%	1258	32.7	56.98°C	229.62V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.230A	0.495A	0.495A	0.199A	20.001	65.122%	0	<6.0	40.78°C	0.79
20W	12.066V	5.049V	3.334V	5.038V	30.729	65.122%	0	<6.0	36.01°C	114.87V
40W	2.710A	0.693A	0.693A	0.298A	40.002	77.471%	0	<6.0	41.46°C	0.885
40W	12.064V	5.049V	3.334V	5.036V	51.644	77.471%	0	<6.0	37.05°C	114.85V
60W	4.190A	0.891A	0.891A	0.397A	60.003	82.739%	0	<6.0	42.09°C	0.924
60W	12.062V	5.048V	3.333V	5.035V	72.521	82.739%	0	<6.0	38.04°C	114.86V
80W	5.664A	1.089A	1.089A	0.497A	79.949	85.723%	0	<6.0	43.19°C	0.941
80W	12.061V	5.048V	3.333V	5.034V	93.254	85.723%	0	<6.0	39.13°C	114.85V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.232A	0.496A	0.496A	0.199A	20.017	53.552%	0	<6.0	41.27°C	0.271
20W	12.062V	5.046V	3.33V	5.036V	29.664	53.552%	0	<6.0	36.92°C	229.89V
40W	2.712A	0.694A	0.694A	0.298A	40.01	78.106%	0	<6.0	42.15°C	0.567
40W	12.060V	5.045V	3.329V	5.035V	51.302	78.106%	0	<6.0	37.4°C	229.89V
60W	4.190A	0.892A	0.892A	0.397A	60.006	84.143%	0	<6.0	42.43°C	0.664
60W	12.059V	5.044V	3.329V	5.033V	71.315	84.143%	0	<6.0	38.24°C	229.88V
80W	5.666A	1.09A	1.09A	0.497A	79.954	87.101%	0	<6.0	40.73°C	0.724
80W	12.059V	5.043V	3.329V	5.032V	91.795	87.101%	0	<6.0	39.17°C	229.88V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	26.44mV	18.99mV	19.91mV	15.39mV	Pass
20% Load	30.89mV	19.19mV	19.08mV	15.75mV	Pass
30% Load	33.09mV	20.01mV	18.83mV	16.47mV	Pass
40% Load	36.52mV	19.76mV	19.09mV	18.06mV	Pass
50% Load	40.46mV	20.37mV	19.39mV	17.50mV	Pass
60% Load	37.08mV	19.50mV	20.16mV	18.06mV	Pass
70% Load	32.78mV	20.02mV	20.06mV	19.65mV	Pass
80% Load	33.86mV	20.32mV	20.57mV	20.83mV	Pass
90% Load	36.11mV	20.37mV	20.93mV	21.70mV	Pass
100% Load	37.54mV	21.20mV	21.60mV	24.02mV	Pass
110% Load	39.48mV	20.01mV	20.78mV	24.94mV	Pass
Crossload1	25.32mV	20.73mV	22.52mV	15.65mV	Pass
Crossload2	26.08mV	20.89mV	18.73mV	14.88mV	Pass
Crossload3	26.18mV	20.58mV	21.55mV	17.04mV	Pass
Crossload4	37.69mV	20.01mV	20.16mV	17.14mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	29.41mV	20.12mV	20.16mV	16.52mV	Pass
20% Load	29.82mV	22.07mV	21.75mV	17.65mV	Pass
30% Load	26.95mV	20.58mV	20.37mV	17.86mV	Pass
40% Load	29.76mV	21.86mV	21.70mV	18.68mV	Pass
50% Load	32.27mV	21.81mV	22.37mV	18.57mV	Pass
60% Load	33.86mV	21.66mV	22.11mV	18.47mV	Pass
70% Load	34.57mV	20.27mV	20.57mV	20.52mV	Pass
80% Load	36.31mV	20.89mV	22.16mV	20.68mV	Pass
90% Load	37.13mV	20.27mV	21.03mV	21.60mV	Pass
100% Load	40.97mV	20.43mV	20.88mV	24.06mV	Pass
110% Load	43.01mV	22.32mV	21.09mV	25.45mV	Pass
Crossload1	32.94mV	24.38mV	23.65mV	18.01mV	Pass
Crossload2	29.72mV	21.81mV	19.91mV	17.24mV	Pass
Crossload3	24.81mV	20.01mV	21.91mV	15.45mV	Pass
Crossload4	39.84mV	19.86mV	20.01mV	17.19mV	Pass

The results above are not used in the certification process

MSI MPG Ai1600TS PCIE5

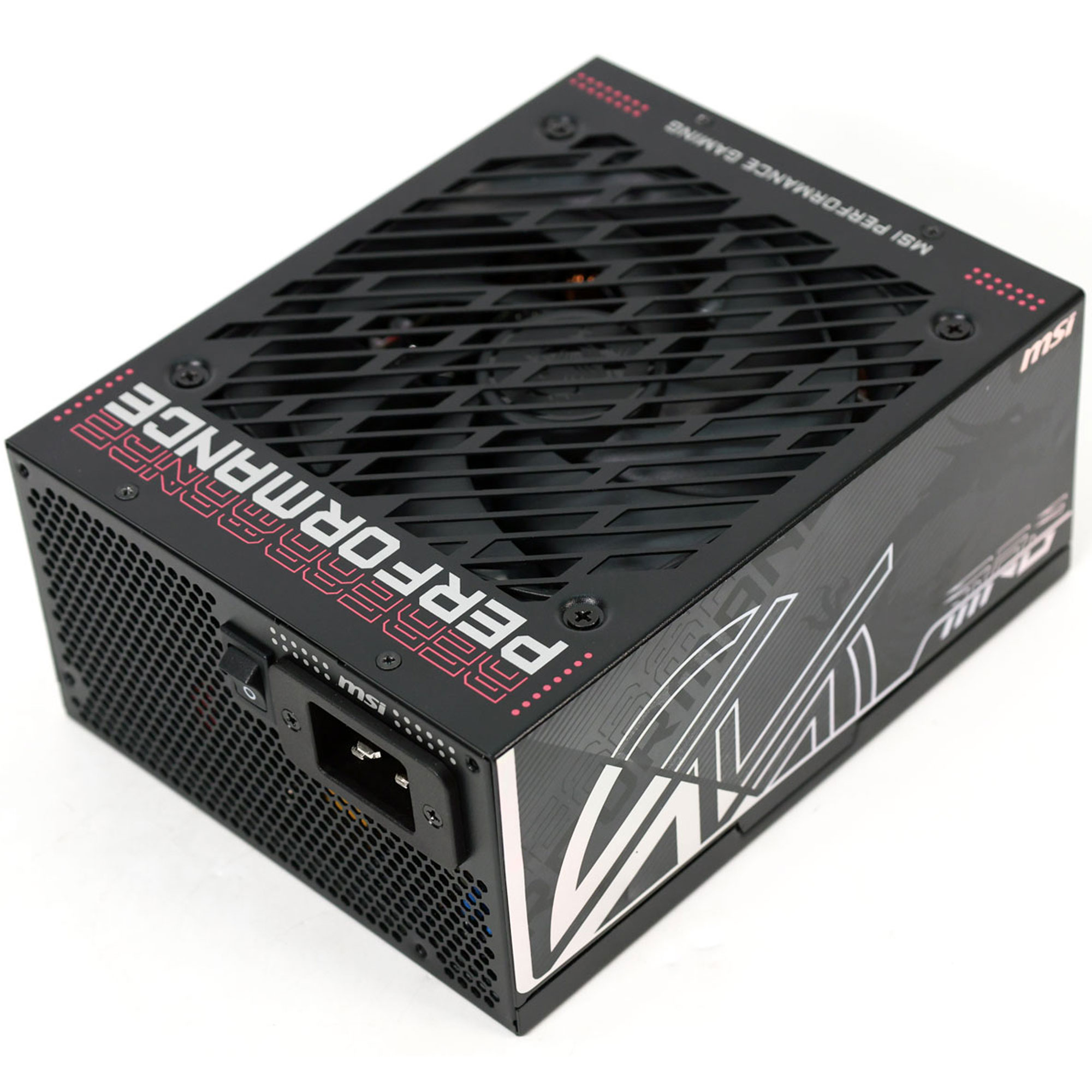

Top side

Power specifications label

Fan

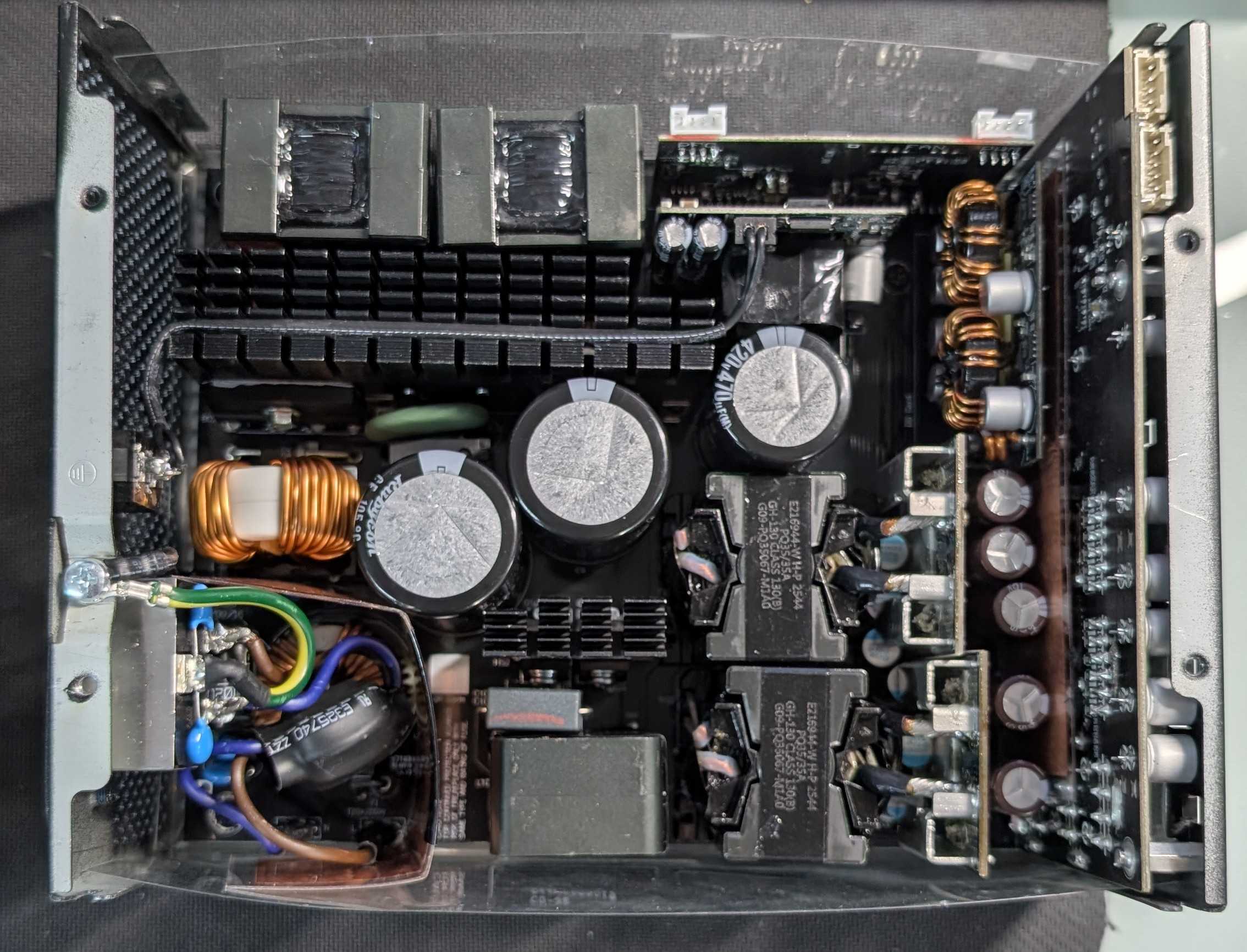

PSU Internals
