CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

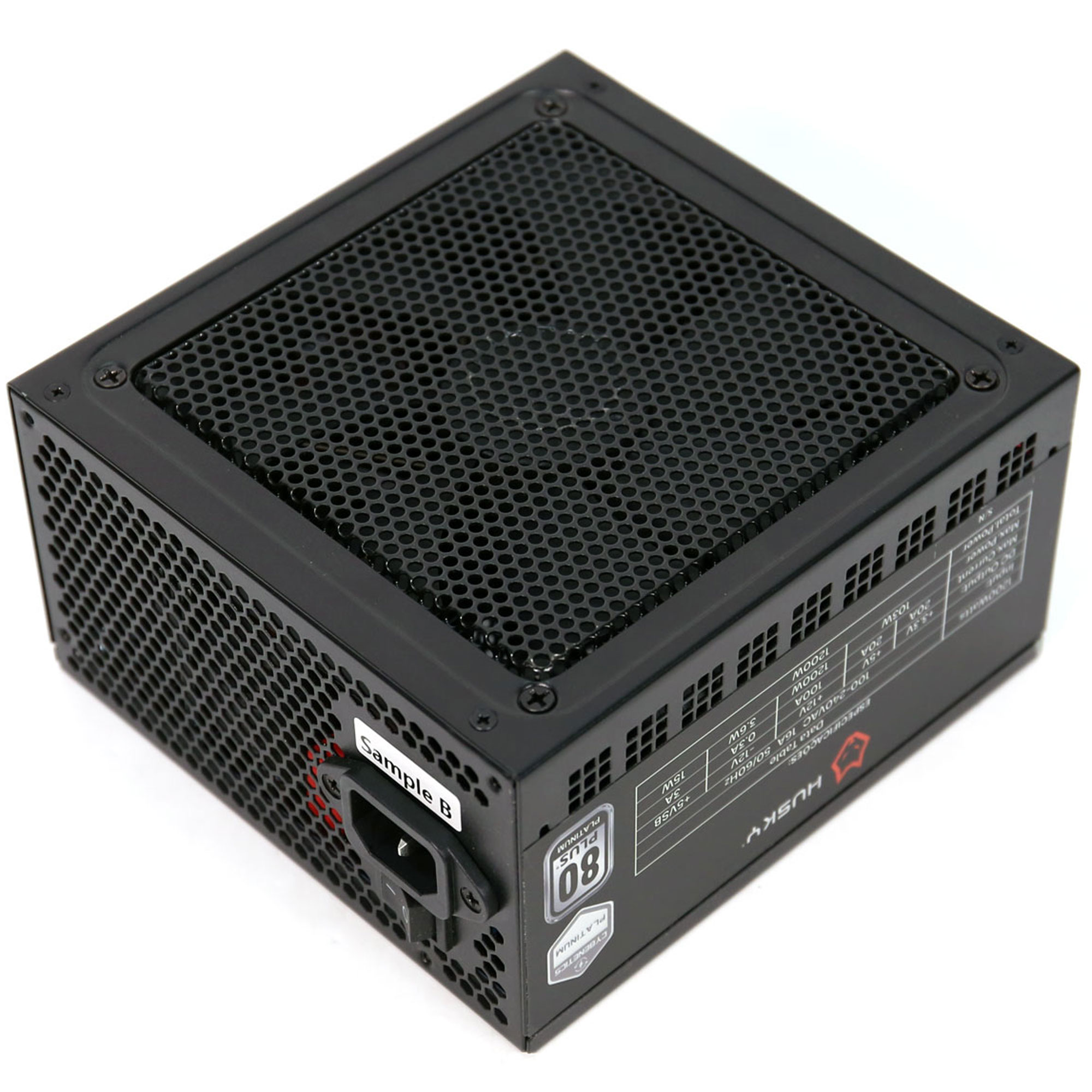

Husky Sledger 1200W
Serial Number-
Lab IDHY12003112
Certification ID263112
  • Test Result Report ID: 26PS3112A
  • Certificate Issue Date: Jan 15, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandHusky
Manufacturer (OEM)Kinpower
SeriesSledger
Model Number-
Serial Number-
DUT NotesSome protection features need adjustment.

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)16
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Dimensions (W x H x D)150 x 85 x 158mm
Cooling140mm Rifle Bearing Fan (EFS-14E12H)
Semi-Passive Operation✗
Cable DesignFully Modular

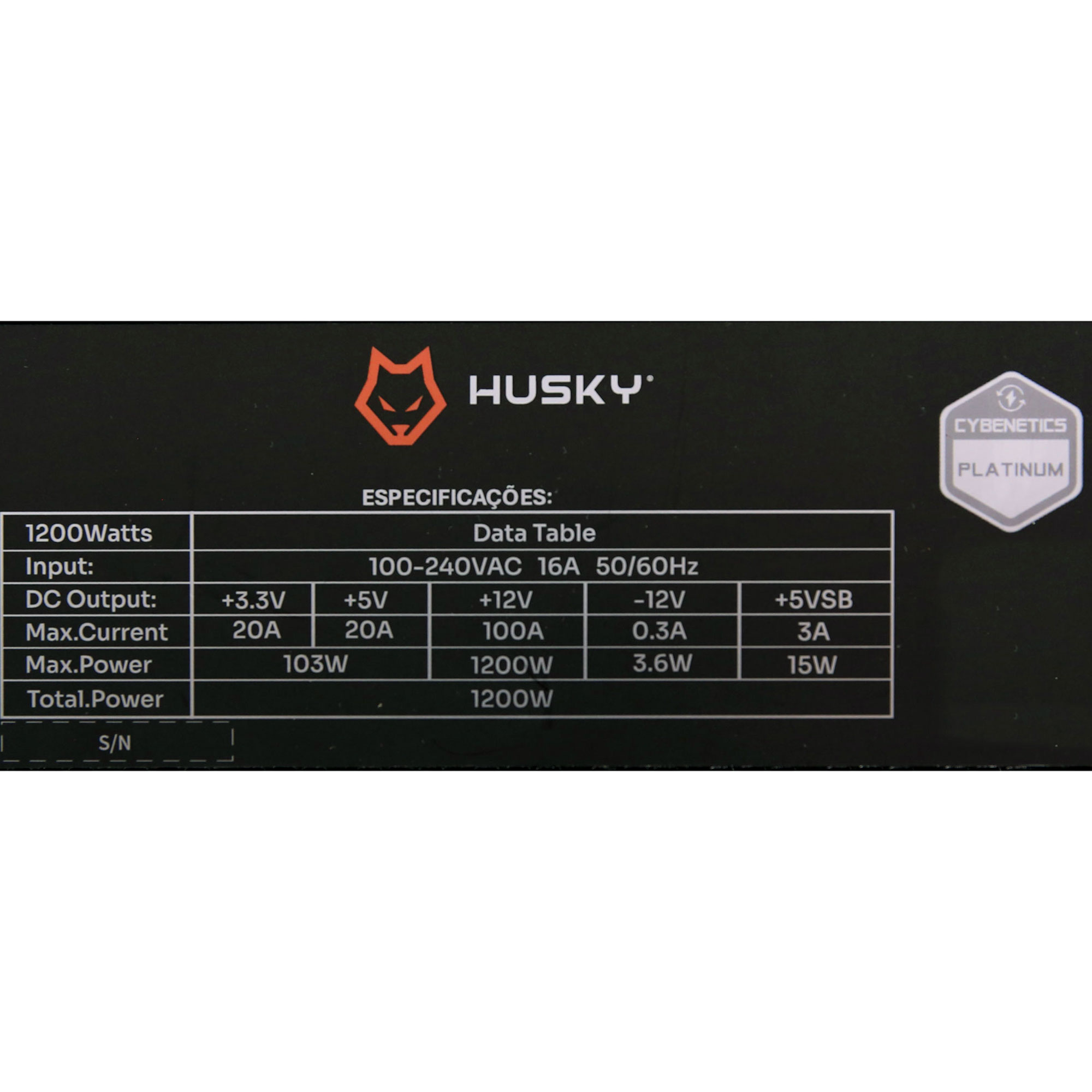

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202010030.3
Watts1031200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 16-18AWG Tinned Copper
4+4 pin EPS12V (700mm) 2 2 16AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 2 4 16-18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (450mm+150mm+150mm) 3 9 18AWG Copper
4-pin Molex (450mm+150mm+150mm) 1 3 18AWG Copper

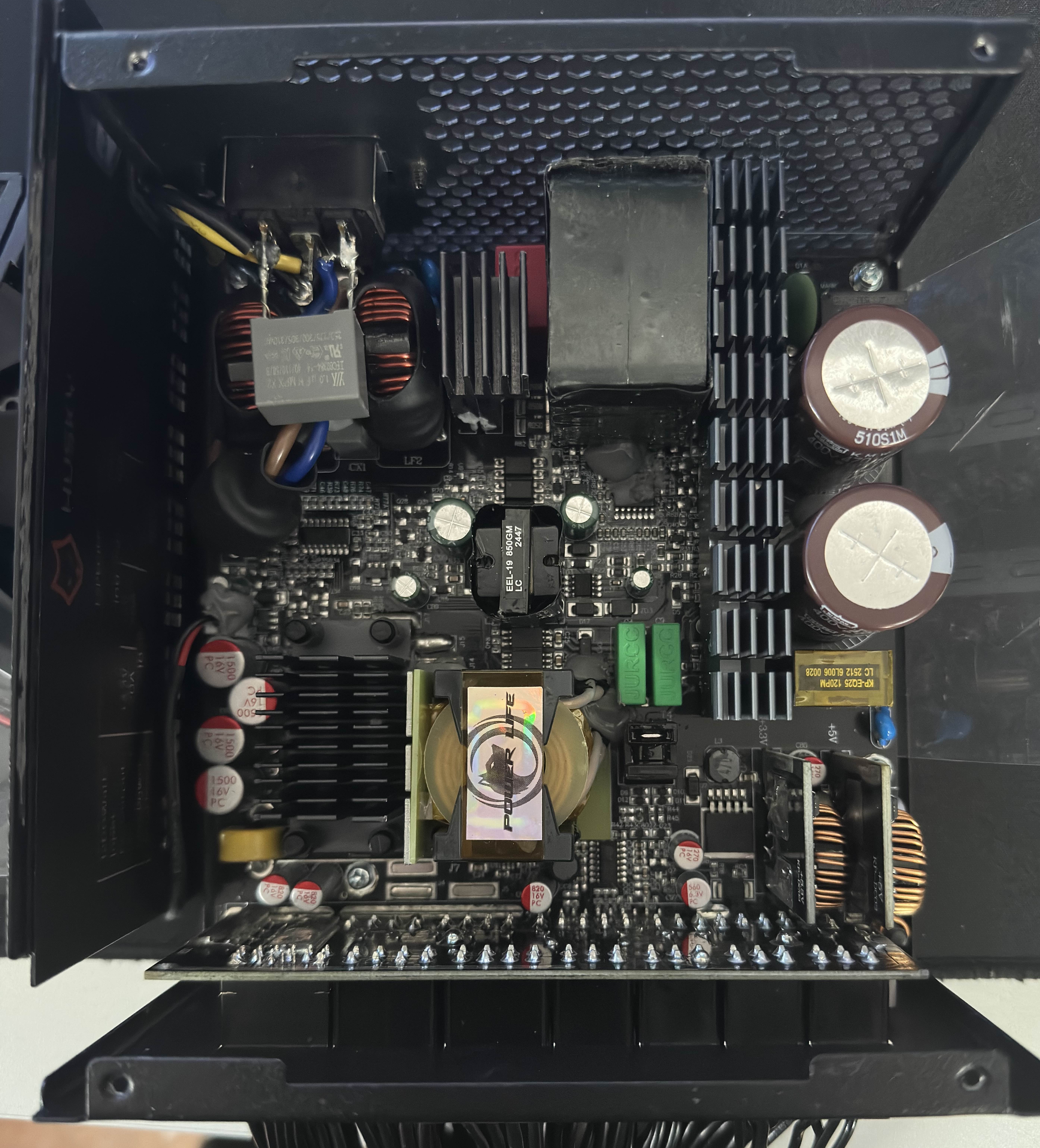

Parts Description

General Data
Manufacturer (OEM) Kinpower
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes
Inrush Protection NTC Thermistor MF72 10D-15 (10 Ohm @ 25°C) & Relay
Bridge Rectifier
2x Yangjie GBUL2506 (600V, 25A @ 125°C)
APFC MOSFETs
2x Oriental Semiconductor OSG65R038HTZF (650V, 50.6A @ 100°C, Rds(on): 0.038Ohm)
APFC Boost Diode
Global Power G3S06520A (650V, 20A @ 140°C)
Bulk Cap(s)
2x Nippon Chemi-con (400V, 470uF each or 940uF combined, 2,000h @ 105°C, KMW)
Main Switchers
2x Fuxin Semiconductor FXN65S60TF

APFC Controller

Champion CM6500UNX
Resonant Controller
Champion CM6901X
Topology Primary side: APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 8x Alkaidsemi AKG40N013G (40V, 120A @ 25°C, Rds(on): 1.3mOhm)
5V & 3.3V DC-DC Converters: 4x Excelliance EMB06N03R (30V, 75A @ 25°C, Rds(on): 6mOhm)
PWM Controller(s): 2x Aplustek AT8853ZSPC
Filtering Capacitors

Electrolytic:
5x TK (@105°C, SZ)
Polymer: 33x Chengx
Supervisor IC IN1S4291-SCG

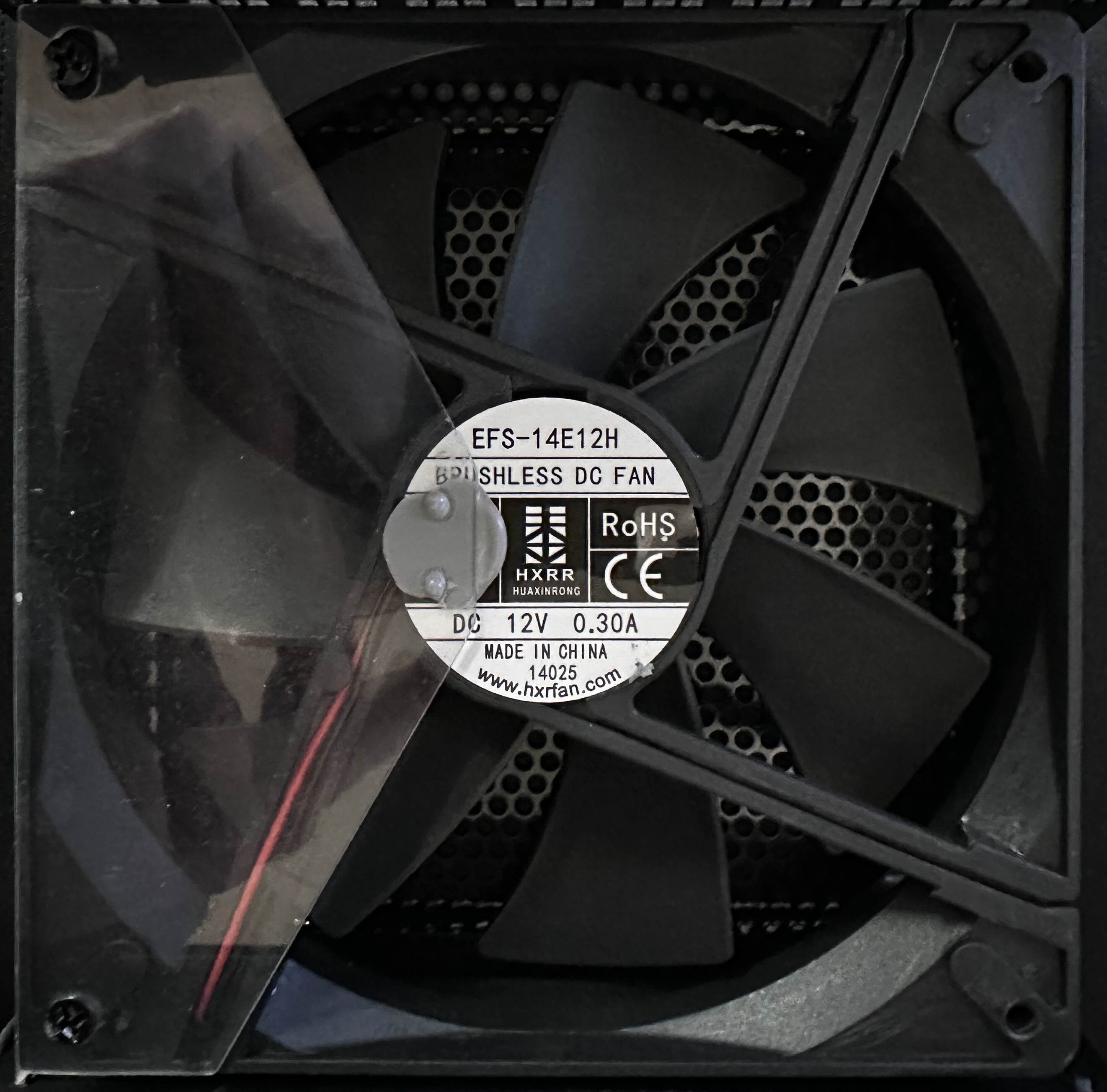

Fan Model EFS-14E12H (140mm, 12V, 0.30A, Hydraulic Dynamic Bearing Fan)
5VSB Circuit
Rectifier
Dongke DK5V45R10V (45V, 10mOhm)
Standby PWM Controller
FuXin Semiconductor FXI8252S

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)89.036%
Average Noise Output (>1450 Load Combinations)33.87dBA
Average PF (>1450 Load Combinations)0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load68.224%
Standby Power Consumption0.0532W
12V Ripple (Full Load)53.62mV
5V Ripple (Full Load)20.58mV
3.3V Ripple (Full Load)16.25mV
5VSB Ripple (Full Load)18.09mV
12V Load Regulation1.02%
5V Load Regulation0.78%
3.3V Load Regulation1.03%
5VSB Load Regulation2.49%
Inrush Current17.690A
Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)91.027%
Average Noise Output (>1450 Load Combinations)33.67dBA
Average PF (>1450 Load Combinations)0.960
Efficiency With 10W (≤500W) or 2% (>500W) Load69.798%
Standby Power Consumption0.0920W
12V Ripple (Full Load)54.79mV
5V Ripple (Full Load)20.61mV
3.3V Ripple (Full Load)16.72mV
5VSB Ripple (Full Load)16.94mV
12V Load Regulation0.91%
5V Load Regulation1.04%
3.3V Load Regulation1.19%
5VSB Load Regulation2.49%
Inrush Current44.810A
12V Transient Response (200%)11.24V
5V Transient Response (200%)4.946V
3.3V Transient Response (200%)3.203V
5VSB Transient Response (200%)4.998V
Hold-Up Time & Power Ok Signal16.20ms
AC Loss to PWR_OK Hold Up Time14.50ms
PWR_OK Inactive to DC Loss Delay1.70ms
PSU Timings: T1 (20% / 100%)40.0ms40.0ms
PSU Timings: T3 (20% / 100%)124.0ms124.0ms
12V OCP (28.8°C / 45.4°C)123.00A (123.00%), 12.060V109.40A (109.40%), 12.098V
5V OCP (28.8°C / 45.4°C)25.4A (127.00%), 4.964V25.4A (127.00%), 4.952V
3.3V OCP (28.8°C / 45.4°C)25.9A (129.50%), 3.283V25.9A (129.50%), 3.277V
5VSB OCP (28.8°C / 45.4°C)4.8A (160.00%), 5.081V *High Ripple (60.98mV)4.7A (156.67%), 5.08V *High Ripple (71.73mV)
OPP (28.05°C / 44.17°C)118.83%113.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)16.2
AC Loss to PWR_OK Hold Up Time (ms)14.5
PWR_OK Inactive to DC Loss Delay (ms)1.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.05 V 115.03 V 113.85 V 115.06 V 116.15 V PASS
Mains Frequency: 60.00 Hz 60.00 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.16 % 2.00 % PASS
Real Power: 0.053 W 0.032 W N/A 0.085 W N/A N/A
Apparent Power: 6.867 W 6.844 W N/A 6.890 W N/A N/A
Power Factor: 0.009 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.11 V 230.09 V 227.70 V 230.13 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.092 W 0.050 W N/A 0.189 W N/A N/A
Apparent Power: 21.881 W 21.841 W N/A 21.923 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

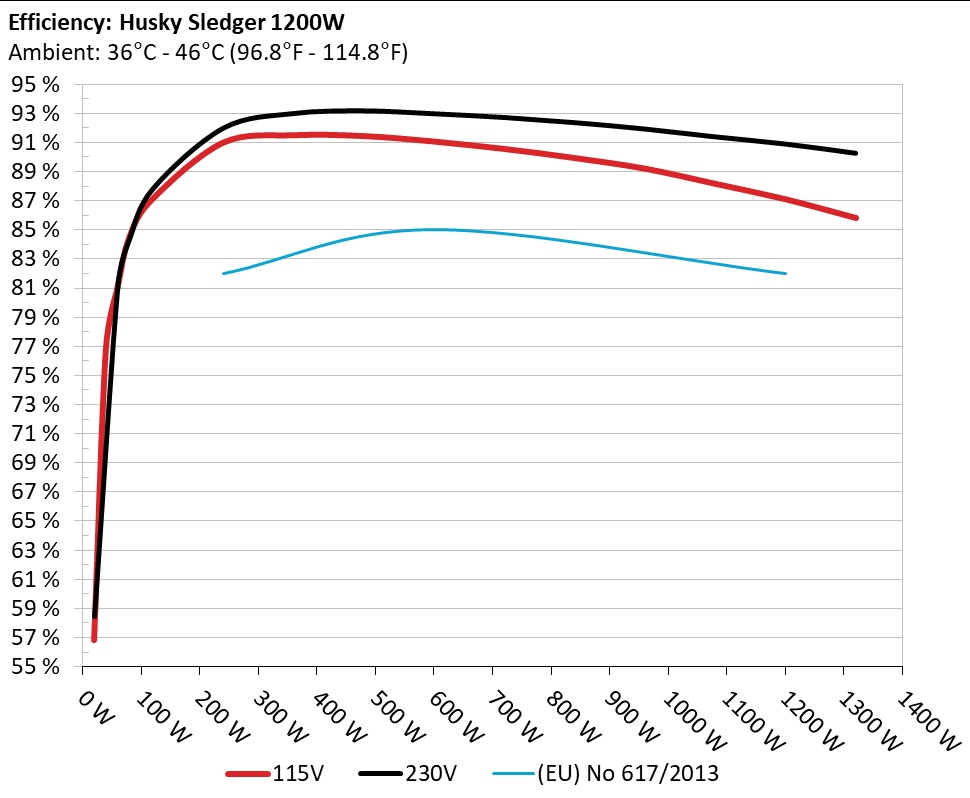

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

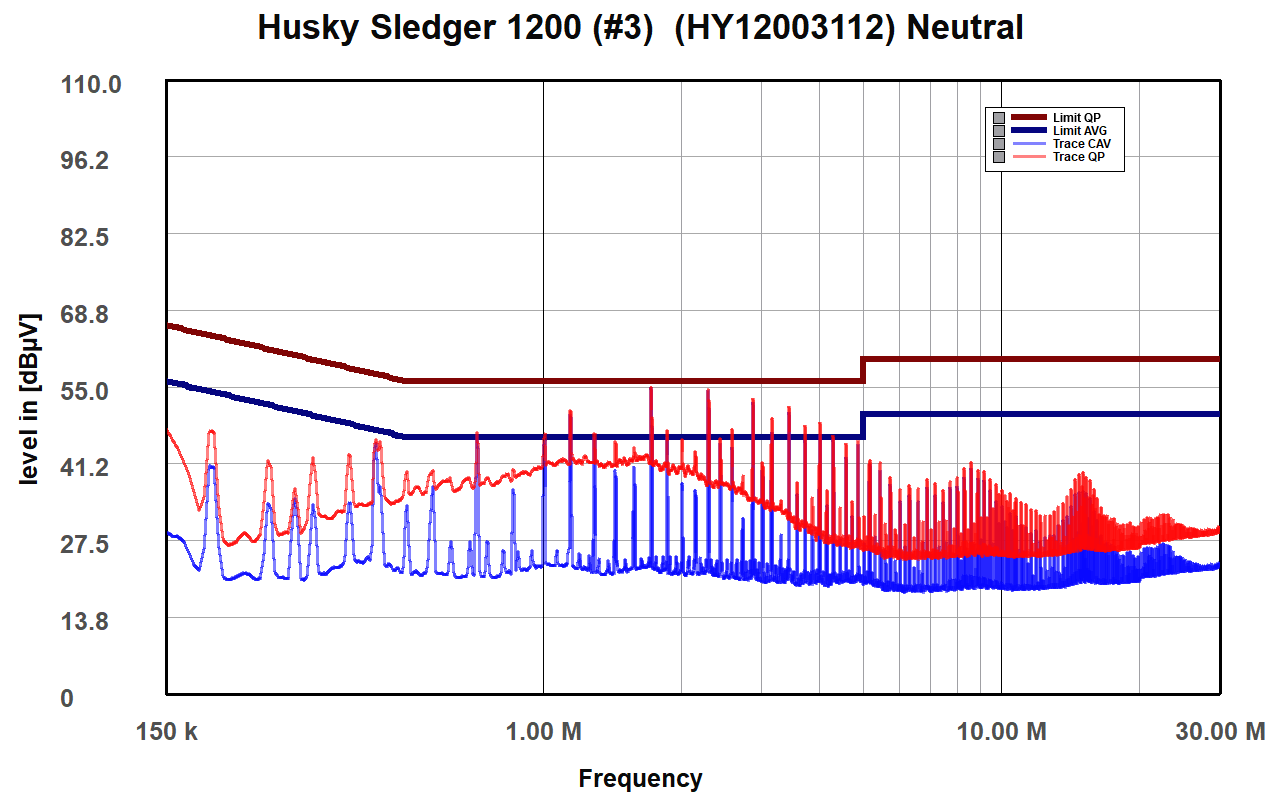

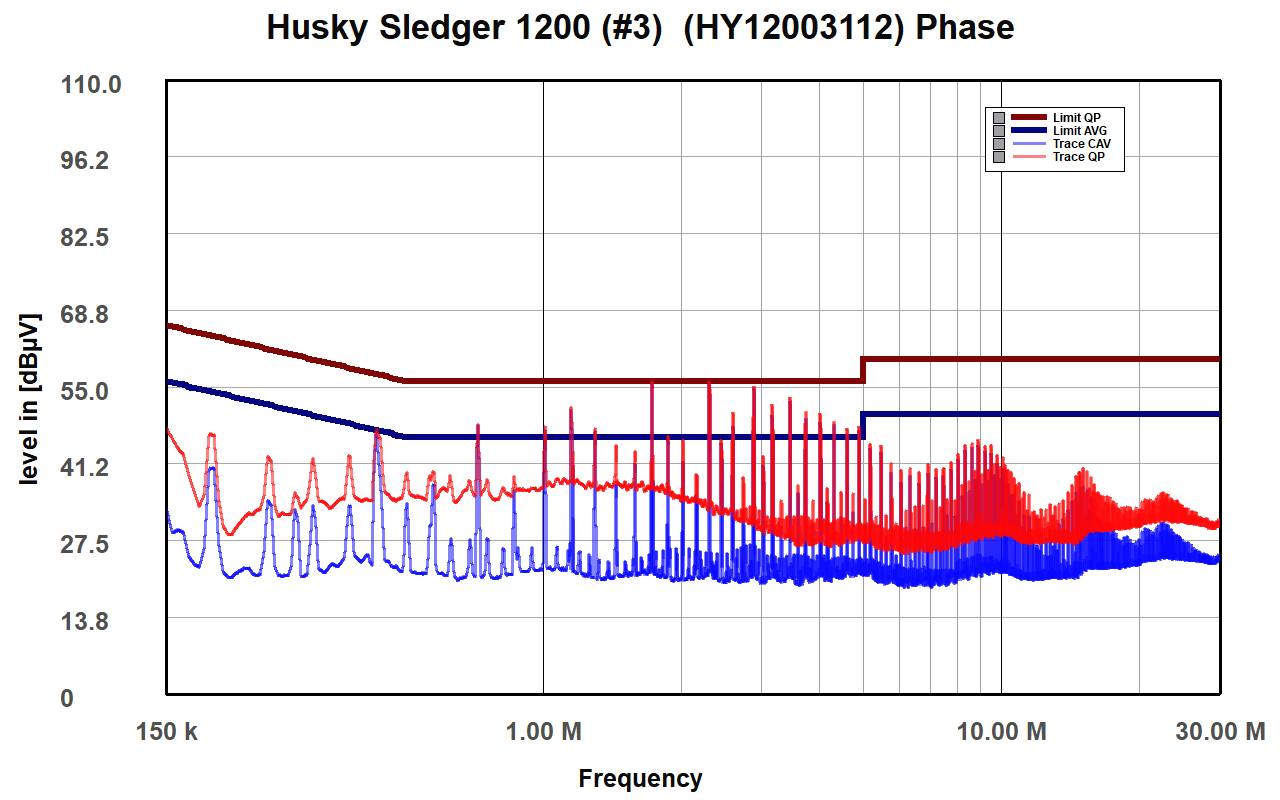

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

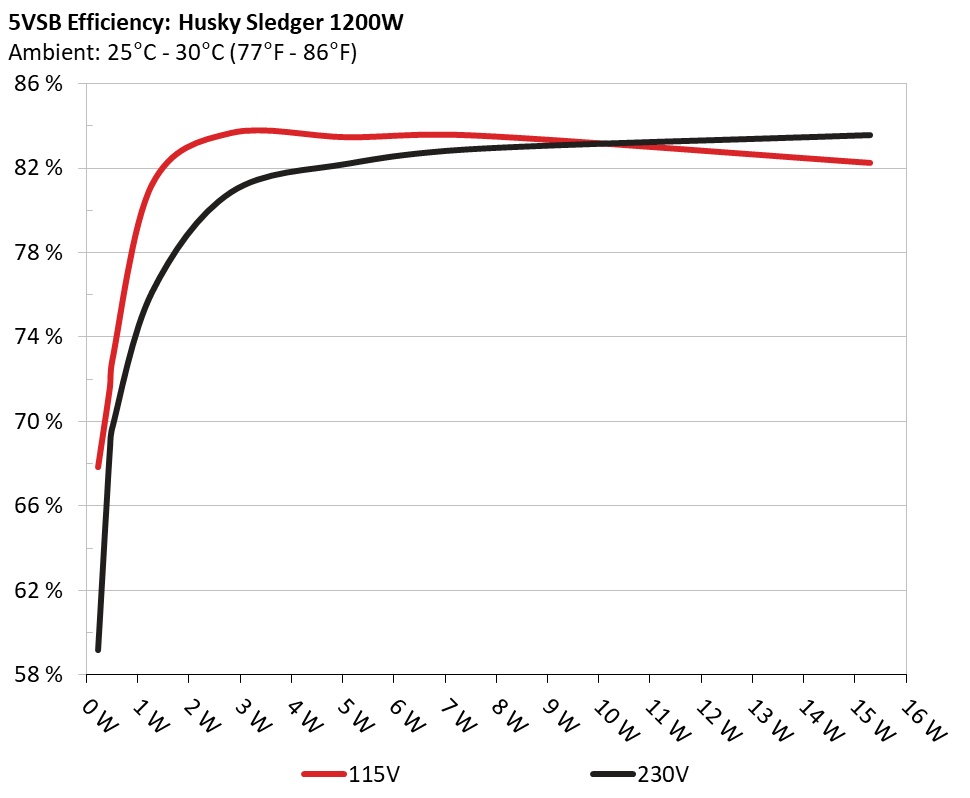

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 67.824% 0.053
5.142V 0.342W 114.94V
2 0.09A 0.463W 71.623% 0.098
5.141V 0.647W 114.93V
3 0.55A 2.825W 83.665% 0.341
5.134V 3.376W 114.94V
4 1A 5.129W 83.462% 0.428
5.127V 6.145W 114.93V
5 1.501A 7.682W 83.536% 0.464
5.12V 9.197W 114.93V
6 3.001A 15.295W 82.25% 0.506
5.098V 18.595W 114.93V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 59.197% 0.018
5.142V 0.393W 230.04V
2 0.09A 0.463W 68.732% 0.032
5.141V 0.674W 230.04V
3 0.55A 2.825W 80.865% 0.15
5.134V 3.493W 230.05V
4 1A 5.129W 82.225% 0.235
5.127V 6.238W 230.06V
5 1.5A 7.682W 82.927% 0.299
5.12V 9.265W 230.06V
6 3.001A 15.296W 83.567% 0.387
5.098V 18.304W 230.06V

Protection Features

OCP (Normal @ 28.8°C)12V: 123.00A (123.00%), 12.060V
5V: 25.4A (127.00%), 4.964V
3.3V: 25.9A (129.50%), 3.283V
5VSB: 4.8A (160.00%), 5.081V *High Ripple (60.98mV)
OCP (Hot @ 45.4°C)12V: 109.40A (109.40%), 12.098V
5V: 25.4A (127.00%), 4.952V
3.3V: 25.9A (129.50%), 3.277V
5VSB: 4.7A (156.67%), 5.08V *High Ripple (71.73mV)
OPP (Normal @ 28.1°C)1425.99W (118.83%)
OPP (Hot @ 44.2°C)1355.98W (113.00%)
OTP✓ (130°C @ Secondary Side)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✗
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.084A 1.981A 1.985A 0.977A 120.032 87.121% 554 8.5 40.18°C 0.976
12.176V 5.051V 3.325V 5.122V 137.774 44.84°C 114.92V
20% 17.177A 2.972A 2.981A 1.174A 240 90.97% 553 8.5 40.58°C 0.992
12.173V 5.048V 3.321V 5.111V 263.825 46.81°C 114.89V
30% 26.598A 3.47A 3.481A 1.373A 359.483 91.483% 780 19 41.14°C 0.989
12.160V 5.045V 3.319V 5.1V 392.953 48.32°C 114.86V
40% 36.120A 3.967A 3.981A 1.572A 479.845 91.427% 1188 31 41.83°C 0.992
12.144V 5.043V 3.316V 5.089V 524.836 48.92°C 114.83V
50% 45.271A 4.961A 4.981A 1.773A 599.612 91.055% 1534 37.6 42.27°C 0.994
12.129V 5.041V 3.313V 5.078V 658.509 50.62°C 114.81V
60% 54.505A 5.958A 5.984A 1.975A 720.154 90.544% 1746 41.2 42.65°C 0.995
12.115V 5.037V 3.31V 5.066V 795.362 52.3°C 114.77V
70% 63.689A 6.958A 6.989A 2.177A 839.883 89.925% 1751 41.3 43.3°C 0.996
12.102V 5.032V 3.306V 5.054V 933.986 54.76°C 114.74V
80% 72.947A 7.96A 7.997A 2.281A 959.886 89.194% 1747 41.2 43.62°C 0.996
12.091V 5.026V 3.301V 5.043V 1076.186 57.54°C 114.71V
90% 82.665A 8.467A 8.492A 2.385A 1079.712 88.159% 1745 41.2 44.91°C 0.997
12.063V 5.02V 3.297V 5.032V 1224.739 60.83°C 114.68V
100% 92.018A 8.976A 9.02A 2.992A 1199.776 87.098% 1748 41.3 45.88°C 0.997
12.063V 5.014V 3.293V 5.014V 1377.508 65.51°C 114.65V
110% 101.470A 9.994A 10.135A 2.999A 1320.412 85.811% 1754 41.4 46.16°C 0.997
12.044V 5.003V 3.286V 5.003V 1538.778 66.68°C 114.63V
CL1 0.116A 12.375A 12.388A 0A 104.32 78.524% 1317 34 40.46°C 0.972
12.162V 5.011V 3.301V 5.124V 132.853 50.34°C 114.93V
CL2 0.115A 20.059A 0A 0A 101.407 78.081% 777 18.9 40.42°C 0.974
12.161V 4.985V 3.315V 5.13V 129.872 47.78°C 114.92V
CL3 0.115A 0A 20.087A 0A 67.401 71.207% 580 10.7 40.9°C 0.959
12.169V 4.998V 3.285V 5.128V 94.662 48.17°C 114.93V
CL4 99.414A 0A 0A 0.001A 1200.225 87.974% 1764 41.6 45.35°C 0.997
12.073V 5.016V 3.297V 5.063V 1364.312 62.16°C 114.65V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.085A 1.98A 1.985A 0.977A 120.036 87.846% 553 8.5 40.33°C 0.871
12.174V 5.051V 3.325V 5.122V 136.646 43.44°C 230.04V
20% 17.178A 2.973A 2.981A 1.174A 240.007 91.995% 553 8.5 40.71°C 0.945
12.172V 5.047V 3.322V 5.111V 260.889 44.94°C 230.03V
30% 26.601A 3.47A 3.481A 1.373A 359.51 93.003% 904 22.9 41.16°C 0.967
12.159V 5.044V 3.319V 5.1V 386.558 46.06°C 230.02V
40% 36.138A 3.968A 3.981A 1.573A 479.88 93.187% 1287 33.5 41.83°C 0.974
12.139V 5.042V 3.316V 5.089V 514.965 47.04°C 230V
50% 45.291A 4.963A 4.981A 1.773A 599.661 92.987% 1534 37.6 42.45°C 0.98
12.125V 5.039V 3.313V 5.077V 644.892 47.52°C 229.99V
60% 54.516A 5.961A 5.984A 1.975A 720.225 92.731% 1751 41.3 42.99°C 0.982
12.114V 5.035V 3.309V 5.066V 776.684 48.98°C 229.97V
70% 63.707A 6.958A 6.989A 2.177A 839.937 92.379% 1751 41.3 43.44°C 0.984
12.100V 5.032V 3.306V 5.054V 909.221 49.44°C 229.95V
80% 72.977A 7.96A 7.997A 2.281A 959.947 91.941% 1750 41.3 43.97°C 0.986
12.087V 5.026V 3.301V 5.043V 1044.091 50.85°C 229.93V
90% 82.651A 8.467A 8.492A 2.386A 1079.78 91.403% 1749 41.3 44.05°C 0.987
12.066V 5.02V 3.297V 5.032V 1181.338 52.84°C 229.91V
100% 91.996A 8.984A 9.026A 2.992A 1199.842 90.912% 1756 41.4 45.37°C 0.987
12.067V 5.01V 3.291V 5.014V 1319.779 55.38°C 229.89V
110% 101.359A 9.996A 10.136A 2.999A 1320.458 90.276% 1753 41.4 45.42°C 0.987
12.058V 5.003V 3.285V 5.004V 1462.684 56.55°C 229.87V
CL1 0.117A 12.371A 12.385A 0A 104.323 79.489% 1033 26.8 41.34°C 0.867
12.178V 5.012V 3.302V 5.124V 131.247 47.91°C 230.04V
CL2 0.115A 20.068A 0A 0A 101.408 78.887% 852 21.6 41.24°C 0.862
12.179V 4.983V 3.315V 5.129V 128.548 48.22°C 230.04V
CL3 0.115A 0A 20.089A 0A 67.403 71.072% 561 9 41.82°C 0.8
12.179V 4.995V 3.285V 5.127V 94.842 48.11°C 230.05V
CL4 99.435A 0A 0A 0.001A 1200.264 91.608% 1770 41.7 45.09°C 0.987
12.071V 5.015V 3.297V 5.063V 1310.218 54.6°C 229.9V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.495A 0.496A 0.195A 20.021 56.859% 551 8.4 36.03°C 0.824
12.187V 5.051V 3.326V 5.139V 35.214 42.9°C 114.93V
40W 2.684A 0.693A 0.694A 0.292A 40.013 76.764% 551 8.4 37.54°C 0.897
12.181V 5.052V 3.327V 5.136V 52.13 42.16°C 114.93V
60W 4.149A 0.891A 0.893A 0.39A 60.01 81.045% 552 8.4 38.16°C 0.939
12.180V 5.053V 3.327V 5.134V 74.05 42.39°C 114.93V
80W 5.612A 1.089A 1.092A 0.487A 79.981 84.482% 553 8.5 39.44°C 0.959
12.178V 5.052V 3.326V 5.131V 94.675 43.56°C 114.93V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.221A 0.494A 0.496A 0.195A 20.011 58.431% 541 7.8 36.88°C 0.543
12.170V 5.062V 3.33V 5.139V 34.246 37.32°C 230.05V
40W 2.686A 0.692A 0.694A 0.292A 40.009 80.797% 548 8.2 37.38°C 0.632
12.173V 5.059V 3.329V 5.137V 52.279 38.4°C 230.05V
60W 4.151A 0.89A 0.893A 0.39A 60.008 81.194% 550 8.4 38.53°C 0.729
12.174V 5.057V 3.328V 5.134V 73.911 40.13°C 230.05V
80W 5.614A 1.089A 1.091A 0.487A 79.98 84.393% 552 8.4 39.43°C 0.795
12.175V 5.054V 3.327V 5.131V 94.773 41.53°C 230.04V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load11.09mV16.53mV13.58mV10.39mVPass
20% Load65.59mV10.81mV11.70mV10.80mVPass
30% Load62.18mV11.73mV11.90mV11.66mVPass
40% Load55.16mV11.94mV12.61mV12.89mVPass
50% Load52.41mV12.55mV13.27mV14.87mVPass
60% Load53.12mV14.03mV13.48mV13.55mVPass
70% Load50.88mV15.25mV12.71mV14.67mVPass
80% Load51.19mV18.36mV16.43mV15.39mVPass
90% Load51.90mV21.32mV16.58mV16.61mVPass
100% Load53.62mV20.58mV16.25mV18.09mVPass
110% Load54.96mV21.18mV18.59mV19.43mVPass
Crossload111.14mV20.03mV21.08mV9.67mVPass
Crossload211.85mV14.49mV45.47mV9.78mVPass
Crossload311.09mV27.49mV17.19mV9.63mVPass
Crossload453.06mV12.22mV6.25mV15.46mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load11.04mV15.51mV11.19mV9.12mVPass
20% Load68.84mV11.12mV10.17mV10.04mVPass
30% Load62.28mV12.45mV10.38mV11.26mVPass
40% Load55.41mV12.55mV11.19mV12.43mVPass
50% Load53.02mV13.77mV11.80mV15.28mVPass
60% Load51.95mV14.23mV11.39mV12.79mVPass
70% Load52.61mV16.17mV12.05mV15.54mVPass
80% Load52.77mV20.76mV15.82mV15.44mVPass
90% Load53.17mV20.30mV16.43mV16.30mVPass
100% Load54.79mV20.61mV16.72mV16.94mVPass
110% Load56.63mV20.09mV16.97mV18.47mVPass
Crossload110.77mV19.81mV20.35mV9.12mVPass
Crossload211.91mV14.39mV39.98mV9.58mVPass
Crossload311.45mV28.61mV16.73mV9.37mVPass
Crossload454.31mV12.43mV6.31mV15.39mVPass

The results above are not used in the certification process

Husky Sledger 1200W

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
