CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
FSP Technology VΙΤΑ PM 1000W
Serial NumberS5361050003
Lab IDFS10003130
Certification ID263130
  • Test Result Report ID: 26PS3130A
  • Certificate Issue Date: Jan 26, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandFSP Technology
Manufacturer (OEM)FSP Technology
SeriesVITA
Model NumberPPA10A4603
Serial NumberS5361050003
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6-12
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)150 x 85 x 140mm

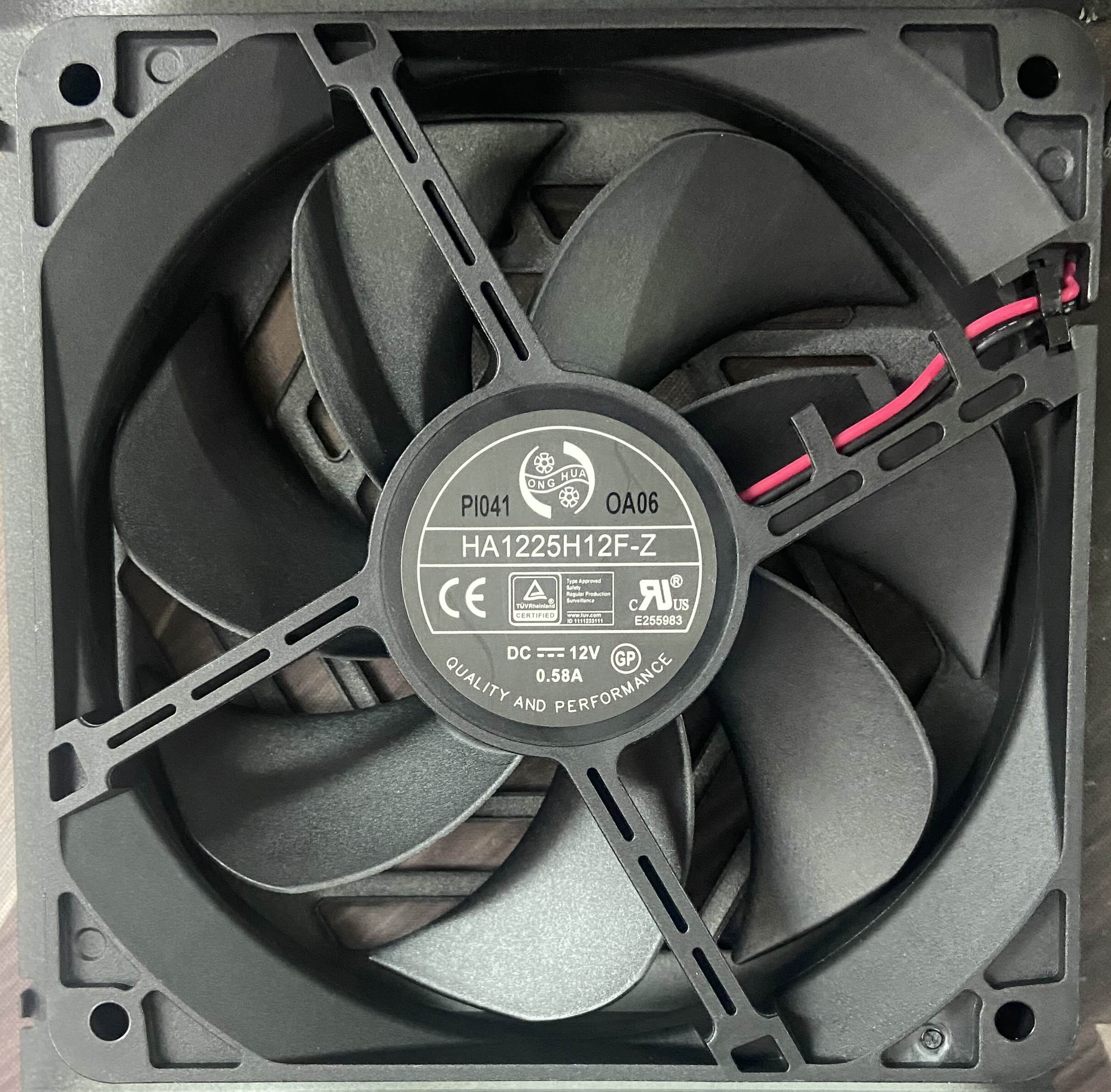

Cooling120mm Fluid Dynamic Bearing Fan. (HA1225H12F-Z)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.3330.3
Watts1001000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Tinned Copper
4+4 pin EPS12V (700mm) 2 2 16AWG Tinned Copper
6+2 pin PCIe (650mm+150mm) 2 4 16-18AWG Tinned Copper
12+4 pin PCIe (700mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper
SATA (500mm+150mm) / 4-pin Molex (+155mm+100mm) 2 4 / 4 18AWG Tinned Copper
AC Power Cord (1350mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) FSP
PCB Type Double-Sided

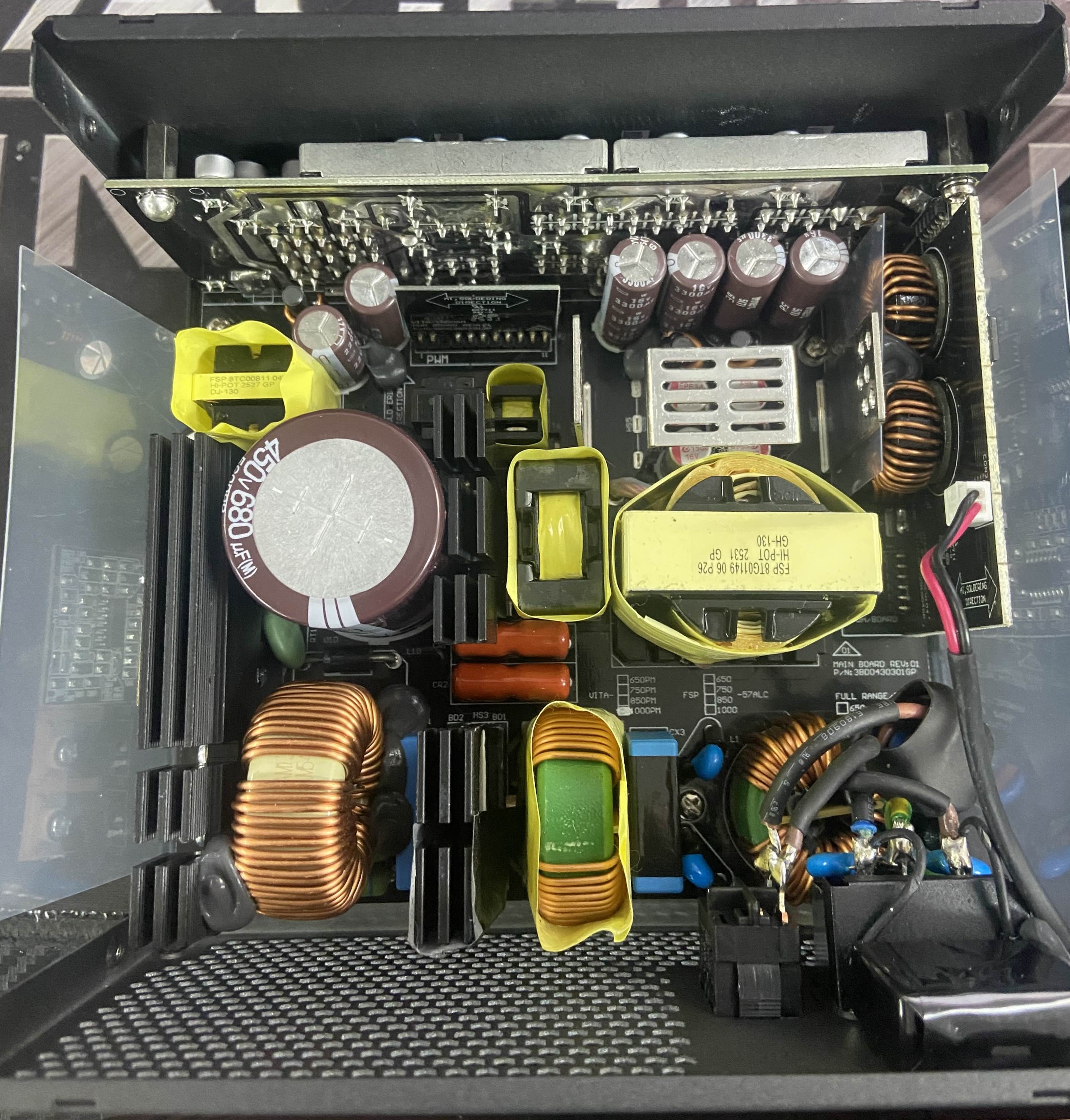

Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK056 (5 Ohm @ 25°C) & Relay
Bridge Rectifier
2x HY GBJ2506P (600V, 25A @ 100°C)
APFC MOSFETs
2x Toshiba TK31E60W (600V, 30.8A @ 150°C, Rds(on): 0.073Ohm)
APFC Boost Diode
1x Wolfspeed C6D08065A (650V, 8A @ 155°C)
Bulk Cap(s)

1x Nippon Chemi-con (450V, 680µF, 2000h @ 105°C, KHS)

Main Switchers
2x Greatpower GP36S60YERD (650V, 20A @ 100°C, Rds(on): 0.099Ohm)

APFC Controller

1x Champion CM6500UNX
Resonant Controller
1x Champion CM6901X
Topology

Primary side: APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 6x CMR009N04NS
5V & 3.3V DC-DC Converters: 4x Advanced Power Electronics AP3R303GMT (30V, 130A @ 25°C, Rds(on): 3.3mOhm)
PWM Controller(s): 1x uPI Group uP3861P
Filtering Capacitors

Electrolytic:
2x Nippon Chemi-con (2~5,000h @ 105°C, KZE)
4x Nippon Chemi-con (2~5,000h @ 105°C, W)
2x Rubycon (6~10,000h @ 105°, ZLH)
Polymer:
6x APAQ
22x Elite

Supervisor IC IN1T703I-SDG (OCP, OVP, UVP, SCP, PG)
Fan Model Hong Hua HA1225H12F-Z (122mm, 12V, 0.58A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier
PFC Device P15L50 SBR (15A, 50V, TO-277)
Standby PWM Controller
Grenergy GR9230UK

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)90.335%
Average Noise Output (>1450 Load Combinations)26.67dBA
Average PF (>1450 Load Combinations)0.979
Efficiency With 10W (≤500W) or 2% (>500W) Load71.062%
Standby Power Consumption0.0480W
12V Ripple (Full Load)29.58mV
5V Ripple (Full Load)22.19mV
3.3V Ripple (Full Load)20.97mV
5VSB Ripple (Full Load)27.21mV
12V Load Regulation1.25%
5V Load Regulation1.52%
3.3V Load Regulation2.21%
5VSB Load Regulation2.32%
Inrush Current23.890A
Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)92.238%
Average Noise Output (>1450 Load Combinations)26.30dBA
Average PF (>1450 Load Combinations)0.940
Efficiency With 10W (≤500W) or 2% (>500W) Load71.169%
Standby Power Consumption0.1356W
12V Ripple (Full Load)29.79mV
5V Ripple (Full Load)23.50mV
3.3V Ripple (Full Load)21.81mV
5VSB Ripple (Full Load)27.54mV
12V Load Regulation1.13%
5V Load Regulation1.54%
3.3V Load Regulation2.15%
5VSB Load Regulation2.28%
Inrush Current62.500A
12V Transient Response (200%)11.56V
5V Transient Response (200%)4.955V
3.3V Transient Response (200%)3.180V
5VSB Transient Response (200%)4.968V
Hold-Up Time & Power Ok Signal21.00ms
AC Loss to PWR_OK Hold Up Time17.90ms
PWR_OK Inactive to DC Loss Delay3.10ms
PSU Timings: T1 (20% / 100%)46.0ms47.0ms
PSU Timings: T3 (20% / 100%)115.0ms115.0ms
12V OCP (28.1°C / 41.0°C)90.00A (108.00%), 12.091V88.00A (105.60%), 12.101V
5V OCP (28.1°C / 41.0°C)25.7A (128.50%), 5.02V24.9A (124.50%), 5.019V
3.3V OCP (28.1°C / 41.0°C)25.7A (128.50%), 3.326V25A (125.00%), 3.327V
5VSB OCP (28.1°C / 41.0°C)3.8A (126.67%), 5.014V3.8A (126.67%), 5.015V
OPP (25.61°C / 42.45°C)117.50%115.10%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21
AC Loss to PWR_OK Hold Up Time (ms)17.9
PWR_OK Inactive to DC Loss Delay (ms)3.1

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.04 V 115.02 V 113.85 V 115.06 V 116.15 V PASS
Mains Frequency: 60.00 Hz 60.00 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.16 % 2.00 % PASS
Real Power: 0.048 W 0.006 W N/A 0.086 W N/A N/A
Apparent Power: 12.846 W 12.825 W N/A 12.867 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.12 V 230.08 V 227.70 V 230.12 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.136 W 0.094 W N/A 0.215 W N/A N/A
Apparent Power: 42.452 W 42.418 W N/A 42.487 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

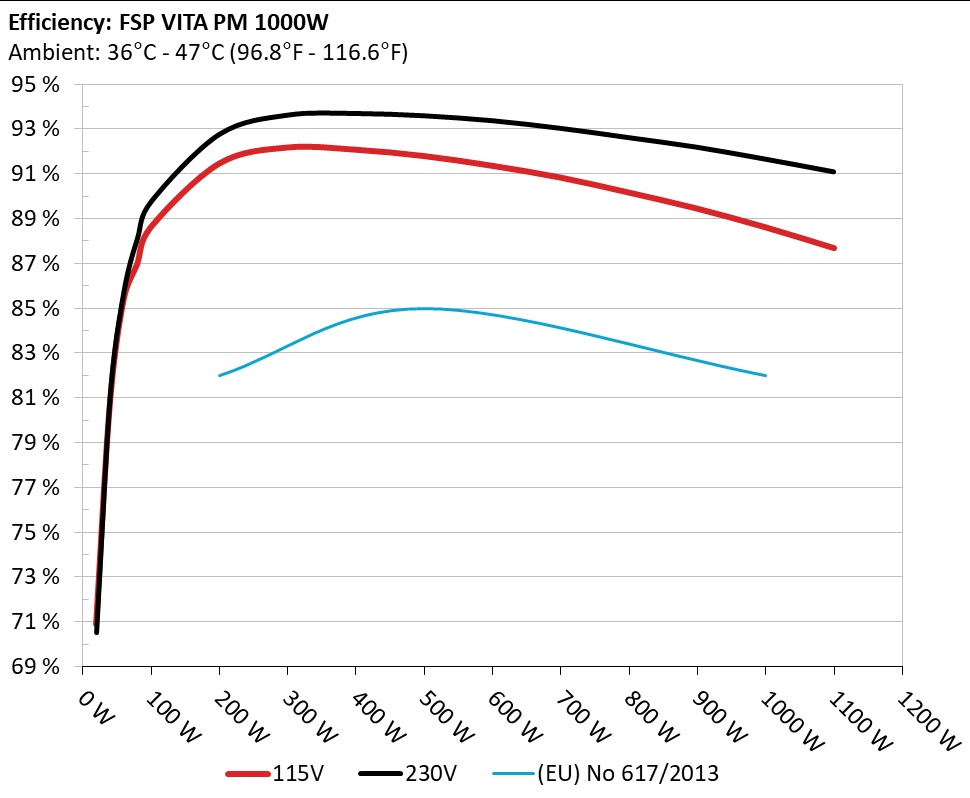

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

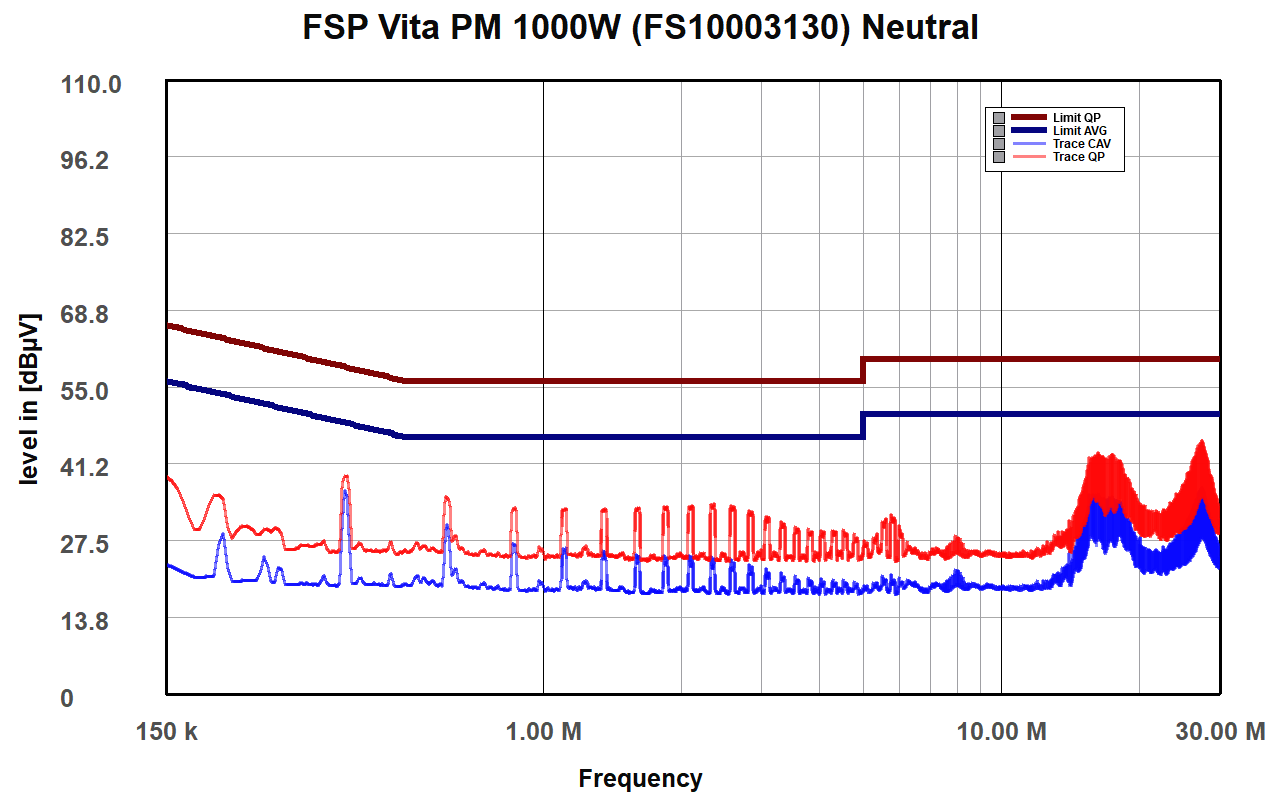

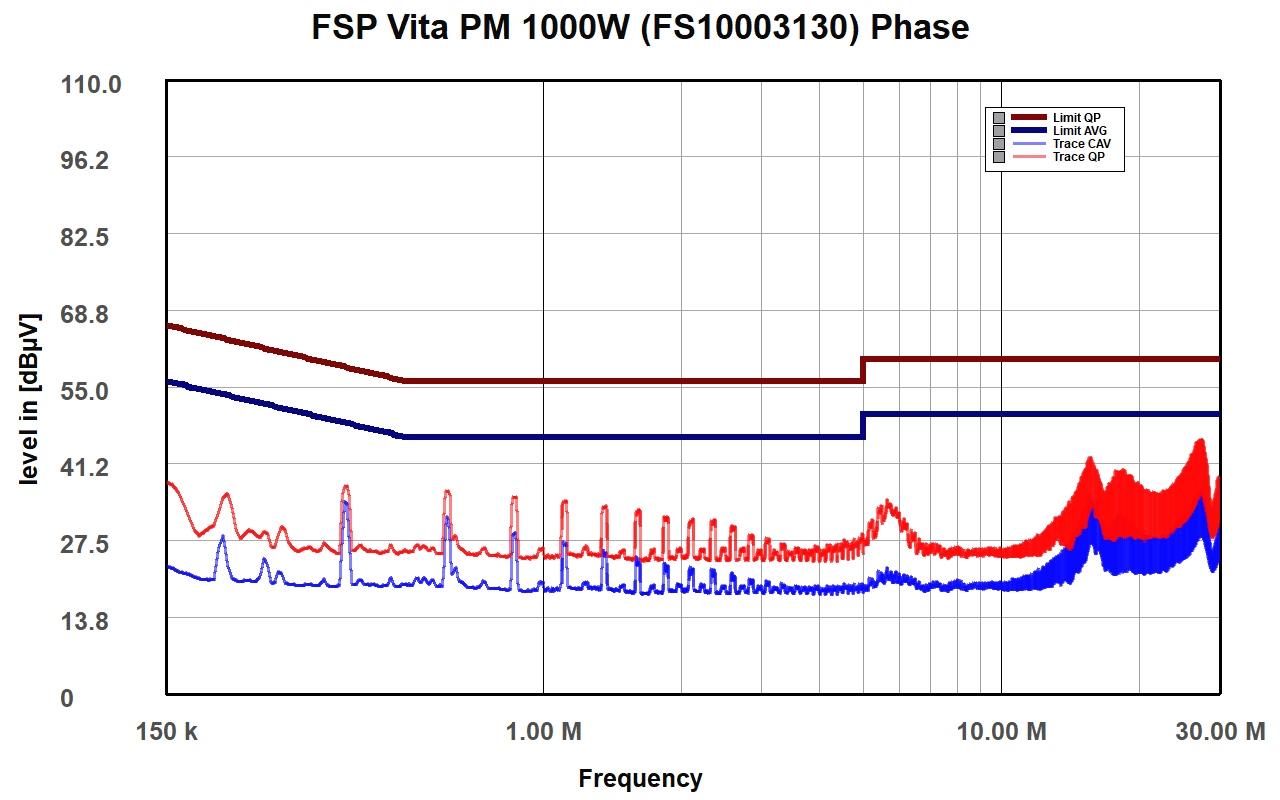

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

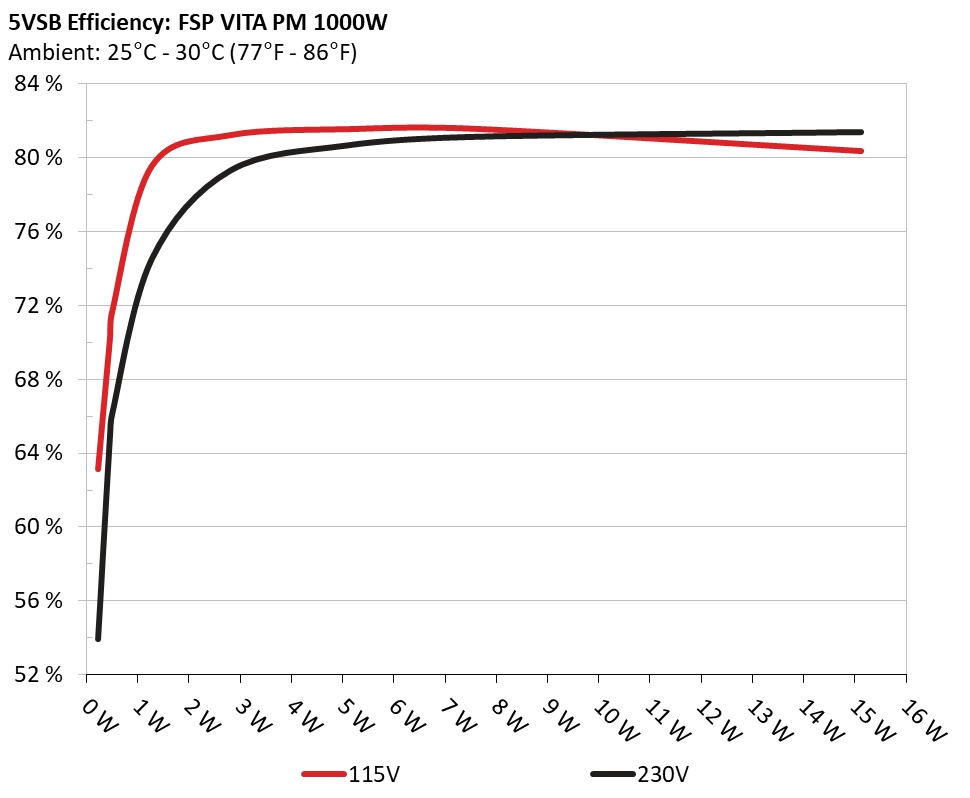

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 63.153% 0.029
5.11V 0.364W 115.04V
2 0.09A 0.46W 70.173% 0.051
5.109V 0.655W 115.04V
3 0.55A 2.804W 81.215% 0.212
5.098V 3.452W 115.03V
4 1A 5.087W 81.537% 0.29
5.087V 6.239W 115.03V
5 1.5A 7.613W 81.554% 0.334
5.075V 9.335W 115.04V
6 3A 15.112W 80.356% 0.389
5.038V 18.807W 115.04V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 53.957% 0.01
5.113V 0.426W 229.99V
2 0.09A 0.46W 64.853% 0.017
5.111V 0.71W 229.99V
3 0.55A 2.804W 79.301% 0.08
5.099V 3.536W 229.99V
4 1A 5.088W 80.67% 0.133
5.088V 6.307W 229.99V
5 1.5A 7.614W 81.137% 0.18
5.076V 9.384W 229.99V
6 3A 15.113W 81.388% 0.263
5.038V 18.572W 229.99V

Protection Features

OCP (Normal @ 28.1°C)12V: 90.00A (108.00%), 12.091V
5V: 25.7A (128.50%), 5.02V
3.3V: 25.7A (128.50%), 3.326V
5VSB: 3.8A (126.67%), 5.014V
OCP (Hot @ 41.0°C)12V: 88.00A (105.60%), 12.101V
5V: 24.9A (124.50%), 5.019V
3.3V: 25A (125.00%), 3.327V
5VSB: 3.8A (126.67%), 5.015V
OPP (Normal @ 25.6°C)1174.98W (117.50%)
OPP (Hot @ 42.5°C)1150.99W (115.10%)
OTP✓ (98°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.454A 1.973A 1.962A 0.983A 99.995 88.616% 903 20 40.41°C 0.972
12.146V 5.069V 3.364V 5.087V 112.84 41.46°C 115V
20% 13.928A 2.964A 2.949A 1.182A 199.947 91.456% 905 19.9 40.51°C 0.981
12.137V 5.061V 3.357V 5.078V 218.626 42.46°C 114.97V
30% 21.759A 3.463A 3.448A 1.381A 300.002 92.177% 908 19.8 41.39°C 0.976
12.130V 5.054V 3.35V 5.069V 325.46 44.11°C 114.94V
40% 29.559A 3.963A 3.948A 1.581A 399.547 92.077% 982 22.7 41.57°C 0.98
12.123V 5.047V 3.344V 5.06V 433.928 45.6°C 114.9V
50% 37.040A 4.962A 4.946A 1.783A 499.273 91.796% 1064 24.8 42.43°C 0.983
12.116V 5.039V 3.336V 5.05V 543.897 46.68°C 114.87V
60% 44.598A 5.965A 5.949A 1.984A 599.804 91.358% 1193 29.7 42.56°C 0.985
12.108V 5.03V 3.329V 5.04V 656.536 47.32°C 114.83V
70% 52.099A 6.971A 6.958A 2.187A 699.543 90.834% 1316 31.8 43.18°C 0.986
12.101V 5.022V 3.321V 5.03V 770.132 48.77°C 114.79V
80% 59.677A 7.977A 7.97A 2.29A 799.548 90.164% 1502 35.3 43.9°C 0.987
12.093V 5.013V 3.312V 5.023V 886.768 49.75°C 114.75V
90% 67.597A 8.487A 8.471A 2.393A 899.348 89.45% 1798 41.8 44.94°C 0.988
12.085V 5.006V 3.305V 5.016V 1005.428 50.72°C 114.71V
100% 75.329A 8.999A 9.005A 3.004A 999.342 88.617% 2165 46.3 45.58°C 0.989
12.076V 5V 3.298V 4.995V 1127.706 51.11°C 114.67V
110% 83.002A 10.016A 10.122A 3.007A 1099.946 87.685% 2544 53.5 47.17°C 0.99
12.068V 4.991V 3.29V 4.989V 1254.431 52.86°C 114.62V
CL1 0.116A 11.942A 11.884A 0A 101.296 84.663% 1047 24.5 41.04°C 0.973
12.146V 5.04V 3.341V 5.112V 119.647 46.01°C 115V
CL2 0.115A 19.844A 0A 0A 101.354 83.148% 1042 24.5 40.97°C 0.972
12.146V 5.037V 3.352V 5.112V 121.896 44.64°C 115V
CL3 0.114A 0A 19.767A 0A 67.4 78.255% 957 21.5 40.33°C 0.962
12.146V 5.046V 3.339V 5.112V 86.128 43.53°C 115.01V
CL4 82.791A 0A 0A 0.002A 999.944 89.247% 1986 43.5 45.73°C 0.989
12.078V 5.021V 3.32V 5.076V 1120.421 50.31°C 114.67V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.454A 1.973A 1.962A 0.983A 99.999 89.382% 909 19.8 40.49°C 0.829
12.146V 5.068V 3.364V 5.087V 111.878 42.14°C 229.98V
20% 13.928A 2.964A 2.949A 1.182A 199.95 92.77% 912 20.1 40.58°C 0.921
12.138V 5.061V 3.357V 5.077V 215.531 43.04°C 229.96V
30% 21.760A 3.463A 3.448A 1.381A 300.003 93.628% 914 20.2 41.24°C 0.947
12.130V 5.054V 3.35V 5.068V 320.419 44.53°C 229.94V
40% 29.558A 3.963A 3.947A 1.582A 399.54 93.7% 987 23.1 41.62°C 0.958
12.123V 5.047V 3.344V 5.059V 426.404 46.13°C 229.93V
50% 37.039A 4.962A 4.946A 1.783A 499.259 93.599% 1095 25.8 42.45°C 0.964
12.116V 5.039V 3.337V 5.049V 533.408 48.3°C 229.91V
60% 44.594A 5.964A 5.949A 1.985A 599.784 93.379% 1199 30.1 42.66°C 0.968
12.108V 5.031V 3.329V 5.039V 642.311 49.63°C 229.89V
70% 52.096A 6.97A 6.957A 2.187A 699.519 93.041% 1322 32.2 43.37°C 0.971
12.101V 5.022V 3.321V 5.029V 751.842 51.86°C 229.87V
80% 59.672A 7.977A 7.969A 2.29A 799.526 92.625% 1485 34.9 43.5°C 0.974
12.093V 5.013V 3.313V 5.022V 863.189 53.2°C 229.86V
90% 67.591A 8.487A 8.47A 2.393A 899.313 92.198% 1802 41.8 44.75°C 0.976
12.085V 5.006V 3.306V 5.015V 975.41 55.07°C 229.84V
100% 75.319A 8.999A 9.004A 3.004A 999.33 91.669% 2173 46.3 45.52°C 0.977
12.077V 4.999V 3.299V 4.994V 1090.155 56.34°C 229.81V
110% 82.994A 10.017A 10.121A 3.007A 1099.937 91.099% 2477 52.2 46.56°C 0.978
12.069V 4.991V 3.29V 4.989V 1207.413 57.37°C 229.8V
CL1 0.115A 11.942A 11.882A 0A 101.293 85.55% 1051 24.5 40.68°C 0.841
12.146V 5.04V 3.341V 5.112V 118.404 47.37°C 229.98V
CL2 0.114A 19.846A 0A 0A 101.352 84.096% 1047 24.5 40.69°C 0.844
12.146V 5.037V 3.353V 5.112V 120.519 45.65°C 229.98V
CL3 0.114A 0A 19.765A 0A 67.396 79.277% 962 21.6 40.86°C 0.769
12.146V 5.047V 3.34V 5.112V 85.017 44.67°C 229.98V
CL4 82.779A 0A 0A 0.002A 999.921 92.267% 1995 43.5 46.8°C 0.977
12.079V 5.021V 3.32V 5.076V 1083.729 55.21°C 229.82V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.214A 0.493A 0.49A 0.196A 19.999 70.908% 898 20.8 36.54°C 0.814
12.227V 5.076V 3.371V 5.111V 28.215 38.88°C 115.02V
40W 2.684A 0.69A 0.686A 0.294A 39.999 80.681% 894 20.5 37.97°C 0.92
12.181V 5.074V 3.369V 5.108V 49.57 39.44°C 115.02V
60W 4.160A 0.887A 0.882A 0.392A 59.998 85.359% 899 20.6 38.1°C 0.951
12.145V 5.073V 3.368V 5.104V 70.289 39.59°C 115.01V
80W 5.624A 1.084A 1.078A 0.49A 79.942 86.963% 899 20.6 39.43°C 0.962
12.146V 5.073V 3.367V 5.101V 91.929 40.8°C 115.01V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.216A 0.492A 0.49A 0.196A 20 70.541% 892 19.9 36.06°C 0.422
12.214V 5.076V 3.37V 5.108V 28.349 36.26°C 229.99V
40W 2.686A 0.69A 0.686A 0.294A 39.999 81.106% 896 20.8 37.48°C 0.593
12.172V 5.075V 3.369V 5.106V 49.314 37.69°C 229.99V
60W 4.160A 0.887A 0.882A 0.392A 59.999 85.726% 901 20.5 38.36°C 0.71
12.144V 5.073V 3.368V 5.103V 69.988 39.27°C 229.98V
80W 5.624A 1.084A 1.078A 0.49A 79.945 88.127% 904 19.9 39.46°C 0.783
12.146V 5.072V 3.367V 5.1V 90.716 40.89°C 229.98V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load31.31mV17.37mV17.39mV18.98mVPass
20% Load29.67mV18.39mV18.88mV20.36mVPass
30% Load27.99mV22.99mV21.79mV21.08mVPass
40% Load26.91mV28.30mV25.68mV21.89mVPass
50% Load26.04mV20.54mV20.16mV24.14mVPass
60% Load26.50mV19.57mV18.98mV24.50mVPass
70% Load28.24mV20.64mV21.23mV25.73mVPass
80% Load27.42mV22.53mV21.38mV26.50mVPass
90% Load28.80mV21.51mV21.28mV27.83mVPass
100% Load29.58mV22.19mV20.97mV27.21mVPass
110% Load29.14mV21.04mV19.84mV28.95mVPass
Crossload130.42mV16.72mV16.37mV14.74mVPass
Crossload232.23mV20.74mV18.62mV17.34mVPass
Crossload327.73mV18.44mV19.13mV17.34mVPass
Crossload427.41mV22.94mV20.87mV25.84mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load32.59mV19.31mV19.08mV21.18mVPass
20% Load30.64mV19.16mV19.18mV19.69mVPass
30% Load29.26mV23.96mV22.41mV21.13mVPass
40% Load27.42mV29.83mV27.37mV22.50mVPass
50% Load27.88mV21.87mV20.16mV23.43mVPass
60% Load27.63mV19.67mV19.85mV25.11mVPass
70% Load27.88mV21.66mV20.11mV26.09mVPass
80% Load30.75mV22.22mV21.28mV26.80mVPass
90% Load29.77mV22.79mV21.84mV28.03mVPass
100% Load29.79mV23.50mV21.81mV27.54mVPass
110% Load29.96mV23.23mV20.98mV28.60mVPass
Crossload130.29mV16.32mV17.14mV16.48mVPass
Crossload233.30mV20.59mV19.39mV17.55mVPass
Crossload328.75mV17.62mV19.13mV17.09mVPass
Crossload428.86mV22.70mV20.84mV25.97mVPass

The results above are not used in the certification process

FSP Technology VΙΤΑ PM 1000W

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
