CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
MACH1 Empower 1000W Platinum
Serial Number-
Lab IDMA10003134
Certification ID263134
  • Test Result Report ID: 26PS3134A
  • Certificate Issue Date: Feb 3, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandMACH1
Manufacturer (OEM)Kinpower
SeriesEmpower
Model Number-
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)16
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)150 x 85 x 160mm
Cooling140mm Hydraulic Bearing Fan (EFS-14E12H)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.530.3
Watts1031000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 18AWG Tinned Copper
4+4 pin EPS12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 2 4 18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (450mm+150mm+150mm) 3 9 18AWG Copper
4-pin Molex (450mm+150mm+150mm) 1 3 18AWG Copper

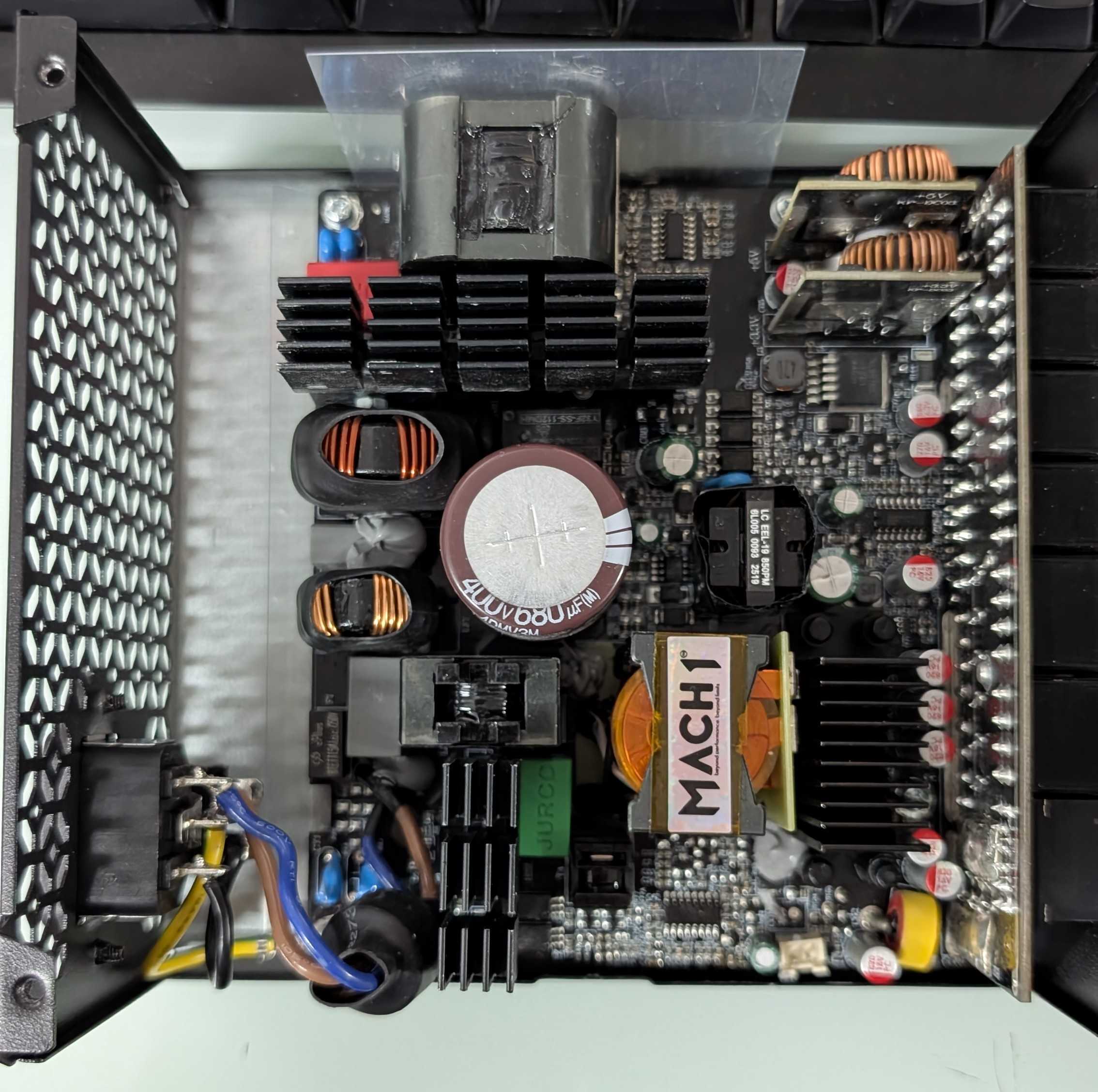

Parts Description

General Data
Manufacturer (OEM) KinPower
PCB Type Double Sided
Primary Side
Transient Filter 5x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor MF72 10D-15 (10 Ohm @ 25°C) & Relay
Bridge Rectifier(s)
2x Yangjie GBUL2506 (600V, 25A @ 125°C)
APFC MOSFETs
2x Si-trend SI40SR60F (600V, 42A @ 25°C, Rds(on): 90mOhm)
APFC Boost Diode
1x Global Power Technology G3S06510A (650V, 10A @ 25°C)
Bulk Cap(s)
1x Nippon Chemi-con (400V, 680uF each 2,000h @ 105°C, KMW)
Main Switchers
2x Si-trend SI40SR60F (600V, 42A @ 25°C, Rds(on): 90mOhm)
APFC Controller
Champion CM6500UNX
Resonant Controller Champion CM6901T6X
Topology
Primary side: APFC, Half-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 6x Alkaidsemi AKG40N013G (40V, 120A @ 25°C, Rds(on): 1.3mOhm)
5V & 3.3V DC-DC Converters: 4x Excelliance EMB06N03R (30V, 75A @ 25°C, Rds(on): 6mOhm)
PWM Controller(s): 2x Aplustek AT8853ZSPC
Filtering Capacitors

Electrolytic:
5x TK (@ 105°C, SZ),
Polymer:
34x Chengx
Supervisor IC IN1S429I-SCG (OCP, OVP, UVP, SCP, PG)
Micro Controller / Fan Controller B773 Transistor

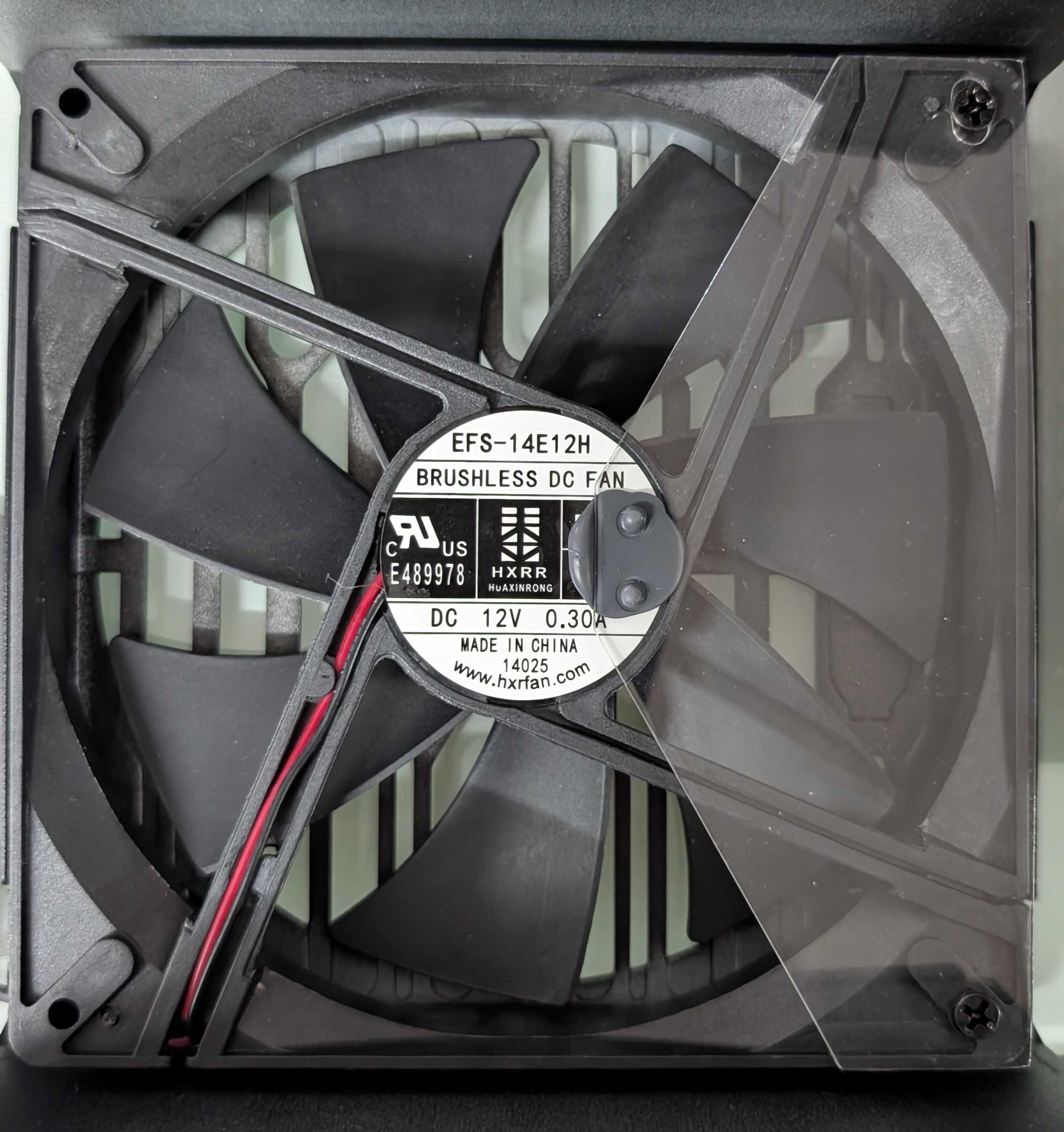

Fan Model DWPH EFS-14E12H (140mm, 12V, 0.30A, Hydraulic Dynamic Bearing Fan)
5VSB/12VSB Circuit
Rectifier
1x Dongke DK5V45R15 SBR (45V, 15mOhm)
Standby PWM Controller FuXin Semiconductor FXI8252S

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingStandard+
Average Efficiency (>1450 load combinations)89.441%
Average Noise Output (>1450 Load Combinations)39.66dBA
Average PF (>1450 Load Combinations)0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load70.910%
Standby Power Consumption0.0496W
12V Ripple (Full Load)32.66mV
5V Ripple (Full Load)36.50mV
3.3V Ripple (Full Load)31.41mV
5VSB Ripple (Full Load)48.35mV
12V Load Regulation1.46%
5V Load Regulation0.14%
3.3V Load Regulation2.15%
5VSB Load Regulation4.18%
Inrush Current9.370A
Efficiency RatingPLATINUM
Noise RatingStandard+
Average Efficiency (>1450 load combinations)91.348%
Average Noise Output (>1450 Load Combinations)39.21dBA
Average PF (>1450 Load Combinations)0.963
Efficiency With 10W (≤500W) or 2% (>500W) Load70.716%
Standby Power Consumption0.0871W
12V Ripple (Full Load)31.55mV
5V Ripple (Full Load)35.99mV
3.3V Ripple (Full Load)33.86mV
5VSB Ripple (Full Load)47.74mV
12V Load Regulation1.42%
5V Load Regulation0.12%
3.3V Load Regulation1.59%
5VSB Load Regulation4.29%
Inrush Current19.090A
12V Transient Response (200%)11.43V
5V Transient Response (200%)4.987V
3.3V Transient Response (200%)3.209V
5VSB Transient Response (200%)4.945V
Hold-Up Time & Power Ok Signal14.80ms
AC Loss to PWR_OK Hold Up Time13.80ms
PWR_OK Inactive to DC Loss Delay1.00ms
PSU Timings: T1 (20% / 100%)44.0ms44.0ms
PSU Timings: T3 (20% / 100%)112.0ms112.0ms
12V OCP (31.7°C / 41.7°C)108.60A (130.06%), 12.059V *High Ripple (>200mV)104.20A (124.79%), 12.064V
5V OCP (31.7°C / 41.7°C)25.4A (127.00%), 5.049V25.4A (127.00%), 5.032V
3.3V OCP (31.7°C / 41.7°C)26.4A (132.00%), 3.286V26.3A (131.50%), 3.276V
5VSB OCP (31.7°C / 41.7°C)4.4A (146.67%), 5.01V4.4A (146.67%), 5.028V
OPP (29.99°C / 41.09°C)121.81%117.50%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)14.8
AC Loss to PWR_OK Hold Up Time (ms)13.8
PWR_OK Inactive to DC Loss Delay (ms)1

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.01 V 115.00 V 113.85 V 115.04 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.91 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.17 % 2.00 % PASS
Real Power: 0.050 W 0.033 W N/A 0.068 W N/A N/A
Apparent Power: 6.939 W 6.915 W N/A 6.960 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.11 V 230.07 V 227.70 V 230.12 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.087 W 0.054 W N/A 0.136 W N/A N/A
Apparent Power: 22.176 W 22.139 W N/A 22.212 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

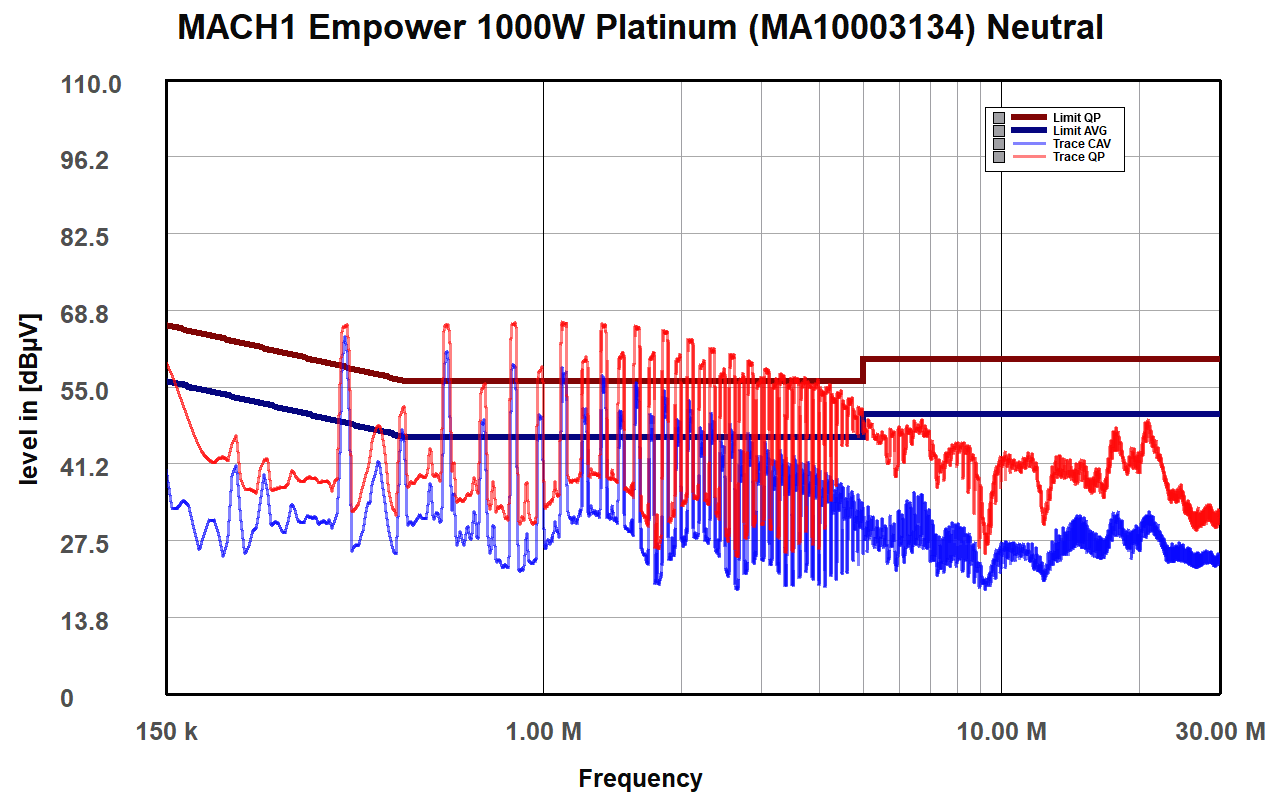

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

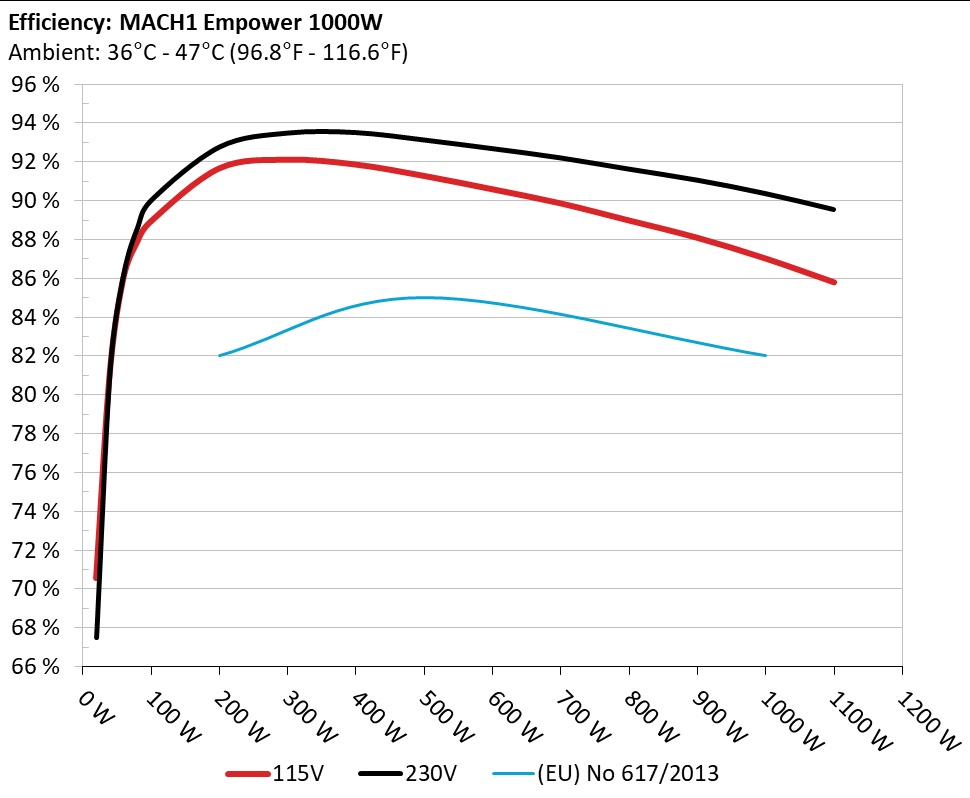

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

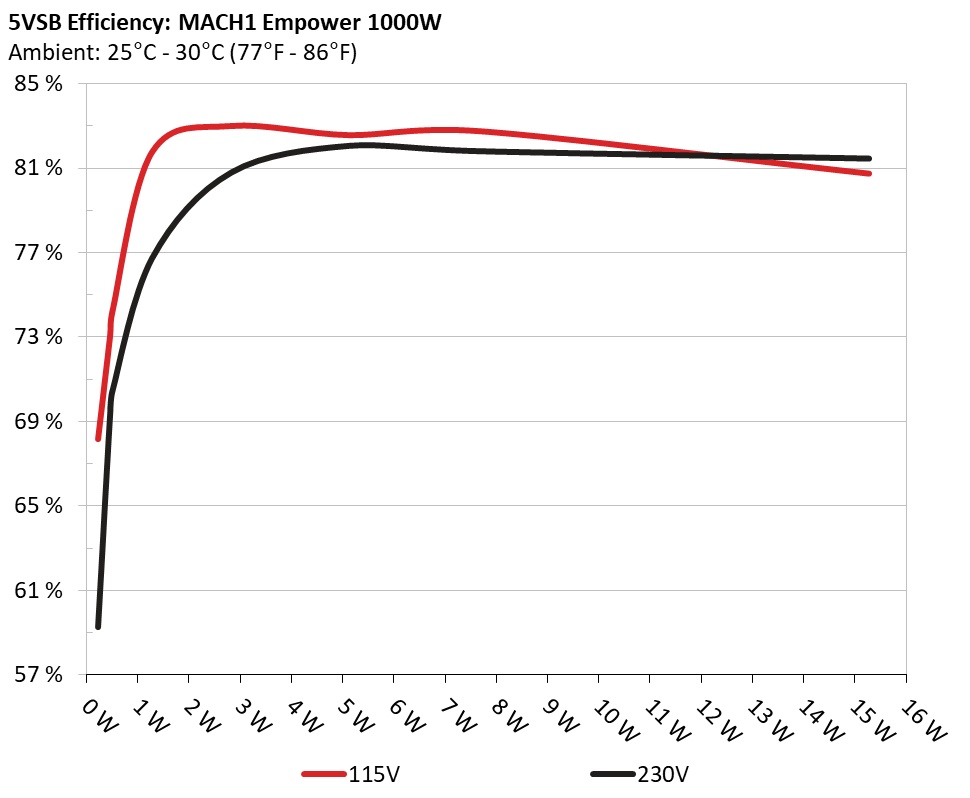

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 68.157% 0.05
5.162V 0.34W 115.14V
2 0.09A 0.465W 73.042% 0.092
5.161V 0.637W 115.12V
3 0.55A 2.832W 83.009% 0.357
5.15V 3.412W 115.11V
4 1A 5.139W 82.571% 0.466
5.139V 6.224W 115.11V
5 1.5A 7.691W 82.758% 0.517
5.127V 9.293W 115.11V
6 3A 15.274W 80.75% 0.563
5.091V 18.915W 115.1V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 59.281% 0.018
5.162V 0.392W 230.33V
2 0.09A 0.465W 69.291% 0.031
5.161V 0.671W 230.34V
3 0.55A 2.832W 80.779% 0.15
5.15V 3.506W 230.33V
4 1A 5.139W 82.04% 0.241
5.139V 6.263W 230.33V
5 1.5A 7.691W 81.785% 0.315
5.127V 9.403W 230.33V
6 3A 15.275W 81.434% 0.424
5.091V 18.757W 230.32V

Protection Features

OCP (Normal @ 31.7°C)12V: 108.60A (130.06%), 12.059V *High Ripple (>200mV)
5V: 25.4A (127.00%), 5.049V
3.3V: 26.4A (132.00%), 3.286V
5VSB: 4.4A (146.67%), 5.01V
OCP (Hot @ 41.7°C)12V: 104.20A (124.79%), 12.064V
5V: 25.4A (127.00%), 5.032V
3.3V: 26.3A (131.50%), 3.276V
5VSB: 4.4A (146.67%), 5.028V
OPP (Normal @ 30.0°C)1218.06W (121.81%)
OPP (Hot @ 41.1°C)1175.01W (117.50%)
OTP✓ (114°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✗
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.418A 1.98A 1.986A 0.975A 99.975 88.933% 547 13.3 40.31°C 0.981
12.211V 5.05V 3.323V 5.127V 112.417 40.6°C 115.1V
20% 13.860A 2.97A 2.984A 1.174A 199.92 91.665% 548 13.4 40.85°C 0.992
12.194V 5.05V 3.318V 5.109V 218.103 41.84°C 115.06V
30% 21.671A 3.466A 3.485A 1.375A 299.967 92.114% 548 13.4 41.37°C 0.989
12.178V 5.049V 3.314V 5.092V 325.652 43.43°C 115.02V
40% 29.457A 3.962A 3.987A 1.577A 399.465 91.867% 549 13.4 41.63°C 0.99
12.162V 5.049V 3.311V 5.074V 434.826 45.08°C 114.98V
50% 36.945A 4.95A 4.992A 1.78A 499.194 91.284% 1013 31.9 42.34°C 0.992
12.145V 5.051V 3.306V 5.056V 546.858 45.11°C 114.95V
60% 44.523A 5.937A 6.002A 1.986A 599.728 90.592% 1402 41.3 42.58°C 0.994
12.127V 5.053V 3.299V 5.037V 662.006 46.32°C 114.91V
70% 52.062A 6.925A 7.018A 2.192A 699.466 89.869% 1635 45.1 43.45°C 0.995
12.108V 5.055V 3.292V 5.017V 778.32 47.78°C 114.87V
80% 59.693A 7.911A 8.046A 2.3A 799.47 88.986% 1698 46.1 43.96°C 0.996
12.088V 5.056V 3.281V 4.999V 898.428 49.48°C 114.83V
90% 67.675A 8.407A 8.564A 2.409A 899.269 88.099% 1694 46.1 44.78°C 0.996
12.070V 5.055V 3.269V 4.981V 1020.744 51.89°C 114.79V
100% 75.503A 8.904A 9.11A 3.031A 999.288 87.028% 1690 46 45.91°C 0.997
12.048V 5.054V 3.26V 4.949V 1148.243 54.84°C 114.75V
110% 83.253A 9.896A 10.254A 3.042A 1099.89 85.799% 1689 46 47.28°C 0.997
12.031V 5.052V 3.247V 4.931V 1281.949 58.76°C 114.7V
CL1 0.115A 12.24A 12.583A 0A 104.296 81.702% 742 22 40.9°C 0.983
12.191V 5.065V 3.25V 5.127V 127.659 48.52°C 115.08V
CL2 0.114A 19.778A 0A 0A 101.374 81.536% 543 13.5 40.75°C 0.981
12.189V 5.055V 3.322V 5.137V 124.333 48.02°C 115.07V
CL3 0.114A 0A 20.391A 0A 67.382 73.879% 546 13.3 40.73°C 0.97
12.193V 5.009V 3.236V 5.131V 91.206 47.15°C 115.08V
CL4 82.894A 0A 0A 0.009A 999.933 87.817% 1710 46.2 45.93°C 0.997
12.062V 5.029V 3.305V 5.044V 1138.659 52.6°C 114.74V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.422A 1.98A 1.989A 0.976A 100.005 89.664% 546 13.3 40.11°C 0.881
12.208V 5.051V 3.318V 5.125V 111.535 41.9°C 230.28V
20% 13.866A 2.97A 2.989A 1.175A 199.958 92.787% 546 13.3 40.87°C 0.95
12.192V 5.052V 3.313V 5.107V 215.502 42.84°C 230.27V
30% 21.678A 3.465A 3.491A 1.375A 300.013 93.507% 547 13.3 41.3°C 0.969
12.176V 5.051V 3.309V 5.09V 320.844 44.1°C 230.25V
40% 29.474A 3.961A 3.994A 1.578A 399.594 93.532% 545 13.4 41.58°C 0.975
12.159V 5.051V 3.305V 5.072V 427.228 45.55°C 230.24V
50% 36.964A 4.949A 5.001A 1.781A 499.304 93.152% 1157 33.4 42.1°C 0.979
12.142V 5.053V 3.3V 5.053V 536.015 46.11°C 230.22V
60% 44.544A 5.936A 6.011A 1.987A 599.826 92.707% 1414 41.6 42.62°C 0.981
12.123V 5.055V 3.295V 5.033V 647.012 46.31°C 230.2V
70% 52.081A 6.924A 7.024A 2.195A 699.553 92.23% 1632 45.1 43.45°C 0.983
12.105V 5.056V 3.289V 5.013V 758.491 47.61°C 230.18V
80% 59.709A 7.91A 8.041A 2.303A 799.547 91.653% 1696 46.1 43.6°C 0.984
12.086V 5.057V 3.283V 4.994V 872.359 48.95°C 230.16V
90% 67.688A 8.405A 8.539A 2.412A 899.333 91.086% 1693 46.1 44.14°C 0.985
12.068V 5.057V 3.279V 4.976V 987.344 51.15°C 230.14V
100% 75.500A 8.902A 9.071A 3.035A 999.34 90.396% 1689 46 45.36°C 0.987
12.048V 5.055V 3.274V 4.943V 1105.517 53.79°C 230.12V
110% 83.280A 9.893A 10.191A 3.046A 1099.929 89.569% 1687 46 47.32°C 0.988
12.027V 5.054V 3.267V 4.925V 1228.032 57.28°C 230.1V
CL1 0.115A 12.238A 12.474A 0A 104.303 82.633% 838 26.5 41.18°C 0.901
12.191V 5.066V 3.279V 5.127V 126.229 48.31°C 230.28V
CL2 0.115A 19.758A 0A 0A 101.381 82.548% 543 13.5 40.84°C 0.897
12.198V 5.06V 3.32V 5.137V 122.82 47.03°C 230.28V
CL3 0.114A 0A 20.362A 0A 67.384 74.471% 546 13.3 41.05°C 0.85
12.200V 5.013V 3.241V 5.131V 90.492 46.54°C 230.29V
CL4 82.908A 0A 0A 0.009A 999.943 91.185% 1711 46.2 45.87°C 0.987
12.060V 5.031V 3.302V 5.042V 1096.624 51.87°C 230.13V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.214A 0.494A 0.495A 0.194A 19.987 70.56% 537 14.2 36.7°C 0.839
12.219V 5.056V 3.33V 5.156V 28.327 36.04°C 115.13V
40W 2.674A 0.693A 0.694A 0.291A 39.989 81.138% 542 13.5 37.68°C 0.933
12.223V 5.053V 3.328V 5.152V 49.287 36.94°C 115.12V
60W 4.134A 0.891A 0.892A 0.388A 59.99 86.033% 544 13.4 38.25°C 0.961
12.219V 5.051V 3.327V 5.147V 69.731 38.15°C 115.11V
80W 5.591A 1.089A 1.091A 0.486A 79.923 87.877% 545 13.4 39.08°C 0.972
12.215V 5.05V 3.326V 5.142V 90.95 39.12°C 115.1V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.217A 0.495A 0.496A 0.194A 20.014 67.519% 544 13.4 36.9°C 0.513
12.216V 5.053V 3.326V 5.155V 28.579 40.47°C 230.27V
40W 2.676A 0.693A 0.695A 0.291A 40.009 81.33% 545 13.4 37.29°C 0.676
12.219V 5.052V 3.324V 5.15V 49.199 40.08°C 230.28V
60W 4.137A 0.891A 0.894A 0.389A 60.006 86.252% 545 13.4 38.6°C 0.783
12.216V 5.051V 3.323V 5.146V 69.569 40.38°C 230.28V
80W 5.594A 1.089A 1.093A 0.486A 79.954 88.619% 545 13.4 39.38°C 0.844
12.214V 5.051V 3.322V 5.141V 90.221 41.18°C 230.28V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load20.11mV12.52mV13.65mV11.46mVPass
20% Load17.99mV13.34mV14.58mV14.97mVPass
30% Load18.66mV15.20mV16.19mV19.41mVPass
40% Load21.09mV19.47mV17.84mV22.82mVPass
50% Load24.39mV22.57mV23.89mV26.53mVPass
60% Load22.53mV26.17mV25.91mV30.81mVPass
70% Load24.18mV29.62mV22.24mV35.72mVPass
80% Load25.52mV36.22mV30.25mV39.28mVPass
90% Load28.31mV37.14mV32.11mV43.72mVPass
100% Load32.66mV36.50mV31.41mV48.35mVPass
110% Load34.10mV43.49mV34.43mV43.33mVPass
Crossload120.65mV26.63mV30.75mV11.40mVPass
Crossload220.62mV16.79mV41.52mV12.18mVPass
Crossload320.93mV39.82mV16.86mV9.86mVPass
Crossload431.68mV20.29mV15.62mV46.37mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load19.43mV9.48mV10.34mV11.62mVPass
20% Load39.75mV27.56mV26.11mV14.87mVPass
30% Load18.92mV12.78mV14.79mV18.38mVPass
40% Load20.98mV13.70mV12.93mV22.40mVPass
50% Load21.30mV15.25mV14.22mV26.53mVPass
60% Load22.79mV26.58mV23.01mV30.25mVPass
70% Load23.92mV32.71mV29.01mV34.38mVPass
80% Load27.69mV34.52mV33.35mV38.97mVPass
90% Load30.11mV35.75mV35.94mV43.41mVPass
100% Load31.55mV35.99mV33.86mV47.74mVPass
110% Load33.45mV38.94mV34.60mV52.12mVFail
Crossload121.86mV27.40mV29.38mV11.56mVPass
Crossload221.19mV17.15mV31.60mV12.13mVPass
Crossload320.42mV41.94mV17.94mV9.55mVPass
Crossload431.27mV19.05mV15.91mV45.79mVPass

The results above are not used in the certification process

MACH1 Empower 1000W Platinum

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
