CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Sharkoon Rebel P20 Gen2 850 (Black/White)
Serial Number-
Lab IDSK85003140
Certification ID263140
  • Test Result Report ID: 26PS3140A
  • Certificate Issue Date: Jan 26, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSharkoon
Manufacturer (OEM)Andyson
SeriesRebel P20 Gen2
Model Number-
Serial Number-
DUT NotesThe results apply to both the black and white model.

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)5-10
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Dimensions (W x H x D)150 x 85 x 140mm
Cooling120mm Sleeve Bearing Fan (PY-1225H12S)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181870.830.3
Watts100849.6153.6
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Tinned Copper
4+4 pin EPS12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (600mm) 3 3 18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper
SATA (500mm+150mm+150mm) / 4-pin Molex (+150mm) 1 3 / 1 18AWG Tinned Copper

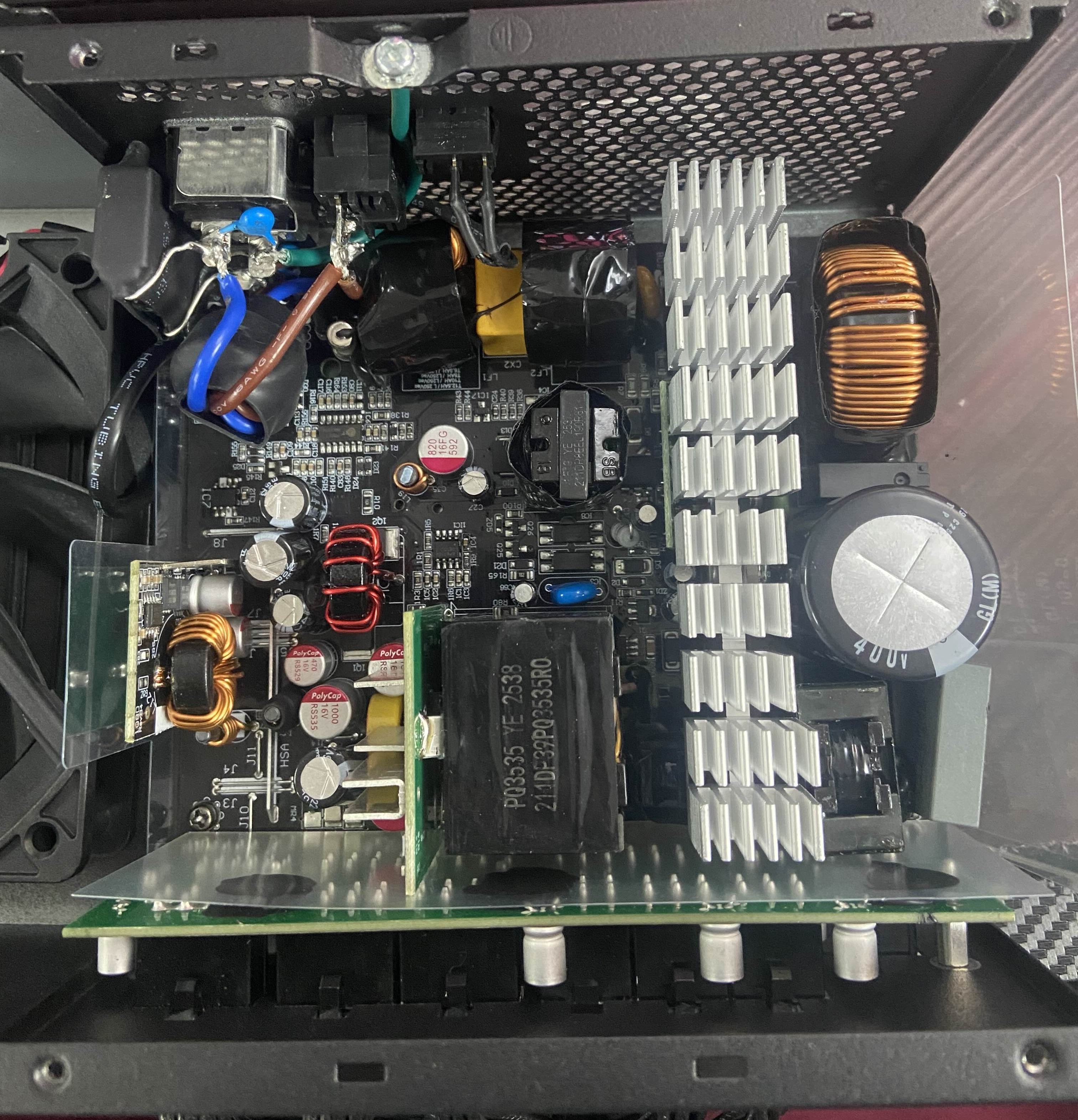

Parts Description

General Data
Manufacturer (OEM) Andyson
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-056 ( 5 Ohm @ 25°C) & Relay
Bridge Rectifier(s) 2x  GBU1506 (600V, 15A @ 100°C)
APFC MOSFETs 2x Pingwei PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 105mOhm)
APFC Boost Diode 1x Global Power Technology Co. G4S06508AT (650V, 8A @ 153°C)
Bulk Cap(s) 1x Nippon Chemi-Con (400V, 680uF, 2000h @ 105°C, GL)
Main Switchers 2x Pingwei PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 105mOhm)
APFC Controller Champion  CM6500UNX
Resonant Controller Champion CU6901VPA
Topology Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 6x Perfect PWC012N04ES (40V, 132A @ 100°C, Rds(on): 1.2mOhm)
5V & 3.3V DC-DC Converters: 2x Wayon B150N03S   (30V, 95A @ 100°C, Rds(on): 2.3 mOhm)
PWM Controller(s): ANPEC APW7164
Filtering Capacitors

Electrolytic:
2x Rubycon (6000-10000 @ 105°C, ZLH ),
1x Rubycon (3000-6000 @ 105°C, YXS ),
8x Rubycon (4000-10,000 @ 105°C YXJ ),
Polymer:
15x Polycap, 6x FPCAP

Supervisor IC EST.7630FS (OCP, OTP, OVP, UVP, SCP, PG )
Micro Controller / Fan Controller NXP PBSS5350X
Fan Model POWERYEAR PY-1225H12S (120mm, 12V, 0.35A)
5VSB/12VSB Circuit
Rectifier Vishay SS10P60L
Standby PWM Controller Sanken Electric  STR-A6069H

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingGOLD
Noise RatingStandard++
Average Efficiency (>1450 load combinations)88.502%
Average Noise Output (>1450 Load Combinations)33.49dBA
Average PF (>1450 Load Combinations)0.982
Efficiency With 10W (≤500W) or 2% (>500W) Load63.520%
Standby Power Consumption0.1117W
12V Ripple (Full Load)32.84mV
5V Ripple (Full Load)9.83mV
3.3V Ripple (Full Load)11.59mV
5VSB Ripple (Full Load)19.21mV
12V Load Regulation0.95%
5V Load Regulation2.41%
3.3V Load Regulation3.45%
5VSB Load Regulation5.20%
Inrush Current29.300A
Efficiency RatingGOLD
Noise RatingStandard++
Average Efficiency (>1450 load combinations)90.622%
Average Noise Output (>1450 Load Combinations)33.63dBA
Average PF (>1450 Load Combinations)0.942
Efficiency With 10W (≤500W) or 2% (>500W) Load63.992%
Standby Power Consumption0.1473W
12V Ripple (Full Load)33.63mV
5V Ripple (Full Load)10.00mV
3.3V Ripple (Full Load)12.06mV
5VSB Ripple (Full Load)18.08mV
12V Load Regulation0.94%
5V Load Regulation2.41%
3.3V Load Regulation3.48%
5VSB Load Regulation5.14%
Inrush Current66.580A
12V Transient Response (200%)11.59V
5V Transient Response (200%)4.889V
3.3V Transient Response (200%)3.277V
5VSB Transient Response (200%)5.021V
Hold-Up Time & Power Ok Signal16.20ms
AC Loss to PWR_OK Hold Up Time14.30ms
PWR_OK Inactive to DC Loss Delay1.90ms
PSU Timings: T1 (20% / 100%)58.0ms55.0ms
PSU Timings: T3 (20% / 100%)114.0ms115.0ms
12V OCP (27.3°C / 43.6°C)89.80A (126.84%), 12.203V88.00A (124.29%), 12.207V
5V OCP (27.3°C / 43.6°C)22.6A (125.56%), 5.037V22.7A (126.11%), 5.035V
3.3V OCP (27.3°C / 43.6°C)21.9A (121.67%), 3.398V22.7A (126.11%), 3.39V
5VSB OCP (27.3°C / 43.6°C)4.8A (160.00%), 4.967V4.6A (153.33%), 4.964V
OPP (28.60°C / 45.10°C)138.01%130.07%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)16.2
AC Loss to PWR_OK Hold Up Time (ms)14.3
PWR_OK Inactive to DC Loss Delay (ms)1.9

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.06 V 115.04 V 113.85 V 115.08 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.112 W -0.006 W N/A 0.164 W N/A N/A
Apparent Power: 8.203 W 8.175 W N/A 8.230 W N/A N/A
Power Factor: 0.014 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.14 V 230.12 V 227.70 V 230.16 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.147 W 0.099 W N/A 0.204 W N/A N/A
Apparent Power: 26.570 W 26.534 W N/A 26.611 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

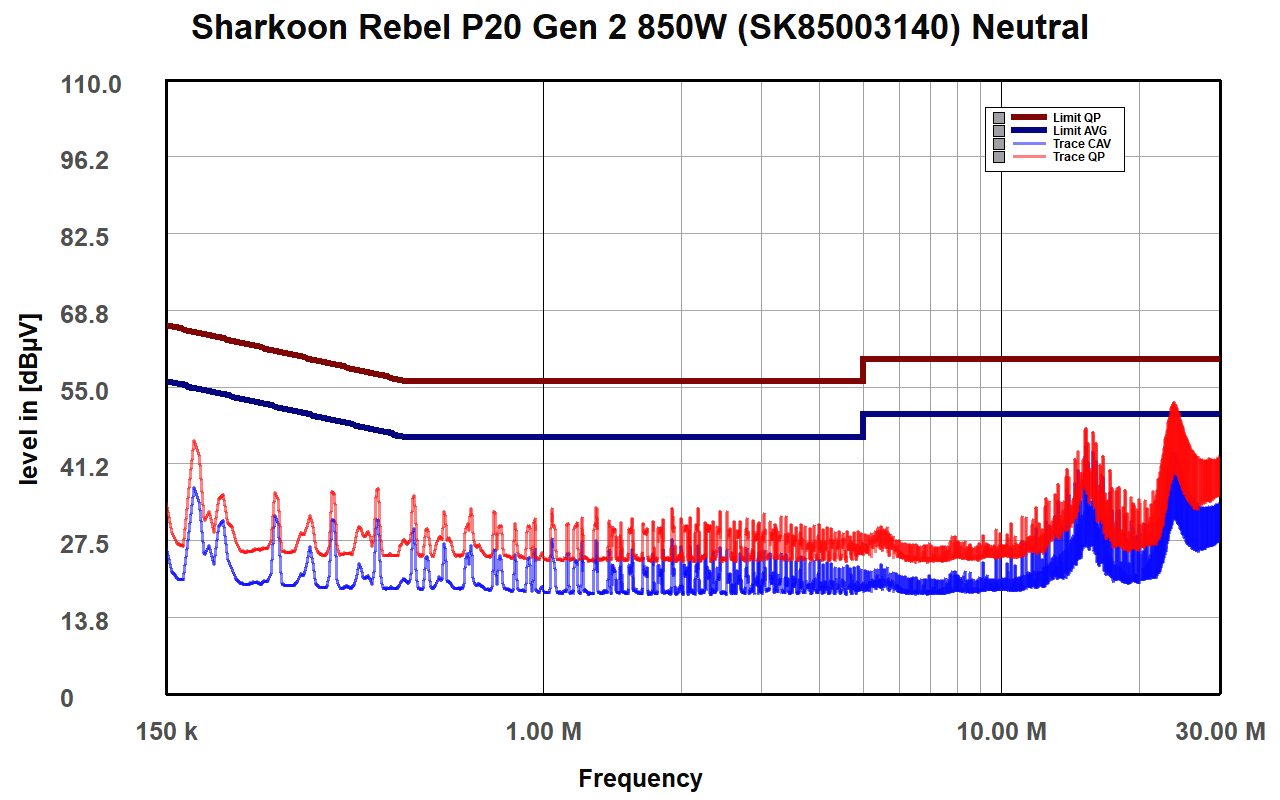

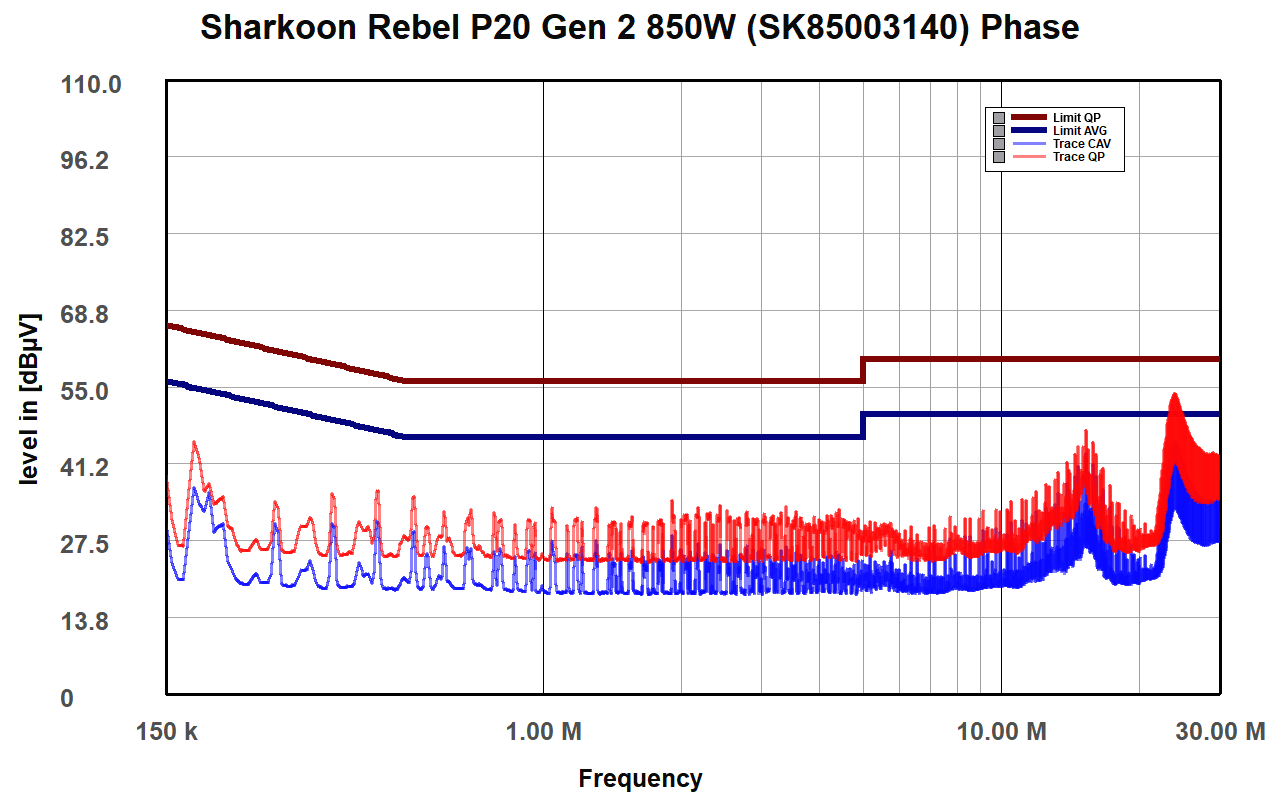

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

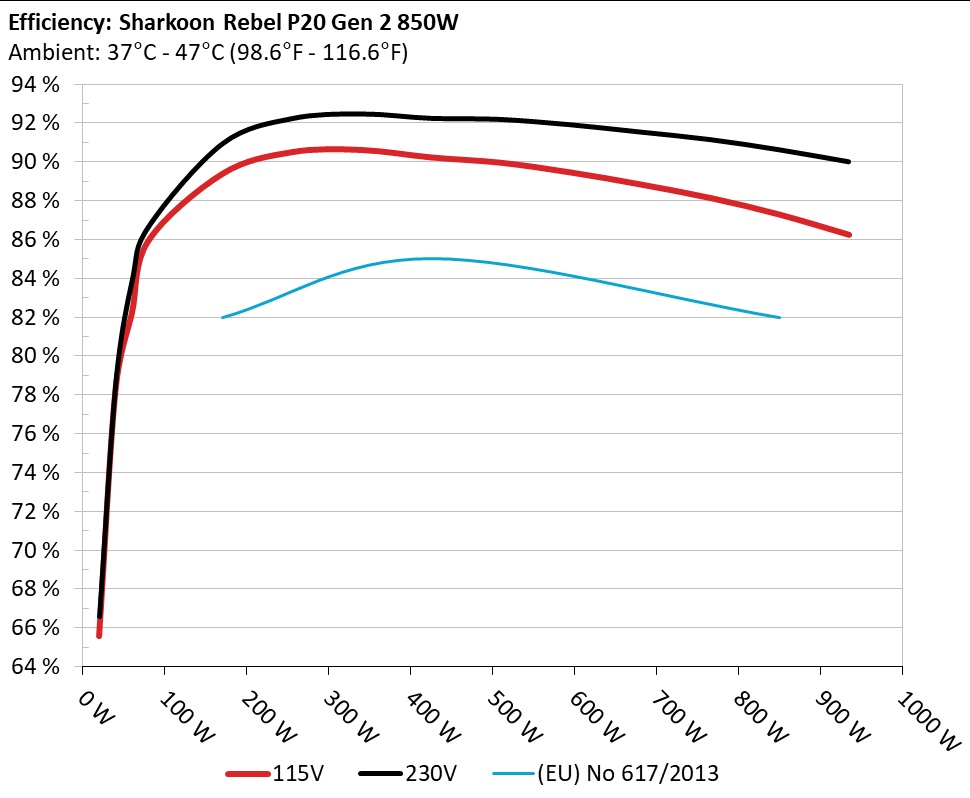

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

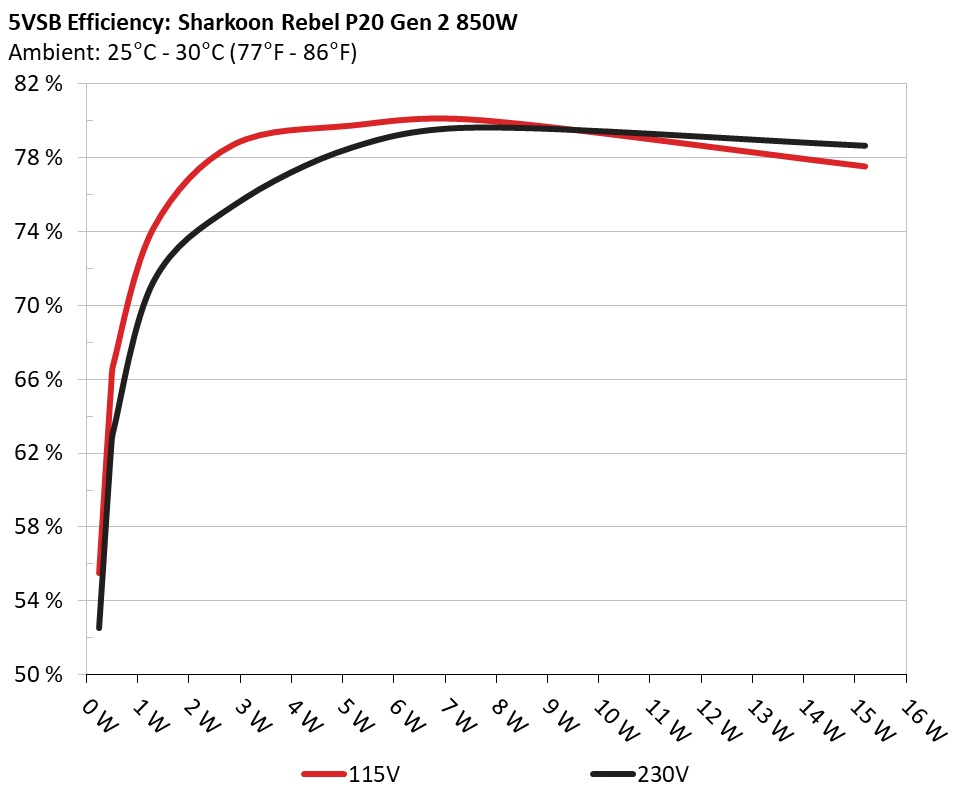

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.235W 55.536% 0.053
5.215V 0.423W 114.97V
2 0.09A 0.469W 65.608% 0.089
5.212V 0.715W 114.96V
3 0.55A 2.856W 78.699% 0.312
5.19V 3.629W 114.94V
4 1A 5.17W 79.739% 0.398
5.168V 6.483W 114.94V
5 1.501A 7.718W 80.023% 0.438
5.144V 9.645W 114.93V
6 3.001A 15.207W 77.53% 0.495
5.068V 19.612W 114.93V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.235W 52.536% 0.017
5.214V 0.448W 230.09V
2 0.09A 0.469W 62.25% 0.029
5.213V 0.754W 230.08V
3 0.55A 2.856W 75.407% 0.134
5.19V 3.787W 230.08V
4 1A 5.17W 78.552% 0.209
5.168V 6.582W 230.08V
5 1.5A 7.718W 79.647% 0.269
5.144V 9.691W 230.08V
6 3.001A 15.207W 78.656% 0.364
5.068V 19.334W 230.08V

Protection Features

OCP (Normal @ 27.3°C)12V: 89.80A (126.84%), 12.203V
5V: 22.6A (125.56%), 5.037V
3.3V: 21.9A (121.67%), 3.398V
5VSB: 4.8A (160.00%), 4.967V
OCP (Hot @ 43.6°C)12V: 88.00A (124.29%), 12.207V
5V: 22.7A (126.11%), 5.035V
3.3V: 22.7A (126.11%), 3.39V
5VSB: 4.6A (153.33%), 4.964V
OPP (Normal @ 28.6°C)1173.07W (138.01%)
OPP (Hot @ 45.1°C)1105.62W (130.07%)
OTP✓ (79°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.150A 1.967A 1.918A 0.971A 85.008 85.803% 0 <6.0 49.29°C 0.987
12.312V 5.085V 3.442V 5.152V 99.076 40.19°C 114.96V
20% 11.303A 2.957A 2.886A 1.17A 169.964 89.361% 0 <6.0 52.52°C 0.962
12.303V 5.075V 3.431V 5.13V 190.201 40.66°C 114.94V
30% 17.807A 3.456A 3.377A 1.37A 254.977 90.487% 0 <6.0 57.41°C 0.974
12.294V 5.065V 3.421V 5.11V 281.782 41.4°C 114.92V
40% 24.329A 3.958A 3.871A 1.573A 340.071 90.598% 1756 44.2 41.68°C 0.982
12.284V 5.054V 3.411V 5.088V 375.362 58.28°C 114.9V
50% 30.528A 4.969A 4.86A 1.776A 425.143 90.214% 1737 43.1 42.47°C 0.986
12.272V 5.033V 3.395V 5.068V 471.262 51.73°C 114.87V
60% 36.696A 5.977A 5.854A 1.982A 509.653 89.944% 1744 43.4 42.87°C 0.988
12.258V 5.021V 3.383V 5.048V 566.634 53.23°C 114.86V
70% 42.946A 6.99A 6.853A 2.189A 595.003 89.445% 1745 43.5 43°C 0.99
12.245V 5.009V 3.371V 5.025V 665.217 54.54°C 114.84V
80% 49.210A 8.006A 7.86A 2.297A 679.837 88.829% 1746 43.6 43.75°C 0.991
12.232V 4.997V 3.359V 5.008V 765.332 56.87°C 114.82V
90% 55.880A 8.525A 8.364A 2.405A 765.281 88.132% 1747 43.6 44.95°C 0.992
12.218V 4.986V 3.348V 4.99V 868.339 59.42°C 114.79V
100% 62.304A 9.048A 8.904A 3.035A 850.117 87.273% 1748 43.7 45.95°C 0.993
12.204V 4.974V 3.336V 4.944V 974.09 62.22°C 114.77V
110% 68.615A 10.078A 10.023A 3.044A 934.697 86.233% 1748 43.7 47.46°C 0.994
12.190V 4.962V 3.322V 4.929V 1083.924 66.72°C 114.74V
CL1 0.114A 11.931A 11.635A 0A 101.319 79.173% 1725 42.6 40.77°C 0.97
12.296V 5.046V 3.412V 5.177V 127.969 51.05°C 114.95V
CL2 0.114A 17.823A 0A 0A 91.406 78.874% 1312 35.1 41.14°C 0.976
12.285V 5.05V 3.429V 5.188V 115.89 48.56°C 114.95V
CL3 0.114A 0A 17.421A 0A 60.801 70.18% 1586 40.3 40.15°C 0.975
12.299V 5.067V 3.409V 5.188V 86.638 47.7°C 114.97V
CL4 69.531A 0A 0A 0A 849.785 88.513% 1757 44.2 45.45°C 0.993
12.222V 5.005V 3.362V 5.124V 960.073 58.19°C 114.76V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.150A 1.967A 1.917A 0.971A 85.006 86.55% 0 <6.0 50.61°C 0.859
12.312V 5.086V 3.442V 5.151V 98.215 40.19°C 230.09V
20% 11.302A 2.956A 2.885A 1.17A 169.96 90.925% 0 <6.0 51.44°C 0.923
12.303V 5.075V 3.431V 5.13V 186.924 40.57°C 230.08V
30% 17.805A 3.455A 3.376A 1.37A 254.972 92.226% 0 <6.0 54.14°C 0.942
12.295V 5.065V 3.421V 5.11V 276.466 41.47°C 230.08V
40% 24.327A 3.961A 3.871A 1.572A 340.065 92.466% 0 <6.0 47.46°C 0.95
12.285V 5.051V 3.41V 5.09V 367.776 41.86°C 230.08V
50% 30.525A 4.968A 4.859A 1.776A 425.115 92.24% 1726 42.6 42.07°C 0.957
12.272V 5.034V 3.396V 5.07V 460.88 49.93°C 230.07V
60% 36.692A 5.975A 5.852A 1.981A 509.618 92.184% 1743 43.4 42.78°C 0.961
12.259V 5.022V 3.383V 5.049V 552.827 51.48°C 230.06V
70% 42.941A 6.988A 6.852A 2.188A 594.968 91.91% 1746 43.6 43.19°C 0.963
12.246V 5.01V 3.372V 5.027V 647.341 52.23°C 230.05V
80% 49.204A 8.004A 7.859A 2.296A 679.8 91.539% 1748 43.7 43.57°C 0.966
12.233V 4.998V 3.359V 5.01V 742.63 53.55°C 230.04V
90% 55.871A 8.523A 8.363A 2.404A 765.25 91.148% 1751 43.9 44.88°C 0.969
12.220V 4.987V 3.348V 4.993V 839.568 56.71°C 230.03V
100% 62.293A 9.044A 8.903A 3.033A 850.083 90.621% 1750 43.8 45.53°C 0.972
12.206V 4.976V 3.336V 4.946V 938.067 59.39°C 230.01V
110% 68.598A 10.075A 10.02A 3.042A 934.656 90.004% 1751 43.9 47.26°C 0.975
12.193V 4.963V 3.323V 4.932V 1038.456 63.61°C 230V
CL1 0.114A 11.93A 11.634A 0A 101.314 80.495% 1726 42.6 41.47°C 0.895
12.297V 5.046V 3.412V 5.178V 125.862 50.28°C 230.09V
CL2 0.114A 17.822A 0A 0A 91.407 79.995% 1276 34.1 40.82°C 0.884
12.303V 5.05V 3.43V 5.188V 114.266 47.48°C 230.09V
CL3 0.114A 0A 17.42A 0A 60.799 71.075% 1616 41.3 41.25°C 0.833
12.301V 5.068V 3.41V 5.188V 85.542 47.86°C 230.09V
CL4 69.520A 0A 0A 0A 849.746 91.701% 1756 44.2 45.4°C 0.971
12.223V 5.006V 3.362V 5.126V 926.649 56.39°C 230.02V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.206A 0.491A 0.478A 0.192A 20.007 65.578% 0 <6.0 40.87°C 0.898
12.320V 5.094V 3.451V 5.201V 30.512 36.75°C 114.98V
40W 2.654A 0.687A 0.67A 0.289A 40.006 78.254% 0 <6.0 43°C 0.955
12.317V 5.093V 3.449V 5.193V 51.122 37.47°C 114.98V
60W 4.104A 0.884A 0.862A 0.386A 60.004 82.2% 0 <6.0 45.47°C 0.965
12.315V 5.091V 3.447V 5.186V 72.997 38.77°C 114.97V
80W 5.549A 1.081A 1.054A 0.483A 79.962 85.91% 0 <6.0 47.75°C 0.983
12.314V 5.089V 3.444V 5.179V 93.078 39.39°C 114.96V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.206A 0.491A 0.478A 0.192A 20.007 66.565% 0 <6.0 44.44°C 0.569
12.321V 5.096V 3.452V 5.2V 30.057 36.86°C 230.11V
40W 2.654A 0.687A 0.67A 0.289A 40.005 78.649% 0 <6.0 45.92°C 0.714
12.318V 5.094V 3.449V 5.193V 50.864 37.16°C 230.1V
60W 4.103A 0.884A 0.861A 0.386A 60.004 83.919% 0 <6.0 47.12°C 0.797
12.317V 5.091V 3.447V 5.185V 71.502 38.13°C 230.1V
80W 5.548A 1.081A 1.054A 0.483A 79.96 86.663% 0 <6.0 48.05°C 0.847
12.314V 5.089V 3.445V 5.178V 92.265 39.42°C 230.09V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load12.01mV8.52mV8.14mV10.34mVPass
20% Load15.32mV8.37mV8.75mV10.44mVPass
30% Load22.29mV8.21mV8.29mV10.50mVPass
40% Load42.69mV8.42mV8.09mV11.21mVPass
50% Load38.26mV8.47mV8.49mV12.18mVPass
60% Load19.64mV8.67mV8.95mV12.07mVPass
70% Load25.24mV9.59mV9.56mV14.32mVPass
80% Load24.63mV10.00mV11.85mV16.20mVPass
90% Load28.24mV12.96mV11.65mV18.39mVPass
100% Load32.84mV9.83mV11.59mV19.21mVPass
110% Load37.09mV10.96mV12.10mV21.82mVPass
Crossload113.07mV10.96mV12.76mV17.93mVPass
Crossload213.38mV8.77mV8.65mV17.98mVPass
Crossload315.67mV10.15mV11.19mV16.91mVPass
Crossload432.35mV8.34mV6.14mV20.55mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load12.77mV8.11mV6.92mV9.17mVPass
20% Load15.52mV8.31mV7.12mV9.48mVPass
30% Load18.01mV8.06mV7.43mV9.83mVPass
40% Load19.95mV8.57mV8.09mV10.24mVPass
50% Load20.66mV8.67mV8.14mV11.31mVPass
60% Load20.91mV9.13mV8.39mV11.72mVPass
70% Load23.81mV9.18mV8.60mV13.04mVPass
80% Load26.15mV11.43mV11.19mV15.33mVPass
90% Load30.48mV15.56mV11.70mV16.46mVPass
100% Load33.63mV10.00mV12.06mV18.08mVPass
110% Load39.46mV10.83mV12.07mV19.22mVPass
Crossload113.73mV10.31mV13.15mV17.48mVPass
Crossload212.67mV8.41mV7.88mV17.17mVPass
Crossload312.62mV10.15mV10.48mV17.02mVPass
Crossload433.91mV8.09mV6.17mV19.80mVPass

The results above are not used in the certification process

Sharkoon Rebel P20 Gen2 850 (Black/White)

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
