CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Vetroo 1000G5 (2026)
Serial Number-
Lab IDVT10003142
Certification ID263142
  • Test Result Report ID: 26PS3142A
  • Certificate Issue Date: Mar 2, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandVetroo
Manufacturer (OEM)Jiumeng
SeriesG5
Model Number1000G5
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)6-12
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)150 x 85 x 140mm
Cooling120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.3
Watts100999.6153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 18AWG Tinned Copper
4+4 pin EPS12V (700mm) 2 2 16AWG Tinned Copper
6+2 pin PCIe (500mm+150mm) 2 4 18AWG Tinned Copper
6+2 pin PCIe (500mm) 2 2 18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 1 1 16-26AWG Tinned Copper
SATA (450mm+145mm+145mm+145mm) 2 8 18AWG Tinned Copper
4-pin Molex (450mm+150mm+150mm) 2 6 18AWG Tinned Copper
FDD Adapter (+125mm) 1 1 18AWG Tinned Copper
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

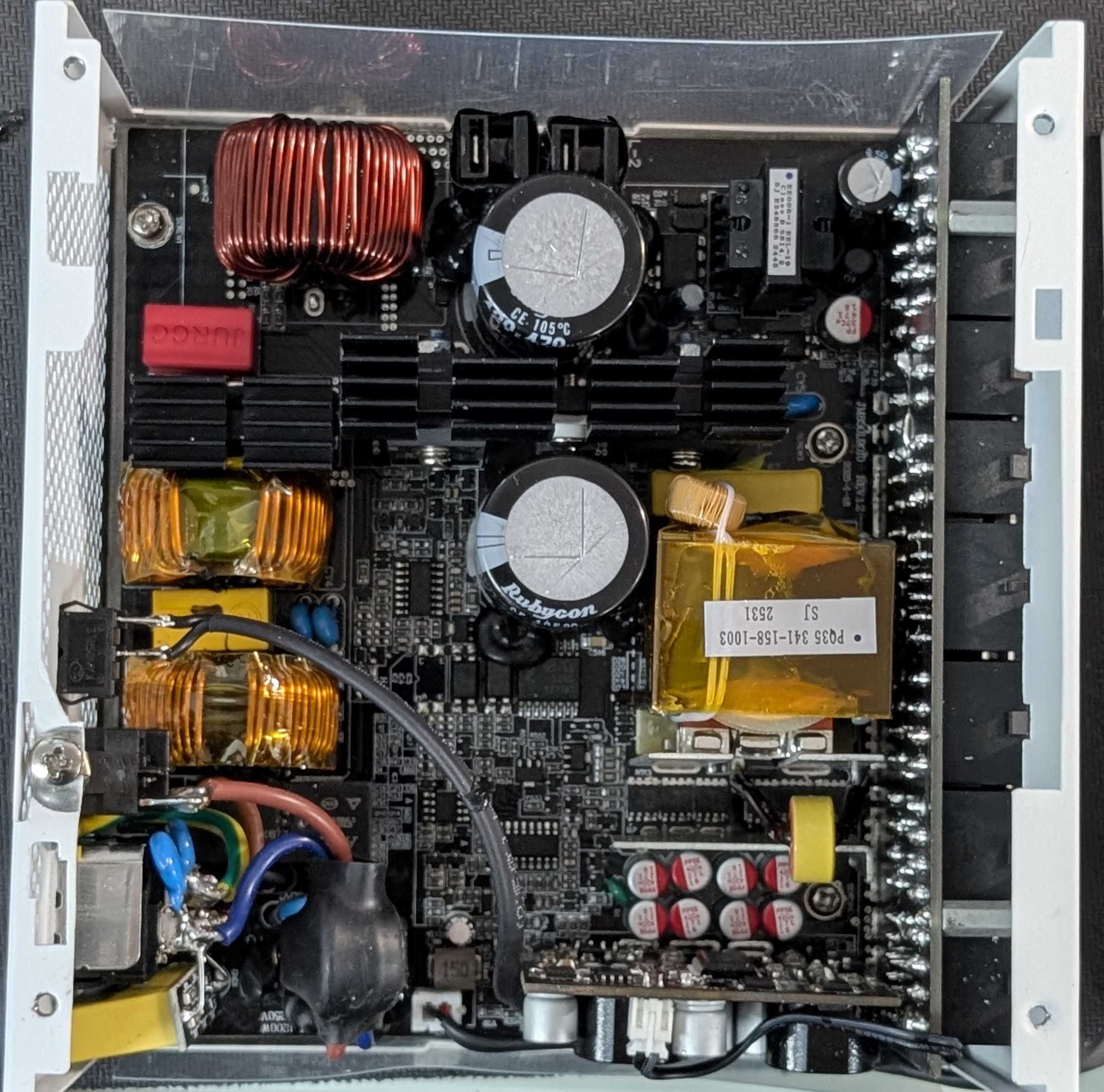

Parts Description

General Data General Data
Manufacturer (OEM)

Jiumeng
PCB Type Double-Sided
Primary Side Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF72-5D15 (5 Ohm @ 20°C) & Relay
Bridge Rectifier(s)
2x GBU2506 (600V, 25A @ 100°C)
APFC MOSFETs
2x Wayon WMJ53N65F2 (650V, 26A @ 100°C, Rds(on): 0.062Ohm)
APFC Boost Diode
1x Sanan Semiconductor SDS065J010C3 (650V, 10A @ 155°C)
Bulk Cap(s)
2x Rubycon (420V, 470uF, 2000h @ 105°C, MXE)
Main Switchers
2x Wayon WMJ53N65F2 (650V, 26A @ 100°C, Rds(on): 0.062Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CM6901X
IC Driver Novosense NSI6602
Topology
Primary side: APFC, Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side Secondary Side
+12V MOSFETs 6x Nexperia PSMN1R0-40YLD (40V, 198A @ 100°C, Rds(on): 0.93mOhm)
5V & 3.3V DC-DC Converters: 4x Nexperia PSMN2R4-30YLD (30V, 100A @ 100°C, Rds(on): 2mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors

Electrolytic:
3x Rubycon (3-6,000h @ 105°C, YXS)
4x Rubycon (4-10,000h @ 105°C, YXJ)
1X Samxon (4-10,000h @ 105°C, GT)
Polymer:
30x Nichicon FPcap
Supervisor IC Grenergy GR8313 (OCP, OVP, UVP, SCP, PG)
Fan Controller Anpec APW9010

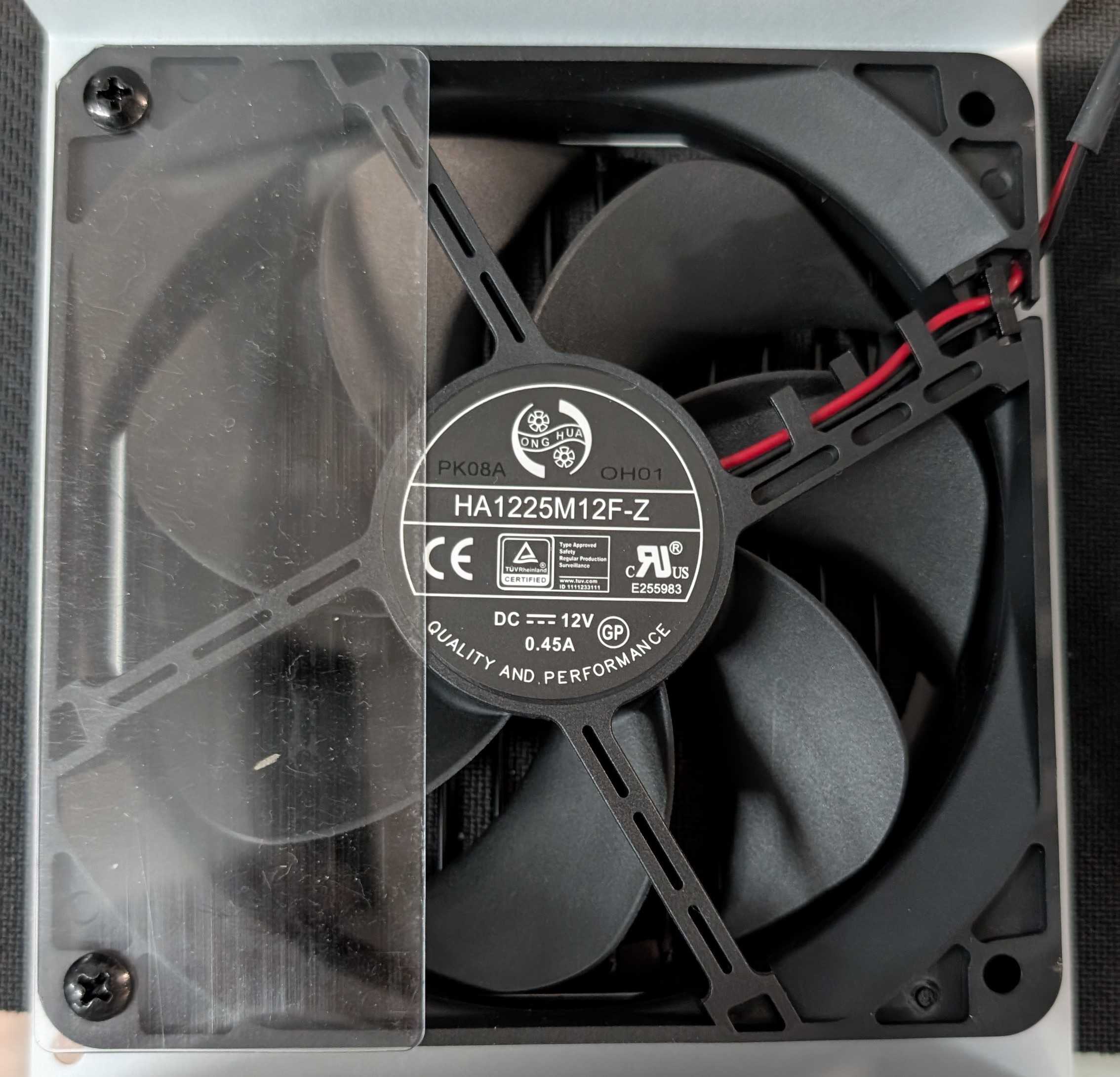

Fan Model Hong Hua HA1225M12F-Z (120mm, DC12V, 0.45A) Fluid Dynamic Bearing Fan
5VSB Circuit 5VSB Circuit
Rectifier
1x SB1045L (45V, 10A)
Standby PWM Controller Chipown PN8141

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓
Commission Regulation (EU) No 617/2013 Testing✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)90.167%
Average Noise Output (>1450 Load Combinations)25.17dBA
Average PF (>1450 Load Combinations)0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load68.596%
Standby Power Consumption0.0439W
12V Ripple (Full Load)30.59mV
5V Ripple (Full Load)23.14mV
3.3V Ripple (Full Load)23.89mV
5VSB Ripple (Full Load)16.73mV
12V Load Regulation0.67%
5V Load Regulation1.81%
3.3V Load Regulation2.57%
5VSB Load Regulation2.46%
Inrush Current33.980A
Efficiency RatingPLATINUM
Noise RatingA
Average Efficiency (>1450 load combinations)92.022%
Average Noise Output (>1450 Load Combinations)23.78dBA
Average PF (>1450 Load Combinations)0.954
Efficiency With 10W (≤500W) or 2% (>500W) Load69.057%
Standby Power Consumption0.1013W
12V Ripple (Full Load)28.80mV
5V Ripple (Full Load)22.02mV
3.3V Ripple (Full Load)23.38mV
5VSB Ripple (Full Load)16.27mV
12V Load Regulation0.67%
5V Load Regulation1.78%
3.3V Load Regulation2.54%
5VSB Load Regulation2.42%
Inrush Current69.720A
12V Transient Response (200%)11.34V
5V Transient Response (200%)4.918V
3.3V Transient Response (200%)3.188V
5VSB Transient Response (200%)4.982V
Hold-Up Time & Power Ok Signal23.50ms
AC Loss to PWR_OK Hold Up Time20.80ms
PWR_OK Inactive to DC Loss Delay2.70ms
PSU Timings: T1 (20% / 100%)99.0ms99.0ms
PSU Timings: T3 (20% / 100%)124.0ms124.0ms
12V OCP (27.9°C / 43.3°C)112.60A (135.17%), 11.909V103.20A (123.89%), 11.918V
5V OCP (27.9°C / 43.3°C)24.9A (124.50%), 5.026V24.5A (122.50%), 5.027V
3.3V OCP (27.9°C / 43.3°C)24.3A (121.50%), 3.281V23.5A (117.50%), 3.284V
5VSB OCP (27.9°C / 43.3°C)5.6A (186.67%), 5.009V5.6A (186.67%), 5.005V
OPP (29.08°C / 42.35°C)131.91%119.66%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.5
AC Loss to PWR_OK Hold Up Time (ms)20.8
PWR_OK Inactive to DC Loss Delay (ms)2.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.02 V 115.01 V 113.85 V 115.06 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.044 W -0.001 W N/A 0.084 W N/A N/A
Apparent Power: 8.885 W 8.860 W N/A 8.910 W N/A N/A
Power Factor: 0.009 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.11 V 230.07 V 227.70 V 230.11 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.101 W 0.064 W N/A 0.188 W N/A N/A
Apparent Power: 28.950 W 28.915 W N/A 28.991 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

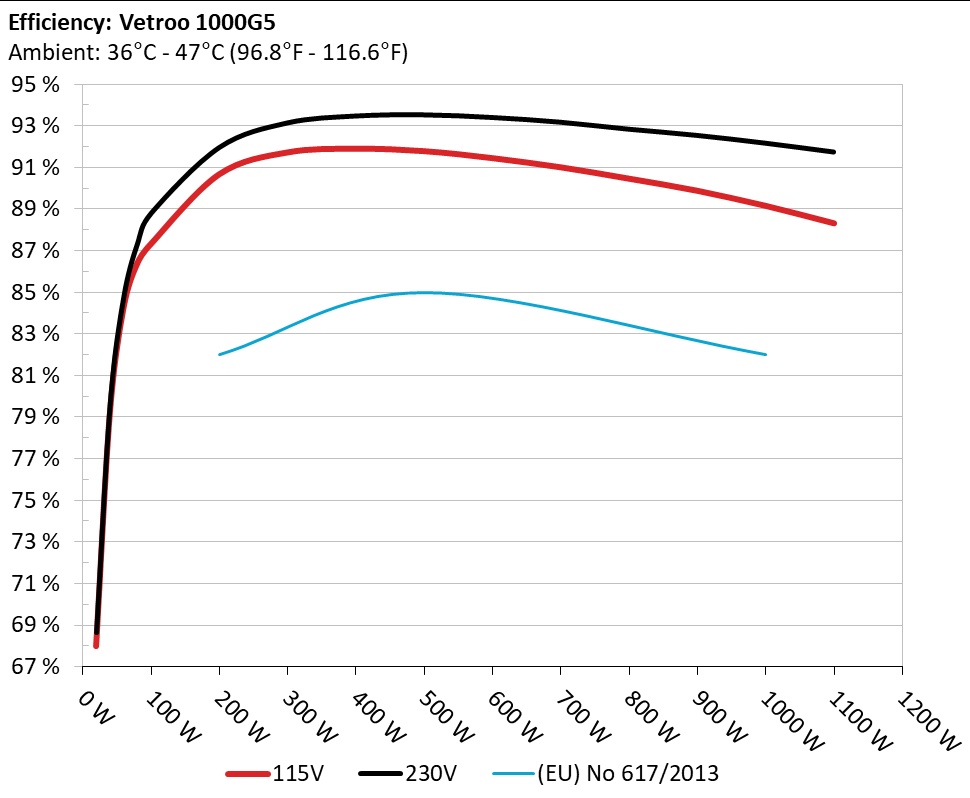

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

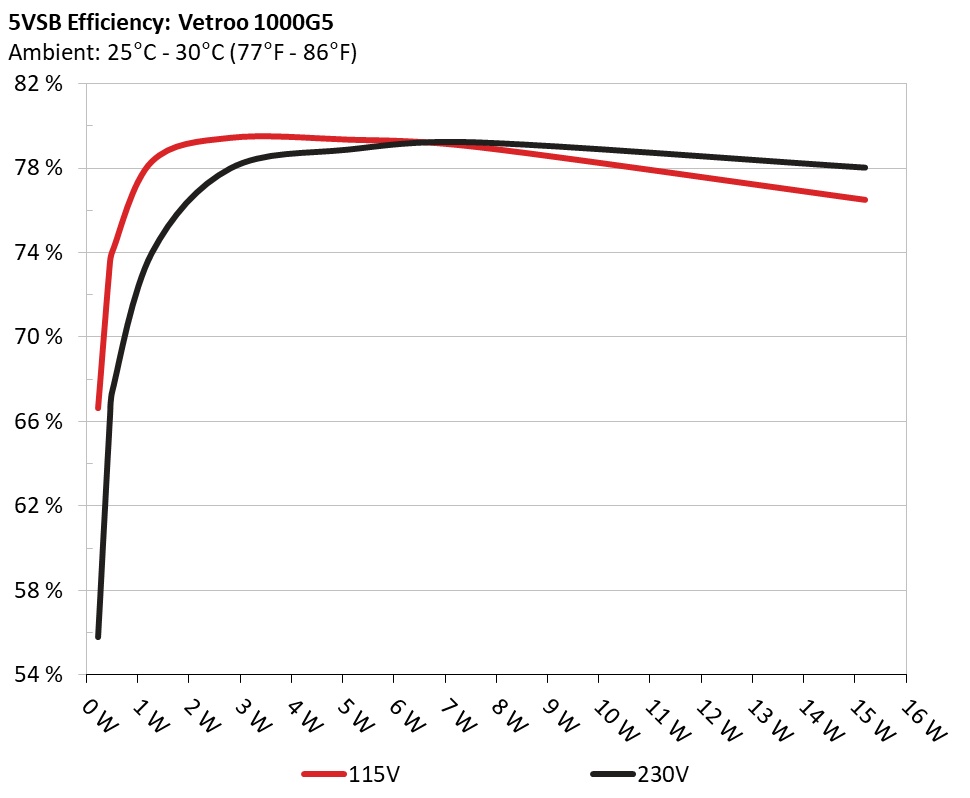

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.233W 66.623% 0.04
5.127V 0.347W 115.04V
2 0.09A 0.463W 73.498% 0.072
5.126V 0.63W 115.04V
3 0.55A 2.815W 79.447% 0.256
5.117V 3.543W 115.04V
4 1A 5.108W 79.36% 0.319
5.108V 6.437W 115.04V
5 1.5A 7.648W 79.005% 0.353
5.097V 9.68W 115.03V
6 3A 15.2W 76.505% 0.4
5.067V 19.869W 115.03V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 55.793% 0.015
5.125V 0.414W 230.01V
2 0.09A 0.461W 66.143% 0.025
5.125V 0.698W 230V
3 0.55A 2.814W 77.986% 0.116
5.116V 3.608W 230V
4 1A 5.107W 78.87% 0.178
5.107V 6.475W 230.01V
5 1.5A 7.646W 79.211% 0.225
5.097V 9.653W 230V
6 3A 15.199W 78.017% 0.295
5.066V 19.482W 230V

Protection Features

OCP (Normal @ 27.9°C)12V: 112.60A (135.17%), 11.909V
5V: 24.9A (124.50%), 5.026V
3.3V: 24.3A (121.50%), 3.281V
5VSB: 5.6A (186.67%), 5.009V
OCP (Hot @ 43.3°C)12V: 103.20A (123.89%), 11.918V
5V: 24.5A (122.50%), 5.027V
3.3V: 23.5A (117.50%), 3.284V
5VSB: 5.6A (186.67%), 5.005V
OPP (Normal @ 29.1°C)1319.09W (131.91%)
OPP (Hot @ 42.4°C)1196.59W (119.66%)
OTP✓ (105°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.540A 1.974A 1.975A 0.981A 99.999 87.325% 603 <6.0 40.16°C 0.964
11.987V 5.066V 3.341V 5.1V 114.514 45.9°C 115.01V
20% 14.115A 2.967A 2.97A 1.179A 199.95 90.676% 605 <6.0 40.67°C 0.974
11.977V 5.056V 3.333V 5.089V 220.508 47.52°C 114.97V
30% 22.053A 3.467A 3.473A 1.378A 300.006 91.731% 607 <6.0 41.18°C 0.985
11.970V 5.048V 3.326V 5.079V 327.049 50.06°C 114.94V
40% 29.958A 3.968A 3.978A 1.578A 399.55 91.908% 676 <6.0 41.74°C 0.989
11.962V 5.04V 3.318V 5.069V 434.727 53.3°C 114.9V
50% 37.544A 4.97A 4.986A 1.78A 499.285 91.793% 865 <6.0 42.32°C 0.992
11.954V 5.031V 3.309V 5.058V 543.925 55.67°C 114.87V
60% 45.208A 5.975A 6A 1.981A 599.819 91.457% 1061 <6.0 42.62°C 0.994
11.945V 5.021V 3.301V 5.048V 655.851 57.67°C 114.83V
70% 52.815A 6.984A 7.018A 2.184A 699.527 91.02% 1276 <6.0 43.17°C 0.995
11.936V 5.012V 3.292V 5.037V 768.539 59.31°C 114.8V
80% 60.500A 7.994A 8.042A 2.287A 799.503 90.474% 1485 <6.0 43.79°C 0.995
11.928V 5.002V 3.283V 5.028V 883.687 60.81°C 114.76V
90% 68.529A 8.509A 8.55A 2.391A 899.293 89.892% 1749 <6.0 44.21°C 0.996
11.919V 4.994V 3.275V 5.019V 1000.414 64.47°C 114.72V
100% 76.364A 9.025A 9.094A 3.001A 999.33 89.168% 1755 <6.0 45.81°C 0.996
11.912V 4.985V 3.266V 4.999V 1120.732 70.87°C 114.67V
110% 84.147A 10.048A 10.227A 3.006A 1099.99 88.325% 1765 <6.0 46.77°C 0.996
11.904V 4.975V 3.256V 4.991V 1245.386 73.67°C 114.64V
CL1 0.117A 11.948A 11.956A 0A 101.298 82.589% 942 <6.0 40.5°C 0.965
11.977V 5.038V 3.321V 5.11V 122.654 53.97°C 115V
CL2 0.117A 19.842A 0A 0A 101.344 82.137% 714 <6.0 40.58°C 0.964
11.980V 5.037V 3.33V 5.115V 123.384 48.56°C 115V
CL3 0.116A 0A 19.858A 0A 67.399 76.057% 601 <6.0 40.93°C 0.972
11.979V 5.055V 3.324V 5.115V 88.616 45.26°C 115.01V
CL4 83.869A 0A 0A 0A 999.926 89.942% 1745 <6.0 45.8°C 0.996
11.922V 5.013V 3.287V 5.07V 1111.745 62.13°C 114.68V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.541A 1.974A 1.975A 0.981A 100.004 88.346% 605 <6.0 40.31°C 0.864
11.986V 5.065V 3.341V 5.099V 113.195 44.85°C 229.99V
20% 14.115A 2.967A 2.97A 1.179A 199.957 91.961% 608 <6.0 40.6°C 0.935
11.977V 5.056V 3.333V 5.089V 217.437 46.31°C 229.97V
30% 22.052A 3.467A 3.473A 1.378A 300.013 93.139% 665 <6.0 41.2°C 0.954
11.970V 5.048V 3.326V 5.079V 322.113 47.12°C 229.96V
40% 29.959A 3.968A 3.978A 1.579A 399.573 93.469% 855 <6.0 41.72°C 0.966
11.962V 5.041V 3.318V 5.069V 427.491 49.3°C 229.94V
50% 37.544A 4.969A 4.986A 1.78A 499.306 93.523% 1013 <6.0 42.02°C 0.97
11.954V 5.031V 3.31V 5.058V 533.888 49.74°C 229.92V
60% 45.209A 5.975A 5.999A 1.981A 599.836 93.398% 1230 <6.0 42.63°C 0.974
11.945V 5.022V 3.301V 5.048V 642.241 50.85°C 229.9V
70% 52.815A 6.984A 7.018A 2.184A 699.543 93.173% 1459 <6.0 43.23°C 0.977
11.937V 5.012V 3.292V 5.037V 750.8 51.64°C 229.88V
80% 60.501A 7.994A 8.042A 2.287A 799.571 92.837% 1726 <6.0 43.85°C 0.98
11.928V 5.002V 3.283V 5.028V 861.26 53.08°C 229.87V
90% 68.526A 8.508A 8.55A 2.391A 899.334 92.541% 1754 <6.0 44.08°C 0.982
11.921V 4.994V 3.275V 5.02V 971.821 55.17°C 229.85V
100% 76.363A 9.024A 9.092A 3A 999.351 92.168% 1756 <6.0 45.46°C 0.985
11.913V 4.986V 3.267V 5V 1084.269 57.29°C 229.83V
110% 84.142A 10.047A 10.225A 3.005A 1099.965 91.74% 1759 <6.0 46.01°C 0.986
11.905V 4.976V 3.257V 4.992V 1199.006 59.68°C 229.81V
CL1 0.117A 11.947A 11.957A 0A 101.301 83.697% 1087 <6.0 41.49°C 0.875
11.978V 5.038V 3.321V 5.11V 121.034 48.23°C 229.99V
CL2 0.117A 19.841A 0A 0A 101.348 83.11% 950 <6.0 41.17°C 0.875
11.980V 5.038V 3.33V 5.114V 121.945 46.17°C 229.99V
CL3 0.117A 0A 19.863A 0A 67.402 76.81% 833 <6.0 40.91°C 0.823
11.980V 5.055V 3.323V 5.115V 87.751 45.4°C 230V
CL4 83.867A 0A 0A 0A 999.983 92.823% 1754 <6.0 45.15°C 0.984
11.923V 5.013V 3.287V 5.069V 1077.3 54.37°C 229.82V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.240A 0.493A 0.493A 0.195A 19.999 68.013% 0 <6.0 38.59°C 0.88
11.983V 5.075V 3.35V 5.122V 29.405 36.56°C 115.03V
40W 2.726A 0.69A 0.69A 0.293A 39.998 79.147% 0 <6.0 39.6°C 0.944
11.992V 5.073V 3.348V 5.118V 50.537 37.12°C 115.03V
60W 4.214A 0.887A 0.887A 0.391A 59.998 84.26% 0 <6.0 43.93°C 0.963
11.990V 5.071V 3.346V 5.115V 71.206 38.65°C 115.02V
80W 5.698A 1.085A 1.085A 0.489A 79.944 86.379% 601 <6.0 39.12°C 0.97
11.989V 5.069V 3.344V 5.111V 92.551 44.95°C 115.01V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.240A 0.493A 0.493A 0.195A 20.006 68.657% 0 <6.0 42.69°C 0.51
11.985V 5.075V 3.35V 5.121V 29.139 36.12°C 230V
40W 2.726A 0.69A 0.69A 0.293A 40.003 79.655% 600 <6.0 37.86°C 0.68
11.992V 5.073V 3.348V 5.118V 50.221 43.41°C 230V
60W 4.214A 0.887A 0.887A 0.391A 60.001 84.785% 603 <6.0 38.47°C 0.774
11.990V 5.071V 3.346V 5.114V 70.769 44.12°C 230V
80W 5.698A 1.085A 1.085A 0.489A 79.949 87.332% 605 <6.0 39.49°C 0.83
11.989V 5.069V 3.344V 5.111V 91.545 44.59°C 229.99V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load24.25mV14.56mV15.40mV14.27mVPass
20% Load26.76mV15.17mV15.45mV13.76mVPass
30% Load26.09mV15.74mV16.42mV14.07mVPass
40% Load26.15mV20.18mV17.55mV14.47mVPass
50% Load27.11mV17.27mV18.93mV14.68mVPass
60% Load26.81mV18.09mV18.67mV14.73mVPass
70% Load27.88mV19.11mV19.59mV16.16mVPass
80% Load29.42mV20.84mV22.15mV16.73mVPass
90% Load29.73mV21.76mV23.99mV16.52mVPass
100% Load30.59mV23.14mV23.89mV16.73mVPass
110% Load29.37mV23.04mV24.04mV15.30mVPass
Crossload124.40mV16.25mV19.08mV14.07mVPass
Crossload224.20mV19.31mV15.70mV13.76mVPass
Crossload321.54mV14.56mV20.82mV13.81mVPass
Crossload431.05mV22.48mV22.35mV15.76mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load22.46mV14.10mV14.68mV12.94mVPass
20% Load26.09mV14.05mV14.99mV13.10mVPass
30% Load25.43mV14.40mV16.27mV14.22mVPass
40% Load25.07mV19.16mV17.39mV13.55mVPass
50% Load25.53mV17.68mV18.31mV14.17mVPass
60% Load25.84mV18.09mV18.77mV14.22mVPass
70% Load26.60mV19.36mV19.49mV15.29mVPass
80% Load27.78mV19.16mV21.44mV14.89mVPass
90% Load28.29mV21.51mV22.61mV15.65mVPass
100% Load28.80mV22.02mV23.38mV16.27mVPass
110% Load30.44mV23.35mV24.86mV16.57mVPass
Crossload123.28mV15.07mV18.47mV13.35mVPass
Crossload223.13mV17.22mV14.89mV14.12mVPass
Crossload320.21mV13.95mV20.67mV14.07mVPass
Crossload428.24mV20.38mV19.54mV15.29mVPass

The results above are not used in the certification process

Vetroo 1000G5 (2026)

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
