Iron Pride Creator 750W
Serial Number-
Lab IDIP75003146
Certification ID263146
  • Test Result Report ID: 26PS3146A
  • Certificate Issue Date: Feb 26, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandIron Pride
Manufacturer (OEM)Lemon ET
SeriesCreator
Model NumberGX750W
Serial Number-
DUT NotesSome protection features need adjustment.

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)5-10
Rated Frequency (Hz)50-60
Rated Power (W)750
TypeATX12V
Dimensions (W x H x D)150 x 85 x 140mm
Cooling120mm Fan 1800RPM (No other information)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181862.530.3
Watts100750153.6
Total Max. Power (W)750

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 16AWG Tinned Copper
4+4 pin EPS12V (700mm) 2 2 16AWG Tinned Copper
6+2 pin PCIe (600mm+150mm) 2 4 16-18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper
4-pin Molex(500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper

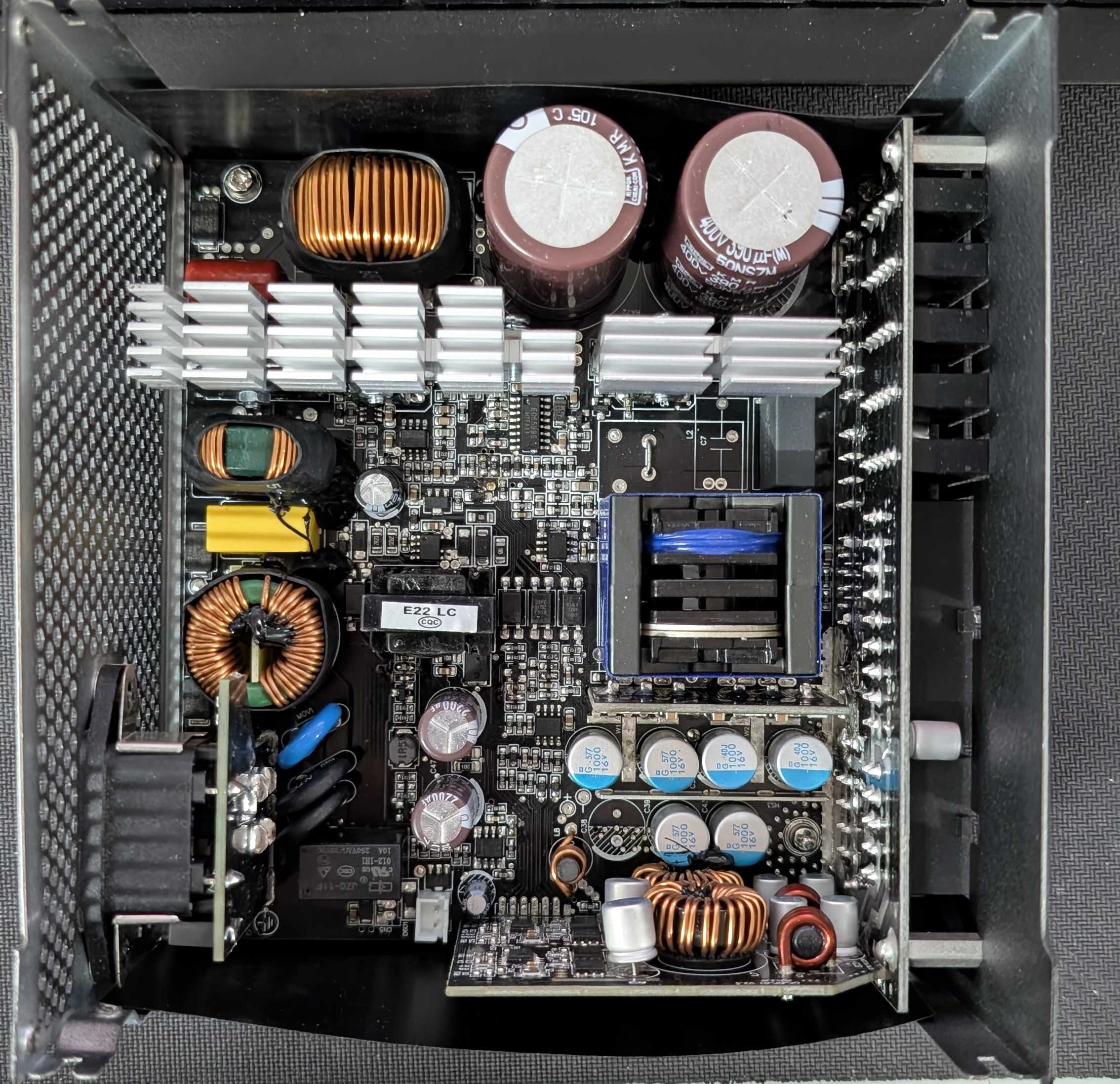

Parts Description

General Data
Manufacturer (OEM) Lemon ET
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 2x NTC Thermistor NTC 8D-15 (8 Ohm @ 25°C) & Relay
Bridge Rectifier 2x GBU1008 (800V, 10A @ 25°C)
APFC MOSFETs 2x Wuhan Xinyuan Semiconductor CWS55R190AF (550V, 20A @ 100°C, Rds(on): 190mOhm)
APFC Boost Diode Reasunos Semiconductor Technology RSS08065A (650V, 8A @ 120°C)
Bulk Cap(s) 2x Nippon Chemi-Con (400V, 390uF, 2000h @ 105°C, KMR )

Main Switchers 2x Wuhan Xinyuan Semiconductor CWS55R190BF (550V, 13A @ 100°C, Rds(on): 190mOhm)

APFC Controller

Safety-Chip Micro SC3654

Resonant Controller Meraki Integrated MK1620
IC Driver Electronic Giant EG6599S
Topology Primary Side: APFC, Half-Bridge & LLC Resonant Converter
Secondary Side: [12V] Synchronous Rectification & [Minor Rails] DC-DC Converters
Secondary Side
+12V MOSFETs 4x VBsemi RUH4080M-VB (40V, 18.6A @ 70°C Rds(on): 5mOhm)
5V & 3.3V DC-DC Converters: 2x Excelliance MOS EMB09N03HR (30V, 35A @ 100°C, Rds(on): 9.5mOhm)
2x Excelliance MOS EMB06N03HR (30V, 60A @ 100°C, Rds(on): 6mOhm)
PWM Controller(s): 2x Excelliance MOS EM5301
Filtering Capacitors

Electrolytic:
2x Nippon Chemi-Con (2~5,000h @ 105°C, KZE )
1x Rubycon (4~10,000h @ 105°C, YXJ )
Polymer:
23x Nippon Chemi-Con

Supervisor IC Jiangsu Deep-Pool Microelectronics NDP2450KC
Fan Controller / Micro Controller Texas Instruments LM393

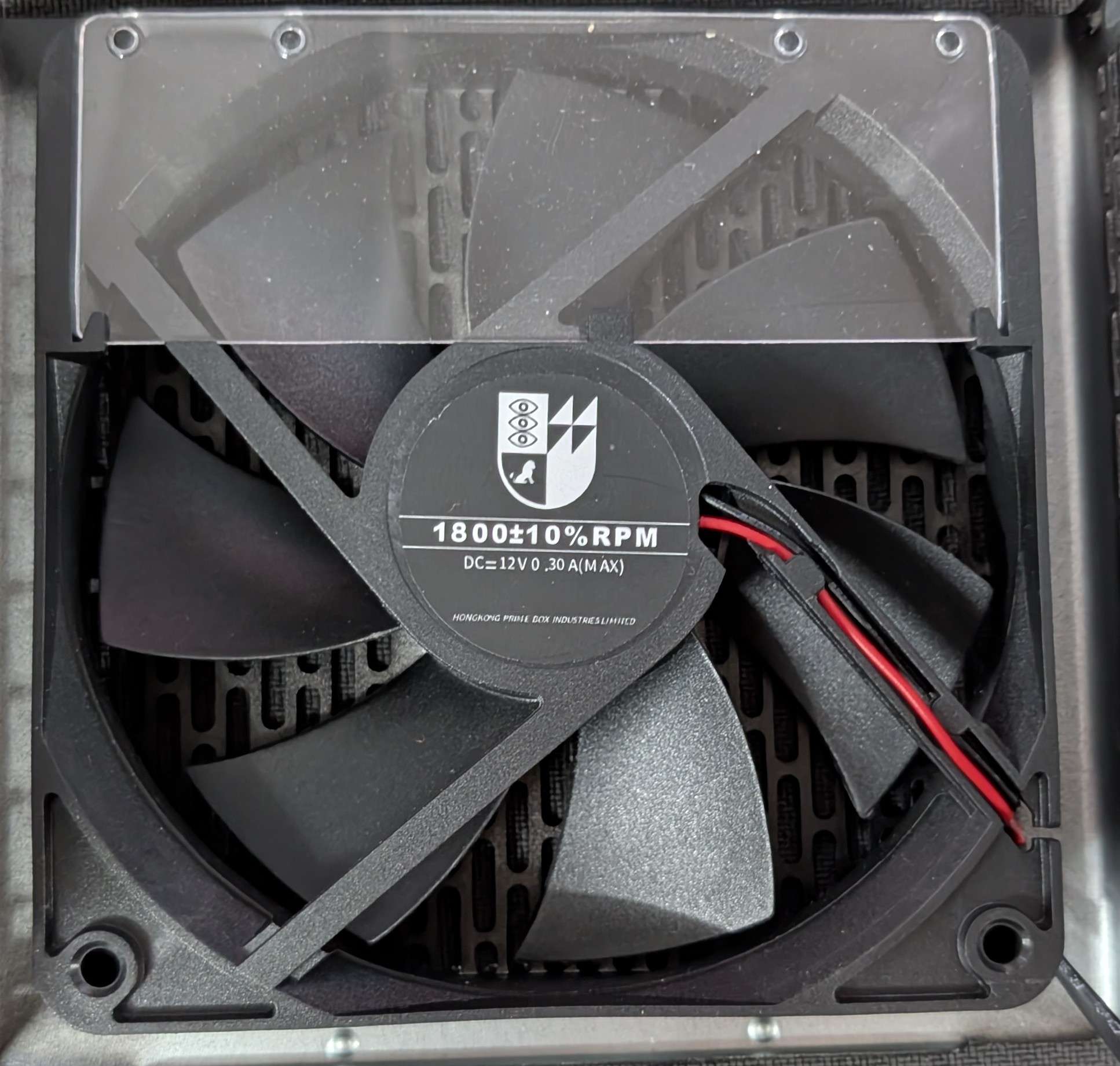

Fan Model HongKong Prime Box Industries Limited 12025 (120mm, 12V, 0.30A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier DongKe Semiconductor DK5V45R20 (45V, 20mOhm)
Standby PWM Controller SP3622S SOP-7

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Efficiency RatingGOLD
Noise RatingStandard++
Average Efficiency (>1450 load combinations)88.895%
Average Noise Output (>1450 Load Combinations)31.66dBA
Average PF (>1450 Load Combinations)0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load74.492%
Standby Power Consumption0.0525W
12V Ripple (Full Load)59.93mV
5V Ripple (Full Load)17.17mV
3.3V Ripple (Full Load)21.73mV
5VSB Ripple (Full Load)14.11mV
12V Load Regulation0.59%
5V Load Regulation2.82%
3.3V Load Regulation4.28%
5VSB Load Regulation5.35%
Inrush Current13.680A
Efficiency RatingGOLD
Noise RatingStandard++
Average Efficiency (>1450 load combinations)90.899%
Average Noise Output (>1450 Load Combinations)31.27dBA
Average PF (>1450 Load Combinations)0.946
Efficiency With 10W (≤500W) or 2% (>500W) Load74.595%
Standby Power Consumption0.1686W
12V Ripple (Full Load)62.44mV
5V Ripple (Full Load)17.46mV
3.3V Ripple (Full Load)22.74mV
5VSB Ripple (Full Load)14.47mV
12V Load Regulation0.62%
5V Load Regulation2.76%
3.3V Load Regulation4.22%
5VSB Load Regulation5.39%
Inrush Current22.880A
12V Transient Response (200%)11.63V
5V Transient Response (200%)4.920V
3.3V Transient Response (200%)3.179V
5VSB Transient Response (200%)4.936V
Hold-Up Time & Power Ok Signal20.50ms
AC Loss to PWR_OK Hold Up Time13.70ms
PWR_OK Inactive to DC Loss Delay6.80ms
PSU Timings: T1 (20% / 100%)11.0ms11.0ms
PSU Timings: T3 (20% / 100%)144.0ms147.0ms
12V OCP (29.1°C / 42.3°C)81.40A (130.24%), 12.084V72.60A (116.16%), 12.087V
5V OCP (29.1°C / 42.3°C)19.8A (110.00%), 5.014V18.6A (103.33%), 4.995V
3.3V OCP (29.1°C / 42.3°C)27.3A (151.67%), 3.259V26.2A (145.56%), 3.244V
5VSB OCP (29.1°C / 42.3°C)5.2A (173.33%), 4.851V5.2A (173.33%), 4.842V
OPP (29.10°C / 42.55°C)131.55%117.49%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.5
AC Loss to PWR_OK Hold Up Time (ms)13.7
PWR_OK Inactive to DC Loss Delay (ms)6.8

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.01 V 115.00 V 113.85 V 115.04 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.16 % 2.00 % PASS
Real Power: 0.053 W -0.004 W N/A 0.091 W N/A N/A
Apparent Power: 6.707 W 6.687 W N/A 6.728 W N/A N/A
Power Factor: 0.009 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.06 V 230.04 V 227.70 V 230.08 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.169 W 0.120 W N/A 0.218 W N/A N/A
Apparent Power: 21.456 W 21.417 W N/A 21.492 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A

Graphs

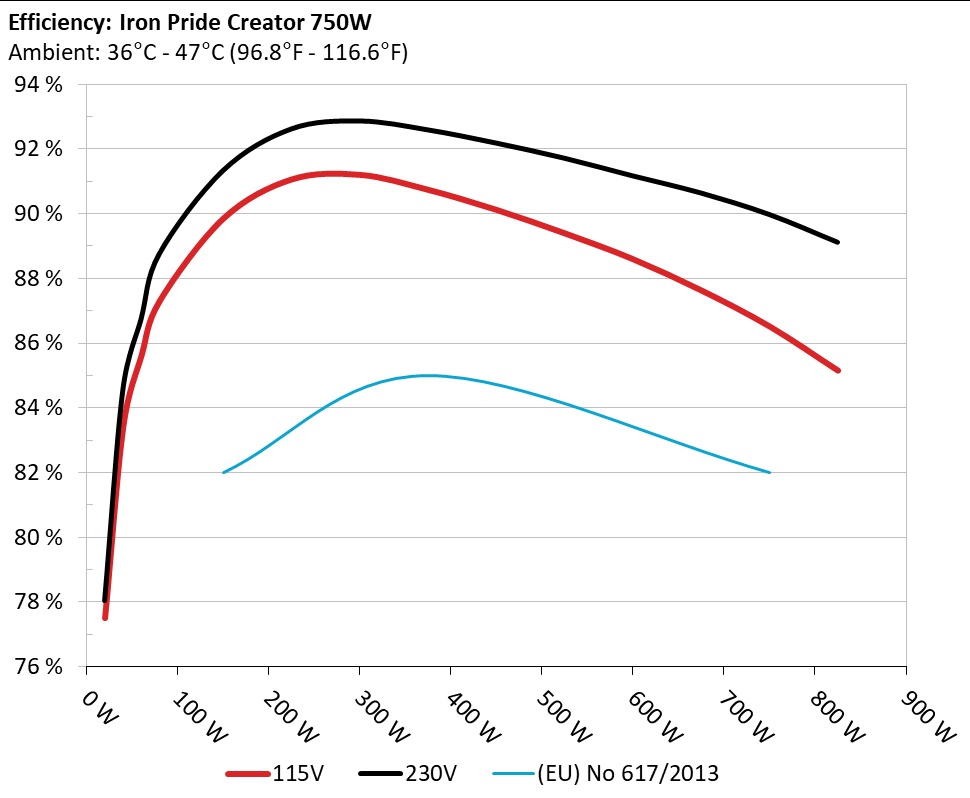

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

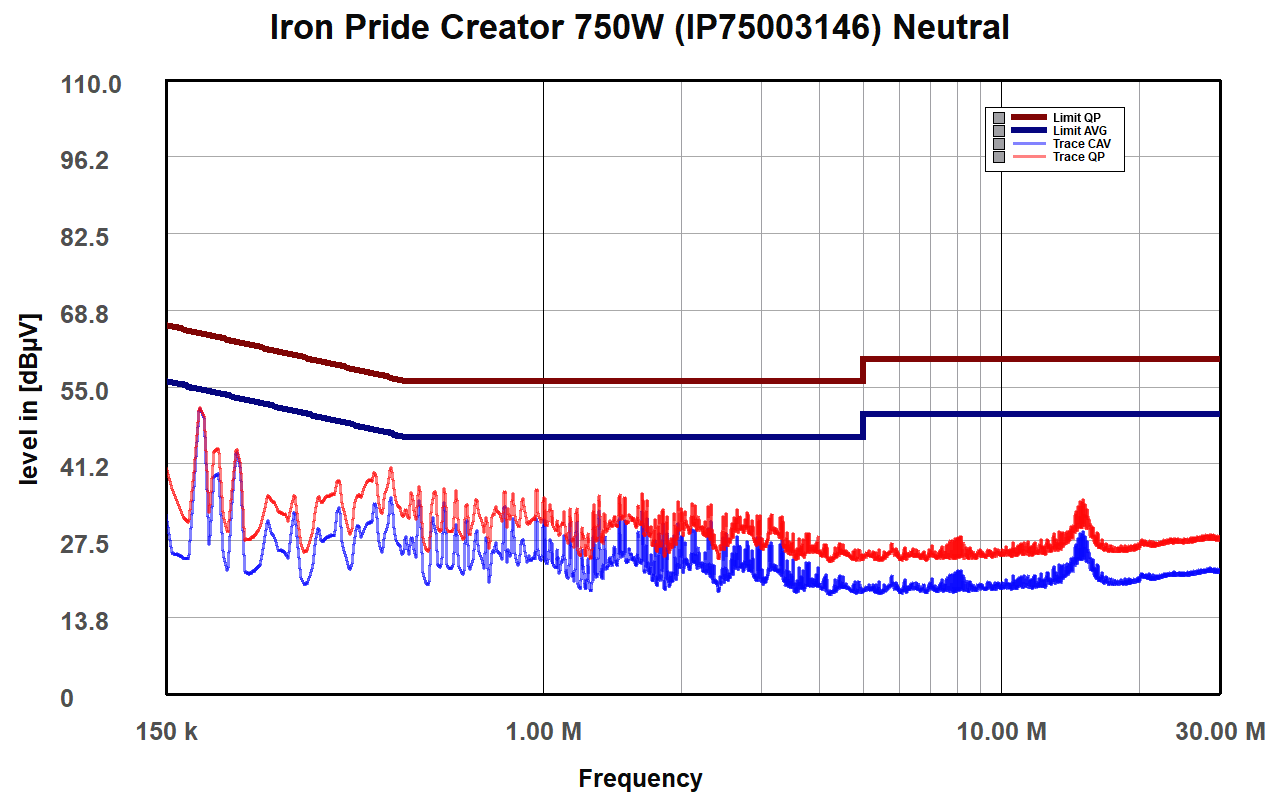

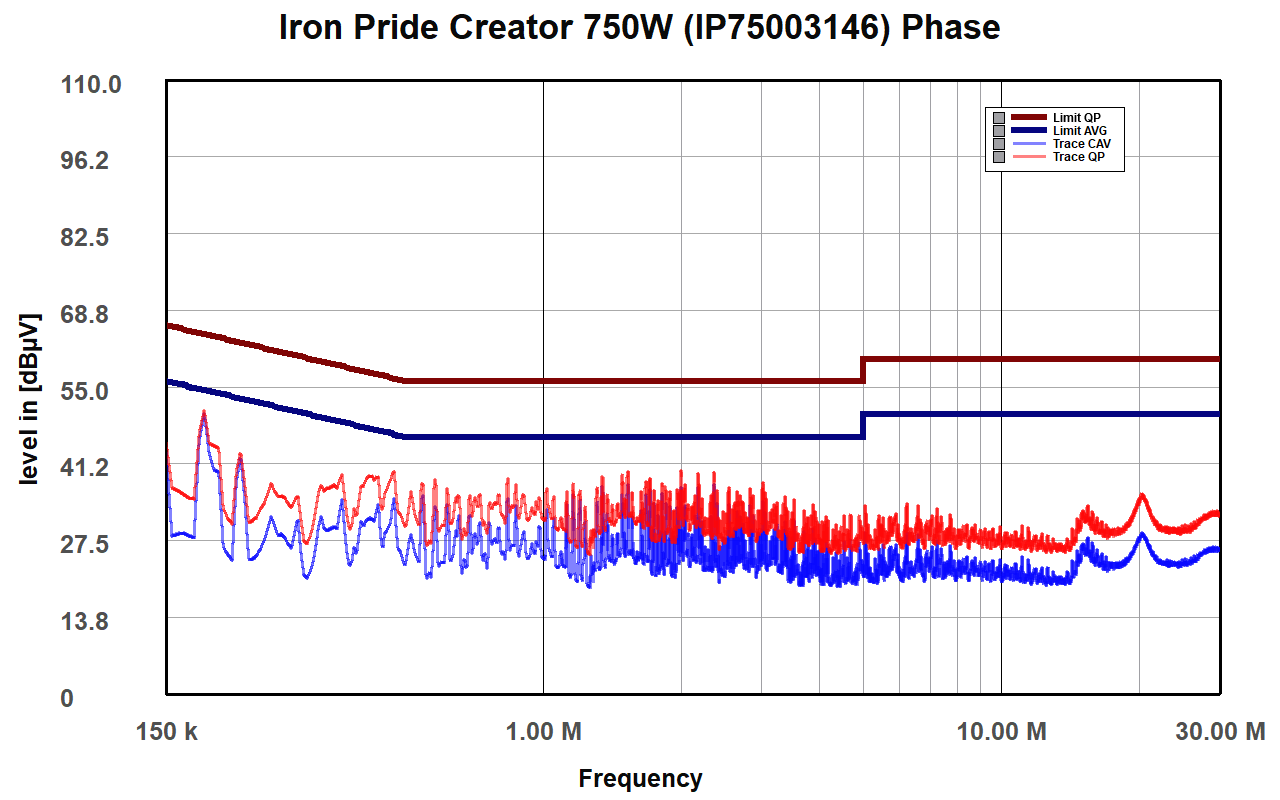

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

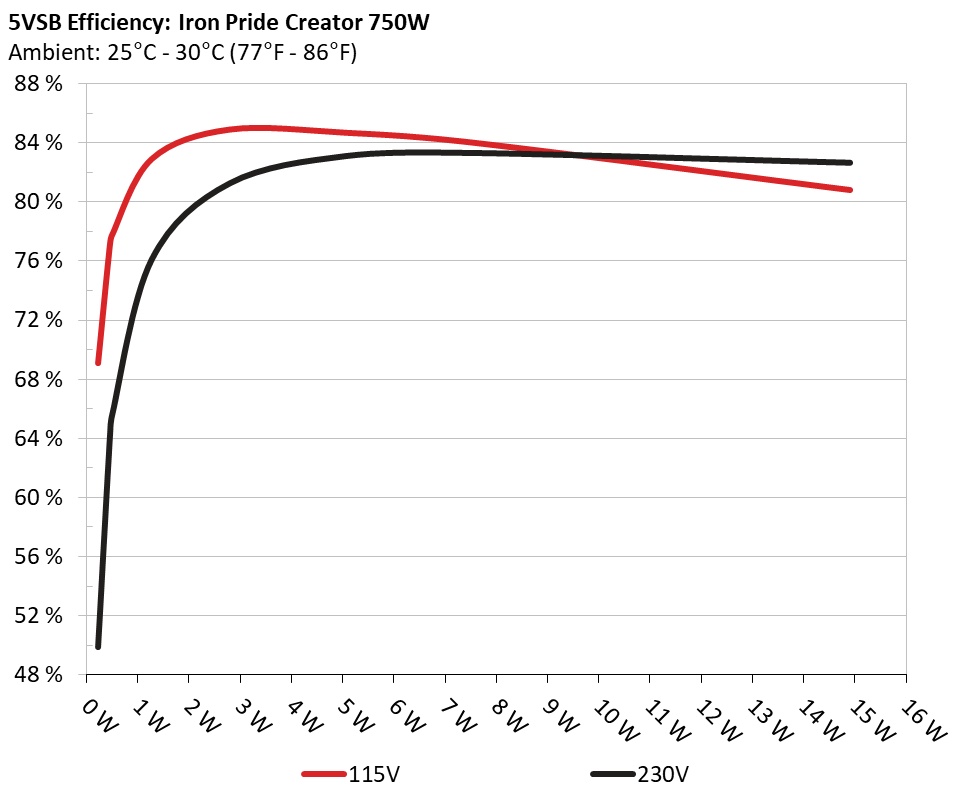

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 69.098% 0.05
5.112V 0.333W 115.13V
2 0.09A 0.46W 77.102% 0.089
5.11V 0.597W 115.12V
3 0.55A 2.798W 84.935% 0.316
5.088V 3.295W 115.1V
4 1A 5.066W 84.716% 0.395
5.066V 5.98W 115.1V
5 1.5A 7.563W 84.041% 0.432
5.042V 8.998W 115.1V
6 3A 14.908W 80.836% 0.491
4.969V 18.441W 115.09V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 49.904% 0.022
5.113V 0.461W 230.28V
2 0.09A 0.46W 64.083% 0.034
5.111V 0.719W 230.28V
3 0.55A 2.799W 81.246% 0.147
5.089V 3.449W 230.28V
4 1A 5.067W 83.093% 0.225
5.067V 6.1W 230.27V
5 1.5A 7.564W 83.298% 0.282
5.042V 9.077W 230.28V
6 3A 14.908W 82.638% 0.364
4.969V 18.039W 230.28V

Protection Features

OCP (Normal @ 29.1°C)12V: 81.40A (130.24%), 12.084V
5V: 19.8A (110.00%), 5.014V
3.3V: 27.3A (151.67%), 3.259V
5VSB: 5.2A (173.33%), 4.851V
OCP (Hot @ 42.3°C)12V: 72.60A (116.16%), 12.087V
5V: 18.6A (103.33%), 4.995V
3.3V: 26.2A (145.56%), 3.244V
5VSB: 5.2A (173.33%), 4.842V
OPP (Normal @ 29.1°C)986.65W (131.55%)
OPP (Hot @ 42.5°C)881.17W (117.49%)
OTP✓ (161°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.420A 1.968A 1.975A 0.99A 75.009 86.623% 660 12 40.17°C 0.979
12.084V 5.081V 3.343V 5.053V 86.594 42.48°C 115.07V
20% 9.854A 2.96A 2.973A 1.192A 149.953 89.845% 662 12 40.71°C 0.994
12.081V 5.068V 3.33V 5.032V 166.902 44.1°C 115.05V
30% 15.643A 3.461A 3.481A 1.397A 224.959 91.054% 665 12 41.41°C 0.984
12.076V 5.057V 3.318V 5.012V 247.059 48.66°C 115.01V
40% 21.445A 3.966A 3.994A 1.603A 300.053 91.194% 669 12 41.62°C 0.983
12.070V 5.044V 3.305V 4.99V 329.025 52.97°C 114.98V
50% 26.857A 4.973A 5.015A 1.812A 374.513 90.735% 800 15.9 42.16°C 0.985
12.064V 5.029V 3.29V 4.968V 412.755 56.8°C 114.95V
60% 32.311A 5.984A 6.043A 2A 449.312 90.117% 1165 26.5 42.98°C 0.988
12.058V 5.015V 3.277V 4.946V 498.585 56.18°C 114.92V
70% 37.774A 7A 7.079A 2.235A 524.343 89.395% 1501 33.8 43.16°C 0.991
12.051V 5.002V 3.264V 4.923V 586.546 55.32°C 114.89V
80% 43.310A 8.018A 8.121A 2.345A 599.531 88.593% 1835 39.6 43.84°C 0.992
12.044V 4.989V 3.25V 4.905V 676.725 55.19°C 114.86V
90% 49.187A 8.543A 8.651A 2.456A 674.565 87.629% 1865 39.6 44.5°C 0.994
12.037V 4.975V 3.236V 4.888V 769.804 62.03°C 114.83V
100% 54.866A 9.075A 9.22A 3.099A 749.777 86.512% 1866 40 45.34°C 0.994
12.031V 4.959V 3.221V 4.842V 866.672 66.48°C 114.81V
110% 60.423A 10.118A 10.389A 3.108A 824.795 85.15% 1868 40 46.8°C 0.995
12.024V 4.942V 3.205V 4.827V 968.635 72.79°C 114.78V
CL1 0.116A 12.003A 12.052A 0A 101.3 81.027% 663 12 40.53°C 0.989
12.095V 5.015V 3.294V 5.079V 125.023 49.05°C 115.05V
CL4 55.221A 0A 0.001A 0.001A 736.357 87.953% 1865 39.6 45.24°C 0.795
12.043V 5.024V 3.276V 5.04V 677.411 62.58°C 114.88V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.418A 1.968A 1.976A 0.989A 75.001 87.875% 664 12 40.16°C 0.86
12.086V 5.081V 3.34V 5.054V 85.352 45.2°C 230.28V
20% 9.851A 2.961A 2.975A 1.192A 149.934 91.343% 667 12 40.87°C 0.898
12.083V 5.067V 3.327V 5.032V 164.144 45.74°C 230.26V
30% 15.641A 3.462A 3.483A 1.397A 224.938 92.634% 669 12 41.12°C 0.916
12.077V 5.056V 3.316V 5.011V 242.819 47.12°C 230.24V
40% 21.443A 3.966A 3.995A 1.603A 300.029 92.879% 672 12 41.65°C 0.94
12.070V 5.044V 3.304V 4.99V 323.03 49.93°C 230.22V
50% 26.853A 4.973A 5.017A 1.812A 374.451 92.607% 830 17.5 42.42°C 0.958
12.064V 5.028V 3.289V 4.968V 404.345 51.33°C 230.21V
60% 32.309A 5.984A 6.045A 2A 449.258 92.2% 1186 27.6 42.53°C 0.969
12.057V 5.014V 3.276V 4.946V 487.267 50°C 230.2V
70% 37.774A 7A 7.081A 2.235A 524.294 91.731% 1500 33.8 43.21°C 0.976
12.050V 5.001V 3.263V 4.922V 571.558 48.48°C 230.18V
80% 43.310A 8.019A 8.124A 2.345A 599.489 91.183% 1861 39.6 43.66°C 0.983
12.043V 4.988V 3.249V 4.905V 657.462 48.64°C 230.17V
90% 49.187A 8.542A 8.651A 2.455A 674.521 90.652% 1862 39.6 44.24°C 0.985
12.036V 4.975V 3.236V 4.888V 744.076 49.58°C 230.15V
100% 54.863A 9.07A 9.216A 3.098A 749.736 89.985% 1869 40 45.6°C 0.987
12.031V 4.961V 3.222V 4.842V 833.183 52.16°C 230.14V
110% 60.419A 10.117A 10.391A 3.108A 824.756 89.127% 1871 40 46.77°C 0.989
12.024V 4.942V 3.204V 4.826V 925.37 55.68°C 230.13V
CL1 0.116A 12A 12.05A 0A 101.294 82.606% 662 12 41.75°C 0.896
12.095V 5.016V 3.294V 5.079V 122.631 44.4°C 230.25V
CL4 62.346A 0A 0A 0.001A 749.579 90.952% 1868 40 45.93°C 0.987
12.023V 5.01V 3.261V 5.021V 824.155 51.39°C 230.14V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.49A 0.491A 0.196A 20.006 77.506% 650 12 36.08°C 0.879
12.101V 5.099V 3.359V 5.101V 25.815 38.32°C 115.09V
40W 2.703A 0.687A 0.689A 0.294A 40.005 83.422% 657 12 37.69°C 0.948
12.096V 5.093V 3.354V 5.094V 47.955 40.46°C 115.08V
60W 4.180A 0.884A 0.887A 0.393A 60.005 85.609% 659 12 38.68°C 0.965
12.087V 5.089V 3.349V 5.087V 70.094 41.66°C 115.07V
80W 5.655A 1.082A 1.085A 0.492A 79.955 87.294% 660 12 39.19°C 0.977
12.082V 5.085V 3.346V 5.079V 91.593 42.56°C 115.07V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.49A 0.491A 0.196A 19.996 78.032% 652 12 36.86°C 0.61
12.105V 5.098V 3.358V 5.103V 25.625 38.52°C 230.32V
40W 2.702A 0.687A 0.689A 0.294A 39.996 84.555% 657 12 37.2°C 0.762
12.098V 5.094V 3.353V 5.095V 47.304 38.54°C 230.3V
60W 4.180A 0.884A 0.886A 0.393A 59.996 86.742% 658 12 38.9°C 0.833
12.088V 5.091V 3.35V 5.087V 69.168 38.42°C 230.29V
80W 5.654A 1.081A 1.084A 0.492A 79.936 88.763% 658 12 39.43°C 0.869
12.082V 5.088V 3.347V 5.08V 90.054 39.75°C 230.28V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load30.88mV11.39mV11.43mV8.77mVPass
20% Load33.62mV11.59mV12.36mV9.50mVPass
30% Load33.15mV11.85mV12.82mV9.34mVPass
40% Load40.16mV12.42mV14.11mV10.32mVPass
50% Load42.38mV13.19mV14.79mV10.94mVPass
60% Load43.87mV13.91mV15.82mV11.56mVPass
70% Load52.59mV14.84mV17.11mV12.85mVPass
80% Load52.89mV16.75mV20.11mV12.96mVPass
90% Load58.52mV16.49mV20.27mV14.14mVPass
100% Load59.93mV17.17mV21.73mV14.11mVPass
110% Load62.74mV17.26mV23.03mV15.43mVPass
Crossload163.77mV14.50mV15.51mV11.49mVPass
Crossload20.00mV0.00mV0.00mV0.00mVPass
Crossload30.00mV0.00mV0.00mV0.00mVPass
Crossload454.40mV14.43mV18.82mV15.66mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load38.93mV12.47mV12.46mV9.45mVPass
20% Load43.21mV13.81mV13.75mV9.45mVPass
30% Load39.29mV13.55mV14.12mV10.58mVPass
40% Load46.97mV13.86mV14.43mV11.05mVPass
50% Load44.13mV14.37mV16.13mV11.15mVPass
60% Load44.75mV15.20mV17.53mV12.03mVPass
70% Load48.72mV15.97mV18.00mV12.96mVPass
80% Load53.26mV17.10mV19.86mV13.68mVPass
90% Load61.92mV17.57mV21.00mV14.30mVPass
100% Load62.44mV17.46mV22.74mV14.47mVPass
110% Load67.46mV18.10mV23.26mV15.77mVPass
Crossload168.65mV15.30mV16.61mV11.60mVPass
Crossload20.00mV0.00mV0.00mV0.00mVPass
Crossload30.00mV0.00mV0.00mV0.00mVPass
Crossload450.99mV16.16mV20.23mV16.56mVPass

The results above are not used in the certification process

Iron Pride Creator 750W

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
