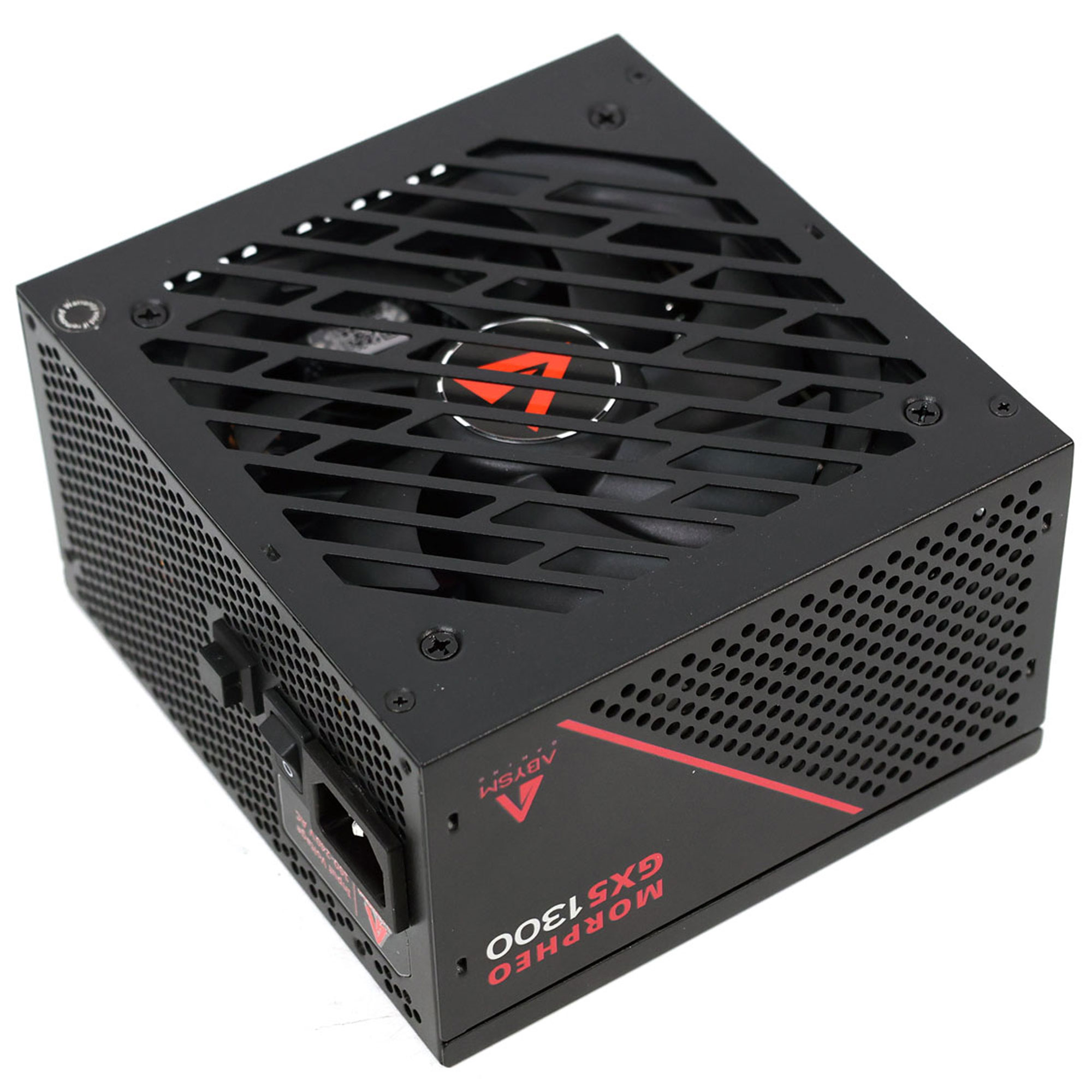

ABYSM GAMING Morpheo GX5 1300W
Serial NumberAB1825AB231301LCP0289
Lab IDAB13003149
Certification ID263149
  • Test Result Report ID: 26PS3149A
  • Certificate Issue Date: Feb 6, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandABYSM GAMING
Manufacturer (OEM)Helly
SeriesMorpheo GX5
Model NumberAB231301
Serial NumberAB1825AB231301LCP0289
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)7.5-15
Rated Frequency (Hz)50-60
Rated Power (W)1300
TypeATX12V
Dimensions (W x H x D)150 x 85 x 140mm

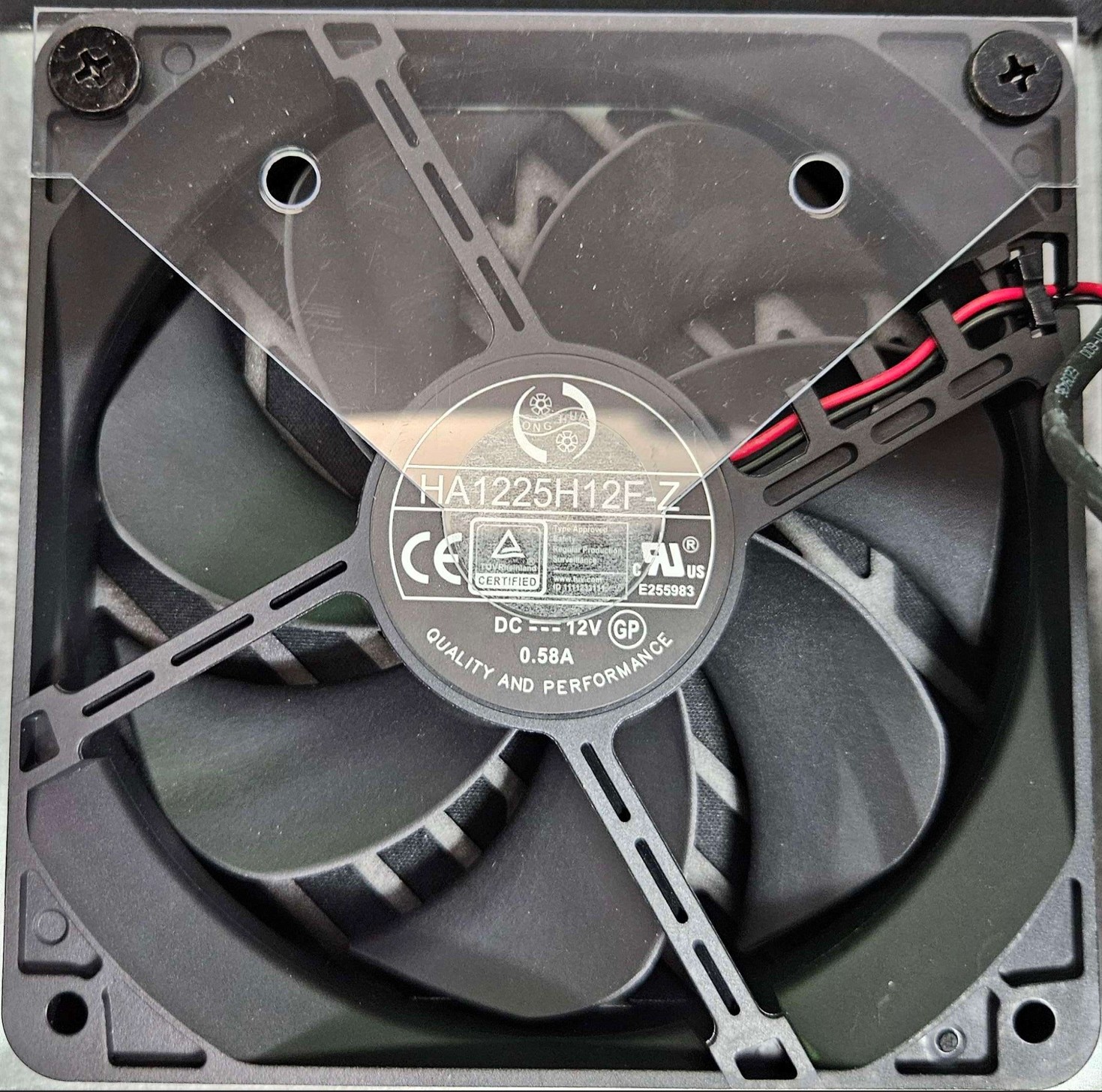

Cooling120mm Fluid Dynamic Bearing Fan (HA1225H12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202010830.3
Watts1201296153.6
Total Max. Power (W)1300

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 16-22AWG Tinned Copper
4+4 pin EPS12V (650mm) 2 2 16AWG Tinned Copper
6+2 pin PCIe (675mm) 4 4 16AWG Tinned Copper
12+4 pin PCIe (700mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (450mm+120mm+120mm+120mm) 3 12 18AWG Tinned Copper
4-pin Molex (450mm+120mm+120mm+120mm) 1 4 18AWG Tinned Copper

Parts Description

General Data
Manufacturer (OEM) Helly
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF73T-2 20/7 (20 Ohm @ 25°C) & Relay
Bridge Rectifier
2x Willas GBU15J (600V, 15A @ 100°C)
APFC MOSFETs
2x Infineon IPP60R060P7 (650V, 30A @ 100°C, Rds(on): 0.060Ohm)
APFC Boost Diode
Global Power Technology G3S06510A (650V, 10A @ 155°C)
Bulk Cap(s)
2x Nichicon (400V, 680uF each or 1360uF combined, 2000h @ 105°C, GL)
Main Switchers
4x Oriental Semiconductor OSG55R140FF (550V, 14.5A @ 100°C, Rds(on): 140mOhm)

APFC Controller

Champion CM6500UNX
Resonant Controller
Champion CM6901T6X
Topology Primary side: APFC, Full-Bridge & LLC Resonant Converter
Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
Secondary Side
+12V MOSFETs 12x Hauyi Microelectronics HYG009N04 (40V, 233A @ 100°C, Rds(on): 0.96mOhm)
5V & 3.3V DC-DC Converters: 2x XSEMI XP3NA3R4MT (30V, 46A @ 100°C, Rds(on): 3.4mOhm)
3x Rectron Semiconductor RMN3N5R0DF (30V, 19.7A @ 70°C, Rds(on): 5mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors

Electrolytic:
4x Nippon Chemi-Con (2000h @ 105°C, KZE)
3x Rubycon (4000h @ 105°C, YXF)
Polymer:
23x ChengX (PC), 7x Beryl
Supervisor IC Weltrend WT7527RA (OVP, UVP, OCP, PG)
Fan Model Hong Hua HA1225M12F-Z (120mm, 12V, 0.58A, Rifle Bearing Fan)
5VSB Circuit
Rectifier
Bourns P6SMB
Standby PWM Controller
Excelliance MOS EMB8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓
Commission Regulation (EU) No 617/2013 Testing✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingStandard+
Average Efficiency (>1450 load combinations)90.207%
Average Noise Output (>1450 Load Combinations)35.56dBA
Average PF (>1450 Load Combinations)0.992
Efficiency With 10W (≤500W) or 2% (>500W) Load72.934%
Standby Power Consumption0.0536W
12V Ripple (Full Load)34.21mV
5V Ripple (Full Load)26.63mV
3.3V Ripple (Full Load)21.96mV
5VSB Ripple (Full Load)16.97mV
12V Load Regulation0.31%
5V Load Regulation0.50%
3.3V Load Regulation1.10%
5VSB Load Regulation1.02%
Inrush Current12.890A
Efficiency RatingPLATINUM
Noise RatingStandard+
Average Efficiency (>1450 load combinations)92.428%
Average Noise Output (>1450 Load Combinations)35.14dBA
Average PF (>1450 Load Combinations)0.974
Efficiency With 10W (≤500W) or 2% (>500W) Load73.529%
Standby Power Consumption0.0866W
12V Ripple (Full Load)33.60mV
5V Ripple (Full Load)24.40mV
3.3V Ripple (Full Load)21.40mV
5VSB Ripple (Full Load)14.40mV
12V Load Regulation0.22%
5V Load Regulation0.48%
3.3V Load Regulation1.19%
5VSB Load Regulation1.04%
Inrush Current24.200A
12V Transient Response (200%)11.28V
5V Transient Response (200%)4.883V
3.3V Transient Response (200%)3.231V
5VSB Transient Response (200%)4.906V
Hold-Up Time & Power Ok Signal24.30ms
AC Loss to PWR_OK Hold Up Time22.10ms
PWR_OK Inactive to DC Loss Delay2.20ms
PSU Timings: T1 (20% / 100%)58.0ms59.0ms
PSU Timings: T3 (20% / 100%)125.0ms123.0ms
12V OCP (28.4°C / 43.3°C)133.40A (123.52%), 12.173V127.20A (117.78%), 12.202V
5V OCP (28.4°C / 43.3°C)31.6A (158.00%), 5.006V31.3A (156.50%), 5.01V
3.3V OCP (28.4°C / 43.3°C)34A (170.00%), 3.349V33.6A (168.00%), 3.348V
5VSB OCP (28.4°C / 43.3°C)4.3A (143.33%), 4.811V4.3A (143.33%), 4.798V
OPP (28.80°C / 42.73°C)131.31%126.39%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)24.3
AC Loss to PWR_OK Hold Up Time (ms)22.1
PWR_OK Inactive to DC Loss Delay (ms)2.2

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.05 V 115.02 V 113.85 V 115.06 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.94 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.054 W 0.035 W N/A 0.076 W N/A N/A
Apparent Power: 7.215 W 7.194 W N/A 7.235 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.12 V 230.09 V 227.70 V 230.13 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.087 W 0.051 W N/A 0.177 W N/A N/A
Apparent Power: 23.114 W 23.077 W N/A 23.152 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

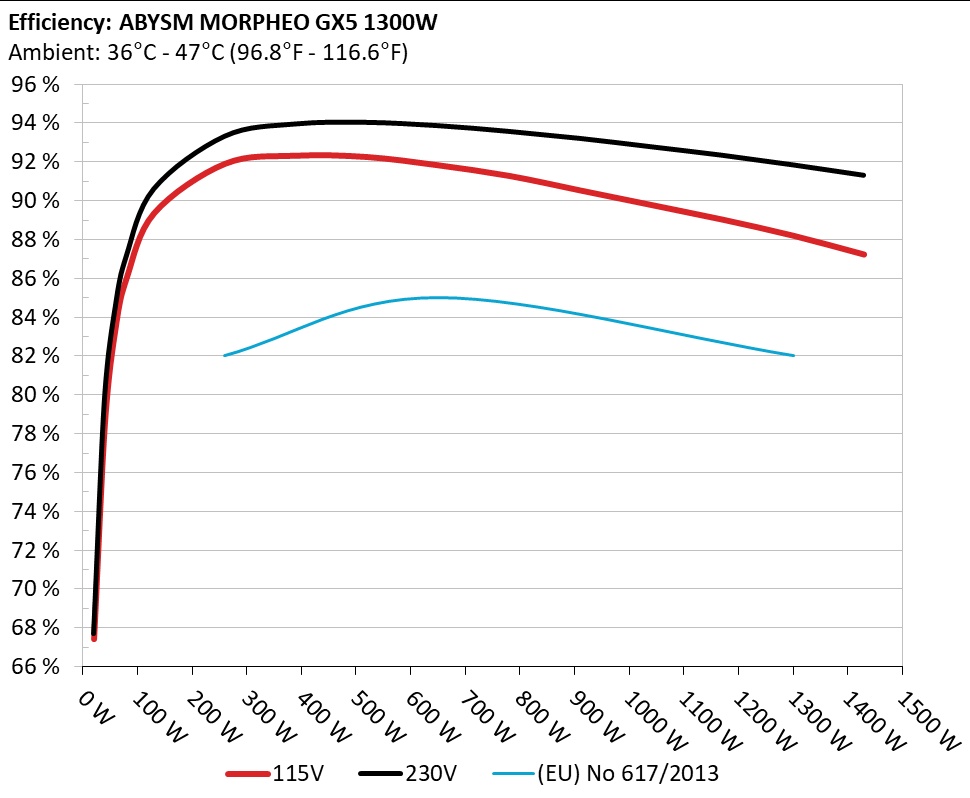

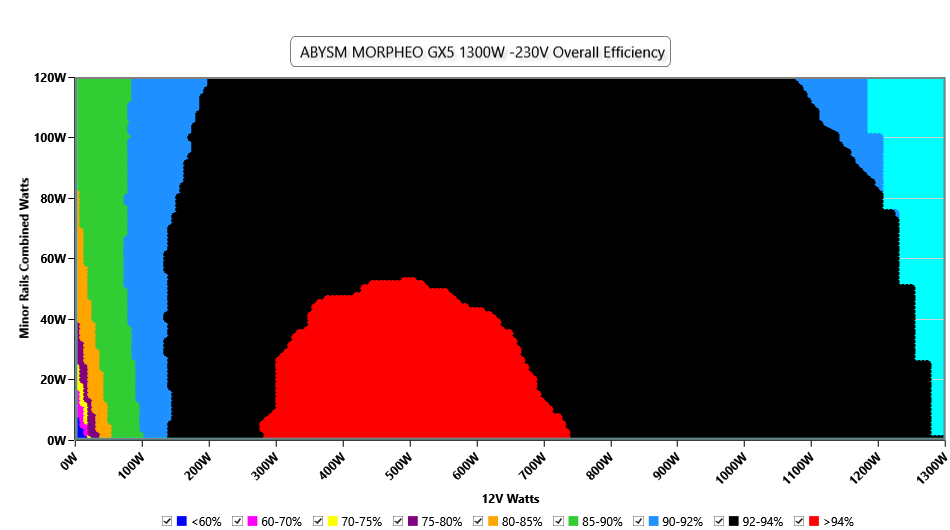

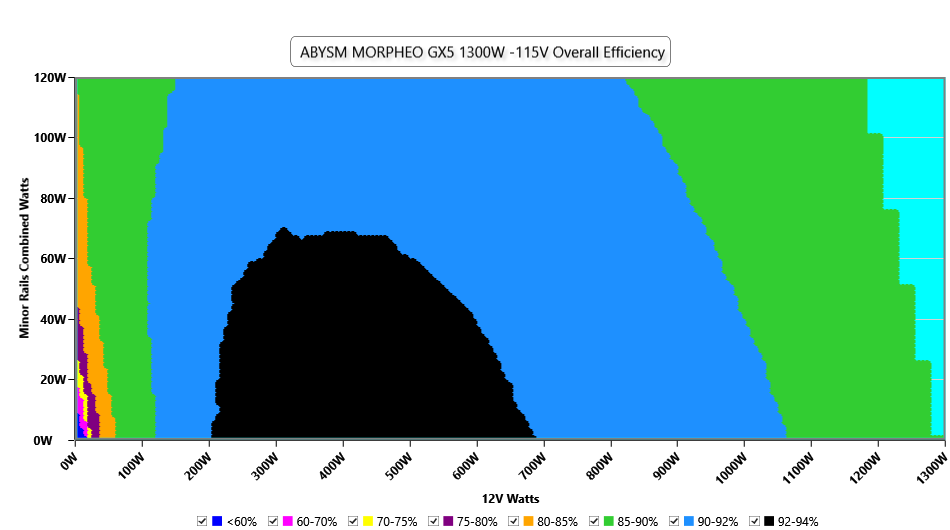

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

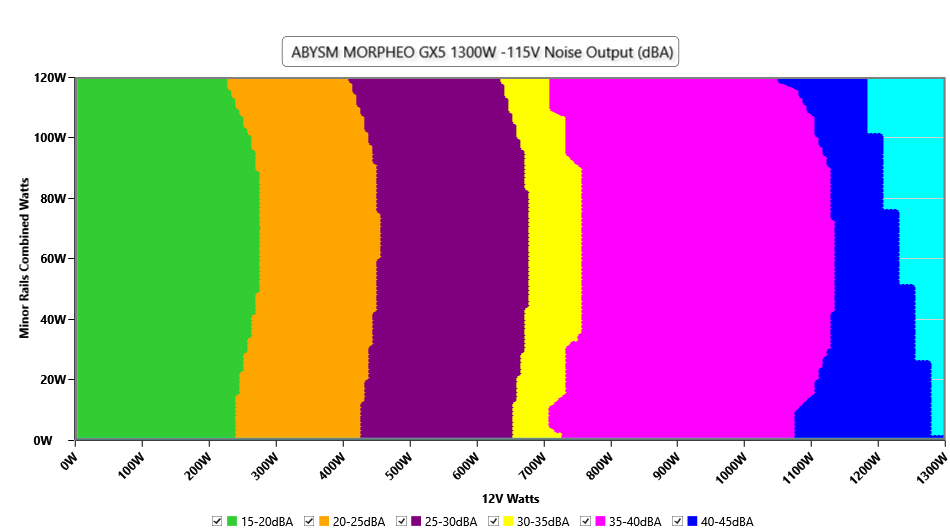

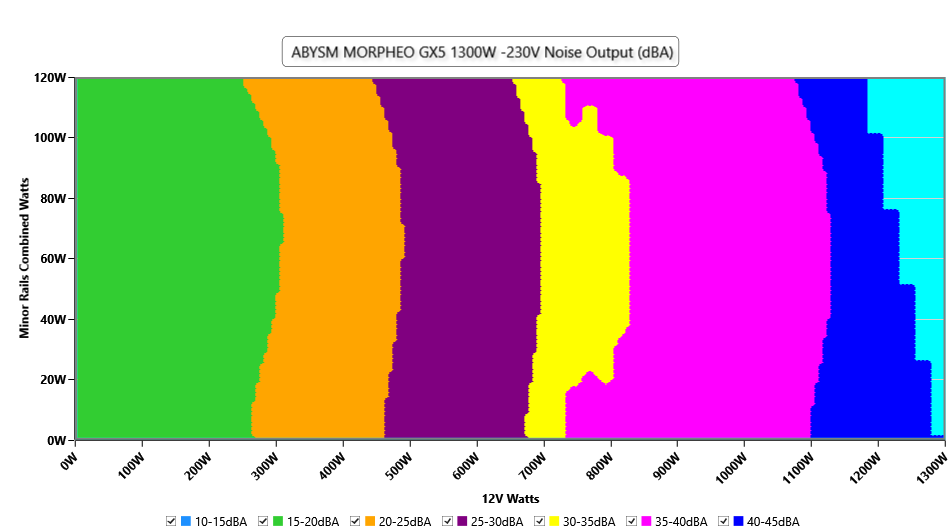

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

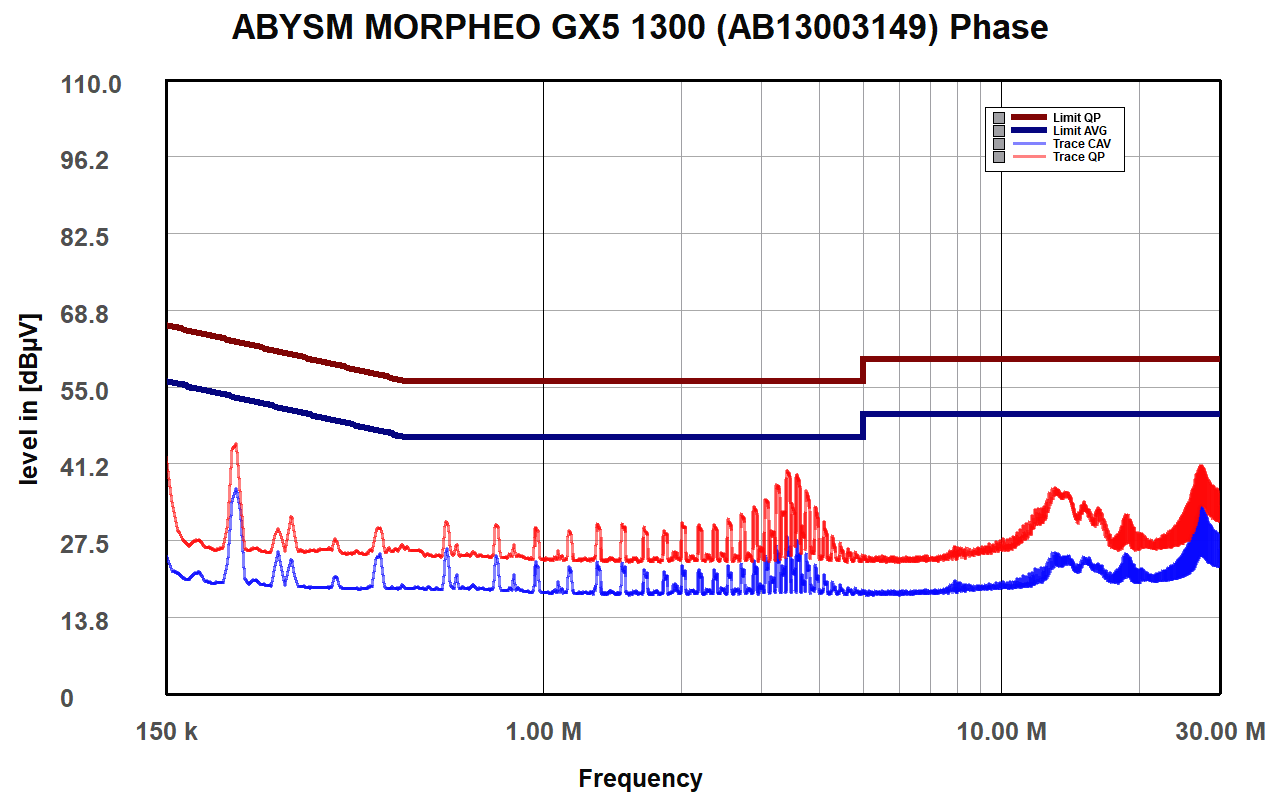

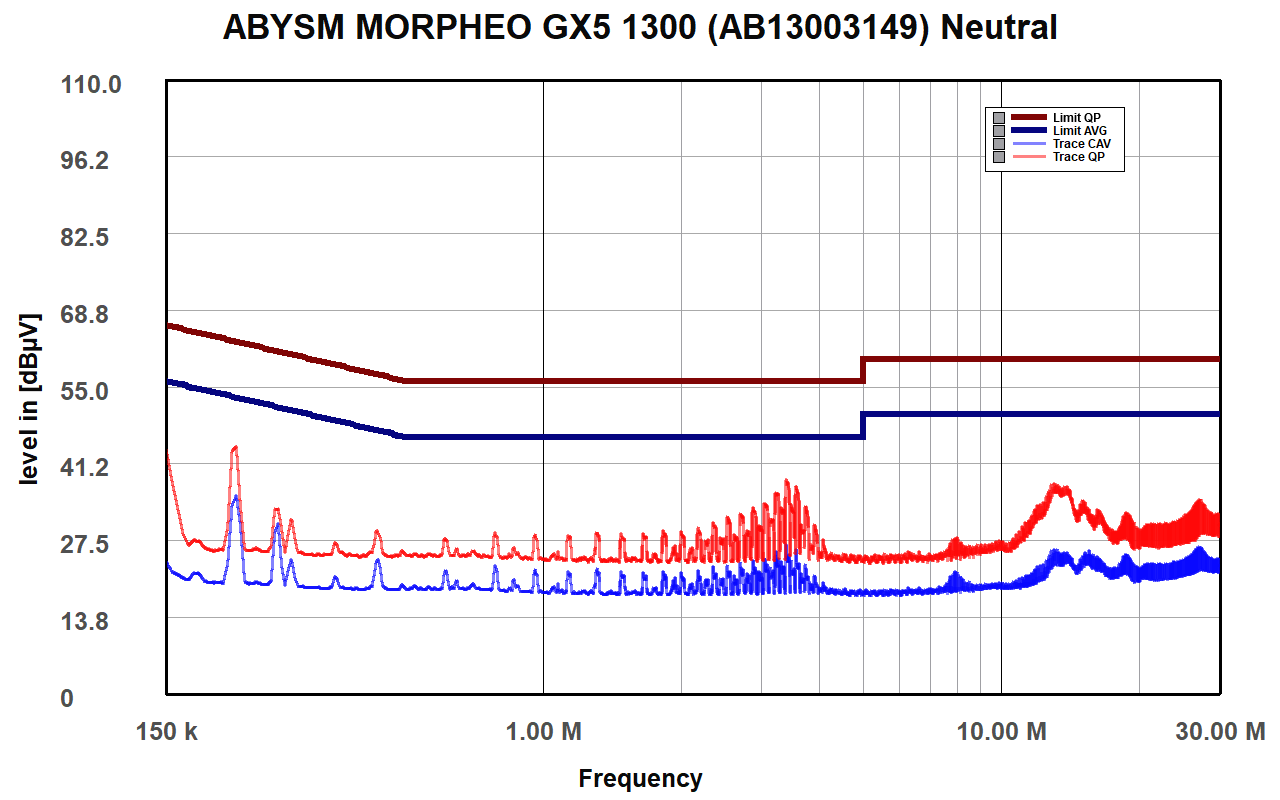

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

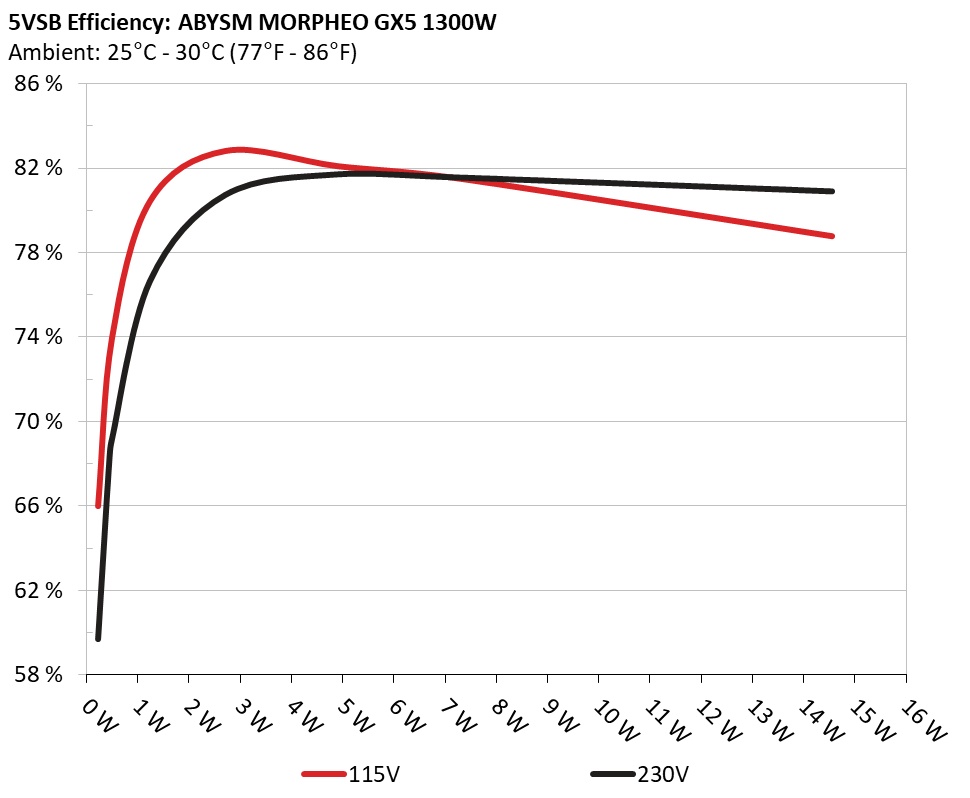

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.222W 66.004% 0.049
4.938V 0.337W 115.09V
2 0.09A 0.445W 74.831% 0.084
4.936V 0.595W 115.09V
3 0.55A 2.708W 82.823% 0.334
4.923V 3.27W 115.08V
4 1A 4.911W 82.101% 0.45
4.91V 5.982W 115.08V
5 1.5A 7.345W 81.494% 0.511
4.896V 9.012W 115.08V
6 3A 14.559W 78.79% 0.587
4.852V 18.479W 115.07V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.222W 59.674% 0.017
4.937V 0.372W 230.23V
2 0.09A 0.445W 68.272% 0.029
4.936V 0.652W 230.23V
3 0.55A 2.708W 80.719% 0.14
4.923V 3.355W 230.23V
4 1A 4.911W 81.692% 0.227
4.91V 6.012W 230.26V
5 1.5A 7.345W 81.533% 0.3
4.896V 9.008W 230.29V
6 3A 14.559W 80.885% 0.418
4.853V 17.999W 230.3V

Protection Features

OCP (Normal @ 28.4°C)12V: 133.40A (123.52%), 12.173V
5V: 31.6A (158.00%), 5.006V
3.3V: 34A (170.00%), 3.349V
5VSB: 4.3A (143.33%), 4.811V
OCP (Hot @ 43.3°C)12V: 127.20A (117.78%), 12.202V
5V: 31.3A (156.50%), 5.01V
3.3V: 33.6A (168.00%), 3.348V
5VSB: 4.3A (143.33%), 4.798V
OPP (Normal @ 28.8°C)1707.00W (131.31%)
OPP (Hot @ 42.7°C)1643.01W (126.39%)
OTP✓ (140°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.893A 1.999A 1.961A 1.001A 129.986 89.367% 1339 29.5 40.25°C 0.978
12.187V 5.003V 3.366V 4.993V 145.454 45.14°C 115.06V
20% 18.793A 3A 2.944A 1.202A 259.943 91.916% 1374 30.1 40.54°C 0.985
12.188V 5V 3.362V 4.99V 282.802 45.57°C 115.01V
30% 29.010A 3.502A 3.439A 1.404A 389.571 92.329% 1407 30.6 41.13°C 0.991
12.186V 4.998V 3.359V 4.985V 421.942 46.21°C 114.97V
40% 39.258A 4.004A 3.935A 1.606A 519.54 92.262% 1461 31.9 41.65°C 0.994
12.184V 4.996V 3.355V 4.98V 563.116 46.74°C 114.92V
50% 49.181A 5.008A 4.925A 1.808A 649.694 91.838% 1710 37.4 42.16°C 0.996
12.183V 4.993V 3.351V 4.977V 707.436 46.76°C 114.88V
60% 59.100A 6.012A 5.916A 2A 779.778 91.289% 1822 39 42.61°C 0.996
12.183V 4.991V 3.347V 4.975V 854.18 49.28°C 114.83V
70% 68.987A 7.018A 6.91A 2.213A 909.926 90.539% 2007 41.1 43.26°C 0.997
12.189V 4.988V 3.344V 4.972V 1005.01 53.18°C 114.78V
80% 78.882A 8.022A 7.904A 2.314A 1039.512 89.792% 2131 43.5 43.65°C 0.997
12.191V 4.986V 3.34V 4.971V 1157.698 55.06°C 114.73V
90% 89.165A 8.527A 8.393A 2.416A 1169.733 89.04% 2149 43.8 44.15°C 0.997
12.193V 4.984V 3.336V 4.968V 1313.721 58°C 114.69V
100% 99.179A 9.033A 8.911A 3.027A 1299.326 88.213% 2154 43.8 45.01°C 0.997
12.196V 4.982V 3.333V 4.955V 1472.939 61.32°C 114.65V
110% 109.144A 10.039A 10.002A 3.026A 1429.51 87.241% 2161 43.9 46.28°C 0.997
12.197V 4.98V 3.329V 4.957V 1638.579 64.1°C 114.6V
CL1 0.115A 14.453A 14.195A 0A 121.299 83.13% 1875 39.8 40.79°C 0.979
12.194V 4.995V 3.36V 5.067V 145.911 42.84°C 115.06V
CL2 0.114A 20.013A 0A 0A 101.365 82.202% 1406 30.6 40.37°C 0.977
12.184V 4.995V 3.369V 5.097V 123.306 42.09°C 115.06V
CL3 0.113A 0A 19.651A 0A 67.379 77.387% 1395 30.5 40.79°C 0.966
12.178V 5.005V 3.358V 5V 87.064 41.14°C 115.08V
CL4 106.686A 0A 0A 0A 1299.868 88.823% 2157 43.8 45.05°C 0.997
12.184V 4.991V 3.34V 4.976V 1463.443 58.42°C 114.66V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.897A 1.999A 1.961A 1.002A 129.999 90.606% 1278 28.3 40.2°C 0.933
12.185V 5.003V 3.365V 4.992V 143.479 43.15°C 230.26V
20% 18.798A 3A 2.945A 1.203A 259.96 93.323% 1322 29.3 40.65°C 0.964
12.186V 5.001V 3.361V 4.989V 278.556 44.06°C 230.24V
30% 29.013A 3.501A 3.44A 1.405A 389.598 93.952% 1392 30.5 41.43°C 0.975
12.186V 4.999V 3.357V 4.984V 414.676 45.09°C 230.22V
40% 39.249A 4.003A 3.936A 1.607A 519.548 94.032% 1660 36 41.7°C 0.98
12.187V 4.997V 3.354V 4.979V 552.519 45.49°C 230.2V
50% 49.163A 5.007A 4.926A 1.809A 649.689 93.866% 1756 37.6 42.48°C 0.983
12.188V 4.994V 3.35V 4.976V 692.146 46.9°C 230.18V
60% 59.066A 6.011A 5.919A 2A 779.765 93.569% 1846 39.6 42.55°C 0.986
12.190V 4.992V 3.346V 4.974V 833.354 47.3°C 230.15V
70% 68.969A 7.016A 6.914A 2.213A 909.898 93.208% 1964 41.2 43.31°C 0.988
12.191V 4.99V 3.341V 4.971V 976.208 48.75°C 230.14V
80% 78.865A 8.019A 7.91A 2.314A 1039.501 92.781% 2082 42.4 43.81°C 0.989
12.194V 4.988V 3.337V 4.97V 1120.374 49.6°C 230.12V
90% 89.152A 8.523A 8.399A 2.416A 1169.733 92.344% 2146 43.7 44.98°C 0.99
12.195V 4.986V 3.334V 4.967V 1266.707 51.28°C 230.09V
100% 99.158A 9.029A 8.919A 3.028A 1299.33 91.849% 2151 43.8 45.65°C 0.991
12.199V 4.983V 3.33V 4.954V 1414.646 53.62°C 230.07V
110% 109.101A 10.037A 10.012A 3.028A 1429.514 91.31% 2160 43.9 46.8°C 0.991
12.202V 4.981V 3.325V 4.955V 1565.558 55.52°C 230.04V
CL1 0.115A 14.443A 14.21A 0A 121.303 84.433% 1883 39.8 41.15°C 0.934
12.194V 4.999V 3.356V 5.066V 143.67 45.1°C 230.26V
CL2 0.115A 19.993A 0A 0A 101.375 83.238% 1709 37.4 40.93°C 0.922
12.191V 5V 3.369V 5.097V 121.789 43.68°C 230.27V
CL3 0.114A 0A 19.674A 0A 67.384 78.033% 1674 36.5 41.13°C 0.889
12.184V 5.004V 3.354V 5V 86.354 42.94°C 230.27V
CL4 106.587A 0A 0A 0A 1299.881 92.295% 2154 43.8 45.93°C 0.99
12.195V 4.99V 3.339V 4.975V 1408.406 53.3°C 230.07V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.221A 0.499A 0.49A 0.2A 19.996 67.422% 940 17.8 36.28°C 0.916
12.158V 5.007V 3.37V 5.006V 29.658 38.4°C 115.1V
40W 2.684A 0.699A 0.686A 0.3A 39.997 78.577% 1046 21.7 37.6°C 0.947
12.174V 5.007V 3.37V 5.005V 50.9 39.61°C 115.09V
60W 4.150A 0.899A 0.881A 0.4A 59.997 83.558% 1057 22.1 38.47°C 0.964
12.174V 5.007V 3.369V 5.003V 71.802 39.08°C 115.08V
80W 5.609A 1.099A 1.078A 0.5A 79.935 86.041% 1174 25.4 39.18°C 0.966
12.178V 5.005V 3.368V 5V 92.905 41.63°C 115.08V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.499A 0.49A 0.2A 20.002 67.713% 1112 23.6 36.62°C 0.668
12.173V 5.007V 3.37V 5.006V 29.535 38.95°C 230.28V
40W 2.684A 0.699A 0.686A 0.3A 40.002 79.855% 1129 24.1 37.31°C 0.797
12.178V 5.007V 3.37V 5.004V 50.093 38.93°C 230.28V
60W 4.150A 0.899A 0.882A 0.4A 60.001 84.599% 1140 24.4 38.27°C 0.861
12.178V 5.007V 3.369V 5.003V 70.924 39.51°C 230.28V
80W 5.609A 1.099A 1.078A 0.5A 79.945 87.156% 1179 25.6 39.19°C 0.896
12.180V 5.005V 3.368V 5V 91.728 40.52°C 230.27V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load25.52mV16.38mV15.56mV11.20mVPass
20% Load27.01mV19.27mV15.62mV12.34mVPass
30% Load26.96mV18.81mV16.39mV12.08mVPass
40% Load25.93mV20.45mV17.37mV12.80mVPass
50% Load27.53mV20.71mV18.15mV13.37mVPass
60% Load26.97mV21.64mV18.82mV14.14mVPass
70% Load27.32mV23.13mV18.98mV14.97mVPass
80% Load29.39mV23.96mV20.32mV15.28mVPass
90% Load30.73mV25.40mV21.62mV16.21mVPass
100% Load34.21mV26.63mV21.96mV16.97mVPass
110% Load35.27mV29.50mV24.63mV19.15mVPass
Crossload127.57mV17.45mV17.06mV11.55mVPass
Crossload227.58mV24.21mV16.55mV16.72mVPass
Crossload326.24mV16.23mV18.41mV10.58mVPass
Crossload432.38mV24.64mV21.42mV16.24mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load26.71mV18.24mV16.29mV10.79mVPass
20% Load26.86mV18.19mV16.45mV11.72mVPass
30% Load28.46mV19.06mV16.81mV11.82mVPass
40% Load27.58mV19.78mV17.01mV12.54mVPass
50% Load27.38mV21.33mV18.25mV12.49mVPass
60% Load27.79mV22.25mV18.46mV12.85mVPass
70% Load28.41mV22.98mV19.24mV13.99mVPass
80% Load29.70mV23.55mV19.96mV14.25mVPass
90% Load31.71mV24.47mV21.46mV14.19mVPass
100% Load33.60mV24.40mV21.40mV14.40mVPass
110% Load34.29mV27.62mV21.37mV15.05mVPass
Crossload127.24mV18.04mV16.98mV11.58mVPass
Crossload228.41mV24.11mV16.75mV15.64mVPass
Crossload328.20mV16.59mV18.56mV10.63mVPass
Crossload431.97mV23.07mV20.33mV13.22mVPass

The results above are not used in the certification process

ABYSM GAMING Morpheo GX5 1300W

Top side
Power specifications label
Fan

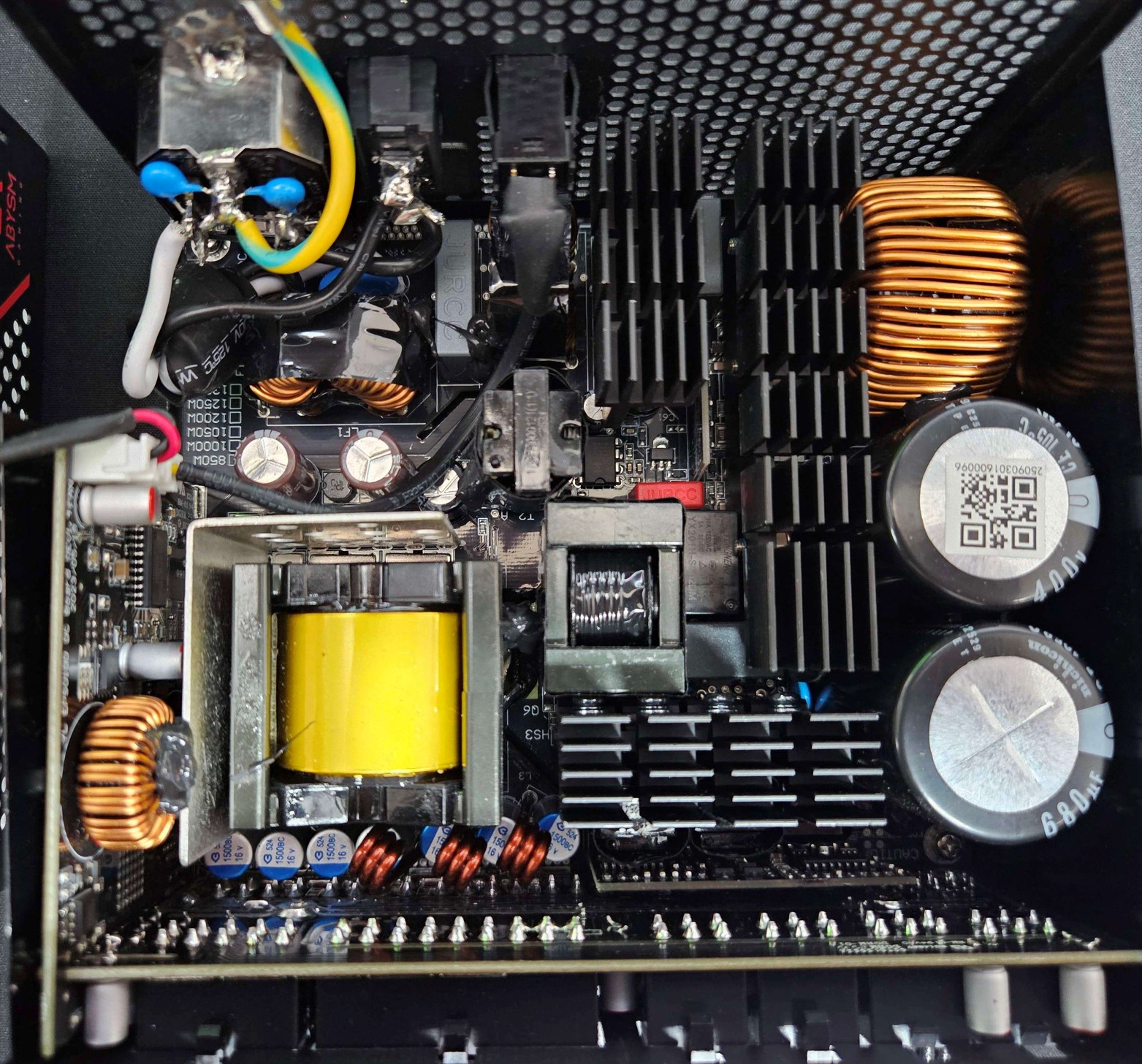

PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
