Sharkoon Rebel P20 Gen2 750
Serial Number-
Lab IDSK75003156
Certification ID263156
  • Test Result Report ID: 26PS3156A
  • Certificate Issue Date: Jan 27, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSharkoon
Manufacturer (OEM)Andyson
SeriesRebel P20 Gen2
Model NumberRebel P20 Gen 2 750
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)4.5-9
Rated Frequency (Hz)50-60
Rated Power (W)750
TypeATX12V
Dimensions (W x H x D)150 x 85 x 140mm

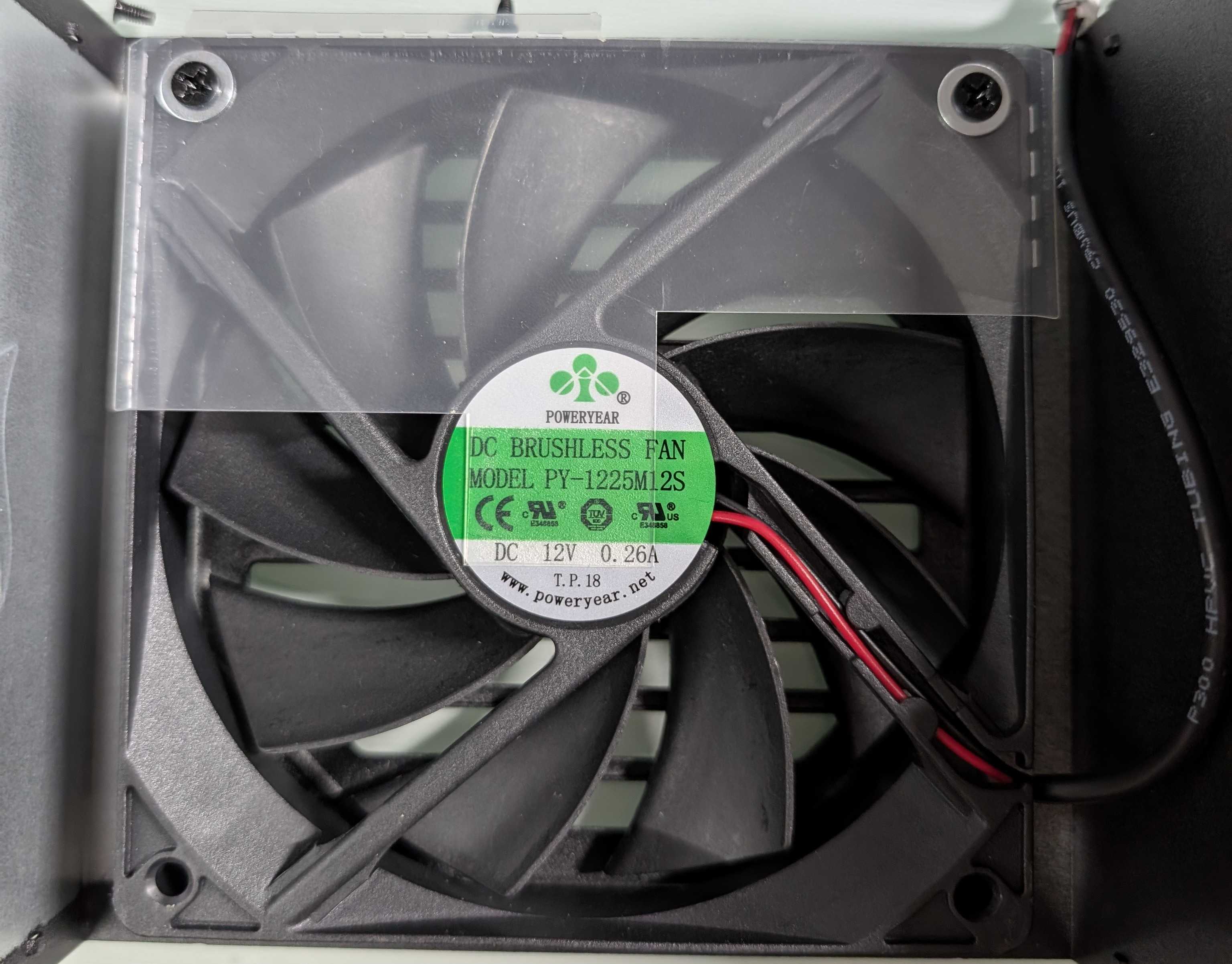

Cooling120mm Sleeve Bearing Fan (PY-1225H12S)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181862.530.3
Watts100750153.6
Total Max. Power (W)750

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Tinned Copper
4+4 pin EPS12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (600mm) 3 3 18AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (500mm+150mm+150mm+150mm) 1 4 18AWG Tinned Copper
SATA (500mm+150mm+150mm) / 4-pin Molex (+150mm) 1 3 / 1 18AWG Tinned Copper

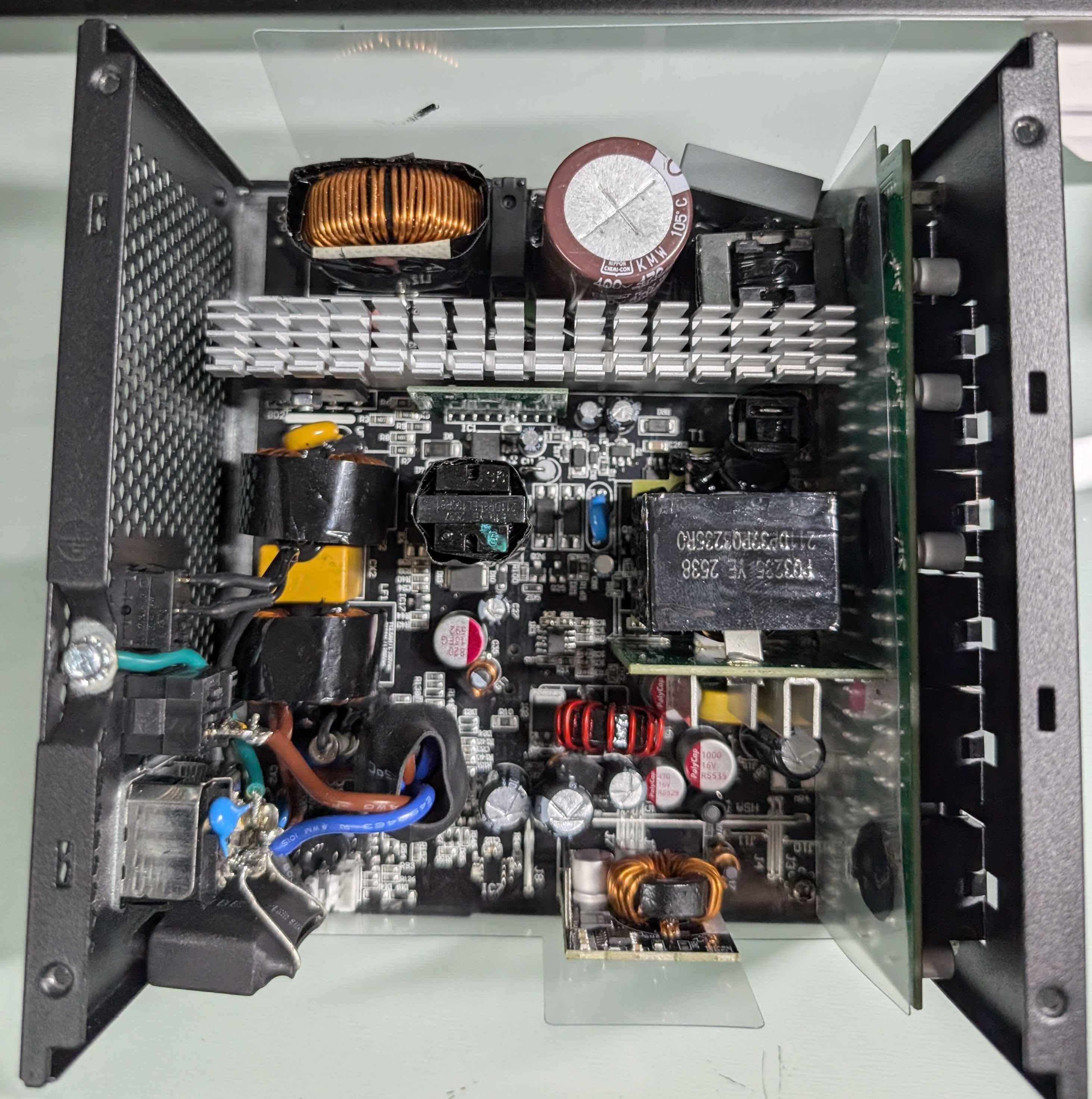

Parts Description

General Data
Manufacturer (OEM) Andyson
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-056 (5 Ohm @ 25°C) & Relay
Bridge Rectifier(s) 2x  GBU1006 (600V, 10A @ 80°C)
APFC MOSFETs 2x PingWei PWE180N65SFMF (650V, 13A @ 100°C, Rds(on): 180mOhm)
APFC Boost Diode 1x Global Power Technology Co. G4S06508AT (650V, 8A @ 153°C)
Bulk Cap(s) 1x Nippon Chemi-Con (400V, 470uF, 2000h @ 105°C, KMW )
Main Switchers 2x Onsemi SI24N50F (500V, 14A @ 100°C, Rds(on): 200mOhm)
APFC Controller Champion  CM6500UNX
Resonant Controller Champion CU6901VPA
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 4x Perfect PWC012N04ES (40V, 132A @ 100°C, Rds(on): 1.2mOhm)
5V & 3.3V DC-DC Converters: 2x Wayon B150N03S   (30V, 95A @ 100°C, Rds(on): 2.3 mOhm)
PWM Controller(s): ANPEC APW7164
Filtering Capacitors

Electrolytic:
2x Rubycon (6000-10000 @ 105°C, ZLH ),
8x Rubycon (4000-10,000 @ 105°C YXJ ),
Polymer:
15x Polycap, 6x FPCAP

Supervisor IC EST.7630FS (OCP, OTP, OVP, UVP, SCP, PG )
Micro Controller / Fan Controller NXP PBSS5350X
Fan Model POWERYEAR PY-1225H12S (120mm, 12V, 0.35A)
5VSB/12VSB Circuit
Rectifier Vishay SS10P60L
Standby PWM Controller Sanken Electric  STR-A6069H

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingGOLD
Noise RatingStandard++
Average Efficiency (>1450 load combinations)88.027%
Average Noise Output (>1450 Load Combinations)33.48dBA
Average PF (>1450 Load Combinations)0.982
Efficiency With 10W (≤500W) or 2% (>500W) Load62.371%
Standby Power Consumption0.1259W
12V Ripple (Full Load)46.30mV
5V Ripple (Full Load)18.27mV
3.3V Ripple (Full Load)14.97mV
5VSB Ripple (Full Load)23.86mV
12V Load Regulation1.23%
5V Load Regulation2.66%
3.3V Load Regulation3.55%
5VSB Load Regulation5.18%
Inrush Current29.300A
Efficiency RatingGOLD
Noise RatingStandard++
Average Efficiency (>1450 load combinations)90.139%
Average Noise Output (>1450 Load Combinations)34.01dBA
Average PF (>1450 Load Combinations)0.943
Efficiency With 10W (≤500W) or 2% (>500W) Load62.804%
Standby Power Consumption0.1472W
12V Ripple (Full Load)50.06mV
5V Ripple (Full Load)18.70mV
3.3V Ripple (Full Load)14.47mV
5VSB Ripple (Full Load)23.55mV
12V Load Regulation1.25%
5V Load Regulation2.62%
3.3V Load Regulation3.56%
5VSB Load Regulation5.20%
Inrush Current66.580A
12V Transient Response (200%)11.62V
5V Transient Response (200%)4.790V
3.3V Transient Response (200%)3.273V
5VSB Transient Response (200%)5.034V
Hold-Up Time & Power Ok Signal13.20ms
AC Loss to PWR_OK Hold Up Time11.50ms
PWR_OK Inactive to DC Loss Delay1.70ms
PSU Timings: T1 (20% / 100%)60.0ms55.0ms
PSU Timings: T3 (20% / 100%)113.0ms113.0ms
12V OCP (28.0°C / 43.3°C)76.80A (122.88%), 12.135V75.00A (120.00%), 12.143V
5V OCP (28.0°C / 43.3°C)23.1A (128.33%), 4.917V23.1A (128.33%), 4.917V
3.3V OCP (28.0°C / 43.3°C)22.8A (126.67%), 3.39V23.3A (129.44%), 3.386V
5VSB OCP (28.0°C / 43.3°C)4.9A (163.33%), 4.97V4.7A (156.67%), 4.967V
OPP (28.83°C / 42.91°C)135.40%123.01%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)13.2
AC Loss to PWR_OK Hold Up Time (ms)11.5
PWR_OK Inactive to DC Loss Delay (ms)1.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.06 V 115.03 V 113.85 V 115.08 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.126 W 0.099 W N/A 0.158 W N/A N/A
Apparent Power: 7.952 W 7.932 W N/A 7.973 W N/A N/A
Power Factor: 0.016 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.13 V 230.11 V 227.70 V 230.15 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.147 W 0.102 W N/A 0.195 W N/A N/A
Apparent Power: 25.678 W 25.646 W N/A 25.709 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs

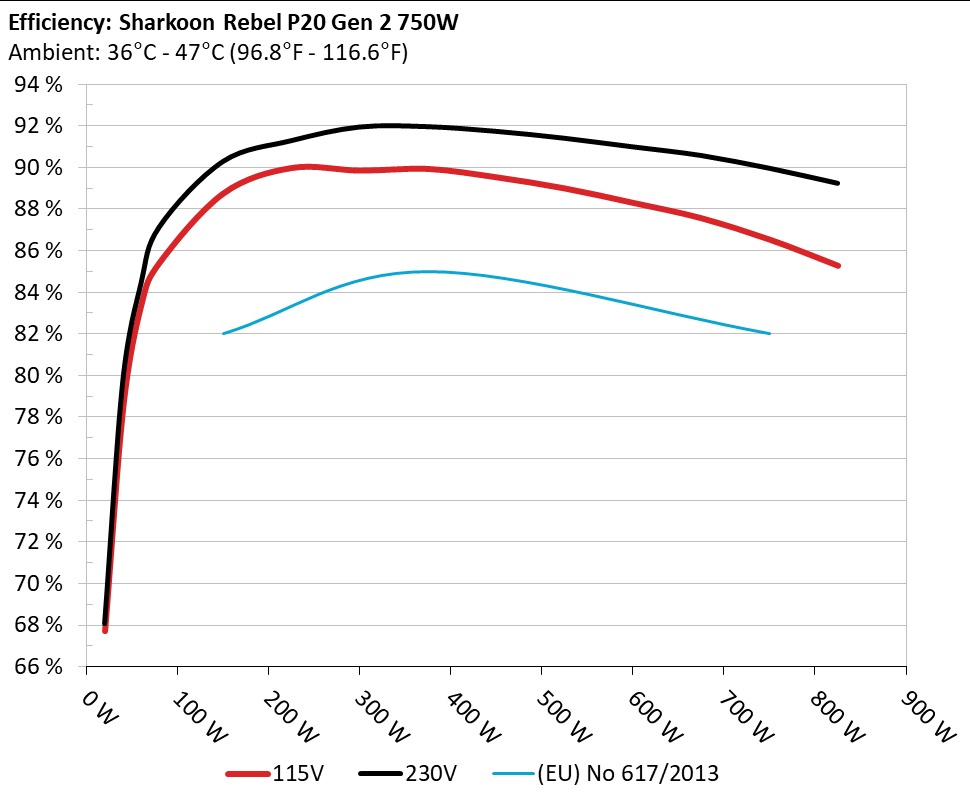

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

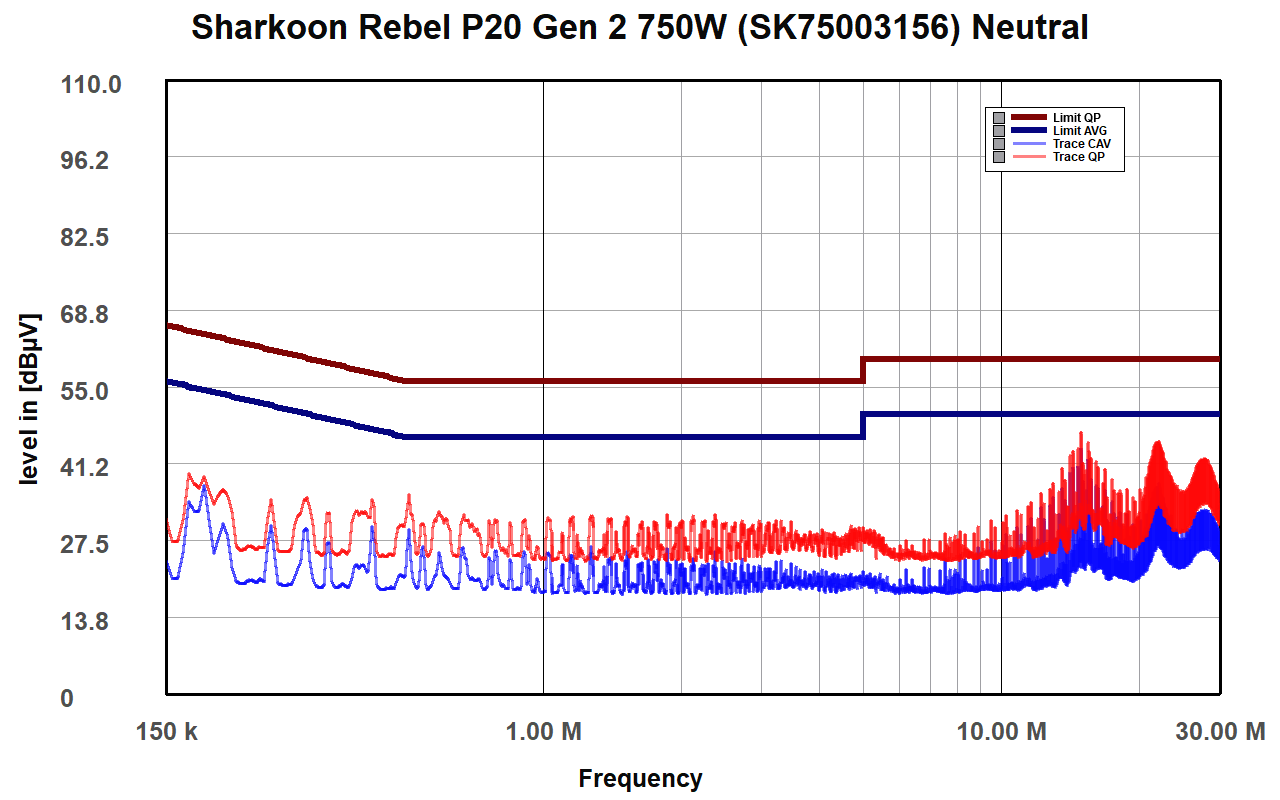

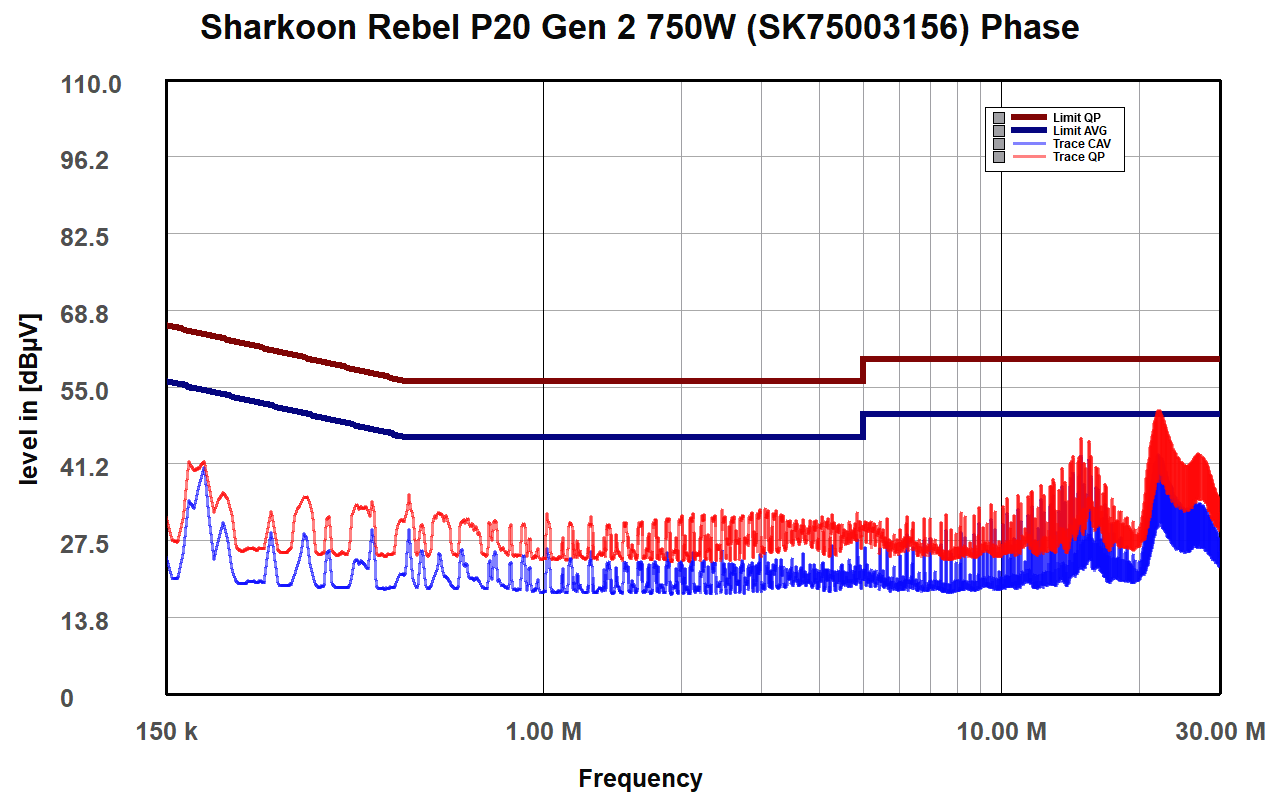

Conducted Emissions EN55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

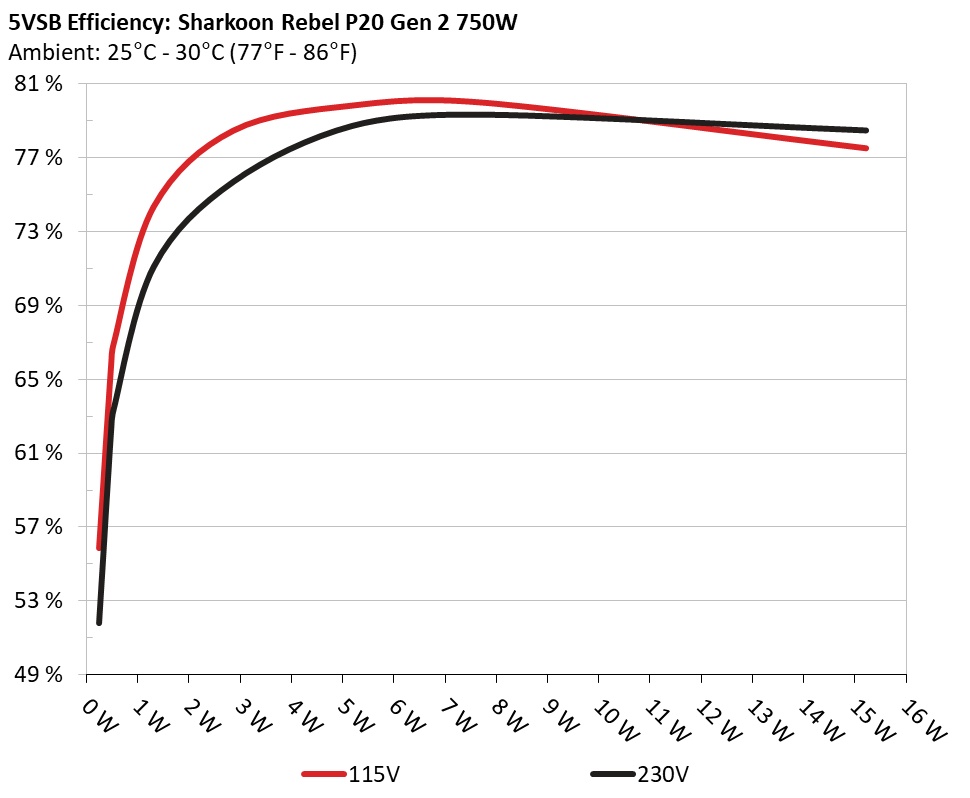

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.235W 55.867% 0.046
5.215V 0.349W 114.97V
2 0.09A 0.469W 65.728% 0.091
5.213V 0.714W 114.95V
3 0.55A 2.856W 78.451% 0.317
5.191V 3.641W 114.94V
4 1A 5.171W 79.807% 0.4
5.17V 6.479W 114.93V
5 1.5A 7.721W 79.972% 0.439
5.146V 9.655W 114.94V
6 3.001A 15.217W 77.499% 0.494
5.072V 19.636W 114.94V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.235W 51.813% 0.018
5.215V 0.454W 230.09V
2 0.09A 0.469W 62.213% 0.03
5.213V 0.754W 230.09V
3 0.55A 2.856W 75.7% 0.138
5.19V 3.773W 230.07V
4 1A 5.171W 78.718% 0.213
5.169V 6.569W 230.07V
5 1.5A 7.72W 79.332% 0.274
5.145V 9.731W 230.06V
6 3.001A 15.215W 78.482% 0.367
5.071V 19.386W 230.06V

Protection Features

OCP (Normal @ 28.0°C)12V: 76.80A (122.88%), 12.135V
5V: 23.1A (128.33%), 4.917V
3.3V: 22.8A (126.67%), 3.39V
5VSB: 4.9A (163.33%), 4.97V
OCP (Hot @ 43.3°C)12V: 75.00A (120.00%), 12.143V
5V: 23.1A (128.33%), 4.917V
3.3V: 23.3A (129.44%), 3.386V
5VSB: 4.7A (156.67%), 4.967V
OPP (Normal @ 28.8°C)1015.49W (135.40%)
OPP (Hot @ 42.9°C)922.60W (123.01%)
OTP✓ (92°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Full Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.360A 2.011A 1.926A 0.97A 75.006 84.117% 0 <6.0 56.47°C 0.97
12.247V 4.974V 3.427V 5.153V 89.169 40.16°C 114.95V
20% 9.730A 3.024A 2.899A 1.169A 149.956 88.742% 0 <6.0 59.45°C 0.974
12.235V 4.961V 3.415V 5.132V 168.981 40.83°C 114.93V
30% 15.455A 3.535A 3.392A 1.37A 224.965 89.97% 0 <6.0 65.17°C 0.973
12.223V 4.951V 3.405V 5.111V 250.042 41.08°C 114.91V
40% 21.201A 4.055A 3.891A 1.572A 300.055 89.843% 1465 38.1 41.93°C 0.979
12.209V 4.934V 3.393V 5.091V 333.977 48.94°C 114.89V
50% 26.592A 5.083A 4.881A 1.775A 374.723 89.924% 1472 38.2 42.13°C 0.983
12.193V 4.92V 3.381V 5.071V 416.71 49.4°C 114.87V
60% 32.016A 6.115A 5.877A 1.981A 449.648 89.523% 1729 42.6 42.6°C 0.986
12.176V 4.907V 3.369V 5.049V 502.27 50.9°C 114.85V
70% 37.457A 7.153A 6.882A 2.189A 524.576 88.989% 1764 44 43.15°C 0.988
12.160V 4.894V 3.357V 5.027V 589.487 52.63°C 114.83V
80% 42.978A 8.196A 7.895A 2.296A 599.794 88.294% 1767 44.1 43.74°C 0.989
12.143V 4.881V 3.344V 5.009V 679.314 55.91°C 114.81V
90% 48.845A 8.729A 8.402A 2.404A 674.833 87.553% 1768 44.1 44.91°C 0.99
12.126V 4.87V 3.333V 4.992V 770.777 59.1°C 114.79V
100% 54.532A 9.265A 8.946A 3.034A 750.064 86.524% 1769 44.1 45.36°C 0.992
12.110V 4.857V 3.32V 4.946V 866.893 62.93°C 114.77V
110% 60.104A 10.323A 10.074A 3.043A 825.099 85.266% 1768 44.1 47.04°C 0.993
12.093V 4.844V 3.305V 4.93V 967.681 67.88°C 114.75V
CL1 0.115A 12.216A 11.685A 0A 101.313 79.199% 1639 41.5 40.14°C 0.989
12.229V 4.928V 3.397V 5.175V 127.922 46.91°C 114.94V
CL2 0.114A 18.25A 0A 0A 91.405 79.206% 942 26.1 40.39°C 0.988
12.235V 4.932V 3.411V 5.186V 115.403 45.04°C 114.94V
CL3 0.114A 0A 17.463A 0A 60.8 70.362% 1432 38.4 40°C 0.968
12.232V 4.956V 3.402V 5.187V 86.41 43.64°C 114.95V
CL4 61.853A 0A 0A 0A 749.83 87.946% 1774 44.2 45.97°C 0.991
12.123V 4.894V 3.344V 5.125V 852.611 59.33°C 114.77V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.360A 2.011A 1.926A 0.971A 75.01 85.872% 0 <6.0 53.48°C 0.845
12.248V 4.974V 3.427V 5.152V 87.353 40.11°C 230.07V
20% 9.731A 3.024A 2.899A 1.17A 149.971 90.276% 0 <6.0 54.86°C 0.923
12.235V 4.962V 3.415V 5.131V 166.128 40.64°C 230.06V
30% 15.459A 3.539A 3.394A 1.37A 224.981 91.277% 1342 35.7 41.42°C 0.943
12.222V 4.946V 3.403V 5.111V 246.485 47.89°C 230.05V
40% 21.208A 4.056A 3.892A 1.572A 300.076 91.936% 1174 32 41.62°C 0.952
12.206V 4.932V 3.392V 5.092V 326.397 46.61°C 230.05V
50% 26.602A 5.084A 4.882A 1.776A 374.791 91.949% 1396 39.3 42.48°C 0.957
12.190V 4.919V 3.38V 5.07V 407.611 47.1°C 230.04V
60% 32.029A 6.117A 5.879A 1.981A 449.713 91.727% 1657 41.8 42.67°C 0.961
12.173V 4.906V 3.368V 5.049V 490.275 47.78°C 230.03V
70% 37.473A 7.156A 6.885A 2.189A 524.642 91.396% 1765 44 43.42°C 0.965
12.156V 4.893V 3.356V 5.027V 574.029 49.59°C 230.02V
80% 42.999A 8.199A 7.898A 2.297A 599.869 90.984% 1768 44.1 43.73°C 0.969
12.139V 4.88V 3.343V 5.008V 659.317 51.57°C 230.01V
90% 48.869A 8.733A 8.406A 2.405A 674.912 90.567% 1769 44.1 44.14°C 0.97
12.122V 4.868V 3.331V 4.991V 745.21 53.17°C 230V
100% 54.559A 9.27A 8.951A 3.034A 750.146 89.952% 1770 44.1 45.95°C 0.972
12.105V 4.856V 3.318V 4.945V 833.943 56.42°C 229.99V
110% 60.130A 10.328A 10.079A 3.043A 825.17 89.231% 1769 44.1 45.79°C 0.974
12.088V 4.842V 3.304V 4.93V 924.754 59.18°C 229.98V
CL1 0.115A 12.219A 11.687A 0A 101.321 80.825% 1365 37 40.16°C 0.893
12.226V 4.927V 3.397V 5.176V 125.359 44.15°C 230.05V
CL2 0.115A 18.249A 0A 0A 91.41 80.593% 816 23.7 40.14°C 0.879
12.233V 4.932V 3.411V 5.186V 113.42 44.64°C 230.05V
CL3 0.115A 0A 17.465A 0A 60.804 71.572% 1492 38.6 41.71°C 0.838
12.232V 4.955V 3.401V 5.187V 84.957 43.9°C 230.05V
CL4 61.879A 0A 0A 0A 749.889 91.196% 1776 44.2 45.96°C 0.971
12.119V 4.892V 3.343V 5.124V 822.282 53.97°C 229.98V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.212A 0.501A 0.48A 0.192A 20.006 67.688% 0 <6.0 54.16°C 0.891
12.259V 4.986V 3.438V 5.202V 29.556 36.97°C 114.97V
40W 2.668A 0.702A 0.673A 0.289A 40.004 78.462% 0 <6.0 53.39°C 0.948
12.255V 4.983V 3.434V 5.194V 50.985 37.25°C 114.97V
60W 4.124A 0.904A 0.865A 0.386A 60.003 83.406% 0 <6.0 53.05°C 0.97
12.251V 4.98V 3.432V 5.187V 71.938 38.02°C 114.95V
80W 5.578A 1.105A 1.059A 0.483A 79.959 85.414% 0 <6.0 53.87°C 0.971
12.248V 4.977V 3.429V 5.179V 93.613 39.13°C 114.95V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.212A 0.502A 0.48A 0.192A 20.007 68.058% 0 <6.0 37.06°C 0.56
12.256V 4.983V 3.436V 5.202V 29.399 36.2°C 230.1V
40W 2.668A 0.703A 0.673A 0.289A 40.005 79.742% 0 <6.0 49.77°C 0.71
12.253V 4.982V 3.434V 5.195V 50.17 37.72°C 230.1V
60W 4.125A 0.904A 0.866A 0.386A 60.005 84.422% 0 <6.0 49.91°C 0.801
12.250V 4.98V 3.431V 5.187V 71.078 38.34°C 230.09V
80W 5.579A 1.105A 1.059A 0.483A 79.966 87.125% 0 <6.0 50.19°C 0.852
12.248V 4.977V 3.428V 5.179V 91.783 39.14°C 230.08V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load17.45mV14.54mV10.12mV15.08mVPass
20% Load21.32mV15.46mV10.17mV15.85mVPass
30% Load24.63mV16.47mV11.09mV17.02mVPass
40% Load27.48mV16.78mV12.36mV17.52mVPass
50% Load29.67mV17.34mV11.90mV18.04mVPass
60% Load31.70mV17.60mV11.90mV19.46mVPass
70% Load33.48mV17.95mV11.80mV20.12mVPass
80% Load37.14mV19.28mV14.90mV21.85mVPass
90% Load43.30mV19.18mV14.65mV23.64mVPass
100% Load46.30mV18.27mV14.97mV23.86mVPass
110% Load53.12mV19.90mV16.68mV25.92mVPass
Crossload118.76mV17.52mV13.72mV23.02mVPass
Crossload217.76mV15.05mV9.77mV23.33mVPass
Crossload317.35mV16.83mV14.90mV23.28mVPass
Crossload447.03mV16.41mV11.51mV27.73mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load16.74mV14.94mV10.43mV14.77mVPass
20% Load20.81mV15.45mV9.97mV15.59mVPass
30% Load24.48mV16.22mV10.73mV17.58mVPass
40% Load28.55mV16.73mV10.98mV17.12mVPass
50% Load31.09mV17.24mV11.49mV17.88mVPass
60% Load33.33mV18.06mV12.00mV19.16mVPass
70% Load37.86mV18.11mV12.41mV19.51mVPass
80% Load39.95mV18.52mV14.70mV21.45mVPass
90% Load47.17mV19.08mV15.31mV22.82mVPass
100% Load50.06mV18.70mV14.47mV23.55mVPass
110% Load55.29mV21.13mV15.62mV23.86mVPass
Crossload118.67mV17.12mV14.34mV23.10mVPass
Crossload218.42mV15.20mV9.76mV23.28mVPass
Crossload316.84mV16.68mV14.90mV23.69mVPass
Crossload448.12mV16.55mV11.56mV26.20mVPass

The results above are not used in the certification process

Sharkoon Rebel P20 Gen2 750

Top side
Power specifications label
Fan
PSU
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
