CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
be quiet! Dark Power Pro 14 IO 1300W
Serial Number022EUL6140000683
Lab IDBQ13003313
Certification ID263313
  • Test Result Report ID: 26PS3313A
  • Certificate Issue Date: Jun 17, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
Brandbe quiet!
ModelDark Power Pro 14 IO 1300W
OEM/ODMCWT
Serial Number022EUL6140000683
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)115-240
Rated Current (Arms)9-15
Rated Frequency (Hz)50-60
Rated Power (W)1300
Operating Temperature (Continuous Full Load) (°C)0 - 50
TypeATX12V
Cable DesignFully Modular
WarrantyNo Info
Cybenetics Measurements
Dimensions (W x H x D)150 x 85 x 200mm
Weight2.67 kg (5.89 lb)
Cooling135mm Fluid Dynamic Bearing Fan (BQ SIW4-13525-HF)
Semi-Passive Operation✓
Cybenetics Testing Information
Lab IDBQ13003313
Date of receiptMay 11, 2026
Testing DateJun 12, 2026
Report Issued DateJun 17, 2026
Engineer NameIoannis Kalyviotis
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 18AWG Tinned Copper
4+4 pin EPS12V (700mm) 1 1 16AWG Tinned Copper
8 pin EPS12V (700mm) 1 1 16AWG Tinned Copper
2x 6+2 pin PCIe (600mm) 6 6 16AWG Tinned Copper
12+4 pin PCIe (700mm) (600W) 1 1 16-24AWG Tinned Copper
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG Tinned Copper
SATA (600mm+150mm) / 4-pin Molex (150mm+150mm) 1 2 / 2 18AWG Tinned Copper
SATA (600mm+150mm+150mm+150mm) 2 8 18AWG Tinned Copper
SATA (600mm+150mm+150mm) 2 6 18AWG Tinned Copper
USB 2.0 9-pin (770mm) 1 1 28AWG -
AC Power Cord (1360mm) - C19 Coupler 1 1 17AWG -

Protection Features(Manufacturer)

Over Power Protection✓
Over Current (+12V) Protection✓
Over Temperature Protection✓
Short Circuit Protection✓
Surge Protection✓
Inrush Current Protection✓
Fan Failure Protection✗

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2525108.333.50.5
Watts150130017.56
Total Max. Power (W)1300

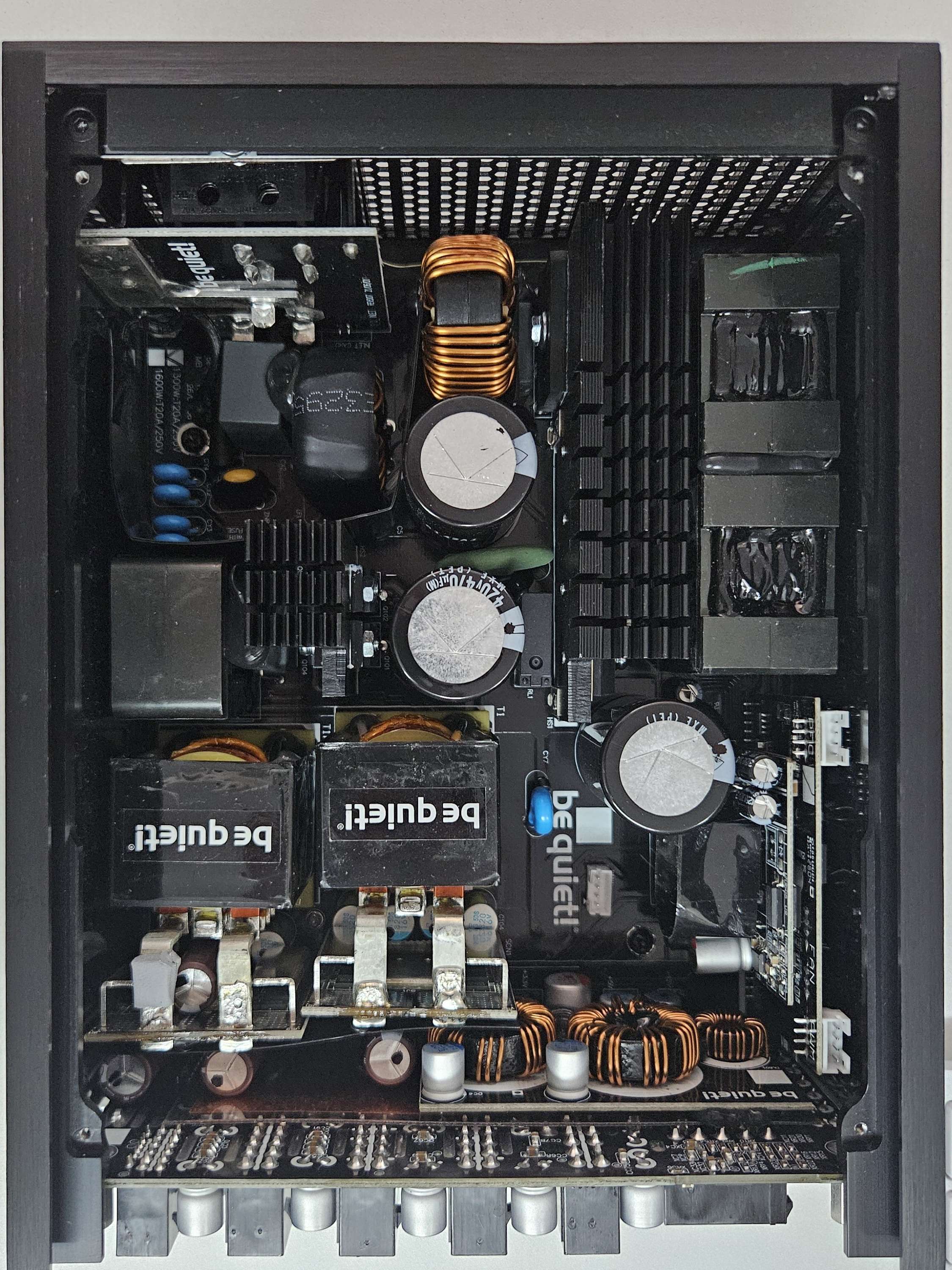

Parts Description

General Data
Manufacturer (OEM) CWT
PCB Type Double Sided
Primary Side
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-25150 (15 Ohm) & Relay
Bridge Rectifier(s) 2x WeEn WNB2560M (600V, 25A @ 127°C)
APFC MOSFETs 2xToshiba TK040N60Z1 (600V, 52A @ 150°C, Rds(on): 0.04Ohm)
APFC Boost Diode 2x Vishay VS-3C08ET07T-M3 (650V, 10A @ 140°C)
Bulk Cap(s) 2x Rubycon (420V, 470uF, 2,000h @ 105°C, MXE )
Main Switchers 4x Alpha & Omega AOTF29S50 (500V, 18A @ 100°C, Rds(on): 0.15Ohm)

IC Driver

2x Silicon Labs Si8233BD

Digital Controllers

2x Texas Instruments UCD3138A

Topology Primary side: Semi-Digital, Interleaved PFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 12x Onsemi NTMFS5C612N (60V, 168A @ 100°C, Rds(on): 1.5mOhm)
5V & 3.3V DC-DC Converters: 6x UBIQ Semiconductor QM3054M6 (30V, 61A @ 100°C, Rds(on): 4.8mOhm)
PWM Controller(s): 1x uPI Semi UP3861P
Filtering Capacitors

Electrolytic:
4x Nippon Chemi-Con (@ 105°C, W)
7x Rubycon (6~10,000 @ 105°C, YXJ )
Polymer:
8x Nippon Chemi-con
25x Nichicon FPCAP
Polymer:
10x Nichicon FPCAP, 34x Nippon Chemi-con

Supervisor IC Weltrend WT7502R (OVP, UVP, SCP, PG) & Weltrend WT7518
Fan Controller / Micro Controller Nuvoton M252SD2AE

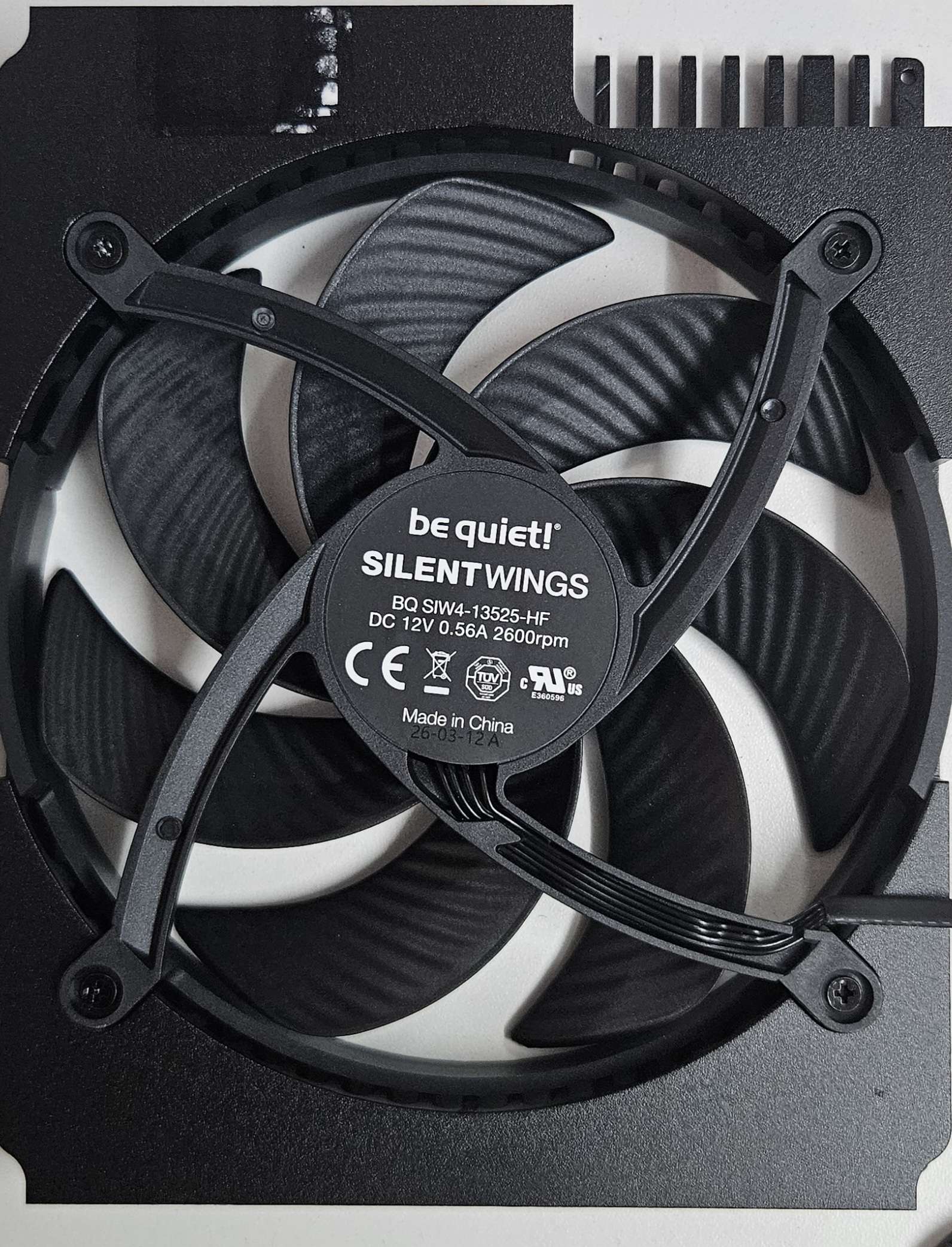

Fan Model be quiet! Silent Wings BQ SIW4-13525-HF (135mm, 12V, 0.56A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier Leadtrend LD8926AA1 (110V, 15A)
Standby PWM Controller On-Bright  OB2365T

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)91.819%
Average Noise Output (>1450 Load Combinations)15.47dBA
Average PF (>1450 Load Combinations)0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load73.396%
Standby Power Consumption0.0147W
Non-Accredited
12V Ripple (Full Load)37.20mV
5V Ripple (Full Load)27.69mV
3.3V Ripple (Full Load)25.73mV
5VSB Ripple (Full Load)28.08mV
12V Load Regulation0.26%
5V Load Regulation0.32%
3.3V Load Regulation0.33%
5VSB Load Regulation0.97%
Inrush Current17.930A
Accredited
Average Efficiency (>1450 load combinations)93.444%
Average Noise Output (>1450 Load Combinations)14.89dBA
Average PF (>1450 Load Combinations)0.940
Efficiency With 10W (≤500W) or 2% (>500W) Load75.370%
Standby Power Consumption0.0728W
Non-Accredited
12V Ripple (Full Load)37.45mV
5V Ripple (Full Load)28.56mV
3.3V Ripple (Full Load)25.37mV
5VSB Ripple (Full Load)30.18mV
12V Load Regulation0.24%
5V Load Regulation0.34%
3.3V Load Regulation0.33%
5VSB Load Regulation0.93%
Inrush Current40.170A
12V Transient Response (200%)11.33V
5V Transient Response (200%)4.901V
3.3V Transient Response (200%)3.208V
5VSB Transient Response (200%)4.872V
Hold-Up Time & PWR_OK Signal26.80ms
AC Loss to PWR_OK Hold Up Time24.30ms
PWR_OK Inactive to DC Loss Delay2.50ms
PSU Timings: T1 (20% / 100%)112.0ms88.0ms
PSU Timings: T3 (20% / 100%)128.0ms130.0ms
12V OCP (27.7°C / 42.2°C)131.80A (121.67%), 12.105V131.40A (121.30%), 12.113V
5V OCP (27.7°C / 42.2°C)27.9A (111.60%), 5.014V27.9A (111.60%), 5.02V
3.3V OCP (27.7°C / 42.2°C)27.6A (110.40%), 3.307V27.5A (110.00%), 3.31V
5VSB OCP (27.7°C / 42.2°C)6.2A (177.14%), 4.992V6.1A (174.29%), 4.98V
OPP (27.50°C / 43.40°C)123.47%117.74%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)26.8
AC Loss to PWR_OK Hold Up Time (ms)24.3
PWR_OK Inactive to DC Loss Delay (ms)2.5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.99 V 114.95 V 113.85 V 115.01 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.16 % 2.00 % PASS
Real Power: 0.015 W -0.001 W N/A 0.031 W N/A N/A
Apparent Power: 15.008 W 14.977 W N/A 15.038 W N/A N/A
Power Factor: 0.001 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.00 V 229.99 V 227.70 V 230.03 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.073 W 0.035 W N/A 0.138 W N/A N/A
Apparent Power: 49.762 W 49.712 W N/A 49.810 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Graphs

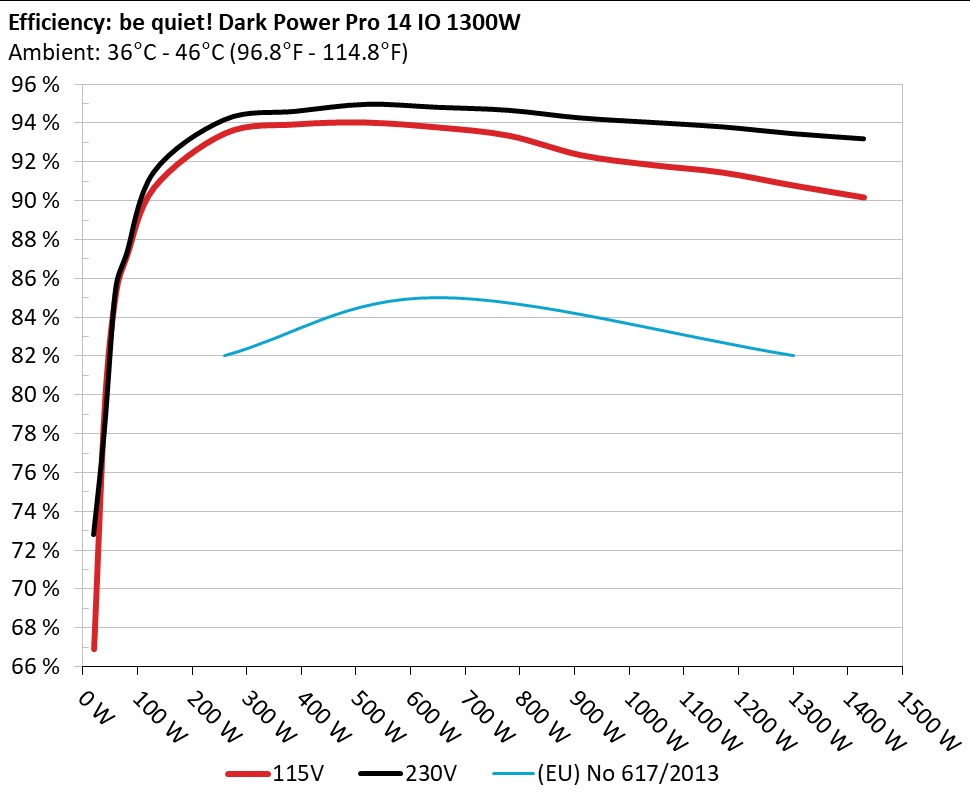

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

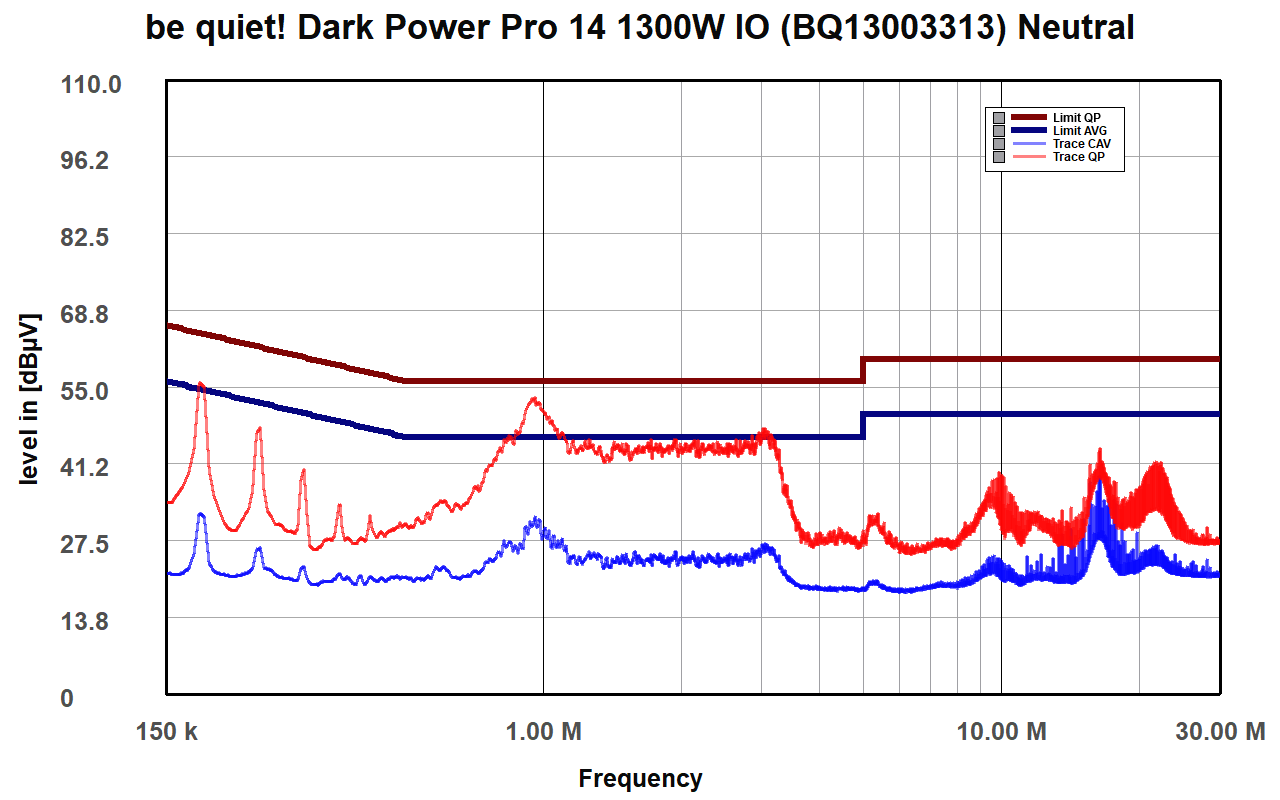

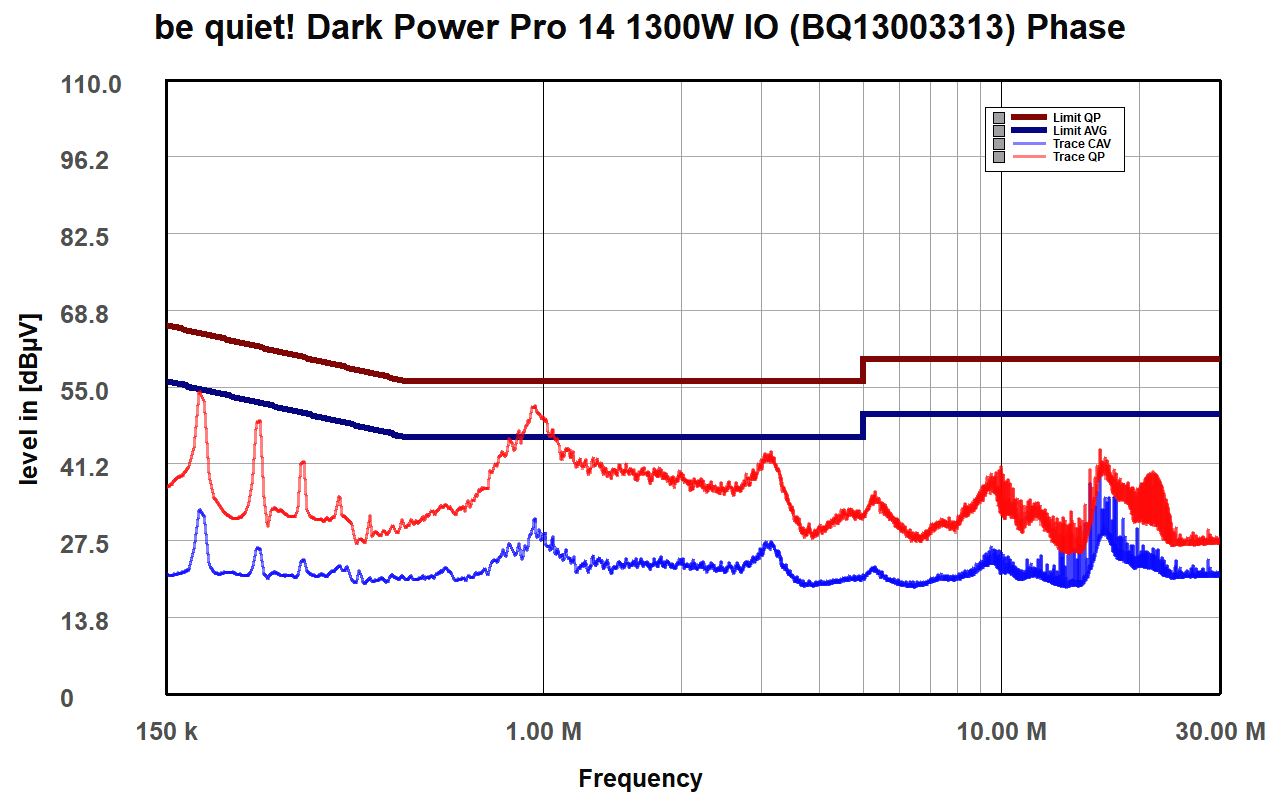

Conducted Emissions EN 55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

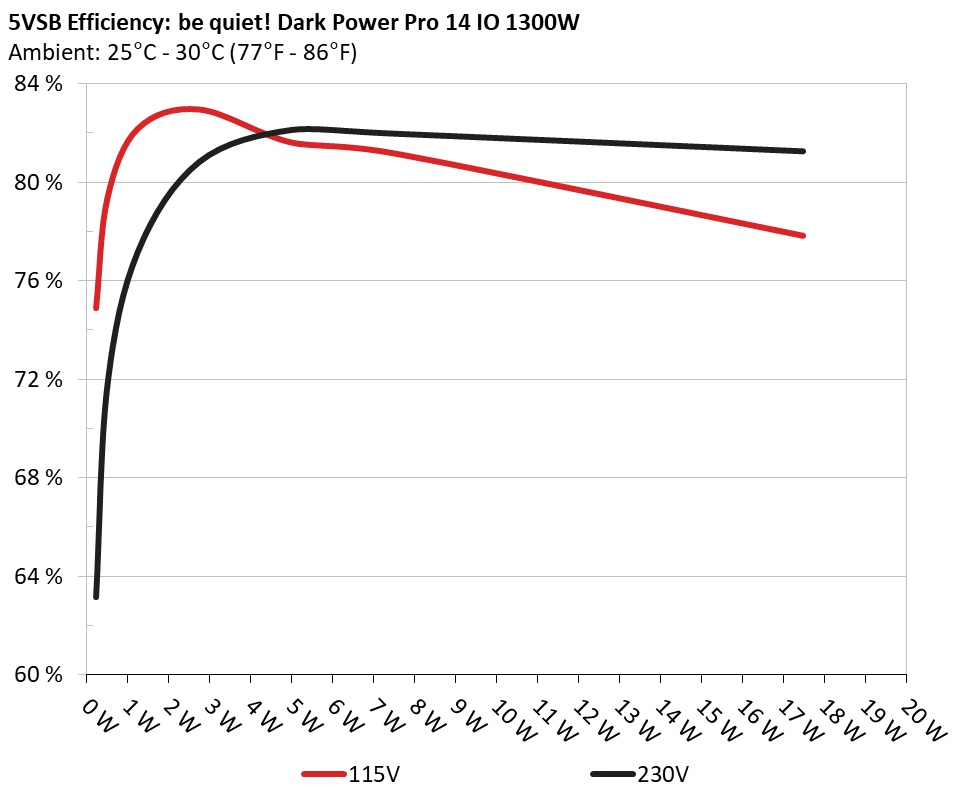

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.224W 74.894% 0.02
4.987V 0.3W 115.04V
2 0.09A 0.449W 78.935% 0.038
4.988V 0.569W 115.04V
3 0.1A 0.499W 79.354% 0.042
4.988V 0.629W 115.05V
4 0.25A 1.247W 82.185% 0.098
4.988V 1.517W 115.05V
5 0.55A 2.744W 82.959% 0.193
4.989V 3.307W 115.04V
6 1A 4.99W 81.618% 0.297
4.99V 6.114W 115.04V
7 1.5A 7.487W 81.179% 0.374
4.991V 9.223W 115.04V
8 3.5A 17.484W 77.834% 0.526
4.996V 22.462W 115.04V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.224W 63.138% 0.007
4.985V 0.356W 230.01V
2 0.09A 0.449W 70.829% 0.013
4.986V 0.635W 230.01V
3 0.1A 0.499W 71.728% 0.014
4.986V 0.696W 230V
4 0.25A 1.246W 77.188% 0.032
4.987V 1.615W 230.01V
5 0.55A 2.743W 80.828% 0.067
4.987V 3.394W 230.02V
6 1A 4.988W 82.126% 0.115
4.988V 6.074W 230V
7 1.5A 7.484W 81.977% 0.163
4.989V 9.129W 230.01V
8 3.5A 17.476W 81.26% 0.309
4.993V 21.509W 230V

Protection Features

OCP (Normal @ 27.7°C)12V: 131.80A (121.67%), 12.105V
5V: 27.9A (111.60%), 5.014V
3.3V: 27.6A (110.40%), 3.307V
5VSB: 6.2A (177.14%), 4.992V
OCP (Hot @ 42.2°C)12V: 131.40A (121.30%), 12.113V
5V: 27.9A (111.60%), 5.02V
3.3V: 27.5A (110.00%), 3.31V
5VSB: 6.1A (174.29%), 4.98V
OPP (Normal @ 27.5°C)1605.09W (123.47%)
OPP (Hot @ 43.4°C)1530.68W (117.74%)
OTP✓ (145°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Typical Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.920A 1.982A 1.986A 1.004A 129.99 90.67% 0 <6.0 48.49°C 0.988
12.151V 5.045V 3.323V 4.981V 143.373 40.06°C 115.01V
20% 18.855A 2.974A 2.981A 1.206A 259.945 93.463% 0 <6.0 48.67°C 0.992
12.148V 5.043V 3.321V 4.975V 278.12 40.55°C 114.96V
30% 29.108A 3.47A 3.478A 1.409A 389.553 93.924% 0 <6.0 48.44°C 0.994
12.145V 5.043V 3.321V 4.969V 414.746 41.06°C 114.92V
40% 39.394A 3.967A 3.976A 1.612A 519.521 94.014% 0 <6.0 47.79°C 0.993
12.142V 5.042V 3.32V 4.963V 552.604 41.54°C 114.88V
50% 49.357A 4.96A 4.971A 1.816A 649.675 93.769% 0 <6.0 48.75°C 0.989
12.139V 5.041V 3.319V 4.956V 693.07 42.02°C 114.83V
60% 59.328A 5.954A 5.967A 2A 779.719 93.338% 541 <6.0 42.83°C 0.992
12.136V 5.039V 3.318V 4.957V 835.9 57.79°C 114.79V
70% 69.316A 6.95A 6.966A 2.22A 909.888 92.345% 743 12.7 43.22°C 0.996
12.130V 5.036V 3.317V 4.954V 985.669 59.19°C 114.74V
80% 79.305A 7.945A 7.964A 2.323A 1039.511 91.837% 862 18.6 43.69°C 0.996
12.126V 5.034V 3.315V 4.949V 1132.483 60.24°C 114.68V
90% 89.684A 8.444A 8.449A 2.427A 1169.753 91.446% 1055 23.2 44.76°C 0.996
12.123V 5.032V 3.314V 4.945V 1280.216 61.66°C 114.63V
100% 99.604A 8.942A 8.965A 3.542A 1299.44 90.779% 1346 30.3 45.78°C 0.996
12.121V 5.031V 3.313V 4.94V 1431.684 63.51°C 114.57V
110% 109.639A 9.942A 10.056A 3.546A 1429.643 90.159% 1487 32.9 46.02°C 0.996
12.120V 5.028V 3.311V 4.934V 1586.432 63.44°C 114.52V
CL1 0.115A 17.982A 18.007A 0A 151.291 85.364% 441 <6.0 40.13°C 0.989
12.143V 5.021V 3.31V 4.972V 177.23 53.61°C 115V
CL2 0.114A 24.894A 0A 0A 126.23 83.502% 941 19.8 41.54°C 0.988
12.146V 5.015V 3.323V 4.978V 151.192 51.55°C 115V
CL3 0.114A 0A 24.928A 0A 83.897 78.248% 966 21.0 41.45°C 0.982
12.146V 5.05V 3.31V 4.978V 107.218 49.3°C 115.02V
CL4 107.164A 0A 0A 0A 1299.922 91.364% 1153 25.5 45.04°C 0.996
12.130V 5.048V 3.322V 4.943V 1423.181 60.05°C 114.58V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.919A 1.981A 1.986A 1.004A 129.986 91.475% 0 <6.0 44.13°C 0.726
12.152V 5.046V 3.323V 4.98V 142.099 40.29°C 230V
20% 18.851A 2.974A 2.98A 1.206A 259.935 94.176% 0 <6.0 44.68°C 0.78
12.150V 5.044V 3.322V 4.974V 276.018 40.76°C 229.97V
30% 29.098A 3.47A 3.478A 1.409A 389.52 94.606% 0 <6.0 45.35°C 0.836
12.147V 5.043V 3.321V 4.969V 411.737 41.14°C 229.95V
40% 39.380A 3.967A 3.976A 1.612A 519.487 94.965% 0 <6.0 46.65°C 0.896
12.145V 5.042V 3.32V 4.963V 547.034 41.73°C 229.93V
50% 49.341A 4.96A 4.971A 1.816A 649.637 94.812% 0 <6.0 47.57°C 0.916
12.143V 5.041V 3.319V 4.956V 685.191 42.08°C 229.91V
60% 59.312A 5.954A 5.968A 2A 779.686 94.656% 509 <6.0 42.83°C 0.966
12.139V 5.039V 3.318V 4.958V 823.692 54.45°C 229.89V
70% 69.288A 6.95A 6.966A 2.22A 909.844 94.268% 743 12.7 43.25°C 0.986
12.135V 5.037V 3.317V 4.954V 965.206 56.46°C 229.86V
80% 79.268A 7.943A 7.963A 2.323A 1039.45 94.038% 861 18.6 43.54°C 0.986
12.131V 5.034V 3.315V 4.95V 1105.388 56.7°C 229.84V
90% 89.644A 8.442A 8.448A 2.426A 1169.686 93.807% 1030 22.6 44.58°C 0.987
12.128V 5.033V 3.314V 4.945V 1246.976 57.65°C 229.82V
100% 99.569A 8.942A 8.964A 3.542A 1299.419 93.456% 1322 30.7 45.75°C 0.988
12.124V 5.031V 3.313V 4.941V 1390.428 59.15°C 229.79V
110% 109.635A 9.942A 10.057A 3.546A 1429.645 93.189% 1280 28.7 46.21°C 0.988
12.120V 5.028V 3.311V 4.935V 1534.555 58.2°C 229.83V
CL1 0.116A 17.98A 18.008A 0A 151.291 86.162% 499 <6.0 41.12°C 0.746
12.143V 5.021V 3.31V 4.972V 175.592 53.64°C 229.99V
CL2 0.115A 24.892A 0A 0A 126.239 84.233% 941 19.8 41.45°C 0.731
12.146V 5.016V 3.323V 4.977V 149.873 51.57°C 229.99V
CL3 0.114A 0A 24.929A 0A 83.902 78.581% 976 21.6 40.88°C 0.818
12.146V 5.05V 3.31V 4.977V 106.78 50.21°C 230V
CL4 107.160A 0A 0A 0A 1299.921 93.944% 1152 25.5 45.07°C 0.988
12.130V 5.049V 3.322V 4.943V 1383.63 56.12°C 229.79V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.495A 0.497A 0.2A 19.993 66.89% 0 <6.0 47.77°C 0.659
12.149V 5.046V 3.323V 4.988V 29.908 36.02°C 115.04V
40W 2.690A 0.693A 0.695A 0.301A 39.996 79.61% 0 <6.0 46.88°C 0.702
12.152V 5.047V 3.324V 4.986V 50.246 37.02°C 115.04V
60W 4.158A 0.891A 0.893A 0.401A 59.995 85.193% 0 <6.0 48.65°C 0.723
12.152V 5.047V 3.324V 4.985V 70.422 38.34°C 115.03V
80W 5.621A 1.09A 1.092A 0.502A 79.937 87.118% 0 <6.0 48.68°C 0.978
12.152V 5.047V 3.324V 4.984V 91.759 39.37°C 115.03V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.222A 0.495A 0.496A 0.2A 19.994 72.82% 0 <6.0 36.23°C 0.156
12.152V 5.047V 3.323V 4.987V 27.456 36°C 230.01V
40W 2.690A 0.693A 0.695A 0.301A 39.995 78.28% 0 <6.0 38.94°C 0.282
12.153V 5.048V 3.324V 4.985V 51.091 37.32°C 230.01V
60W 4.158A 0.891A 0.893A 0.401A 59.994 85.4% 0 <6.0 40.45°C 0.321
12.153V 5.048V 3.324V 4.984V 70.245 38.14°C 230.01V
80W 5.620A 1.089A 1.092A 0.502A 79.934 87.229% 0 <6.0 42.15°C 0.784
12.153V 5.048V 3.324V 4.983V 91.637 39.09°C 230V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load36.48mV27.54mV25.58mV25.06mVPass
20% Load37.60mV28.00mV25.63mV25.42mVPass
30% Load37.60mV27.95mV25.37mV25.83mVPass
40% Load39.60mV28.00mV26.14mV25.88mVPass
50% Load46.50mV29.22mV26.04mV27.27mVPass
60% Load42.05mV28.51mV26.14mV27.01mVPass
70% Load33.92mV28.66mV27.37mV26.14mVPass
80% Load34.43mV29.63mV26.40mV27.21mVPass
90% Load35.15mV28.92mV26.55mV27.26mVPass
100% Load37.20mV27.69mV25.73mV28.08mVPass
110% Load35.91mV27.38mV24.96mV27.26mVPass
Crossload136.12mV28.97mV26.96mV25.57mVPass
Crossload234.02mV32.24mV24.66mV26.75mVPass
Crossload332.44mV28.40mV30.23mV25.93mVPass
Crossload437.45mV28.61mV27.47mV26.34mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load33.66mV26.67mV24.76mV24.45mVPass
20% Load37.71mV27.89mV24.76mV24.96mVPass
30% Load38.11mV28.46mV25.68mV25.93mVPass
40% Load39.65mV28.82mV25.37mV25.73mVPass
50% Load38.42mV28.66mV25.12mV26.70mVPass
60% Load38.42mV27.54mV24.61mV26.14mVPass
70% Load34.74mV29.22mV29.36mV26.19mVPass
80% Load33.72mV28.82mV26.14mV26.55mVPass
90% Load34.43mV29.53mV25.83mV26.24mVPass
100% Load37.45mV28.56mV25.37mV30.18mVPass
110% Load33.61mV24.73mV23.53mV24.76mVPass
Crossload134.18mV28.30mV27.47mV26.34mVPass
Crossload234.38mV32.59mV25.22mV27.78mVPass
Crossload332.90mV27.69mV29.52mV25.22mVPass
Crossload437.96mV29.94mV25.93mV25.42mVPass

The results above are not used in the certification process

be quiet! Dark Power Pro 14 IO 1300W

Top side
Power specifications label
Fan
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
