CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Super Flower Leadex VII XG V2 ETA Platinum 1000W
Serial NumberS2606199003
Lab IDSF10003371
Certification ID263371
  • Test Result Report ID: 26PS3371A
  • Certificate Issue Date: Aug 4, 2026
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
BrandSuper Flower
ModelLeadex VII XG V2 ETA Platinum 1000W
OEM/ODMSuper Flower
Serial NumberS2606199003
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)50-60
Rated Power (W)1000
Operating Temperature (Continuous Full Load) (°C)0 - 50
TypeATX12V
Cable DesignFully Modular
Warranty10 years
Cybenetics Measurements
Dimensions (W x H x D)150 x 85 x 150mm
Weight1.52 kg (3.35 lb)
Cooling140 mm Fluid Dynamic Bearing Fan (RL4Z S1402512EH)
Semi-Passive Operation✓ (selectable)
Cybenetics Testing Information
Lab IDSF10003371
Date of receiptJul 10, 2026
Testing DateJul 27, 2026
Report Issued DateAug 4, 2026
DUT NotesName change requested by client: Leadex VII XG Gold 1000W and the latest Leadex VII V2 Gold 1000W are almost identical which led to confusion.
Engineer NameEfstathios Papadopoulos
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge Cable Type
ATX connector 20+4 pin (600mm) 1 1 16-20AWG Tinned Copper
4+4 pin EPS12V (700mm) 2 2 18AWG Tinned Copper
6+2 pin PCIe (700mm) 4 4 16AWG Tinned Copper
12+4 pin PCIe (700mm) (600W) 1 1 16AWG Tinned Copper
SATA (560mm+130mm+130mm+130mm) 3 12 18AWG Tinned Copper
4-pin Molex (550mm+150mm+150mm+150mm) 1 4 18-20AWG Tinned Copper
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Protection Features(Manufacturer)

Over Power Protection✓
Over Current (+12V) Protection✓
Over Temperature Protection✓
Short Circuit Protection✓
Surge Protection✓
Inrush Current Protection✓
Fan Failure Protection✗

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.330.5
Watts100999.6156
Total Max. Power (W)1000

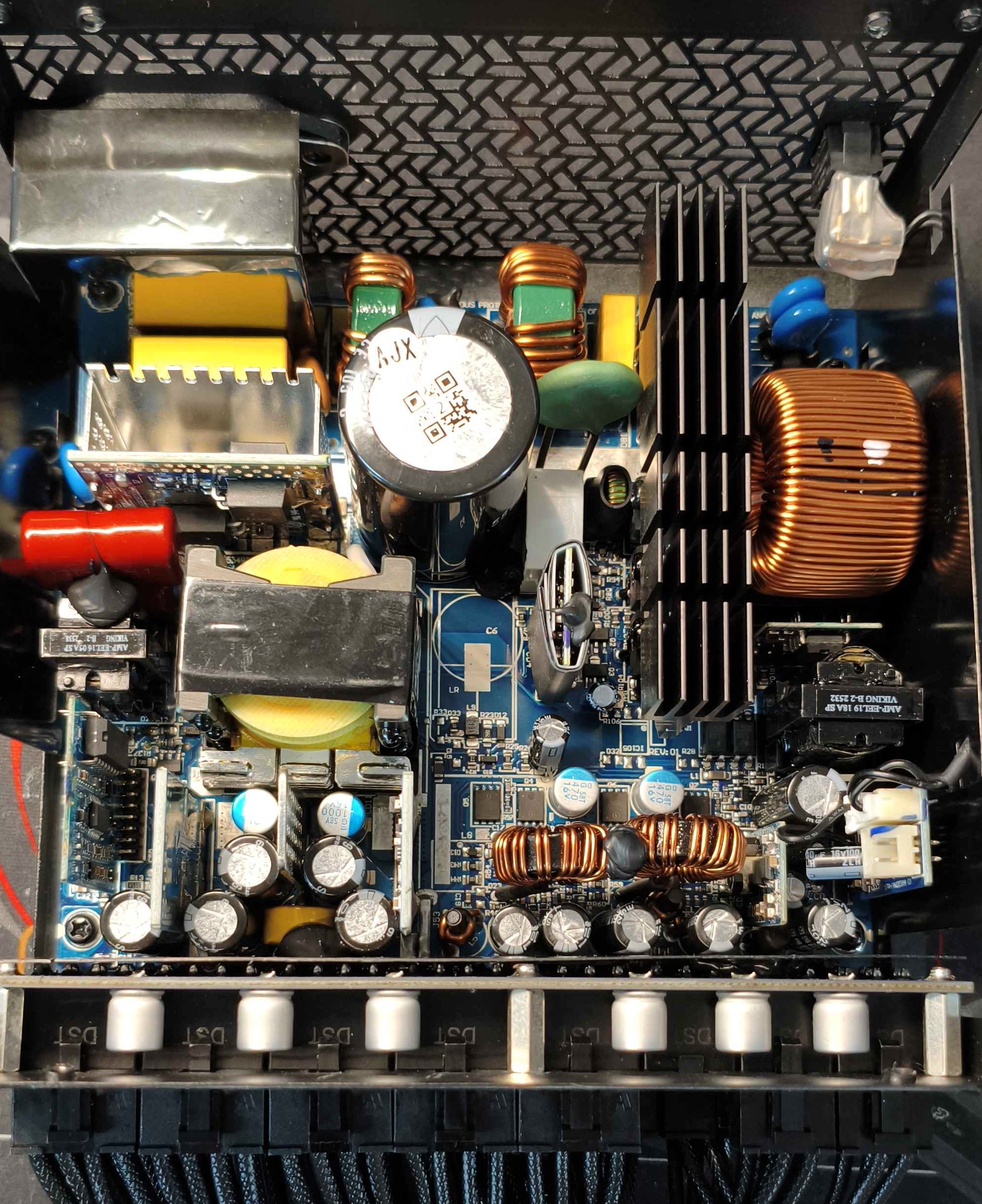

Parts Description

General Data
Manufacturer (OEM) Super Flower
PCB Type Double-Sided
Primary Side
Transient Filter 5x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor  SCK-0512  (5 Ohm @ 25°C) & Relay
Bridge Rectifier(s) 2x GBU25M (700V, 25A @ 25°C)
APFC MOSFETs 3x Infineon IPA60R120P7 (600V, 12A @ 125°C, Rds(on): 0.120 Ohm)
APFC Boost Diode STMicrolectronics STTH12R06D (650V, 9A @ 135°C)
Bulk Cap(s) 1x Rubycon (450V, 680uF, 2000h @ 105°C, MXE )
Main Switchers

4x Infineon IPI50R199CP (550V, 11A @ 100°C, Rds(on): 0.199 Ohm)

APFC Controller Infineon ICE3PCS02G
1x Syncpower  SPN5003 (for reduced no-load consumption)
Resonant Controller STMicroelectronics MZA1407
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 8x Infineon BSC014N04LS  (40V, 100A @ 125°C, Rds(on): 1.4 mOhm)
5V & 3.3V DC-DC Converters: 4x Infineon 0906NS (30V, 40A @ 100°C, Rds(on): 4.5 mOhm)
PWM Controller(s): 2x ANPEC APW7073
Filtering Capacitors

Electrolytic:
10x Rubycon (2-5,000 @ 105°C, ZLH),
4x Rubycon (2-5,000 @ 105°C, YXG),
4x CapXon (2-5,000 @ 105°C, KF)
Polymer:
32x Nippon Chemi-Con

Supervisor IC JTC113 & LM324ADG

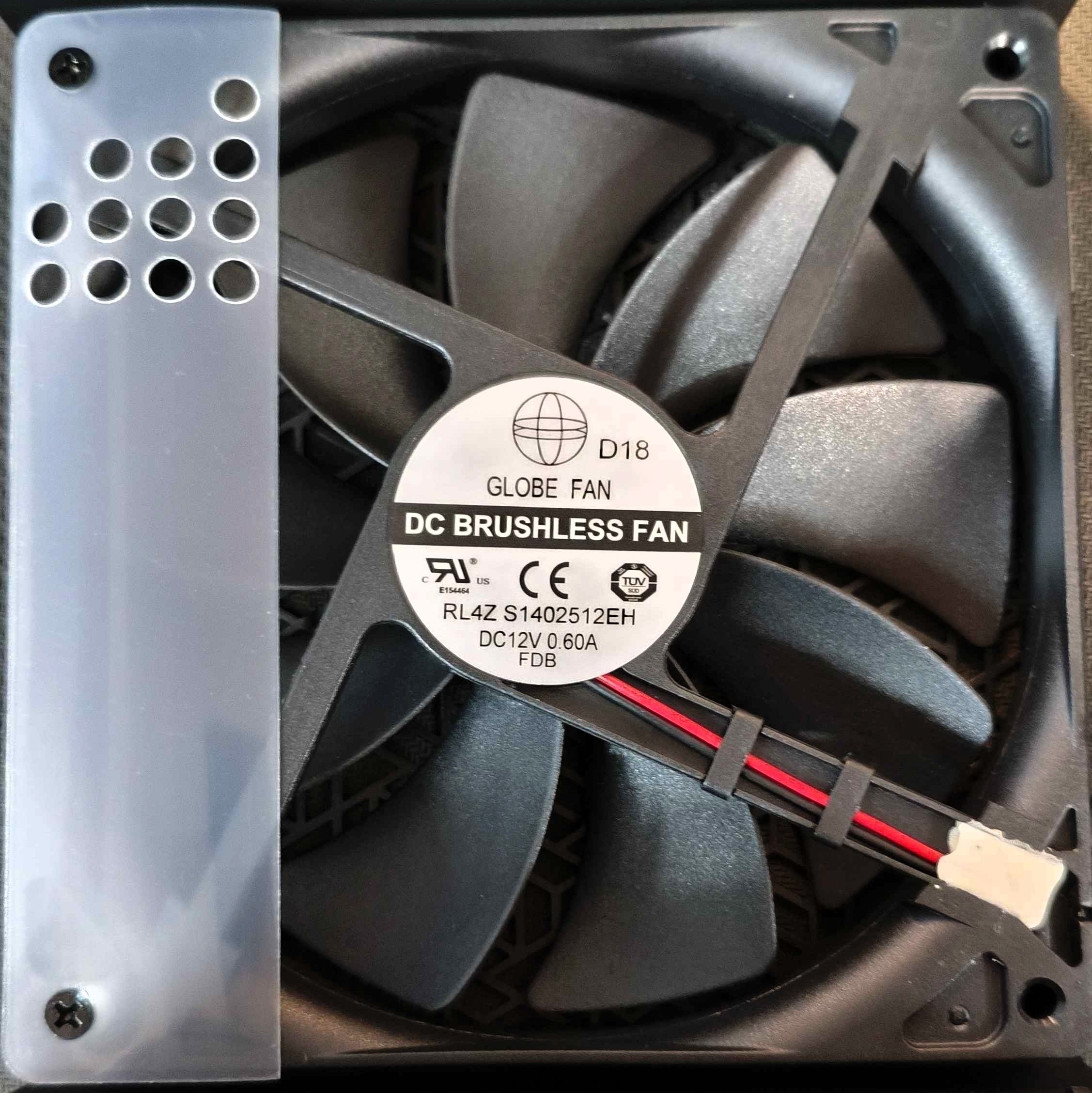

Fan Model GLOBE FAN RL4Z S1402512EH (140mm, 12V, 0.60A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier PFC Device Corporation  PFR20L60CT (60V, 20A)
Standby PWM Controller Chipown PN8733

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)28-32 / 82.4-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓
Conducted Emissions EN 55032 & CISPR 32Passed

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)90.592%
Average Noise Output (>1450 Load Combinations)16.51dBA
Average PF (>1450 Load Combinations)0.988
Efficiency With 10W (≤500W) or 2% (>500W) Load71.812%
Standby Power Consumption0.0372W
Non-Accredited
12V Ripple (Full Load)23.20mV
5V Ripple (Full Load)15.86mV
3.3V Ripple (Full Load)9.20mV
5VSB Ripple (Full Load)21.60mV
12V Load Regulation0.43%
5V Load Regulation0.18%
3.3V Load Regulation0.51%
5VSB Load Regulation3.10%
Inrush Current34.800A
Accredited
Average Efficiency (>1450 load combinations)92.721%
Average Noise Output (>1450 Load Combinations)15.78dBA
Average PF (>1450 Load Combinations)0.952
Efficiency With 10W (≤500W) or 2% (>500W) Load72.964%
Standby Power Consumption0.0875W
Non-Accredited
12V Ripple (Full Load)23.46mV
5V Ripple (Full Load)15.92mV
3.3V Ripple (Full Load)8.95mV
5VSB Ripple (Full Load)14.88mV
12V Load Regulation0.46%
5V Load Regulation0.18%
3.3V Load Regulation0.60%
5VSB Load Regulation3.08%
Inrush Current70.320A
12V Transient Response (200%)11.48V
5V Transient Response (200%)4.979V
3.3V Transient Response (200%)3.249V
5VSB Transient Response (200%)5.032V
Hold-Up Time & PWR_OK Signal29.10ms
AC Loss to PWR_OK Hold Up Time27.00ms
PWR_OK Inactive to DC Loss Delay2.10ms
PSU Timings: T1 (20% / 100%)106.0ms106.0ms
PSU Timings: T3 (20% / 100%)115.0ms113.0ms
12V OCP (28.0°C / 43.4°C)99.60A (119.57%), 12.086V99.60A (119.57%), 12.067V
5V OCP (28.0°C / 43.4°C)23.5A (117.50%), 5.064V22.9A (114.50%), 5.065V
3.3V OCP (28.0°C / 43.4°C)24.2A (121.00%), 3.38V23.7A (118.50%), 3.383V
5VSB OCP (28.0°C / 43.4°C)5.4A (180.00%), 4.945V5.4A (180.00%), 4.943V
OPP (30.09°C / 42.11°C)119.30%119.30%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)29.1
AC Loss to PWR_OK Hold Up Time (ms)27
PWR_OK Inactive to DC Loss Delay (ms)2.1

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.98 V 114.96 V 113.85 V 114.99 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.16 % 2.00 % PASS
Real Power: 0.037 W 0.000 W N/A 0.068 W N/A N/A
Apparent Power: 9.753 W 9.719 W N/A 9.788 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.98 V 229.94 V 227.70 V 229.97 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.15 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.087 W 0.052 W N/A 0.144 W N/A N/A
Apparent Power: 32.063 W 32.033 W N/A 32.095 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN 55032 & CISPR 32

NEUTRAL
PHASE

Indicative Performance

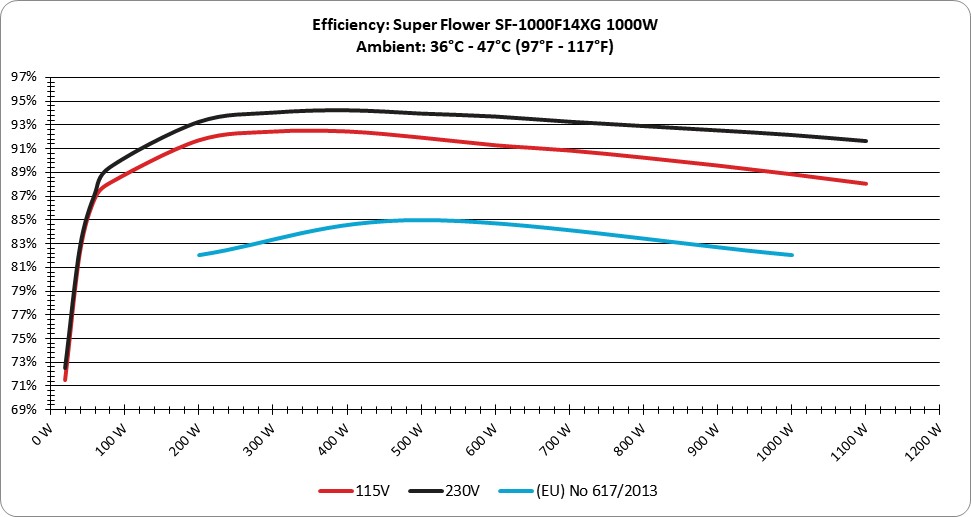

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

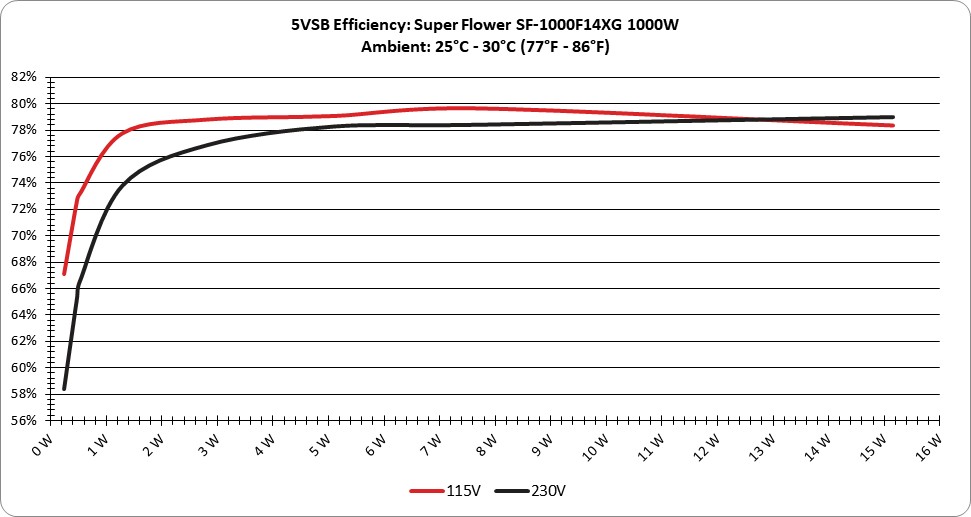

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 67.068% 0.036
5.13V 0.344W 114.94V
2 0.09A 0.462W 72.627% 0.066
5.129V 0.636W 114.94V
3 0.55A 2.816W 78.809% 0.282
5.118V 3.573W 114.94V
4 1A 5.108W 79.074% 0.379
5.107V 6.46W 114.94V
5 1.5A 7.643W 79.657% 0.426
5.094V 9.596W 114.94V
6 3A 15.168W 78.355% 0.488
5.055V 19.358W 114.94V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 58.384% 0.013
5.13V 0.396W 230.02V
2 0.09A 0.462W 65.254% 0.022
5.129V 0.708W 230.02V
3 0.55A 2.816W 76.882% 0.109
5.117V 3.662W 230.01V
4 1A 5.108W 78.297% 0.18
5.106V 6.524W 230.03V
5 1.5A 7.643W 78.42% 0.241
5.093V 9.746W 230.01V
6 3A 15.166W 78.999% 0.344
5.055V 19.199W 230.03V

Protection Features

OCP (Normal @ 28.0°C)12V: 99.60A (119.57%), 12.086V
5V: 23.5A (117.50%), 5.064V
3.3V: 24.2A (121.00%), 3.38V
5VSB: 5.4A (180.00%), 4.945V
OCP (Hot @ 43.4°C)12V: 99.60A (119.57%), 12.067V
5V: 22.9A (114.50%), 5.065V
3.3V: 23.7A (118.50%), 3.383V
5VSB: 5.4A (180.00%), 4.943V
OPP (Normal @ 30.1°C)1193.01W (119.30%)
OPP (Hot @ 42.1°C)1193.00W (119.30%)
OTP✓ (133°C @ 12V Heatsink)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
UVP (Typical Load @ 90V)✓
UVP (No Damage @ 80V)✓
Conducted Emissions EN55032 & CISPR 32✓
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.476A 1.972A 1.974A 0.981A 100.012 88.869% 0 <6.0 43.7°C 0.952
12.107V 5.073V 3.344V 5.097V 112.539 40.12°C 114.97V
20% 13.972A 2.957A 2.959A 1.18A 199.967 91.716% 0 <6.0 46°C 0.981
12.100V 5.075V 3.345V 5.087V 218.029 40.93°C 114.96V
30% 21.830A 3.449A 3.451A 1.379A 300.019 92.456% 0 <6.0 50.08°C 0.99
12.091V 5.076V 3.347V 5.077V 324.5 41.27°C 114.94V
40% 29.678A 3.941A 3.941A 1.579A 399.738 92.471% 0 <6.0 54.73°C 0.993
12.081V 5.076V 3.349V 5.067V 432.286 41.83°C 114.9V
50% 37.200A 4.925A 4.921A 1.781A 499.466 91.955% 0 <6.0 58.84°C 0.995
12.069V 5.078V 3.353V 5.055V 543.161 42.07°C 114.88V
60% 44.775A 5.909A 5.901A 1.983A 599.994 91.308% 369 <6.0 42.71°C 0.995
12.064V 5.079V 3.356V 5.043V 657.108 63.99°C 114.86V
70% 52.221A 6.894A 6.885A 2.186A 699.732 90.865% 560 14.5 43.02°C 0.996
12.076V 5.078V 3.355V 5.032V 770.075 64.55°C 114.83V
80% 59.757A 7.879A 7.869A 2.29A 799.77 90.262% 703 22.3 43.92°C 0.997
12.080V 5.078V 3.355V 5.024V 886.05 65.44°C 114.8V
90% 67.673A 8.371A 8.344A 2.394A 899.577 89.594% 914 31.7 44.23°C 0.997
12.074V 5.078V 3.355V 5.014V 1004.063 67.48°C 114.77V
100% 75.382A 8.863A 8.849A 3.018A 999.598 88.857% 1130 38.3 45.1°C 0.997
12.071V 5.078V 3.356V 4.97V 1124.946 69.02°C 114.73V
110% 83.009A 9.847A 9.919A 3.028A 1100.221 88.055% 1323 41.0 46.52°C 0.997
12.070V 5.078V 3.357V 4.955V 1249.472 70.07°C 114.7V
CL1 0.116A 11.861A 11.79A 0A 101.306 84.989% 0 <6.0 46.12°C 0.958
12.104V 5.076V 3.367V 5.116V 119.199 40.48°C 114.97V
CL2 0.116A 19.752A 0A 0A 101.398 82.606% 366 <6.0 41.3°C 0.959
12.100V 5.063V 3.367V 5.114V 122.748 52.34°C 114.96V
CL3 0.115A 0A 19.55A 0A 67.392 78.562% 361 <6.0 40.94°C 0.952
12.109V 5.077V 3.376V 5.118V 85.782 51.79°C 114.97V
CL4 82.876A 0A 0A 0.001A 1000.164 89.391% 867 28.7 45.31°C 0.997
12.068V 5.072V 3.345V 5.092V 1118.863 67.42°C 114.73V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.476A 1.972A 1.974A 0.983A 100.021 90.367% 0 <6.0 42.23°C 0.825
12.109V 5.071V 3.343V 5.088V 110.683 40.4°C 230.05V
20% 13.971A 2.958A 2.961A 1.182A 199.98 93.273% 0 <6.0 42.76°C 0.929
12.102V 5.072V 3.344V 5.076V 214.403 40.53°C 230.05V
30% 21.829A 3.45A 3.452A 1.383A 300.035 94.063% 0 <6.0 45.84°C 0.956
12.093V 5.073V 3.346V 5.064V 318.973 41.1°C 230.04V
40% 29.680A 3.943A 3.943A 1.584A 399.792 94.258% 0 <6.0 51.17°C 0.966
12.081V 5.074V 3.348V 5.052V 424.146 41.53°C 230.03V
50% 37.203A 4.927A 4.924A 1.787A 499.523 93.984% 0 <6.0 52.99°C 0.973
12.069V 5.076V 3.352V 5.039V 531.498 42.13°C 230.02V
60% 44.749A 5.913A 5.906A 1.99A 600.051 93.731% 331 <6.0 42.61°C 0.979
12.072V 5.075V 3.353V 5.026V 640.181 51.6°C 230.01V
70% 52.238A 6.898A 6.888A 2.194A 699.789 93.298% 543 13.6 43.11°C 0.983
12.073V 5.076V 3.354V 5.014V 750.061 57.7°C 230.01V
80% 59.788A 7.882A 7.869A 2.298A 799.825 92.929% 731 23.6 43.65°C 0.985
12.075V 5.076V 3.355V 5.005V 860.684 59.96°C 229.99V
90% 67.681A 8.375A 8.345A 2.402A 899.617 92.564% 912 31.7 44.63°C 0.987
12.074V 5.076V 3.355V 4.997V 971.885 60.23°C 229.98V
100% 75.380A 8.868A 8.852A 3.019A 999.648 92.174% 1088 35.8 45.01°C 0.989
12.072V 5.075V 3.355V 4.969V 1084.517 60.53°C 229.97V
110% 83.009A 9.853A 9.922A 3.023A 1100.3 91.663% 1292 39.4 46.62°C 0.99
12.070V 5.076V 3.356V 4.963V 1200.37 60.98°C 229.95V
CL1 1.984A 11.866A 11.792A 0.491A 126.427 88.073% 367 <6.0 40.68°C 0.873
12.103V 5.074V 3.367V 5.096V 143.549 52.54°C 230.05V
CL2 1.984A 19.089A 0.981A 0.491A 126.517 86.559% 0 <6.0 41.26°C 0.875
12.099V 5.066V 3.366V 5.094V 146.163 40.34°C 230.05V
CL3 1.982A 0.985A 18.088A 0.491A 92.51 84.453% 243 <6.0 40.51°C 0.826
12.109V 5.078V 3.372V 5.098V 109.54 44.22°C 230.06V
CL4 82.838A 0.986A 0.987A 0.493A 1010.994 92.658% 794 26.0 45.45°C 0.989
12.074V 5.073V 3.345V 5.072V 1091.099 56.73°C 229.96V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.493A 0.494A 0.195A 20.006 71.465% 0 <6.0 38.47°C 0.797
12.116V 5.07V 3.339V 5.124V 27.995 36.32°C 114.98V
40W 2.699A 0.69A 0.691A 0.293A 40.003 82.282% 0 <6.0 38.49°C 0.901
12.113V 5.071V 3.34V 5.12V 48.617 37.49°C 114.98V
60W 4.172A 0.888A 0.889A 0.391A 60.001 86.808% 0 <6.0 39.23°C 0.957
12.111V 5.071V 3.341V 5.116V 69.119 38.3°C 114.98V
80W 5.642A 1.085A 1.086A 0.489A 79.959 88.109% 0 <6.0 40.26°C 0.949
12.109V 5.073V 3.342V 5.113V 90.75 39.23°C 114.97V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.493A 0.495A 0.195A 20.007 72.482% 0 <6.0 38.08°C 0.475
12.125V 5.067V 3.335V 5.122V 27.603 36.43°C 230.04V
40W 2.698A 0.691A 0.692A 0.293A 40.005 82.685% 0 <6.0 41.03°C 0.624
12.120V 5.069V 3.338V 5.117V 48.382 37.16°C 230.05V
60W 4.171A 0.888A 0.889A 0.391A 60.003 87.174% 0 <6.0 43.55°C 0.717
12.116V 5.069V 3.339V 5.113V 68.831 38.56°C 230.04V
80W 5.642A 1.085A 1.087A 0.49A 79.966 89.426% 0 <6.0 42.76°C 0.787
12.113V 5.07V 3.34V 5.108V 89.422 39.13°C 230.05V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 17.10mV 10.46mV 6.56mV 9.78mV Pass
20% Load 19.13mV 10.25mV 6.10mV 10.19mV Pass
30% Load 20.55mV 10.97mV 6.16mV 10.85mV Pass
40% Load 19.49mV 11.02mV 6.31mV 13.04mV Pass
50% Load 21.68mV 12.70mV 7.22mV 16.91mV Pass
60% Load 21.88mV 13.77mV 7.53mV 19.66mV Pass
70% Load 22.29mV 13.52mV 6.76mV 19.77mV Pass
80% Load 22.64mV 14.23mV 8.80mV 18.09mV Pass
90% Load 23.46mV 15.51mV 8.49mV 18.70mV Pass
100% Load 23.20mV 15.86mV 9.20mV 21.60mV Pass
110% Load 23.46mV 16.37mV 9.26mV 23.13mV Pass
Crossload1 17.76mV 10.97mV 9.00mV 10.70mV Pass
Crossload2 18.06mV 11.12mV 7.02mV 10.29mV Pass
Crossload3 16.89mV 11.27mV 10.48mV 9.99mV Pass
Crossload4 22.95mV 15.81mV 6.86mV 15.69mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 17.04mV 10.10mV 6.46mV 9.98mV Pass
20% Load 19.18mV 11.33mV 6.10mV 10.09mV Pass
30% Load 19.34mV 10.86mV 6.41mV 10.19mV Pass
40% Load 20.00mV 11.37mV 6.15mV 10.85mV Pass
50% Load 21.42mV 12.55mV 7.02mV 11.36mV Pass
60% Load 21.07mV 12.96mV 6.92mV 12.02mV Pass
70% Load 22.03mV 13.52mV 6.71mV 12.48mV Pass
80% Load 22.64mV 15.00mV 8.80mV 12.79mV Pass
90% Load 23.20mV 15.00mV 8.90mV 13.20mV Pass
100% Load 23.46mV 15.92mV 8.95mV 14.88mV Pass
110% Load 23.10mV 16.83mV 9.31mV 15.64mV Pass
Crossload1 18.11mV 11.12mV 9.10mV 10.54mV Pass
Crossload2 18.47mV 11.63mV 7.02mV 11.62mV Pass
Crossload3 18.06mV 10.46mV 10.32mV 9.73mV Pass
Crossload4 22.95mV 15.61mV 7.27mV 13.30mV Pass

The results above are not used in the certification process

Super Flower Leadex VII XG V2 ETA Platinum 1000W

Top side
Top side
Power specifications label
Power specifications label
Fan
Fan
PSU Internals
PSU Internals
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics runs voluntary certification programs for power supplies - ETA for efficiency, LAMBDA for noise and SAFE for safety and correct operation - and for cooling products, with DELTA for chassis soundproofing and PHI for fan airflow and static pressure. THETA rates cooler performance on AMD AM5 and Intel LGA1851 outside ISO 17065 and accreditation scope
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
