CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Antec HCG1000 Extreme
Serial NumberHCG1000XSN181500031
Lab ID429
Certification ID25429
  • Test Result Report ID:
  • Certificate Issue Date: Jul 16, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
BrandAntec
ModelHCG1000 Extreme
OEM/ODMSeasonic
Serial NumberHCG1000XSN181500031
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)100-240
Rated Current (Arms)13-6.5
Rated Frequency (Hz)50-60
Rated Power (W)1000
Operating Temperature (Continuous Full Load) (°C)
TypeATX12V
Cable DesignFully Modular
Warranty-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525H12F-Z)
Semi-Passive Operation✓ (selectable)
Cybenetics Testing Information
Lab ID429
Date of receiptJul 4, 2018
Testing DateJul 13, 2018
Report Issued DateJul 16, 2018
Engineer Name-
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (650mm) 2 2 16AWG Yes
6+2 pin PCIe (550mm) 4 4 18AWG Yes
6+2 pin PCIe (550mm+100mm) 2 4 18AWG Yes
SATA (400mm+90mm+90mm+90mm) 2 8 18AWG No
4 pin Molex (500mm+100mm+100mm+100mm) 1 4 18AWG No
SATA (400mm+90mm+90mm+90mm) / 4 pin Molex (+100mm+100mm) 1 4 / 2 18AWG No
FDD Adapter (+105mm) 1 1 22AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 16AWG -

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps25258330.3
Watts125996153.6
Total Max. Power (W)1000

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)28-32 / 82.4-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)89.701%
Average Noise Output (>1450 Load Combinations)28.31dBA
Average PF (>1450 Load Combinations)0.986
Efficiency With 10W (≤500W) or 2% (>500W) Load68.040%
Standby Power Consumption0.0467W
Non-Accredited
12V Ripple (Full Load)17.09mV
5V Ripple (Full Load)10.89mV
3.3V Ripple (Full Load)10.14mV
5VSB Ripple (Full Load)11.96mV
12V Load Regulation0.17%
5V Load Regulation0.08%
3.3V Load Regulation0.24%
5VSB Load Regulation2.46%
Inrush Current45.923A
Accredited
Average Efficiency (>1450 load combinations)91.479%
Average Noise Output (>1450 Load Combinations)28.25dBA
Average PF (>1450 Load Combinations)0.953
Efficiency With 10W (≤500W) or 2% (>500W) Load-
Standby Power Consumption0.0770W
Non-Accredited
12V Ripple (Full Load)20.08mV
5V Ripple (Full Load)11.29mV
3.3V Ripple (Full Load)10.33mV
5VSB Ripple (Full Load)10.27mV
12V Load Regulation0.12%
5V Load Regulation0.08%
3.3V Load Regulation0.24%
5VSB Load Regulation2.40%
Inrush Current60.933A
Hold-Up Time & PWR_OK Signal18.00ms
AC Loss to PWR_OK Hold Up Time15.50ms
PWR_OK Inactive to DC Loss Delay2.50ms
OPP (0.00°C / 0.00°C)--

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)18
AC Loss to PWR_OK Hold Up Time (ms)15.5
PWR_OK Inactive to DC Loss Delay (ms)2.5

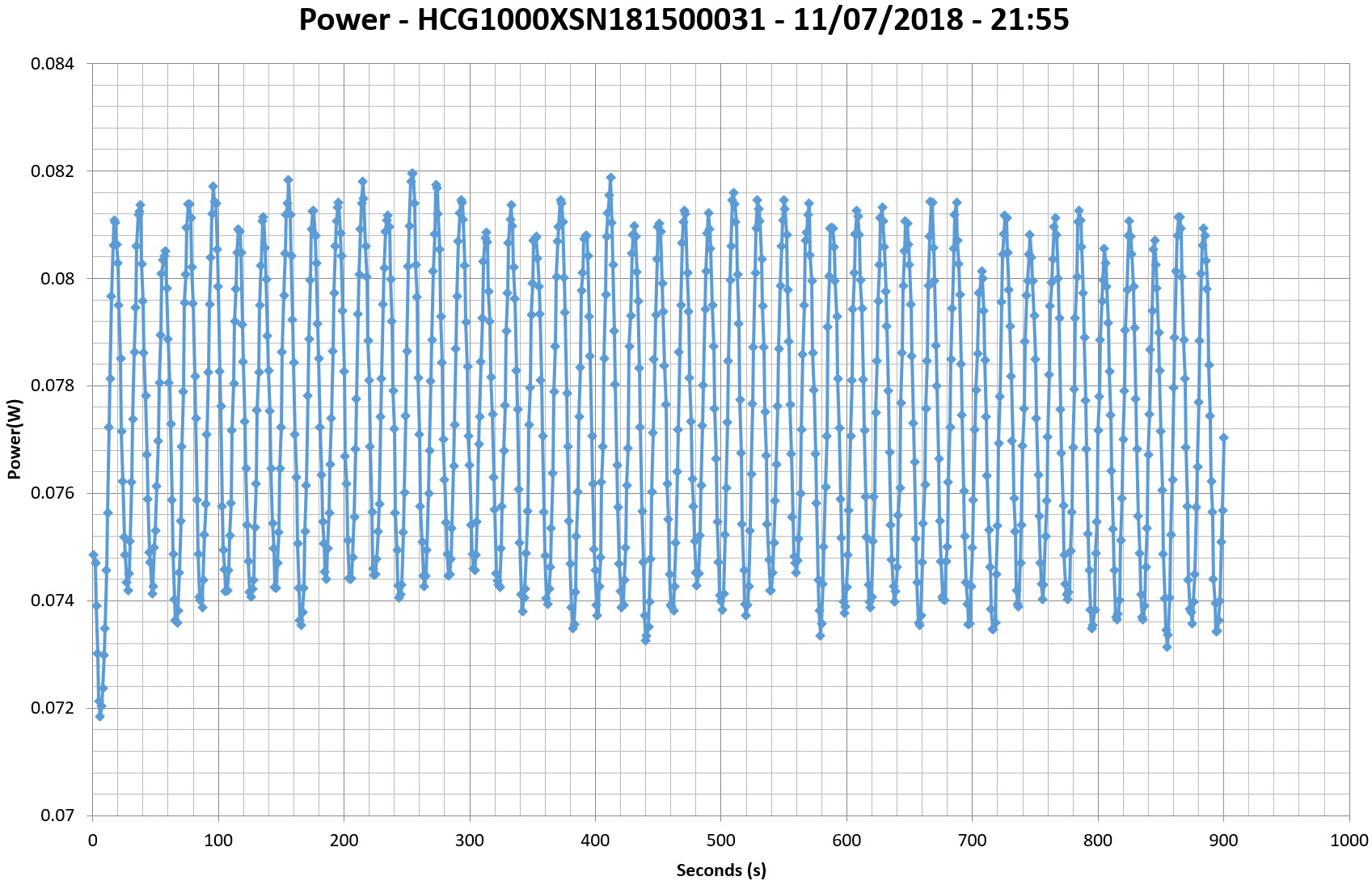

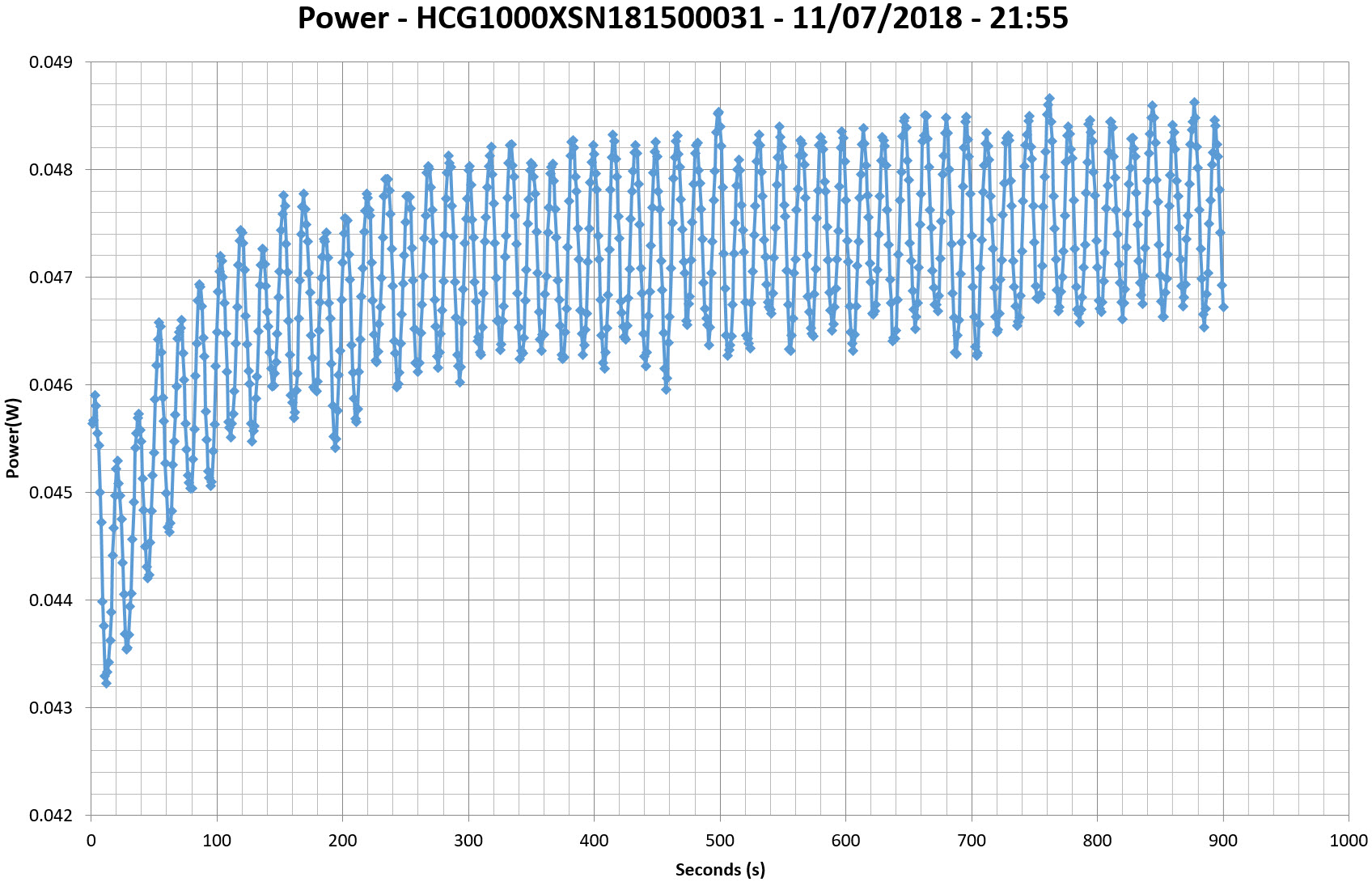

Stromverbrauch im Ruhezustand

Tables

Graphs

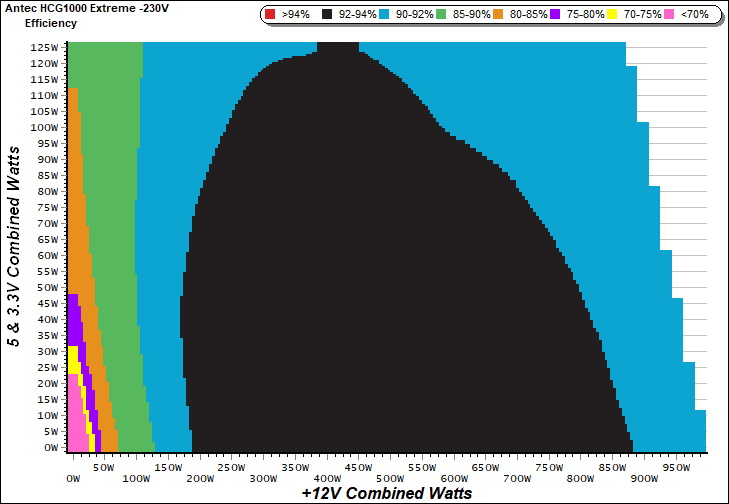

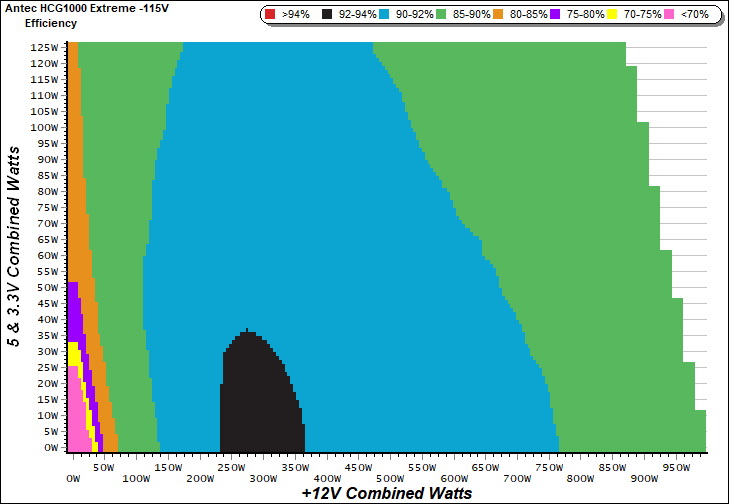

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

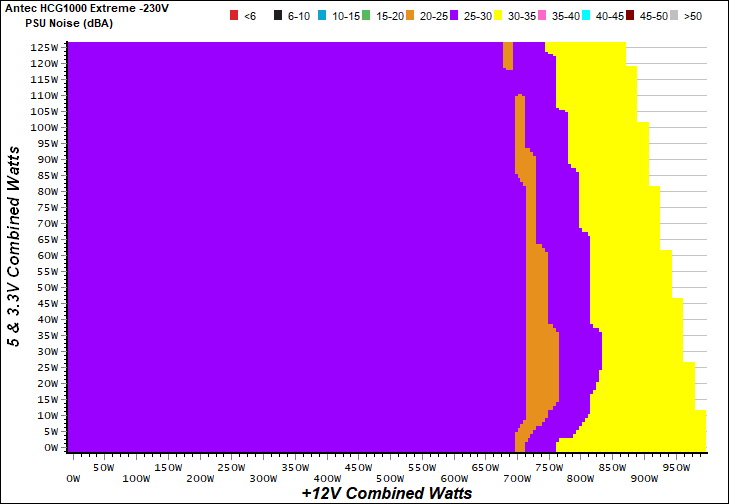

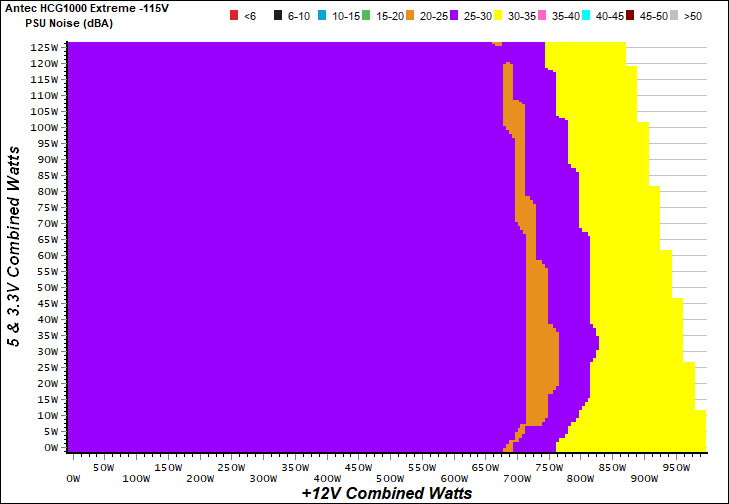

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

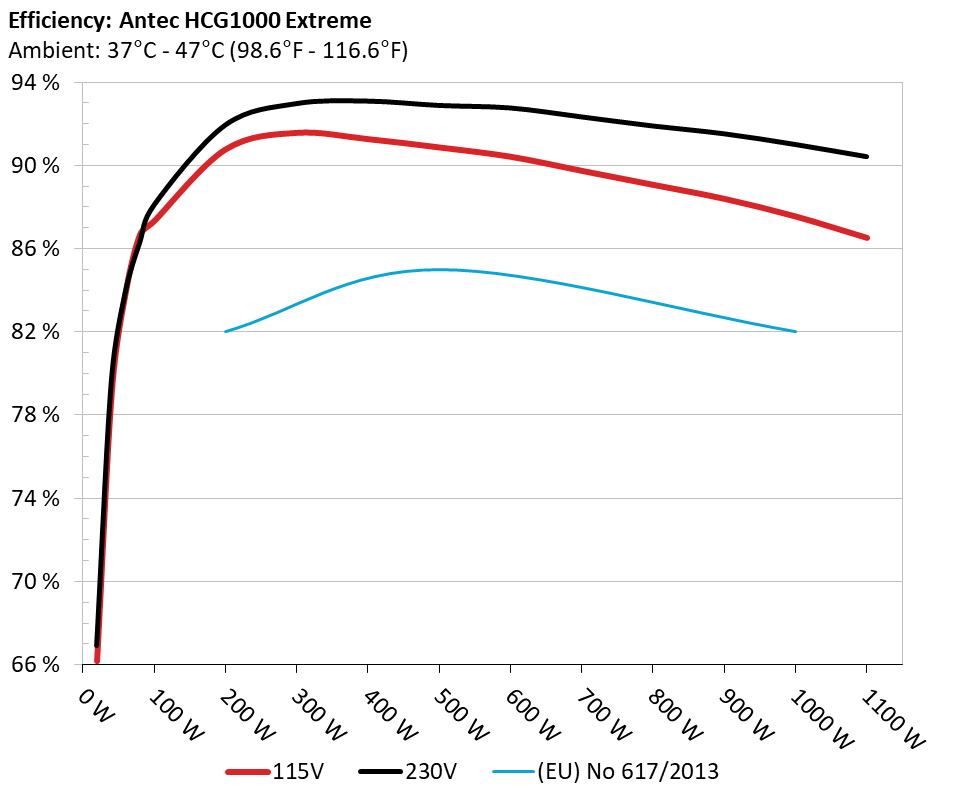

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

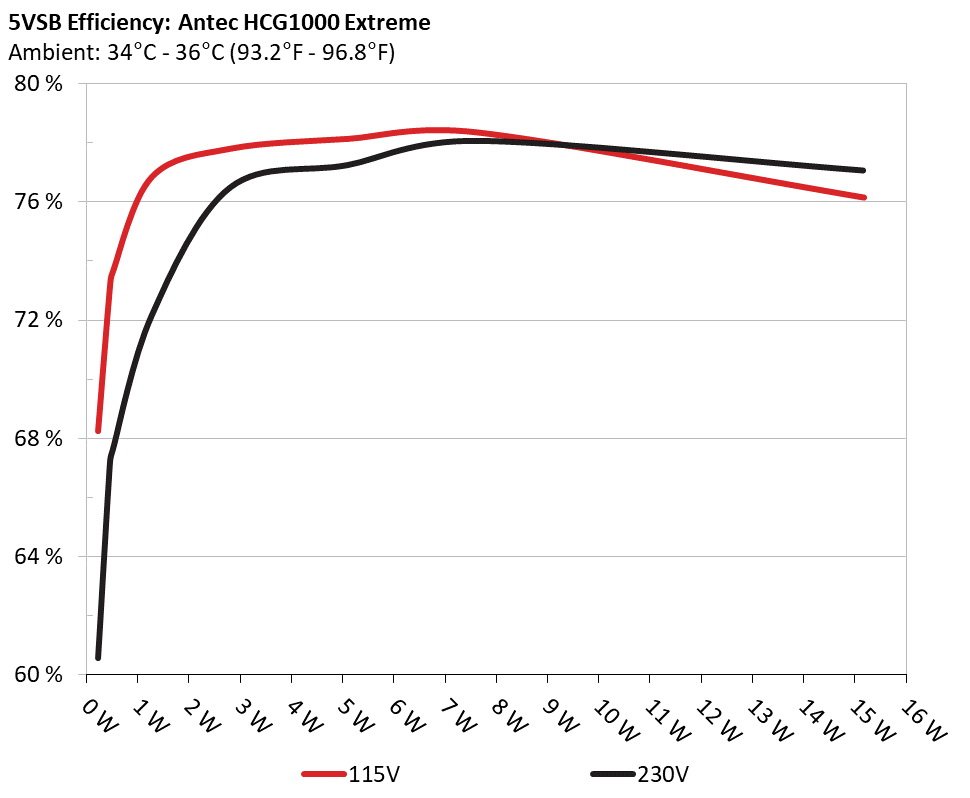

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 68.235% 0.034
5.126V 0.340 115.37V
2 0.090A 0.462 73.101% 0.062
5.125V 0.632 115.37V
3 0.550A 2.815 77.805% 0.269
5.115V 3.618 115.36V
4 1.000A 5.107 78.136% 0.359
5.106V 6.536 115.36V
5 1.501A 7.644 78.352% 0.409
5.094V 9.756 115.35V
6 3.001A 15.171 76.148% 0.471
5.056V 19.923 115.34V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 60.574% 0.013
5.126V 0.383 231.02V
2 0.090A 0.462 67.151% 0.023
5.125V 0.688 231.02V
3 0.550A 2.815 76.495% 0.117
5.115V 3.680 230.91V
4 1.000A 5.107 77.250% 0.191
5.105V 6.611 230.96V
5 1.500A 7.643 78.069% 0.249
5.094V 9.790 231.00V
6 3.001A 15.169 77.067% 0.348
5.055V 19.683 231.00V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.501A 1.996A 1.986A 0.981A 100.176 87.319% 570 25.5 39.43°C 0.963
12.085V 5.014V 3.325V 5.098V 114.724 44.74°C 115.24V
2 13.982A 2.994A 2.978A 1.180A 199.912 90.746% 570 25.5 40.19°C 0.988
12.087V 5.013V 3.324V 5.087V 220.299 45.98°C 115.21V
3 21.789A 3.493A 3.462A 1.379A 299.423 91.545% 573 26.4 40.87°C 0.991
12.089V 5.013V 3.323V 5.077V 327.079 47.39°C 115.07V
4 29.659A 3.991A 3.975A 1.579A 399.851 91.247% 580 26.6 41.49°C 0.989
12.092V 5.013V 3.322V 5.068V 438.208 48.61°C 115.04V
5 37.160A 4.992A 4.971A 1.781A 499.982 90.846% 586 26.7 41.93°C 0.990
12.095V 5.012V 3.321V 5.055V 550.365 50.18°C 114.90V
6 44.660A 5.990A 5.963A 1.982A 600.123 90.399% 600 26.9 42.44°C 0.992
12.098V 5.012V 3.321V 5.046V 663.859 51.57°C 114.75V
7 52.109A 6.988A 6.960A 2.186A 699.856 89.722% 630 27.3 43.24°C 0.993
12.104V 5.011V 3.320V 5.034V 780.028 53.17°C 114.70V
8 59.637A 7.987A 7.956A 2.390A 800.398 89.048% 1030 31.1 44.65°C 0.993
12.106V 5.011V 3.319V 5.023V 898.835 55.91°C 114.54V
9 67.513A 8.487A 8.442A 2.393A 899.714 88.380% 1143 33.1 45.45°C 0.994
12.104V 5.010V 3.318V 5.017V 1018.001 57.75°C 114.48V
10 75.207A 8.988A 8.955A 3.005A 1000.121 87.529% 1140 33.1 46.39°C 0.994
12.105V 5.010V 3.317V 4.994V 1142.620 59.97°C 114.31V
11 83.455A 8.988A 8.959A 3.009A 1100.132 86.502% 1140 33.1 46.88°C 0.994
12.107V 5.010V 3.316V 4.987V 1271.796 61.60°C 114.26V
CL1 0.143A 15.004A 15.002A 0.000A 126.917 85.101% 589 26.8 42.87°C 0.978
12.106V 5.015V 3.329V 5.106V 149.137 52.09°C 115.20V
CL2 83.040A 1.003A 1.001A 1.000A 1017.848 87.960% 1136 33.0 46.38°C 0.994
12.096V 5.012V 3.316V 5.050V 1157.169 59.57°C 114.32V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.489A 1.995A 1.985A 0.981A 100.043 88.087% 580 26.6 38.82°C 0.779
12.088V 5.014V 3.325V 5.098V 113.573 44.00°C 230.78V
2 13.969A 2.991A 2.977A 1.180A 199.749 91.924% 583 26.6 39.42°C 0.920
12.088V 5.013V 3.324V 5.087V 217.297 45.68°C 230.81V
3 21.777A 3.492A 3.459A 1.379A 299.242 92.959% 586 26.7 40.00°C 0.958
12.088V 5.013V 3.323V 5.078V 321.909 46.81°C 230.74V
4 29.649A 3.991A 3.973A 1.579A 399.662 93.083% 595 26.8 40.70°C 0.972
12.090V 5.012V 3.322V 5.069V 429.361 48.49°C 230.66V
5 37.154A 4.988A 4.968A 1.780A 499.797 92.873% 600 26.9 41.08°C 0.979
12.093V 5.011V 3.321V 5.056V 538.150 50.83°C 230.58V
6 44.647A 5.989A 5.963A 1.982A 599.907 92.753% 610 27.1 41.84°C 0.982
12.097V 5.011V 3.320V 5.048V 646.782 52.64°C 230.61V
7 52.106A 6.988A 6.958A 2.185A 699.654 92.326% 640 27.5 42.66°C 0.985
12.101V 5.011V 3.320V 5.035V 757.809 54.54°C 230.54V
8 59.640A 7.986A 7.954A 2.389A 800.176 91.886% 1133 33.0 43.36°C 0.986
12.102V 5.010V 3.319V 5.024V 870.837 56.35°C 230.46V
9 67.513A 8.486A 8.437A 2.392A 899.487 91.515% 1150 33.2 44.40°C 0.987
12.101V 5.010V 3.318V 5.018V 982.884 58.29°C 230.47V
10 75.213A 8.986A 8.954A 3.003A 999.876 90.999% 1160 33.3 45.92°C 0.988
12.101V 5.010V 3.317V 4.996V 1098.773 60.90°C 230.39V
11 83.459A 8.986A 8.956A 3.007A 1099.912 90.415% 1160 33.3 47.23°C 0.989
12.104V 5.010V 3.316V 4.990V 1216.521 63.64°C 230.31V
CL1 0.146A 15.003A 14.999A 0.000A 126.941 85.563% 622 27.2 42.79°C 0.854
12.119V 5.015V 3.329V 5.105V 148.360 55.46°C 230.93V
CL2 83.016A 1.002A 1.001A 1.000A 1017.968 91.311% 1160 33.3 46.28°C 0.988
12.101V 5.011V 3.316V 5.050V 1114.833 60.81°C 230.39V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.211A 0.501A 0.484A 0.196A 19.758 66.175% 570 25.5 0.661
12.082V 5.016V 3.327V 5.120V 29.857 115.34V
2 2.472A 0.999A 0.995A 0.391A 40.196 79.025% 570 25.5 0.835
12.087V 5.014V 3.325V 5.114V 50.865 115.31V
3 3.663A 1.498A 1.474A 0.588A 59.693 83.840% 573 26.4 0.906
12.088V 5.014V 3.325V 5.108V 71.199 115.28V
4 4.920A 1.996A 1.988A 0.784A 80.096 86.664% 573 26.4 0.945
12.089V 5.014V 3.325V 5.103V 92.421 115.26V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.195A 0.499A 0.478A 0.195A 19.531 66.921% 573 26.4 0.387
12.082V 5.016V 3.327V 5.121V 29.185 230.81V
2 2.454A 0.998A 0.992A 0.391A 39.962 79.544% 573 26.4 0.582
12.086V 5.014V 3.325V 5.115V 50.239 230.80V
3 3.645A 1.495A 1.472A 0.587A 59.448 83.841% 577 26.5 0.698
12.087V 5.014V 3.326V 5.109V 70.906 230.80V
4 4.903A 1.994A 1.984A 0.784A 79.863 86.267% 580 26.6 0.707
12.088V 5.014V 3.325V 5.103V 92.576 230.80V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 18.5 mV 5.9 mV 5.1 mV 4.5 mV Pass
20% Load 20.8 mV 6.2 mV 5.7 mV 4.9 mV Pass
30% Load 21.7 mV 6.9 mV 6.4 mV 5.1 mV Pass
40% Load 21.3 mV 8.1 mV 7.2 mV 5.4 mV Pass
50% Load 14.4 mV 9.3 mV 8.3 mV 6.1 mV Pass
60% Load 13.5 mV 9.2 mV 7.7 mV 6.5 mV Pass
70% Load 14.1 mV 9.3 mV 8.0 mV 6.6 mV Pass
80% Load 14.5 mV 9.8 mV 9.2 mV 11.3 mV Pass
90% Load 15.6 mV 11.0 mV 9.5 mV 11.9 mV Pass
100% Load 17.1 mV 10.9 mV 10.1 mV 12.0 mV Pass
110% Load 22.5 mV 16.5 mV 17.2 mV 16.2 mV Pass
Crossload 1 18.6 mV 9.4 mV 9.7 mV 5.6 mV Pass
Crossload 2 17.5 mV 9.5 mV 6.2 mV 9.6 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 15.4 mV 5.8 mV 5.2 mV 4.3 mV Pass
20% Load 18.5 mV 6.2 mV 5.9 mV 4.7 mV Pass
30% Load 20.4 mV 7.0 mV 6.3 mV 4.9 mV Pass
40% Load 20.3 mV 8.4 mV 7.5 mV 5.3 mV Pass
50% Load 14.2 mV 9.4 mV 8.7 mV 5.5 mV Pass
60% Load 13.3 mV 9.3 mV 7.9 mV 6.0 mV Pass
70% Load 13.6 mV 9.7 mV 8.3 mV 6.5 mV Pass
80% Load 14.5 mV 10.1 mV 9.6 mV 11.2 mV Pass
90% Load 15.6 mV 10.5 mV 9.8 mV 11.6 mV Pass
100% Load 20.1 mV 11.3 mV 10.3 mV 10.3 mV Pass
110% Load 26.2 mV 11.7 mV 11.0 mV 10.2 mV Pass
Crossload 1 17.6 mV 9.9 mV 10.0 mV 5.3 mV Pass
Crossload 2 22.5 mV 9.4 mV 6.6 mV 9.9 mV Pass

The results above are not used in the certification process

Antec HCG1000 Extreme

Top side
Top side
Power specifications label
Power specifications label
Cybenetics bietet freiwillige Zertifizierungsprogramme für Netzteile – ETA für Effizienz, LAMBDA für Lautstärke und SAFE für Sicherheit und korrekten Betrieb – sowie für Kühlprodukte mit DELTA für die Schalldämmung von Gehäusen und PHI für Luftstrom und statischen Druck von Lüftern
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
