CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
be quiet! System Power U9 700W (#2)
Serial Number609L8100000126
Lab ID501
Certification ID25501
  • Test Result Report ID: 20PS501A
  • Certificate Issue Date: Oct 15, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brandbe quiet!
Manufacturer (OEM)CWT
SeriesSystem Power U9
Model NumberSU9-700
Serial Number609L8100000126
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)50-60
Rated Power (W)700
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Sleeve Bearing Fan
(D12SM-12)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail 3.3V 5V 12V1 12V2 5VSB -12V
Max. Power Amps 24 18 33 25 3 0.3
56
Watts 130 672 15 3.6
Total Max. Power (W) 700

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18-22AWG No
4+4 pin EPS12V (610mm) 1 1 18AWG No
6+2 pin PCIe (500mm+150mm) 2 4 18AWG No
SATA (540mm+120mm+120mm) / 4 pin Molex (+120mm) 1 3 / 1 18AWG No
SATA (330mm+120mm+120mm) / 4 pin Molex (+120mm) 1 3 / 1 18AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) CWT
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM & 1x DM chokes, 1x MOV, 1x CAP004DG Discharge IC
Inrush Protection NTC Thermistor
Bridge Rectifier(s) 1x
APFC MOSFETS 2x Champion GP28S50G (500 V, 28 A @ 150 °C, 0.125 Ohm)
APFC Boost Diode 1x CREE C3D06060A (600V, 6A @ 154°C)
Hold-up Cap(s) 1x Elite (400V, 390uF, 2000h @ 85°C, GM)
Main Switchers 2x Champion GP28S50G (500 V, 28 A @ 150 °C, 0.125 Ohm)
Combo APFC/PWM Controller Champion CM6800TX & CM03X Green PFC controller
Topology Primary side: Double-Forward topology
Secondary side: Semi-synchronous Rectification & DC-DC converters
Secondary Side
+12V Rectifiers 2x Sync Power SPN125T06 FETs (60V, 88A @ 70°C, 4.3mOhm)
2x PFC PFR40V60CT SBRs (60V, 20 x 2A)
+12V Driver IC 1x Sync Power SP6019
5V & 3.3V DC-DC Converters: 2x UBIQ QM3006D (30V, 57A @ 100°C, 5.5mOhm), 2x UBIQ QM3016D (30V, 68A @ 100°C, 4mOhm)
PWM Controller: APW7159C
Filtering Capacitors Electrolytics: Elite (1-5,000 @ 105°C, EV), 2x Rubycon (3-6,000h @ 105°C, YXG)
Supervisor IC Sytronix ST9S429-PG14 (OCP [2x 12V channels, OVP, UVP, PG) & Weltrend WD7518D (OCP [2x 12V channels], SCP)
Fan Model Yate Loon D12SM-12 (120mm, 12V, 0.30A, 70.5 CFM, 33 dBA, 1650 RPM, Sleeve Bearing)
5VSB Circuit
Standby PWM Controller TinySwitch-LT TNY289PG (25W @ 85-265VAC)

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Efficiency RatingSILVER
Noise RatingA
Average Efficiency (>1450 load combinations)85.291%
Average Noise Output (>1450 Load Combinations)20.45dBA
Average PF (>1450 Load Combinations)0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load60.816%
Standby Power Consumption0.0440W
12V Ripple (Full Load)55.17mV
5V Ripple (Full Load)22.84mV
3.3V Ripple (Full Load)24.88mV
5VSB Ripple (Full Load)11.04mV
12V Load Regulation0.96%
5V Load Regulation0.44%
3.3V Load Regulation0.72%
5VSB Load Regulation2.40%
Inrush Current51.641A

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)12.5
AC Loss to PWR_OK Hold Up Time (ms)10.4
PWR_OK Inactive to DC Loss Delay (ms)2.1

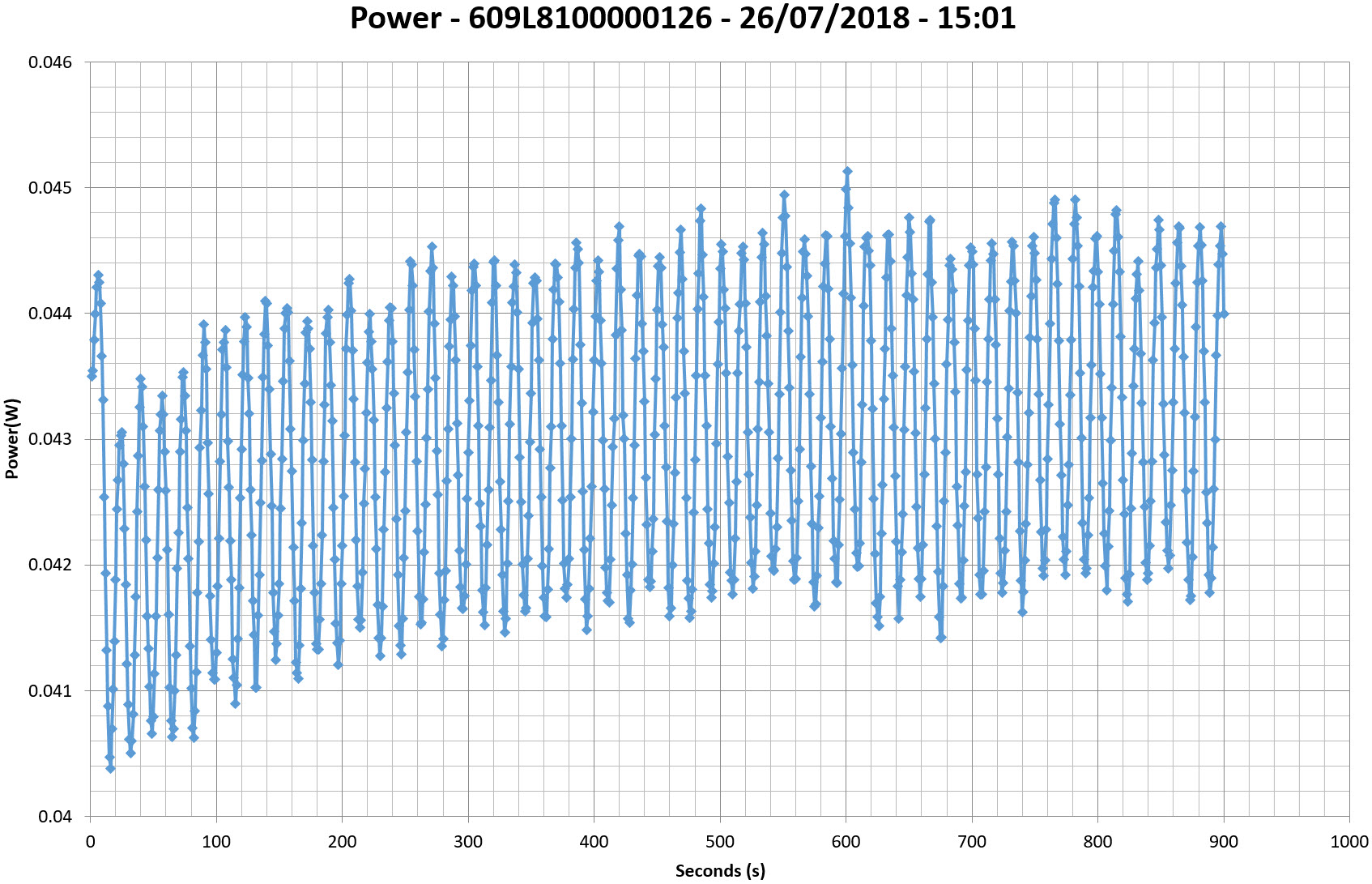

Vampire Power

Tables 115V

Graphs 115V

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

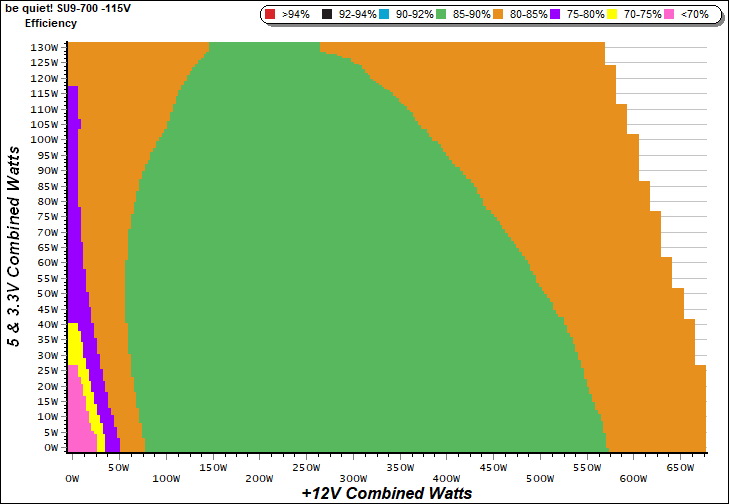

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

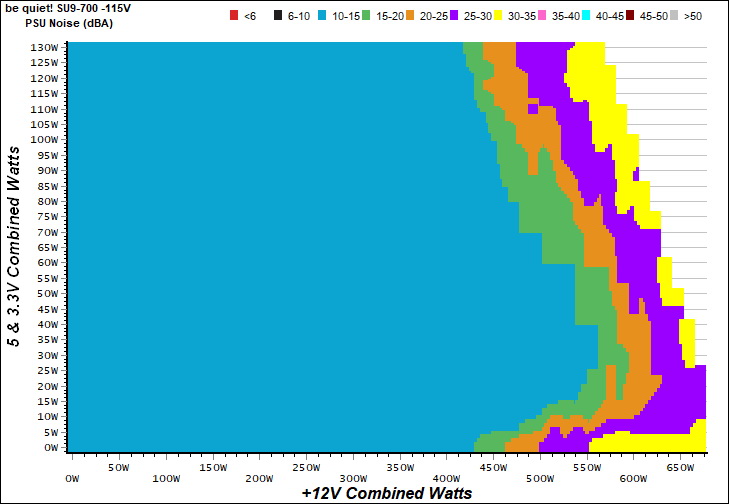

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

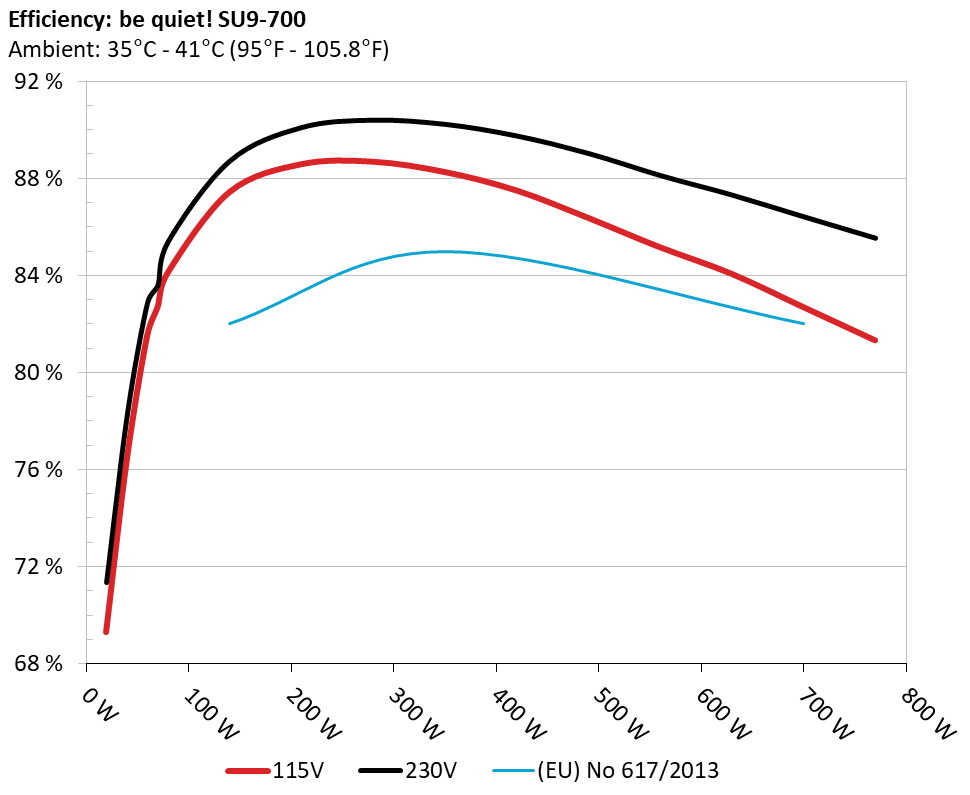

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

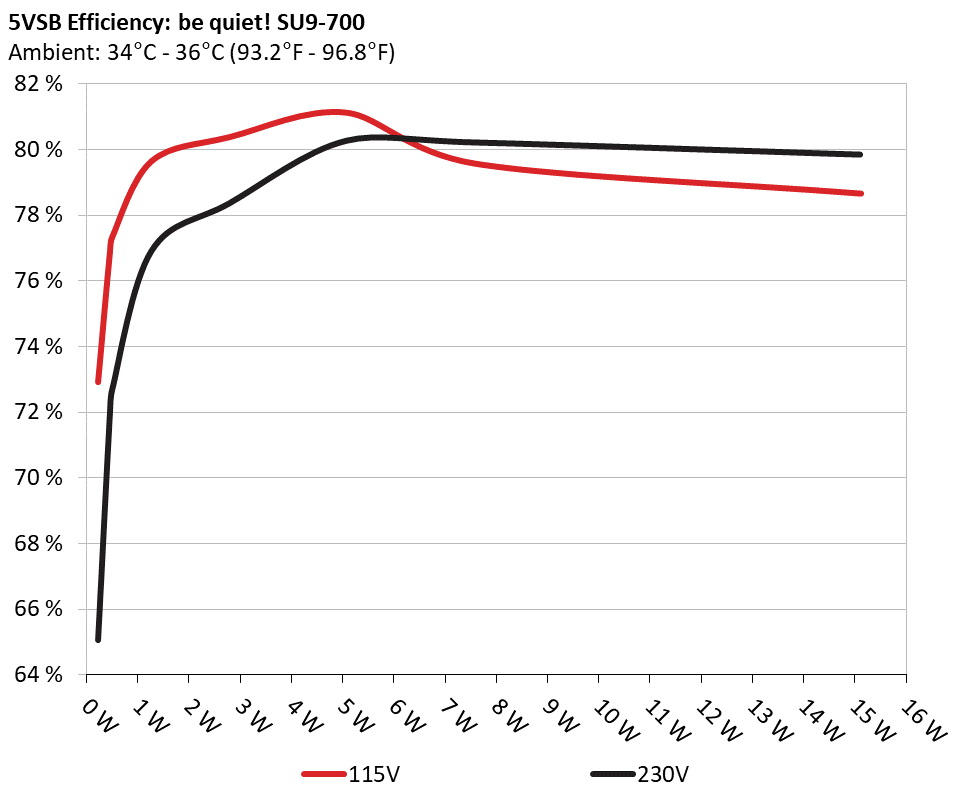

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 72.930% 0.024
5.089V 0.314 115.38V
2 0.090A 0.458 76.846% 0.046
5.088V 0.596 115.38V
3 0.550A 2.794 80.380% 0.221
5.080V 3.476 115.37V
4 1.000A 5.072 81.126% 0.315
5.072V 6.252 115.37V
5 1.500A 7.595 79.570% 0.377
5.063V 9.545 115.36V
6 3.000A 15.111 78.662% 0.453
5.037V 19.210 115.35V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.950A 1.995A 1.992A 0.988A 69.671 82.690% 633 10.0 36.53°C 0.963
12.170V 5.014V 3.311V 5.063V 84.256 39.66°C 115.26V
2 8.955A 2.994A 2.992A 1.188A 139.782 87.420% 630 10.0 36.82°C 0.970
12.158V 5.012V 3.308V 5.053V 159.897 40.68°C 115.18V
3 14.303A 3.492A 3.479A 1.388A 209.703 88.568% 628 9.9 37.23°C 0.979
12.145V 5.010V 3.305V 5.043V 236.770 41.96°C 115.18V
4 19.658A 3.998A 3.999A 1.590A 279.738 88.671% 635 10.1 37.46°C 0.984
12.133V 5.007V 3.303V 5.032V 315.478 42.75°C 115.07V
5 24.697A 4.999A 4.999A 1.793A 349.866 88.248% 628 9.9 37.87°C 0.988
12.121V 5.004V 3.300V 5.021V 396.458 44.07°C 114.97V
6 29.742A 6.001A 6.008A 1.997A 419.977 87.487% 630 10.0 38.09°C 0.990
12.109V 5.002V 3.297V 5.010V 480.045 45.86°C 114.97V
7 34.794A 7.005A 7.012A 2.202A 490.129 86.354% 656 10.7 38.70°C 0.992
12.100V 4.998V 3.295V 4.998V 567.579 47.30°C 114.84V
8 39.863A 8.009A 8.020A 2.407A 560.201 85.146% 948 20.0 39.27°C 0.993
12.086V 4.996V 3.292V 4.986V 657.928 48.49°C 114.73V
9 45.371A 8.505A 8.505A 2.409A 629.666 84.062% 988 21.1 39.93°C 0.994
12.060V 4.997V 3.291V 4.982V 749.046 49.86°C 114.65V
10 50.603A 9.013A 9.032A 3.024A 699.733 82.687% 1530 34.8 40.53°C 0.995
12.055V 4.994V 3.288V 4.962V 846.238 50.79°C 114.60V
11 56.481A 9.013A 9.038A 3.028A 769.783 81.321% 1812 39.2 40.90°C 0.995
12.041V 4.992V 3.286V 4.955V 946.599 51.94°C 114.46V
CL1 0.134A 16.002A 16.000A 0.000A 134.392 79.577% 644 10.4 37.76°C 0.973
12.165V 4.997V 3.300V 5.056V 168.884 44.31°C 115.15V
CL2 55.997A 1.000A 0.999A 1.000A 688.785 83.455% 1445 32.8 40.48°C 0.994
12.063V 4.996V 3.291V 5.009V 825.340 50.52°C 114.63V

The results above are not used in the certification process

Light Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.179A 0.498A 0.482A 0.197A 19.452 69.313% 622 9.8 0.871
12.175V 5.018V 3.313V 5.084V 28.064 115.34V
2 2.429A 0.997A 0.994A 0.394A 39.860 76.474% 618 9.7 0.926
12.172V 5.016V 3.312V 5.078V 52.122 115.31V
3 3.615A 1.495A 1.479A 0.592A 59.391 81.484% 618 9.7 0.962
12.170V 5.015V 3.311V 5.072V 72.887 115.28V
4 4.869A 1.994A 1.995A 0.790A 79.850 84.122% 638 10.2 0.962
12.168V 5.014V 3.310V 5.066V 94.922 115.25V

The results above are not used in the certification process

Ripple Measurements 115V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 9.6 mV 6.1 mV 5.8 mV 5.2 mV Pass
20% Load 13.4 mV 7.1 mV 7.1 mV 6.7 mV Pass
30% Load 15.3 mV 7.6 mV 7.6 mV 6.1 mV Pass
40% Load 20.5 mV 8.3 mV 8.5 mV 7.3 mV Pass
50% Load 25.2 mV 29.1 mV 15.5 mV 9.7 mV Pass
60% Load 30.6 mV 11.7 mV 11.4 mV 11.4 mV Pass
70% Load 37.3 mV 12.3 mV 12.7 mV 10.0 mV Pass
80% Load 43.3 mV 12.8 mV 15.5 mV 10.8 mV Pass
90% Load 47.3 mV 31.6 mV 24.2 mV 11.8 mV Pass
100% Load 55.2 mV 22.8 mV 24.9 mV 11.0 mV Pass
110% Load 65.4 mV 30.0 mV 34.1 mV 13.3 mV Pass
Crossload 1 11.4 mV 11.8 mV 16.6 mV 5.7 mV Pass
Crossload 2 53.0 mV 12.5 mV 11.0 mV 9.2 mV Pass

The results above are not used in the certification process

be quiet! System Power U9 700W (#2)

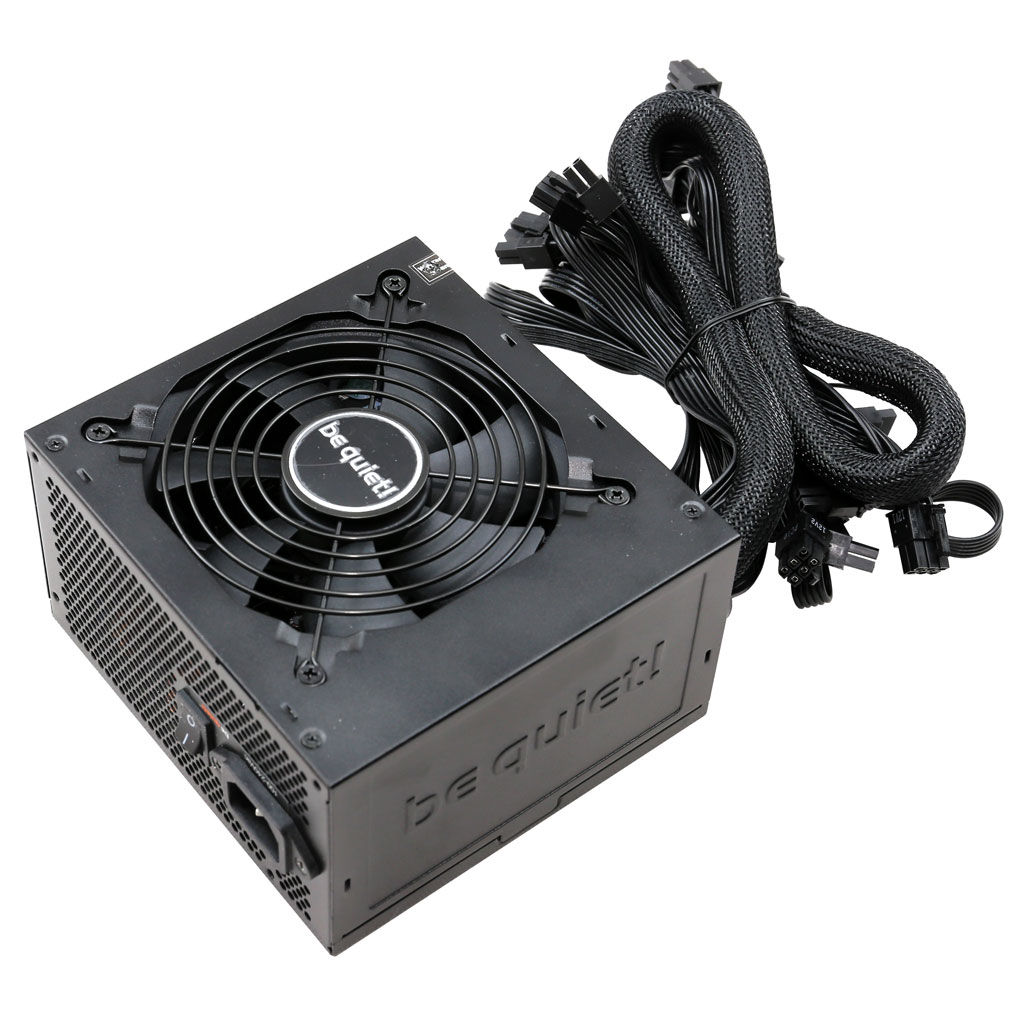

Top side

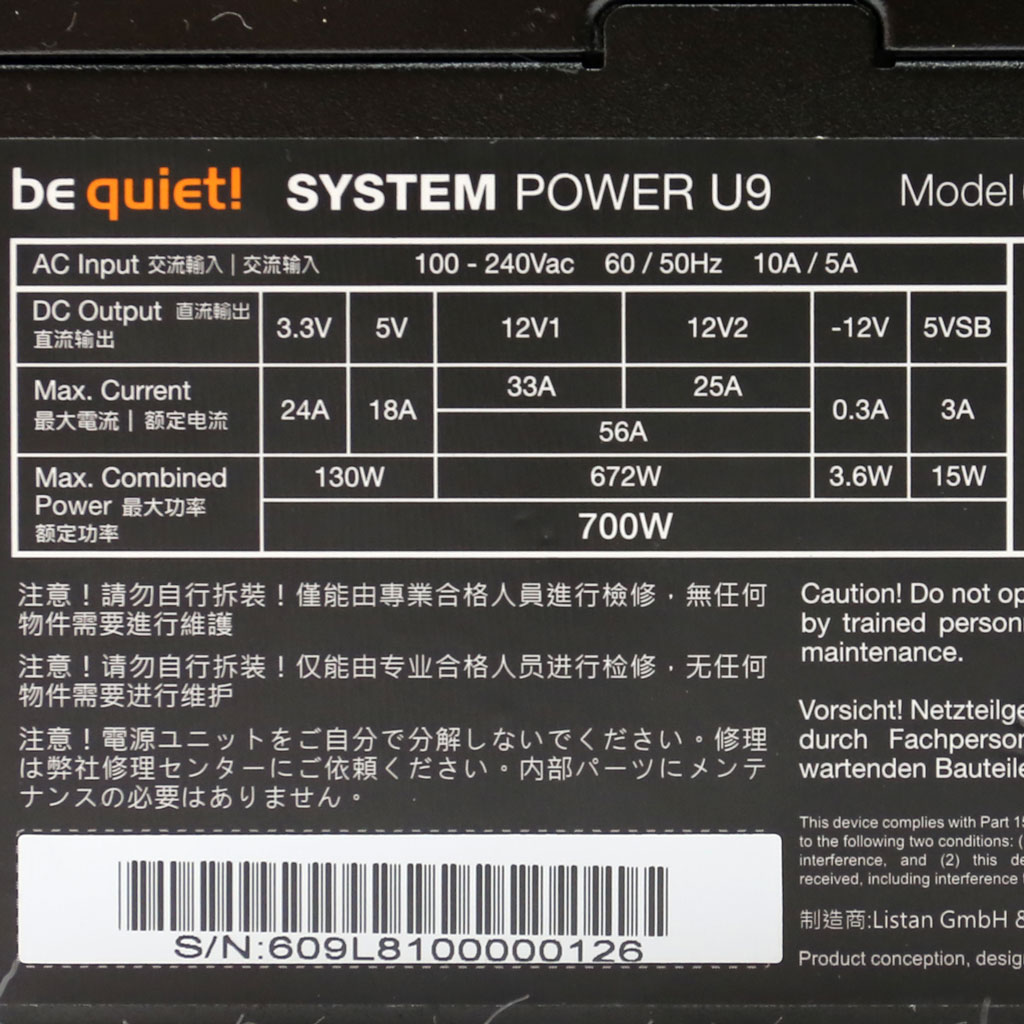

Power specifications label
