be quiet! Pure Power 11 700W
Serial Number299S8321001223
Lab ID528
Certification ID25528
  • Test Result Report ID: 20PS528A
  • Certificate Issue Date: Jan 11, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
Brandbe quiet!
ModelPure Power 11 700W
OEM/ODM
Serial Number299S8321001223
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)50-60
Rated Power (W)700
Operating Temperature (Continuous Full Load) (°C)
TypeATX12V
Cable DesignSemi Modular
Warranty-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling120mm Rifle Bearing Fan
(BQ QF1-12025-HS)
Semi-Passive Operation✗
Cybenetics Testing Information
Lab ID528
Date of receiptDec 28, 2017
Testing DateJan 9, 2018
Report Issued DateJan 11, 2018
Engineer Name-
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Native Cables
Description Cable Count Connector Count (Total) Gauge In Cable Caps
ATX connector 20+4 pin (550mm) 1 1 18-24AWG No
4+4 pin EPS12V (600mm) 1 1 18AWG No
Modular Cables
Description Cable Count Connector Count (Total) Gauge Gauge
6+2 pin PCIe (500mm+150mm) 2 4 18AWG No
SATA (500mm+150mm+150mm) 1 3 18AWG No
SATA (500mm) / 4-pin Molex (+150mm+150mm) 1 1 / 2 18AWG No
SATA (500mm+150mm) / 4-pin Molex (+150mm) / FDD (+150mm) 1 2 / 1 / 1 18-22AWG No
AC Power Cord (1360mm) 1 1 18AWG -

Protection Features(Manufacturer)

Power Specifications

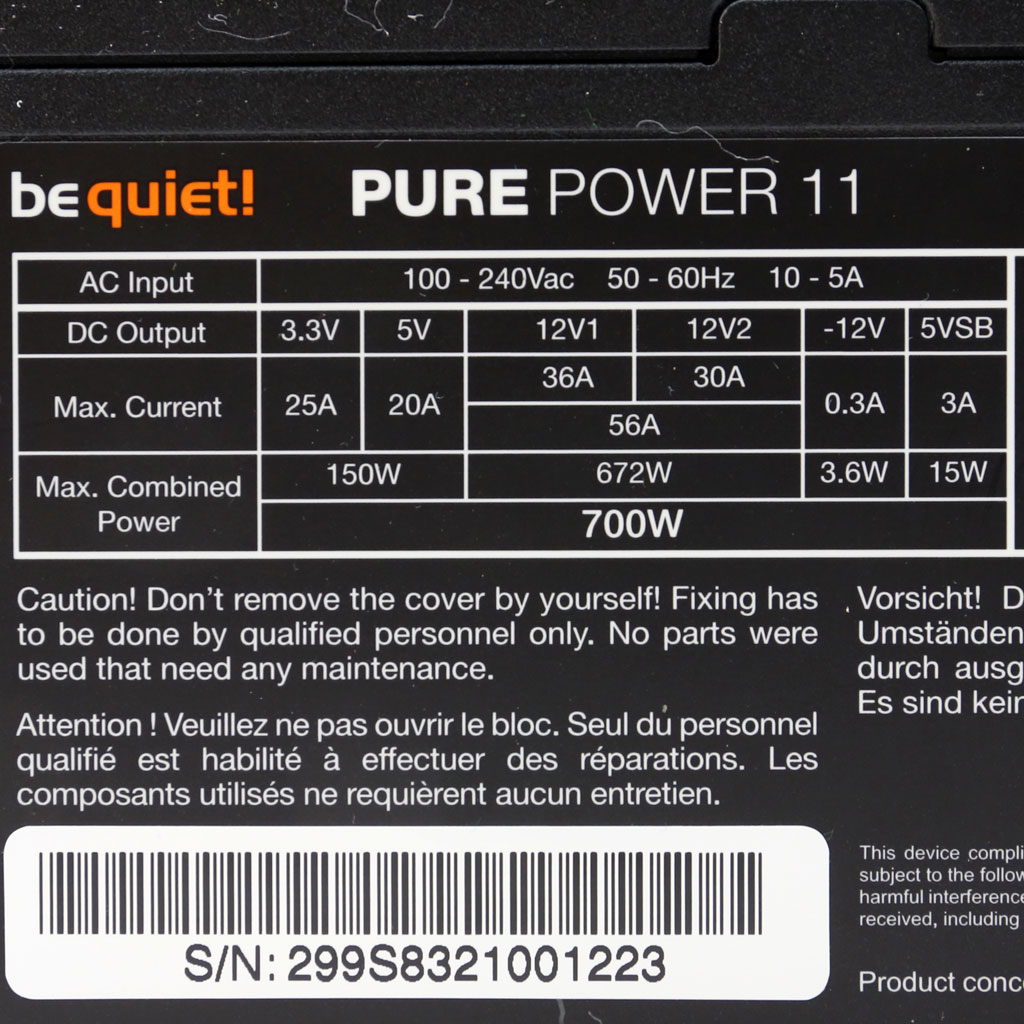

Rail 3.3V 5V 12V1 12V2 5VSB -12V
Max. Power Amps 25 20 36 30 3 0.3
Watts 150 56 15 3.6
672
Total Max. Power (W) 700

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)88.620%
Average Noise Output (>1450 Load Combinations)17.09dBA
Average PF (>1450 Load Combinations)0.979
Efficiency With 10W (≤500W) or 2% (>500W) Load62.659%
Standby Power Consumption0.0981W
Non-Accredited
12V Ripple (Full Load)43.31mV
5V Ripple (Full Load)35.83mV
3.3V Ripple (Full Load)41.58mV
5VSB Ripple (Full Load)18.20mV
12V Load Regulation0.99%
5V Load Regulation2.07%
3.3V Load Regulation3.13%
5VSB Load Regulation2.96%
Inrush Current117.623A
Accredited
Average Efficiency (>1450 load combinations)90.190%
Average Noise Output (>1450 Load Combinations)16.29dBA
Average PF (>1450 Load Combinations)0.958
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1558W
Non-Accredited
12V Ripple (Full Load)25.79mV
5V Ripple (Full Load)30.45mV
3.3V Ripple (Full Load)37.18mV
5VSB Ripple (Full Load)12.69mV
12V Load Regulation0.95%
5V Load Regulation1.99%
3.3V Load Regulation2.82%
5VSB Load Regulation2.90%
Inrush Current91.489A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & PWR_OK Signal26.00ms
AC Loss to PWR_OK Hold Up Time24.60ms
PWR_OK Inactive to DC Loss Delay1.40ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms) 26.0
AC Loss to PWR_OK Hold Up Time  (ms) 24.6
PWR_OK Inactive to DC Loss Delay (ms) 1.4

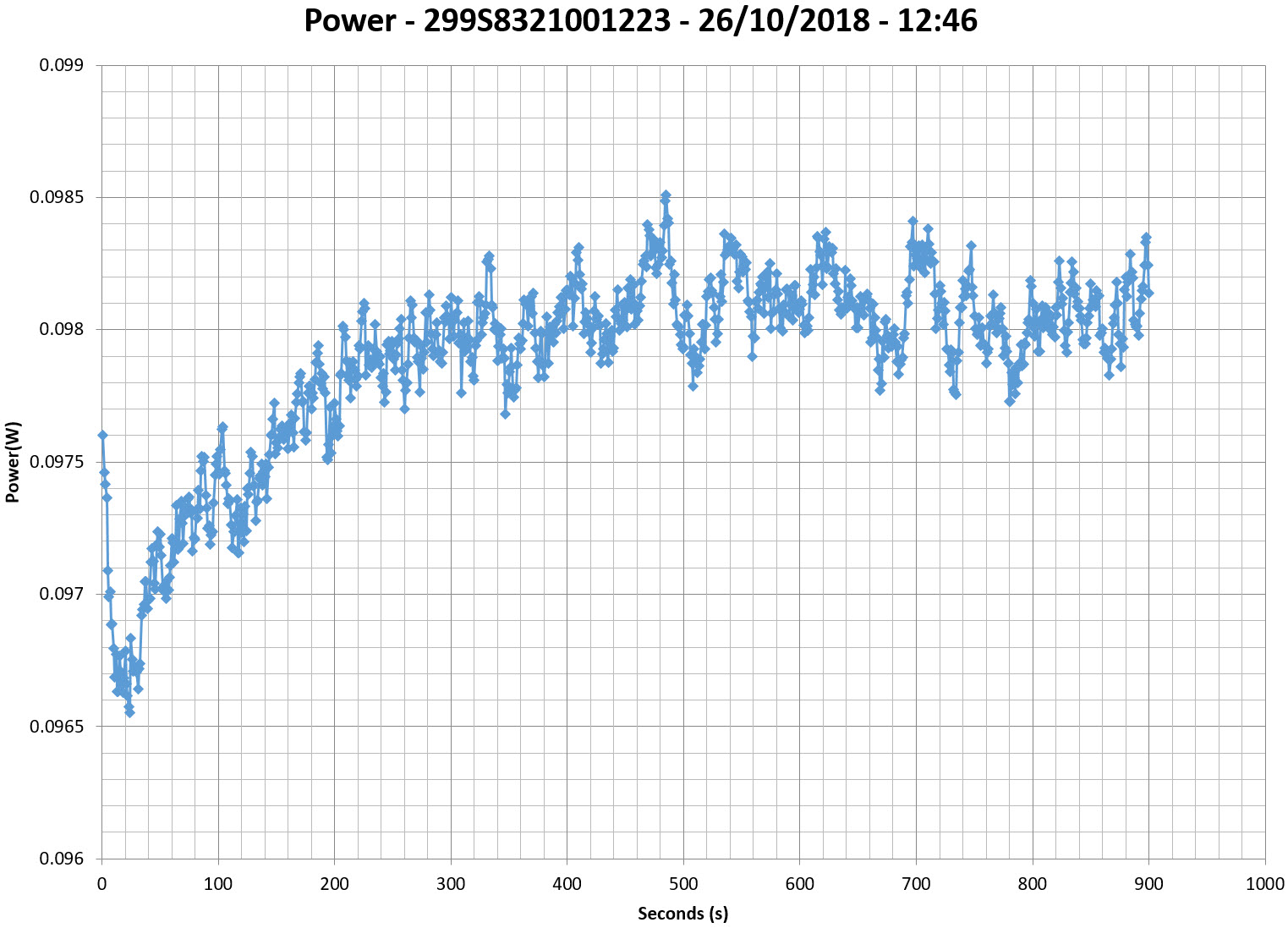

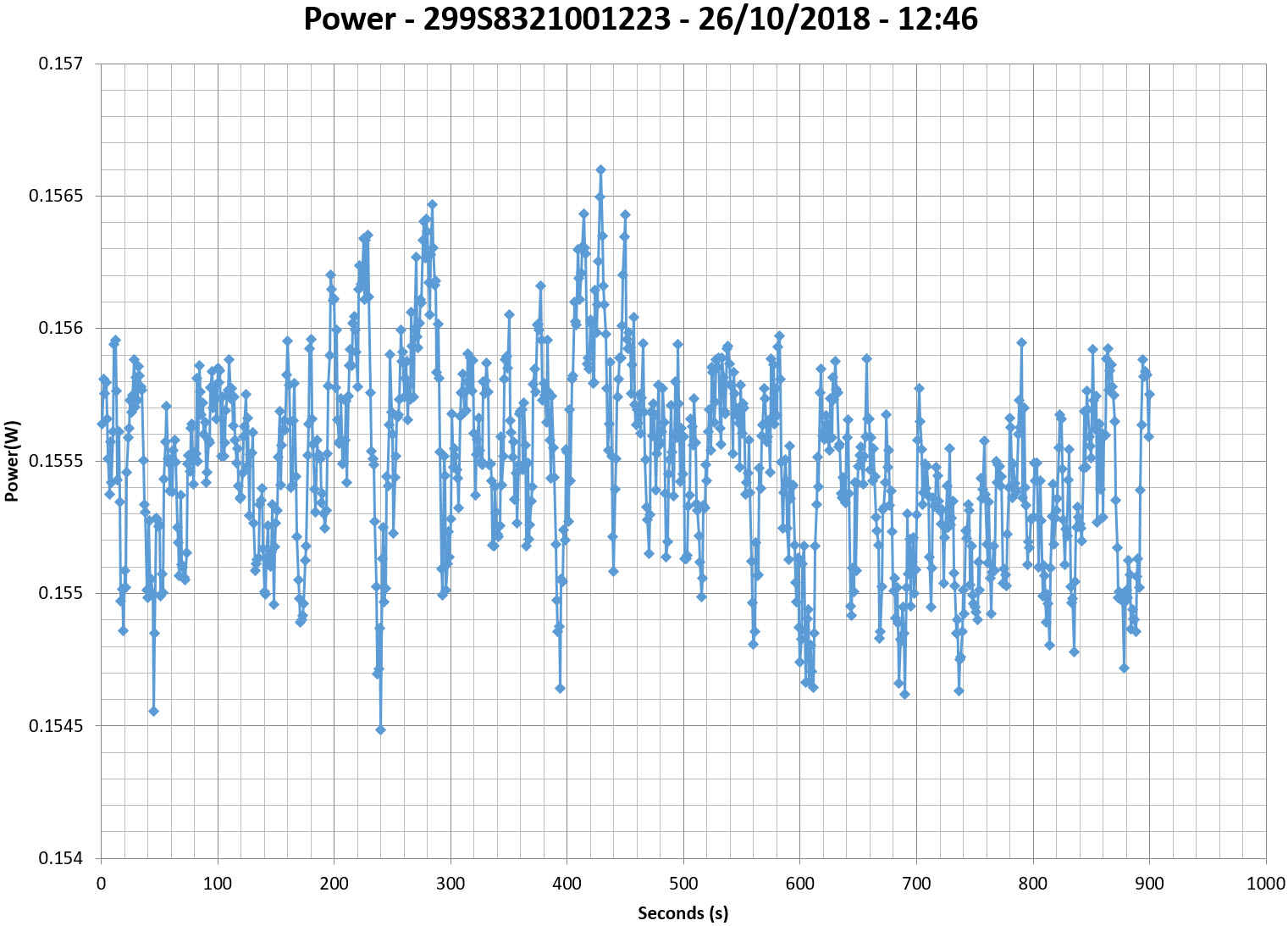

Stromverbrauch im Ruhezustand

Tables

Graphs

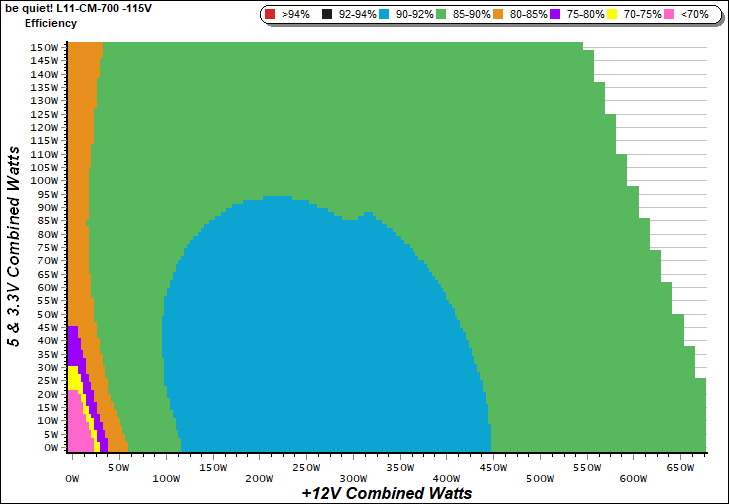

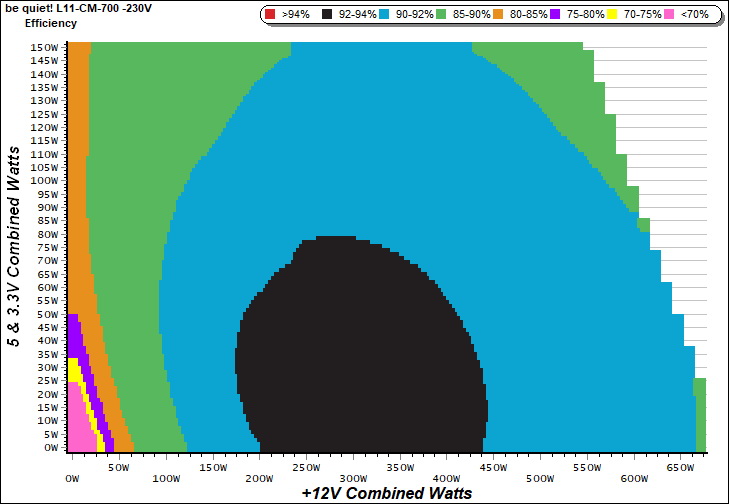

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

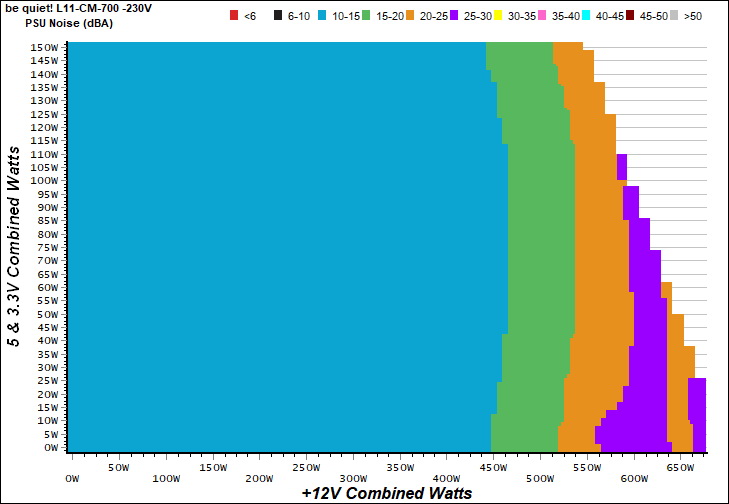

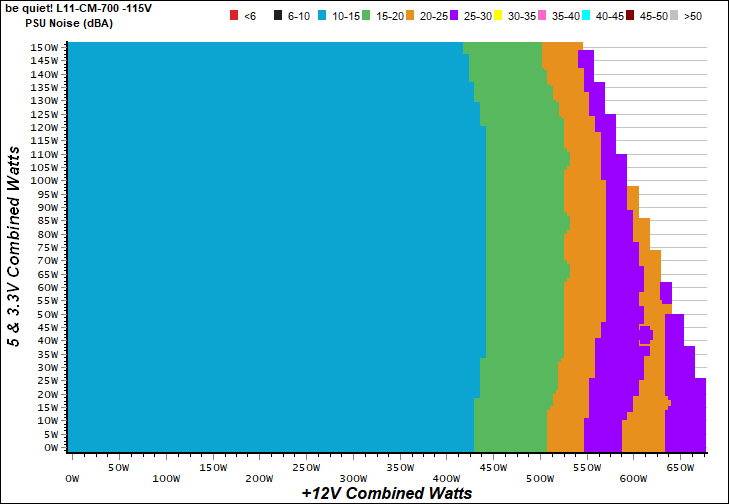

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

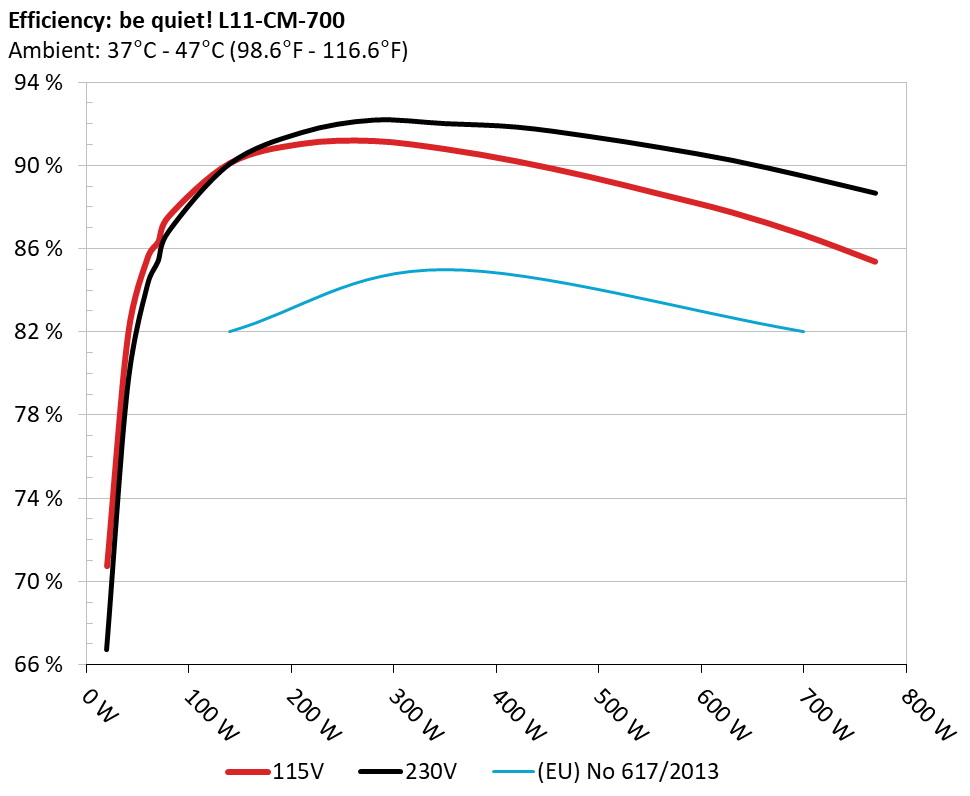

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

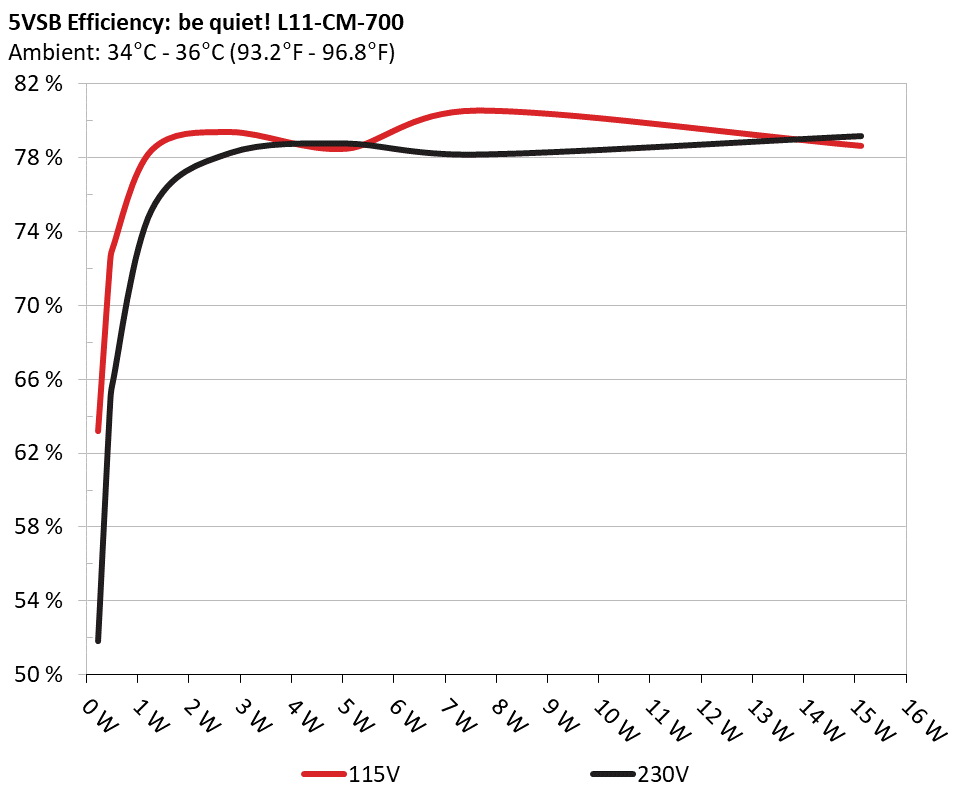

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 63.187% 0.068
5.104V 0.364 115.06V
2 0.090A 0.460 72.214% 0.115
5.102V 0.637 115.06V
3 0.550A 2.801 79.393% 0.329
5.092V 3.528 115.05V
4 1.000A 5.083 78.490% 0.382
5.082V 6.476 115.06V
5 1.500A 7.609 80.553% 0.408
5.072V 9.446 115.05V
6 3.000A 15.122 78.642% 0.453
5.040V 19.229 115.06V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 51.802% 0.026
5.102V 0.444 230.20V
2 0.090A 0.460 64.426% 0.041
5.101V 0.714 230.20V
3 0.550A 2.801 78.262% 0.173
5.091V 3.579 230.21V
4 1.000A 5.083 78.782% 0.248
5.082V 6.452 230.21V
5 1.500A 7.608 78.183% 0.296
5.071V 9.731 230.20V
6 3.001A 15.120 79.183% 0.356
5.039V 19.095 230.21V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.971A 1.990A 1.948A 0.985A 69.651 86.337% 685 12.5 40.04°C 0.915
12.101V 5.026V 3.386V 5.077V 80.673 44.95°C 115.05V
2 9.002A 2.991A 2.933A 1.185A 139.723 90.135% 687 12.1 40.45°C 0.948
12.088V 5.017V 3.375V 5.064V 155.015 45.72°C 115.05V
3 14.378A 3.495A 3.415A 1.386A 209.635 91.060% 687 12.1 41.26°C 0.968
12.076V 5.009V 3.367V 5.052V 230.217 46.74°C 115.05V
4 19.764A 4.003A 3.932A 1.588A 279.657 91.198% 689 11.2 41.88°C 0.979
12.065V 4.997V 3.357V 5.038V 306.649 47.84°C 115.04V
5 24.829A 5.013A 4.928A 1.791A 349.737 90.811% 692 11.1 42.54°C 0.987
12.052V 4.988V 3.347V 5.024V 385.125 48.86°C 115.04V
6 29.908A 6.027A 5.934A 1.996A 419.850 90.217% 693 10.9 42.97°C 0.991
12.039V 4.977V 3.335V 5.011V 465.380 50.52°C 115.04V
7 34.993A 7.052A 6.956A 2.202A 489.979 89.479% 789 14.0 43.22°C 0.992
12.027V 4.964V 3.322V 4.997V 547.594 52.08°C 115.03V
8 40.096A 8.081A 7.984A 2.409A 560.070 88.639% 1047 19.1 43.89°C 0.993
12.013V 4.950V 3.306V 4.982V 631.853 53.30°C 115.03V
9 45.607A 8.606A 8.497A 2.414A 629.791 87.761% 1270 25.1 44.55°C 0.994
12.000V 4.939V 3.295V 4.973V 717.623 54.54°C 115.03V
10 50.897A 9.137A 9.053A 3.031A 699.814 86.678% 1476 29.4 45.19°C 0.995
11.987V 4.926V 3.281V 4.949V 807.369 56.29°C 115.03V
11 56.801A 9.156A 9.081A 3.037A 769.846 85.389% 1712 33.5 46.98°C 0.993
11.974V 4.916V 3.270V 4.941V 901.578 58.52°C 115.02V
CL1 0.139A 18.004A 18.000A 0.000A 151.169 82.350% 906 17.7 42.94°C 0.958
12.068V 4.967V 3.337V 5.063V 183.568 48.88°C 115.05V
CL2 56.005A 1.002A 1.001A 1.000A 685.276 86.822% 1496 29.9 45.73°C 0.994
11.999V 4.949V 3.300V 5.009V 789.287 56.46°C 115.03V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.971A 1.994A 1.960A 0.985A 69.640 85.384% 685 12.5 39.69°C 0.860
12.097V 5.015V 3.368V 5.077V 81.561 44.89°C 230.19V
2 9.006A 2.997A 2.949A 1.185A 139.748 90.084% 686 12.2 40.82°C 0.917
12.085V 5.007V 3.358V 5.065V 155.131 46.70°C 230.20V
3 14.387A 3.503A 3.434A 1.385A 209.686 91.584% 687 12.1 41.14°C 0.942
12.072V 4.997V 3.350V 5.053V 228.954 47.57°C 230.20V
4 19.778A 4.008A 3.950A 1.587A 279.722 92.183% 689 11.2 41.95°C 0.955
12.060V 4.991V 3.341V 5.040V 303.443 48.76°C 230.02V
5 24.844A 5.022A 4.952A 1.791A 349.827 92.017% 687 12.1 42.03°C 0.969
12.048V 4.980V 3.331V 5.026V 380.176 49.89°C 230.19V
6 29.916A 6.034A 5.954A 1.996A 419.899 91.847% 683 12.4 42.87°C 0.974
12.037V 4.973V 3.324V 5.011V 457.172 51.26°C 230.20V
7 35.008A 7.057A 6.974A 2.202A 490.012 91.405% 781 13.9 43.21°C 0.978
12.023V 4.961V 3.312V 4.997V 536.087 52.13°C 230.20V
8 40.111A 8.089A 8.002A 2.409A 560.102 90.864% 1050 19.4 44.44°C 0.981
12.009V 4.946V 3.299V 4.982V 616.417 53.83°C 230.20V
9 45.617A 8.611A 8.514A 2.414A 629.832 90.253% 1281 25.2 44.84°C 0.983
11.998V 4.937V 3.289V 4.973V 697.855 54.85°C 230.19V
10 50.907A 9.144A 9.071A 3.032A 699.849 89.492% 1478 29.4 45.72°C 0.985
11.985V 4.923V 3.275V 4.949V 782.023 56.60°C 230.19V
11 56.816A 9.162A 9.095A 3.038A 769.856 88.674% 1682 33.1 46.70°C 0.986
11.971V 4.913V 3.265V 4.939V 868.183 58.38°C 230.19V
CL1 0.139A 18.005A 18.002A 0.000A 150.730 83.084% 913 17.8 42.45°C 0.929
12.065V 4.959V 3.320V 5.063V 181.418 49.58°C 230.20V
CL2 56.008A 1.002A 1.000A 1.000A 685.124 89.629% 1477 29.4 45.74°C 0.985
11.996V 4.942V 3.292V 5.008V 764.403 56.47°C 230.18V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.195A 0.497A 0.472A 0.196A 19.575 70.727% 677 11.5 0.836
12.112V 5.035V 3.391V 5.100V 27.677 115.05V
2 2.453A 0.994A 0.972A 0.393A 39.992 81.845% 681 12.4 0.885
12.107V 5.030V 3.387V 5.093V 48.863 115.04V
3 3.636A 1.491A 1.446A 0.590A 59.410 85.605% 682 12.4 0.906
12.104V 5.030V 3.387V 5.087V 69.400 115.05V
4 4.896A 1.987A 1.949A 0.787A 79.824 87.568% 684 12.5 0.922
12.100V 5.026V 3.385V 5.080V 91.157 115.05V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.191A 0.497A 0.472A 0.196A 19.507 66.739% 681 12.4 0.696
12.107V 5.022V 3.374V 5.099V 29.229 230.19V
2 2.450A 0.995A 0.978A 0.393A 39.944 79.345% 682 12.4 0.795
12.103V 5.019V 3.371V 5.092V 50.342 230.19V
3 3.638A 1.493A 1.455A 0.590A 59.412 84.277% 683 12.4 0.842
12.099V 5.018V 3.370V 5.086V 70.496 230.19V
4 4.897A 1.994A 1.962A 0.787A 79.833 86.821% 685 12.5 0.873
12.095V 5.015V 3.367V 5.080V 91.951 230.19V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.7 mV 12.7 mV 11.6 mV 15.5 mV Pass
20% Load 13.1 mV 17.4 mV 17.3 mV 18.5 mV Pass
30% Load 16.6 mV 19.9 mV 21.5 mV 17.9 mV Pass
40% Load 18.0 mV 21.9 mV 22.7 mV 11.4 mV Pass
50% Load 20.8 mV 24.7 mV 25.4 mV 12.5 mV Pass
60% Load 21.8 mV 26.2 mV 28.4 mV 11.4 mV Pass
70% Load 24.1 mV 27.6 mV 32.2 mV 14.5 mV Pass
80% Load 25.7 mV 30.9 mV 33.6 mV 15.6 mV Pass
90% Load 33.3 mV 33.0 mV 36.5 mV 16.6 mV Pass
100% Load 43.3 mV 35.8 mV 41.6 mV 18.2 mV Pass
110% Load 59.6 mV 37.9 mV 44.4 mV 19.9 mV Pass
Crossload 1 18.2 mV 27.5 mV 24.4 mV 19.3 mV Pass
Crossload 2 39.0 mV 33.8 mV 37.5 mV 18.9 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 6.8 mV 12.7 mV 9.9 mV 13.7 mV Pass
20% Load 6.7 mV 13.5 mV 11.8 mV 16.6 mV Pass
30% Load 8.3 mV 15.7 mV 14.5 mV 20.8 mV Pass
40% Load 10.9 mV 16.5 mV 17.6 mV 22.9 mV Pass
50% Load 12.8 mV 18.2 mV 20.1 mV 23.5 mV Pass
60% Load 15.2 mV 20.0 mV 22.5 mV 12.8 mV Pass
70% Load 16.2 mV 21.4 mV 26.0 mV 13.6 mV Pass
80% Load 18.7 mV 24.1 mV 28.9 mV 14.4 mV Pass
90% Load 22.1 mV 27.4 mV 33.0 mV 14.1 mV Pass
100% Load 25.8 mV 30.5 mV 37.2 mV 12.7 mV Pass
110% Load 44.4 mV 34.1 mV 41.8 mV 12.1 mV Pass
Crossload 1 9.5 mV 24.3 mV 20.0 mV 16.3 mV Pass
Crossload 2 24.6 mV 30.5 mV 34.7 mV 17.8 mV Pass

The results above are not used in the certification process

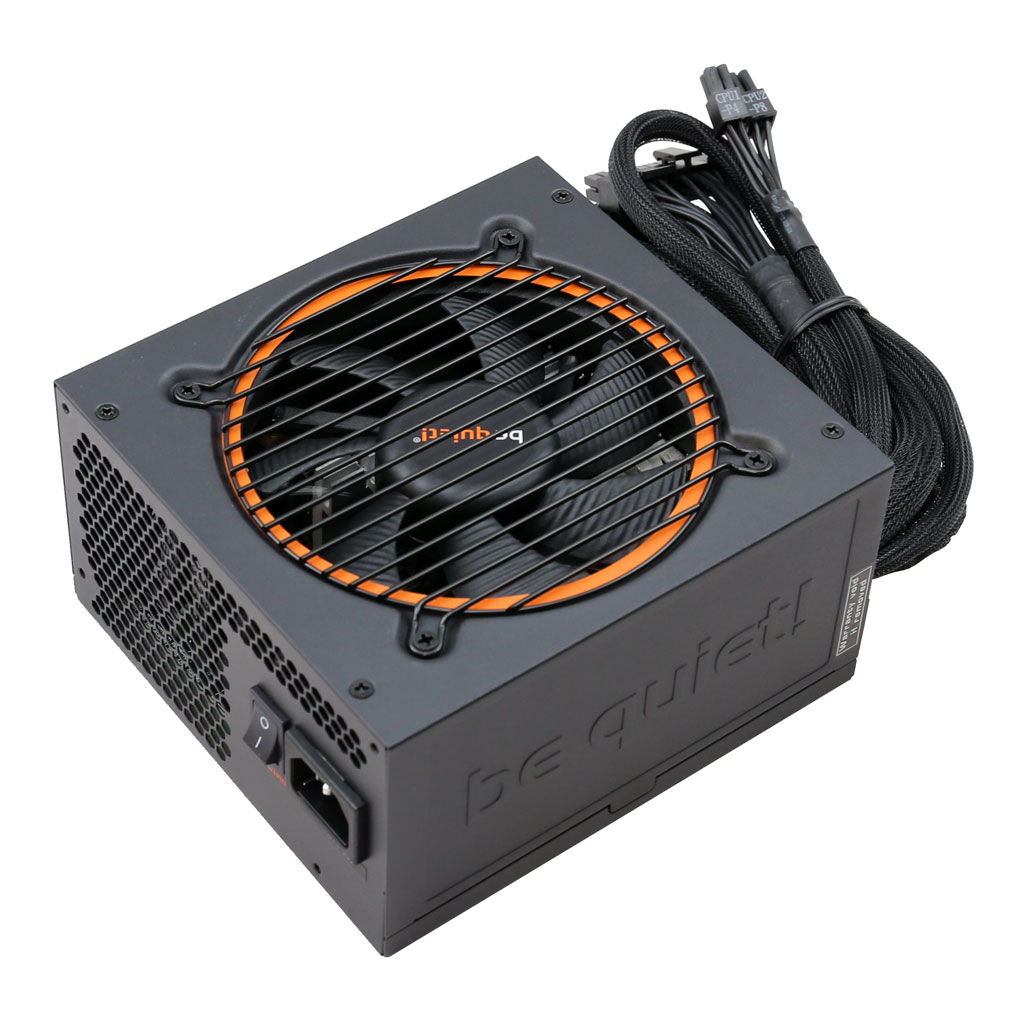

be quiet! Pure Power 11 700W

Top side
Power specifications label
Cybenetics bietet freiwillige Zertifizierungsprogramme für Netzteile – ETA für Effizienz, LAMBDA für Lautstärke und SAFE für Sicherheit und korrekten Betrieb – sowie für Kühlprodukte mit DELTA für die Schalldämmung von Gehäusen und PHI für Luftstrom und statischen Druck von Lüftern
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
