Super Flower Leadex III Gold 650W rev.1
Serial NumberS1901188885
Lab ID634
Certification ID25634
  • Test Result Report ID:
  • Certificate Issue Date: Feb 21, 2019
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)Super Flower
SeriesLeadex III Gold
Model NumberSF-650F14HG rev.1
Serial NumberS1901188885
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
Dimensions (W x H x D)
Cooling130mm Fluid Dynamic Bearing
(S1282412L)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 54.1 3 0.5
Watts 100 649.2 15 6
Total Max. Power (W) 650

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (700mm) 2 2 18-22AWG Yes
6+2 pin PCIe (700mm+150mm) 2 4 18-20AWG Yes
SATA (550mm+125mm+115mm) 2 6 18-20AWG No
4 pin Molex (545mm+100mm+100mm+100mm) 1 4 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA
Average Efficiency (>1450 load combinations)89.041%
Average Noise Output (>1450 Load Combinations)23.28dBA
Average PF (>1450 Load Combinations)0.981
Efficiency With 10W (≤500W) or 2% (>500W) Load65.440%
Standby Power Consumption0.0545W
12V Ripple (Full Load)12.63mV
5V Ripple (Full Load)8.93mV
3.3V Ripple (Full Load)17.31mV
5VSB Ripple (Full Load)12.77mV
12V Load Regulation0.15%
5V Load Regulation0.05%
3.3V Load Regulation0.07%
5VSB Load Regulation2.87%
Inrush Current34.051A
Efficiency RatingBRONZE
Noise RatingA
Average Efficiency (>1450 load combinations)90.988%
Average Noise Output (>1450 Load Combinations)23.59dBA
Average PF (>1450 Load Combinations)0.915
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1068W
12V Ripple (Full Load)13.02mV
5V Ripple (Full Load)9.70mV
3.3V Ripple (Full Load)16.62mV
5VSB Ripple (Full Load)14.35mV
12V Load Regulation0.18%
5V Load Regulation0.54%
3.3V Load Regulation0.75%
5VSB Load Regulation2.83%
Inrush Current51.793A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal18.40ms
AC Loss to PWR_OK Hold Up Time16.80ms
PWR_OK Inactive to DC Loss Delay1.60ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 18.40
AC Loss to PWR_OK Hold Up Time  (ms) 16.80
PWR_OK Inactive to DC Loss Delay (ms) 1.60

Vampire Power

Tables

Graphs

INFO

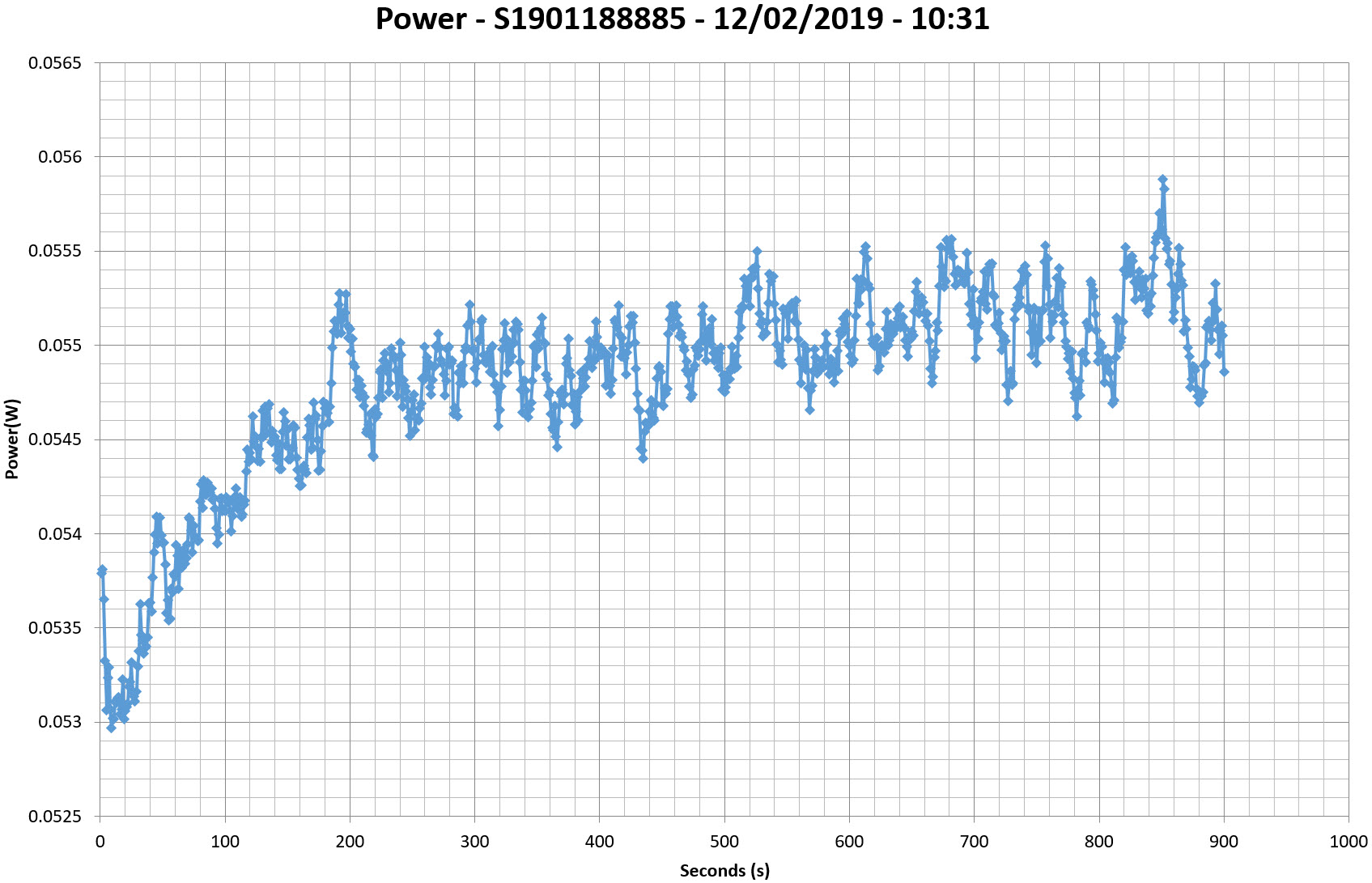

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

INFO

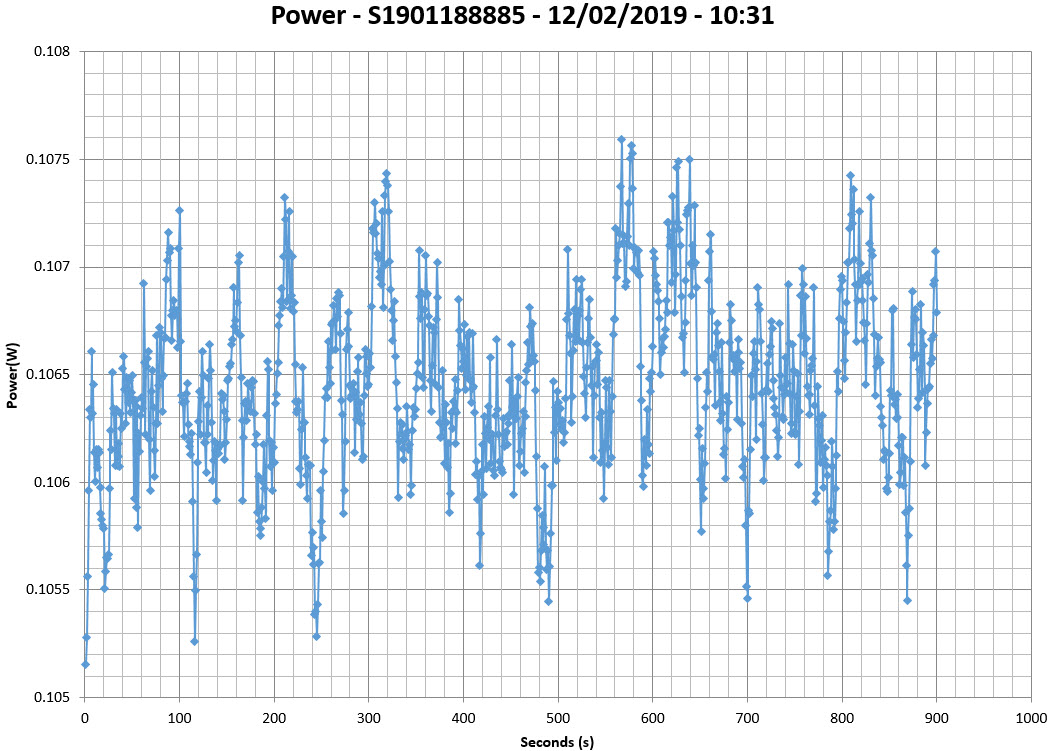

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing

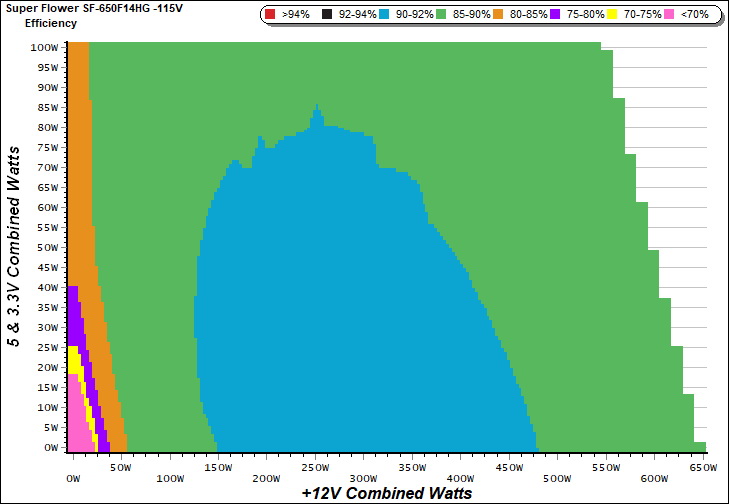

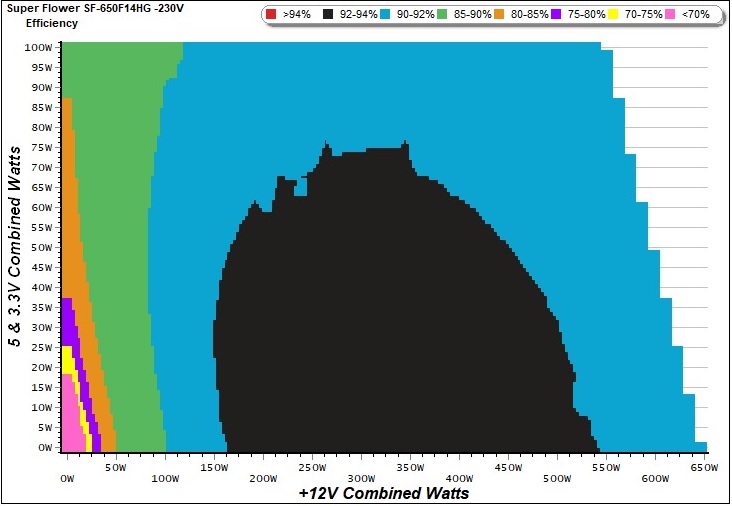

Efficiency Graph

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

Noise Graph

INFO

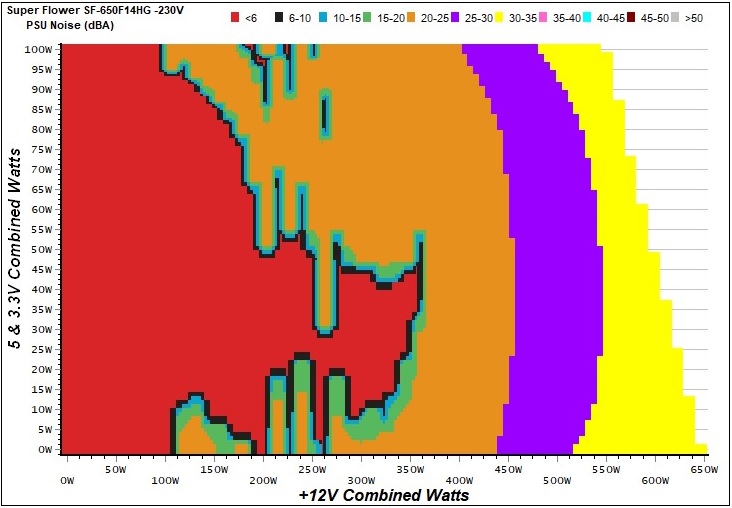

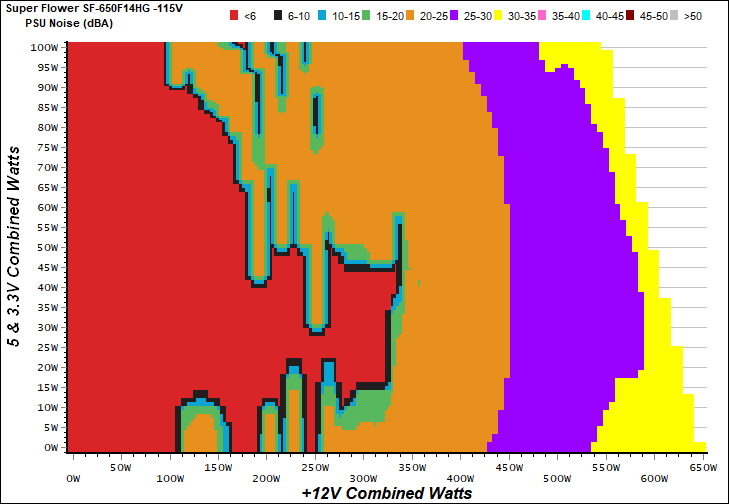

The PSU’s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU’s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

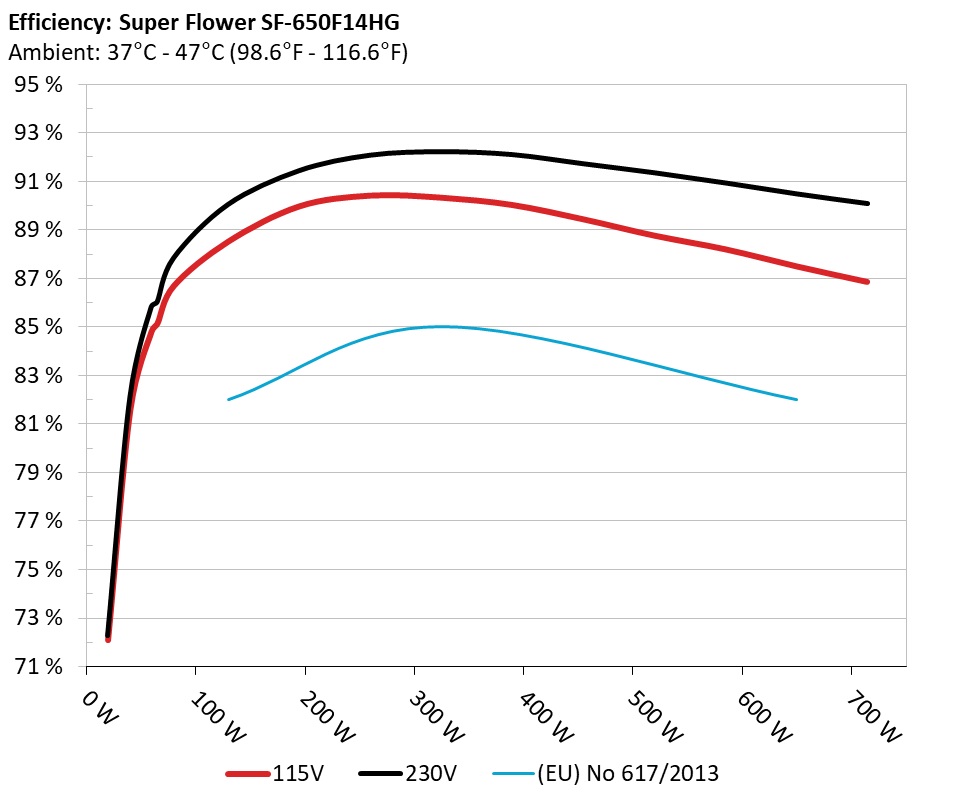

The PSU’s efficiency under high ambient temperatures

5VSB Efficiency

INFO

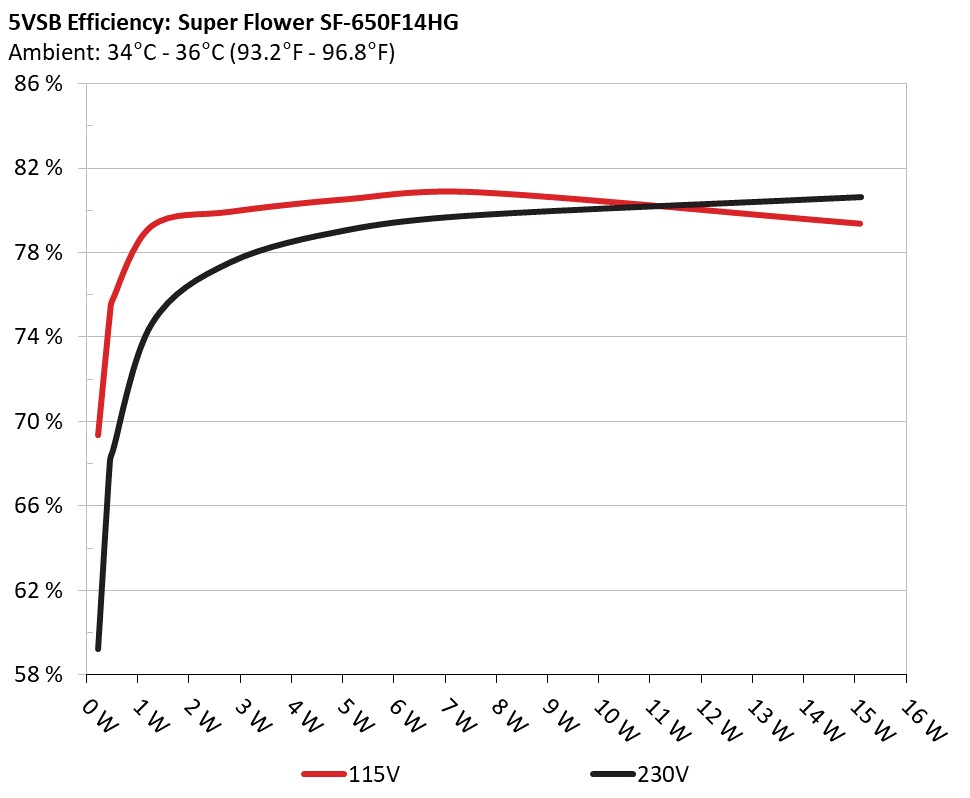

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 69.369% 0.025
5.129V 0.333 115.08V
2 0.090A 0.462 75.122% 0.045
5.128V 0.615 115.08V
3 0.550A 2.814 79.943% 0.219
5.115V 3.520 115.08V
4 1.000A 5.103 80.540% 0.320
5.102V 6.336 115.08V
5 1.500A 7.632 80.865% 0.385
5.087V 9.438 115.08V
6 3.000A 15.100 79.378% 0.468
5.033V 19.023 115.07V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 59.231% 0.009
5.129V 0.390 230.23V
2 0.090A 0.462 68.142% 0.015
5.128V 0.678 230.22V
3 0.550A 2.813 77.557% 0.078
5.115V 3.627 230.22V
4 1.000A 5.102 79.089% 0.132
5.102V 6.451 230.22V
5 1.500A 7.631 79.789% 0.183
5.087V 9.564 230.23V
6 3.000A 15.119 80.643% 0.291
5.040V 18.748 230.23V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.539A 1.990A 1.993A 0.982A 64.759 85.144% 0

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.530A 1.989A 1.991A 0.982A 64.643 86.032% 0

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.185A 0.498A 0.480A 0.195A 19.555 72.095% 0

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.172A 0.496A 0.478A 0.195A 19.379 72.267% 0

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.7 mV 4.0 mV 9.2 mV 6.1 mV Pass
20% Load 6.4 mV 4.5 mV 9.4 mV 6.4 mV Pass
30% Load 7.6 mV 5.3 mV 10.3 mV 7.1 mV Pass
40% Load 7.7 mV 5.8 mV 11.6 mV 7.2 mV Pass
50% Load 8.4 mV 6.5 mV 12.1 mV 8.0 mV Pass
60% Load 8.2 mV 6.4 mV 13.6 mV 7.6 mV Pass
70% Load 8.7 mV 7.5 mV 13.4 mV 9.7 mV Pass
80% Load 8.6 mV 7.8 mV 14.6 mV 9.9 mV Pass
90% Load 9.0 mV 8.1 mV 15.3 mV 10.1 mV Pass
100% Load 12.6 mV 8.9 mV 17.3 mV 12.8 mV Pass
107% Load 13.1 mV 9.0 mV 15.8 mV 12.6 mV Pass
Crossload 1 8.3 mV 4.9 mV 12.7 mV 22.7 mV Pass
Crossload 2 12.3 mV 8.6 mV 15.4 mV 9.8 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.5 mV 3.9 mV 9.4 mV 7.2 mV Pass
20% Load 6.4 mV 4.6 mV 10.6 mV 8.2 mV Pass
30% Load 7.1 mV 5.2 mV 10.6 mV 8.7 mV Pass
40% Load 7.7 mV 5.8 mV 12.6 mV 8.8 mV Pass
50% Load 7.8 mV 6.4 mV 12.0 mV 9.0 mV Pass
60% Load 8.3 mV 7.1 mV 12.9 mV 10.0 mV Pass
70% Load 8.3 mV 7.6 mV 14.9 mV 11.7 mV Pass
80% Load 8.7 mV 7.9 mV 14.6 mV 11.2 mV Pass
90% Load 9.3 mV 8.4 mV 15.6 mV 10.6 mV Pass
100% Load 13.0 mV 9.7 mV 16.6 mV 14.4 mV Pass
110% Load 12.8 mV 9.0 mV 16.7 mV 14.3 mV Pass
Crossload 1 7.8 mV 5.1 mV 13.0 mV 24.4 mV Pass
Crossload 2 12.2 mV 9.2 mV 15.9 mV 13.4 mV Pass

The results above are not used in the certification process

Super Flower Leadex III Gold 650W rev.1

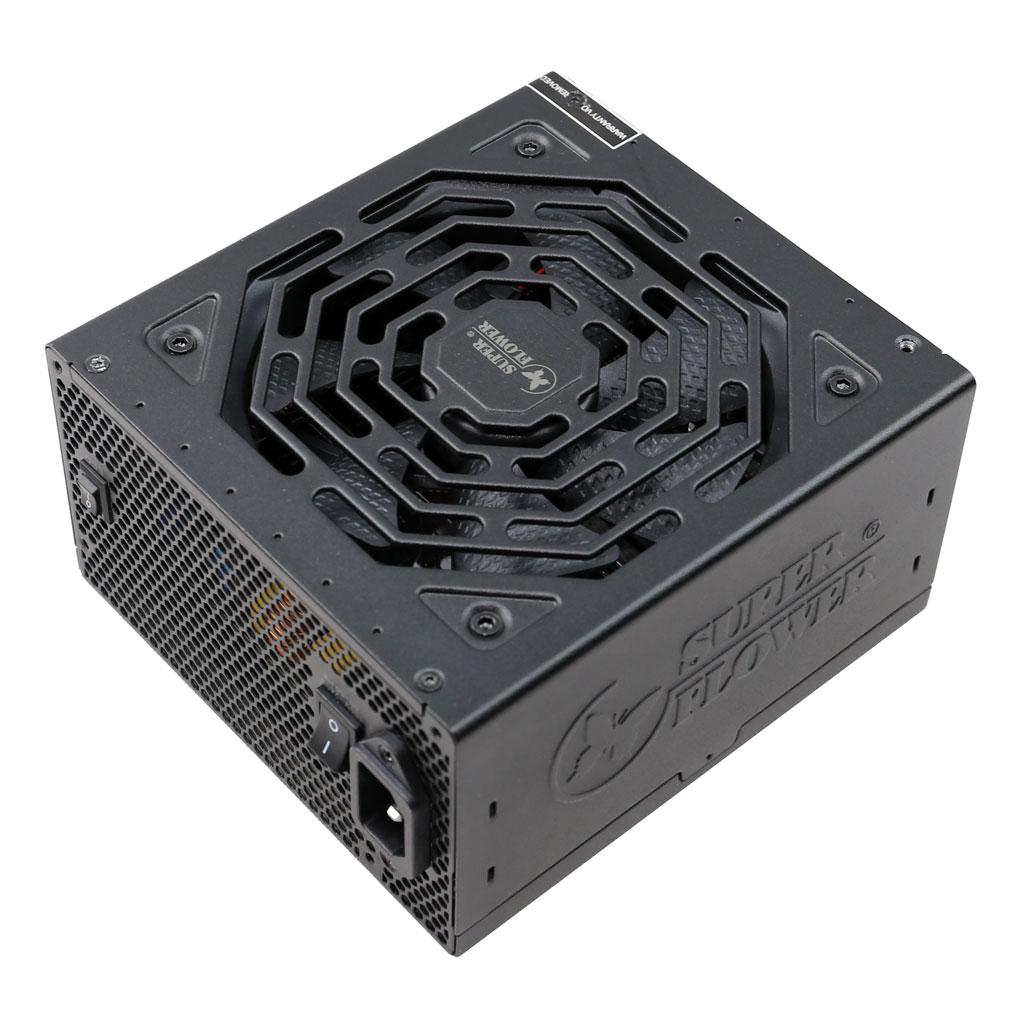

Top side

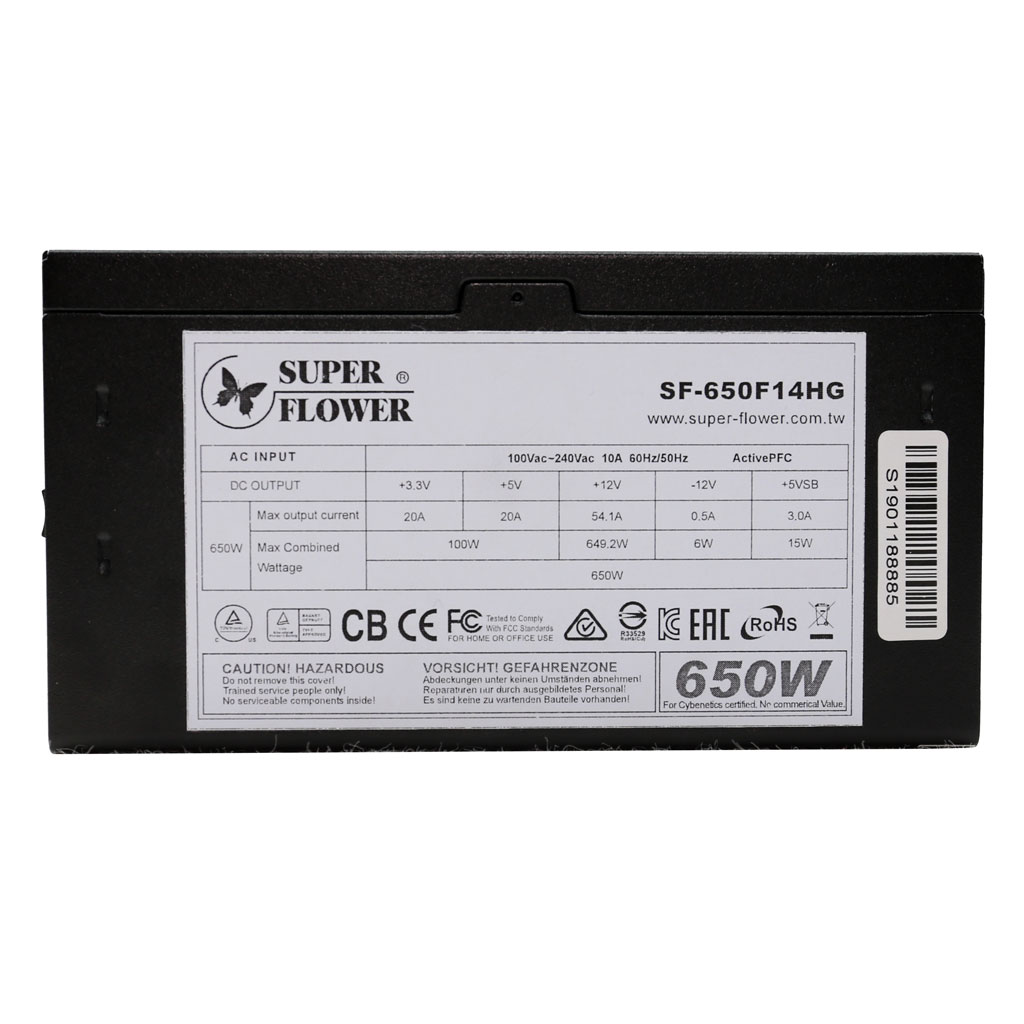

Power specifications label
