CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

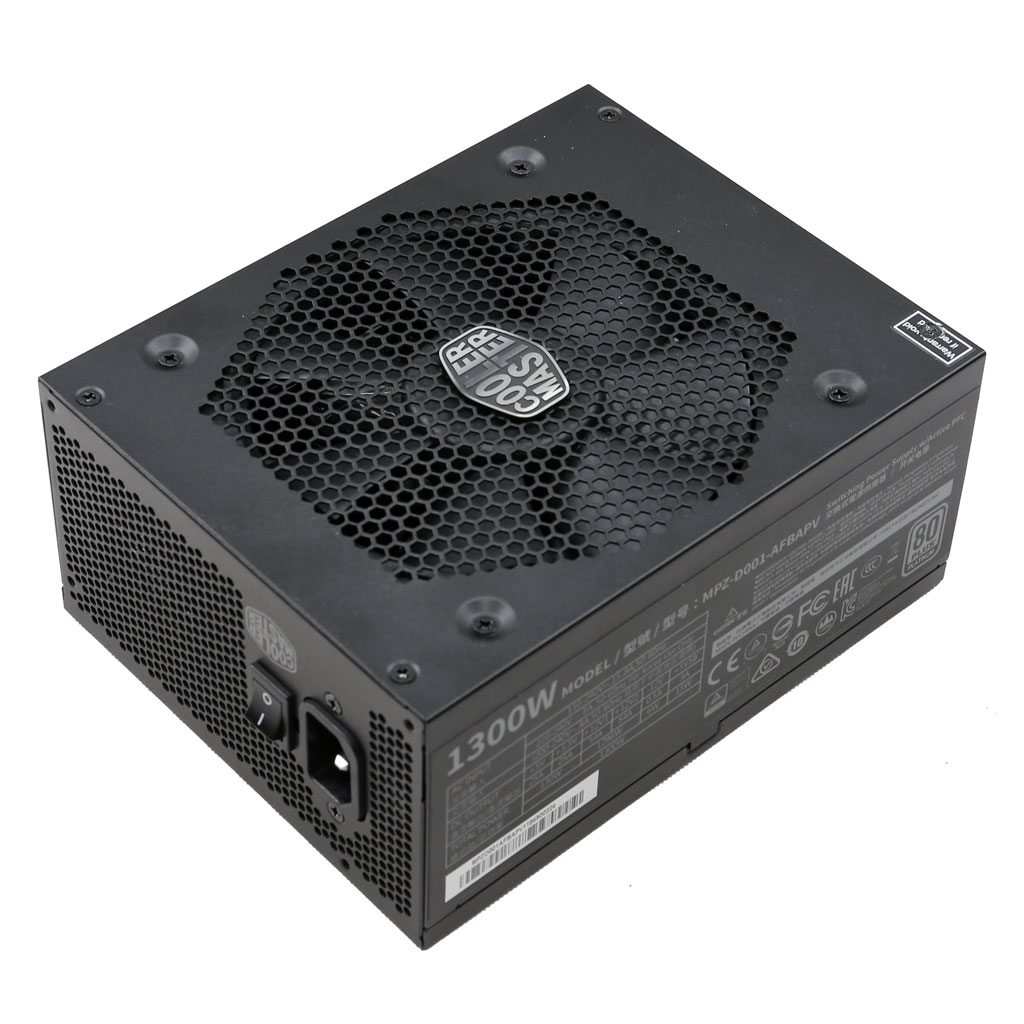

Cooler Master V1300 Platinum
Serial NumberMPZD001AFBAPV1184500224
Lab IDCM19130021
Certification ID25688
  • Test Result Report ID:
  • Certificate Issue Date: Sep 5, 2019
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandCooler Master
Manufacturer (OEM)Delta Electronics
SeriesV Platinum
Model Number
Serial NumberMPZD001AFBAPV1184500224
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-8
Rated Frequency (Hz)50-60
Rated Power (W)1300
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Double Ball Bearing Fan
(AFB1312M)
Semi-Passive Operation✗
Cable DesignFully Modular

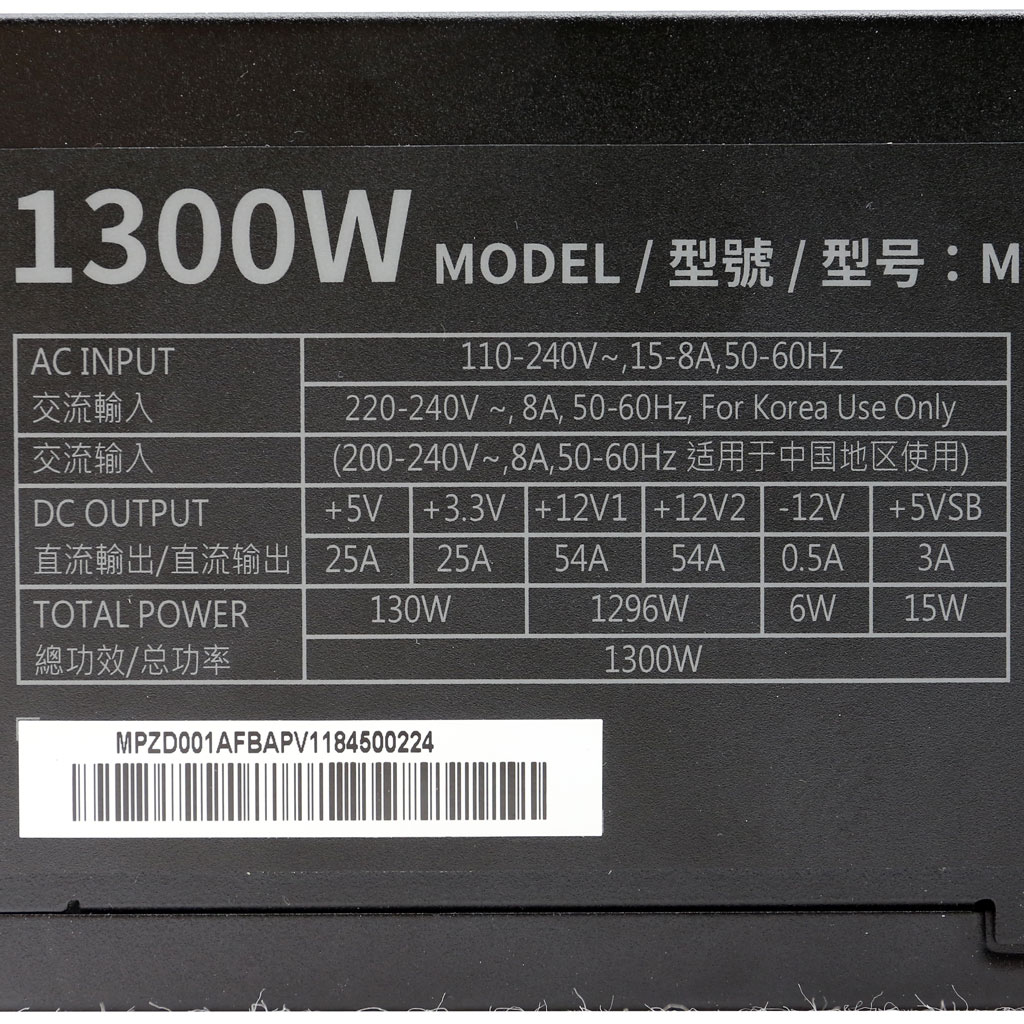

Power Specifications

Rail3.3V5V12V(1)12V(2)5VSB-12V
Max. PowerAmps2525545430.5
Watts1301296156
Total Max. Power (W)1300

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (650mm) 1 1 18-22AWG No
8 pin EPS12V (750mm) 1 1 18AWG No
4+4 pin EPS12V (680mm) 1 1 18AWG No
6+2 pin PCIe (650mm+120mm) 6 12 16-18AWG No
SATA (560mm+120mm+120mm+120mm) 1 4 18AWG No
SATA (520mm+120mm+120mm+120mm) 3 12 18AWG No
4 pin Molex (500mm+120mm+120mm+120mm) 2 8 18AWG No
FDD Adapter (+120mm) 1 1 22AWG No
AC Power Cord (1360mm) - C13 coupler 1 1 17AWG -

Parts Description

General Data
Manufacturer (OEM) Delta Electronics
PCB Type Single Sided
Primary Side
Transient Filter 6x Y caps, 2x X caps, 1x CM choke, 1x DM choke, 1x MOV, 1x Discharge IC
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x Shindengen LL25XB60 (600V, 25A @ 113°C)
APFC MOSFETS 3x Infineon IPP60R125CP (650V, 16A @ 100°C, 0.125Ohm)
APFC Boost Diode 1x CREE C3D10060A (600V, 10A @ 150°C)
Hold-up Cap(s) 2x Rubycon (450V, 680uF, 3000h @ 105°C, MXK), 1x Rubycon (450V, 120μF, 2000h @ 105°C, QXW)
Main Switchers 4x Infineon IPA65R110CFD (700V, 19.7A @ 100°C, 0.11Ohm)
APFC Controller Champion CM6502SNX & CM03AX Green PFC Controller
Resonant Controller Champion CM6901X
Topology Primary side: Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS Unknown number of FETs
5V & 3.3V DC-DC Converters: 5x Infineon BSC042N03LS (30V, 59A @ 100°C, 4.2mOhm), 1x Infineon BSC057N03LS
(30V, 45A, 5.7mOhm)
Filtering Capacitors Electrolytics: 3x Nichicon (2-5,000h @ 105°C, HD), 2x Rubycon (1-5,000h @ 105°C, ZL), 5x Rubycon (6-10,000h @ 105°C, ZLH), 12x Nippon Chemi-con (5-6,000h @ 105°C, KZH)
Polymers: Nichicon (LG, UD), NIC
Supervisor IC Texas Instruments DWA103N-A (OCP, OVP, UVP, SCP, PG)
Fan Model Delta AFB1312M (135mm, 12V, 0.38A, Double Ball Bearing Fan)
5VSB Circuit
Rectifier 1x STMicroelectronics STPS20L60CT SBR (60V, 20A @ 140°C)
Standby PWM Controller Power Integrations TNY280PG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)89.294%
Average Noise Output (>1450 Load Combinations)29.70dBA
Average PF (>1450 Load Combinations)0.978
Efficiency With 10W (≤500W) or 2% (>500W) Load67.220%
Standby Power Consumption0.0374W
12V Ripple (Full Load)27.95mV
5V Ripple (Full Load)22.42mV
3.3V Ripple (Full Load)23.64mV
5VSB Ripple (Full Load)24.15mV
12V Load Regulation1.19%
5V Load Regulation0.64%
3.3V Load Regulation0.89%
5VSB Load Regulation3.71%
Inrush Current34.565A
Efficiency RatingSILVER
Noise RatingA-
Average Efficiency (>1450 load combinations)90.893%
Average Noise Output (>1450 Load Combinations)29.46dBA
Average PF (>1450 Load Combinations)0.927
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0889W
12V Ripple (Full Load)26.01mV
5V Ripple (Full Load)20.72mV
3.3V Ripple (Full Load)18.00mV
5VSB Ripple (Full Load)19.42mV
12V Load Regulation1.19%
5V Load Regulation0.64%
3.3V Load Regulation0.92%
5VSB Load Regulation3.71%
Inrush Current83.561A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal19.50ms
AC Loss to PWR_OK Hold Up Time16.70ms
PWR_OK Inactive to DC Loss Delay2.80ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)127.23%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)19.5
AC Loss to PWR_OK Hold Up Time (ms)16.7
PWR_OK Inactive to DC Loss Delay (ms)2.8

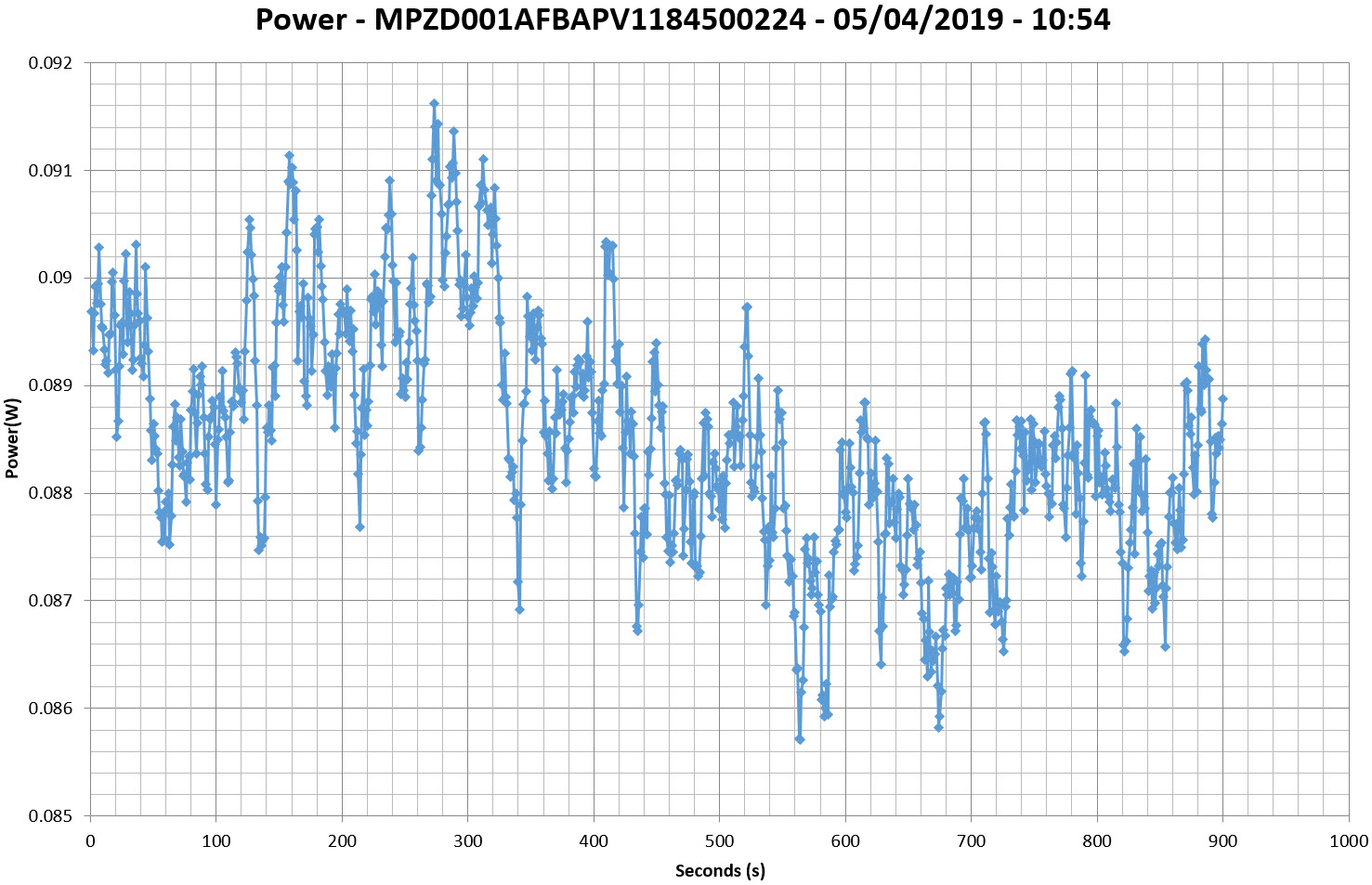

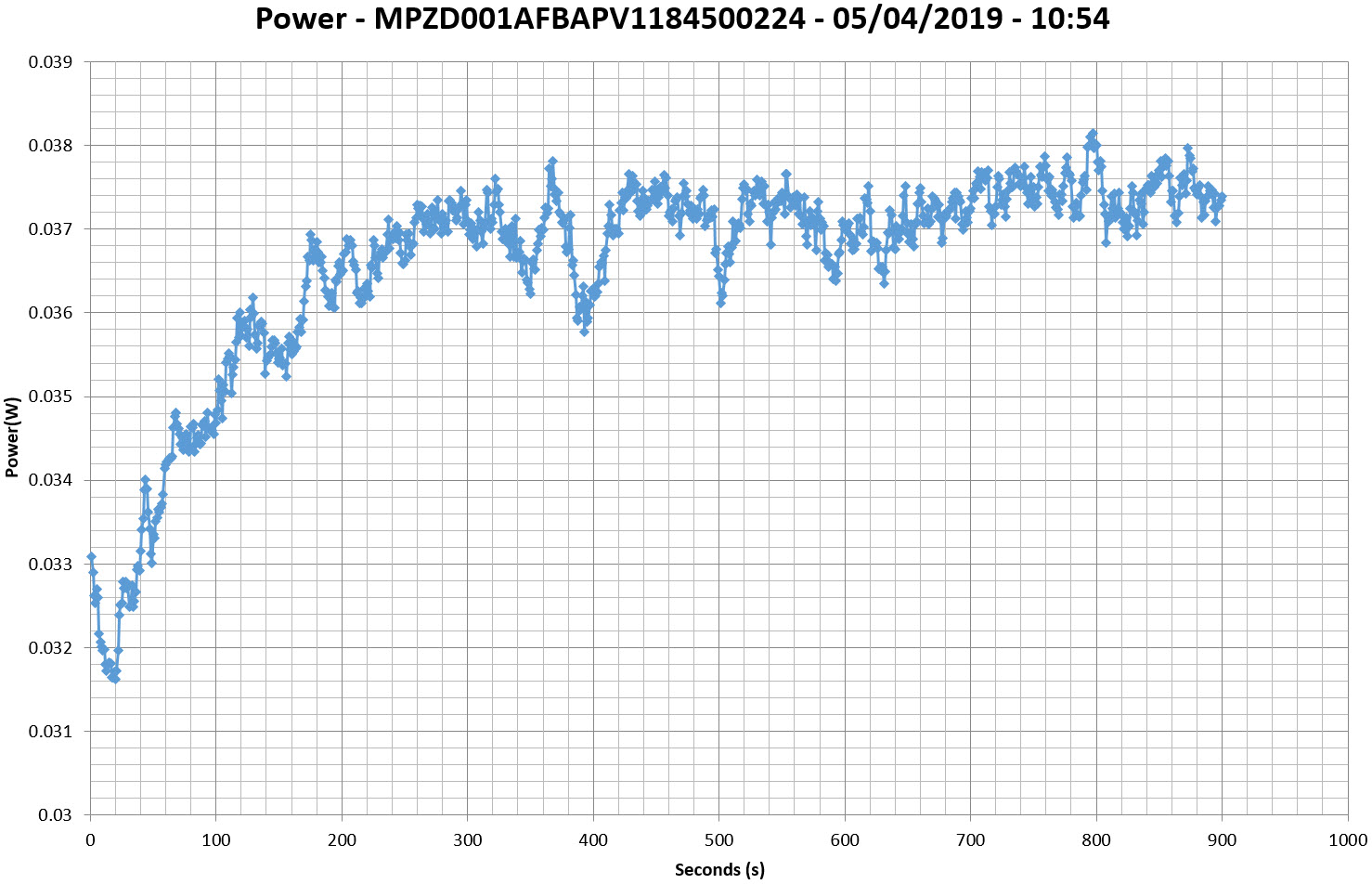

Vampire Power

Tables

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

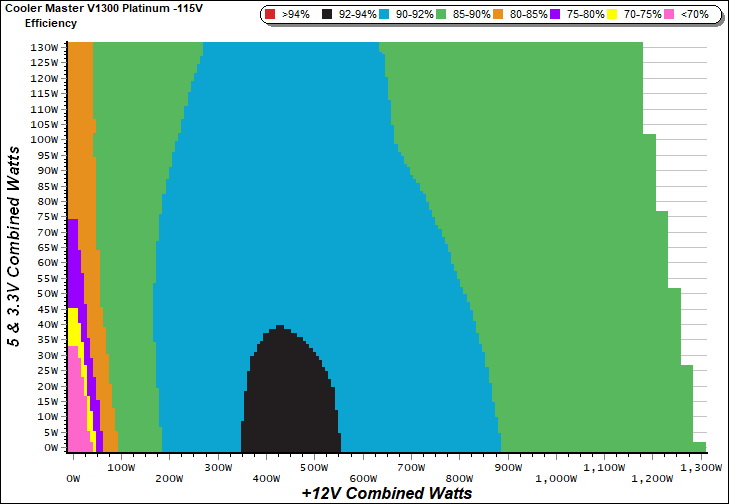

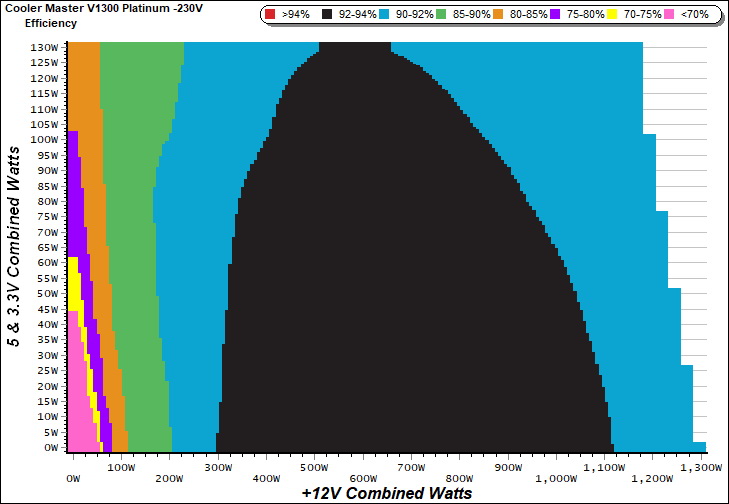

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

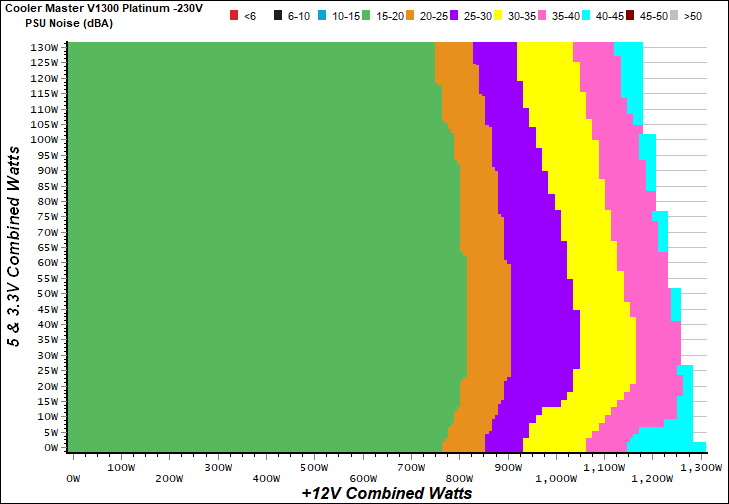

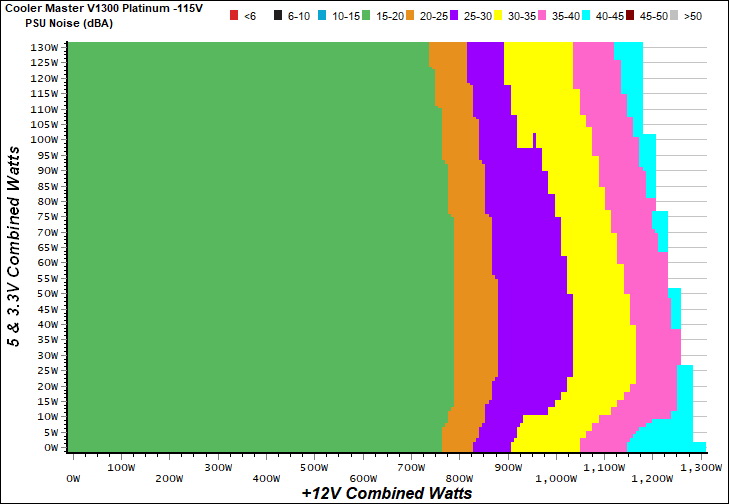

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

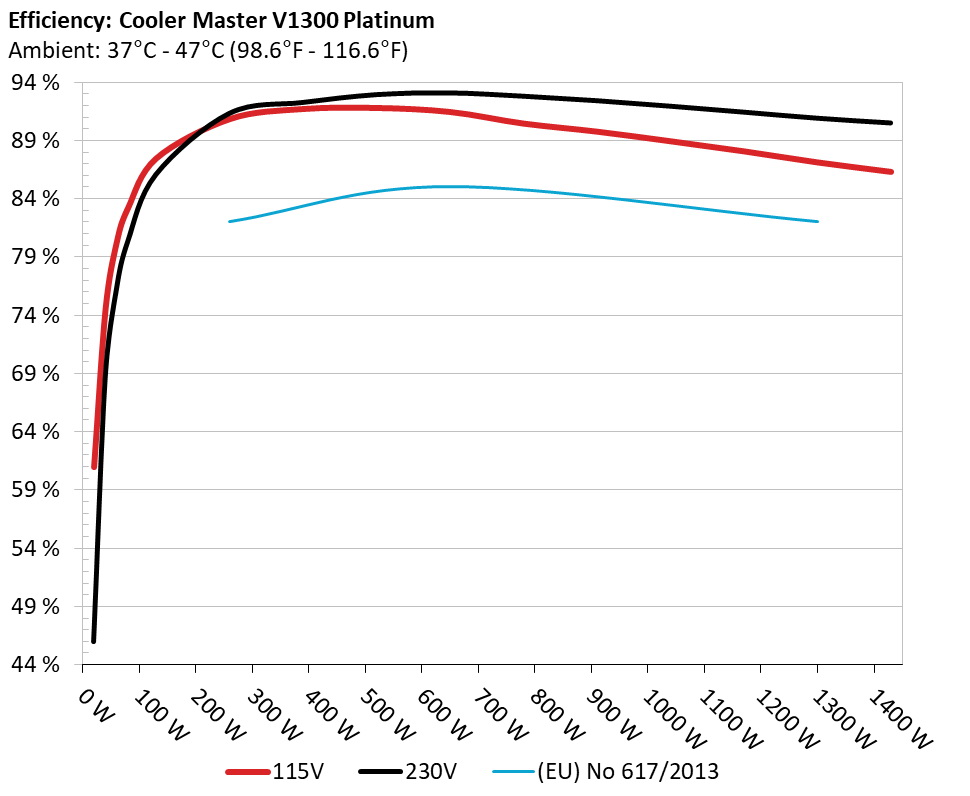

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

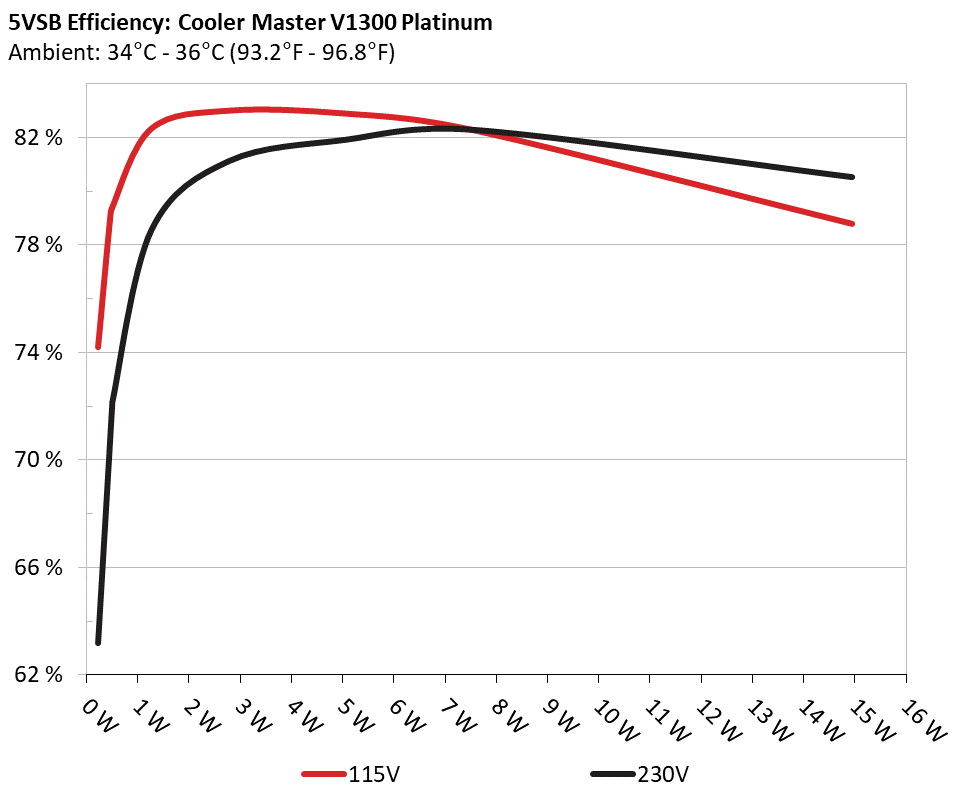

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 74.194% 0.021
5.095V 0.310 115.10V
2 0.090A 0.459 78.866% 0.039
5.093V 0.582 115.08V
3 0.550A 2.792 82.996% 0.195
5.075V 3.364 115.08V
4 1.000A 5.057 82.888% 0.298
5.057V 6.101 115.09V
5 1.500A 7.557 82.266% 0.369
5.037V 9.186 115.10V
6 3.000A 14.939 78.784% 0.469
4.980V 18.962 115.10V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 63.187% 0.007
5.095V 0.364 230.24V
2 0.090A 0.459 72.170% 0.013
5.093V 0.636 230.24V
3 0.550A 2.791 81.134% 0.066
5.074V 3.440 230.24V
4 1.000A 5.057 81.921% 0.114
5.057V 6.173 230.24V
5 1.500A 7.556 82.291% 0.162
5.037V 9.182 230.25V
6 3.000A 14.938 80.533% 0.273
4.979V 18.549 230.25V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.908A 2.007A 1.970A 0.990A 129.708 87.479% 648 15.1 39.78°C 0.966
12.135V 4.987V 3.351V 5.050V 148.274 43.72°C 115.13V
2 18.887A 3.011A 2.957A 1.192A 259.813 90.858% 648 15.1 40.97°C 0.958
12.120V 4.983V 3.347V 5.035V 285.956 45.19°C 115.13V
3 29.223A 3.515A 3.438A 1.395A 389.719 91.724% 647 15.1 41.31°C 0.972
12.104V 4.980V 3.344V 5.020V 424.884 47.31°C 115.12V
4 39.586A 4.020A 3.950A 1.599A 519.726 91.808% 649 15.1 41.72°C 0.979
12.088V 4.978V 3.341V 5.005V 566.104 49.52°C 115.12V
5 49.649A 5.028A 4.943A 1.804A 649.871 91.466% 647 15.1 42.32°C 0.984
12.072V 4.974V 3.338V 4.989V 710.507 51.06°C 115.12V
6 59.663A 6.036A 5.937A 2.011A 779.998 90.468% 882 24.1 43.06°C 0.987
12.071V 4.971V 3.335V 4.973V 862.177 52.88°C 115.11V
7 69.760A 7.048A 6.934A 2.220A 910.080 89.777% 1201 32.4 43.84°C 0.989
12.055V 4.968V 3.332V 4.957V 1013.709 54.29°C 115.11V
8 79.903A 8.060A 7.932A 2.430A 1040.203 88.947% 1633 39.7 44.17°C 0.990
12.037V 4.964V 3.328V 4.940V 1169.466 55.30°C 115.11V
9 90.483A 8.569A 8.423A 2.434A 1169.950 88.083% 2187 47.2 45.44°C 0.992
12.018V 4.961V 3.325V 4.933V 1328.240 57.30°C 115.10V
10 100.852A 9.079A 8.942A 3.063A 1299.948 87.135% 2186 47.2 45.86°C 0.992
12.000V 4.958V 3.322V 4.899V 1491.877 58.39°C 115.10V
11 111.817A 9.082A 8.948A 3.066A 1429.727 86.322% 2188 47.2 46.97°C 0.993
11.984V 4.956V 3.319V 4.893V 1656.272 59.90°C 115.09V
CL1 0.139A 16.004A 15.999A 0.000A 134.695 82.860% 647 15.1 42.33°C 0.966
12.134V 4.969V 3.343V 5.081V 162.557 51.05°C 115.12V
CL2 107.994A 1.002A 1.002A 1.000A 1309.775 87.479% 2185 47.2 45.52°C 0.993
12.005V 4.971V 3.328V 4.992V 1497.248 57.87°C 115.09V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.901A 2.006A 1.966A 0.990A 129.605 86.077% 648 15.1 39.83°C 0.811
12.135V 4.986V 3.351V 5.051V 150.569 43.67°C 230.24V
2 18.866A 3.009A 2.956A 1.192A 259.715 91.334% 647 15.1 40.61°C 0.896
12.129V 4.982V 3.348V 5.035V 284.357 45.15°C 230.24V
3 29.189A 3.515A 3.437A 1.395A 389.622 92.269% 648 15.1 41.10°C 0.923
12.115V 4.979V 3.344V 5.020V 422.268 46.25°C 230.23V
4 39.539A 4.020A 3.950A 1.599A 519.705 92.941% 647 15.1 41.83°C 0.938
12.102V 4.976V 3.341V 5.005V 559.176 48.37°C 230.23V
5 49.582A 5.028A 4.943A 1.804A 649.851 93.089% 649 15.1 42.30°C 0.948
12.088V 4.973V 3.338V 4.989V 698.099 49.51°C 230.24V
6 59.668A 6.039A 5.936A 2.012A 780.003 92.808% 913 25.1 42.81°C 0.955
12.070V 4.969V 3.335V 4.973V 840.450 51.19°C 230.25V
7 69.768A 7.050A 6.934A 2.220A 910.094 92.420% 1220 32.7 43.15°C 0.959
12.054V 4.966V 3.331V 4.956V 984.739 52.19°C 230.27V
8 79.910A 8.063A 7.934A 2.430A 1040.207 91.947% 1625 39.6 43.97°C 0.963
12.036V 4.962V 3.327V 4.940V 1131.314 53.83°C 230.27V
9 90.495A 8.573A 8.422A 2.434A 1169.993 91.439% 2154 47.0 44.49°C 0.967
12.017V 4.959V 3.324V 4.933V 1279.527 55.27°C 230.28V
10 100.875A 9.083A 8.945A 3.063A 1300.026 90.919% 2186 47.2 45.65°C 0.970
11.998V 4.956V 3.321V 4.899V 1429.880 56.85°C 230.28V
11 111.867A 9.085A 8.950A 3.067A 1429.983 90.509% 2190 47.2 46.73°C 0.973
11.981V 4.954V 3.318V 4.891V 1579.931 58.67°C 230.28V
CL1 0.151A 16.004A 15.999A 0.000A 134.825 81.474% 647 15.1 42.33°C 0.825
12.134V 4.968V 3.343V 5.080V 165.483 49.53°C 230.28V
CL2 108.016A 1.003A 1.003A 1.000A 1309.613 91.220% 2186 47.2 45.42°C 0.971
12.001V 4.970V 3.328V 4.990V 1435.657 56.73°C 230.28V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.195A 0.503A 0.478A 0.197A 19.630 60.965% 648 15.1 0.759
12.147V 4.990V 3.352V 5.088V 32.199 115.15V
2 2.450A 1.004A 0.985A 0.394A 40.068 74.588% 648 15.1 0.876
12.145V 4.990V 3.352V 5.079V 53.719 115.15V
3 3.632A 1.504A 1.463A 0.592A 59.512 80.219% 648 15.1 0.914
12.143V 4.989V 3.352V 5.070V 74.187 115.15V
4 4.889A 2.007A 1.967A 0.790A 79.960 83.239% 648 15.1 0.939
12.141V 4.988V 3.352V 5.061V 96.061 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.184A 0.501A 0.478A 0.197A 19.494 45.976% 648 15.1 0.480
12.153V 4.988V 3.353V 5.090V 42.400 230.24V
2 2.441A 1.002A 0.984A 0.394A 39.941 68.546% 648 15.1 0.566
12.144V 4.988V 3.352V 5.080V 58.269 230.24V
3 3.623A 1.504A 1.458A 0.592A 59.381 76.085% 648 15.1 0.643
12.142V 4.988V 3.352V 5.071V 78.046 230.23V
4 4.881A 2.005A 1.969A 0.790A 79.847 80.324% 648 15.1 0.706
12.139V 4.987V 3.352V 5.061V 99.406 230.23V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 9.3 mV 13.7 mV 13.2 mV 13.7 mV Pass
20% Load 11.3 mV 14.9 mV 13.3 mV 12.6 mV Pass
30% Load 13.5 mV 14.9 mV 14.8 mV 14.5 mV Pass
40% Load 15.2 mV 15.2 mV 14.3 mV 15.8 mV Pass
50% Load 18.0 mV 16.4 mV 15.8 mV 16.2 mV Pass
60% Load 17.8 mV 16.8 mV 20.2 mV 17.3 mV Pass
70% Load 19.4 mV 19.2 mV 21.2 mV 16.7 mV Pass
80% Load 22.1 mV 18.5 mV 19.4 mV 18.5 mV Pass
90% Load 24.8 mV 19.2 mV 20.3 mV 20.6 mV Pass
100% Load 28.0 mV 22.4 mV 23.6 mV 24.2 mV Pass
110% Load 30.9 mV 23.8 mV 24.4 mV 28.4 mV Pass
Crossload 1 12.5 mV 19.4 mV 19.6 mV 13.4 mV Pass
Crossload 2 27.5 mV 17.4 mV 19.6 mV 23.6 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 12.2 mV 14.0 mV 12.6 mV 13.6 mV Pass
20% Load 11.2 mV 14.8 mV 14.0 mV 12.6 mV Pass
30% Load 16.1 mV 14.9 mV 14.5 mV 14.1 mV Pass
40% Load 12.0 mV 15.5 mV 14.6 mV 13.2 mV Pass
50% Load 14.3 mV 16.0 mV 15.9 mV 15.3 mV Pass
60% Load 16.5 mV 15.9 mV 20.3 mV 14.2 mV Pass
70% Load 18.1 mV 17.0 mV 19.6 mV 15.5 mV Pass
80% Load 20.1 mV 17.5 mV 17.4 mV 16.3 mV Pass
90% Load 22.4 mV 17.4 mV 17.0 mV 17.0 mV Pass
100% Load 26.0 mV 20.7 mV 18.0 mV 19.4 mV Pass
110% Load 27.9 mV 18.9 mV 18.6 mV 20.6 mV Pass
Crossload 1 13.5 mV 18.6 mV 19.8 mV 11.3 mV Pass
Crossload 2 25.9 mV 14.6 mV 14.7 mV 17.2 mV Pass

The results above are not used in the certification process

Cooler Master V1300 Platinum

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
