Cooler Master MWE 550
Serial NumberMPE5501ACABW1191400003
Lab IDCM19550032
Certification ID25698
  • Test Result Report ID:
  • Certificate Issue Date: Nov 6, 2019
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
BrandCooler Master
ModelMWE 550
OEM/ODMGospower
Serial NumberMPE5501ACABW1191400003
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)200-240
Rated Current (Arms)5
Rated Frequency (Hz)50-60
Rated Power (W)550
Operating Temperature (Continuous Full Load) (°C)
TypeATX12V
Cable DesignFixed cables
Warranty-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling120mm Rifle Bearing Fan
(DF1202512SELN)
Semi-Passive Operation✓
Cybenetics Testing Information
Lab IDCM19550032
Date of receiptJul 5, 2019
Testing DateMay 14, 2019
Report Issued DateNov 6, 2019
Engineer Name-
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (510mm) 1 1 18-20AWG No
4+4 pin EPS12V (530mm) 1 1 18AWG No
6+2 pin PCIe (490mm+100mm) 1 2 16-18AWG No
SATA (420mm+150mm+150mm) 2 6 18-20AWG No
4-pin Molex (420mm+150mm+150mm) 1 3 18-20AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 17 17 45 3 0.3
Watts 110 540 15 3.6
Total Max. Power (W) 550

Parts Description

General Data
Manufacturer (OEM) Gospower
PCB Type Single Sided
Primary Side
Transient Filter 3x Y caps, 2x X caps, 2x CM chokes
Inrush Protection NTC Thermistor
Bridge Rectifier(s) 1x Diode Incorporated GBU608 (800V, 6A @ 100°C)
APFC MOSFETS 1x JILIN SINO-MICROELECTRONICS JCS18N50FH (500V, 11A @ 100°C, 0.27Ohm)
APFC Boost Diode 1x JILIN SINO-MICROELECTRONICS 10F60UHF (600V, 10A @ 100°C)
Hold-up Cap(s) 1x Elite (420V, 330uF, 2000h @ 85°C, GM)
Main Switchers 2x JILIN SINO-MICROELECTRONICS JCS18N50FH (500V, 11A @ 100°C, 0.27Ohm)
APFC Controller Champion CM6500UNX
Resonant Controllers Champion CU6901V
Topology Primary side: Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Nce Power NCE4080 (40V, 56A @ 100°C, 6.5mOhm)
5V & 3.3V DC-DC Converters: 4x IPS FTD05N03NA (30V, 75A @ 100°C, 6mOhm)
PWM Controllers: ANPEC APW7159C
Filtering Capacitors Electrolytics: 5x Elite (2-5,000h @ 105°C, ED), 4x Elite (2,000h @ 105°C, EL), 2x CapXon (2-5,000h @ 105°C, KF), 1x CapXon (3-10,000h @ 105°C, GH)
Polymers: CapXon
Supervisor IC IN1S313I-SAG
Fan Model Thermal Control DF1202512SELN (120mm, 12V, 0.25A, Rifle Bearing Fan)
5VSB Circuit
Rectifier -
Standby PWM Controller On-Bright OB2365SP

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)28-32 / 82.4-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 230V

Accredited
Average Efficiency (>1450 load combinations)87.767%
Average Noise Output (>1450 Load Combinations)27.86dBA
Average PF (>1450 Load Combinations)0.901
Efficiency With 10W (≤500W) or 2% (>500W) Load-
Standby Power Consumption0.2042W
Non-Accredited
12V Ripple (Full Load)48.33mV
5V Ripple (Full Load)22.77mV
3.3V Ripple (Full Load)25.97mV
5VSB Ripple (Full Load)23.16mV
12V Load Regulation1.64%
5V Load Regulation2.74%
3.3V Load Regulation2.98%
5VSB Load Regulation4.04%
Inrush Current68.818A
Hold-Up Time & PWR_OK Signal15.80ms
AC Loss to PWR_OK Hold Up Time16.60ms
PWR_OK Inactive to DC Loss Delay-0.80ms
OPP (0.00°C / 0.00°C)130.41%-

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)15.8
AC Loss to PWR_OK Hold Up Time (ms)16.6
PWR_OK Inactive to DC Loss Delay (ms)-0.8

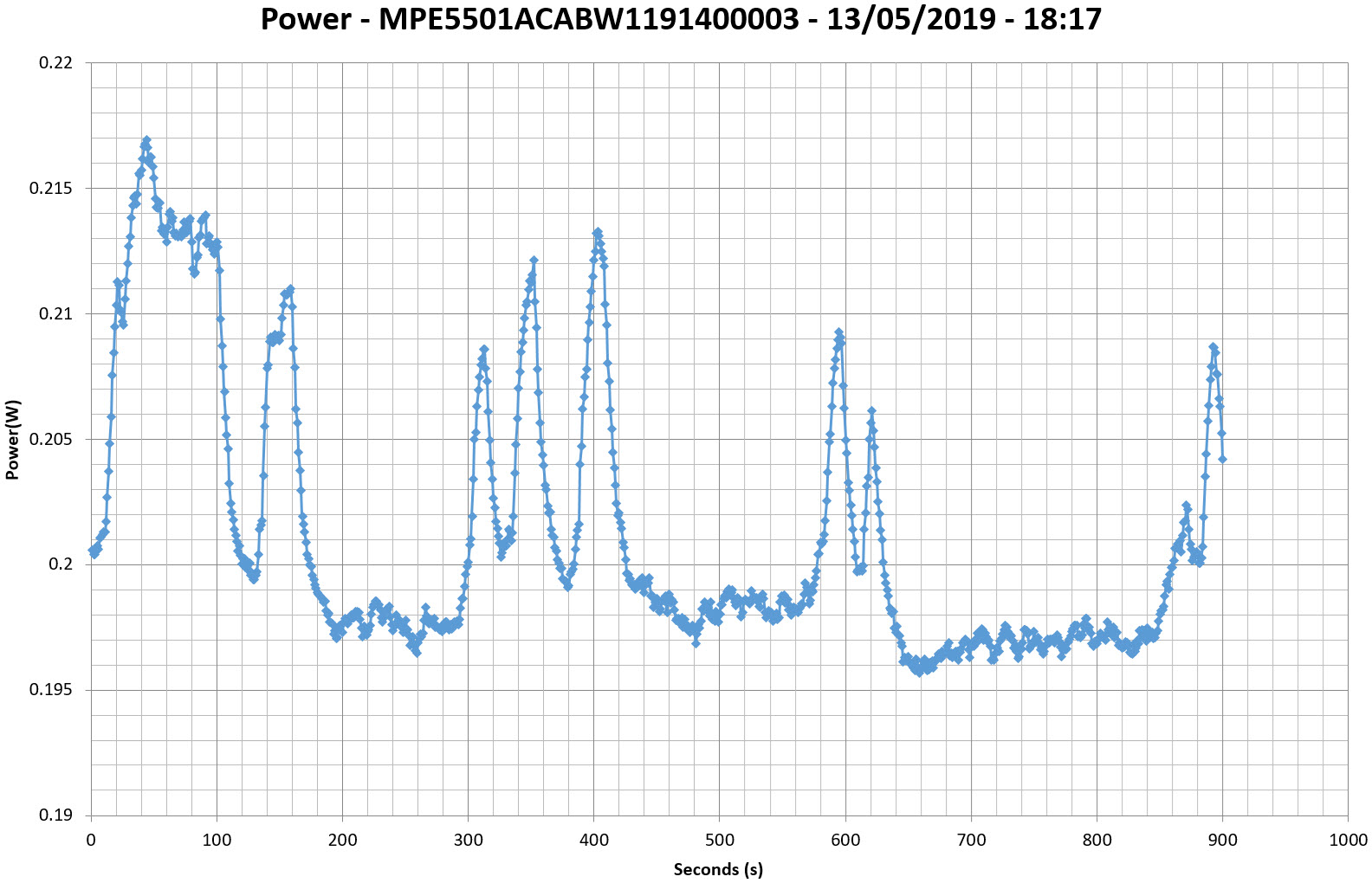

Stromverbrauch im Ruhezustand

Tables 230V

Graphs 230V

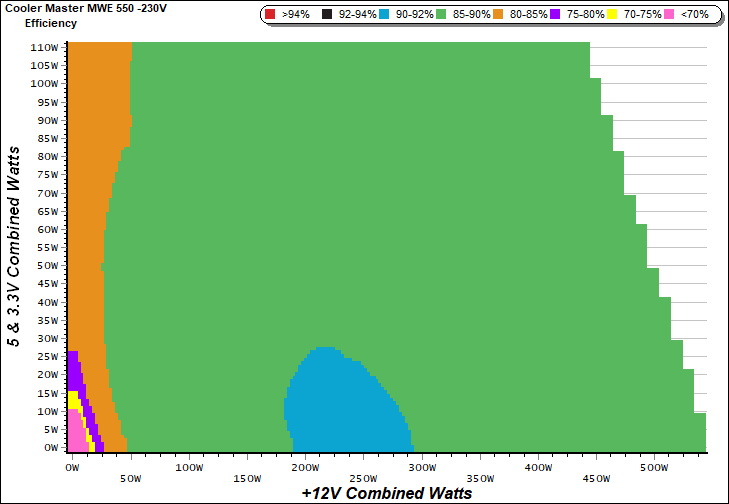

Efficiency Graph

230V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

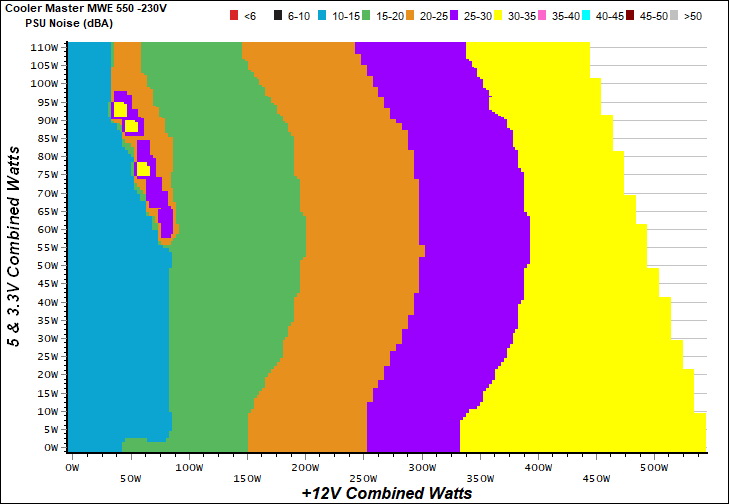

Noise Graph

230V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

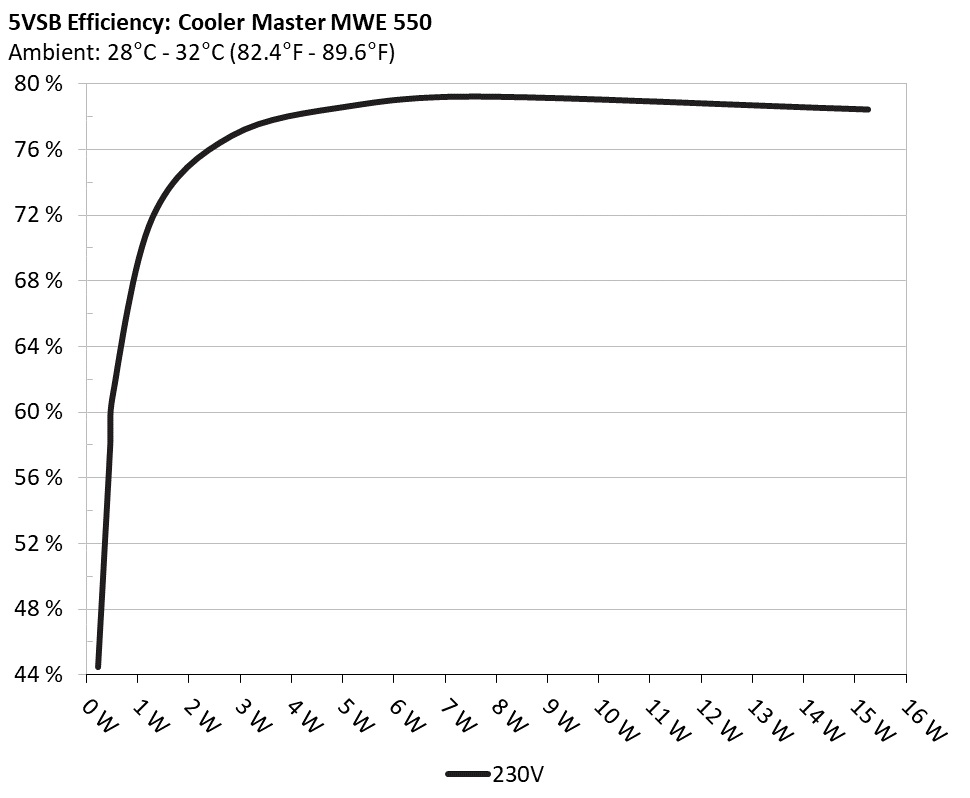

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.234 44.487% 0.010
5.188V 0.526 230.27V
2 0.090A 0.467 57.726% 0.016
5.187V 0.809 230.27V
3 0.550A 2.845 76.809% 0.071
5.172V 3.704 230.25V
4 1.000A 5.158 78.616% 0.121
5.157V 6.561 230.27V
5 1.500A 7.710 79.191% 0.168
5.140V 9.736 230.27V
6 3.000A 15.264 78.402% 0.271
5.088V 19.469 230.27V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.702A 2.000A 1.966A 0.973A 54.408 85.027% 0 <6.0 41.23°C 0.649
12.143V 5.000V 3.354V 5.141V 63.989 35.36°C 230.29V
2 6.490A 3.006A 2.959A 1.172A 109.318 87.704% 0 <6.0 42.08°C 0.803
12.086V 4.985V 3.343V 5.122V 124.644 35.92°C 230.29V
3 10.658A 3.522A 3.451A 1.371A 164.819 88.870% 951 20.1 36.39°C 0.872
12.086V 4.971V 3.332V 5.106V 185.460 43.23°C 230.29V
4 14.788A 4.034A 3.972A 1.572A 219.625 89.341% 1072 23.8 36.80°C 0.904
12.066V 4.957V 3.322V 5.090V 245.829 44.48°C 230.29V
5 18.599A 5.060A 4.983A 1.775A 274.540 89.327% 1146 27.8 37.48°C 0.922
12.046V 4.941V 3.310V 5.071V 307.342 45.63°C 230.29V
6 22.422A 6.092A 6.003A 1.980A 329.453 89.036% 1226 27.9 37.94°C 0.934
12.026V 4.925V 3.298V 5.053V 370.023 46.49°C 230.30V
7 26.293A 7.130A 7.028A 2.186A 384.754 88.559% 1433 32.8 38.28°C 0.945
12.005V 4.909V 3.287V 5.034V 434.463 47.50°C 230.29V
8 30.176A 8.177A 8.061A 2.394A 440.063 87.999% 1443 32.9 38.55°C 0.949
11.985V 4.892V 3.275V 5.013V 500.075 48.64°C 230.29V
9 34.442A 8.709A 8.575A 2.400A 494.601 87.429% 1443 32.9 38.86°C 0.954
11.965V 4.880V 3.265V 5.002V 565.716 49.63°C 230.30V
10 38.522A 9.248A 9.125A 3.020A 549.819 86.575% 1446 32.9 39.44°C 0.958
11.944V 4.867V 3.255V 4.967V 635.079 50.59°C 230.30V
11 43.222A 9.266A 9.149A 3.028A 605.042 85.777% 1443 32.9 40.32°C 0.961
11.923V 4.857V 3.246V 4.955V 705.364 51.89°C 230.30V
CL1 0.140A 13.000A 12.998A 0.000A 108.635 81.821% 1262 28.8 37.53°C 0.808
12.076V 4.916V 3.311V 5.130V 132.771 45.51°C 230.29V
CL2 45.007A 1.004A 0.998A 1.000A 551.307 87.609% 1441 32.9 39.68°C 0.958
11.954V 4.931V 3.287V 5.062V 629.278 50.34°C 230.30V

The results above are not used in the certification process

Light Load Tests 230V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.191A 0.498A 0.473A 0.193A 19.526 79.306% 0 <6.0 0.366
12.122V 5.016V 3.364V 5.178V 24.621 230.31V
2 2.442A 0.999A 0.981A 0.387A 39.956 84.518% 0 <6.0 0.565
12.145V 5.009V 3.359V 5.167V 47.275 230.30V
3 3.628A 1.500A 1.457A 0.582A 59.394 86.109% 0 <6.0 0.674
12.129V 5.002V 3.354V 5.156V 68.975 230.30V
4 4.886A 1.999A 1.968A 0.778A 79.815 87.124% 0 <6.0 0.744
12.123V 4.996V 3.350V 5.144V 91.611 230.29V

The results above are not used in the certification process

Ripple Measurements 230V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 84.5 mV 21.0 mV 15.1 mV 15.0 mV Pass
20% Load 91.5 mV 23.0 mV 15.7 mV 15.2 mV Pass
30% Load 38.5 mV 19.6 mV 16.3 mV 15.1 mV Pass
40% Load 36.0 mV 19.0 mV 17.9 mV 15.7 mV Pass
50% Load 35.2 mV 19.2 mV 17.0 mV 15.6 mV Pass
60% Load 34.5 mV 19.3 mV 20.0 mV 18.1 mV Pass
70% Load 35.9 mV 19.2 mV 20.5 mV 18.0 mV Pass
80% Load 42.7 mV 21.1 mV 25.5 mV 19.1 mV Pass
90% Load 34.7 mV 20.9 mV 26.5 mV 19.9 mV Pass
100% Load 48.3 mV 22.8 mV 26.0 mV 23.2 mV Pass
110% Load 51.0 mV 22.5 mV 27.3 mV 24.0 mV Pass
Crossload 1 106.2 mV 27.3 mV 29.0 mV 19.0 mV Pass
Crossload 2 46.2 mV 21.6 mV 17.9 mV 19.0 mV Pass

The results above are not used in the certification process

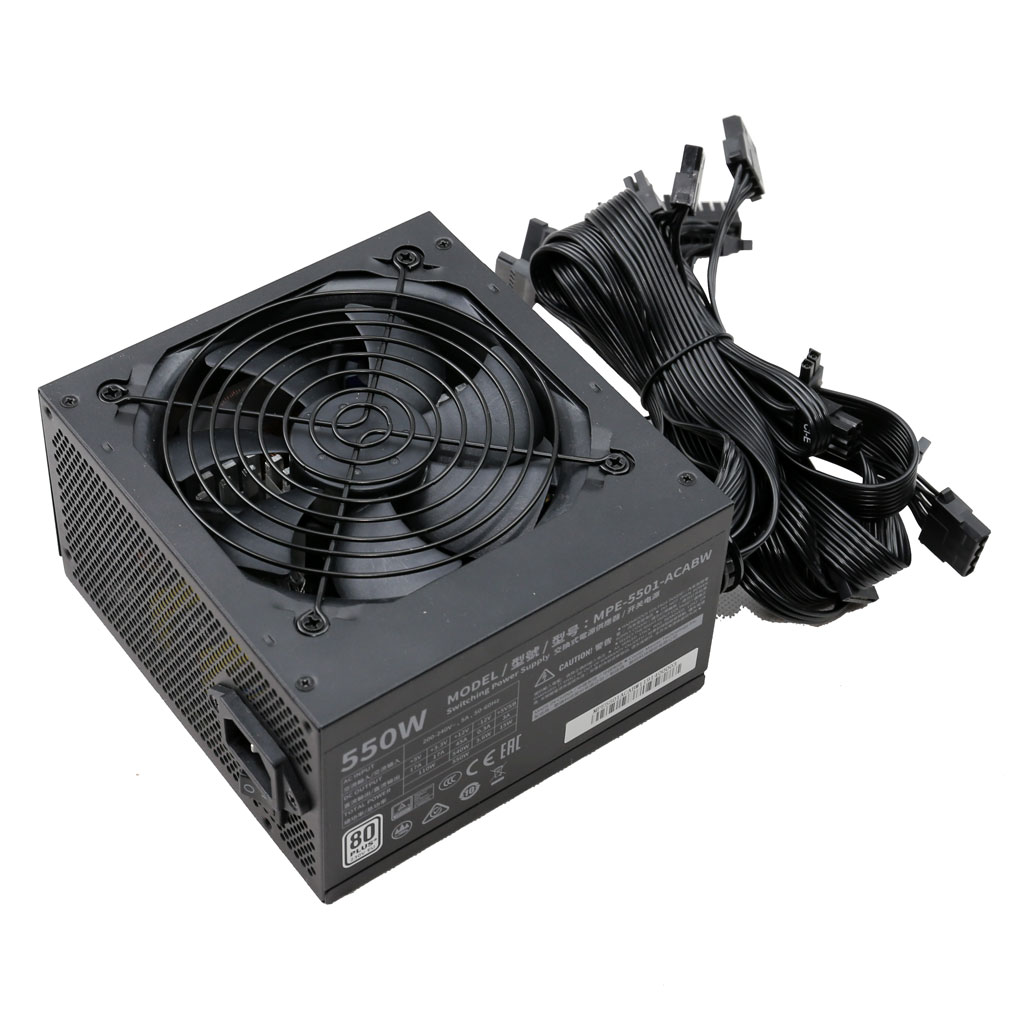

Cooler Master MWE 550

Top side
Power specifications label
Cybenetics bietet freiwillige Zertifizierungsprogramme für Netzteile – ETA für Effizienz, LAMBDA für Lautstärke und SAFE für Sicherheit und korrekten Betrieb – sowie für Kühlprodukte mit DELTA für die Schalldämmung von Gehäusen und PHI für Luftstrom und statischen Druck von Lüftern
