CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Seasonic Prime Gold 1000W
Serial NumberR1701TA101490010
Lab ID74
Certification ID2574
  • Test Result Report ID:
  • Certificate Issue Date: Jan 14, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
BrandSeasonic
ModelPrime Gold 1000W
OEM/ODMSea Sonic Electronics Co., Ltd.
Serial NumberR1701TA101490010
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)100-240
Rated Current (Arms)13-6.5
Rated Frequency (Hz)50-60
Rated Power (W)1000
Operating Temperature (Continuous Full Load) (°C)
TypeATX12V
Cable DesignFully Modular
Warranty-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525M12F-Z)
Semi-Passive Operation✓ (selectable)
Cybenetics Testing Information
Lab ID74
Date of receiptJan 5, 2018
Testing DateJan 10, 2018
Report Issued DateJan 14, 2018
Engineer Name-
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (610mm) 1 1 18-22AWG
4+4 pin EPS12V (650mm) 2 2 18AWG
6+2 pin PCIe (680mm+80mm) 4 8 18AWG
SATA (450mm+110mm+110mm+110mm) 3 12 18AWG
4 pin Molex (450mm+120mm+120mm) 1 3 18AWG
4 pin Molex (350mm+120mm) 1 2 18AWG
FDD Adapter (+110mm) 1 1 22AWG

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 25 25 83 3 0.3
Watts 125 996 15 3.6
Total Max. Power (W) 1000

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)28-32 / 82.4-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary 115V

Accredited
Average Efficiency (>1450 load combinations)90.238%
Average Noise Output (>1450 Load Combinations)43.91dBA
Average PF (>1450 Load Combinations)0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load-

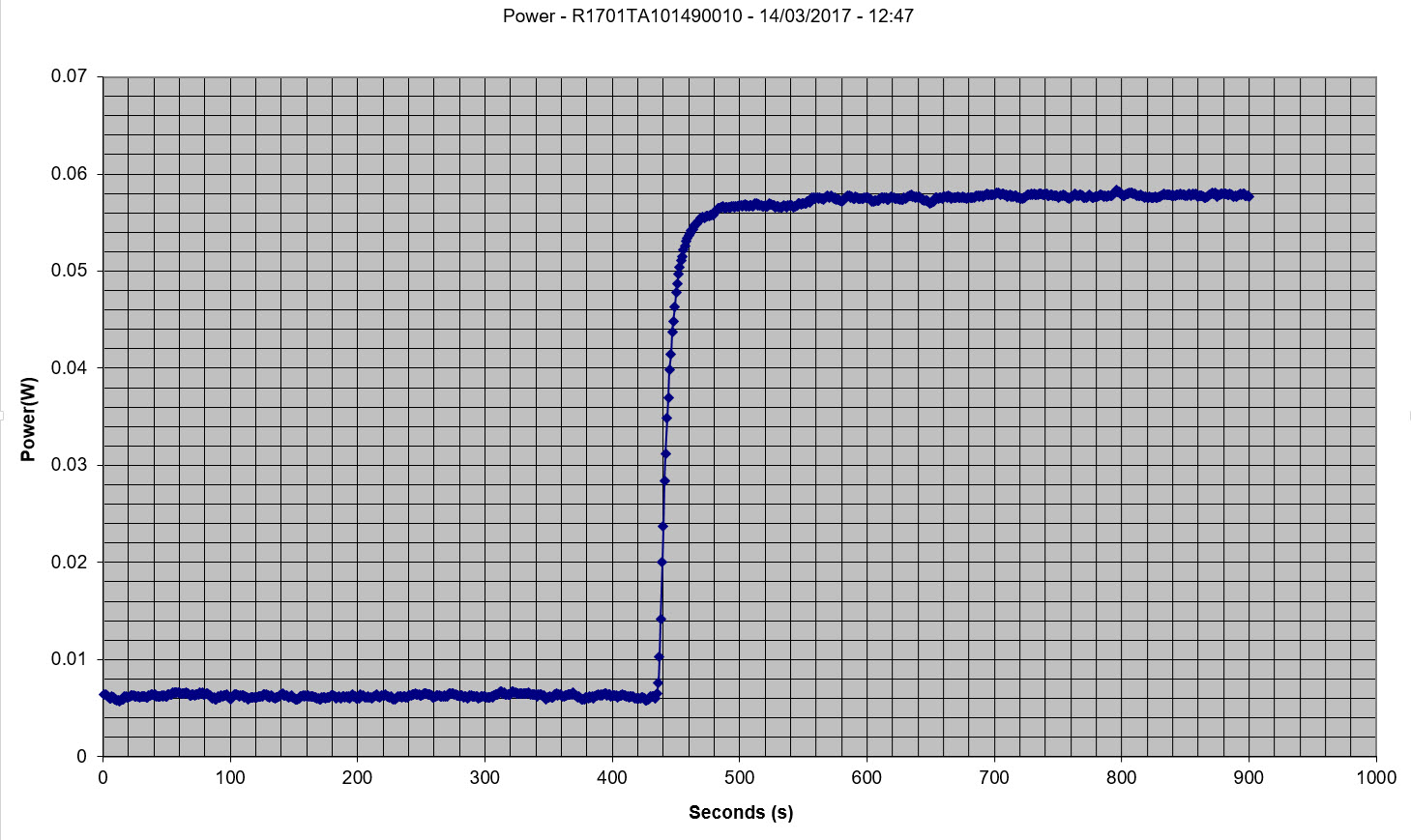

Standby Power Consumption0.0577W
Non-Accredited
12V Ripple (Full Load)15.27mV
5V Ripple (Full Load)7.54mV
3.3V Ripple (Full Load)14.01mV
5VSB Ripple (Full Load)22.43mV
12V Load Regulation0.72%
5V Load Regulation0.22%
3.3V Load Regulation0.69%
5VSB Load Regulation4.56%
Inrush Current28.456A

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)25.8
AC Loss to PWR_OK Hold Up Time (ms)21.3
PWR_OK Inactive to DC Loss Delay (ms)4.5

Stromverbrauch im Ruhezustand

Tables 115V

Graphs 115V

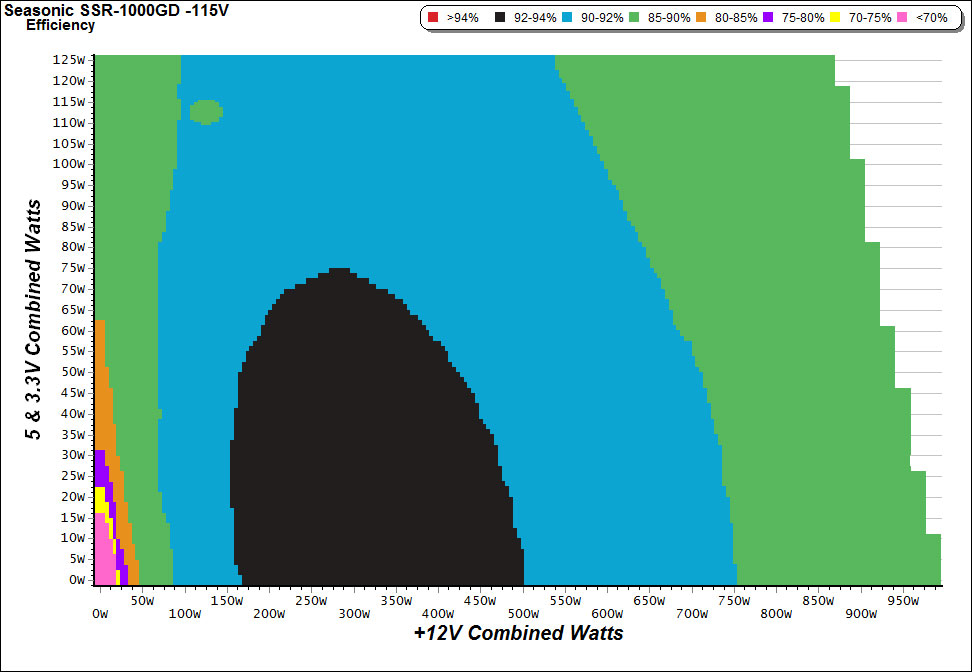

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

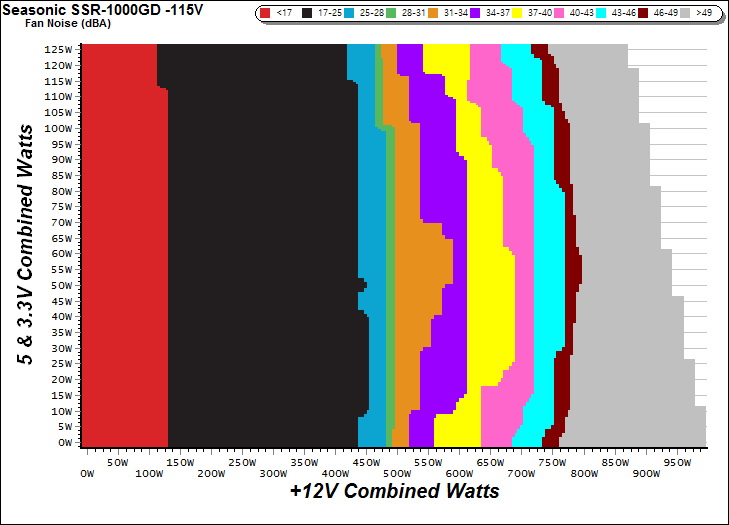

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

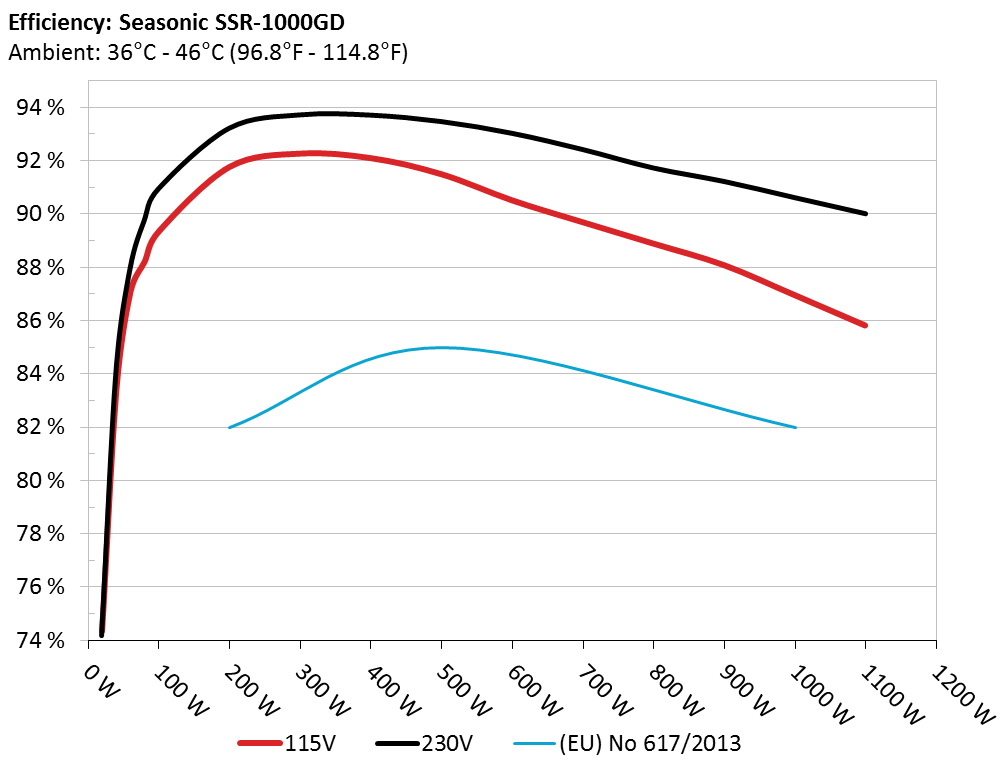

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

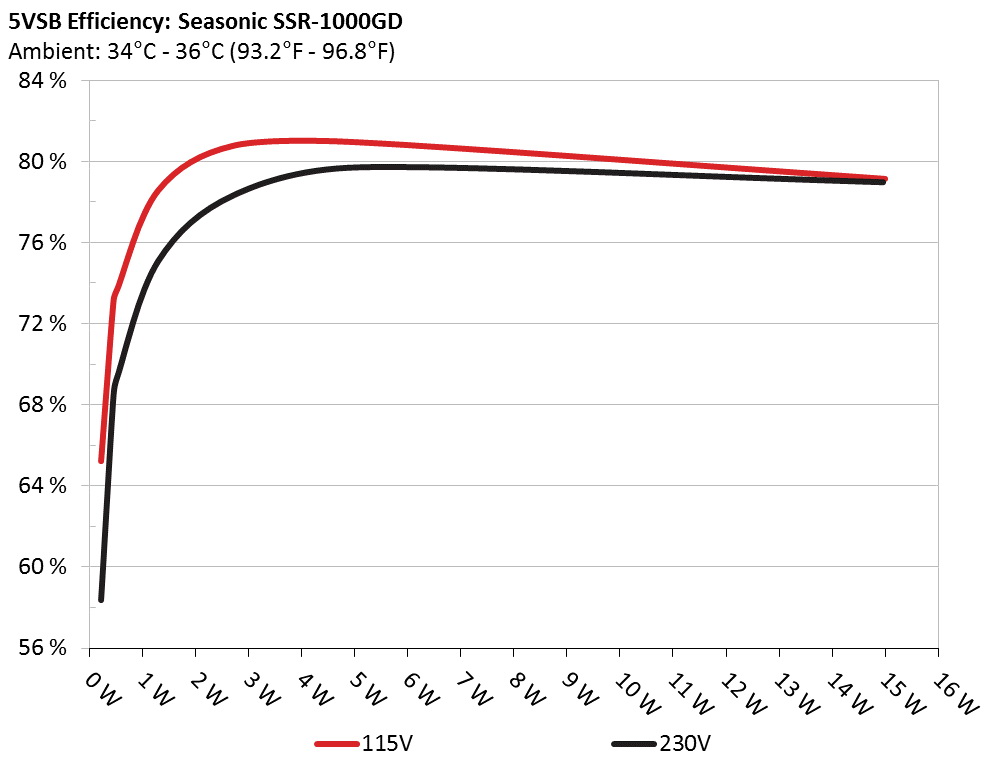

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test #5VSB DC/AC (Watts)EfficiencyPF/AC Volts
10.041A 0.21265.231% 0.036
5.128V 0.325115.09V
20.087A 0.44673.115% 0.067
5.126V 0.610115.09V
30.532A 2.71680.785% 0.271
5.106V 3.362115.09V
43.001A 14.99779.148% 0.477
4.997V 18.948115.09V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.476A 1.984A 1.990A 0.986A 99.815 89.341% 698 24.1 36.97°C 0.979
12.082V 5.028V 3.316V 5.069V 111.723 40.99°C 115.05V
2 13.984A 2.979A 2.984A 1.186A 199.688 91.758% 698 24.1 37.49°C 0.986
12.073V 5.028V 3.314V 5.052V 217.625 42.29°C 115.04V
3 21.867A 3.486A 3.499A 1.390A 299.928 92.261% 732 24.3 38.07°C 0.986
12.065V 5.025V 3.312V 5.033V 325.086 43.73°C 115.03V
4 29.743A 3.980A 3.983A 1.596A 399.736 92.094% 882 31.7 38.86°C 0.990
12.055V 5.024V 3.311V 5.013V 434.051 44.62°C 115.03V
5 37.290A 4.974A 4.986A 1.802A 499.676 91.492% 1339 42 39.10°C 0.993
12.046V 5.024V 3.308V 4.993V 546.140 45.14°C 115.04V
6 44.848A 5.972A 5.987A 2.010A 599.634 90.512% 1870 50.1 40.32°C 0.995
12.037V 5.025V 3.306V 4.973V 662.492 46.70°C 115.04V
7 52.418A 6.970A 6.992A 2.217A 699.533 89.691% 2043 52.0 40.95°C 0.996
12.027V 5.024V 3.304V 4.954V 779.940 47.50°C 115.05V
8 59.996A 7.965A 7.998A 2.430A 799.447 88.891% 2043 52.0 42.32°C 0.996
12.018V 5.024V 3.302V 4.934V 899.360 49.23°C 115.06V
9 68.019A 8.467A 8.516A 2.435A 899.453 88.082% 2043 52.0 43.81°C 0.997
12.009V 5.023V 3.299V 4.924V 1021.154 51.22°C 115.07V
10 75.797A 8.970A 9.005A 3.070A 999.281 86.961% 2043 52.0 45.16°C 0.997
12.000V 5.020V 3.298V 4.882V 1149.115 53.18°C 115.08V
11 84.190A 8.974A 9.010A 3.076A 1099.153 85.822% 2043 52.0 45.94°C 0.997
11.990V 5.018V 3.296V 4.872V 1280.743 55.79°C 115.09V
CL1 0.099A 15.020A 15.004A 0.004A 126.643 84.306% 1989 51.8 42.67°C 0.988
12.099V 5.045V 3.309V 5.096V 150.218 47.16°C 115.11V
CL2 82.934A 1.003A 1.004A 1.002A 1007.567 87.409% 2043 52.0 43.45°C 0.997
11.988V 5.013V 3.309V 4.995V 1152.704 51.11°C 115.10V

The results above are not used in the certification process

Light Load Tests 115V

Test #12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) Fan Noise (dB[A]) PF/AC Volts
1 1.209A0.491A 0.482A 0.195A 19.684 74.363% 0 0 0.821
12.087V 5.034V 3.323V 5.115V 26.470 115.04V
2 2.445A0.989A0.992A 0.390A 39.812 83.374% 0 0 0.918
12.087V 5.031V 3.321V 5.101V 47.751 115.04V
3 3.678A 1.486A 1.505A 0.586A 59.903 87.087% 0 0 0.953
12.086V 5.029V 3.318V 5.092V 68.785 115.04V
4 4.903A 1.983A 1.989A 0.786A 79.808 88.204% 698 24.1 0.970
12.084V 5.028V 3.317V 5.080V 90.481 115.04V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V 5V.3V5VSB Pass/Fail
10% Load10.8 mV5.1 mV5.6 mV7.0 mV Pass
20% Load13.7 mV5.4 mV5.7 mV8.1 mV Pass
30% Load15.3 mV5.8 mV6.6 mV9.5 mV Pass
40% Load13.1 mV5.6 mV7.2 mV11.2 mV Pass
50% Load11.3 mV5.5 mV8.9 mV13.4 mV Pass
60% Load10.8 mV6.0 mV10.2 mV15.6 mV Pass
70% Load12.1 mV6.7 mV10.7 mV17.1 mV Pass
80% Load13.5 mV7.0 mV11.6 mV19.7 mV Pass
90% Load14.6 mV7.2 mV12.8 mV22.5 mV Pass
100% Load15.3 mV7.5 mV14.0 mV22.4 mV Pass
110% Load22.9 mV8.7 mV14.3 mV25.0 mV Pass
Crossload 110.3 mV6.6 mV6.9 mV7.1 mV Pass
Crossload 215.4 mV7.1 mV13.8 mV20.7 mV Pass

The results above are not used in the certification process

Seasonic Prime Gold 1000W

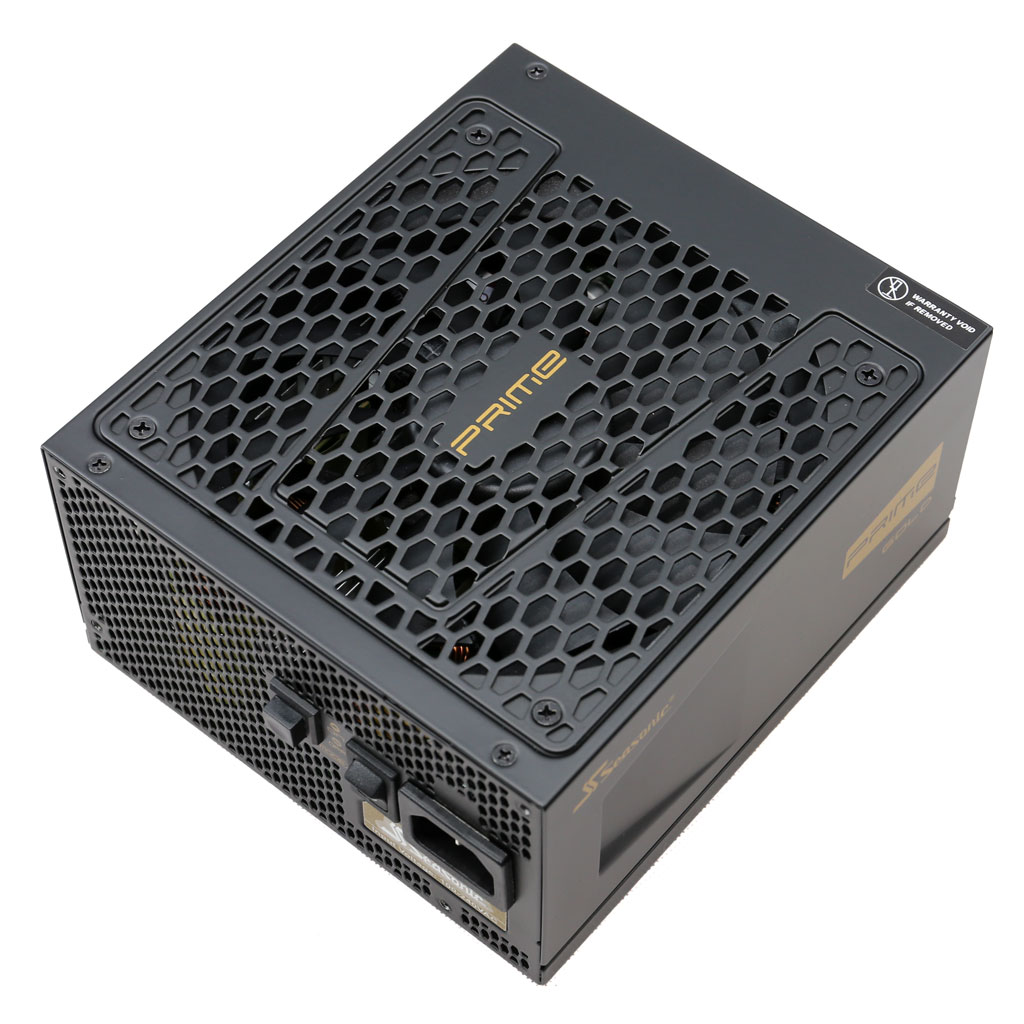

Top side

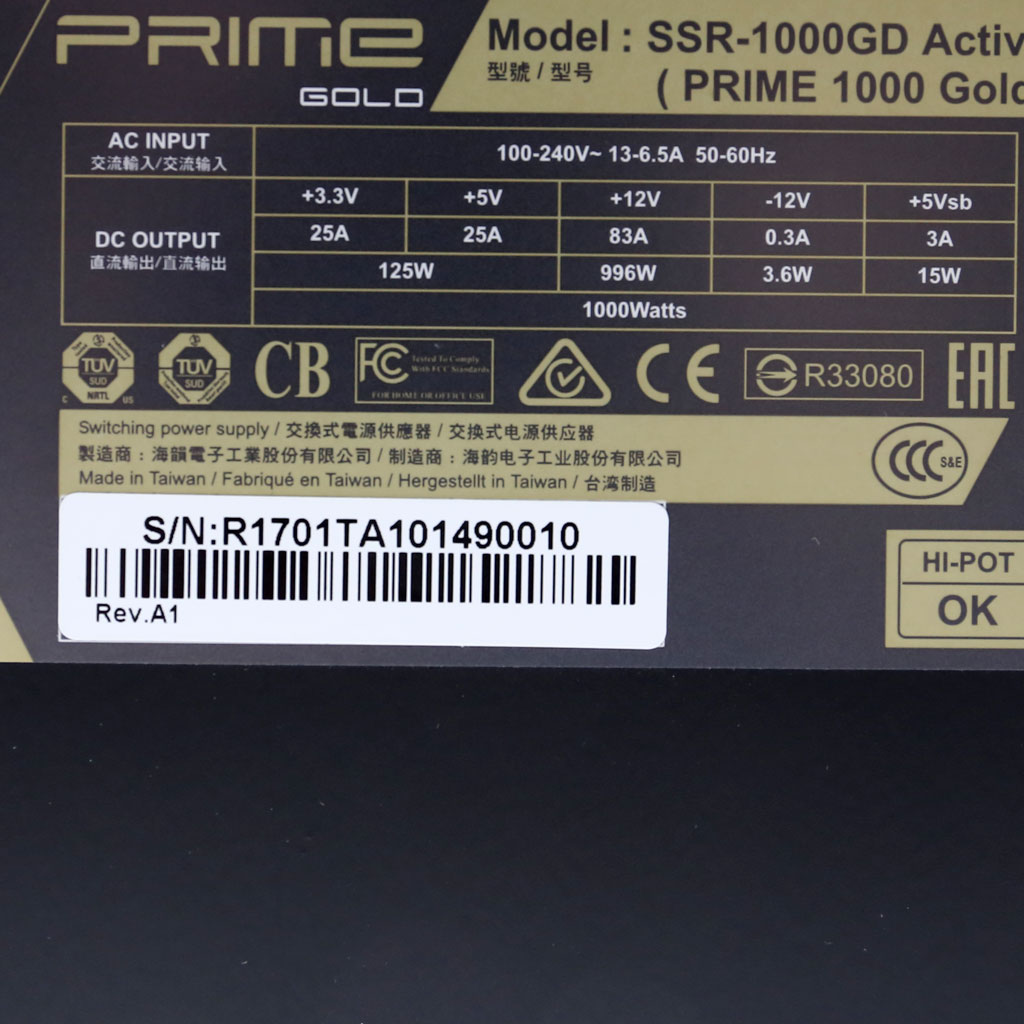

Power specifications label
