CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

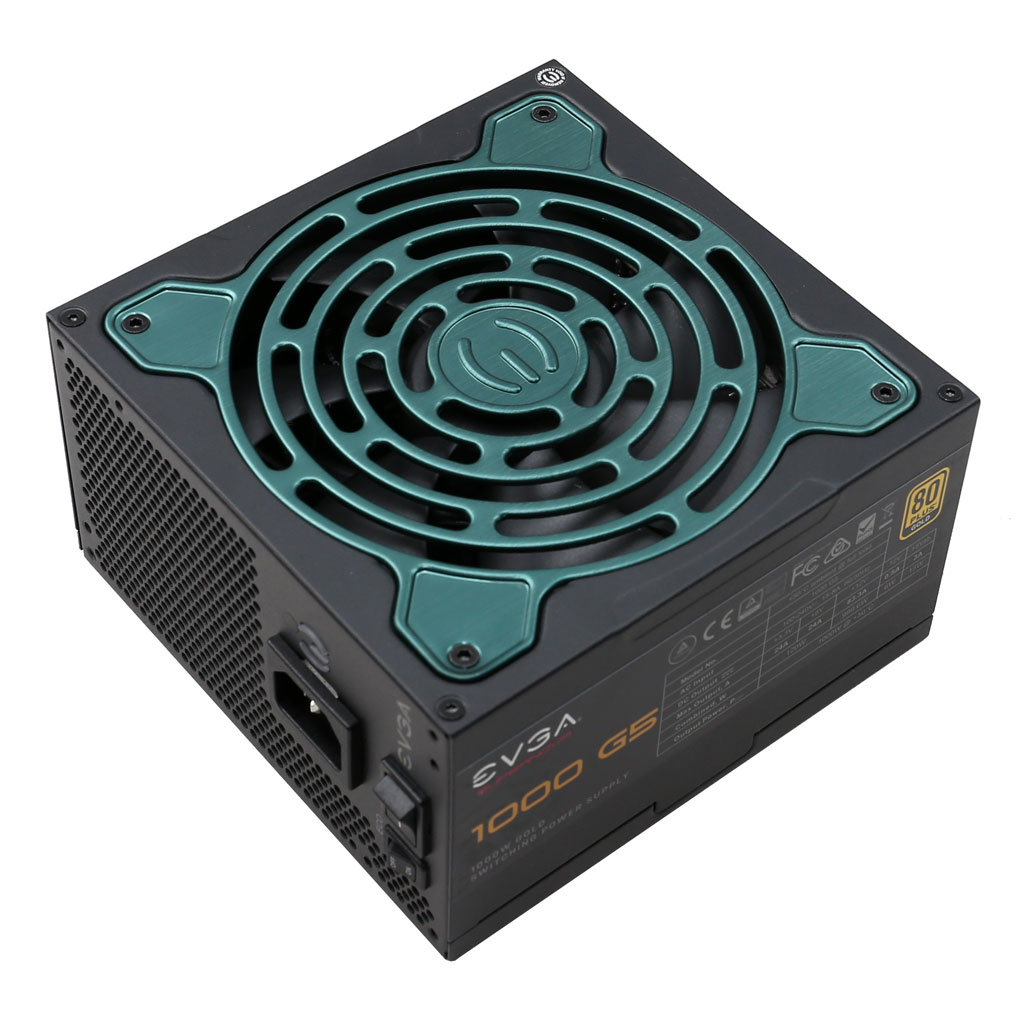

EVGA SuperNOVA 1000 G5
Serial Number1903141001800561
Lab IDEV19100105
Certification ID25811
  • Test Result Report ID:
  • Certificate Issue Date: Dec 9, 2019
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
This product certification body is accredited in accordance with the recognized International Standard ISO/IEC 17065:2012 Requirements for bodies certifying products, processes and services. This product certification body also meets the A2LA R308 - Specific Requirements - ISO-IEC 17065 - Telecommunication Certification Body Accreditation Program and R322 - Specific Requirements - Notified Body Accreditation Requirements. This accreditation demonstrates technical competence for a defined scope and the operation of a management system
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandEVGA
Hersteller (OEM)FSP
SeriesSuperNOVA G5
Model Number
Serial Number1903141001800561
DUT NotesHigher than 0.25W Vampire Power

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-8
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Dimensions (W x H x D)
Cooling135mm Fluid Dynamic Bearing Fan
(MGA13512XF-A25)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

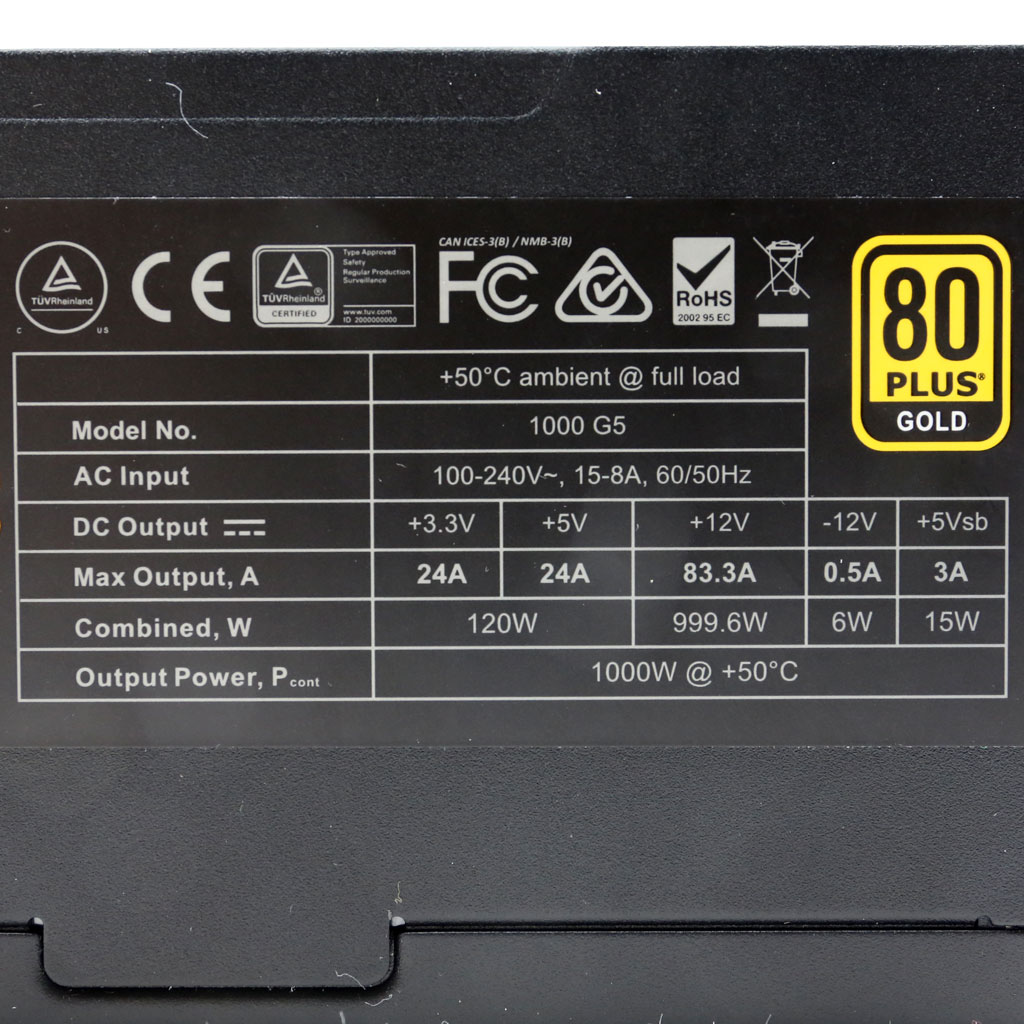

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps242483.330.5
Watts120999.6156
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (700mm+150mm) 4 8 18AWG No
SATA (550mm+100mm+100mm+100mm) 3 12 18AWG No
4-pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No
FDD Adapter (100mm) 1 1 22AWG No
AC Power Cord (1420mm) - C13 coupler 1 1 16AWG -

Parts Description

General Data
Manufacturer (OEM) FSP
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 3x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x HY GBJ2506P (600V, 25A @ 100°C)
APFC MOSFETS 2x ROHM R6030KNX (600V, 30A, 0.13Ohm)
APFC Boost Diode 1x ROHM SCS308AM (650V, 8A @ 105°C)
Hold-up Cap(s) 1x Rubycon (450V, 560uF, 3,000h @ 105°C, MXK)
Main Switchers 2x Infineon IPA80R310CE (800V, 10.6A @ 100°C, 0.31Ohm)
Reset Switch 1x Infineon IPD80R2K8CE (800V, 1.1A @ 100°C, 2.8Ohm)
APFC/Switching Controller FSP 6600 IC
Topology Primary side: Two Power Switch Active Clamp Reset Forward
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Infineon IPP020N06N (60V, 120A @ 100°C, 2mOhm)
5V & 3.3V DC-DC Converters:4x Infineon BSC042N03LS (30V, 59A @ 100°C, 4.2mOhm)
PWM Controllers: ANPEC APW7159C
Filtering Capacitors Electrolytics: 2x Nippon Chemi-Con (1-5,000 @ 105°C, KZE), 2x Rubycon (3-6,000 @ 105°C, YXG), 1x Rubycon (4-10,000 @ 105°C, YXF)
Polymers: 15x United Chemi-Con
Supervisor IC Weltrend WT7527 (OCP, OVP, UVP, SCP, PG)
Fan Model Protechnic Electric MGA13512XF-A25 (135mm, 12V, 0.38A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier 1x CET CEF02N7G FET (700V, 1.3A @ 100°C, 6.75Ohm)
Standby PWM Controller FSP 6601 IC

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 ReadyErP Lot 6 2010: ✓
ErP Lot 6 2013: Partially
ErP Lot 3 2014 & CEC: ✓
(EU) No 617/2013 Compliance✓

Performance Summary

WirkungsgradGOLD
LautstärkeklasseStandard
Average Efficiency (>1450 load combinations)89.048%
Average Noise Output (>1450 Load Combinations)43.38dBA
Average PF (>1450 Load Combinations)0.992
Efficiency With 10W (≤500W) or 2% (>500W) Load67.433%
Standby Power Consumption0.1682W
12V Ripple (Full Load)22.58mV
5V Ripple (Full Load)10.70mV
3.3V Ripple (Full Load)30.00mV
5VSB Ripple (Full Load)18.83mV
12V Load Regulation0.39%
5V Load Regulation0.51%
3.3V Load Regulation0.60%
5VSB Load Regulation1.90%
Inrush Current22.735A
Wirkungsgrad
LautstärkeklasseStandard
Average Efficiency (>1450 load combinations)91.219%
Average Noise Output (>1450 Load Combinations)43.47dBA
Average PF (>1450 Load Combinations)0.974
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.2563W
12V Ripple (Full Load)17.47mV
5V Ripple (Full Load)9.35mV
3.3V Ripple (Full Load)26.29mV
5VSB Ripple (Full Load)15.29mV
12V Load Regulation0.38%
5V Load Regulation0.49%
3.3V Load Regulation0.60%
5VSB Load Regulation1.74%
Inrush Current34.896A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal24.90ms
AC Loss to PWR_OK Hold Up Time21.70ms
PWR_OK Inactive to DC Loss Delay3.20ms
PSU Timings: T1 (20% / 100%)64.0ms50.0ms
PSU Timings: T3 (20% / 100%)296.0ms296.0ms
OPP (0.00°C / 0.00°C)116.49%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)24.9
AC Loss to PWR_OK Hold Up Time (ms)21.7
PWR_OK Inactive to DC Loss Delay (ms)3.2

Stromverbrauch im Ruhezustand

Tables

Graphs

INFO

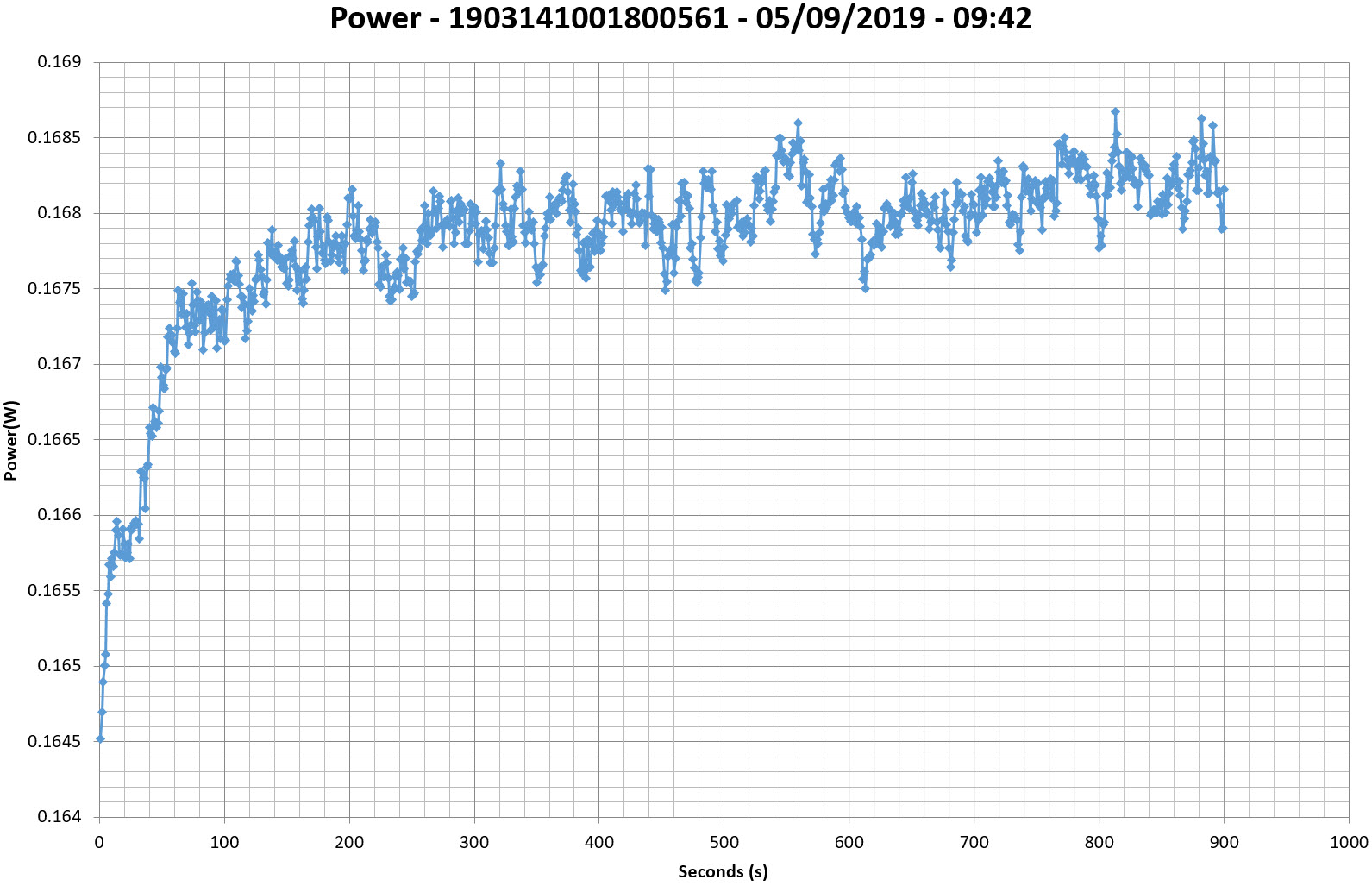

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

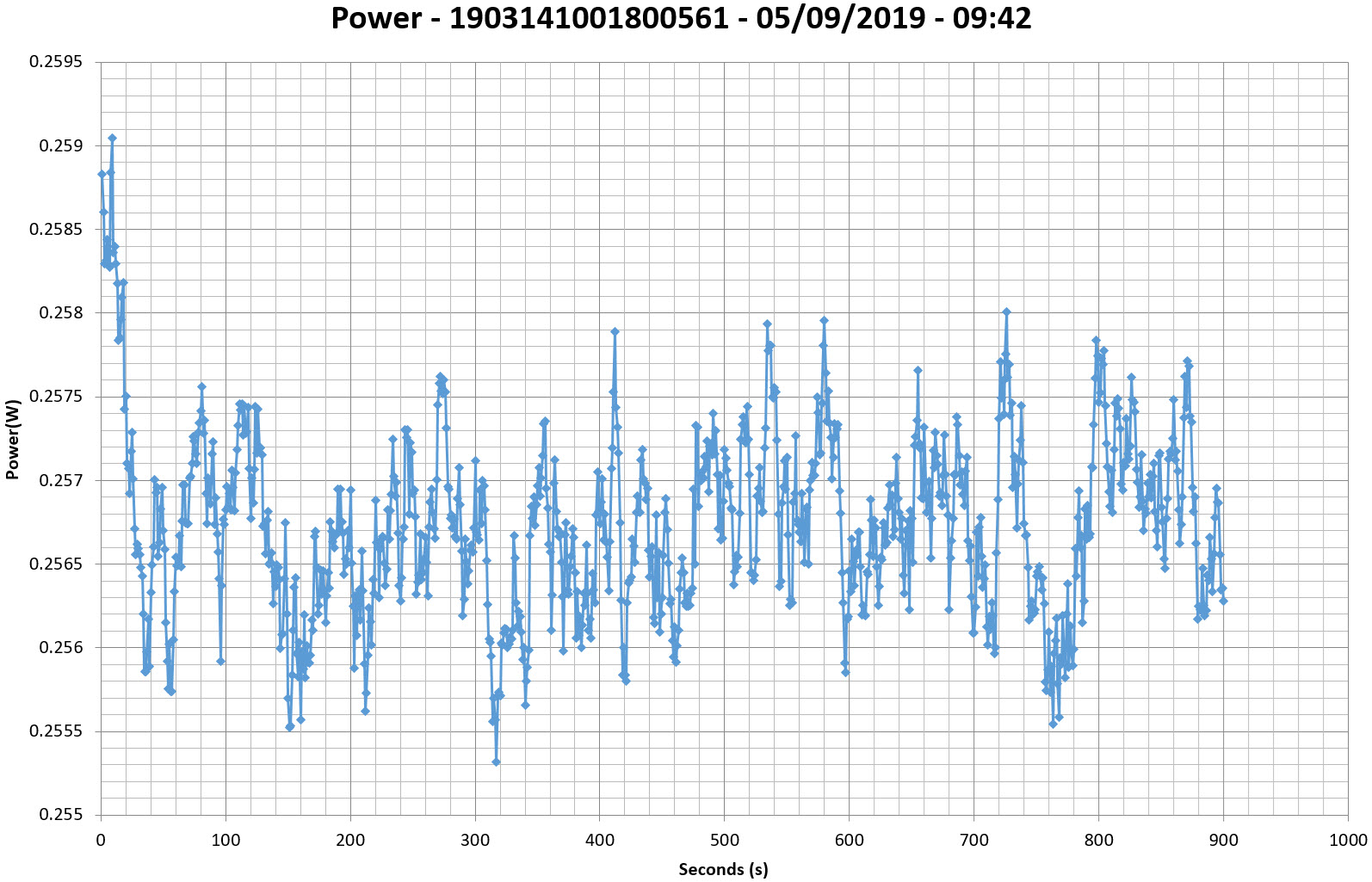

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

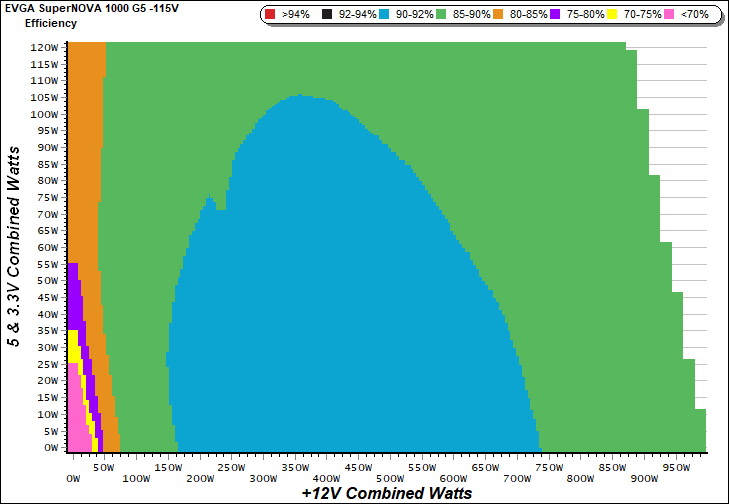

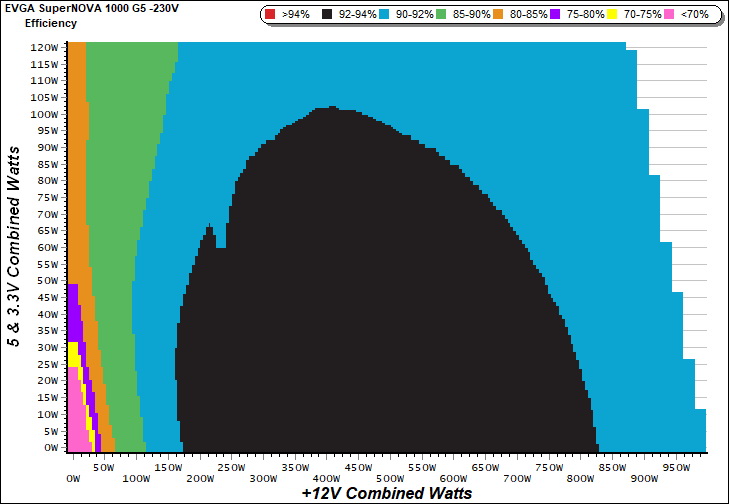

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

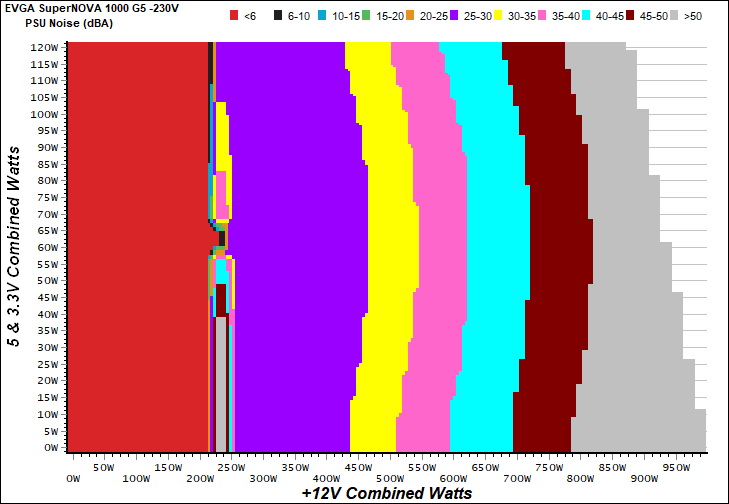

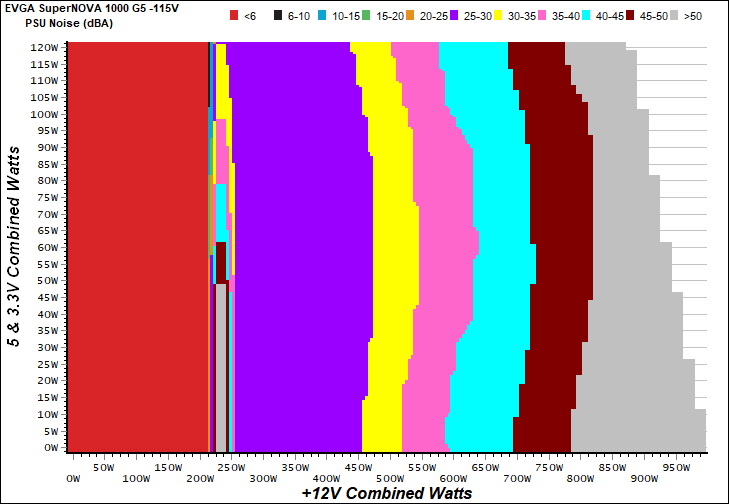

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

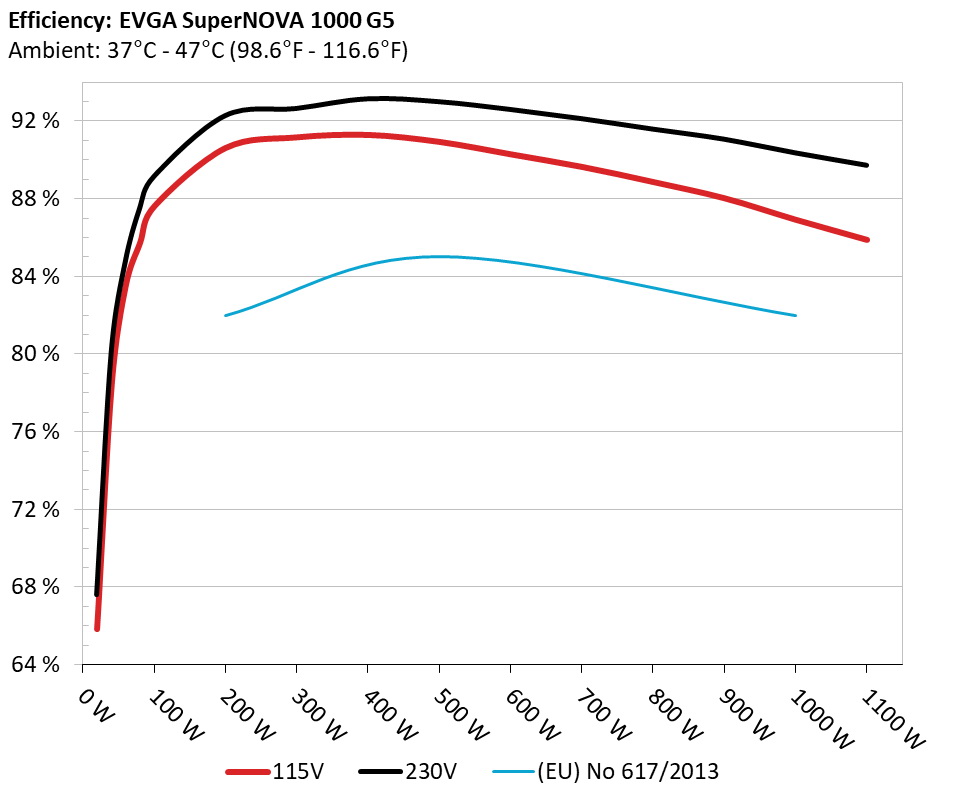

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

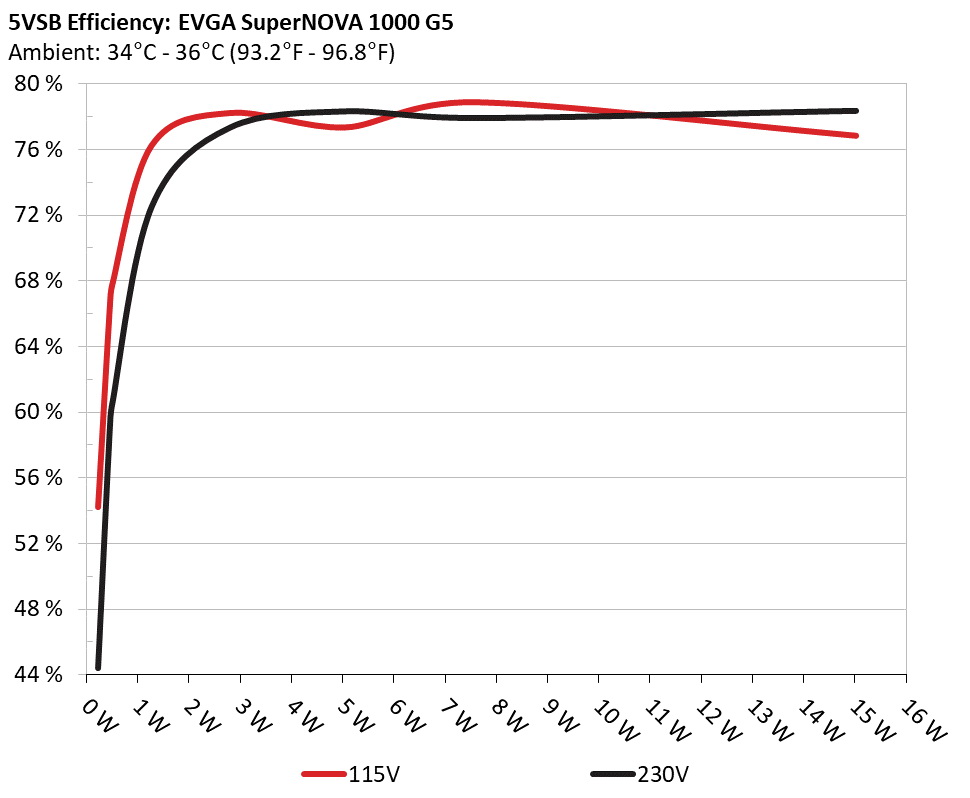

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 54.245% 0.042
5.100V 0.424 115.16V
2 0.090A 0.459 66.425% 0.068
5.099V 0.691 115.16V
3 0.550A 2.797 78.216% 0.276
5.084V 3.576 115.16V
4 1.000A 5.070 77.346% 0.379
5.069V 6.555 115.16V
5 1.500A 7.583 78.875% 0.433
5.054V 9.614 115.15V
6 3.000A 15.020 76.837% 0.498
5.006V 19.548 115.15V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 44.402% 0.016
5.100V 0.518 230.35V
2 0.090A 0.459 58.997% 0.023
5.099V 0.778 230.35V
3 0.550A 2.797 77.329% 0.104
5.084V 3.617 230.35V
4 1.000A 5.071 78.329% 0.173
5.069V 6.474 230.35V
5 1.500A 7.581 77.922% 0.235
5.053V 9.729 230.35V
6 3.000A 15.020 78.360% 0.343
5.006V 19.168 230.35V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.530A 1.979A 1.971A 0.994A 100.193 87.637% 0 <6.0 44.67°C 0.964
12.034V 5.058V 3.349V 5.032V 114.327 40.22°C 115.17V
2 14.048A 2.970A 2.958A 1.194A 199.899 90.634% 0 <6.0 45.78°C 0.985
12.029V 5.055V 3.347V 5.026V 220.556 40.89°C 115.16V
3 21.909A 3.468A 3.438A 1.396A 299.441 91.183% 1286 35.2 41.00°C 0.992
12.024V 5.049V 3.344V 5.015V 328.394 46.31°C 115.16V
4 29.840A 3.968A 3.950A 1.598A 399.871 91.310% 1567 40.5 41.89°C 0.996
12.019V 5.046V 3.342V 5.007V 437.925 47.81°C 115.16V
5 37.409A 4.960A 4.942A 1.800A 499.992 90.950% 1740 44.5 42.00°C 0.998
12.015V 5.043V 3.340V 5.002V 549.742 48.25°C 115.17V
6 44.988A 5.955A 5.934A 2.002A 600.135 90.310% 2021 51.0 42.80°C 0.998
12.010V 5.041V 3.338V 4.996V 664.530 49.69°C 115.17V
7 52.542A 6.950A 6.926A 2.205A 699.882 89.663% 2054 50.6 43.04°C 0.998
12.005V 5.038V 3.335V 4.990V 780.566 50.55°C 115.17V
8 60.166A 7.945A 7.920A 2.408A 800.413 88.880% 2057 50.8 43.31°C 0.998
12.000V 5.037V 3.333V 4.985V 900.552 51.27°C 115.16V
9 68.121A 8.443A 8.406A 2.408A 899.705 88.050% 2062 51.0 44.39°C 0.998
11.996V 5.035V 3.332V 4.986V 1021.809 52.81°C 115.17V
10 75.925A 8.944A 8.920A 3.023A 1000.138 86.940% 2065 51.1 45.52°C 0.998
11.991V 5.033V 3.330V 4.963V 1150.374 54.65°C 115.17V
11 84.301A 8.946A 8.922A 3.024A 1100.154 85.902% 2074 51.5 46.73°C 0.998
11.986V 5.032V 3.329V 4.962V 1280.709 56.44°C 115.18V
CL1 0.162A 14.003A 14.002A 0.000A 119.612 81.287% 0 <6.0 48.39°C 0.969
12.030V 5.064V 3.339V 5.124V 147.147 42.15°C 115.18V
CL2 83.368A 1.005A 1.000A 1.000A 1013.169 87.245% 2069 51.2 45.98°C 0.998
11.992V 5.042V 3.339V 5.014V 1161.290 54.96°C 115.17V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.525A 1.978A 1.968A 0.994A 100.129 89.139% 0 <6.0 44.76°C 0.887
12.035V 5.059V 3.349V 5.033V 112.329 40.20°C 230.36V
2 14.042A 2.967A 2.957A 1.194A 199.830 92.263% 0 <6.0 45.65°C 0.952
12.030V 5.057V 3.347V 5.028V 216.587 40.73°C 230.36V
3 21.899A 3.465A 3.440A 1.395A 299.347 92.632% 1701 44.1 41.33°C 0.973
12.025V 5.052V 3.345V 5.018V 323.158 46.52°C 230.36V
4 29.829A 3.964A 3.949A 1.598A 399.782 93.132% 1598 42.2 41.71°C 0.984
12.021V 5.047V 3.342V 5.009V 429.264 47.48°C 230.36V
5 37.400A 4.958A 4.938A 1.800A 499.902 92.983% 1692 42.9 42.38°C 0.990
12.016V 5.044V 3.340V 5.002V 537.628 48.58°C 230.36V
6 44.973A 5.952A 5.932A 2.002A 600.031 92.584% 2024 51.0 43.03°C 0.992
12.012V 5.042V 3.338V 4.997V 648.096 49.55°C 230.36V
7 52.524A 6.948A 6.928A 2.205A 699.784 92.112% 2051 50.5 43.78°C 0.994
12.007V 5.039V 3.336V 4.991V 759.706 50.77°C 230.36V
8 60.150A 7.943A 7.918A 2.408A 800.333 91.571% 2059 50.9 44.30°C 0.995
12.002V 5.037V 3.334V 4.986V 874.005 51.89°C 230.36V
9 68.110A 8.440A 8.402A 2.407A 899.626 91.056% 2062 51.0 44.79°C 0.995
11.997V 5.037V 3.332V 4.987V 987.987 53.00°C 230.36V
10 75.912A 8.941A 8.918A 3.023A 1000.049 90.350% 2065 51.1 45.60°C 0.996
11.992V 5.034V 3.330V 4.964V 1106.856 54.82°C 230.36V
11 84.272A 8.946A 8.923A 3.024A 1099.968 89.711% 2065 51.1 46.70°C 0.997
11.988V 5.031V 3.329V 4.961V 1226.129 56.25°C 230.36V
CL1 0.155A 14.001A 14.002A 0.000A 119.546 82.775% 0 <6.0 48.54°C 0.919
12.030V 5.065V 3.340V 5.124V 144.422 42.43°C 230.38V
CL2 83.356A 1.004A 0.999A 1.000A 1013.101 90.688% 2069 51.2 45.48°C 0.996
11.993V 5.042V 3.339V 5.014V 1117.130 54.15°C 230.37V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.302A 0.250A 0.243A 0.367A 19.613 65.844% 0 <6.0 0.769
12.041V 5.060V 3.351V 5.059V 29.787 115.19V
2 2.479A 0.990A 0.984A 0.396A 40.146 78.448% 0 <6.0 0.920
12.038V 5.059V 3.350V 5.050V 51.175 115.19V
3 3.672A 1.485A 1.460A 0.595A 59.604 83.501% 0 <6.0 0.936
12.037V 5.058V 3.350V 5.045V 71.381 115.17V
4 4.933A 1.979A 1.970A 0.794A 79.977 85.752% 0 <6.0 0.952
12.035V 5.058V 3.349V 5.039V 93.265 115.17V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.206A 0.495A 0.477A 0.198A 19.627 67.619% 0 <6.0 0.568
12.041V 5.062V 3.352V 5.058V 29.026 230.37V
2 2.472A 0.990A 0.984A 0.396A 40.070 80.106% 0 <6.0 0.733
12.040V 5.060V 3.351V 5.052V 50.021 230.37V
3 3.667A 1.483A 1.462A 0.595A 59.546 84.698% 0 <6.0 0.812
12.038V 5.059V 3.350V 5.046V 70.304 230.37V
4 4.928A 1.977A 1.971A 0.794A 79.922 87.489% 0 <6.0 0.859
12.037V 5.059V 3.349V 5.040V 91.351 230.37V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 10.1 mV 5.3 mV 14.8 mV 10.0 mV Pass
20% Load 8.9 mV 5.4 mV 14.0 mV 9.9 mV Pass
30% Load 10.3 mV 5.7 mV 15.9 mV 10.8 mV Pass
40% Load 10.6 mV 5.9 mV 16.9 mV 11.0 mV Pass
50% Load 12.4 mV 6.3 mV 18.5 mV 11.3 mV Pass
60% Load 13.0 mV 7.0 mV 19.1 mV 11.9 mV Pass
70% Load 14.1 mV 7.7 mV 21.2 mV 12.7 mV Pass
80% Load 14.7 mV 7.9 mV 22.1 mV 12.6 mV Pass
90% Load 15.3 mV 8.6 mV 23.1 mV 13.5 mV Pass
100% Load 22.6 mV 10.7 mV 30.0 mV 18.8 mV Pass
110% Load 72.7 mV 43.7 mV 159.3 mV 92.0 mV Fail
Crossload 1 10.0 mV 7.3 mV 18.2 mV 11.6 mV Pass
Crossload 2 18.1 mV 10.1 mV 29.9 mV 18.1 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 9.9 mV 5.5 mV 12.4 mV 10.2 mV Pass
20% Load 14.0 mV 5.2 mV 13.4 mV 10.0 mV Pass
30% Load 9.3 mV 5.5 mV 15.0 mV 10.9 mV Pass
40% Load 9.5 mV 5.8 mV 16.8 mV 11.2 mV Pass
50% Load 10.4 mV 6.4 mV 17.6 mV 11.2 mV Pass
60% Load 11.4 mV 6.7 mV 19.4 mV 12.1 mV Pass
70% Load 13.7 mV 7.6 mV 19.9 mV 12.4 mV Pass
80% Load 13.9 mV 7.6 mV 21.2 mV 12.8 mV Pass
90% Load 15.4 mV 7.6 mV 22.1 mV 13.2 mV Pass
100% Load 17.5 mV 9.4 mV 26.3 mV 15.3 mV Pass
110% Load 21.2 mV 10.1 mV 27.9 mV 16.2 mV Pass
Crossload 1 11.5 mV 7.1 mV 18.2 mV 11.0 mV Pass
Crossload 2 17.7 mV 8.5 mV 24.9 mV 15.0 mV Pass

The results above are not used in the certification process

EVGA SuperNOVA 1000 G5

Top side
Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
