CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00

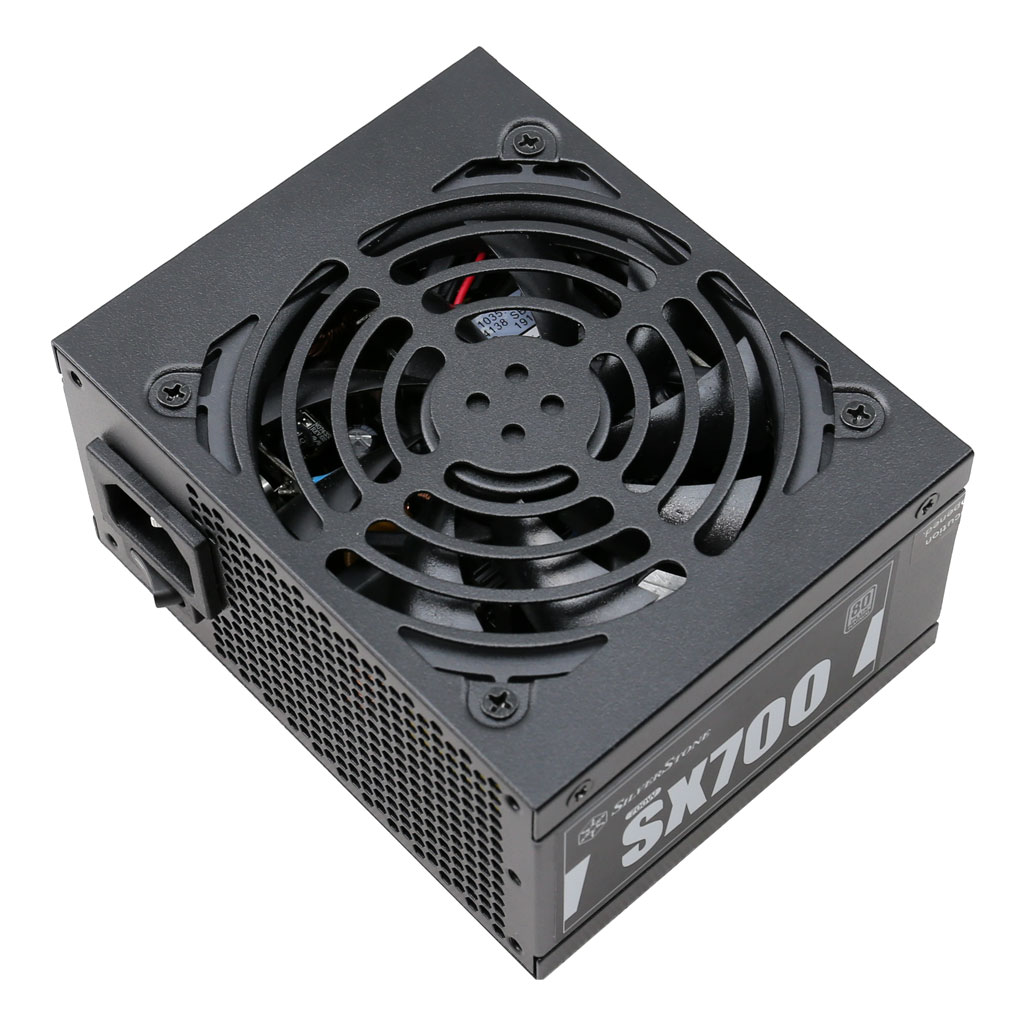

SilverStone SFX Platinum 700W
Serial NumberDESX700PT019280244
Lab IDSL19700124
Certification ID25869
  • Test Result Report ID:
  • Certificate Issue Date: Oct 15, 2019
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandSilverStone
製造商 (OEM)High Power
SeriesPT Series
Model NumberSX700-PT
Serial NumberDESX700PT019280244
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)700
TypeSFX
Dimensions (W x H x D)
Cooling92mm Fluid Dynamic Bearing Fan
(S0921512HB)
Semi-Passive Operation✗
Cable DesignFully Modular

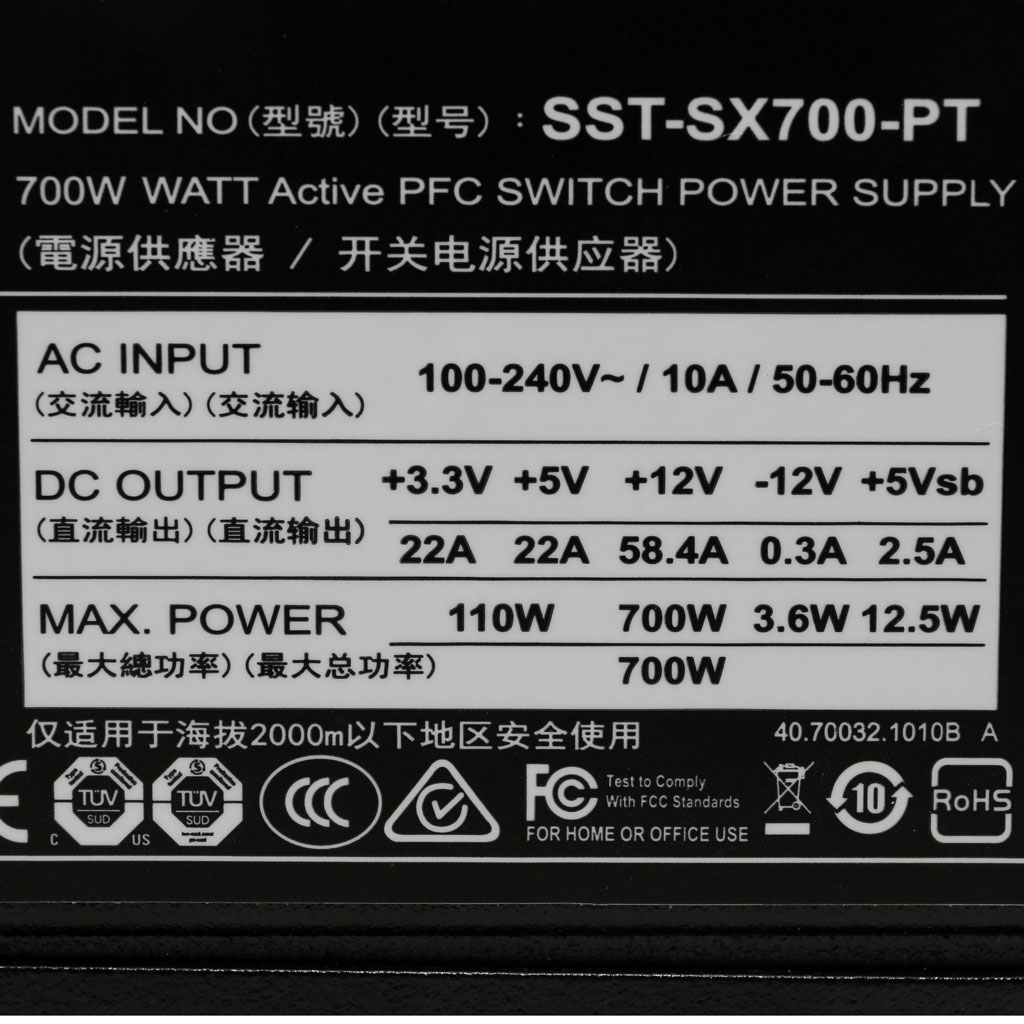

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222258.42.50.3
Watts11070012.53.6
Total Max. Power (W)700

Test Equipment

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (300-330mm) 1 1 16-22AWG No
4+4 pin EPS12V (550mm) 1 1 16AWG No
4+4 pin EPS12V (405mm) 1 1 16AWG No
6+2 pin PCIe (550mm+150mm) 1 2 16-18AWG No
6+2 pin PCIe (400mm+150mm) 1 2 16-18AWG No
SATA (300mm+200mm+100mm) 2 6 18AWG No
4-pin Molex (300mm+200mm+200mm) 1 3 18AWG No
FDD Adapter (+105mm) 1 1 22AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) High Power
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 3x CM chokes, 1x MOV, 1x Discharge IC
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x HY GBU1506L (600V, 15A @ 100°C)
APFC MOSFETS 2x Infineon IPA60R120C7 (650V, 7A @ 100°C, 0.12Ohm)
APFC Boost Diode 1x Infineon IDH08G65C6 (650V, 8A @ 145°C)
Hold-up Cap(s) 1x Rubycon (420V, 470uF, 3,000h @ 85°C, USH)
Main Switchers 2x Infineon IPA60R120C7 (650V, 7A @ 100°C, 0.12Ohm)
IC Driver 1x Silicon Labs Si8233BD
APFC Controller Infineon ICE3PCS01G
Resonant Controllers Champion CM6901
Topology Primary side: Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 6x Toshiba TPHR8504PL (40V, 150A @ 25°C, 0.85mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mOhm)
PWM Controllers: ANPEC APW7159
Filtering Capacitors Electrolytics: 3x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 2x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 2x Rubycon (3-6,000h @ 105°C, YXG)
Polymers: 18x FPCAP, 3x United Chemi-Con
Supervisor IC SITI PS224 (OVP, UVP, OCP, SCP, PG)
Fan Controller STC 15W408AS
Fan Model Globe Fan S0921512HB (92mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier 1x PFC P10V45SP SBR (45V, 10A)
Standby PWM Controller Sanken STR-A6069H
-12V
Rectifier KEC KIA7912PI (-12V, 1A)

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

效率評比PLATINUM
噪音評比Standard+
Average Efficiency (>1450 load combinations)90.364%
Average Noise Output (>1450 Load Combinations)36.22dBA
Average PF (>1450 Load Combinations)0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load63.128%
Standby Power Consumption0.0883W
12V Ripple (Full Load)55.74mV
5V Ripple (Full Load)23.25mV
3.3V Ripple (Full Load)39.42mV
5VSB Ripple (Full Load)13.52mV
12V Load Regulation0.82%
5V Load Regulation1.38%
3.3V Load Regulation2.23%
5VSB Load Regulation2.48%
Inrush Current34.531A
效率評比PLATINUM
噪音評比Standard+
Average Efficiency (>1450 load combinations)92.102%
Average Noise Output (>1450 Load Combinations)35.84dBA
Average PF (>1450 Load Combinations)0.956
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1452W
12V Ripple (Full Load)50.43mV
5V Ripple (Full Load)20.82mV
3.3V Ripple (Full Load)35.89mV
5VSB Ripple (Full Load)11.50mV
12V Load Regulation0.84%
5V Load Regulation1.34%
3.3V Load Regulation2.17%
5VSB Load Regulation2.42%
Inrush Current75.504A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal6.80ms
AC Loss to PWR_OK Hold Up Time8.10ms
PWR_OK Inactive to DC Loss Delay-1.30ms
PSU Timings: T1 (20% / 100%)102.0ms102.0ms
PSU Timings: T3 (20% / 100%)280.0ms268.0ms
OPP (0.00°C / 0.00°C)125.03%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)6.8
AC Loss to PWR_OK Hold Up Time (ms)8.1
PWR_OK Inactive to DC Loss Delay (ms)-1.3

待機電源消耗

Tables

Graphs

INFO

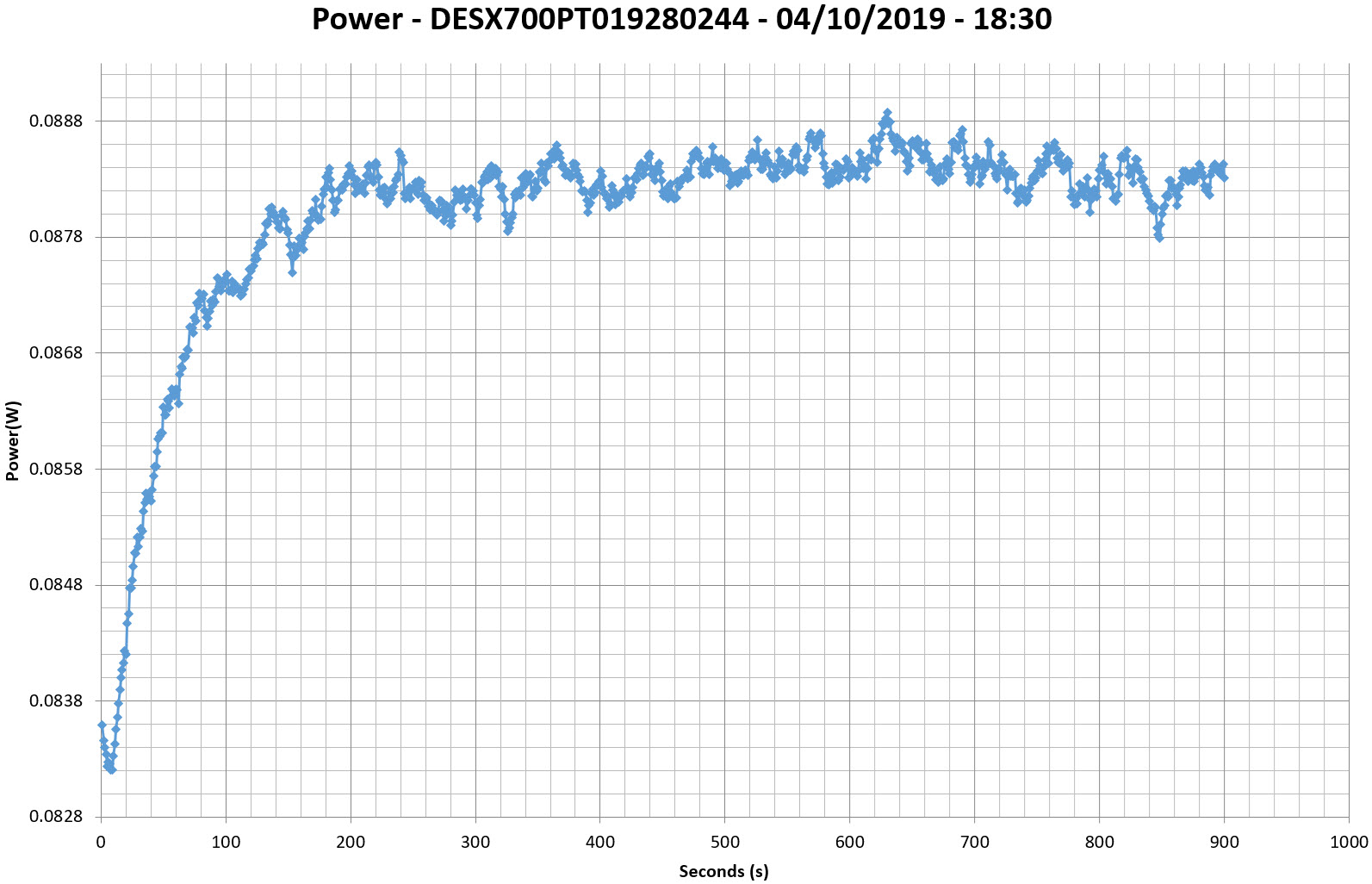

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

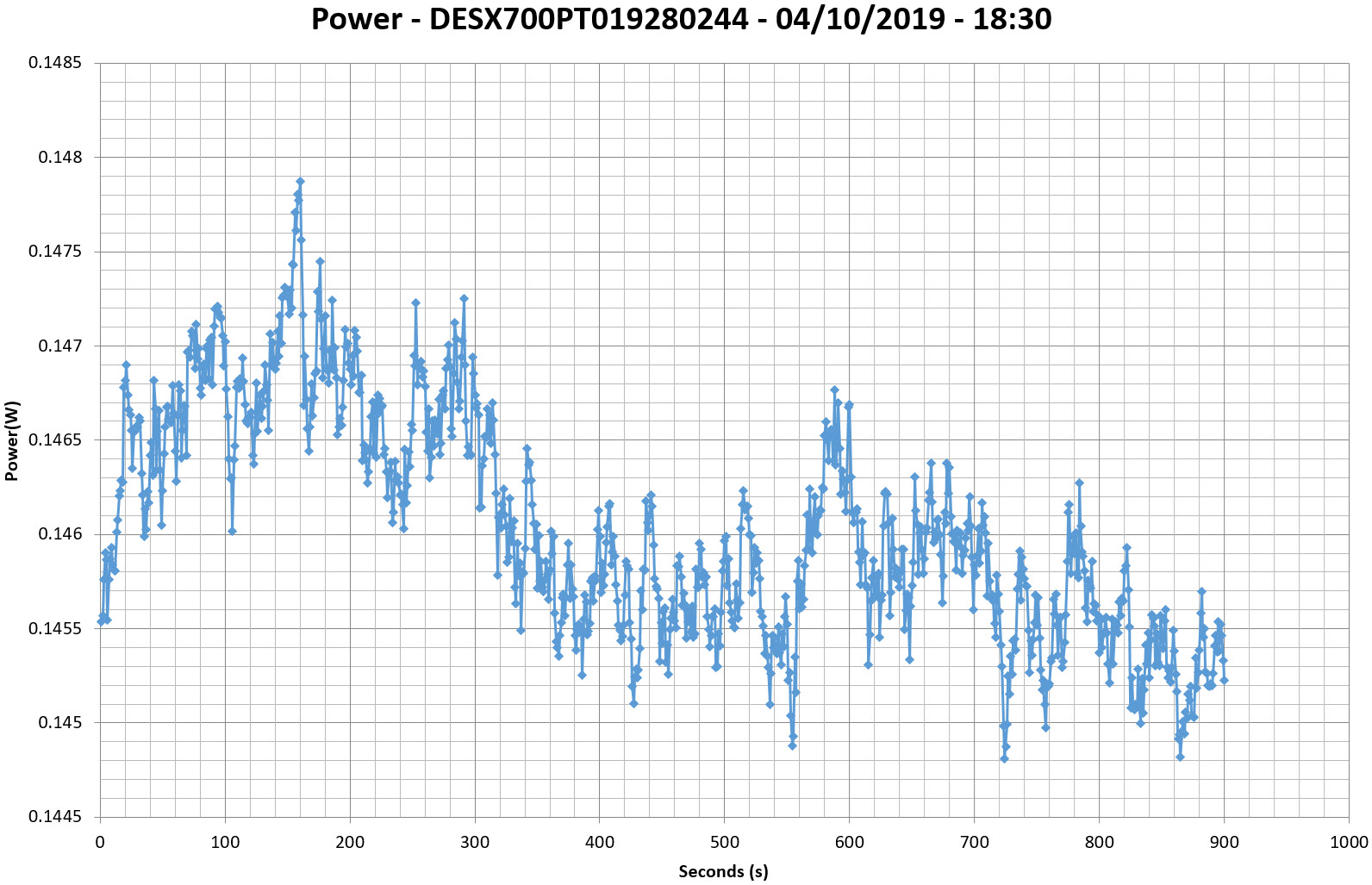

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

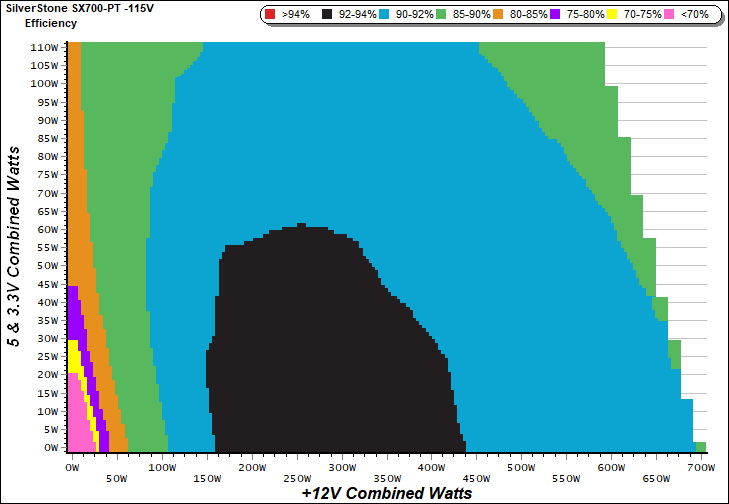

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

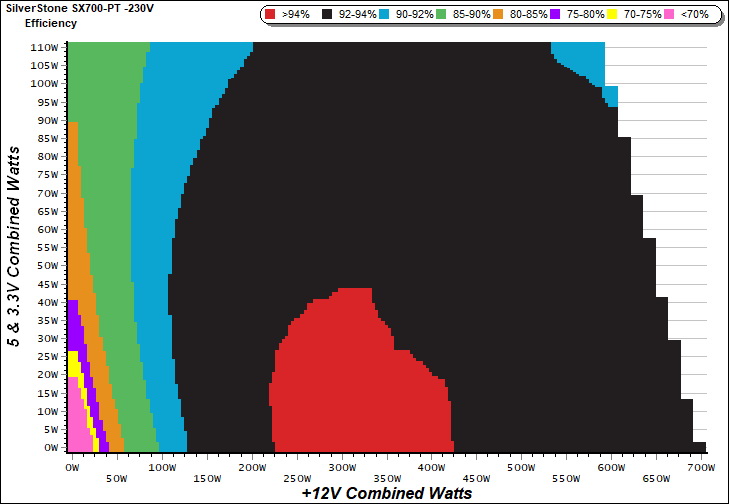

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

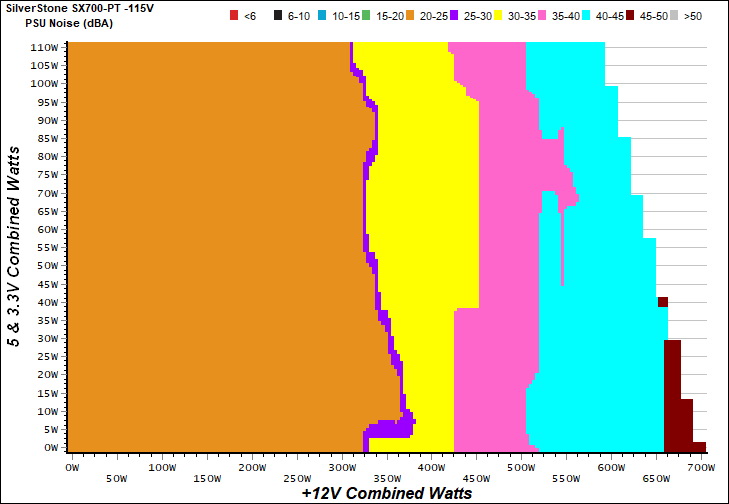

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

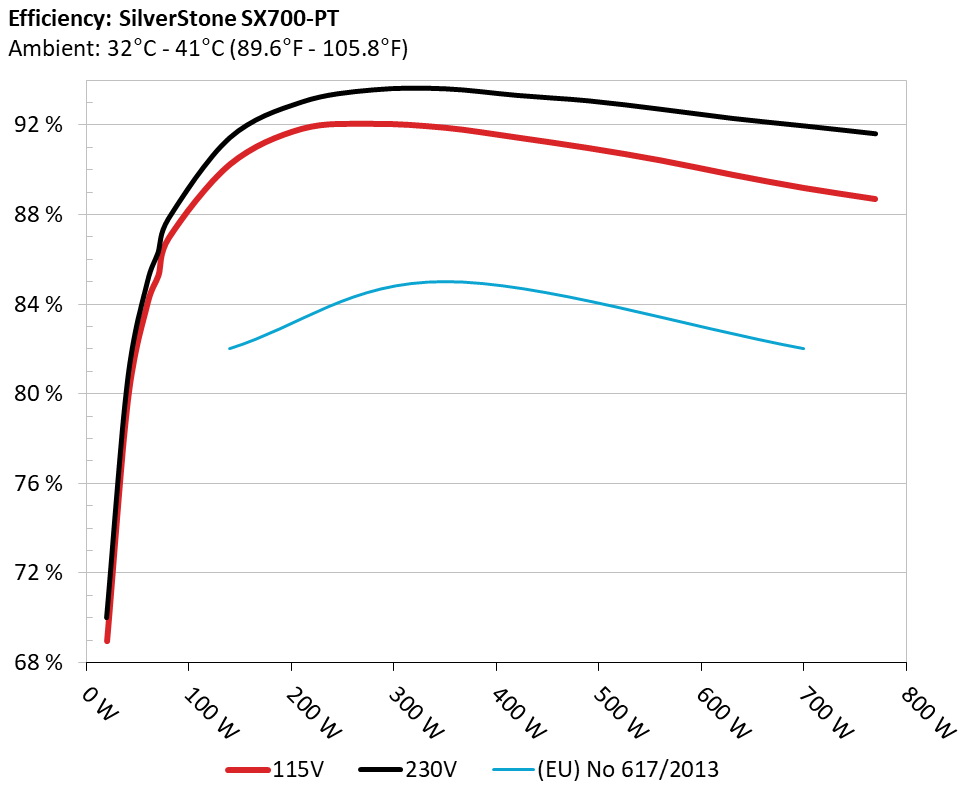

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 63.712% 0.062
5.101V 0.361 115.12V
2 0.090A 0.460 70.769% 0.107
5.099V 0.650 115.12V
3 0.550A 2.798 79.062% 0.324
5.086V 3.539 115.13V
4 1.000A 5.074 79.805% 0.383
5.073V 6.358 115.13V
5 1.500A 7.591 79.838% 0.414
5.060V 9.508 115.13V
6 2.500A 12.549 78.294% 0.446
5.019V 16.028 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 56.790% 0.021
5.100V 0.405 230.27V
2 0.090A 0.460 65.064% 0.037
5.098V 0.707 230.27V
3 0.550A 2.794 75.800% 0.164
5.080V 3.686 230.27V
4 1.000A 5.069 78.262% 0.236
5.068V 6.477 230.26V
5 1.500A 7.582 78.831% 0.285
5.054V 9.618 230.27V
6 2.500A 12.567 78.830% 0.337
5.026V 15.942 230.27V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.946A 1.975A 1.965A 0.989A 69.727 85.291% 1299 20.0 34.35°C 0.960
12.197V 5.063V 3.357V 5.058V 81.752 38.48°C 115.12V
2 8.941A 2.968A 2.956A 1.190A 139.821 90.258% 1303 20.1 34.85°C 0.981
12.182V 5.054V 3.349V 5.044V 154.913 39.53°C 115.12V
3 14.278A 3.467A 3.440A 1.390A 209.762 91.835% 1305 20.1 35.03°C 0.994
12.170V 5.048V 3.342V 5.036V 228.411 40.59°C 115.12V
4 19.626A 3.969A 3.960A 1.592A 279.773 92.059% 1306 20.2 35.23°C 0.996
12.155V 5.041V 3.336V 5.026V 303.906 41.19°C 115.12V
5 24.642A 4.970A 4.956A 1.796A 349.886 91.885% 1310 20.2 35.42°C 0.995
12.149V 5.034V 3.328V 5.010V 380.785 42.03°C 115.12V
6 29.666A 5.971A 5.965A 2.002A 419.988 91.449% 1899 32.5 36.64°C 0.996
12.141V 5.026V 3.319V 4.997V 459.257 43.73°C 115.12V
7 34.710A 6.977A 6.978A 2.206A 490.115 90.977% 2183 36.4 37.25°C 0.996
12.129V 5.018V 3.311V 4.988V 538.725 44.85°C 115.12V
8 39.755A 7.986A 7.997A 2.412A 560.214 90.429% 2473 39.4 37.39°C 0.997
12.119V 5.010V 3.302V 4.978V 619.505 45.80°C 115.12V
9 45.212A 8.497A 8.499A 2.414A 629.953 89.790% 2938 44.9 38.51°C 0.997
12.108V 5.004V 3.295V 4.972V 701.581 47.42°C 115.11V
10 50.676A 9.009A 9.034A 2.520A 700.255 89.196% 3072 45.7 39.76°C 0.997
12.097V 4.997V 3.288V 4.962V 785.071 49.35°C 115.11V
11 56.456A 9.012A 9.045A 2.522A 769.765 88.706% 3067 45.7 40.80°C 0.998
12.090V 4.994V 3.284V 4.957V 867.768 50.74°C 115.10V
CL1 0.144A 13.003A 12.999A 0.000A 110.335 84.563% 1369 21.5 36.02°C 0.974
12.218V 5.029V 3.322V 5.076V 130.476 42.27°C 115.12V
CL2 58.354A 1.002A 1.001A 1.000A 719.459 89.681% 3074 45.7 39.61°C 0.998
12.100V 5.031V 3.318V 5.013V 802.245 49.10°C 115.10V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.941A 1.975A 1.964A 0.989A 69.686 86.295% 1311 20.3 35.34°C 0.828
12.202V 5.064V 3.358V 5.058V 80.753 39.69°C 230.24V
2 8.934A 2.968A 2.954A 1.190A 139.778 91.432% 1311 20.3 35.59°C 0.930
12.187V 5.055V 3.350V 5.043V 152.876 40.46°C 230.24V
3 14.269A 3.467A 3.441A 1.390A 209.717 93.024% 1311 20.3 36.52°C 0.960
12.174V 5.049V 3.343V 5.035V 225.444 41.72°C 230.24V
4 19.611A 3.966A 3.957A 1.592A 279.732 93.570% 1313 20.3 37.18°C 0.972
12.163V 5.043V 3.336V 5.026V 298.954 42.89°C 230.25V
5 24.631A 4.967A 4.958A 1.796A 349.848 93.618% 1317 20.4 37.52°C 0.979
12.153V 5.035V 3.328V 5.010V 373.698 43.51°C 230.25V
6 29.663A 5.972A 5.965A 2.002A 419.956 93.323% 1905 32.5 37.73°C 0.984
12.141V 5.026V 3.319V 4.997V 450.001 44.52°C 230.25V
7 34.700A 6.976A 6.978A 2.206A 490.100 93.080% 2188 36.5 38.28°C 0.988
12.132V 5.019V 3.311V 4.988V 526.538 46.12°C 230.24V
8 39.752A 7.986A 7.994A 2.411A 560.210 92.706% 2654 41.6 38.35°C 0.991
12.120V 5.011V 3.302V 4.978V 604.288 46.54°C 230.26V
9 45.212A 8.497A 8.498A 2.414A 629.951 92.298% 3038 45.2 39.18°C 0.993
12.108V 5.004V 3.295V 4.973V 682.517 47.79°C 230.26V
10 50.668A 9.008A 9.033A 2.519A 700.256 91.961% 3062 45.6 39.87°C 0.994
12.099V 4.998V 3.288V 4.963V 761.469 49.11°C 230.26V
11 56.459A 9.012A 9.048A 2.522A 769.858 91.612% 3060 45.6 40.62°C 0.995
12.091V 4.994V 3.283V 4.957V 840.350 50.40°C 230.26V
CL1 0.149A 13.003A 12.999A 0.000A 110.356 85.403% 1349 20.7 36.96°C 0.876
12.219V 5.027V 3.321V 5.076V 129.218 43.43°C 230.26V
CL2 58.350A 1.003A 1.000A 1.000A 719.353 92.491% 3062 45.6 39.53°C 0.995
12.099V 5.030V 3.317V 5.013V 777.752 47.63°C 230.26V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.187A 0.493A 0.475A 0.197A 19.561 68.969% 1285 19.7 0.847
12.182V 5.070V 3.365V 5.088V 28.362 115.12V
2 2.436A 0.987A 0.982A 0.394A 39.989 79.763% 1293 19.9 0.932
12.186V 5.067V 3.363V 5.079V 50.135 115.12V
3 3.618A 1.480A 1.460A 0.592A 59.509 84.125% 1298 20.0 0.955
12.191V 5.065V 3.360V 5.068V 70.739 115.12V
4 4.866A 1.975A 1.966A 0.790A 79.933 86.970% 1298 20.0 0.970
12.194V 5.062V 3.357V 5.064V 91.909 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.186A 0.493A 0.475A 0.197A 19.563 70.008% 1297 20.0 0.529
12.193V 5.072V 3.366V 5.087V 27.944 230.25V
2 2.434A 0.987A 0.981A 0.394A 39.982 80.588% 1303 20.1 0.696
12.193V 5.069V 3.363V 5.078V 49.613 230.24V
3 3.614A 1.480A 1.458A 0.592A 59.484 85.020% 1308 20.2 0.793
12.199V 5.066V 3.360V 5.067V 69.965 230.24V
4 4.860A 1.974A 1.965A 0.790A 79.873 87.811% 1311 20.3 0.854
12.198V 5.063V 3.357V 5.062V 90.960 230.24V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 12.4 mV 8.6 mV 9.6 mV 6.4 mV Pass
20% Load 11.6 mV 8.5 mV 12.6 mV 6.4 mV Pass
30% Load 11.4 mV 9.1 mV 16.5 mV 9.2 mV Pass
40% Load 14.5 mV 16.2 mV 21.1 mV 8.1 mV Pass
50% Load 18.3 mV 16.5 mV 21.1 mV 7.5 mV Pass
60% Load 22.5 mV 19.2 mV 21.2 mV 10.1 mV Pass
70% Load 26.8 mV 21.0 mV 25.0 mV 12.6 mV Pass
80% Load 37.9 mV 21.9 mV 31.9 mV 12.2 mV Pass
90% Load 44.5 mV 22.0 mV 33.9 mV 12.7 mV Pass
100% Load 55.7 mV 23.3 mV 39.4 mV 13.5 mV Pass
110% Load 60.4 mV 24.9 mV 34.8 mV 13.8 mV Pass
Crossload 1 18.8 mV 13.6 mV 42.2 mV 15.5 mV Pass
Crossload 2 47.4 mV 20.2 mV 20.4 mV 10.1 mV Pass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load11.43mV7.86mV10.04mV6.45mVPass
20% Load11.22mV9.39mV14.80mV5.94mVPass
30% Load10.66mV9.57mV16.77mV9.25mVPass
40% Load13.29mV9.82mV20.05mV8.01mVPass
50% Load17.29mV14.56mV21.22mV7.88mVPass
60% Load21.86mV15.07mV21.25mV9.51mVPass
70% Load25.43mV18.02mV25.66mV12.11mVPass
80% Load36.78mV19.34mV33.25mV11.22mVPass
90% Load43.52mV20.92mV33.30mV11.55mVPass
100% Load50.43mV20.82mV35.89mV11.50mVPass
110% Load60.00mV20.56mV35.50mV11.49mVPass
Crossload118.74mV15.23mV41.28mV15.40mVPass
Crossload244.41mV17.26mV20.62mV7.94mVPass

The results above are not used in the certification process

SilverStone SFX Platinum 700W

Top side
Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
