CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
1st Player Steampunk 750W
Serial NumberK9PSEE0496
Lab IDFP19750131
Certification ID25884
  • Test Result Report ID: 19PS884A
  • Certificate Issue Date: Oct 30, 2019
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand1st Player
Hersteller (OEM)Helly Technology
SeriesSteampunk
Model NumberPS-750SP
Serial NumberK9PSEE0496
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)47-63
Rated Power (W)750
TypeATX12V
Dimensions (W x H x D)
Cooling140mm Sleeve Bearing Fan
(D14SH-12)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps1515632.50.3
Watts10075012.53.6
Total Max. Power (W)750

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18AWG No
4+4 pin EPS12V (600mm) 2 2 18AWG No
6+2 pin PCIe (500mm+150mm) 2 4 18AWG No
SATA (450mm+150mm+150mm) 2 6 18AWG No
4-pin Molex (450mm+150mm+150mm) 1 3 18AWG No

Parts Description

General Data -
Manufacturer (OEM) 1st Player
PCB Type Double Sided
Primary Side -
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x
APFC MOSFETS 2x Oriental Semiconductor OSG55R140F (600V, 14.5A @ 100°C, 0.14Ohm)
APFC Boost Diode 1x Global Power Technology G3S06508A (650V, 8A @ 150°C)
Hold-up Cap(s) 1x Rubycon (450V, 470uF, 2,000h @ 105°C, MXH)
Main Switchers 2x Oriental Semiconductor OSG55R140F (600V, 14.5A @ 100°C, 0.14Ohm)
APFC Controller Champion CM6502UHHX
Resonant Controllers Champion CM6901T6
Topology Primary side: Half-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETS 4x Perfect Intelligent Power Semi PTP02N04N (40V, 210A @ 100°C, 2mOhm)
5V & 3.3V DC-DC Converters: 4x Excelliance MOS Corp EMB06N03V (30V, 18.5A @ 100°C, 6mOhm)
PWM Controllers: 2x ANPEC APW7073
Filtering Capacitors Electrolytics: 9x Chengx (2-4,000h @ 105°C, GR), 1x Chengx (3-8,000h @ 105°C, EL), 2x Chengx (1,000h @ 105°C, ZF), 1x Asia'x (105°C, TNX)
Polymers: 12x
Supervisor IC SITI PS223 (OCP, OTP, OVP, UVP, SCP, PG)
Fan Model Yate Loon D14SH -12 (140mm, 12V, 0.70A, Sleeve Bearing Fan)
5VSB Circuit -
Rectifier 1x SB1045L SBR (45V, 10A)
Standby PWM Controller Excelliance MOS Corp EM8564A

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

WirkungsgradPLATINUM
LautstärkeklasseStandard++
Average Efficiency (>1450 load combinations)89.685%
Average Noise Output (>1450 Load Combinations)34.23dBA
Average PF (>1450 Load Combinations)0.987
Efficiency With 10W (≤500W) or 2% (>500W) Load70.087%
Standby Power Consumption0.0655W
12V Ripple (Full Load)29.32mV
5V Ripple (Full Load)11.67mV
3.3V Ripple (Full Load)18.61mV
5VSB Ripple (Full Load)11.33mV
12V Load Regulation0.71%
5V Load Regulation2.00%
3.3V Load Regulation3.27%
5VSB Load Regulation2.69%
Inrush Current21.828A
WirkungsgradPLATINUM
LautstärkeklasseStandard++
Average Efficiency (>1450 load combinations)91.492%
Average Noise Output (>1450 Load Combinations)32.24dBA
Average PF (>1450 Load Combinations)0.955
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0884W
12V Ripple (Full Load)23.38mV
5V Ripple (Full Load)10.64mV
3.3V Ripple (Full Load)17.22mV
5VSB Ripple (Full Load)11.14mV
12V Load Regulation0.68%
5V Load Regulation2.00%
3.3V Load Regulation3.18%
5VSB Load Regulation2.65%
Inrush Current60.296A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal9.00ms
AC Loss to PWR_OK Hold Up Time8.80ms
PWR_OK Inactive to DC Loss Delay0.20ms
PSU Timings: T1 (20% / 100%)74.0ms76.0ms
PSU Timings: T3 (20% / 100%)260.0ms268.0ms
OPP (0.00°C / 0.00°C)125.36%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)9
AC Loss to PWR_OK Hold Up Time (ms)8.8
PWR_OK Inactive to DC Loss Delay (ms)0.2

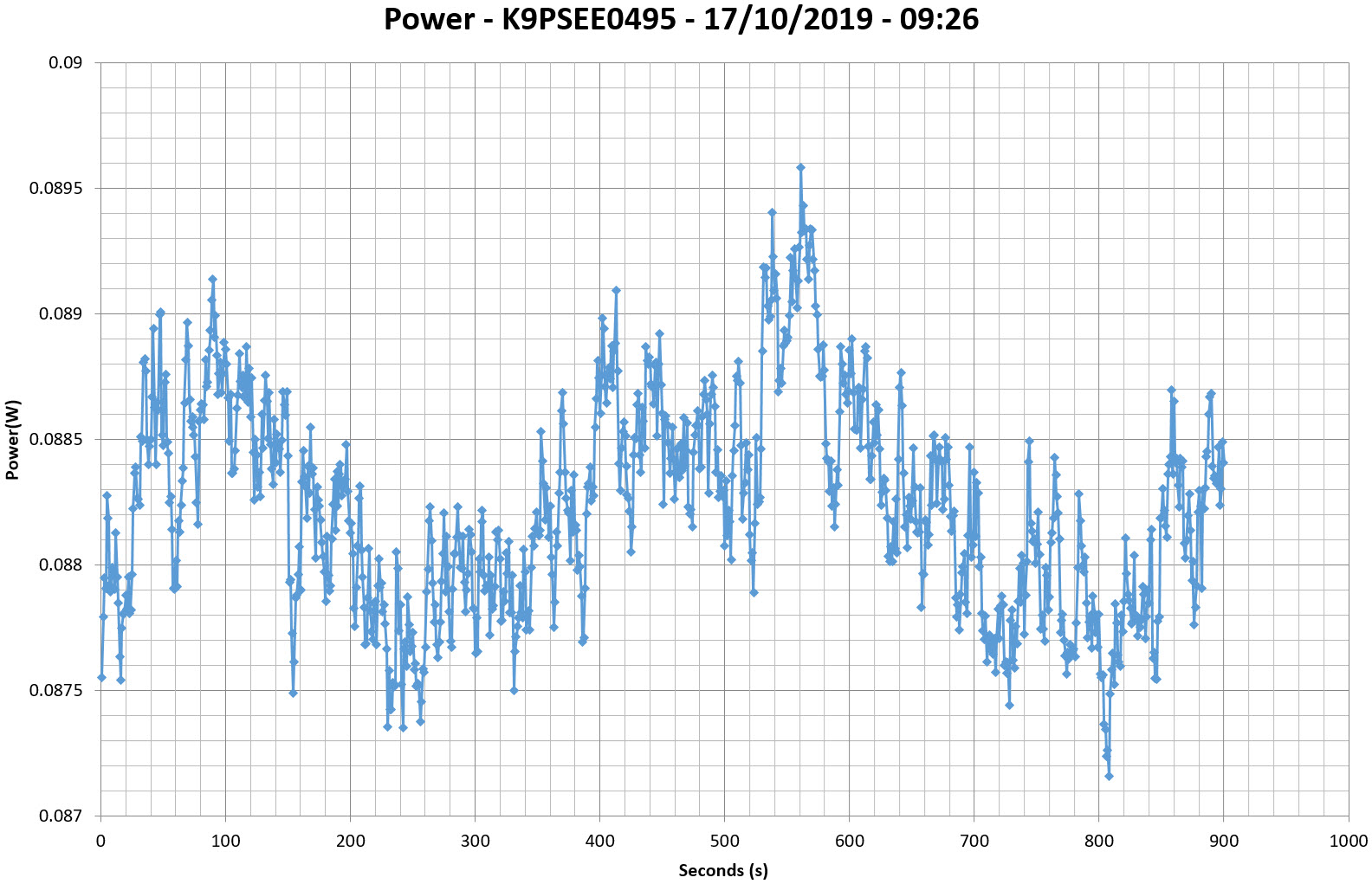

Stromverbrauch im Ruhezustand

Tables

Graphs

INFO

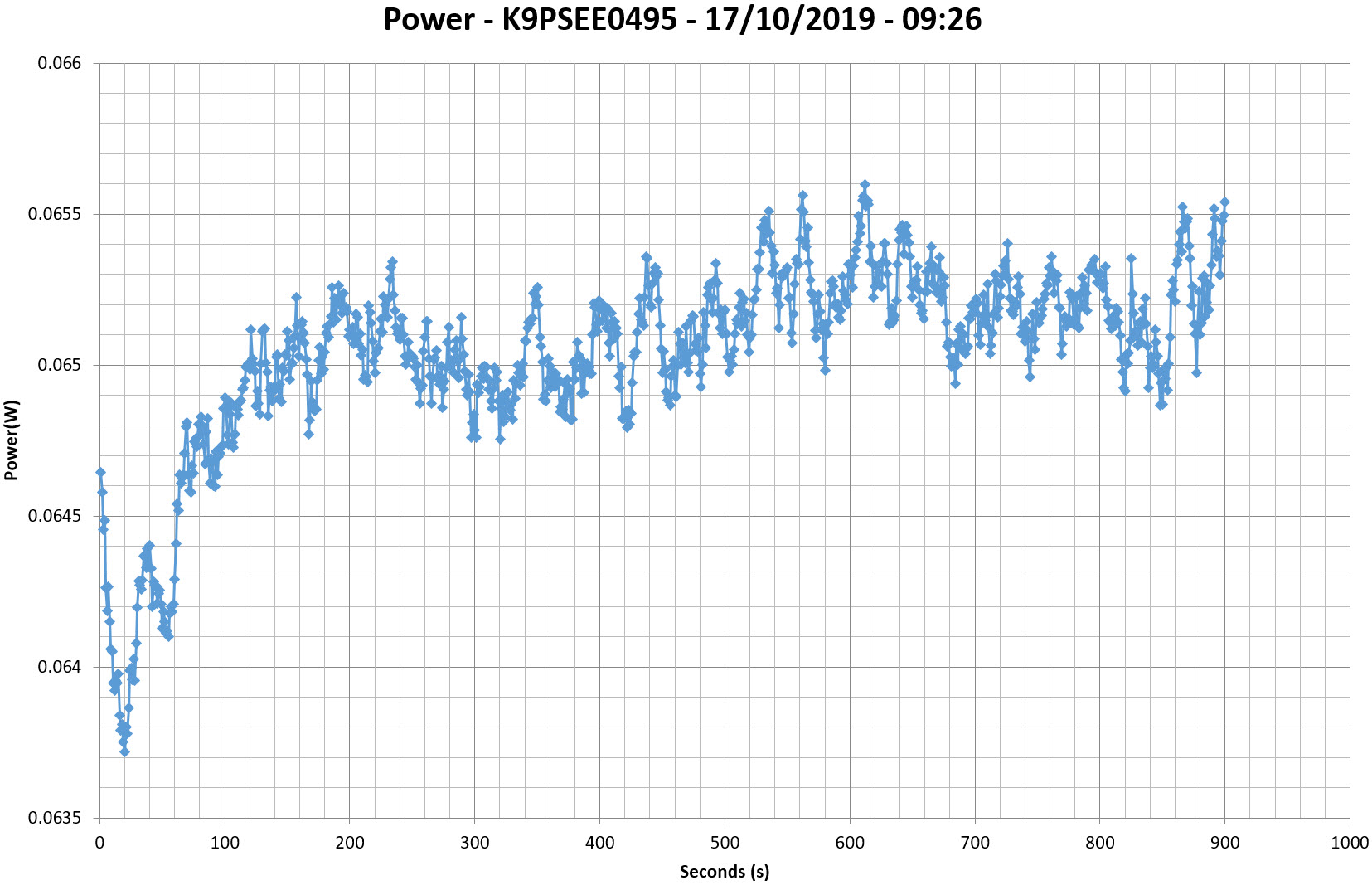

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

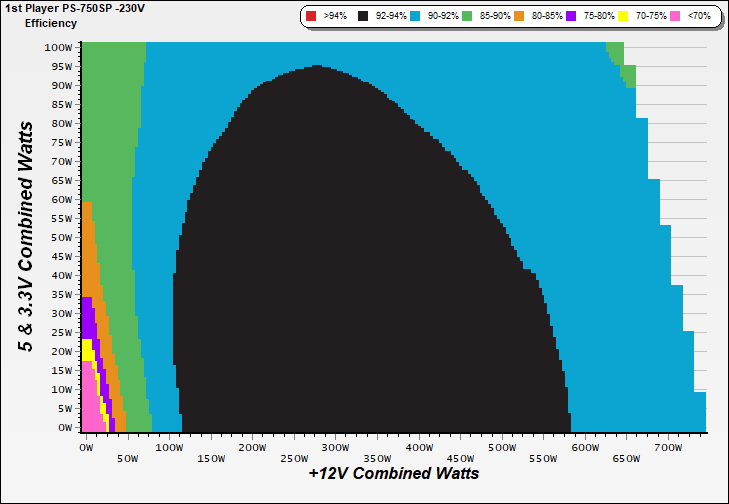

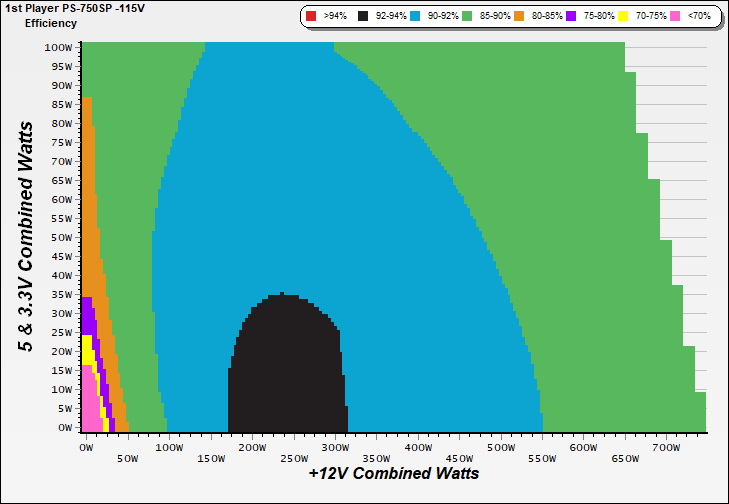

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

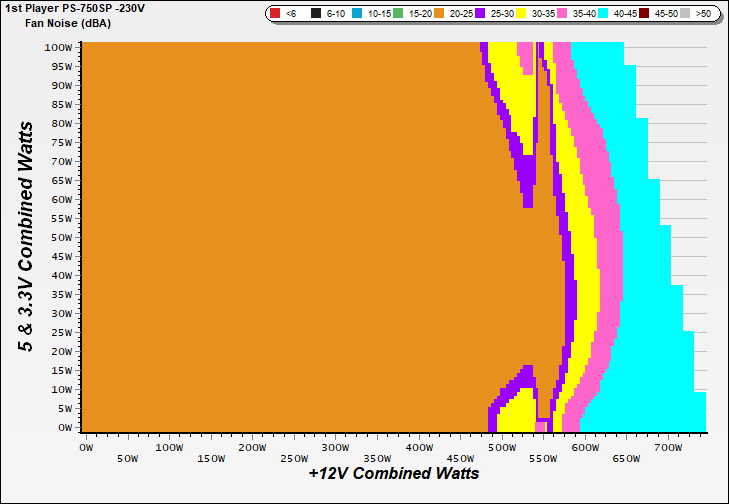

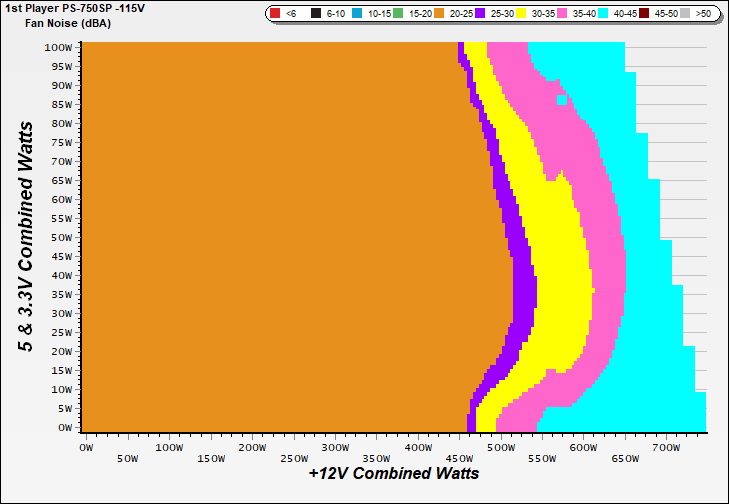

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

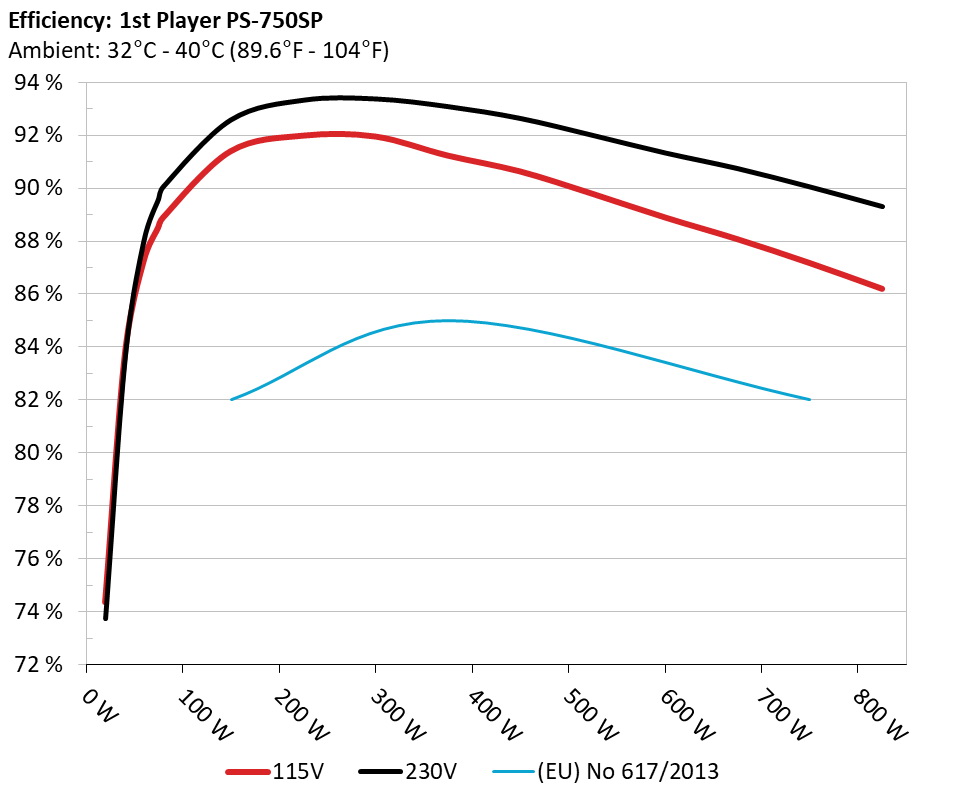

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

5VSB Efficiency

INFO

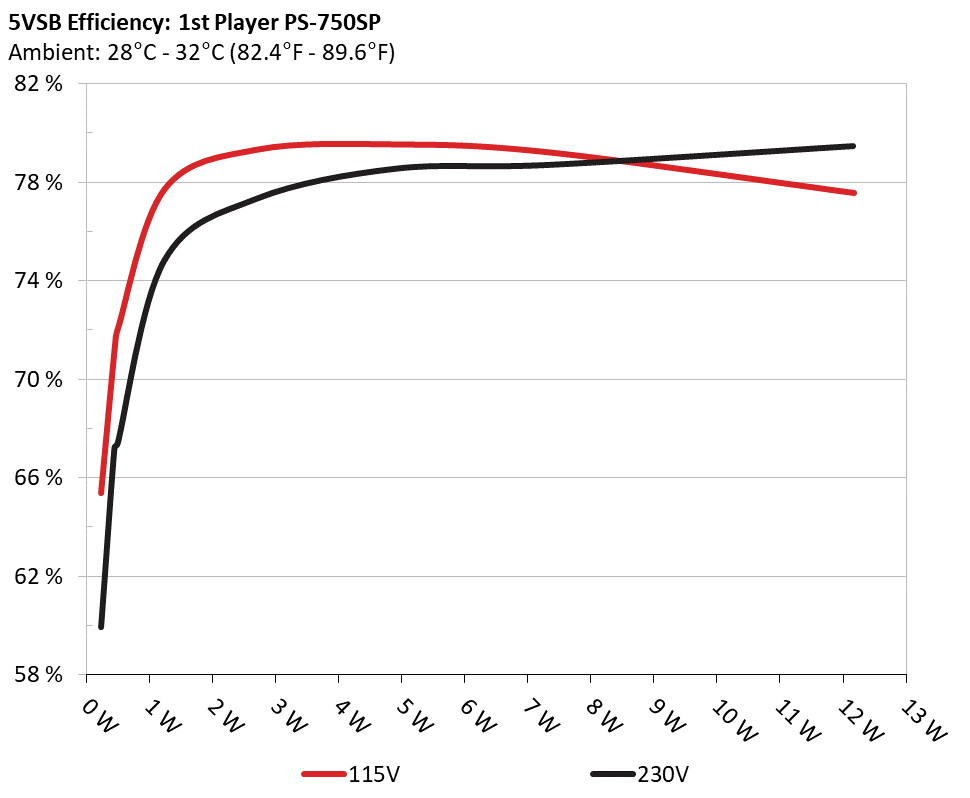

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.223 65.396% 0.044
4.936V 0.341 115.11V
2 0.090A 0.445 71.429% 0.079
4.935V 0.623 115.11V
3 0.550A 2.708 79.344% 0.313
4.923V 3.413 115.11V
4 1.000A 4.910 79.553% 0.412
4.910V 6.172 115.11V
5 1.500A 7.342 79.227% 0.465
4.895V 9.267 115.11V
6 2.500A 12.172 77.583% 0.517
4.869V 15.689 115.11V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.223 59.946% 0.015
4.937V 0.372 230.27V
2 0.090A 0.445 67.221% 0.026
4.936V 0.662 230.28V
3 0.550A 2.708 77.349% 0.130
4.923V 3.501 230.25V
4 1.000A 4.911 78.563% 0.210
4.911V 6.251 230.26V
5 1.500A 7.345 78.716% 0.277
4.896V 9.331 230.26V
6 2.500A 12.164 79.477% 0.358
4.865V 15.305 230.26V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 4.383A 1.967A 2.003A 0.987A 74.568 88.502% 847 22.9 34.22°C 0.966
12.082V 5.088V 3.297V 5.067V 84.256 36.46°C 115.13V
2 9.822A 2.957A 3.013A 1.187A 149.484 91.384% 849 22.9 34.67°C 0.978
12.072V 5.077V 3.286V 5.054V 163.578 38.13°C 115.13V
3 15.664A 3.456A 3.514A 1.389A 224.996 91.978% 851 23.0 35.04°C 0.981
12.064V 5.067V 3.276V 5.041V 244.620 39.29°C 115.13V
4 21.448A 3.957A 4.043A 1.592A 299.777 91.945% 853 23.0 35.33°C 0.987
12.055V 5.058V 3.266V 5.027V 326.041 40.45°C 115.13V
5 26.911A 4.956A 5.071A 1.795A 374.685 91.225% 857 23.1 36.10°C 0.990
12.046V 5.047V 3.254V 5.015V 410.725 41.65°C 115.13V
6 32.383A 5.959A 6.106A 2.000A 449.606 90.629% 860 23.2 36.55°C 0.992
12.037V 5.036V 3.242V 5.003V 496.096 42.85°C 115.12V
7 37.895A 6.969A 7.152A 2.206A 524.930 89.782% 1108 30.4 37.36°C 0.993
12.028V 5.025V 3.230V 4.990V 584.674 44.34°C 115.12V
8 43.419A 7.983A 8.206A 2.413A 600.243 88.886% 1636 41.2 37.96°C 0.994
12.018V 5.013V 3.218V 4.976V 675.296 45.58°C 115.12V
9 49.320A 8.499A 8.728A 2.416A 674.760 88.073% 1763 43.3 38.23°C 0.995
12.008V 5.003V 3.208V 4.969V 766.140 46.69°C 115.11V
10 55.227A 9.017A 9.290A 2.522A 749.895 87.170% 1765 43.3 39.65°C 0.996
11.999V 4.993V 3.197V 4.958V 860.268 48.77°C 115.11V
11 61.531A 9.032A 9.317A 2.527A 825.104 86.194% 1767 43.3 40.49°C 0.996
11.992V 4.984V 3.188V 4.949V 957.265 50.38°C 115.11V
CL1 0.151A 12.005A 12.000A 0.000A 101.628 85.707% 866 23.8 36.33°C 0.982
12.072V 5.054V 3.261V 5.118V 118.576 41.34°C 115.13V
CL2 62.524A 1.004A 1.001A 1.000A 764.108 87.660% 1768 43.3 39.43°C 0.996
12.009V 5.020V 3.224V 4.990V 871.674 48.01°C 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 4.384A 1.967A 2.001A 0.987A 74.559 89.573% 853 23.0 34.01°C 0.856
12.080V 5.087V 3.296V 5.066V 83.238 36.87°C 230.26V
2 9.823A 2.956A 3.015A 1.188A 149.474 92.569% 855 23.1 34.37°C 0.931
12.070V 5.076V 3.284V 5.054V 161.473 37.92°C 230.26V
3 15.669A 3.456A 3.513A 1.389A 225.014 93.318% 857 23.1 35.73°C 0.954
12.062V 5.067V 3.274V 5.041V 241.127 40.10°C 230.25V
4 21.451A 3.956A 4.044A 1.592A 299.779 93.365% 858 23.2 35.80°C 0.964
12.054V 5.057V 3.264V 5.027V 321.082 41.23°C 230.26V
5 26.911A 4.957A 5.073A 1.795A 374.688 93.074% 859 23.2 36.13°C 0.970
12.046V 5.046V 3.253V 5.015V 402.568 42.25°C 230.26V
6 32.385A 5.961A 6.109A 2.000A 449.604 92.627% 860 23.2 36.45°C 0.973
12.036V 5.035V 3.241V 5.003V 485.393 43.31°C 230.27V
7 37.902A 6.970A 7.153A 2.206A 524.930 91.986% 1090 29.7 37.07°C 0.977
12.026V 5.024V 3.229V 4.989V 570.662 44.56°C 230.27V
8 43.428A 7.983A 8.206A 2.413A 600.247 91.319% 1619 41.2 37.69°C 0.980
12.016V 5.012V 3.217V 4.976V 657.307 46.14°C 230.26V
9 49.324A 8.501A 8.732A 2.417A 674.766 90.733% 1765 43.3 38.60°C 0.981
12.007V 5.002V 3.207V 4.968V 743.685 47.46°C 230.26V
10 55.227A 9.019A 9.294A 2.523A 749.892 90.039% 1767 43.3 39.83°C 0.982
11.999V 4.991V 3.196V 4.957V 832.850 49.33°C 230.27V
11 61.537A 9.036A 9.321A 2.528A 825.111 89.296% 1767 43.3 40.42°C 0.984
11.991V 4.982V 3.186V 4.947V 924.020 50.34°C 230.27V
CL1 0.150A 12.005A 12.000A 0.000A 101.581 86.902% 867 23.8 35.73°C 0.905
12.072V 5.052V 3.260V 5.117V 116.891 42.55°C 230.27V
CL2 62.520A 1.002A 1.002A 1.000A 764.050 90.610% 1769 43.3 40.12°C 0.983
12.009V 5.019V 3.223V 4.989V 843.230 49.00°C 230.27V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.202A 0.491A 0.486A 0.196A 19.638 74.364% 839 22.6 0.902
12.087V 5.099V 3.309V 5.095V 26.408 115.13V
2 2.463A 0.983A 1.001A 0.393A 40.081 83.715% 843 22.8 0.946
12.085V 5.095V 3.305V 5.087V 47.878 115.13V
3 3.656A 1.474A 1.483A 0.591A 59.575 87.245% 844 22.9 0.961
12.083V 5.091V 3.300V 5.080V 68.285 115.13V
4 4.914A 1.968A 2.002A 0.789A 79.975 88.899% 846 22.9 0.966
12.080V 5.087V 3.297V 5.072V 89.962 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.208A 0.492A 0.484A 0.196A 19.703 73.725% 851 23.0 0.589
12.082V 5.099V 3.307V 5.095V 26.725 230.26V
2 2.466A 0.982A 0.999A 0.393A 40.082 83.581% 852 23.0 0.747
12.076V 5.095V 3.303V 5.087V 47.956 230.26V
3 3.656A 1.473A 1.487A 0.591A 59.576 88.018% 852 23.0 0.826
12.081V 5.091V 3.300V 5.080V 67.686 230.26V
4 4.915A 1.967A 2.001A 0.789A 79.972 90.062% 853 23.0 0.866
12.079V 5.087V 3.296V 5.072V 88.797 230.25V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 6.4 mV 6.4 mV 10.9 mV 4.0 mV Pass
20% Load 7.9 mV 6.9 mV 11.9 mV 4.8 mV Pass
30% Load 10.0 mV 7.1 mV 12.8 mV 5.3 mV Pass
40% Load 12.4 mV 7.3 mV 13.2 mV 5.8 mV Pass
50% Load 14.2 mV 8.0 mV 14.0 mV 6.5 mV Pass
60% Load 17.1 mV 8.0 mV 14.6 mV 7.4 mV Pass
70% Load 19.7 mV 8.8 mV 16.4 mV 8.5 mV Pass
80% Load 21.8 mV 9.9 mV 18.9 mV 9.1 mV Pass
90% Load 25.0 mV 10.2 mV 17.7 mV 10.3 mV Pass
100% Load 29.3 mV 11.7 mV 18.6 mV 11.3 mV Pass
110% Load 32.3 mV 12.8 mV 19.6 mV 12.0 mV Pass
Crossload 1 8.2 mV 8.6 mV 12.4 mV 6.0 mV Pass
Crossload 2 29.8 mV 11.0 mV 18.5 mV 10.8 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.5 mV 6.5 mV 10.5 mV 4.2 mV Pass
20% Load 7.1 mV 6.6 mV 12.1 mV 4.5 mV Pass
30% Load 9.7 mV 7.5 mV 13.2 mV 5.1 mV Pass
40% Load 11.5 mV 7.5 mV 13.5 mV 5.7 mV Pass
50% Load 13.8 mV 7.7 mV 14.4 mV 6.4 mV Pass
60% Load 16.4 mV 8.5 mV 14.8 mV 7.4 mV Pass
70% Load 18.7 mV 8.9 mV 16.2 mV 8.7 mV Pass
80% Load 21.0 mV 9.3 mV 16.7 mV 9.6 mV Pass
90% Load 23.7 mV 10.0 mV 17.3 mV 10.0 mV Pass
100% Load 28.4 mV 10.6 mV 17.2 mV 11.1 mV Pass
110% Load 31.8 mV 11.8 mV 17.5 mV 11.9 mV Pass
Crossload 1 9.1 mV 8.6 mV 12.6 mV 5.7 mV Pass
Crossload 2 28.6 mV 9.9 mV 16.7 mV 10.8 mV Pass

The results above are not used in the certification process

1st Player Steampunk 750W

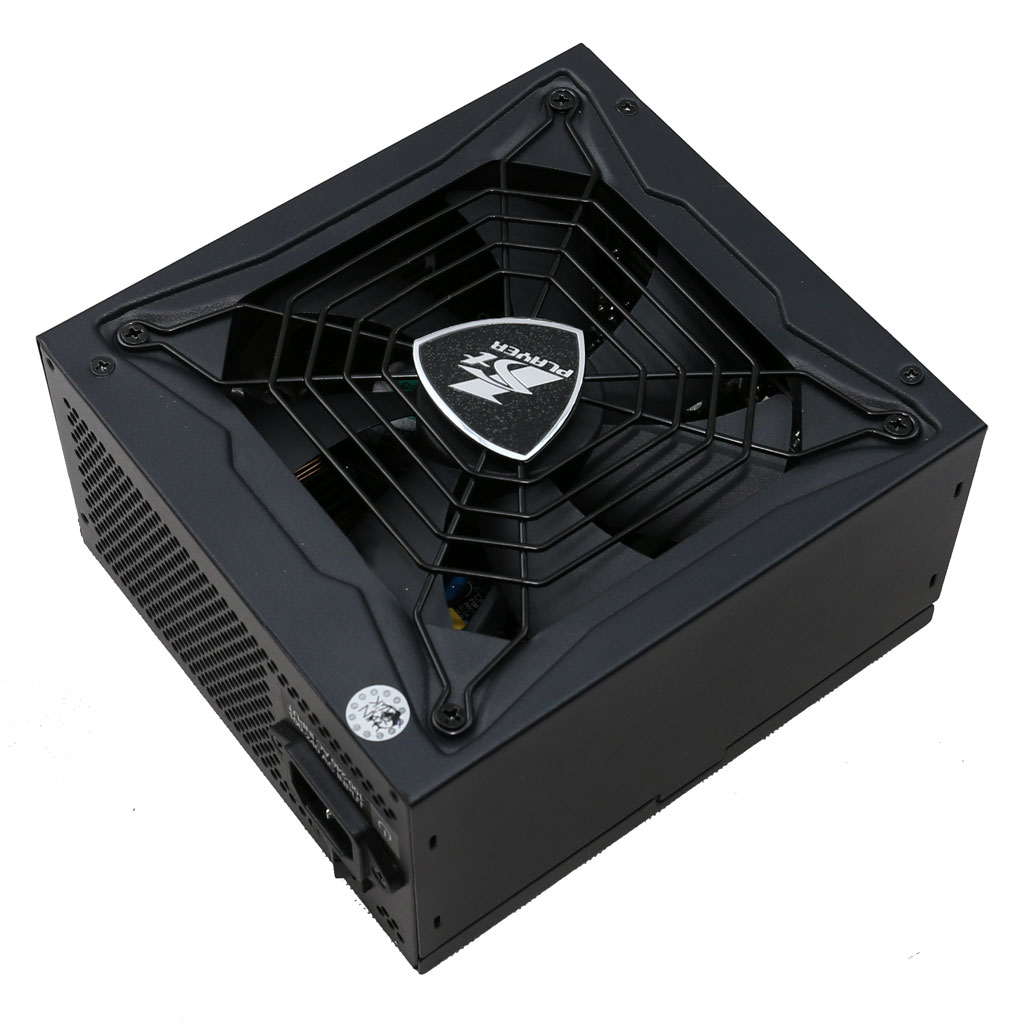

Top side

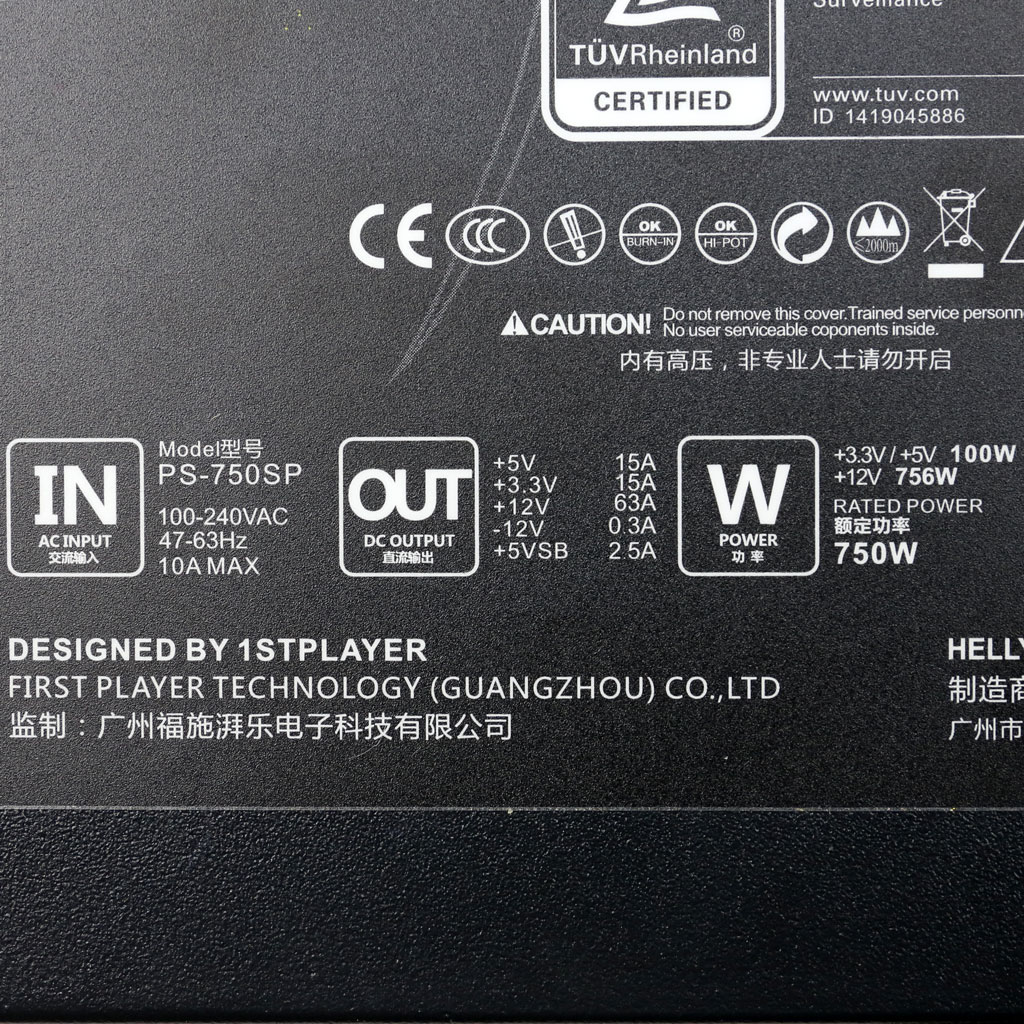

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
