CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Version:00
Corsair CX550
Serial Number16527135000017690613
Lab ID184
Certification ID25184
  • Test Result Report ID:
  • Certificate Issue Date: Sep 29, 2018
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

BrandCorsair
Manufacturer (OEM)Great Wall
SeriesCX
Model Number
Serial Number16527135000017690613
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)47-63
Rated Power (W)550
TypeATX12V
Dimensions (W x H x D)
Cooling120mm Fluid Dynamic Bearing Fan
(HA1225M12F-Z)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 25 20 45.8 3 0.8
Watts 120 549.6 15 9.6
Total Max. Power (W) 550

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge
ATX connector 20+4 pin (600mm) 1 1 18-20AWG
4+4 pin EPS12V (650mm) 1 1 18AWG
6+2 pin PCIe (580mm) 2 2 18AWG
SATA (400mm+120mm+120mm) 1 3 18AWG
SATA (400mm+120mm) 1 2 18AWG
4 pin Molex (400mm+120mm+120mm+120mm) 1 4 18AWG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Efficiency RatingSILVER
Noise RatingA
Average Efficiency (>1450 load combinations)85.720%
Average Noise Output (>1450 Load Combinations)23.69dBA
Average PF (>1450 Load Combinations)0.996
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0554W
12V Ripple (Full Load)32.34mV
5V Ripple (Full Load)11.40mV
3.3V Ripple (Full Load)11.53mV
5VSB Ripple (Full Load)19.87mV
12V Load Regulation0.54%
5V Load Regulation0.36%
3.3V Load Regulation0.45%
5VSB Load Regulation1.98%
Inrush Current34.858A
Efficiency RatingSILVER
Noise RatingA-
Average Efficiency (>1450 load combinations)88.024%
Average Noise Output (>1450 Load Combinations)25.42dBA
Average PF (>1450 Load Combinations)0.975
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.0703W
12V Ripple (Full Load)33.03mV
5V Ripple (Full Load)18.05mV
3.3V Ripple (Full Load)13.11mV
5VSB Ripple (Full Load)17.23mV
12V Load Regulation0.45%
5V Load Regulation0.38%
3.3V Load Regulation0.66%
5VSB Load Regulation1.83%
Inrush Current40.550A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
Hold-Up Time & Power Ok Signal11.93ms
AC Loss to PWR_OK Hold Up Time9.90ms
PWR_OK Inactive to DC Loss Delay2.03ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 11.93
AC Loss to PWR_OK Hold Up Time  (ms) 9.90
PWR_OK Inactive to DC Loss Delay (ms) 2.03

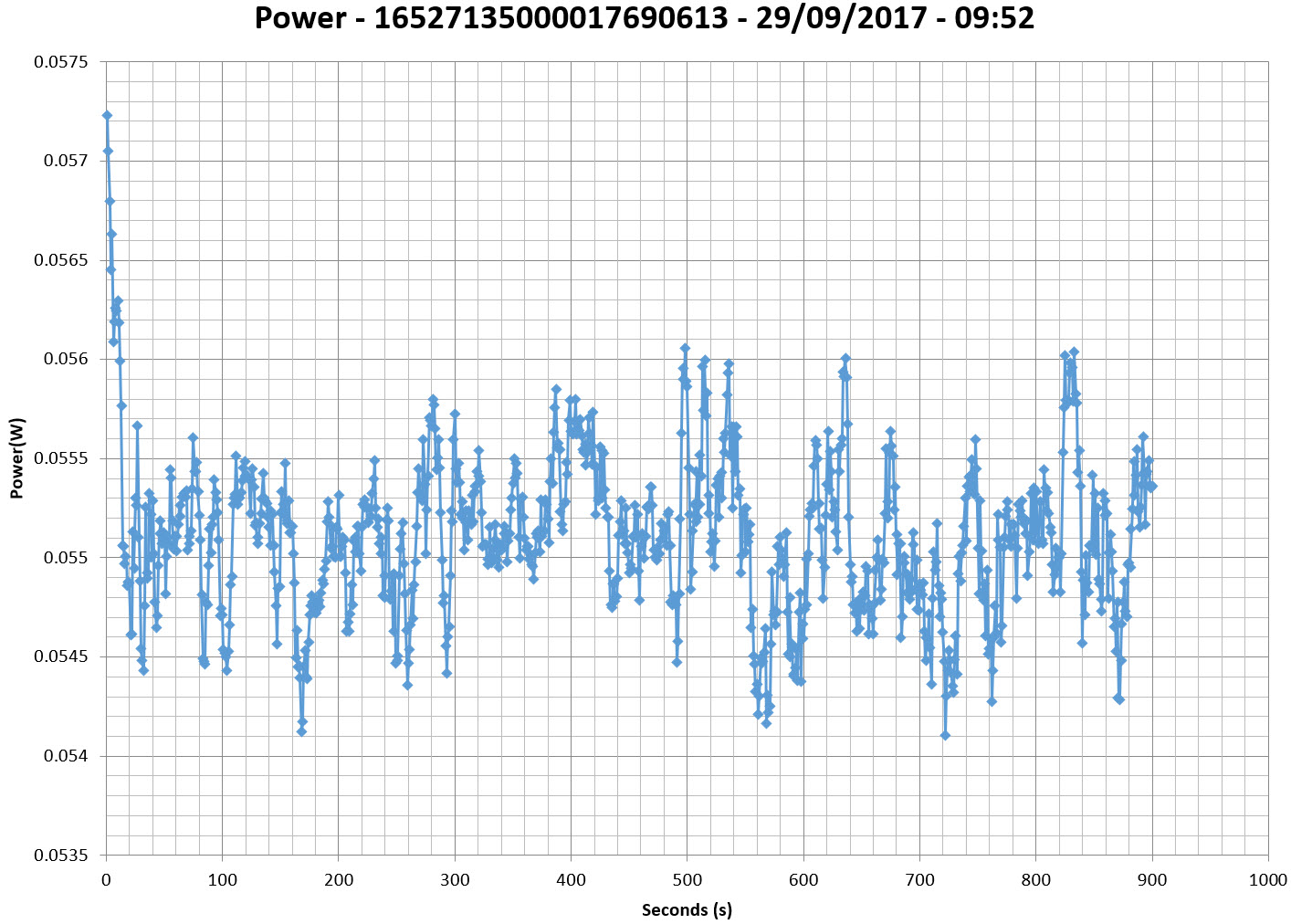

Vampire Power

Tables

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

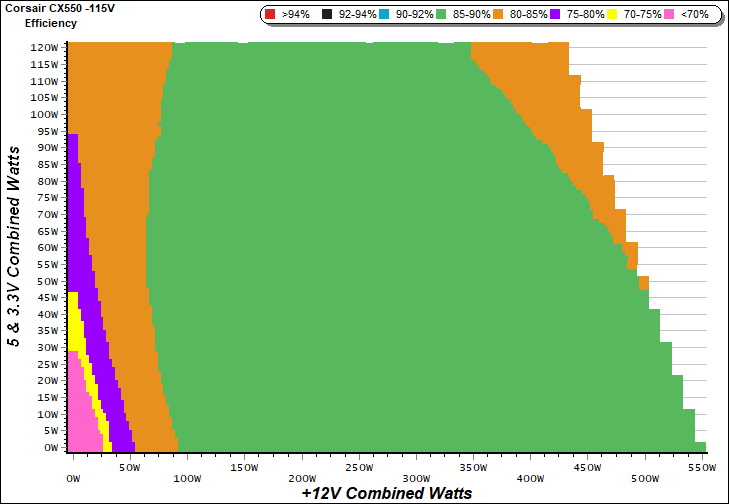

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

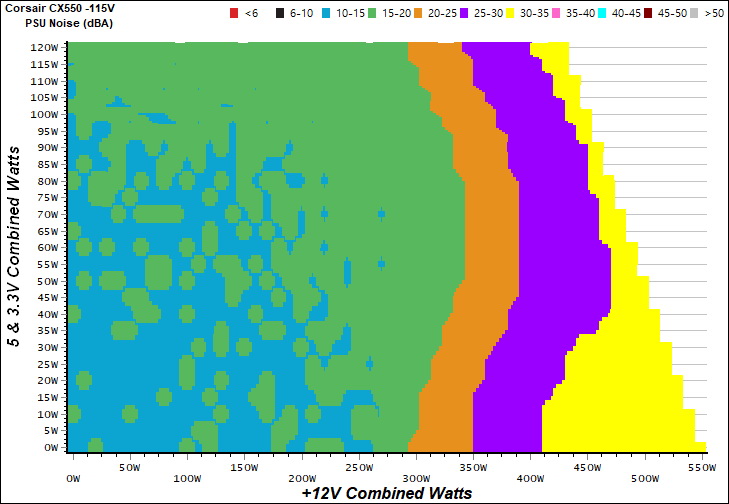

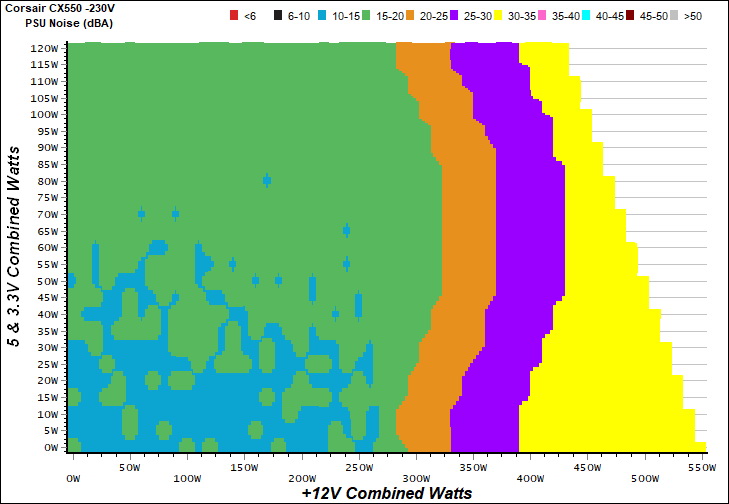

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

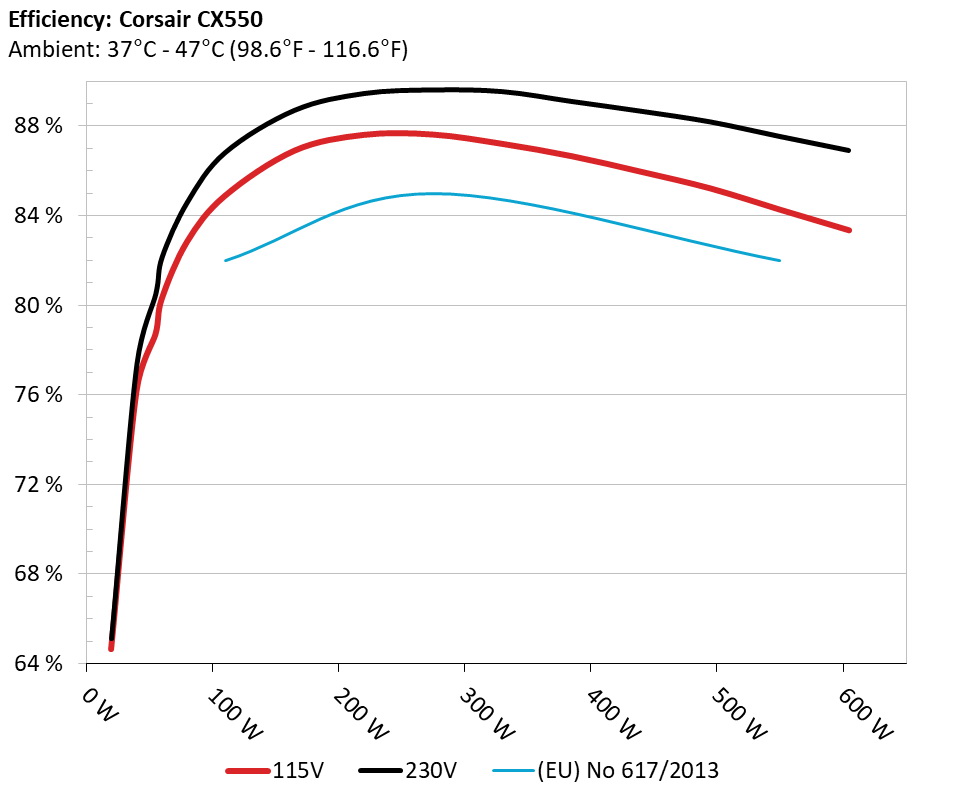

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

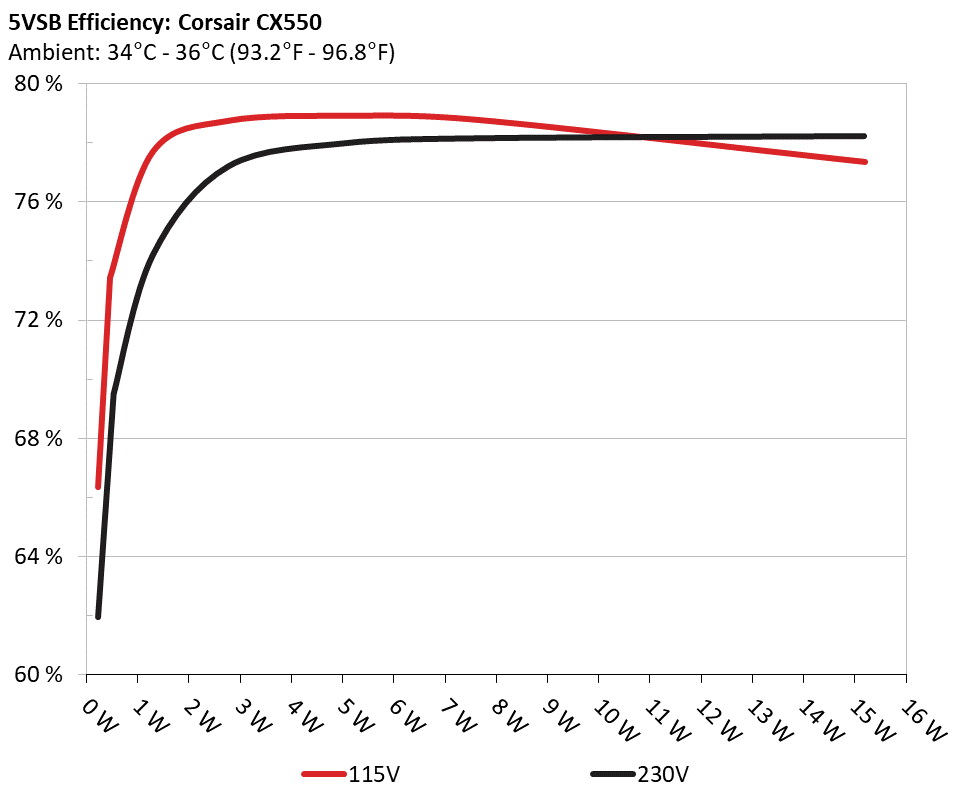

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.215 66.358% 0.043
5.107V 0.324 115.08V
2 0.088A 0.448 73.322% 0.079
5.106V 0.611 115.08V
3 0.542A 2.766 78.759% 0.296
5.099V 3.512 115.06V
4 1.002A 5.104 78.924% 0.370
5.092V 6.467 115.06V
5 1.502A 7.636 78.787% 0.408
5.084V 9.692 115.07V
6 3.002A 15.189 77.365% 0.458
5.060V 19.633 115.07V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.102A 0.519 69.385% 0.030
5.106V 0.748 230.22V
2 0.252A 1.287 74.221% 0.068
5.104V 1.734 230.22V
3 0.543A 2.766 77.219% 0.130
5.098V 3.582 230.23V
4 1.003A 5.104 78.007% 0.206
5.091V 6.543 230.23V
5 1.502A 7.635 78.163% 0.260
5.083V 9.768 230.23V
6 3.002A 15.185 78.237% 0.341
5.059V 19.409 230.23V

Protection Features

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.745A 1.984A 1.989A 0.981A 54.755 78.702% 818 13.8 38.07°C 0.979
12.098V 5.026V 3.313V 5.081V 69.573 44.81°C 115.11V
2 6.528A 2.981A 2.988A 1.181A 109.782 84.892% 818 13.8 38.38°C 0.991
12.090V 5.024V 3.310V 5.073V 129.319 45.86°C 115.11V
3 10.659A 3.488A 3.502A 1.381A 164.906 86.912% 818 13.8 38.85°C 0.997
12.084V 5.023V 3.309V 5.065V 189.740 47.43°C 115.11V
4 14.791A 3.983A 3.989A 1.581A 219.820 87.621% 818 13.8 39.44°C 0.998
12.077V 5.021V 3.308V 5.057V 250.876 49.36°C 115.12V
5 18.581A 4.978A 4.990A 1.781A 274.746 87.634% 818 13.8 40.12°C 0.998
12.070V 5.019V 3.306V 5.049V 313.515 50.52°C 115.12V
6 22.377A 5.979A 5.989A 1.981A 329.709 87.218% 983 21.0 40.94°C 0.998
12.063V 5.018V 3.304V 5.040V 378.028 51.49°C 115.12V
7 26.182A 6.980A 6.991A 2.186A 384.725 86.668% 1180 26.2 41.77°C 0.999
12.055V 5.016V 3.303V 5.031V 443.909 52.78°C 115.12V
8 29.983A 7.980A 7.995A 2.387A 439.578 85.971% 1381 30.8 43.03°C 0.999
12.047V 5.013V 3.300V 5.021V 511.307 54.65°C 115.12V
9 34.222A 8.481A 8.515A 2.391A 494.664 85.226% 1578 34.4 44.23°C 0.999
12.041V 5.012V 3.300V 5.015V 580.413 56.03°C 115.12V
10 38.210A 8.987A 9.002A 2.999A 549.559 84.280% 1630 35.1 45.51°C 0.999
12.035V 5.010V 3.298V 4.998V 652.061 58.26°C 115.12V
11 42.798A 8.990A 9.008A 3.001A 604.480 83.354% 1630 35.1 46.70°C 0.999
12.028V 5.009V 3.296V 4.993V 725.193 60.18°C 115.14V
CL1 0.097A 14.025A 14.004A 0.004A 117.895 81.102% 818 13.8 43.19°C 0.994
12.079V 5.019V 3.307V 5.072V 145.366 55.91°C 115.13V
CL2 45.787A 1.004A 1.003A 1.002A 564.588 84.877% 1630 35.1 45.25°C 0.999
12.038V 5.017V 3.303V 5.044V 665.186 58.69°C 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.747A 1.985A 1.989A 0.981A 54.781 80.669% 818 13.8 38.04°C 0.861
12.100V 5.026V 3.310V 5.080V 67.908 44.53°C 230.11V
2 6.530A 2.977A 2.990A 1.181A 109.813 87.010% 818 13.8 38.41°C 0.948
12.094V 5.024V 3.308V 5.073V 126.208 45.46°C 230.11V
3 10.659A 3.486A 3.503A 1.381A 164.939 88.881% 818 13.8 38.73°C 0.973
12.089V 5.022V 3.306V 5.065V 185.572 46.58°C 230.12V
4 14.787A 3.981A 3.992A 1.580A 219.837 89.619% 818 13.8 38.88°C 0.982
12.083V 5.020V 3.304V 5.057V 245.303 48.26°C 230.13V
5 18.573A 4.977A 4.996A 1.781A 274.765 89.770% 818 13.8 39.33°C 0.983
12.077V 5.019V 3.300V 5.049V 306.076 50.34°C 230.13V
6 22.366A 5.977A 6.001A 1.981A 329.748 89.507% 1080 22.1 40.31°C 0.990
12.071V 5.017V 3.299V 5.040V 368.406 50.87°C 230.15V
7 26.162A 6.982A 7.006A 2.185A 384.745 89.156% 1286 28.5 41.56°C 0.992
12.065V 5.015V 3.296V 5.031V 431.539 51.81°C 230.15V
8 29.964A 7.981A 8.012A 2.386A 439.682 88.675% 1480 33.3 42.37°C 0.994
12.058V 5.012V 3.294V 5.023V 495.834 52.63°C 230.16V
9 34.197A 8.481A 8.531A 2.391A 494.728 88.170% 1630 35.1 43.35°C 0.994
12.052V 5.011V 3.293V 5.017V 561.108 54.14°C 230.18V
10 38.176A 8.989A 9.025A 2.996A 549.581 87.447% 1630 35.1 45.03°C 0.995
12.046V 5.009V 3.291V 5.002V 628.473 56.89°C 230.19V
11 42.759A 8.991A 9.029A 3.000A 604.566 86.897% 1630 35.1 46.01°C 0.995
12.041V 5.007V 3.289V 4.997V 695.726 58.77°C 230.21V
CL1 0.101A 14.024A 14.004A 0.005A 117.888 82.942% 1015 21.1 43.84°C 0.959
12.077V 5.019V 3.303V 5.079V 142.133 54.42°C 230.20V
CL2 45.791A 1.002A 1.004A 1.002A 565.352 88.046% 1630 35.1 44.70°C 0.995
12.054V 5.013V 3.297V 5.044V 642.109 56.65°C 230.22V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.207A 0.490A 0.481A 0.196A 19.667 64.635% 818 13.8 0.920
12.104V 5.030V 3.314V 5.099V 30.428 115.11V
2 2.440A 0.990A 0.997A 0.391A 39.797 76.181% 818 13.8 0.965
12.100V 5.028V 3.313V 5.093V 52.240 115.10V
3 3.672A 1.485A 1.509A 0.586A 59.870 80.302% 818 13.8 0.979
12.098V 5.027V 3.313V 5.089V 74.556 115.10V
4 4.895A 1.986A 1.989A 0.786A 79.768 82.837% 818 13.8 0.986
12.095V 5.026V 3.312V 5.083V 96.295 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.211A 0.490A 0.480A 0.196A 19.713 65.461% 818 13.8 0.599
12.105V 5.030V 3.313V 5.097V 30.114 230.08V
2 2.442A 0.986A 0.996A 0.391A 39.800 77.706% 818 13.8 0.781
12.102V 5.028V 3.312V 5.092V 51.219 230.09V
3 3.675A 1.484A 1.510A 0.586A 59.907 82.283% 818 13.8 0.870
12.100V 5.027V 3.310V 5.087V 72.806 230.09V
4 4.899A 1.984A 1.991A 0.786A 79.824 84.836% 818 13.8 0.914
12.098V 5.026V 3.310V 5.081V 94.092 230.10V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 14.2 mV 7.1 mV 4.8 mV 9.4 mV Pass
20% Load 17.8 mV 7.5 mV 5.5 mV 10.0 mV Pass
30% Load 17.8 mV 7.7 mV 6.2 mV 10.7 mV Pass
40% Load 19.6 mV 7.9 mV 6.7 mV 11.5 mV Pass
50% Load 21.3 mV 8.3 mV 7.3 mV 12.0 mV Pass
60% Load 27.3 mV 8.7 mV 8.9 mV 12.6 mV Pass
70% Load 28.3 mV 10.0 mV 12.0 mV 14.7 mV Pass
80% Load 29.7 mV 9.7 mV 10.6 mV 14.9 mV Pass
90% Load 31.2 mV 10.1 mV 10.5 mV 16.6 mV Pass
100% Load 32.3 mV 11.4 mV 11.5 mV 19.9 mV Pass
110% Load 35.8 mV 12.2 mV 12.2 mV 22.8 mV Pass
Crossload 1 23.5 mV 7.1 mV 6.7 mV 9.8 mV Pass
Crossload 2 33.7 mV 10.6 mV 11.8 mV 18.7 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 15.4 mV 14.6 mV 7.8 mV 13.3 mV Pass
20% Load 19.2 mV 14.7 mV 8.1 mV 13.3 mV Pass
30% Load 22.2 mV 15.4 mV 8.4 mV 14.2 mV Pass
40% Load 22.0 mV 13.8 mV 8.7 mV 14.8 mV Pass
50% Load 23.9 mV 14.6 mV 9.8 mV 14.6 mV Pass
60% Load 30.0 mV 16.4 mV 10.7 mV 14.3 mV Pass
70% Load 31.7 mV 18.3 mV 15.3 mV 15.8 mV Pass
80% Load 31.5 mV 16.9 mV 12.5 mV 14.5 mV Pass
90% Load 34.9 mV 16.0 mV 11.8 mV 14.7 mV Pass
100% Load 33.0 mV 18.1 mV 13.1 mV 17.2 mV Pass
110% Load 38.4 mV 18.6 mV 13.6 mV 18.0 mV Pass
Crossload 1 25.5 mV 16.7 mV 8.9 mV 14.6 mV Pass
Crossload 2 37.2 mV 17.3 mV 12.5 mV 16.4 mV Pass

The results above are not used in the certification process

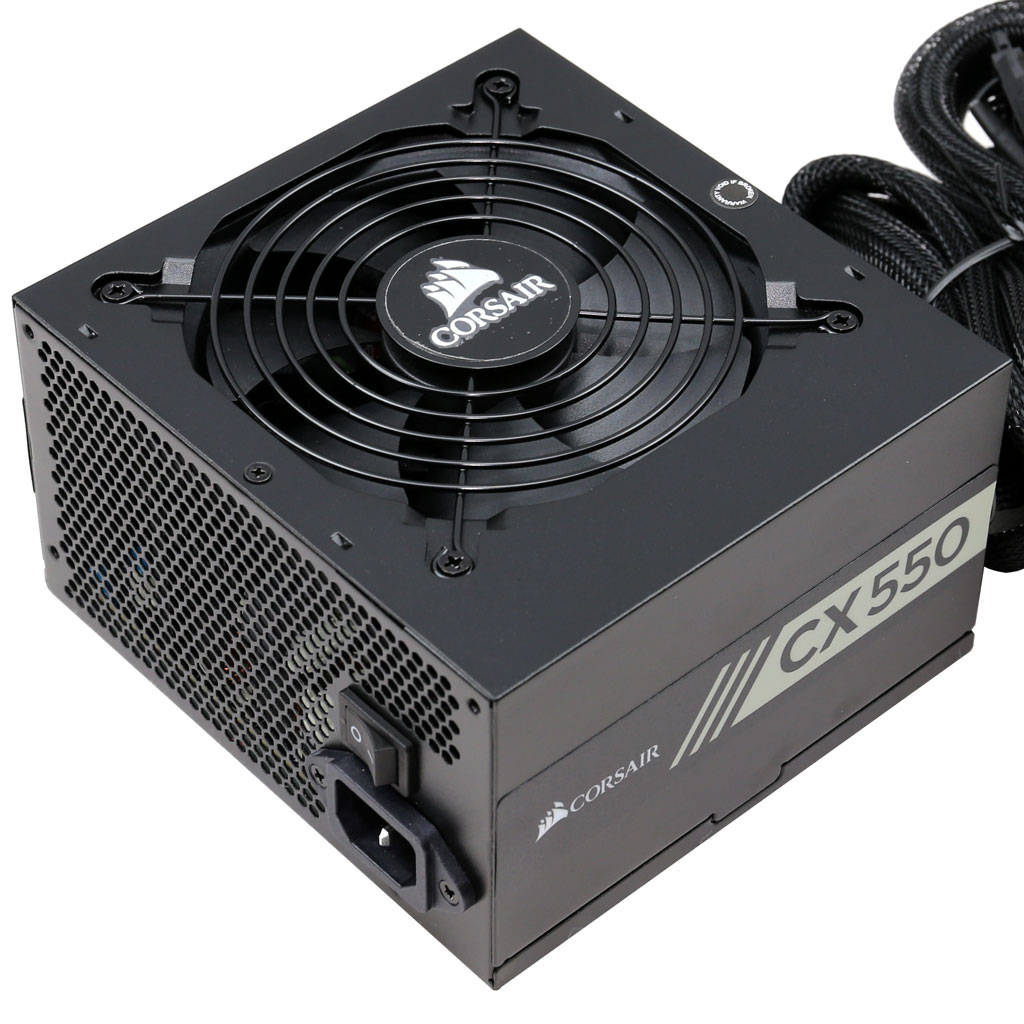

Corsair CX550

Top side

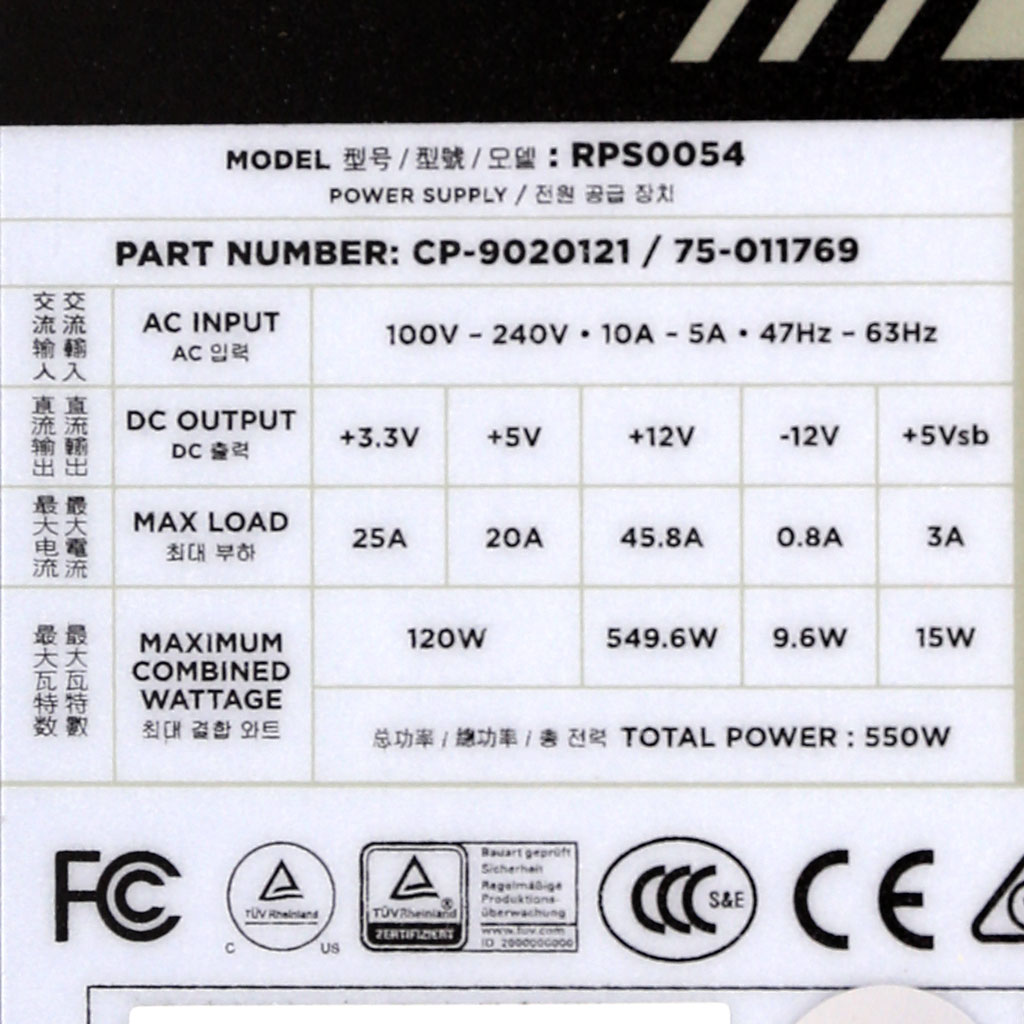

Power specifications table
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
