Sharkoon Rebel P10 850
Serial Number
Lab IDSK85002586
Certification ID252586
  • Test Result Report ID: 24PS2586A
  • Certificate Issue Date: Nov 15, 2024
115V230V
Scheme: ETA-EMI PSU
115V230V
Scheme: LAMBDA PSU
Outside Validation Scope
Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
Chroma 63640-80-80 x10
Chroma 63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A
EMI Analyzer TekBox TBMR-110M-EU
Isolation Transformer 4kVA
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
BrandSharkoon
ModelRebel P10 850
OEM/ODMAndyson
Serial Number
Product Specifications
Manufacturer-Provided Information
Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)50-60
Rated Power (W)850
Operating Temperature (Continuous Full Load) (°C)
TypeATX12V
Cable DesignFixed cables
Warranty-
Cybenetics Measurements
Dimensions (W x H x D)
Weight
Cooling120mm Sleeve Bearing Fan (S1202512M)
Semi-Passive Operation✗
Cybenetics Testing Information
Lab IDSK85002586
Date of receiptOct 29, 2024
Testing DateNov 8, 2024
Report Issued DateNov 15, 2024
DUT NotesExcessive noise at 989RPM
Engineer Name-
Authorized By the Laboratory Technical ManagerAristeidis Bitziopoulos
Signature

Cables and Connectors(Non-accredited measurements)

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (545mm) 1 1 18-22AWG No
4+4 pin EPS12V (620mm) 2 2 18AWG No
6+2 pin PCIe (575mm+150mm) 2 4 18AWG No
SATA (465mm+120mm+120mm) 1 3 18AWG No
SATA (460mm+120mm) / 4-pin Molex (+120mm) 1 2 / 1 18AWG No

Protection Features(Manufacturer)

Over Voltage Protection ✓
Under Voltage Protection ✓
Over Power Protection ✓
Over Current (+12V) Protection ✓
Over Temperature Protection ✓
Short Circuit Protection ✓
Surge Protection ✓

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps181870.830.3
Watts100850153.6
Total Max. Power (W)850

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)28-32 / 82.4-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Accredited
Average Efficiency (>1450 load combinations)85.183%
Average Noise Output (>1450 Load Combinations)37.03dBA
Average PF (>1450 Load Combinations)0.988
Efficiency With 10W (≤500W) or 2% (>500W) Load66.879%
Standby Power Consumption0.0678W
Non-Accredited
12V Ripple (Full Load)44.65mV
5V Ripple (Full Load)30.81mV
3.3V Ripple (Full Load)28.66mV
5VSB Ripple (Full Load)30.02mV
12V Load Regulation0.87%
5V Load Regulation1.99%
3.3V Load Regulation4.31%
5VSB Load Regulation4.33%
Inrush Current32.600A
Accredited
Average Efficiency (>1450 load combinations)87.644%
Average Noise Output (>1450 Load Combinations)36.95dBA
Average PF (>1450 Load Combinations)0.961
Efficiency With 10W (≤500W) or 2% (>500W) Load-
Standby Power Consumption0.1719W
Non-Accredited
12V Ripple (Full Load)44.11mV
5V Ripple (Full Load)28.48mV
3.3V Ripple (Full Load)26.53mV
5VSB Ripple (Full Load)26.88mV
12V Load Regulation0.83%
5V Load Regulation2.01%
3.3V Load Regulation4.25%
5VSB Load Regulation4.31%
Inrush Current65.300A
12V Transient Response (150%)11.58V
5V Transient Response (150%)4.954V
3.3V Transient Response (150%)3.197V
5VSB Transient Response (150%)4.912V
Hold-Up Time & PWR_OK Signal18.00ms
AC Loss to PWR_OK Hold Up Time14.60ms
PWR_OK Inactive to DC Loss Delay3.40ms
PSU Timings: T1 (20% / 100%)28.0ms27.0ms
PSU Timings: T3 (20% / 100%)119.0ms119.0ms
12V OCP (28.2°C / 44.8°C)92.20A (130.23%), 12.035V86.40A (122.03%), 12.027V
5V OCP (28.2°C / 44.8°C)22.7A (126.11%), 5.08V21.7A (120.56%), 5.085V*
3.3V OCP (28.2°C / 44.8°C)22.4A (124.44%), 3.341V
5VSB OCP (28.2°C / 44.8°C)4.7A (156.67%), 4.965V*21.2A (117.78%), 3.342V
OPP (29.37°C / 44.73°C)135.61%115.61%

Hold-Up Time & PWR_OK Signal

Hold-Up Time (ms)18
AC Loss to PWR_OK Hold Up Time (ms)14.6
PWR_OK Inactive to DC Loss Delay (ms)3.4

Stromverbrauch im Ruhezustand

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.88 V 114.82 V 113.85 V 114.93 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.422 1.490 PASS
Mains Voltage THD: 0.15 % 0.09 % N/A 0.30 % 2.00 % PASS
Real Power: 0.068 W 0.020 W N/A 0.099 W N/A N/A
Apparent Power: 7.803 W 7.789 W N/A 7.822 W N/A N/A
Power Factor: 0.011 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.98 V 229.90 V 227.70 V 230.03 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.415 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.14 % 0.08 % N/A 0.21 % 2.00 % PASS
Real Power: 0.172 W 0.137 W N/A 0.228 W N/A N/A
Apparent Power: 26.680 W 26.645 W N/A 26.730 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A

Graphs

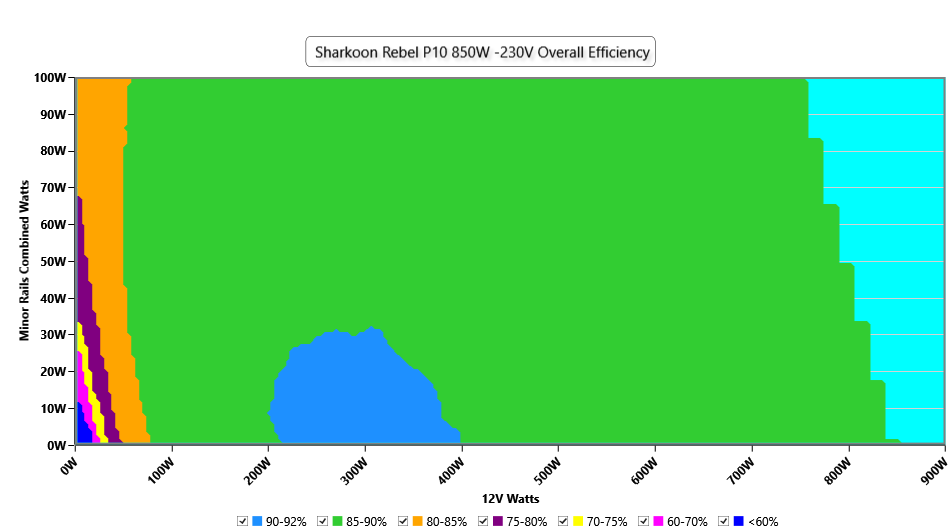

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

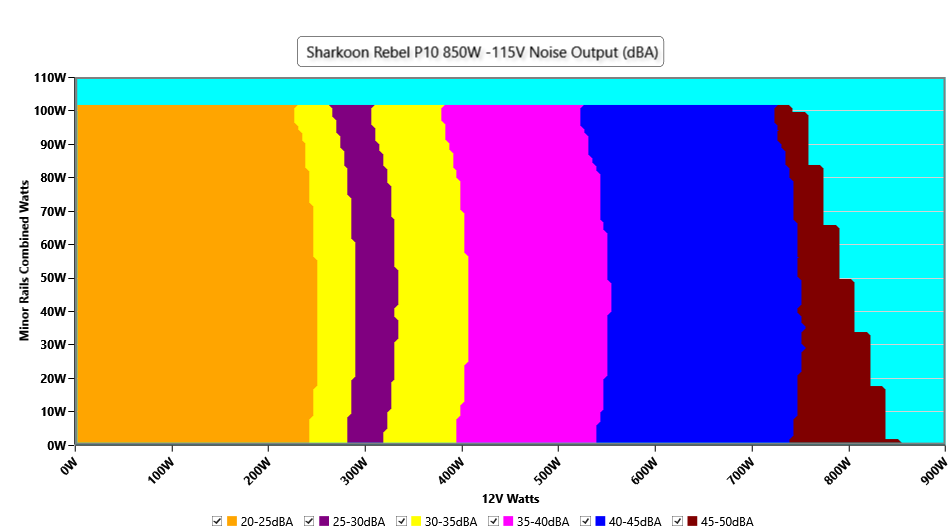

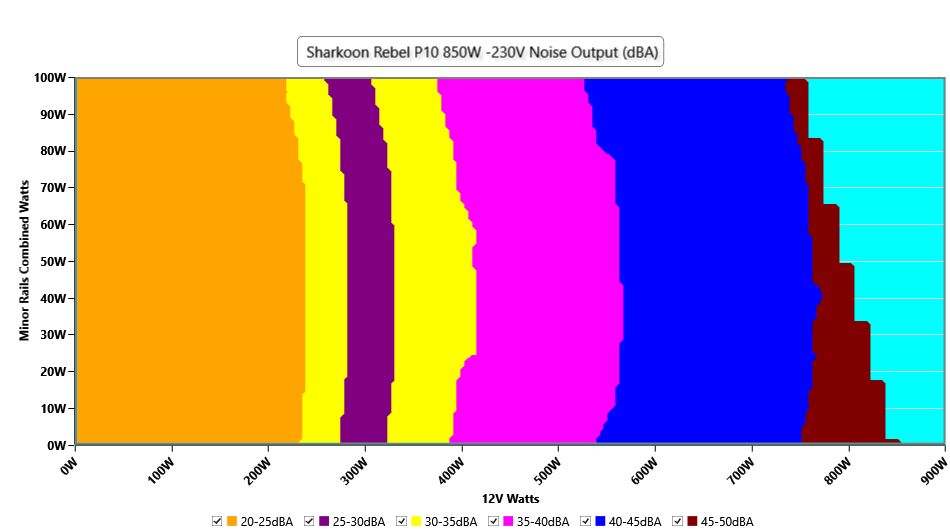

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Conducted Emissions EN 55032 & CISPR 32

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

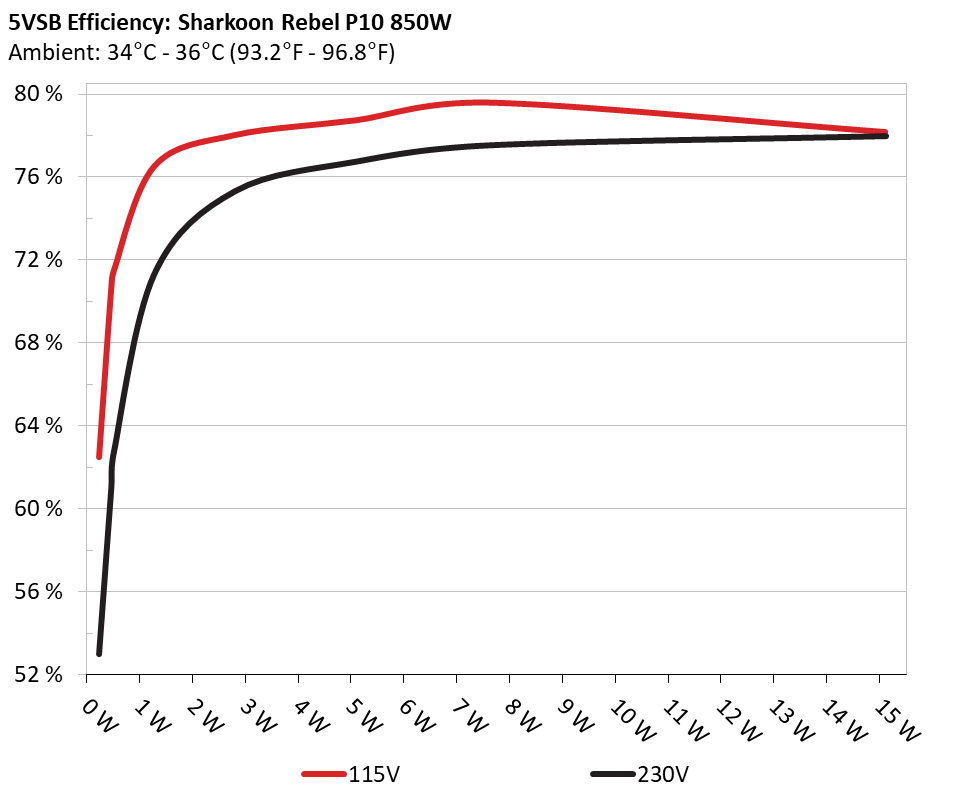

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 61.981% 0.047
5.111V 0.371W 114.87V
2 0.09A 0.46W 70.135% 0.081
5.11V 0.656W 114.87V
3 0.55A 2.804W 77.525% 0.292
5.098V 3.618W 114.87V
4 1A 5.088W 78.238% 0.346
5.087V 6.504W 114.87V
5 1.5A 7.612W 79.091% 0.387
5.074V 9.625W 114.86V
6 3.001A 15.109W 77.674% 0.444
5.035V 19.452W 114.87V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 52.516% 0.017
5.111V 0.438W 229.98V
2 0.09A 0.46W 60.502% 0.028
5.11V 0.762W 229.97V
3 0.55A 2.804W 74.839% 0.129
5.099V 3.748W 229.95V
4 1A 5.089W 76.259% 0.203
5.088V 6.673W 229.95V
5 1.5A 7.615W 77.05% 0.236
5.076V 9.883W 229.95V
6 3A 15.119W 77.491% 0.329
5.039V 19.511W 229.94V

Protection Features

OCP (Normal @ 28.2°C)12V: 92.20A (130.23%), 12.035V
5V: 22.7A (126.11%), 5.08V
3.3V: 22.4A (124.44%), 3.341V
5VSB: 4.7A (156.67%), 4.965V*
*High Ripple (52.8mV)
OCP (Hot @ 44.8°C)12V: 86.40A (122.03%), 12.027V
5V: 21.7A (120.56%), 5.085V*
*High Ripple (52.34mV)
3.3V: 21.2A (117.78%), 3.342V
5VSB: 4.6A (153.33%), 4.957V
OPP (Normal @ 29.4°C)1152.65W (135.61%)
OPP (Hot @ 44.7°C)982.66W (115.61%)
OTP✓ (145°C @ Secondary Side)
SCP12V to Earth: ✓
5V to Earth: ✓
3.3V to Earth: ✓
5VSB to Earth: ✓
-12V to Earth: ✓
PWR_OKProper Operation
NLO✓
Fan Failure Protection✗
SIPSurge: MOV
Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.242A 1.958A 1.956A 0.986A 85.012 83.322% 969 24.8 40.14°C 0.958
12.096V 5.107V 3.375V 5.073V 102.028 42.76°C 114.85V
20% 11.506A 2.944A 2.946A 1.187A 169.966 87.05% 1119 27.9 40.63°C 0.979
12.086V 5.097V 3.361V 5.054V 195.252 43.7°C 114.82V
30% 18.127A 3.441A 3.449A 1.39A 254.981 87.788% 1332 33.9 41.4°C 0.987
12.078V 5.087V 3.349V 5.036V 290.452 44.25°C 114.79V
40% 24.764A 3.94A 3.956A 1.595A 340.079 87.722% 1511 36.7 41.8°C 0.992
12.069V 5.077V 3.337V 5.018V 387.678 44.89°C 114.76V
50% 31.051A 4.935A 4.967A 1.801A 424.976 87.099% 1722 39.1 42.09°C 0.994
12.059V 5.067V 3.322V 4.999V 487.923 46.19°C 114.73V
60% 37.317A 5.935A 5.987A 2A 509.453 86.329% 1891 41.4 42.73°C 0.995
12.050V 5.056V 3.308V 4.979V 590.127 47.21°C 114.69V
70% 43.662A 6.94A 7.017A 2.219A 594.807 85.338% 2054 43.5 43.3°C 0.996
12.040V 5.045V 3.293V 4.958V 696.999 48.71°C 114.66V
80% 50.024A 7.946A 8.056A 2.329A 679.625 84.176% 2235 45.5 43.53°C 0.997
12.029V 5.034V 3.277V 4.94V 807.386 50.8°C 114.63V
90% 56.792A 8.46A 8.58A 2.438A 765.023 82.971% 2310 46.4 44.2°C 0.997
12.017V 5.024V 3.263V 4.923V 922.038 53.48°C 114.59V
100% 63.316A 8.974A 9.143A 3.067A 849.795 81.487% 2314 46.5 45.21°C 0.997
12.005V 5.015V 3.248V 4.892V 1042.859 57.17°C 114.55V
110% 69.676A 9.996A 10.294A 3.075A 934.26 80.169% 2320 46.5 46.01°C 0.998
11.999V 5.002V 3.234V 4.879V 1165.377 58.72°C 114.52V
CL1 0.115A 11.825A 11.895A 0A 101.297 78.297% 1697 38.8 41.94°C 0.97
12.084V 5.091V 3.337V 5.076V 129.378 47.07°C 114.83V
CL2 0.115A 17.665A 0A 0.001A 91.393 77.635% 1362 35.2 40.66°C 0.964
12.095V 5.095V 3.357V 5.087V 117.723 44.44°C 114.84V
CL3 0.115A 0A 17.728A 0A 60.783 72.318% 1202 29.8 41.2°C 0.948
12.093V 5.096V 3.35V 5.084V 84.051 43.86°C 114.85V
CL4 70.683A 0A 0A 0.001A 849.496 82.706% 2321 46.5 45.28°C 0.997
12.019V 5.037V 3.29V 4.993V 1027.152 55.33°C 114.57V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.242A 1.958A 1.955A 0.985A 85.006 84.987% 989 30 40.47°C 0.859
12.096V 5.108V 3.376V 5.074V 100.018 43.13°C 229.94V
20% 11.504A 2.943A 2.945A 1.187A 169.95 88.754% 1145 28.2 40.73°C 0.935
12.086V 5.097V 3.362V 5.055V 191.484 43.27°C 229.93V
30% 18.125A 3.441A 3.449A 1.39A 254.965 89.628% 1339 34 41.05°C 0.96
12.078V 5.088V 3.349V 5.037V 284.476 43.82°C 229.91V
40% 24.762A 3.94A 3.956A 1.594A 340.063 89.68% 1550 37.6 41.67°C 0.972
12.069V 5.078V 3.337V 5.019V 379.195 44.91°C 229.89V
50% 31.046A 4.935A 4.967A 1.8A 424.927 89.315% 1718 39 42.13°C 0.978
12.060V 5.067V 3.322V 5V 475.764 45.34°C 229.88V
60% 37.308A 5.935A 5.986A 2A 509.379 88.81% 1892 41.4 42.79°C 0.983
12.051V 5.056V 3.308V 4.98V 573.56 46.75°C 229.87V
70% 43.648A 6.939A 7.015A 2.218A 594.712 88.18% 2043 43.2 43.03°C 0.986
12.042V 5.046V 3.294V 4.96V 674.431 47.54°C 229.85V
80% 50.002A 7.945A 8.052A 2.327A 679.518 87.488% 2209 45.3 43.88°C 0.988
12.032V 5.034V 3.278V 4.942V 776.694 49.19°C 229.84V
90% 56.767A 8.459A 8.575A 2.437A 764.926 86.714% 2301 46.4 44.67°C 0.989
12.022V 5.024V 3.265V 4.925V 882.128 50.75°C 229.82V
100% 63.285A 8.974A 9.138A 3.065A 849.736 85.732% 2310 46.4 45.5°C 0.991
12.010V 5.014V 3.25V 4.894V 991.156 53.08°C 229.81V
110% 69.688A 9.993A 10.299A 3.076A 934.322 84.687% 2309 46.4 46.45°C 0.992
11.997V 5.003V 3.233V 4.877V 1103.265 55.56°C 229.79V
CL1 0.116A 11.825A 11.895A 0A 101.296 79.936% 1685 38.7 40.24°C 0.895
12.086V 5.091V 3.337V 5.076V 126.723 45.12°C 229.94V
CL2 0.115A 17.665A 0A 0.001A 91.392 79.36% 1335 33.9 40.24°C 0.881
12.096V 5.095V 3.357V 5.087V 115.162 43.77°C 229.94V
CL3 0.114A 0A 17.727A 0A 60.782 73.373% 1184 29.1 40.78°C 0.828
12.094V 5.096V 3.351V 5.084V 82.84 43.37°C 229.94V
CL4 70.667A 0A 0A 0.001A 849.486 86.692% 2316 46.5 46.97°C 0.99
12.021V 5.036V 3.291V 4.994V 979.896 52.43°C 229.81V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.227A 0.489A 0.487A 0.196A 20.008 66.781% 921 23.2 36.74°C 0.872
12.109V 5.115V 3.388V 5.104V 29.961 39.02°C 114.87V
40W 2.701A 0.685A 0.682A 0.294A 40.007 78.172% 930 23.1 37.59°C 0.921
12.105V 5.113V 3.385V 5.099V 51.174 39.71°C 114.87V
60W 4.176A 0.881A 0.878A 0.393A 60.007 81.18% 941 22.8 38.71°C 0.941
12.101V 5.111V 3.382V 5.093V 73.92 41.3°C 114.86V
80W 5.648A 1.077A 1.074A 0.491A 79.96 83.762% 954 23.1 39.66°C 0.955
12.099V 5.109V 3.379V 5.088V 95.463 42.1°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.489A 0.487A 0.196A 19.998 67.038% 936 22.8 36.19°C 0.565
12.110V 5.115V 3.388V 5.105V 29.831 38.57°C 229.95V
40W 2.700A 0.685A 0.682A 0.294A 39.998 78.744% 934 23 37.35°C 0.72
12.106V 5.113V 3.386V 5.1V 50.792 39.29°C 229.95V
60W 4.175A 0.88A 0.878A 0.393A 59.998 82.668% 939 22.8 38.21°C 0.804
12.103V 5.111V 3.383V 5.094V 72.577 40.35°C 229.95V
80W 5.645A 1.076A 1.074A 0.491A 79.938 85.242% 950 22.6 39.08°C 0.848
12.100V 5.11V 3.38V 5.089V 93.775 41.27°C 229.94V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 11.6 mV 17.2 mV 14.0 mV 20.7 mV Pass
20% Load 13.5 mV 17.9 mV 14.3 mV 22.3 mV Pass
30% Load 14.8 mV 17.8 mV 14.8 mV 22.3 mV Pass
40% Load 15.9 mV 17.9 mV 15.8 mV 22.0 mV Pass
50% Load 17.8 mV 21.0 mV 16.5 mV 22.6 mV Pass
60% Load 20.7 mV 19.9 mV 18.4 mV 22.1 mV Pass
70% Load 25.5 mV 21.6 mV 21.3 mV 22.5 mV Pass
80% Load 30.0 mV 24.5 mV 25.4 mV 24.3 mV Pass
90% Load 34.7 mV 26.6 mV 25.6 mV 25.9 mV Pass
100% Load 44.7 mV 30.8 mV 28.7 mV 30.0 mV Pass
110% Load 49.7 mV 31.1 mV 31.4 mV 29.4 mV Pass
Crossload 1 18.7 mV 29.4 mV 25.3 mV 20.9 mV Pass
Crossload 2 16.7 mV 30.2 mV 18.8 mV 20.5 mV Pass
Crossload 3 15.0 mV 18.7 mV 22.1 mV 15.4 mV Pass
Crossload 4 40.6 mV 20.2 mV 24.9 mV 28.7 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 10.8 mV 16.4 mV 13.8 mV 19.7 mV Pass
20% Load 12.7 mV 16.9 mV 13.8 mV 21.2 mV Pass
30% Load 13.2 mV 17.5 mV 14.1 mV 19.8 mV Pass
40% Load 14.8 mV 17.8 mV 14.9 mV 19.3 mV Pass
50% Load 18.7 mV 19.6 mV 16.6 mV 19.9 mV Pass
60% Load 20.9 mV 19.5 mV 18.4 mV 19.6 mV Pass
70% Load 25.0 mV 20.0 mV 19.7 mV 20.8 mV Pass
80% Load 30.7 mV 24.0 mV 22.9 mV 21.1 mV Pass
90% Load 34.5 mV 25.1 mV 25.1 mV 22.3 mV Pass
100% Load 44.1 mV 28.5 mV 26.5 mV 26.9 mV Pass
110% Load 48.0 mV 30.9 mV 30.1 mV 26.9 mV Pass
Crossload 1 18.5 mV 27.2 mV 23.9 mV 19.9 mV Pass
Crossload 2 16.5 mV 30.5 mV 19.0 mV 20.5 mV Pass
Crossload 3 14.9 mV 18.4 mV 21.2 mV 14.5 mV Pass
Crossload 4 39.4 mV 17.0 mV 21.4 mV 22.8 mV Pass

The results above are not used in the certification process

Sharkoon Rebel P10 850

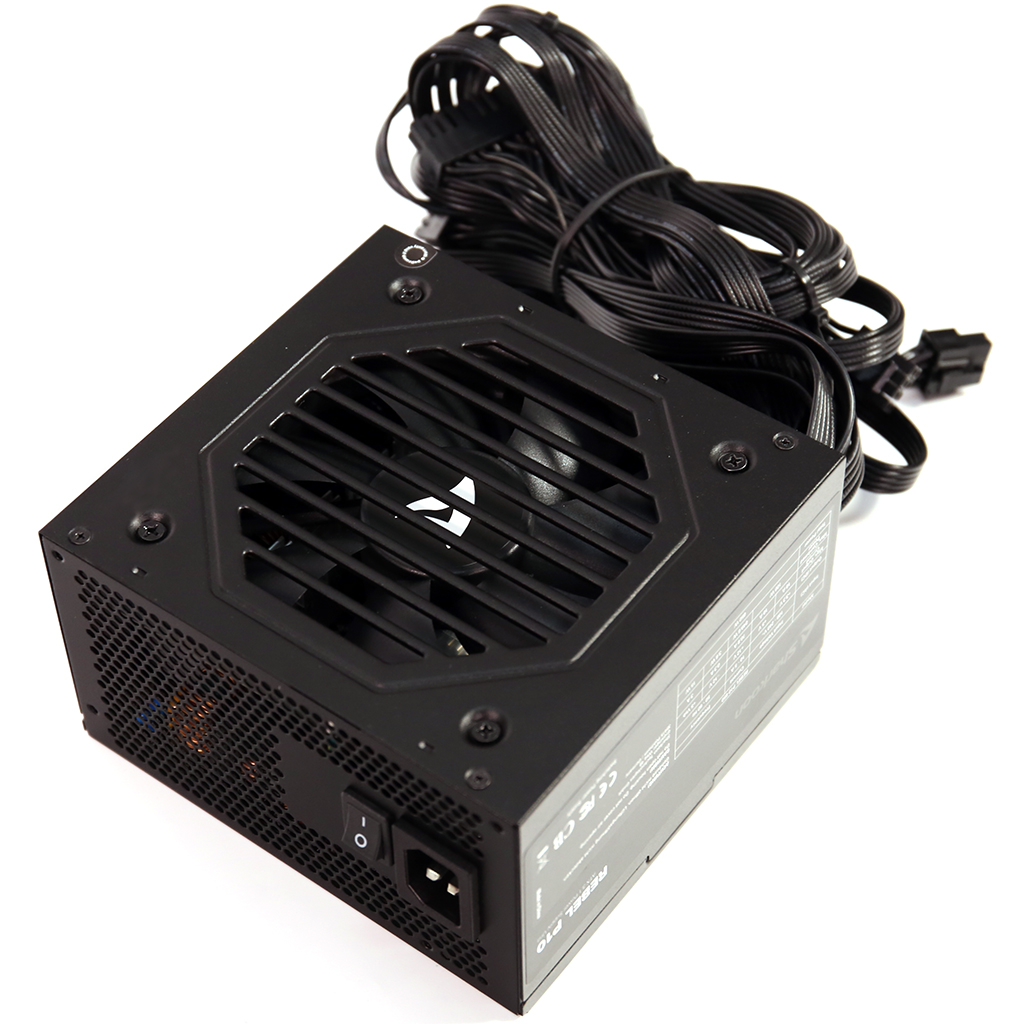

Top side

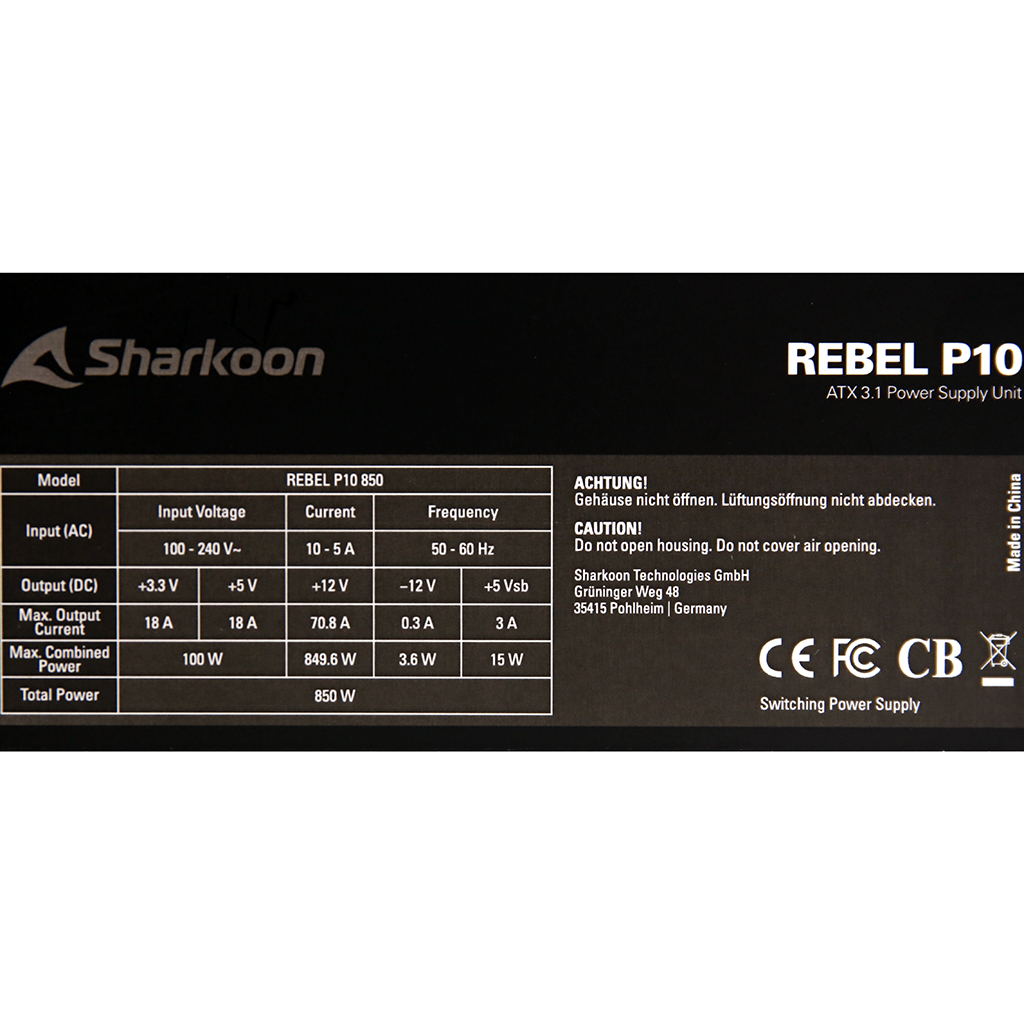

Power specifications label
Cybenetics bietet freiwillige Zertifizierungsprogramme für Netzteile – ETA für Effizienz, LAMBDA für Lautstärke und SAFE für Sicherheit und korrekten Betrieb – sowie für Kühlprodukte mit DELTA für die Schalldämmung von Gehäusen und PHI für Luftstrom und statischen Druck von Lüftern
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
