Cybenetics Test - SilverStone Triton 850Rz

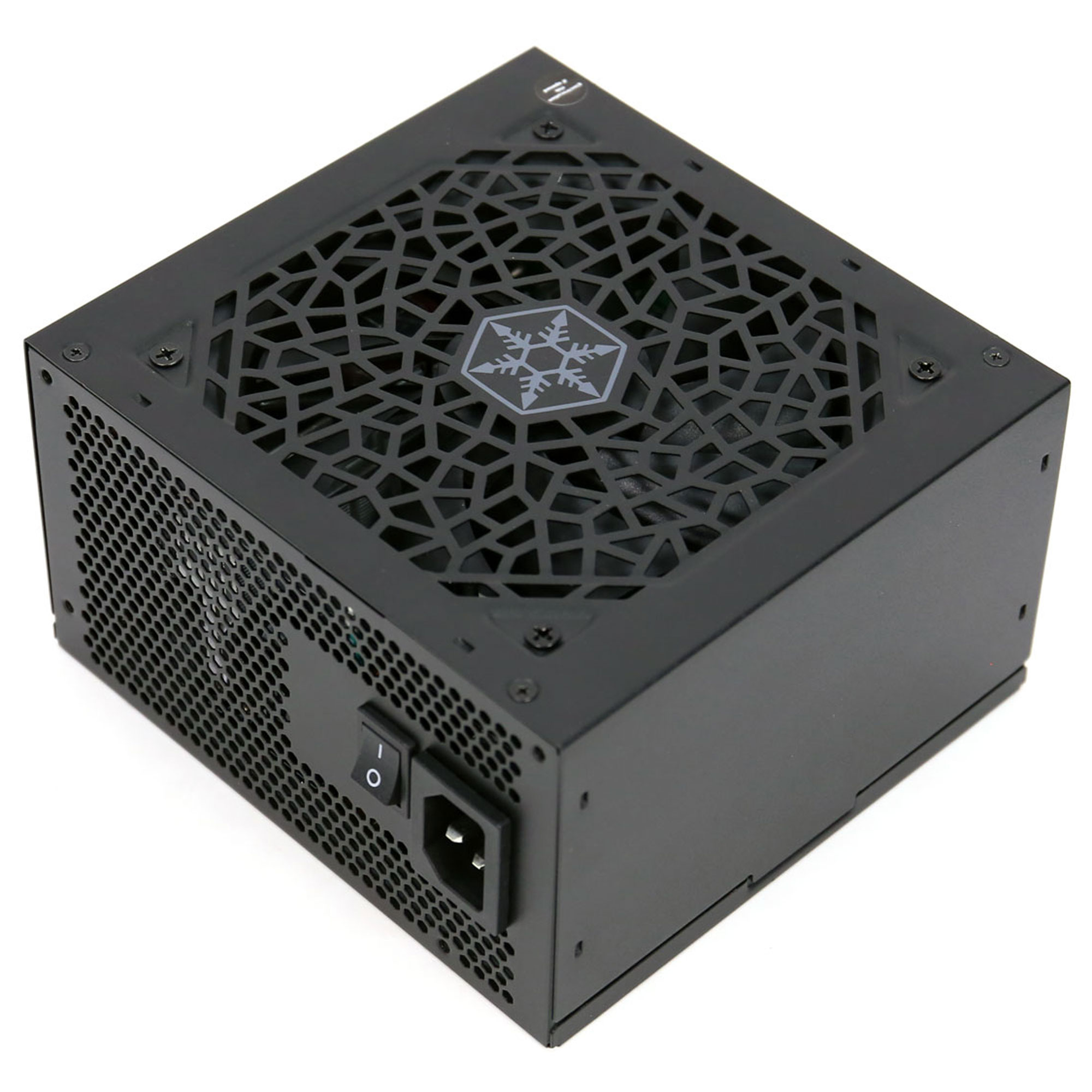

SilverStone Triton 850Rz

Serial Number-

Lab IDSL85002909

Certification ID252909

Test Result Report ID: 25PS2909A
Certificate Issue Date: Aug 4, 2025

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Outside Validation Scope

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

DUT Information

Brand	SilverStone
Manufacturer (OEM)	Andyson
Series	Triton Rz
Model Number	SST-AX0850FCGD-7QH
Serial Number	-
DUT Notes	Some protection features need adjustment.

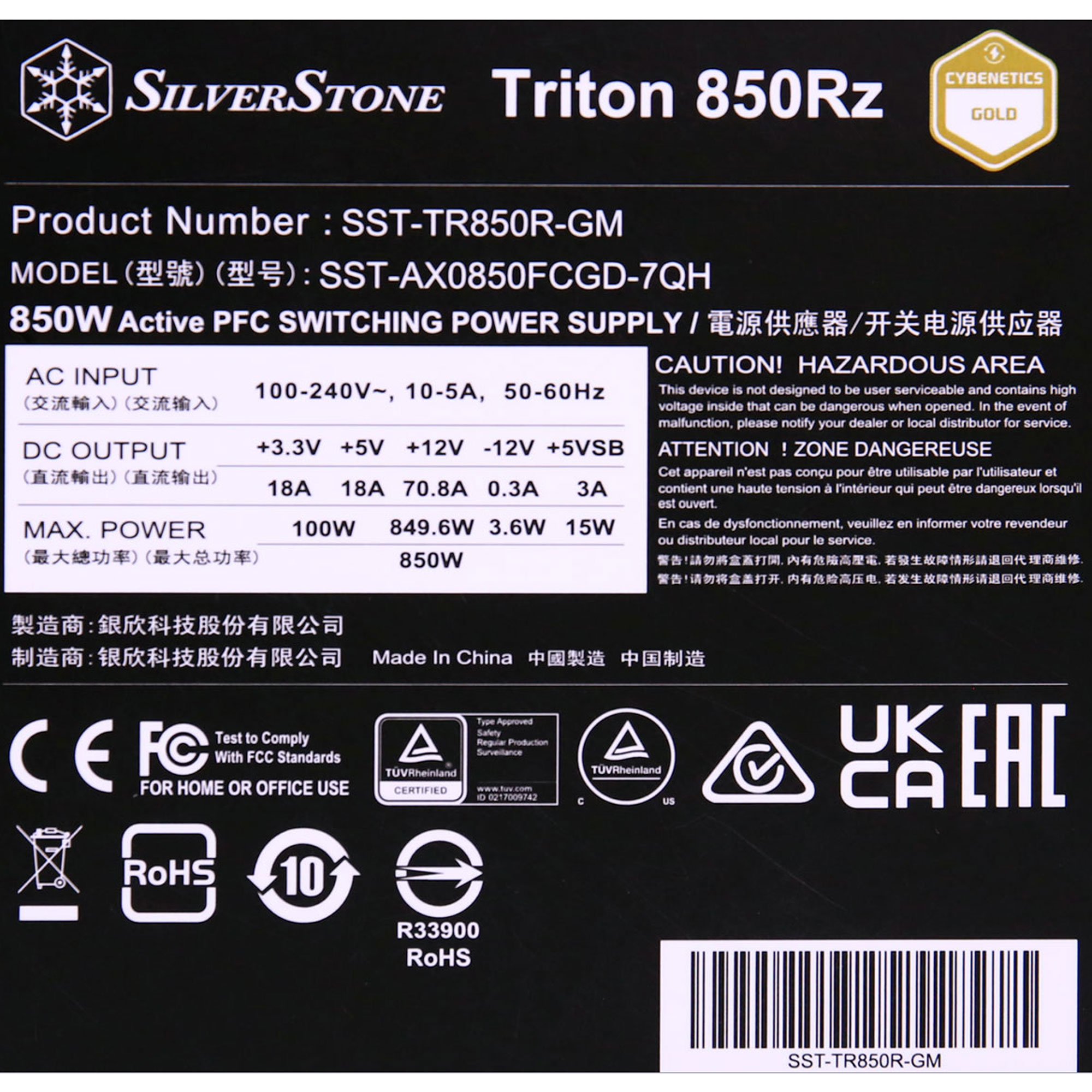

DUT Specifications

Rated Voltage (Vrms)	100-240
Rated Current (Arms)	5-10
Rated Frequency (Hz)	50-60
Rated Power (W)	850
Type	ATX12V
Dimensions (W x H x D)
Cooling	120mm Sleeve Bearing Fan (PY-1225M12S)
Semi-Passive Operation	✗
Cable Design	Fully Modular

Power Specifications

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	18	18	70.8	3	0.3
Max. Power	Watts	100		849.6	15	3.6
Total Max. Power (W)		850

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

Cables and Connectors(Non-accredited measurements)

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 24 pin (600mm)	1	1	18AWG	No
4+4 pin ATX12V (700mm)	2	2	18AWG	No
6+2 pin PCIe (600mm)	3	3	18AWG	No
12+4 pin PCIe (600mm) (600W)	1	1	16-24AWG	No
SATA (515mm+150mm+150mm+150mm)	1	4	18AWG	No
SATA (505mm+150mm) / 4-pin Molex (+150mm+150mm)	1	2 / 2	18AWG	No
AC Power Cord (1350mm) - C13 coupler	1	1	18AWG	-

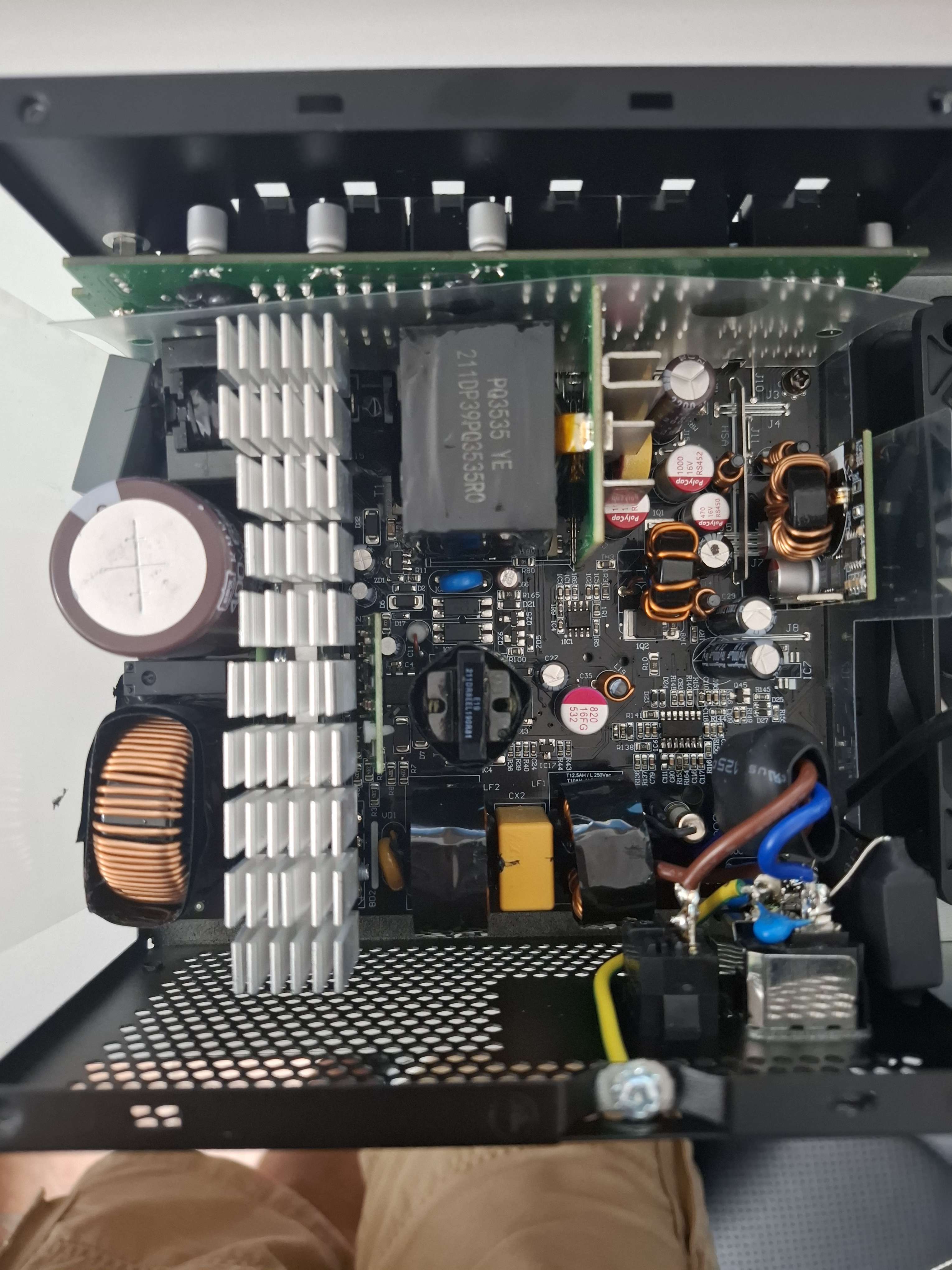

Parts Description

`General Data`
Manufacturer (OEM)	Andyson
PCB Type	Double-Sided
`Primary Side`
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	1x NTC Thermistor SCK 056 (5 ohm) & Relay
Bridge Rectifier(s)	2x GBU1506L (800V, 15A @ 100°C)
APFC MOSFETs	2x PingWei PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 120mOhm)
APFC Boost Diode	1x Global Power G4S06508AT (650V, 8A @ 153°C)
Bulk Cap(s)	1x Nippon Chemi-con (400V, 680uF, 2,000h @ 105°C, KMW)
Main Switchers	2x PingWei PWE120N65SFMF (650V, 20A @ 100°C, Rds(on): 120mOhm)
APFC Controller	Champion CM6500UNX & CM03AX (Remove Phantom Power)
Resonant Controller	Champion CM6901T6X
Topology	Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: [12V] Synchronous Rectification & [Minor Rails] DC-DC converters
`Secondary Side`
+12V MOSFETs	6x PingWei PWC012N04ES (40V, 132A @ 100°C, Rds(on): 1.2mOhm)
5V & 3.3V	DC-DC Converters: 4x WayOn WMO190N03TS (30V, 120A @ 100°C, Rds(on): 2.8mOhm) PWM Controller(s): 2x Anpec APW7164
Filtering Capacitors	Electrolytic: 1x Nippon Chemi-con (2-5,000h @105°C, KZE) 1x Nippon Chemi-con (4-10,000h @105°C, KY) 2x Nichicon (6,000h @105°C, HV(M)) 4x Rubycon (6-10,000h @105°C, ZLH) 1x Rubycon (4-10,000h @105°C, YXF) 1x Rubycon (4-10,000h @105°C, YXJ) 4x CS (2,000h @ 105°C WR) Polymer: 17x Polycap, 2x Teapo
Supervisor IC	Esthome EST.7630FS

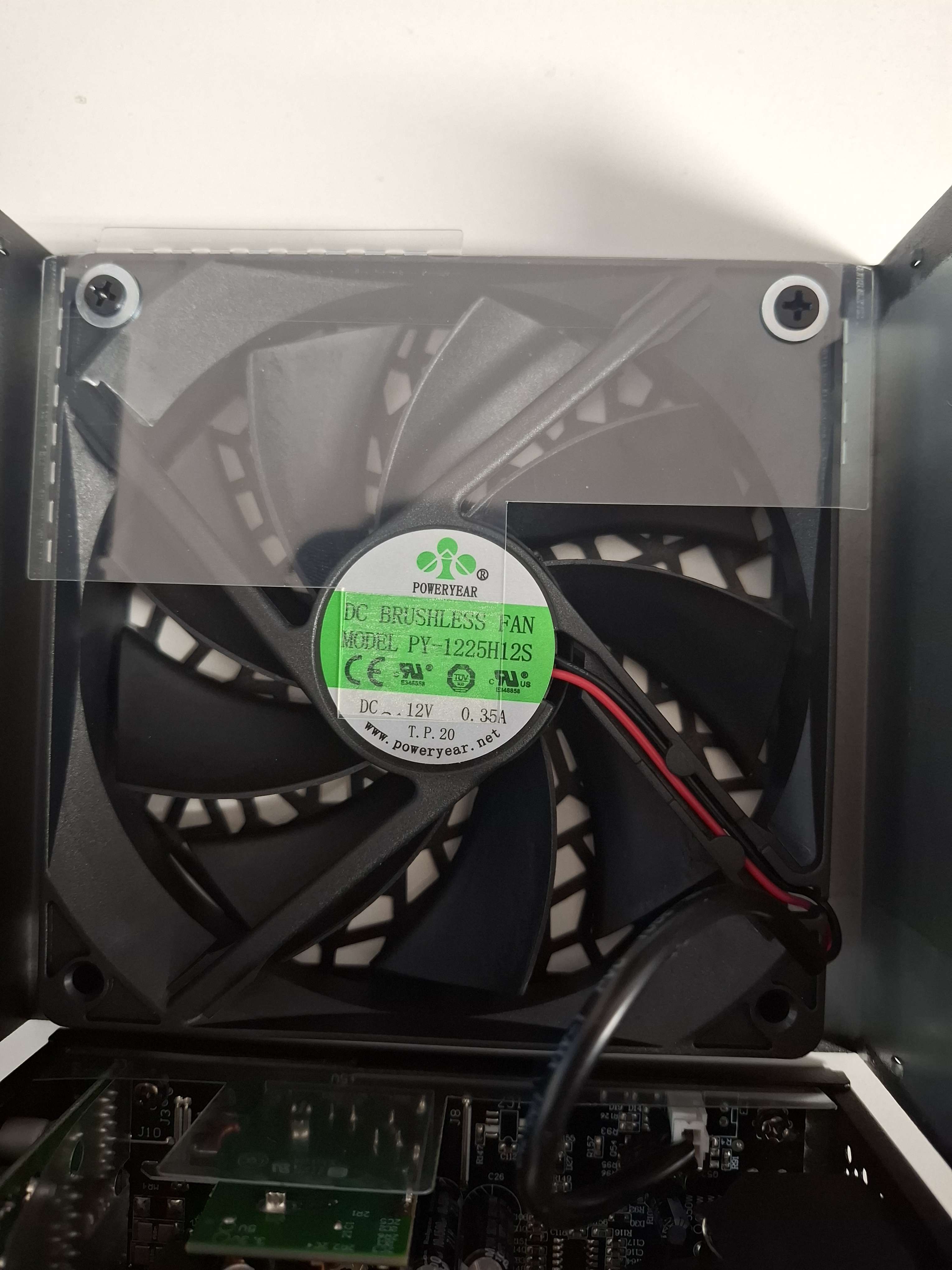

Fan Model	Poweryear PY-1225H12S (120mm, 12V, 0.35A, Sleeve Bearing Fan).
`5VSB`
Rectifier	1x Chongqing Pingwei PS1045L SBR (45V, 10A) & Chongqing Pingwei US2MG
Standby PWM Controller	Esthome EST.3026M

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)	30-32 / 86-89.6
ErP Lot 3/6 Ready	✓
(EU) No 617/2013 Compliance	✓
ALPM (Alternative Low Power Mode) compatible	✓
ATX v3.1 PSU Power Excursion	✓

Performance Summary

Efficiency Rating	GOLD
Noise Rating	Standard
Average Efficiency (>1450 load combinations)	88.720%
Average Noise Output (>1450 Load Combinations)	41.45dBA
Average PF (>1450 Load Combinations)	0.976
Efficiency With 10W (≤500W) or 2% (>500W) Load	64.307%
Standby Power Consumption	0.0627W
12V Ripple (Full Load)	30.23mV
5V Ripple (Full Load)	10.64mV
3.3V Ripple (Full Load)	11.23mV
5VSB Ripple (Full Load)	17.46mV
12V Load Regulation	0.45%
5V Load Regulation	2.00%
3.3V Load Regulation	2.63%
5VSB Load Regulation	4.86%
Inrush Current	33.050A

Efficiency Rating	GOLD
Noise Rating	Standard
Average Efficiency (>1450 load combinations)	90.807%
Average Noise Output (>1450 Load Combinations)	40.23dBA
Average PF (>1450 Load Combinations)	0.935
Efficiency With 10W (≤500W) or 2% (>500W) Load	64.162%
Standby Power Consumption	0.1068W
12V Ripple (Full Load)	32.26mV
5V Ripple (Full Load)	11.33mV
3.3V Ripple (Full Load)	10.75mV
5VSB Ripple (Full Load)	13.67mV
12V Load Regulation	0.49%
5V Load Regulation	1.98%
3.3V Load Regulation	2.66%
5VSB Load Regulation	4.84%
Inrush Current	65.330A
12V Transient Response (200%)	11.59V
5V Transient Response (200%)	4.889V
3.3V Transient Response (200%)	3.230V
5VSB Transient Response (200%)	4.916V
Hold-Up Time & Power Ok Signal	17.20ms
AC Loss to PWR_OK Hold Up Time	15.40ms
PWR_OK Inactive to DC Loss Delay	1.80ms
PSU Timings: T1 (20% / 100%)	56.0ms	53.0ms
PSU Timings: T3 (20% / 100%)	127.0ms	128.0ms
12V OCP (31.2°C / 44.0°C)	98.60A (139.27%), 12.166V	89.80A (126.84%), 12.189V
5V OCP (31.2°C / 44.0°C)	22.6A (125.56%), 5.003V	23.8A (132.22%), 4.999V
3.3V OCP (31.2°C / 44.0°C)	23.5A (130.56%), 3.362V	23.6A (131.11%), 3.361V
5VSB OCP (31.2°C / 44.0°C)	4.4A (146.67%), 4.882V	4.2A (140.00%), 4.888V
OPP (29.24°C / 42.73°C)	142.13%	122.71%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)	17.2
AC Loss to PWR_OK Hold Up Time (ms)	15.4
PWR_OK Inactive to DC Loss Delay (ms)	1.8

Vampire Power

Tables

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	115.07 V	115.03 V	113.85 V	115.13 V	116.15 V	PASS
Mains Frequency:	60.00 Hz	59.99 Hz	59.40 Hz	60.02 Hz	60.60 Hz	PASS
Mains Voltage CF:	1.417	1.415	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.15 %	0.11 %	N/A	0.21 %	2.00 %	PASS
Real Power:	0.063 W	-0.007 W	N/A	0.104 W	N/A	N/A
Apparent Power:	8.439 W	7.987 W	N/A	8.947 W	N/A	N/A
Power Factor:	0.010	N/A	N/A	N/A	N/A	N/A

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.03 V	230.92 V	227.70 V	231.11 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.420	1.490	PASS
Mains Voltage THD:	0.17 %	0.14 %	N/A	0.27 %	2.00 %	PASS
Real Power:	0.107 W	0.066 W	N/A	0.166 W	N/A	N/A
Apparent Power:	26.874 W	26.196 W	N/A	27.589 W	N/A	N/A
Power Factor:	0.003	N/A	N/A	N/A	N/A	N/A

Graphs

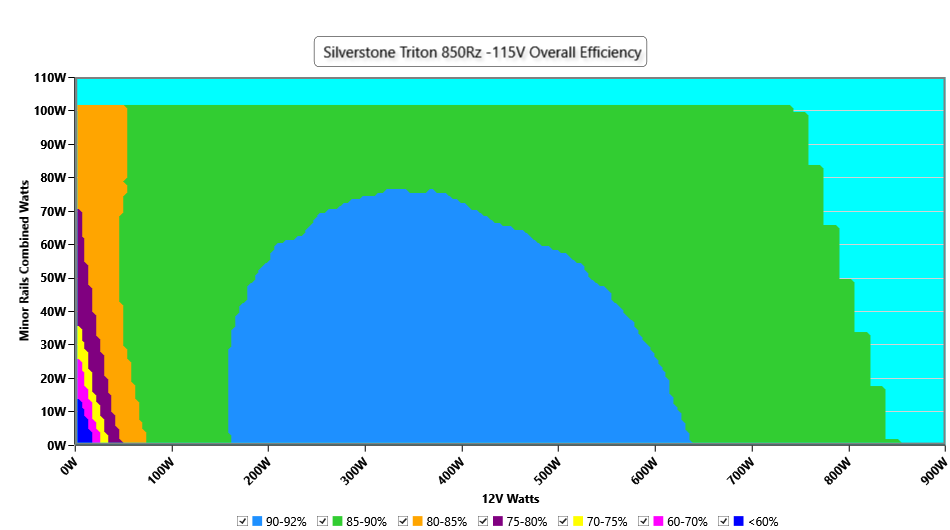

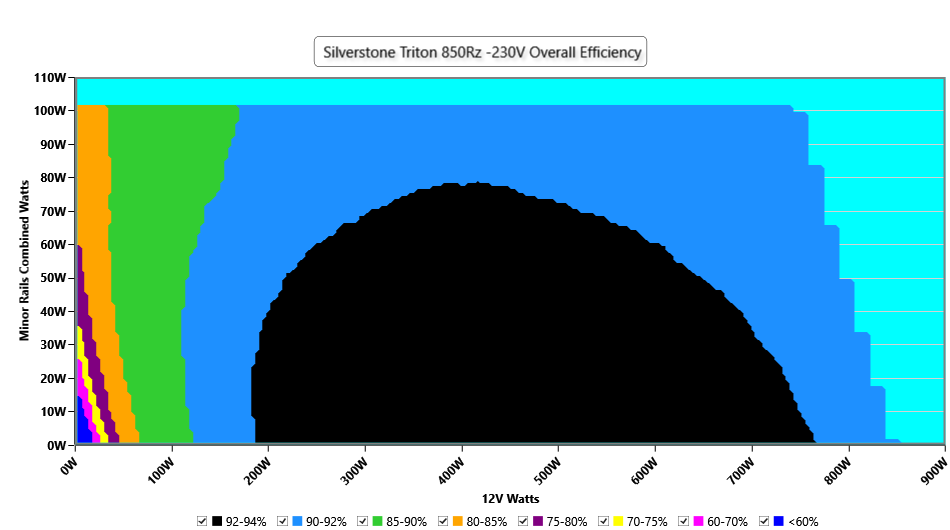

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

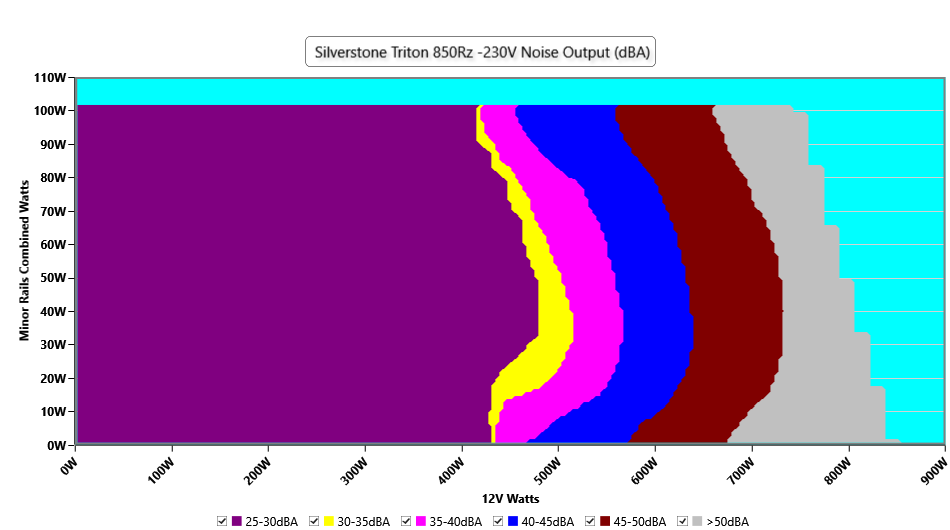

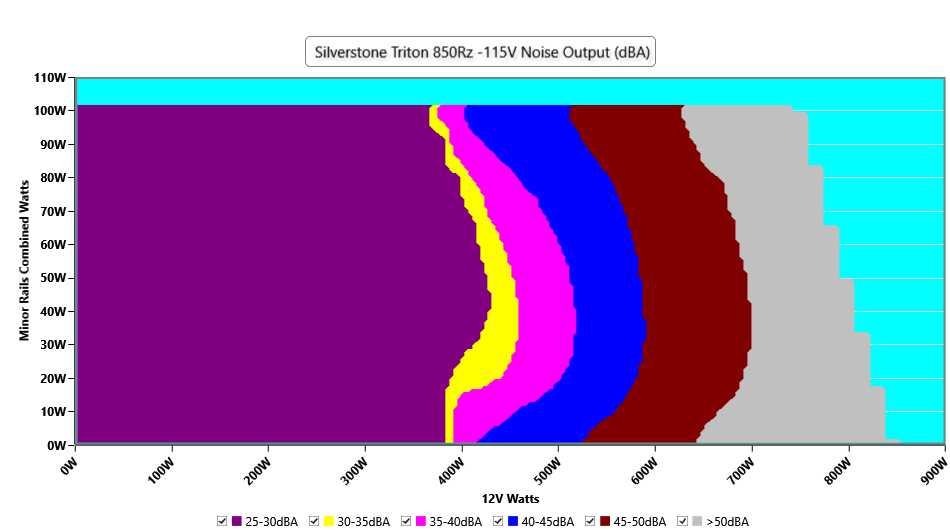

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

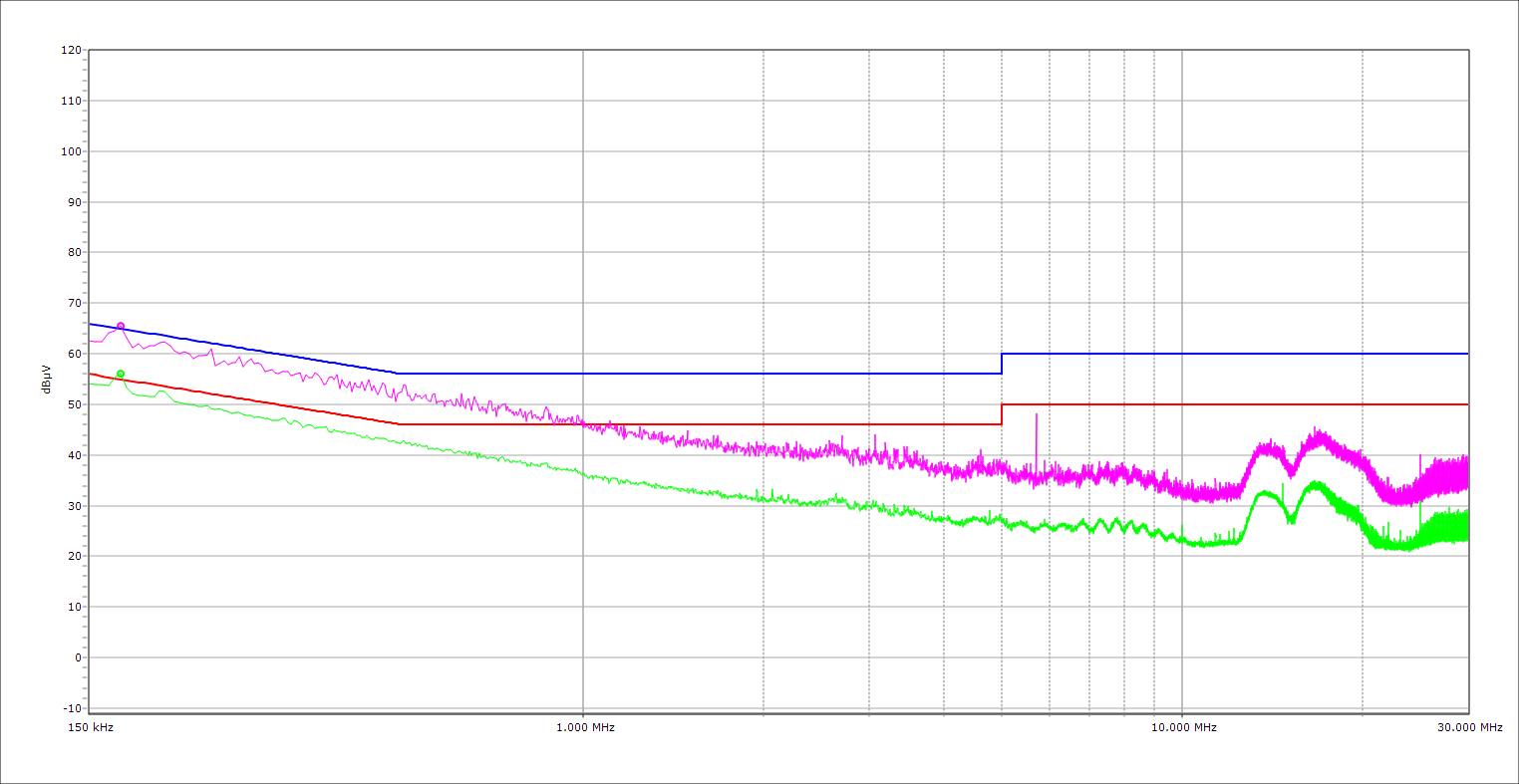

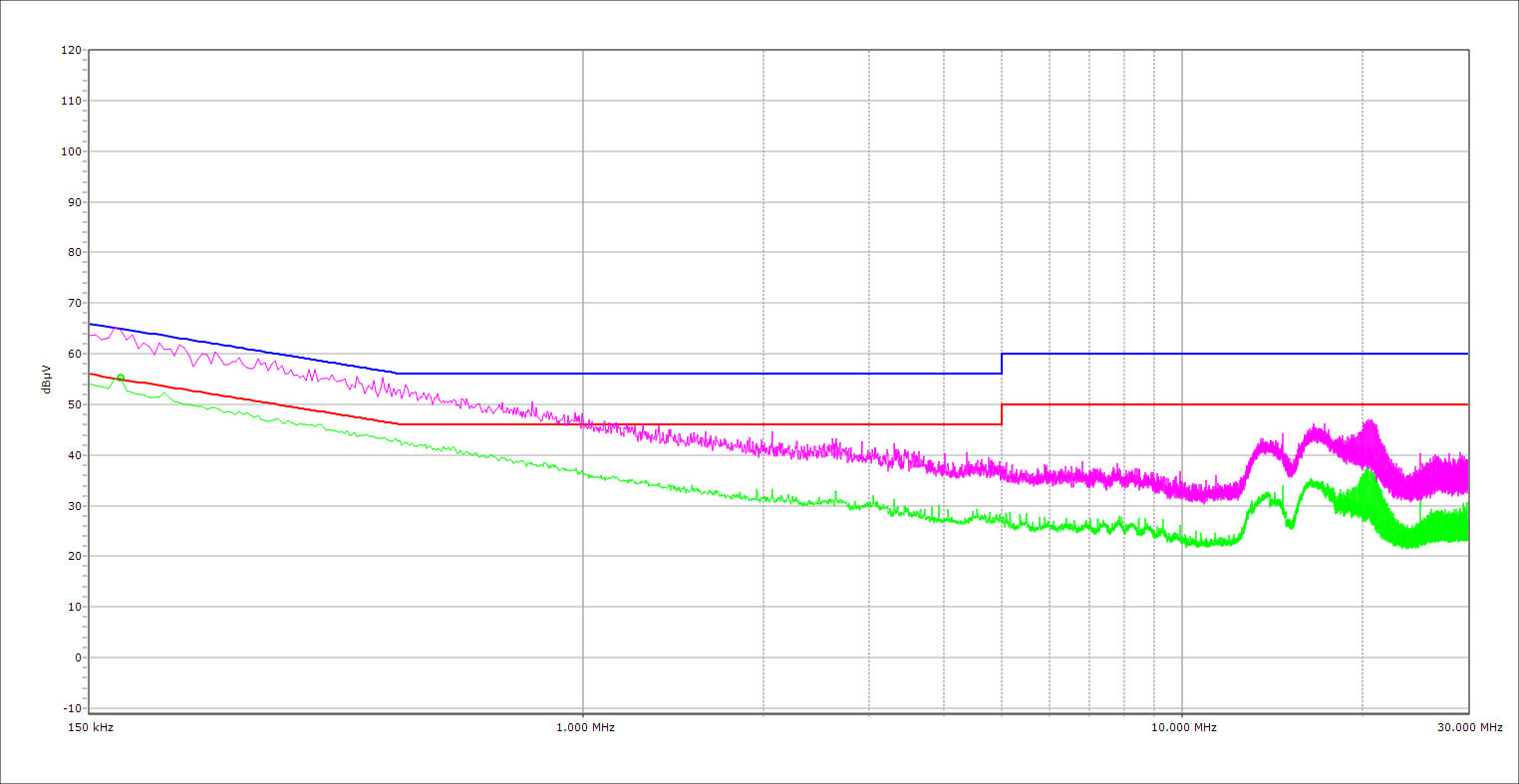

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

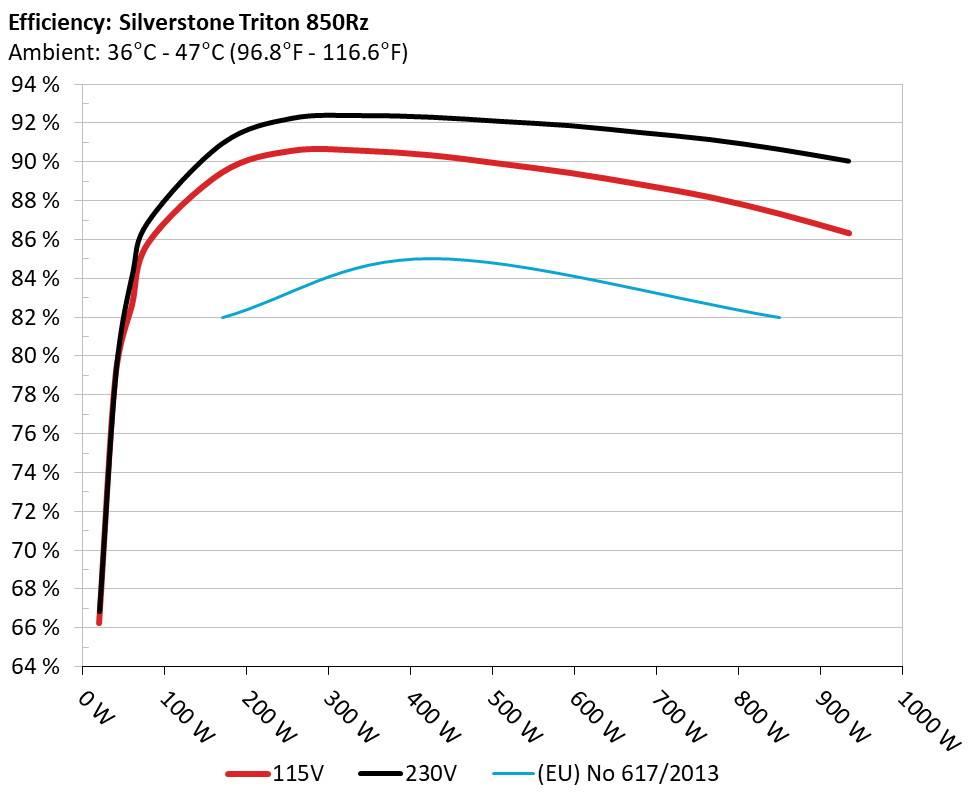

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

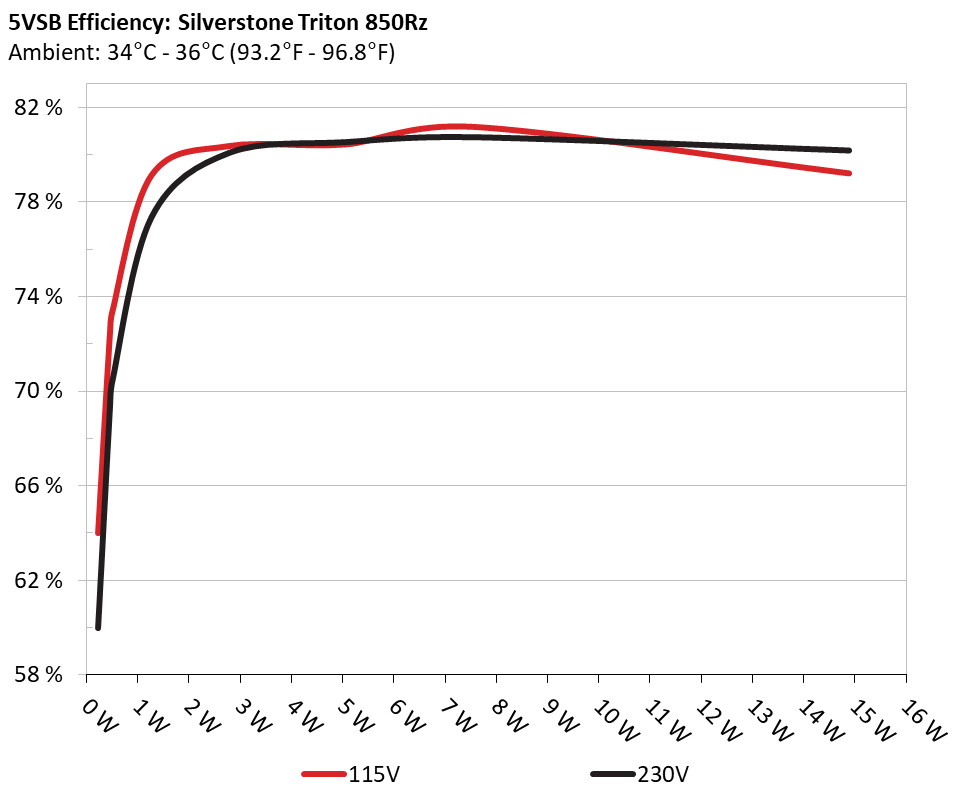

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	63.976%	0.047
1	5.103V	0.36W	63.976%	114.95V
2	0.09A	0.459W	72.363%	0.082
2	5.101V	0.635W	72.363%	114.95V
3	0.55A	2.794W	80.374%	0.308
3	5.08V	3.477W	80.374%	114.95V
4	1A	5.06W	80.439%	0.395
4	5.058V	6.29W	80.439%	114.95V
5	1.5A	7.553W	81.185%	0.434
5	5.034V	9.303W	81.185%	114.94V
6	3A	14.883W	79.215%	0.492
6	4.96V	18.789W	79.215%	114.94V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.23W	59.978%	0.015
1	5.103V	0.38W	59.978%	230.05V
2	0.09A	0.459W	69.203%	0.026
2	5.101V	0.664W	69.203%	230.05V
3	0.55A	2.795W	80.086%	0.129
3	5.08V	3.491W	80.086%	230.05V
4	1A	5.06W	80.535%	0.207
4	5.058V	6.285W	80.535%	230.05V
5	1.5A	7.554W	80.743%	0.269
5	5.034V	9.355W	80.743%	230.05V
6	3A	14.887W	80.18%	0.364
6	4.962V	18.566W	80.18%	230.04V

Protection Features

OCP (Normal @ 31.2°C)	12V: 98.60A (139.27%), 12.166V 5V: 22.6A (125.56%), 5.003V 3.3V: 23.5A (130.56%), 3.362V 5VSB: 4.4A (146.67%), 4.882V
OCP (Hot @ 44.0°C)	12V: 89.80A (126.84%), 12.189V 5V: 23.8A (132.22%), 4.999V 3.3V: 23.6A (131.11%), 3.361V 5VSB: 4.2A (140.00%), 4.888V
OPP (Normal @ 29.2°C)	1208.11W (142.13%)
OPP (Hot @ 42.7°C)	1043.01W (122.71%)
OTP	✓ (90°C @ Heat Sink)
SCP	12V to Earth: ✓ 5V to Earth: ✓ 3.3V to Earth: ✓ 5VSB to Earth: ✓ -12V to Earth: ✓
PWR_OK	Proper Operation
UVP (Full Load @ 90V)	✓
UVP (No Damage @ 80V)	✓
Conducted Emissions EN55032 & CISPR 32	✓
NLO	✓
Fan Failure Protection	✗
SIP	Surge: MOV Inrush: NTC & Bypass Relay

Supplementary Tests (For Reference)

Typical Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	5.182A	1.982A	1.948A	0.991A	85.007	85.958%	897	29.5	40.35°C	0.967
10%	12.236V	5.047V	3.389V	5.045V	98.892	85.958%	897	29.5	44.35°C	114.93V
20%	11.369A	2.978A	2.929A	1.194A	169.974	89.453%	900	29.8	40.54°C	0.954
20%	12.232V	5.038V	3.38V	5.026V	190.01	89.453%	900	29.8	47.27°C	114.91V
30%	17.904A	3.481A	3.425A	1.398A	254.99	90.571%	910	30.8	41.1°C	0.966
30%	12.228V	5.029V	3.372V	5.008V	281.298	90.571%	910	30.8	50.29°C	114.81V
40%	24.455A	3.985A	3.925A	1.604A	340.088	90.577%	1452	41.9	41.69°C	0.976
40%	12.222V	5.021V	3.364V	4.989V	375.47	90.577%	1452	41.9	51.05°C	114.87V
50%	30.675A	4.991A	4.92A	1.811A	425.109	90.337%	1768	46.9	42.12°C	0.982
50%	12.212V	5.011V	3.354V	4.97V	470.581	90.337%	1768	46.9	52.57°C	114.86V
60%	36.855A	6.002A	5.92A	2.001A	509.543	89.905%	2008	50.5	42.73°C	0.985
60%	12.205V	5V	3.345V	4.951V	566.761	89.905%	2008	50.5	54.57°C	114.83V
70%	43.112A	7.017A	6.925A	2.232A	595.001	89.427%	2032	50.6	43.24°C	0.987
70%	12.198V	4.99V	3.336V	4.929V	665.349	89.427%	2032	50.6	57.65°C	114.81V
80%	49.373A	8.036A	7.937A	2.341A	679.847	88.841%	2035	50.6	43.53°C	0.988
80%	12.191V	4.979V	3.326V	4.913V	765.245	88.841%	2035	50.6	60.05°C	114.79V
90%	56.027A	8.554A	8.439A	2.45A	765.274	88.181%	2033	50.6	44.12°C	0.99
90%	12.186V	4.969V	3.318V	4.898V	867.848	88.181%	2033	50.6	63.67°C	114.77V
100%	62.425A	9.075A	8.976A	3.09A	850.107	87.324%	2035	50.6	45.58°C	0.991
100%	12.181V	4.959V	3.309V	4.855V	973.509	87.324%	2035	50.6	68.48°C	114.75V
110%	68.690A	10.107A	10.093A	3.098A	934.664	86.327%	2033	50.6	46.54°C	0.992
110%	12.176V	4.947V	3.299V	4.842V	1082.71	86.327%	2033	50.6	73.2°C	114.73V
CL1	0.115A	12.007A	11.782A	0A	101.312	79.429%	1486	42.8	40.04°C	0.961
CL1	12.234V	5.014V	3.369V	5.071V	127.553	79.429%	1486	42.8	45.91°C	114.93V
CL2	0.114A	17.95A	0A	0A	91.405	79.439%	1139	35.8	40.52°C	0.966
CL2	12.233V	5.014V	3.381V	5.08V	115.065	79.439%	1139	35.8	46.53°C	114.93V
CL3	0.114A	0A	17.615A	0A	60.796	71.202%	1462	42	41.51°C	0.949
CL3	12.226V	5.038V	3.372V	5.079V	85.385	71.202%	1462	42	45.09°C	114.93V
CL4	69.769A	0A	0A	0A	849.755	88.439%	2056	50.6	45.68°C	0.991
CL4	12.180V	4.992V	3.328V	5.03V	960.837	88.439%	2056	50.6	72.44°C	114.74V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	5.182A	1.981A	1.948A	0.991A	85.007	86.803%	895	29.4	40.23°C	0.842
10%	12.235V	5.048V	3.389V	5.045V	97.933	86.803%	895	29.4	43.66°C	230.05V
20%	11.371A	2.978A	2.929A	1.194A	169.974	90.951%	898	29.6	40.7°C	0.909
20%	12.231V	5.039V	3.38V	5.026V	186.884	90.951%	898	29.6	45.87°C	230.04V
30%	17.906A	3.48A	3.425A	1.398A	254.988	92.249%	907	30.4	41.34°C	0.931
30%	12.227V	5.03V	3.372V	5.007V	276.412	92.249%	907	30.4	47.5°C	230.04V
40%	24.458A	3.984A	3.925A	1.604A	340.091	92.388%	1506	43.3	41.81°C	0.94
40%	12.220V	5.021V	3.364V	4.989V	368.111	92.388%	1506	43.3	47.59°C	230.03V
50%	30.684A	4.991A	4.92A	1.812A	425.178	92.303%	1815	47.8	42.36°C	0.949
50%	12.210V	5.011V	3.354V	4.969V	460.634	92.303%	1815	47.8	48.88°C	230V
60%	36.867A	6.001A	5.921A	2.001A	509.62	92.092%	1996	50.1	42.74°C	0.956
60%	12.203V	5.001V	3.345V	4.95V	553.386	92.092%	1996	50.1	50.04°C	229.98V
70%	43.131A	7.015A	6.927A	2.232A	595.026	91.868%	2024	50.6	43.38°C	0.96
70%	12.193V	4.992V	3.336V	4.93V	647.696	91.868%	2024	50.6	52.28°C	229.98V
80%	49.389A	8.033A	7.939A	2.341A	679.864	91.52%	2028	50.6	43.64°C	0.962
80%	12.188V	4.98V	3.325V	4.914V	742.856	91.52%	2028	50.6	53.53°C	229.97V
90%	56.046A	8.551A	8.441A	2.45A	765.285	91.156%	2030	50.6	44.33°C	0.965
90%	12.183V	4.971V	3.317V	4.899V	839.53	91.156%	2030	50.6	55.16°C	229.97V
100%	62.446A	9.073A	8.977A	3.089A	850.112	90.649%	2030	50.6	45.69°C	0.968
100%	12.177V	4.961V	3.308V	4.856V	937.807	90.649%	2030	50.6	57.67°C	229.96V
110%	68.711A	10.105A	10.095A	3.097A	934.664	90.046%	2031	50.6	46.48°C	0.971
110%	12.172V	4.948V	3.298V	4.844V	1037.983	90.046%	2031	50.6	60.81°C	229.95V
CL1	0.115A	12.003A	11.781A	0A	101.315	80.478%	1729	46	40.9°C	0.881
CL1	12.236V	5.016V	3.37V	5.071V	125.891	80.478%	1729	46	46.19°C	230.04V
CL2	0.114A	17.947A	0A	0A	91.404	80.516%	1130	35.7	40.87°C	0.868
CL2	12.233V	5.015V	3.381V	5.08V	113.526	80.516%	1130	35.7	46.12°C	230.05V
CL3	0.114A	0A	17.616A	0A	60.796	72.145%	1604	44.6	41.46°C	0.816
CL3	12.228V	5.037V	3.372V	5.079V	84.269	72.145%	1604	44.6	45.8°C	230.05V
CL4	69.776A	0A	0A	0A	849.766	91.619%	2040	50.6	45.34°C	0.968
CL4	12.179V	4.992V	3.328V	5.031V	927.501	91.619%	2040	50.6	55.64°C	229.97V

The results above are not used in the certification process

Light Load Tests

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.214A	0.494A	0.486A	0.196A	20.011	66.265%	886	29.1	36.52°C	0.872
20W	12.236V	5.058V	3.396V	5.091V	30.206	66.265%	886	29.1	39.85°C	114.94V
40W	2.672A	0.692A	0.681A	0.295A	40.007	78.992%	888	29.2	37.55°C	0.921
40W	12.236V	5.056V	3.394V	5.085V	50.647	78.992%	888	29.2	40.32°C	114.94V
60W	4.130A	0.891A	0.876A	0.394A	60.004	82.621%	890	29.3	38.36°C	0.937
60W	12.235V	5.053V	3.392V	5.078V	72.627	82.621%	890	29.3	42.61°C	114.94V
80W	5.585A	1.089A	1.071A	0.493A	79.969	85.832%	894	29.4	39.46°C	0.96
80W	12.236V	5.051V	3.39V	5.071V	93.171	85.832%	894	29.4	43.59°C	114.94V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.214A	0.494A	0.486A	0.196A	20.009	66.86%	886	29.1	36.93°C	0.575
20W	12.235V	5.059V	3.396V	5.091V	29.926	66.86%	886	29.1	40.54°C	230.05V
40W	2.672A	0.692A	0.681A	0.295A	40.006	79.136%	887	29.2	37.22°C	0.716
40W	12.236V	5.057V	3.394V	5.084V	50.557	79.136%	887	29.2	41.46°C	230.06V
60W	4.130A	0.891A	0.876A	0.394A	60.005	84.187%	890	29.3	38.31°C	0.786
60W	12.235V	5.054V	3.392V	5.077V	71.276	84.187%	890	29.3	42.7°C	230.06V
80W	5.585A	1.089A	1.071A	0.493A	79.97	86.953%	890	29.3	39.11°C	0.831
80W	12.236V	5.052V	3.39V	5.071V	91.972	86.953%	890	29.3	43.11°C	230.05V

The results above are not used in the certification process

Ripple Measurements

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	8.29mV	9.69mV	6.97mV	6.11mV	Pass
20% Load	9.11mV	10.56mV	7.43mV	6.32mV	Pass
30% Load	10.40mV	9.13mV	8.14mV	5.76mV	Pass
40% Load	11.06mV	9.13mV	8.95mV	7.28mV	Pass
50% Load	12.48mV	9.38mV	8.59mV	7.23mV	Pass
60% Load	12.98mV	9.90mV	8.65mV	13.55mV	Pass
70% Load	15.11mV	9.23mV	8.44mV	9.42mV	Pass
80% Load	17.15mV	10.61mV	10.22mV	12.07mV	Pass
90% Load	17.86mV	10.40mV	10.58mV	13.65mV	Pass
100% Load	30.23mV	10.64mV	11.23mV	17.46mV	Pass
110% Load	35.12mV	11.23mV	11.56mV	20.01mV	Pass
Crossload1	13.91mV	11.75mV	11.45mV	8.58mV	Pass
Crossload2	8.85mV	9.08mV	6.00mV	7.69mV	Pass
Crossload3	8.80mV	11.07mV	10.02mV	7.34mV	Pass
Crossload4	29.72mV	8.97mV	5.07mV	14.06mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	8.19mV	9.18mV	6.87mV	5.45mV	Pass
20% Load	10.58mV	8.52mV	7.68mV	6.16mV	Pass
30% Load	11.82mV	9.18mV	7.88mV	5.91mV	Pass
40% Load	12.37mV	8.93mV	8.85mV	7.34mV	Pass
50% Load	12.92mV	9.85mV	8.14mV	6.67mV	Pass
60% Load	13.52mV	8.82mV	8.04mV	13.14mV	Pass
70% Load	14.69mV	8.83mV	7.83mV	10.39mV	Pass
80% Load	16.84mV	9.84mV	10.07mV	11.97mV	Pass
90% Load	19.78mV	10.40mV	10.17mV	12.59mV	Pass
100% Load	32.26mV	11.33mV	10.75mV	13.67mV	Pass
110% Load	38.55mV	11.63mV	11.29mV	15.64mV	Pass
Crossload1	15.39mV	11.51mV	11.64mV	7.83mV	Pass
Crossload2	8.65mV	8.73mV	5.75mV	7.33mV	Pass
Crossload3	8.65mV	10.71mV	10.12mV	7.39mV	Pass
Crossload4	32.77mV	9.08mV	5.21mV	11.09mV	Pass

The results above are not used in the certification process

SilverStone Triton 850Rz

Top side

Power specifications label

Fan

PSU Internals
