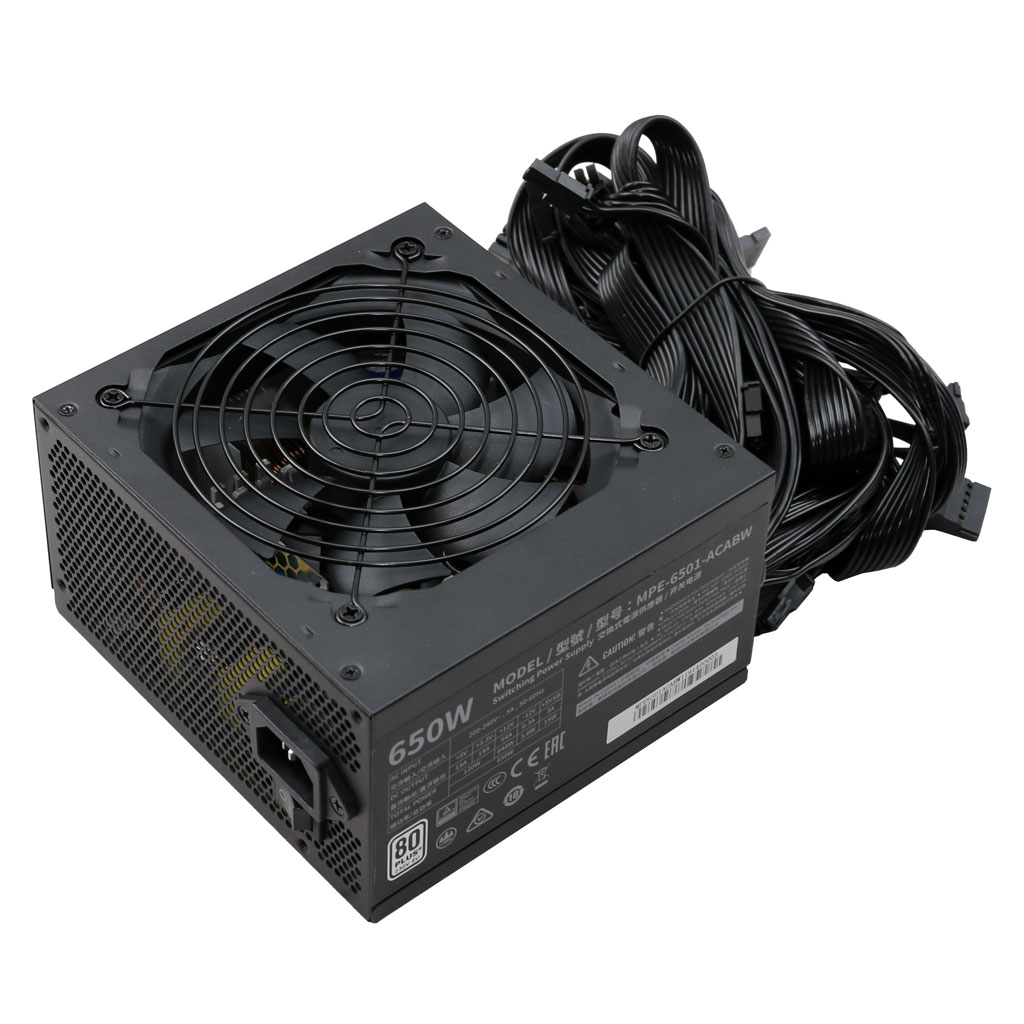

Cooler Master MWE 650 (#2)

序号MPE6501ACABW1191400004

Lab IDCM19650028

Certification ID25770

Test Result Report ID:
Certificate Issue Date: Nov 6, 2019

	115V	230V
Scheme: ETA-EMI PSU

115V	230V
		Scheme: LAMBDA PSU

Aristeidis Bitziopoulos, Certification Body General Manager

General Information

Test Equipment

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 Chroma 63640-80-80 x10 Chroma 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P, GW Instek ASR-3500
Power Analyzers	Rohde & Schwarz HMC8015 & NPA701
Oscilloscopes	Picoscope 4444, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A
EMI Analyzer	TekBox TBMR-110M-EU
Isolation Transformer	4kVA
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Testing Methodology	Cybenetics PSU Test Protocol

DUT Information(Non-accredited measurements)

Product Identification Details
Brand	Cooler Master
Model	MWE 650 (#2)
OEM	Gospower
Serial Number	MPE6501ACABW1191400004
Product Specifications
Manufacturer
额定电压 (Vrms)	200-240
额定电流 (Arms)	5
额定频率 (Hz)	50-60
额定功率 (W)	650
Operating Temperature (Continuous Full Load) (°C)
类别	ATX12V
线材设计	Fixed cables
Warranty	-
Cybenetics
Dimensions (W x H x D)
Weight
散热	120mm Fluid Dynamic Bearing Fan (HA1225H12F-Z)
半被动运转	✓
Cybenetics Testing Information
Lab ID	CM19650028
Date of receipt	Jul 5, 2019
Testing Date	Oct 5, 2019
Report Issued Date	Nov 6, 2019
Engineer Name	-
Authorized By the Laboratory Technical Manager	Aristeidis Bitziopoulos
Signature

线材与接头(Non-accredited measurements)

直出线材
描述	线材数量	总连接器数量	Gauge	In Cable Capacitors
ATX 接头 20+4 pin (510mm)	1	1	18-20AWG	否
8 pin EPS 12V 接头 (540mm) / 4+4 pin EPS 12V 接头 (120mm)	1	1 / 1	18AWG	否
6+2pin PCIe接头 (490mm+100mm)	2	4	16-18AWG	否
SATA接头 (420mm+150mm+150mm)	2	6	18-20AWG	否
4-pin Molex (420mm+150mm+150mm)	1	3	18-20AWG	否
AC Power Cord (1400mm) - C13 coupler	1	1	18AWG	-

Protection Features(Manufacturer)

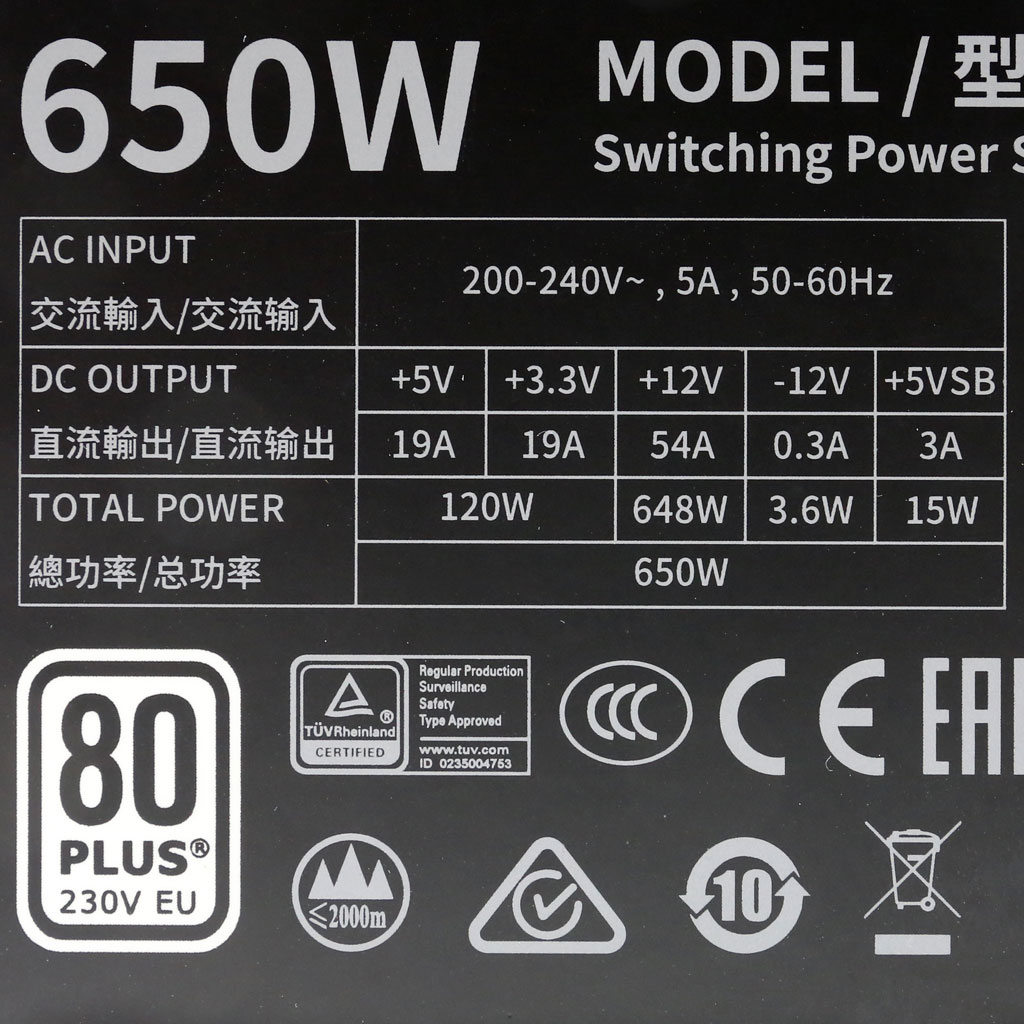

电源规范

组		3.3V	5V	12V	5VSB	-12V
最大功率	安培	19	19	54	3	0.3
最大功率	瓦	120		648	15	3.6
最大总功率 (W)		650

Parts Description

General Data
Manufacturer (OEM)	Gospower
PCB Type	Single Sided
Primary Side
Transient Filter	3x Y caps, 2x X caps, 2x CM chokes
Inrush Protection	NTC Thermistor & Relay
Bridge Rectifier(s)	1x Diode Incorporated GBU608 (800V, 6A @ 100°C)
APFC MOSFETS	2x JILIN SINO-MICROELECTRONICS JCS13N50FC (500V, 8A @ 100°C, 0.49Ohm)
APFC Boost Diode	1x JILIN SINO-MICROELECTRONICS 10F60UHF (600V, 10A @ 100°C)
Hold-up Cap(s)	1x Elite (420V, 470uF, 2000h @ 85°C, GM)
Main Switchers	2x JILIN SINO-MICROELECTRONICS JCS18N50FH (500V, 11A @ 100°C, 0.27Ohm)
APFC Controller	Champion CM6500UNX
Resonant Controllers	Champion CU6901V
Topology	Primary side: Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS	4x Nce Power NCE4080 (40V, 56A @ 100°C, 6.5mOhm)
5V & 3.3V	DC-DC Converters: 4x IPS FTD05N03NA (30V, 75A @ 100°C, 6mOhm) PWM Controllers: ANPEC APW7159C
Filtering Capacitors	Electrolytics: 5x Elite (2-5,000h @ 105°C, ED), 4x Elite (2,000h @ 105°C, EL), 2x CapXon (2-5,000h @ 105°C, KF), 1x CapXon (3-10,000h @ 105°C, GH) Polymers: CapXon
Supervisor IC	IN1S313I-SAG
Fan Model	Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, Fluid Dynamic Bearing Fan )
5VSB Circuit
Rectifier	-
Standby PWM Controller	On-Bright OB2365SP

Test Results

Temperature & Compliance Info

温度范围 (°C /°F)	30-32 / 86-89.6
符合ErP Lot3/6规范	✓
符合(EU) No 617/2013规范	✓

Performance Summary 230V

Accredited
平均效率 (>1450 load combinations)	87.543%
Average Noise Output (>1450 Load Combinations)	36.74dBA
PF平均值 (>1450 Load Combinations)	0.939
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
待机功率耗损	0.1829W
Non-Accredited
12V Ripple (Full Load)	42.51mV
5V Ripple (Full Load)	24.90mV
3.3V Ripple (Full Load)	27.68mV
5VSB Ripple (Full Load)	28.56mV
12V Load Regulation	1.27%
5V Load Regulation	2.91%
3.3V Load Regulation	2.83%
5VSB Load Regulation	4.10%
Inrush Current	Too low to detect
保持时间 & PG信号	22.00ms
AC Loss to PWR_OK Hold Up Time	62.00ms
PWR_OK Inactive to DC Loss Delay	-40.00ms
PSU Timings: T1 (20% / 100%)	0.0ms	0.0ms
PSU Timings: T3 (20% / 100%)	0.0ms	0.0ms
OPP (0.00°C / 0.00°C)	0.00%	0.00%

保持时间 & PG信号

Hold-Up Time (ms)	22
AC Loss to PWR_OK Hold Up Time (ms)	62
PWR_OK Inactive to DC Loss Delay (ms)	-40

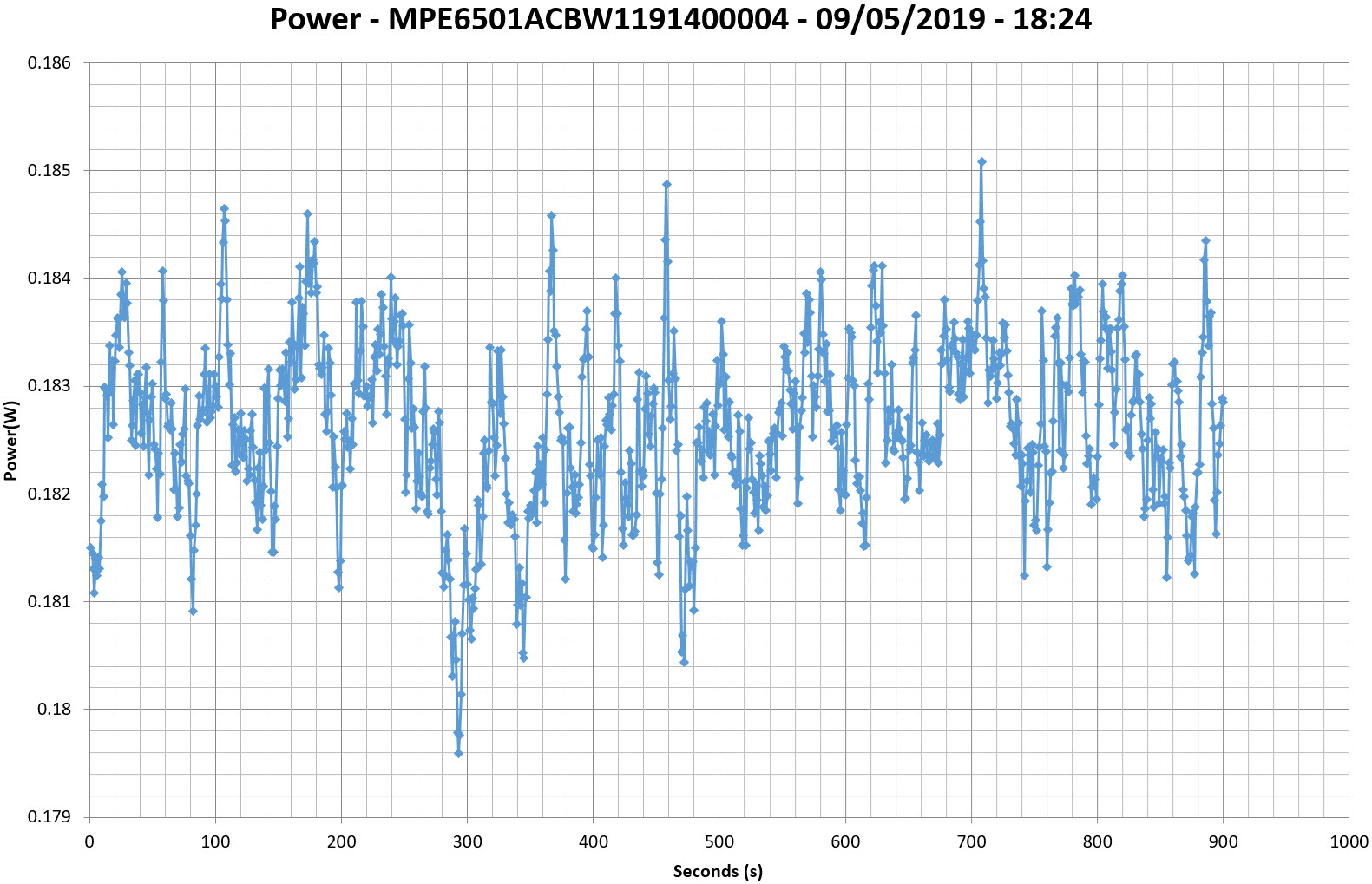

待机电源

Tables 230V

Graphs 230V

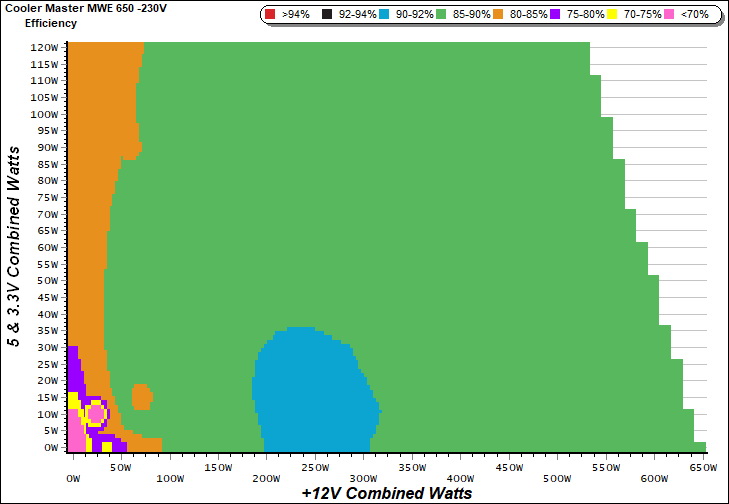

转换效率图表

230V

资讯

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

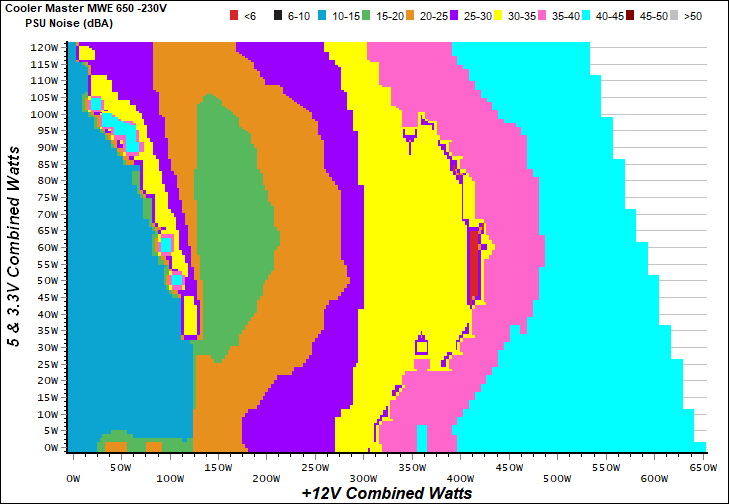

噪音值图表

230V

资讯

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Conducted Emissions EN55032 & CISPR 32

Indicative Performance

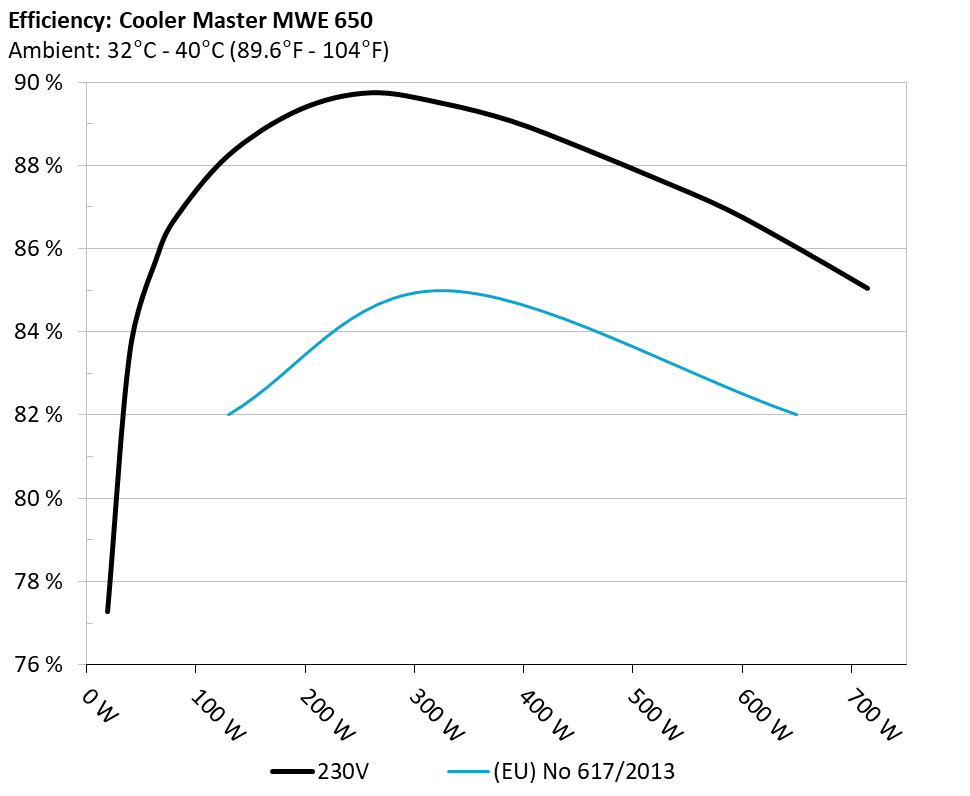

高环温电源转换效率

资讯

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

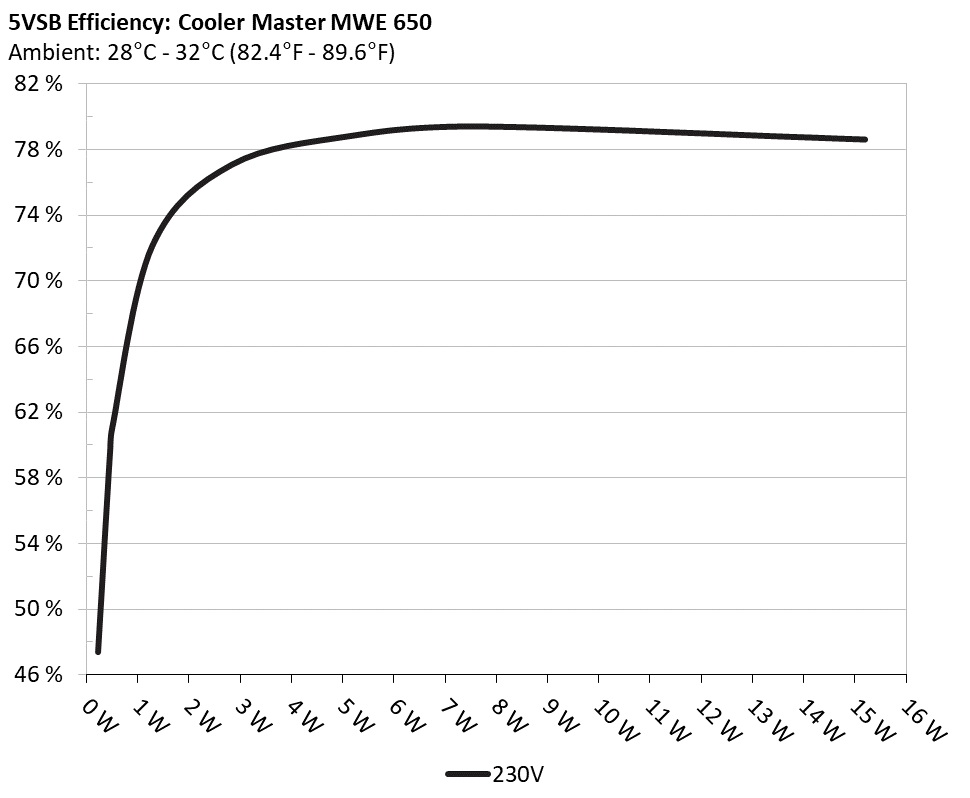

5Vsb转换效率

资讯

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

输入电压时的5Vsb 效率 (ErP Lot3/6 & CEC) 230V

测试 #	5VSB	DC/AC (瓦)	效率	PF/AC 电压
1	0.045A	0.234	47.368%	0.010
1	5.182V	0.494	47.368%	230.33V
2	0.090A	0.467	59.566%	0.015
2	5.181V	0.784	59.566%	230.33V
3	0.550A	2.840	77.048%	0.069
3	5.163V	3.686	77.048%	230.32V
4	1.000A	5.147	78.797%	0.119
4	5.146V	6.532	78.797%	230.32V
5	1.500A	7.690	79.377%	0.167
5	5.126V	9.688	79.377%	230.32V
6	3.000A	15.199	78.588%	0.275
6	5.066V	19.340	78.588%	230.32V

Protection Features

Supplementary Tests (For Reference)

10-110%负载测试 230V

测试 #	12V	5V	3.3V	5VSB	DC/AC (瓦)	效率	风扇转速 (RPM)	电源供应器噪音 (dB[A])	温度(输入/输出)	PF/AC 电压
1	3.572A	2.008A	1.963A	0.975A	64.764	85.598%	0	<6.0	40.43°C	0.719
1	12.087V	4.980V	3.355V	5.131V	75.661	85.598%	0	<6.0	34.03°C	230.31V
2	8.166A	3.021A	2.958A	1.174A	129.294	88.239%	0	<6.0	41.57°C	0.868
2	12.050V	4.964V	3.345V	5.113V	146.527	88.239%	0	<6.0	34.73°C	230.31V
3	13.143A	3.536A	3.445A	1.374A	194.414	89.345%	0	<6.0	42.45°C	0.923
3	12.054V	4.948V	3.335V	5.097V	217.600	89.345%	0	<6.0	35.48°C	230.31V
4	18.151A	4.051A	3.968A	1.575A	259.633	89.759%	1216	26.8	35.69°C	0.947
4	12.035V	4.935V	3.325V	5.080V	289.257	89.759%	1216	26.8	43.58°C	230.31V
5	22.835A	5.084A	4.977A	1.779A	324.931	89.510%	1463	32.7	36.11°C	0.961
5	12.018V	4.918V	3.314V	5.061V	363.011	89.510%	1463	32.7	44.29°C	230.31V
6	27.472A	6.121A	5.991A	1.983A	389.458	89.073%	1784	38.3	36.52°C	0.968
6	12.000V	4.901V	3.304V	5.043V	437.236	89.073%	1784	38.3	45.12°C	230.31V
7	32.185A	7.168A	7.014A	2.190A	454.779	88.417%	1315	28.9	37.34°C	0.973
7	11.983V	4.884V	3.293V	5.023V	514.358	88.417%	1315	28.9	46.32°C	230.32V
8	36.908A	8.220A	8.043A	2.399A	520.084	87.707%	2279	43.4	37.91°C	0.977
8	11.967V	4.867V	3.282V	5.003V	592.981	87.707%	2279	43.4	47.45°C	230.34V
9	42.051A	8.757A	8.555A	2.404A	585.017	86.965%	2383	44.4	38.88°C	0.980
9	11.950V	4.854V	3.273V	4.992V	672.706	86.965%	2383	44.4	48.95°C	230.32V
10	46.937A	9.297A	9.099A	3.028A	649.850	86.039%	2381	44.4	39.75°C	0.982
10	11.934V	4.841V	3.263V	4.956V	755.300	86.039%	2381	44.4	50.39°C	230.32V
11	52.435A	9.313A	9.120A	3.034A	714.671	85.053%	2385	44.4	40.45°C	0.983
11	11.919V	4.833V	3.255V	4.945V	840.266	85.053%	2385	44.4	51.93°C	230.33V
CL1	0.143A	14.002A	14.000A	0.000A	116.395	80.091%	1853	38.3	36.24°C	0.868
CL1	12.060V	4.876V	3.314V	5.132V	145.329	80.091%	1853	38.3	44.48°C	230.39V
CL2	54.008A	1.001A	0.998A	1.000A	658.380	86.769%	2380	44.4	39.56°C	0.982
CL2	11.945V	4.911V	3.290V	5.055V	758.769	86.769%	2380	44.4	50.62°C	230.32V

The results above are not used in the certification process

20-80瓦负载测试 230V

测试 #	12V	5V	3.3V	5VSB	DC/AC (瓦)	效率	风扇转速 (RPM)	电源供应器噪音 (dB[A])	PF/AC 电压
1	1.193A	0.499A	0.475A	0.193A	19.492	77.276%	0	<6.0	0.375
1	12.072V	4.998V	3.365V	5.171V	25.224	77.276%	0	<6.0	230.31V
2	2.452A	1.001A	0.978A	0.388A	39.915	83.536%	0	<6.0	0.575
2	12.084V	4.991V	3.361V	5.160V	47.782	83.536%	0	<6.0	230.30V
3	3.637A	1.505A	1.457A	0.583A	59.361	85.820%	0	<6.0	0.694
3	12.089V	4.984V	3.357V	5.149V	69.169	85.820%	0	<6.0	230.30V
4	4.904A	2.008A	1.967A	0.779A	79.789	86.674%	0	<6.0	0.770
4	12.071V	4.978V	3.353V	5.137V	92.056	86.674%	0	<6.0	230.30V

The results above are not used in the certification process

纹波测量 230V

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	59.2 mV	19.8 mV	14.3 mV	13.9 mV	Pass
20% Load	72.9 mV	20.2 mV	15.2 mV	15.0 mV	Pass
30% Load	29.0 mV	16.8 mV	16.1 mV	19.2 mV	Pass
40% Load	27.9 mV	18.2 mV	15.8 mV	17.3 mV	Pass
50% Load	26.5 mV	18.3 mV	16.3 mV	17.6 mV	Pass
60% Load	25.4 mV	18.8 mV	18.6 mV	19.5 mV	Pass
70% Load	24.9 mV	19.7 mV	20.0 mV	19.9 mV	Pass
80% Load	26.6 mV	20.9 mV	23.6 mV	21.9 mV	Pass
90% Load	26.5 mV	22.2 mV	23.9 mV	24.4 mV	Pass
100% Load	42.5 mV	24.9 mV	27.7 mV	28.6 mV	Pass
110% Load	43.9 mV	24.6 mV	25.9 mV	29.1 mV	Pass
Crossload 1	75.2 mV	29.3 mV	28.6 mV	16.4 mV	Pass
Crossload 2	41.5 mV	21.3 mV	16.5 mV	24.1 mV	Pass

The results above are not used in the certification process
